SsangYong Actyon Sports II. Service manual - part 184

03-9

7410-01

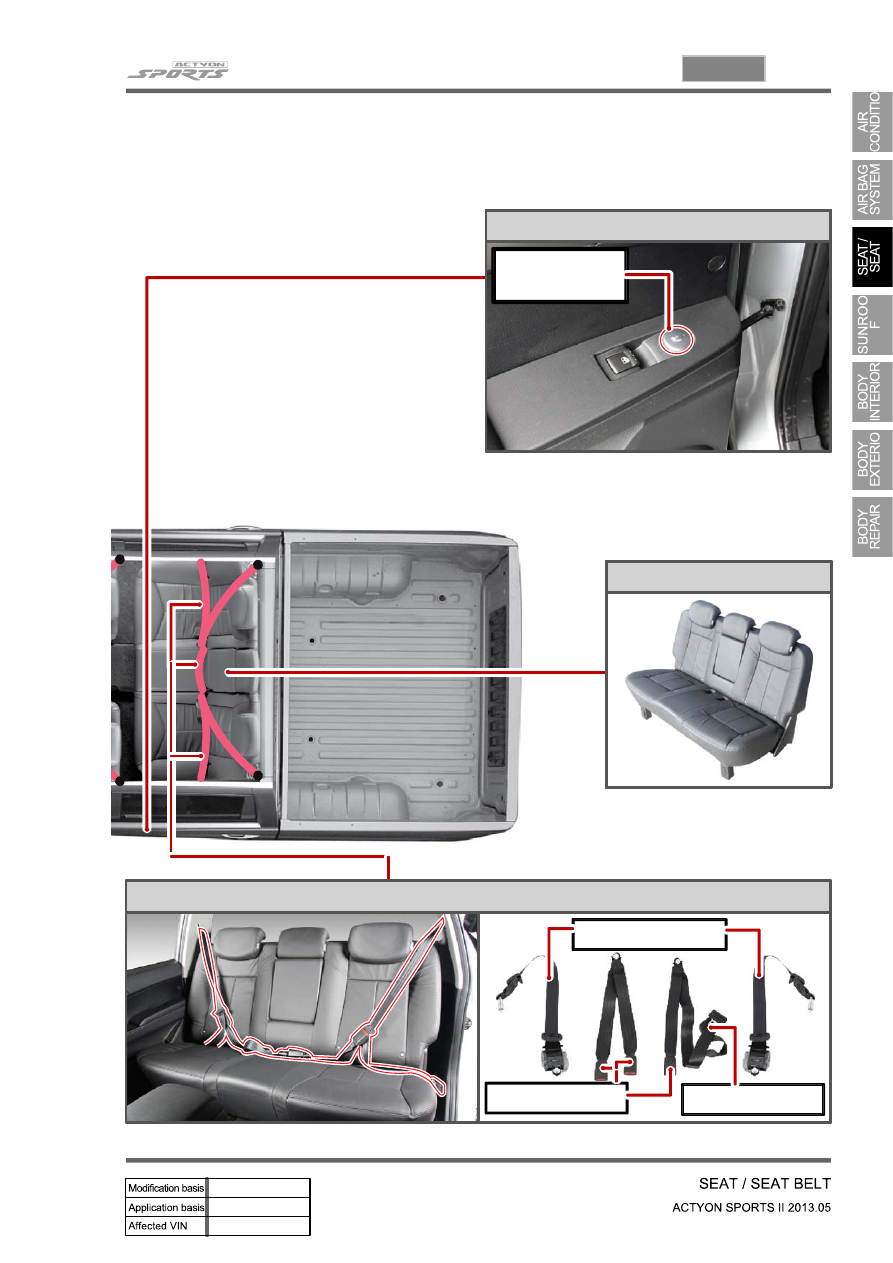

Rear seat warmer switch

Rear seat

Rear seat

warmer switch

3-point seat belt

2-point seat belt

Seat belt buckle

Rear seat belts (3-point and 2-point)

03-10

3. HOW TO ADJUST AND OPERATE SEAT

1) Front Seat

There are two types of front seats: the power seat which uses the electric motor to adjust the seat

movement, seatback and seat cushion and

the manual seat which adjusts them by pulling the lever by hand.

For both power seat and manual seat, the driver can adjust the headrest and driver lumbar support by

hand.

The heated wires are inserted into the seatback and the seat cushion, which are operated by the front

seat warmer switch located to the center fascia.

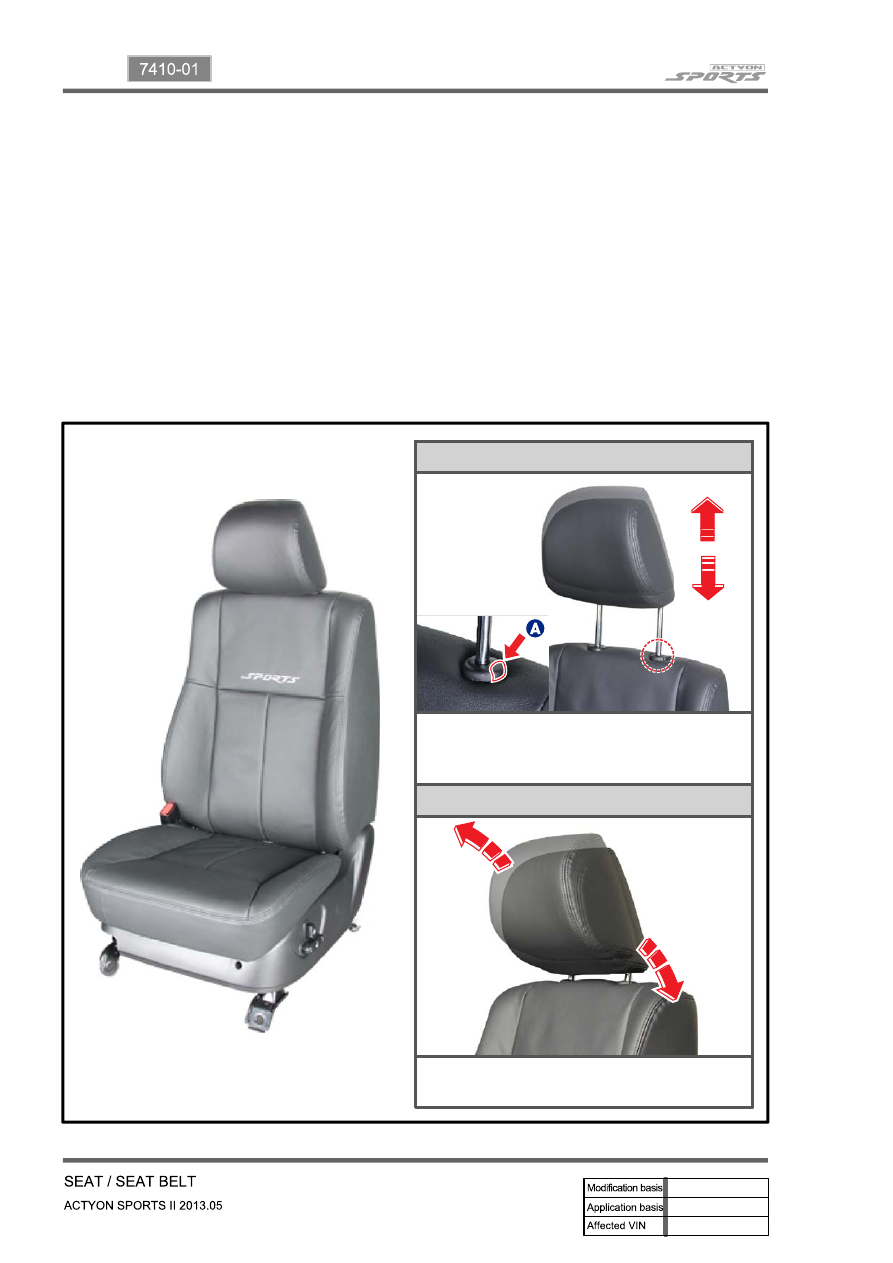

To adjust headrest

▶

To adjust headrest height

To adjust the height of the headrest, raise or
lower it while pressing the headrest sleeve (A).

To adjust headrest tilting

Pull the headrest forwards and release to adjust
its tilting angle in 3 steps.

03-11

7410-01

Power Seat

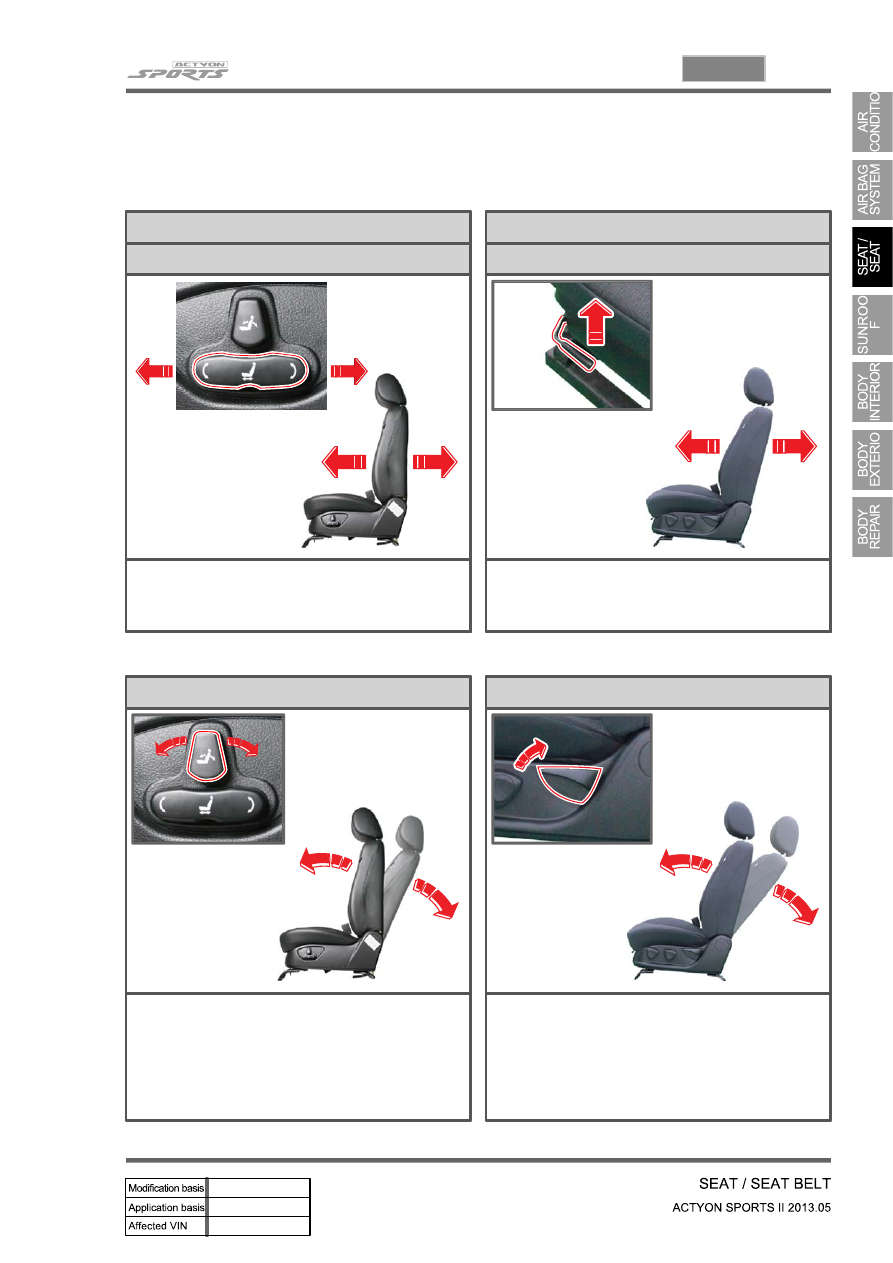

To adjust seat slide

Moving the slide knob forward and rearward
activates the slide motor to move the seat forward
and rearward.

To adjust seatback

▶

Manual seat

To adjust seat slide

To move the seat forward or backward, pull and
hold the seat slide lever up and move the seat as
desired. Then, release the lever.

To adjust seat back angle

When moving the upper part of the recline knob
forward/backward, the seatback angle is adjusted
as the recline motor rotates the rail.

To adjust seat back angle

To change the seatback angle, lean forward
slightly and raise the lever. Then, lean back to the
desired angle and release the lever. After
adjusting, make sure the lever is returned to its
original position and the seatback is locked.

03-12

Power Seat

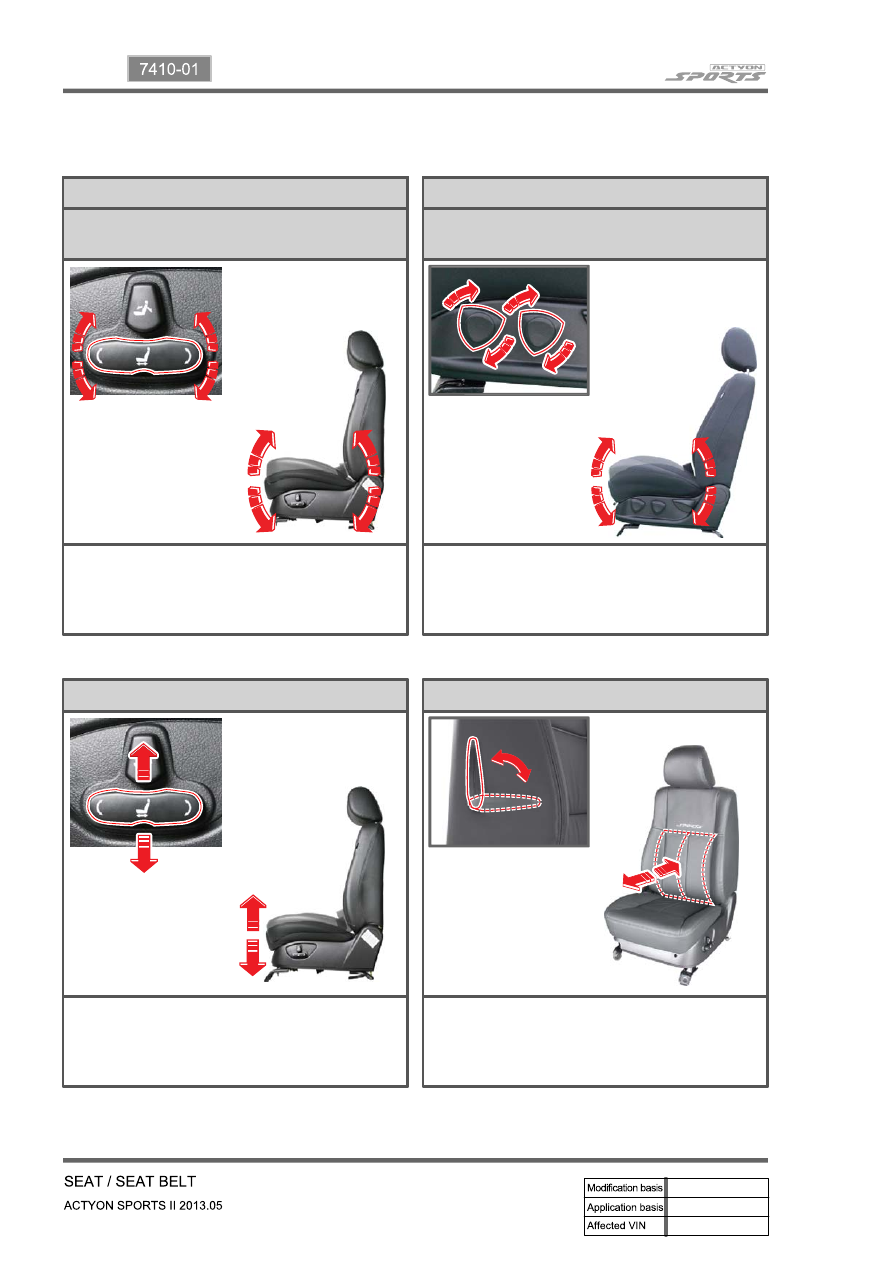

To adjust seat cushion angle

When moving the slide switch forward/backward,
the front and rear up/down motors rotate the rails
to move the front and rear side of the cushion
up/down.

Manual seat

To adjust seat cushion angle and

height

You can adjust the angle and height of the front or
rear section of the seat cushion by rotating the
adjustment knob on the side of the seat clockwise
or counterclockwise.

To adjust seat cushion height

When moving the slide switch up/down,
the front rear up/down motor rotates the rail to
move the whole seat cushion up/down.

To adjust driver seat lumbar support

When you raise and lower the lumbar support
lever on the power and manual seats, the lumbar
support goes in and out of the seat.
