08-9

8610-09

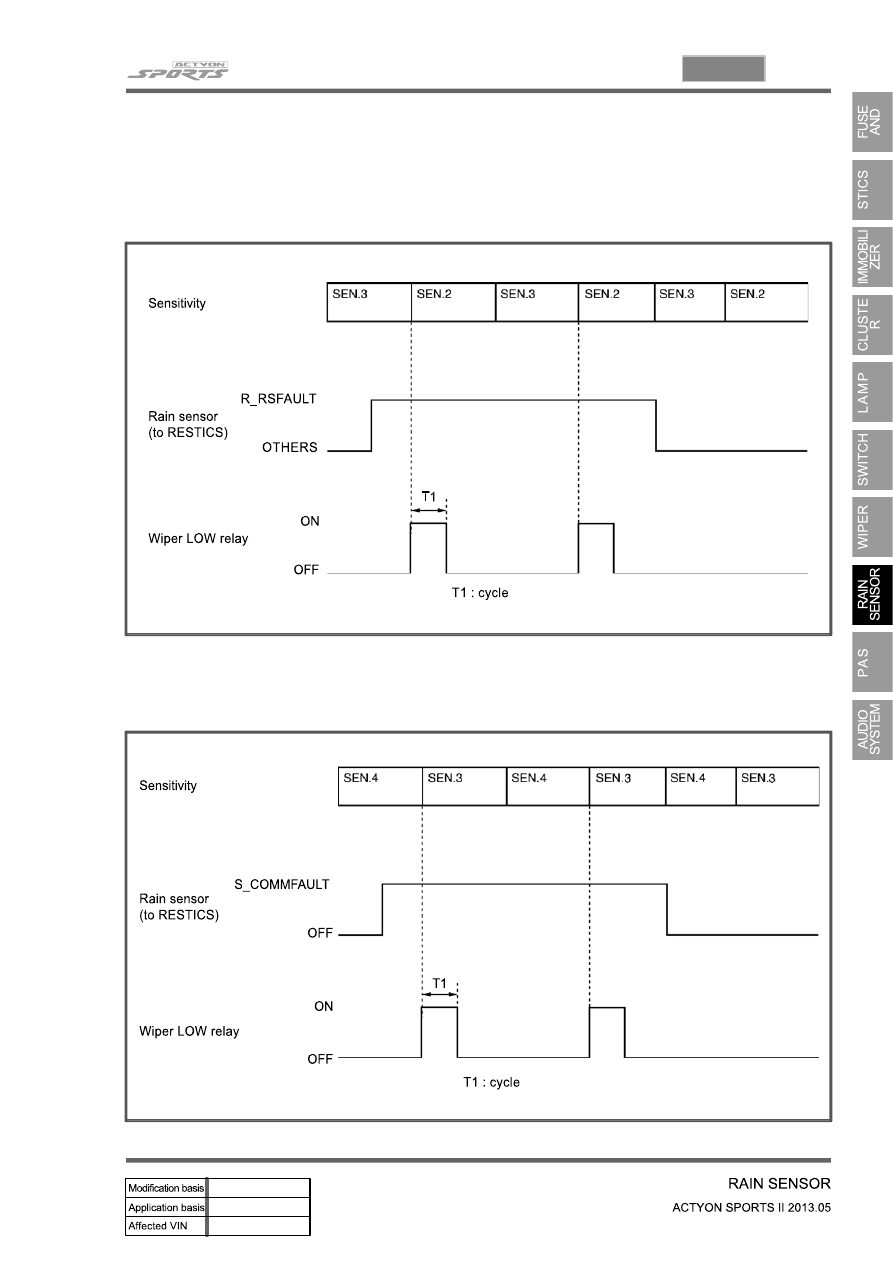

6) Defective Rain Sensor

The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume

sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain sensor,

while the ignition key is in "ON" position and the wiper switch is in "ON" position.

2.

The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume

sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain sensor,

while the ignition key is in "ON" position and the wiper switch is in "ON" position.

1.

08-10

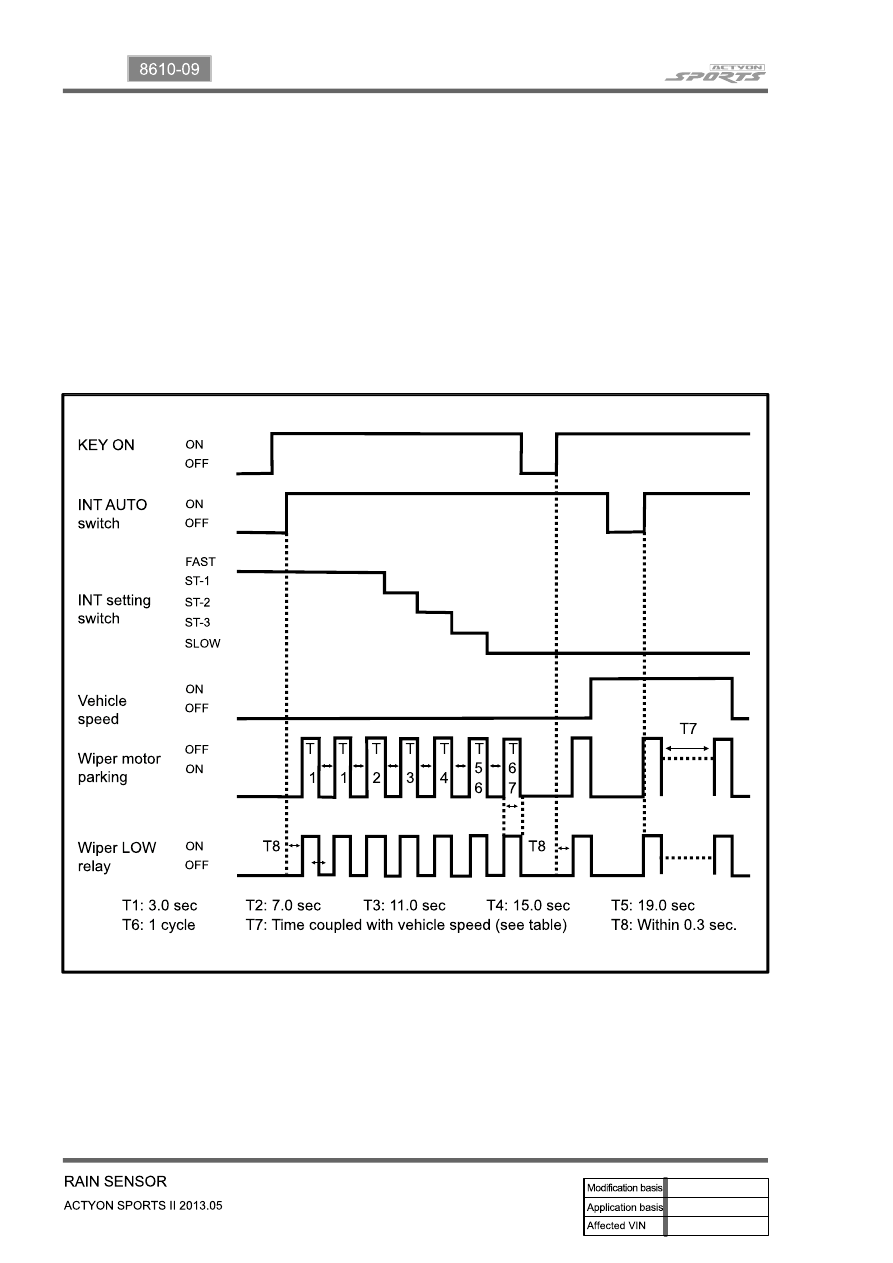

7) Speed Sensitive INT Wiper

Calculates and converts the Intermittent interval automatically by obtaining the INT VOLUME when

the ignition switch and the INT switch is in the "ON" position.

The wipers are operated in vehicle speed sensitive mode as soon as turning the INT auto switch to

the "ON" position with the ignition key ON or turning the ignition key to the "ON" position with the INT

auto switch ON.

This applies to the vehicle without the rain sensor.

-

-

※

Controls the wiper intermittent operation by the values from the vehicle speed and the setting value.

08-11

8610-09

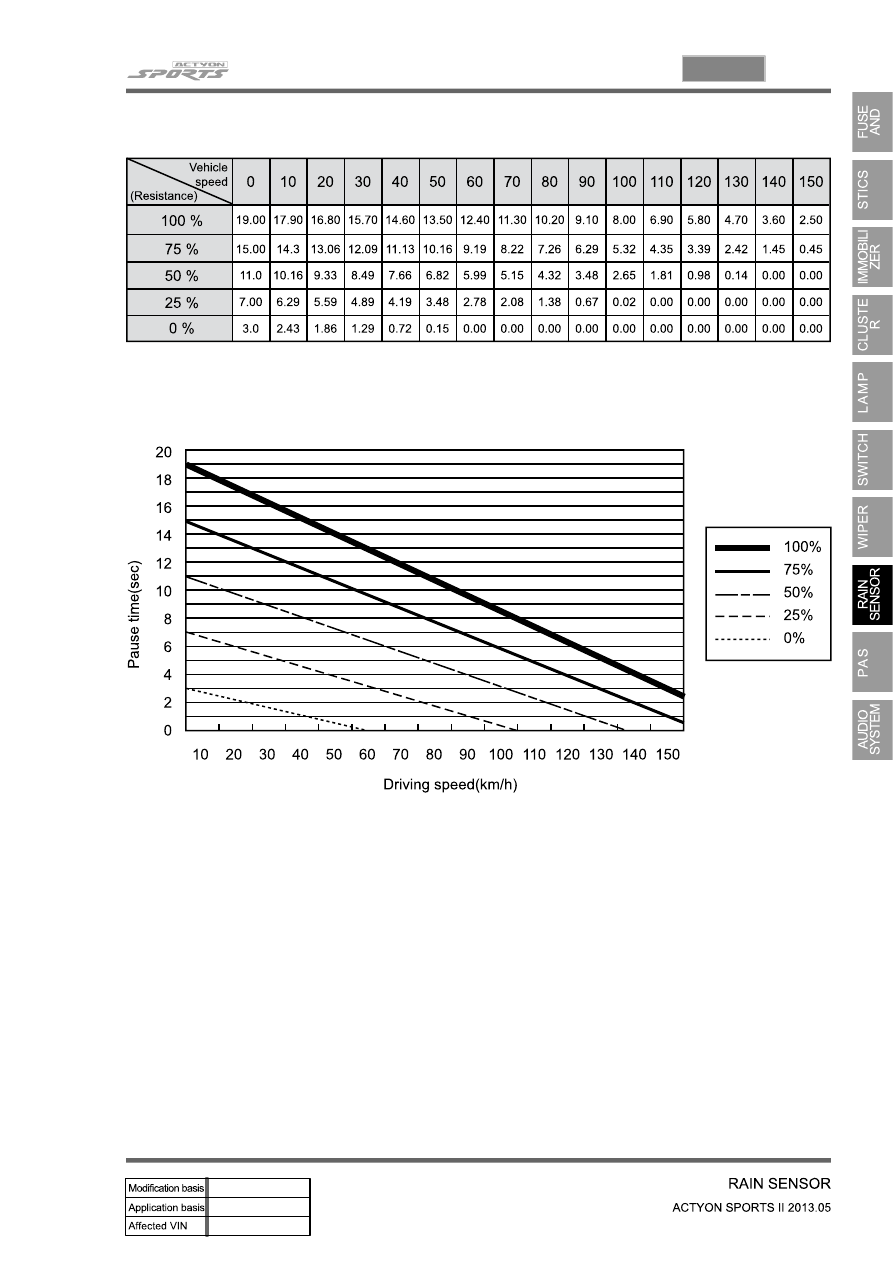

Pause Time Table of Vehicle Speed Coupled INT Wiper

▶

Speed sensitive INT (intermittent) wiper

1.

Pause time against vehicle speed

▶

Cautions for wiper control

※

The wiper relay continues to output for remaining "ON" time even when the INT switch is turned off

during its operation.

IGN switch "ON", INT switch "OFF": Resume the intermittent time when turning "ON".

IGN switch "ON", INT switch "ON": Resume the intermittent time when turning "ON".

-

-

-

Controls when the wiper motor parking is defective

2.

The wiper relay continues to output when the parking terminal is fixed at the ground or IGN

while the wiper relay is "ON" i.e., with the INT switch ON or washer switch ON. (The output

stops immediately after turning off the switch)

-

08-12

Rain detected headlamp: If it rains heavy which requires the highest INT speed (almost LOW), the

headlamps are turned on automatically.

Night detected wiping: When the auto light control turns on the headlamps and the rain sensor

detects the rain, the wiper sensitivity is automatically increased by one level in comparison with

daytime.

(i.e. the AUTO wiper switch is at the 3rd level, but the wiper operates at the 4th level.)

1.

2.

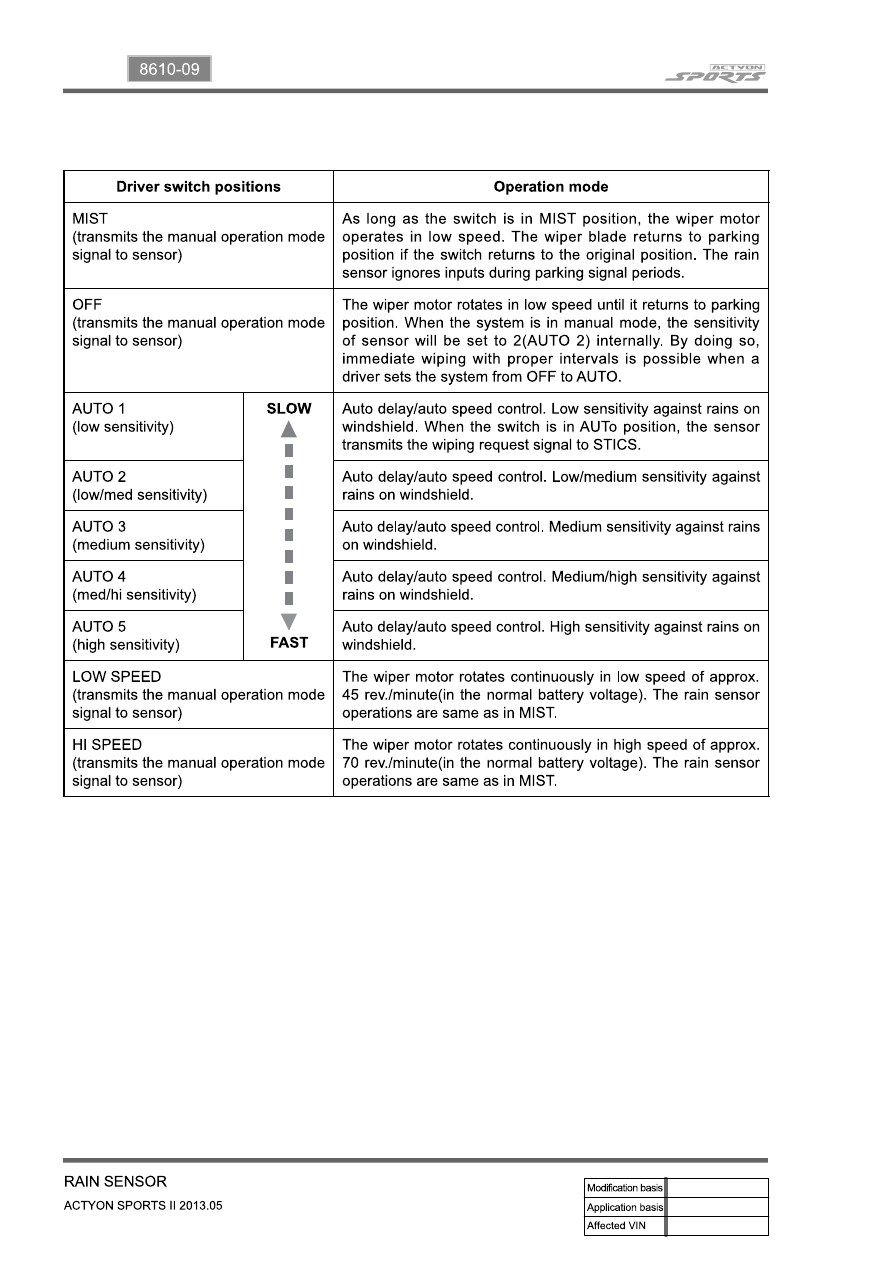

3. OPERATION MODE OF RAIN SENSING WIPER SYSTEM
