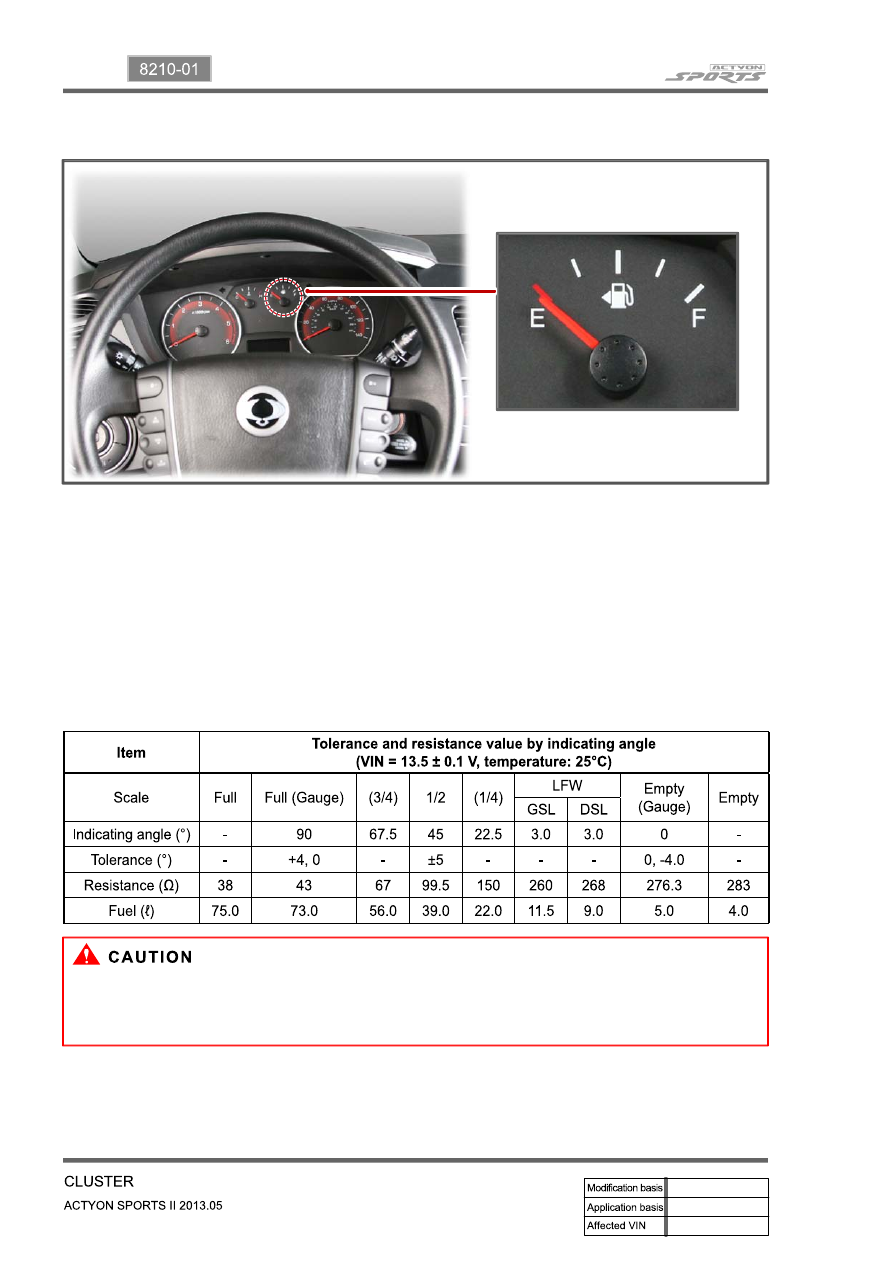

3) Fuel Level Gauge

The fuel level gauge displays the resistance value of the float on the fuel sender in the fuel tank through

a pointer. Note that this vehicle doesn't have a service hole for checking the fuel sender connector in the

fuel tank.

The fuel sender and its connector can be checked and replaced only when the fuel tank is removed.

The power supply and resistance value should be measured at the connector in front of the fuel sender

(refer to wiring diagram).

When the power supply and output resistance are normal, the float operation by fuel level may be

defective; if so, replace the fuel sender.

Low fuel warning lamp comes on when:

The fuel level drops to 9 L or less. The lamp goes off if the fuel level reaches 9.5 L or more.

This table shows the tolerance and resistance value changes by fuel level in normal conditions.

Therefore, the differences that can be occurred by the road conditions and fuel fluctuations are

ignored.

04-15

8210-01

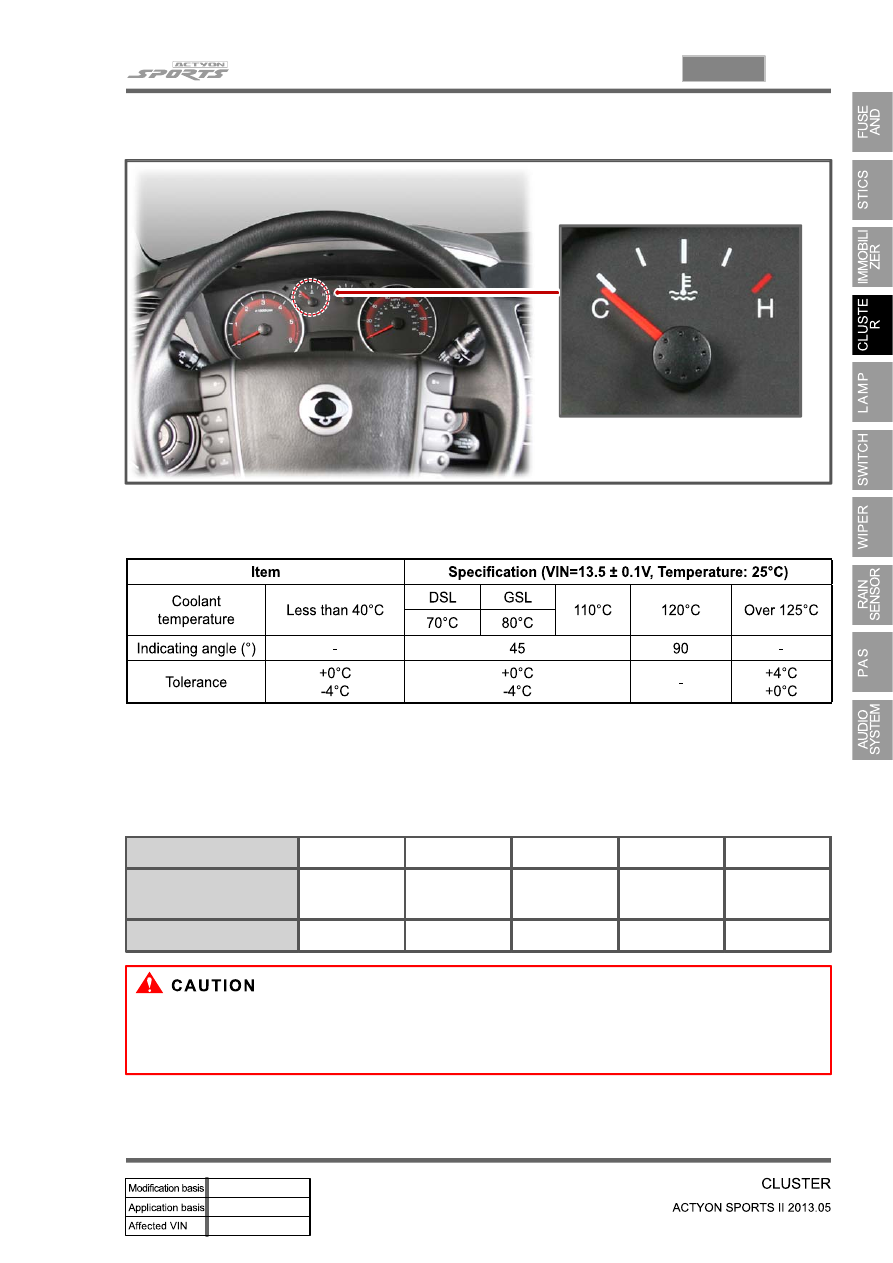

4) Coolant Temperature Gauge

The coolant temperature gauge displays the coolant temperature with a pointer. The angle of pointer

that changes by coolant temperature is as shown below.

Measurement of coolant temperature sensor resistance

Measure the resistance between the terminal and the ground with an ohmmeter and replace if the

resistance is out of specified range.

Temperature (ºC)

20

60

80

100

120

Resistance (Ω)

2449Ω ± 5%

589.4kΩ ±

5%

321Ω ± 5%

185.7kΩ ±

5%

112.9kΩ ±

5%

Voltage (V)

3.615

1.910

1.259

0.819

0.536

When the resistance value by coolant temperature is within the specified range, check thermostat,

water pump, radiator related coolant circuit for normal operation. Also, check the wiring harnesses

and connectors for proper connection.

04-16

Change

Order

Mode

LCD Display

Description

1

TRIP A

The maximum distance value that can be displayed is
999.9 km with increments of 0.1 km. The trip meter is
reset to 0.0 km when the value reaches above 999.9 km.
When measuring a trip distance, reset the distance value
in the mode you want to use by pressing the TRIP switch
for 1 sec. or more.

2

TRIP B

The maximum distance value that can be displayed is
6,213.09 mi with increments of 0.62mi. The trip meter is
reset to 0.0 km when the value reaches above 999.9 km.
When measuring a trip distance, reset the distance value
in the mode you want to use by pressing the TRIP switch
for 1 sec. or more.

3

Distance to

empty

The estimated distance that can be traveled is calculated
based on the current fuel level.
If the DTE is less than 50 km, "---" flashes on the display.

4

Driving time

The driving time from resetting the value (0:00) until now
is displayed. The value displayed is accumulated while
the engine is running even if the vehicle is not driven. The
display range is 00:00 to 99:59. When measuring the
driving time, press the TRIP switch for 1 sec. or more to
reset the value.

5

Average

fuel

economy

The average fuel economy from resetting the value (--.-)
until now is displayed. The value displayed is
accumulated while the engine is running even if the
vehicle is not driven. The display range is 0.0 to 99.9
km/h. When measuring the average fuel economy, press
the TRIP switch for 1 sec. or more to reset the value. "--.-"
is displayed on the screen when resetting. The value is
reset automatically whenever the vehicle is fuelled.

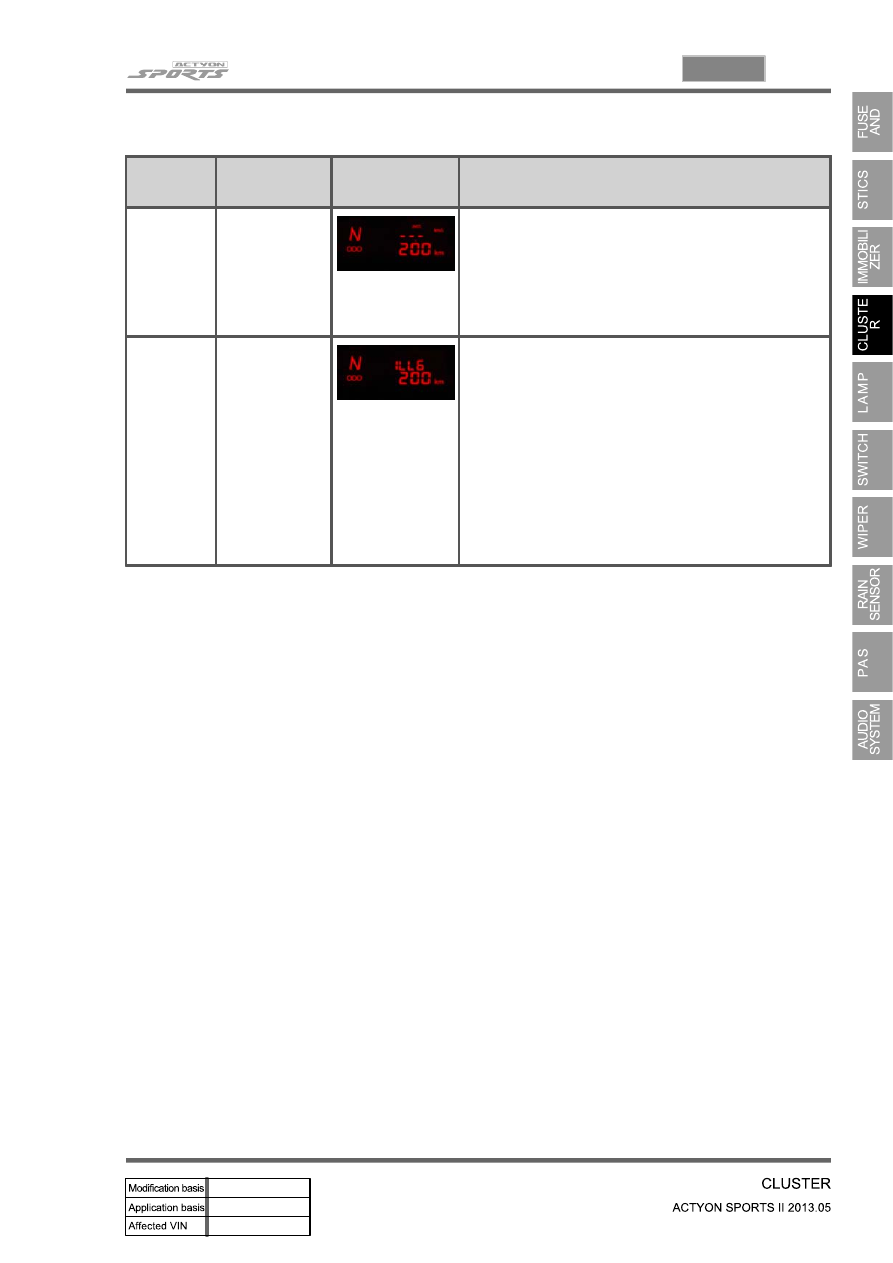

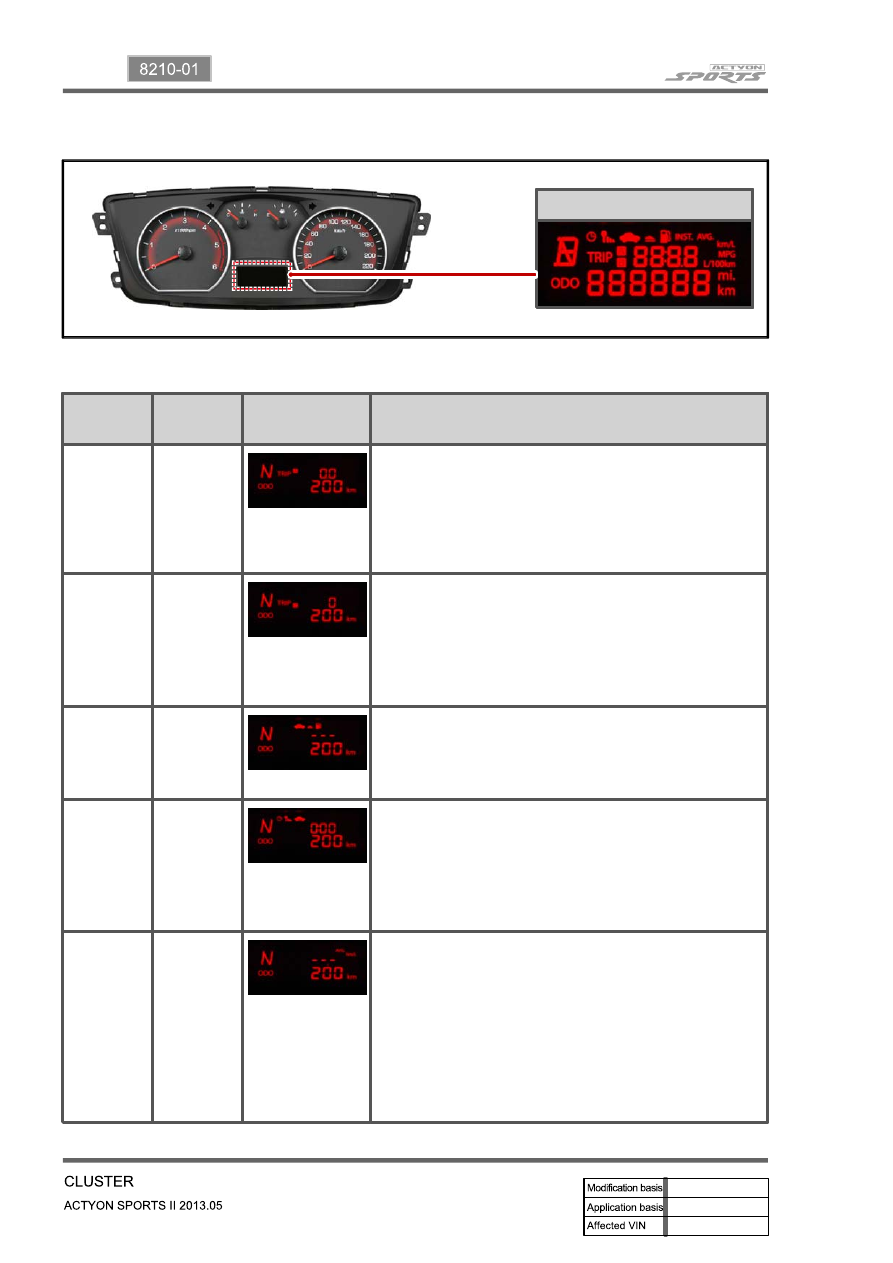

5) Description for LCD Display

LCD display

Mode Description

▶

04-17

8210-01

Change

Order

Mode

LCD Display

Description

6

Instant fuel

consumption

The fuel range is calculated based on the distance
driven and fuel consumed every 2 seconds. If the
vehicle speed is below 10 km/h or the engine rpm is
200 rpm or less, the instant fuel economy is not
displayed. The display range is 0.0 to 99.9 km/.

7

Brightness

adjustment

The brightness of the illumination can be adjusted in 6
steps by pressing the TRIP switch briefly (less than 1
sec.). The display is changed from ILL1 to ILL6 every
time the switch is pressed. If you select one level
within the range and press and hold the TRIP switch,
the brightness level is memorized. If there is no TRIP
switch input for 5 seconds or more, the mode is
switched to TRIP A mode automatically. When the
battery is reinstalled, the brightness level is reset to
level 4.
