(7) Operation when warning is cancelled

The theft deterrent horn and hazard warning flasher is activated when fitting the battery in armed mode. (The

same operation as when alarm condition is met in armed mode is performed.)

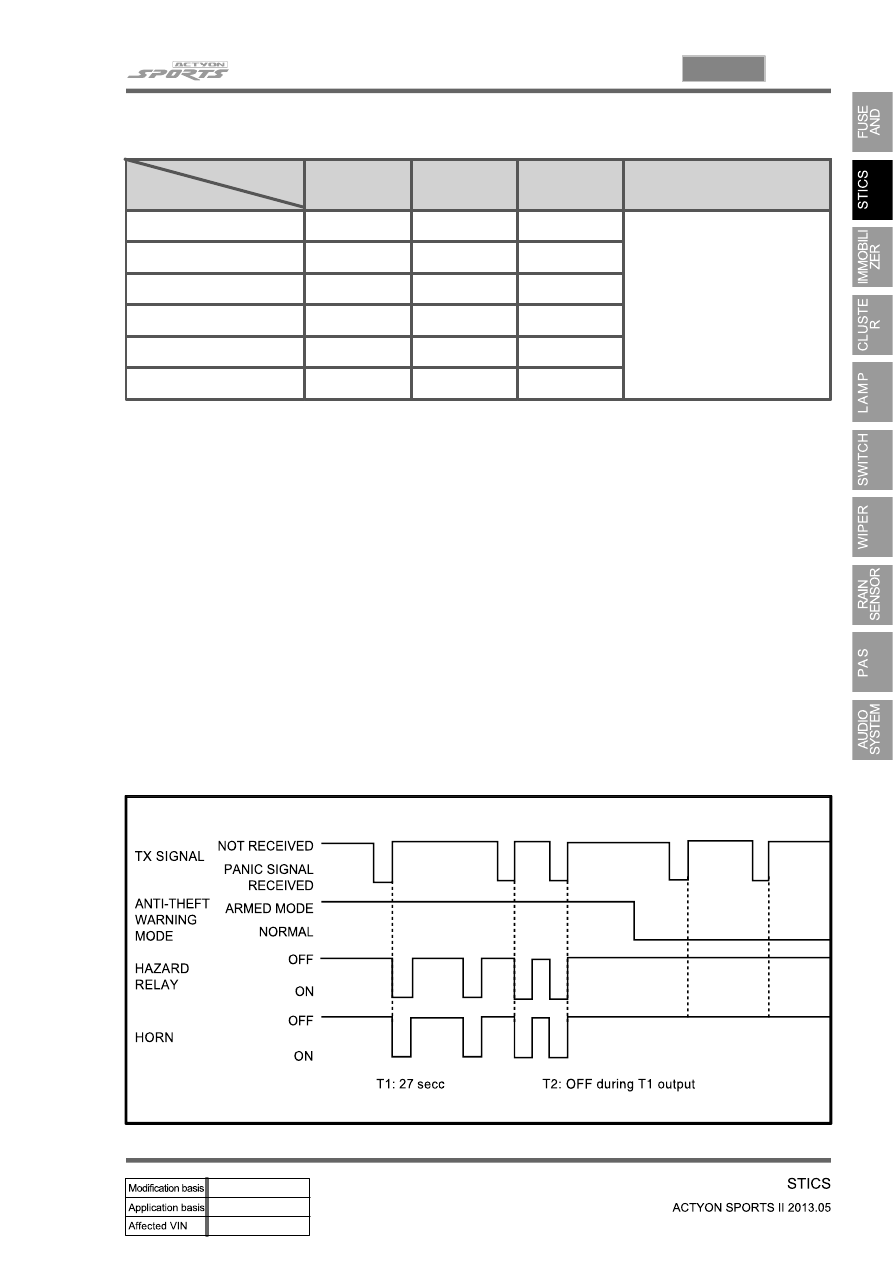

PANIC Warning

▶

The PANIC warning output is "ON" for 27 seconds using the horn and hazard warning flasher,

when receiving the PANIC signal from the remote control key.

The PANIC warning output is "OFF" when pressing any button on the remote control key during

PANIC warning.

The followings are about the theft deterrent warnings.

1.

2.

3.

The theft deterrent warning is deactivated when receiving PANIC signal from the remote

control key during theft deterrent warning.

The theft deterrent warning output is "ON" when the theft deterrent conditions are

established during PANIC warning (PANIC output is "OFF").

The PANIC warning output is "ON" when receiving the PANIC signal from the remote control

key in Armed Ready / Armed / Warning Completion / Relock Ready mode (maintaining the

theft deterrent mode).

a.

b.

c.

This function operates only in armed mode.

4.

Removed

Normal

Armed

Warning

Remark

Normal

O

RELOCK operation:
When the door is not opened
or the ignition key is not
inserted into ignition switch
for 30 seconds after
receiving "UNLOCK" signal,
outputs "LOCK" and then
activates armed mode

Armed Ready

O

Armed

O

Warning

O

Warning Completion

O

O

O

RELOCK Ready

O

Installed

02-48

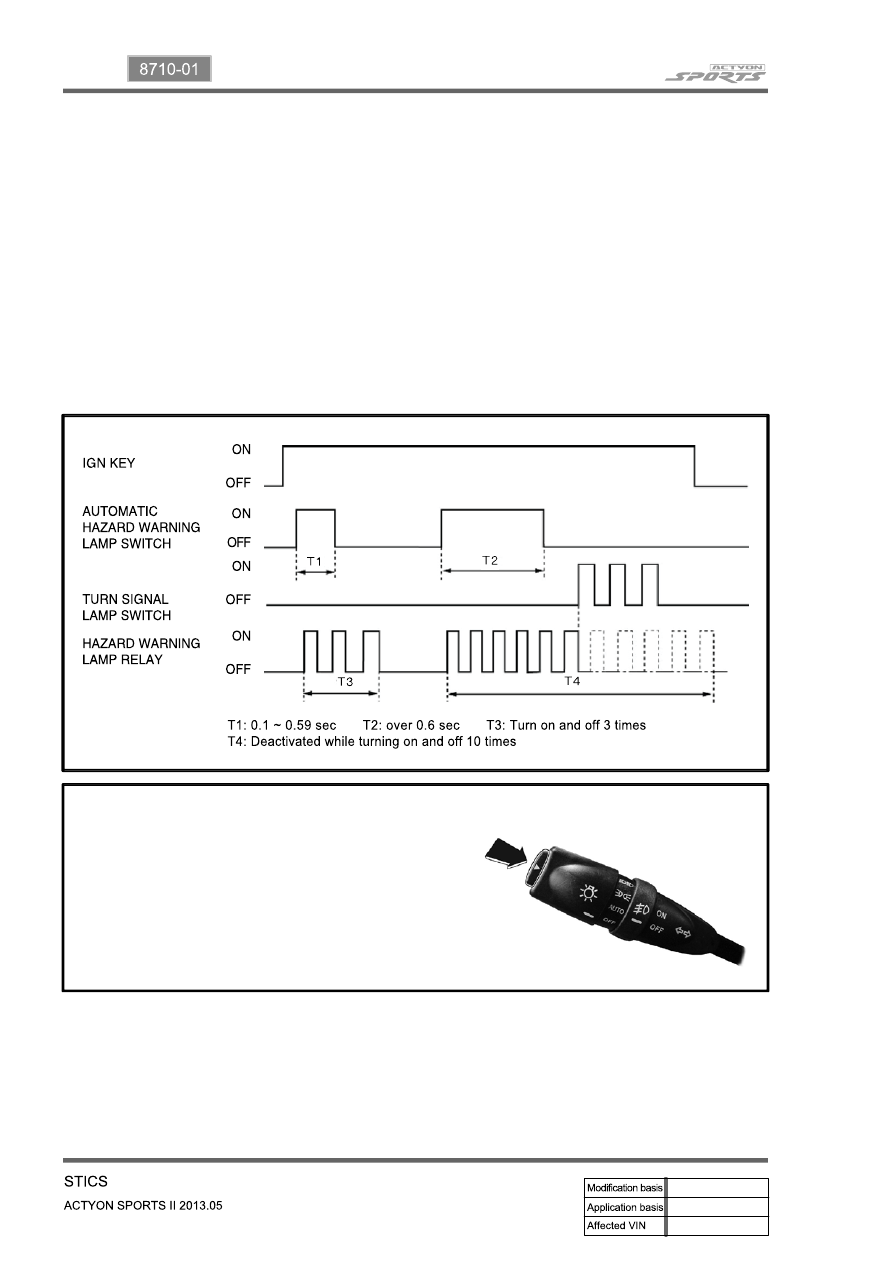

Automatic Hazard Warning Lamp Switch (SHP: Safety Hazard Protection)

▶

When the automatic hazard warning lamp switch is pressed for approx. 0.1 to 0.59 seconds, the

hazard warning lamp blinks 3 times at an interval of 0.35 seconds.

When the automatic hazard warning lamp switch is pressed for approx. 0.6 seconds or longer,

the hazard warning lamp blinks 10 times at an interval of 0.35 seconds.

This function is only available when the ignition key is in the "ON" position.

If the ignition key is turned to the "OFF" position during this function is activated, this function is

immediately deactivated.

If the system receives signals for the turn signal lamp operation during this function is activated,

this function is immediately deactivated.

While the turn signal lamp signals are already inputted, pressing the automatic hazard warning

lamp switch does not activate the automatic hazard warning lamp function.

1.

2.

3.

4.

5.

6.

Automatic hazard warning lamp switch

▶

Press briefly (0.1 ~ 0.59 seconds): The hazard

warning lamp blinks three times.

Press and hold (more than 0.6 seconds): The

hazard warning lamp blinks ten times.

·

·

02-49

8710-01

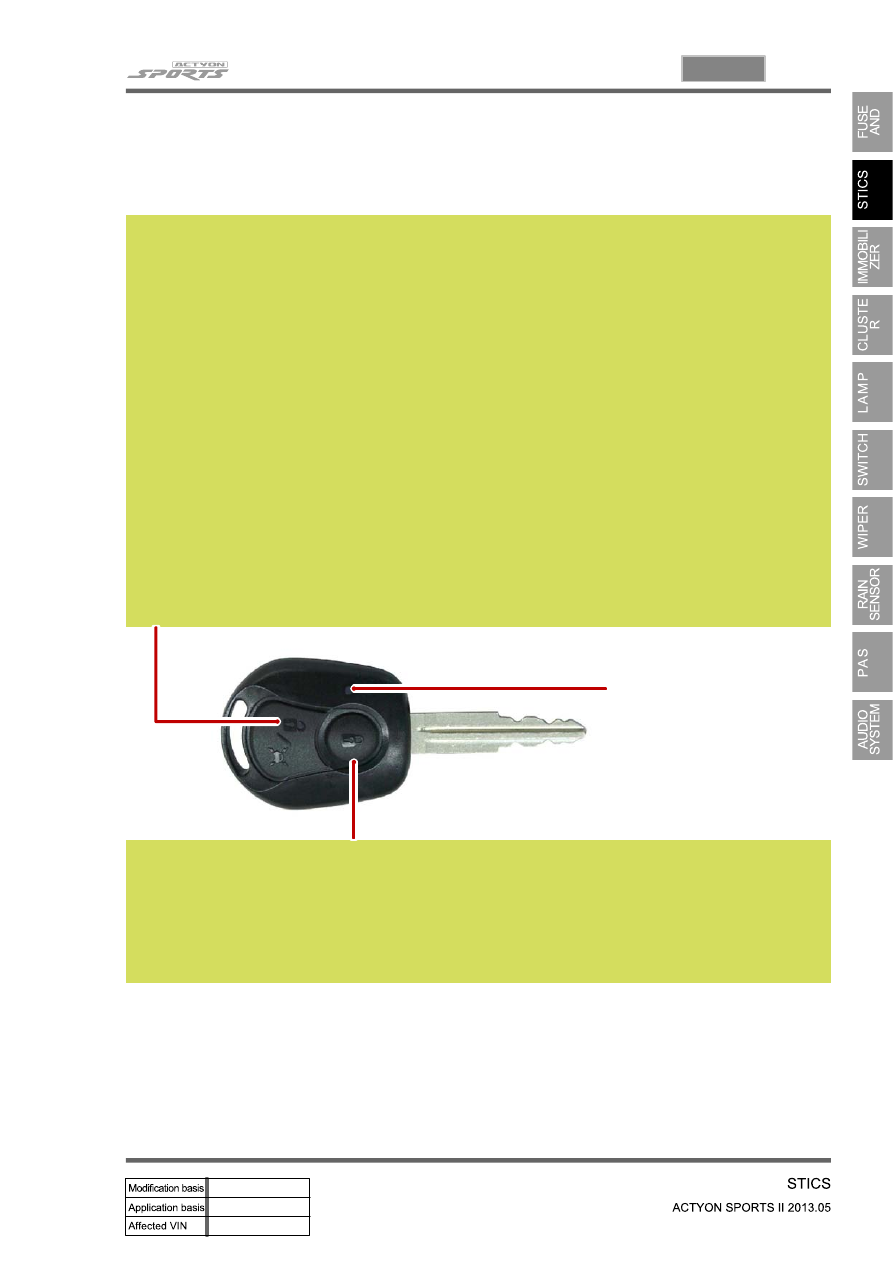

▶Specifications of Remote Control Key

When any of switches on remote control key is pressed, the integrated CPU in remote control key sends

the coded control message to the CPU in receiver to control the vehicle.

Door Unlock and Panic Function

Breifly press (below 0.5 sec): Door unlock and theft deterrent mode is

deactivated

Press and hold (over 2 sec): Panic function

Door unlock (Briefly press)

1.

If you send the door unlock signal using the remote control key, with all the doors locked, the

door will be opened and the theft deterrent mode will be deactivated. If the door coupled switch

of front room lamp is pressed, the lamp will come on for 30 seconds. It will turn off immediately

after the lock button of the remote control is pressed.

·

Panic function: activated in the theft deterrent mode

2.

If you press and hold the door unlock and panic buttons, the buzzer will sound for 27 seconds

and the hazard warning flasher blinks.

The function is inactivated if any button of remote control is pressed.

* For the previous model, only the theft deterrent horn has been activated.

·

·

LED flasher
Briefly press: blink once

Press and hold: blink twice

Door Lock Function

Breifly press (below 0.5 sec): Door lock and theft deterrent mode is activated

Door unlock (Briefly press)

1.

Pressing this button locks all doors and activates the theft deterrent mode.

·

02-50

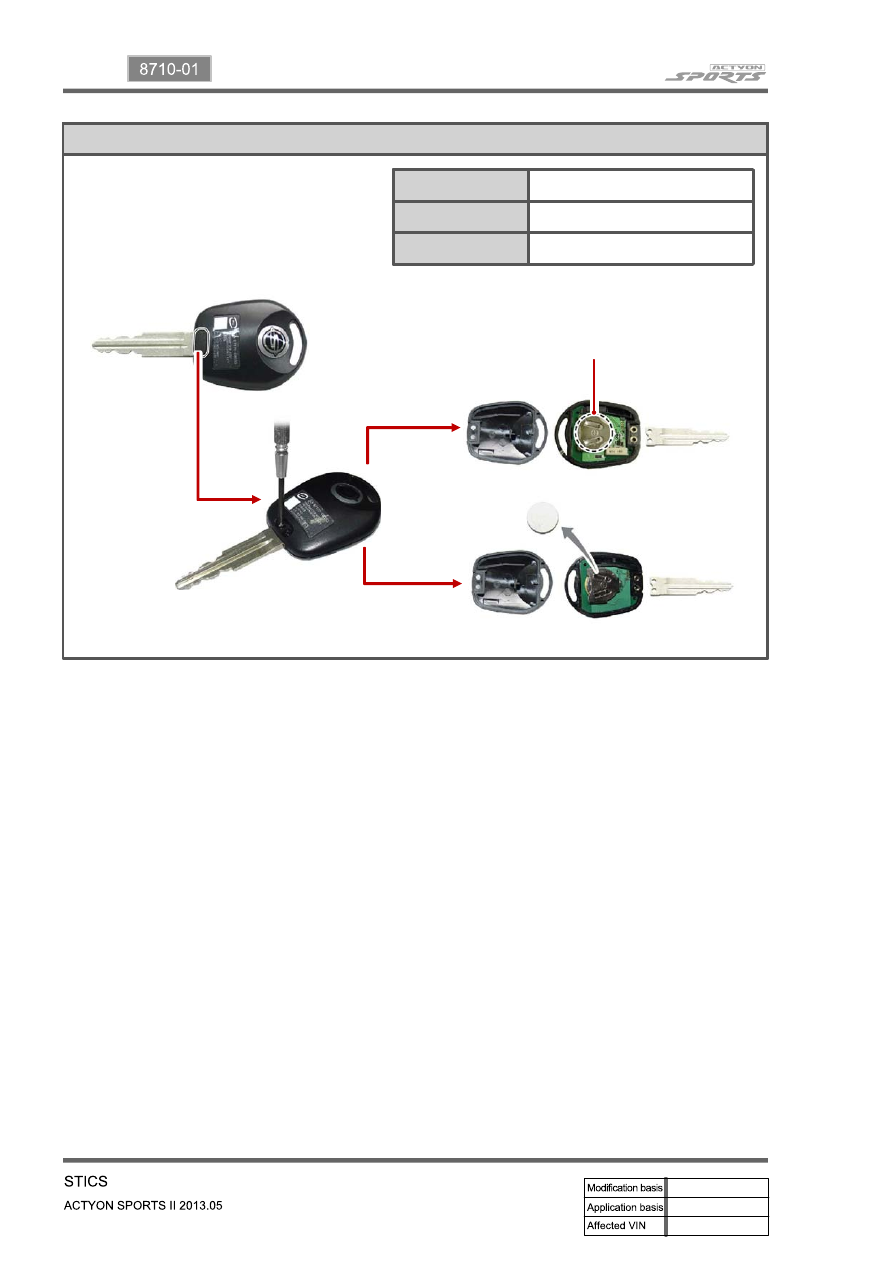

Battery Replacement

Key type

REKES key

Specification

CR2032

Amount

1 EA

REKES key

Battery

Immobilizer key
