SsangYong Actyon Sports II. Service manual - part 80

02-7

8710-01

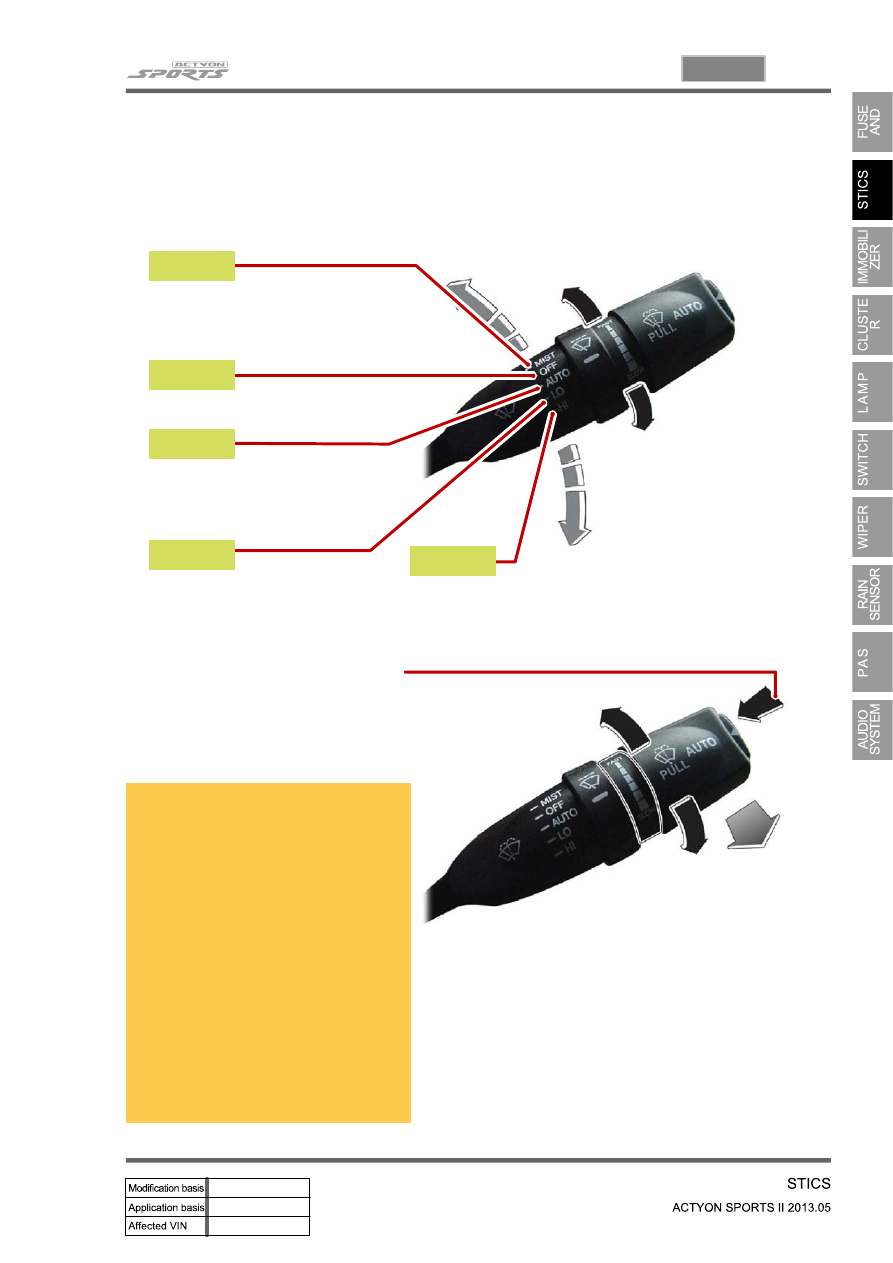

1) Wiper and Washer Operations

When pulling up the lever, the wiper

operates once and the wiper lever returns

to the "OFF" position.

Stop the operation.

Operates automatically

according to the vehicle

speed or the amount of rain.

Continuous wipe, slow

operation.

Front Wiping Speed Control Switch
FAST: Fast interval
SLOW: Slow interval

Continuous wipe, fast operation

Front Wiper and Washer Coupled Operation
Pull the lever briefly (below 0.6 seconds):

One wiping cycle without washer spray

Pull and hold the lever for more than 0.6 seconds:

Three wiping cycles with washer spray

Front Auto Washer Switch (AFW)
When the front wiper switch is off and this switch is pressed,

washer fluid will be sprayed and the wiper will automatically

operate 4 times. Then, the fluid will be sprayed again and the

wiper will automatically operate 3 times.

MIST

OFF

AUTO

LO

HI

Previous model
Pressing the switch makes washer

fluid to be sprayed for 2 sec. with four

wiping, after having delay of 0.6 sec.,

washer fluid to be sprayed for 1.5 sec.

with three wiping

Pressing the switch makes washer

fluid to be sprayed for 2 sec. with four

wiping, and washer fluid to be sprayed

for 1.5 sec. with three wiping, with no

delay of time

New model

02-8

2) Operation Logic

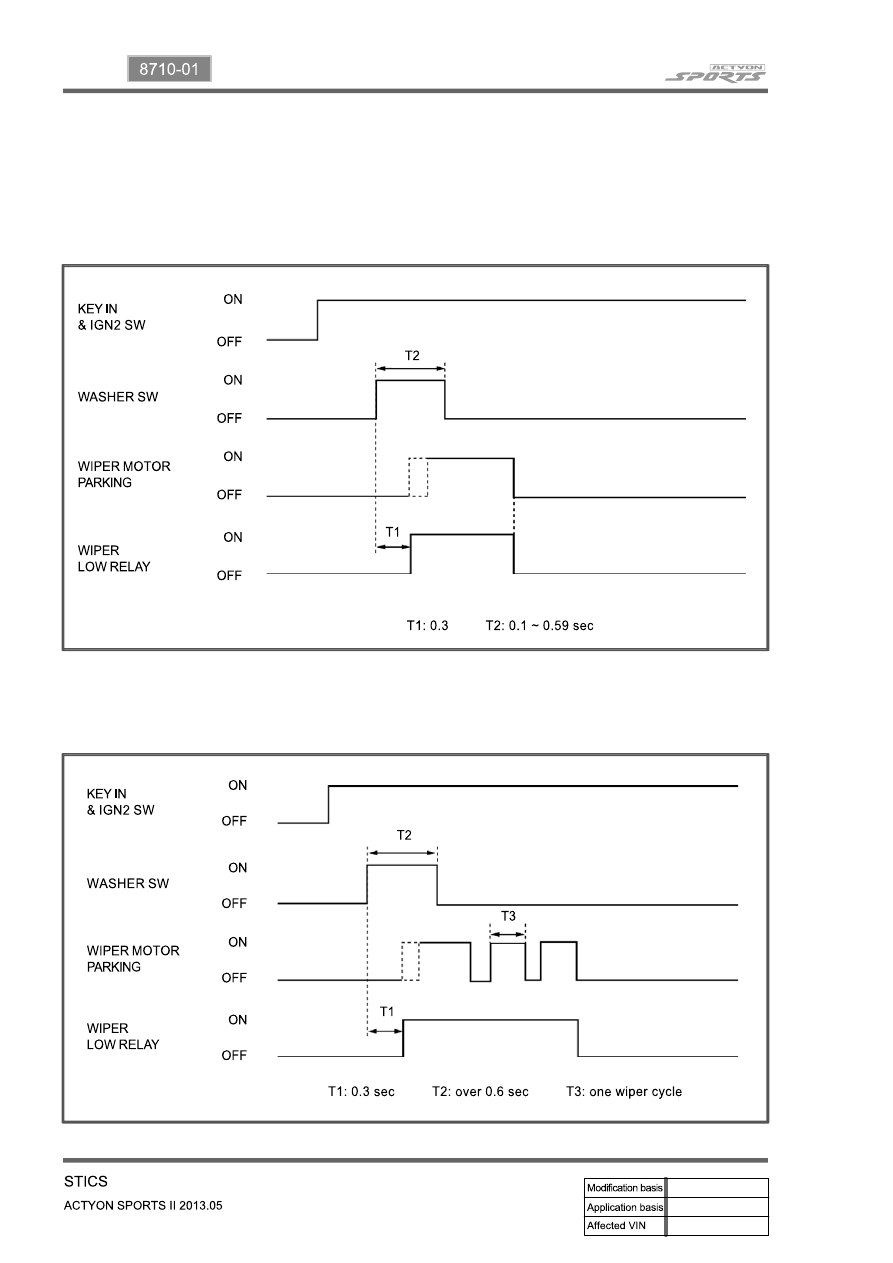

▶Wiper MIST and Front Washer Coupled Wiper

The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is turned

on for 0.1 to 0.59 seconds with the ignition switch "ON".If the wiper parking terminal gets off, the

wiper relay is turned off.

-

The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is turned

on for more than 0.6 seconds with the ignition switch "ON". The wiper relay gets on 3 times

immediately after turning off the washer switch.

-

02-9

8710-01

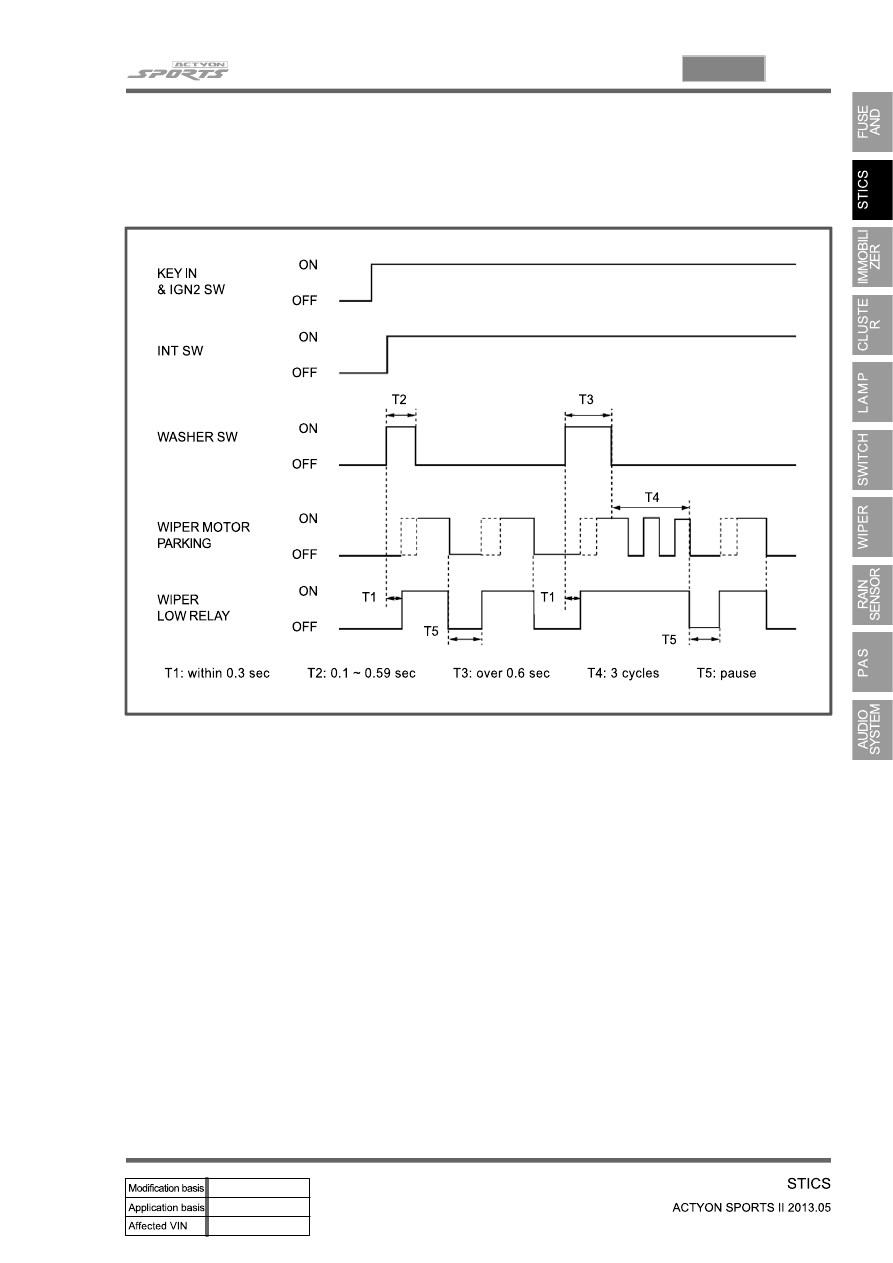

When the washer switch is turned on for more than 0.6 seconds during the wiper operation by

INT switch, the operation in step (2) is performed.

When it is turned on for a certain period of time (0.1 to 0.59 seconds), the operation in step (1) is

performed.

-

02-10

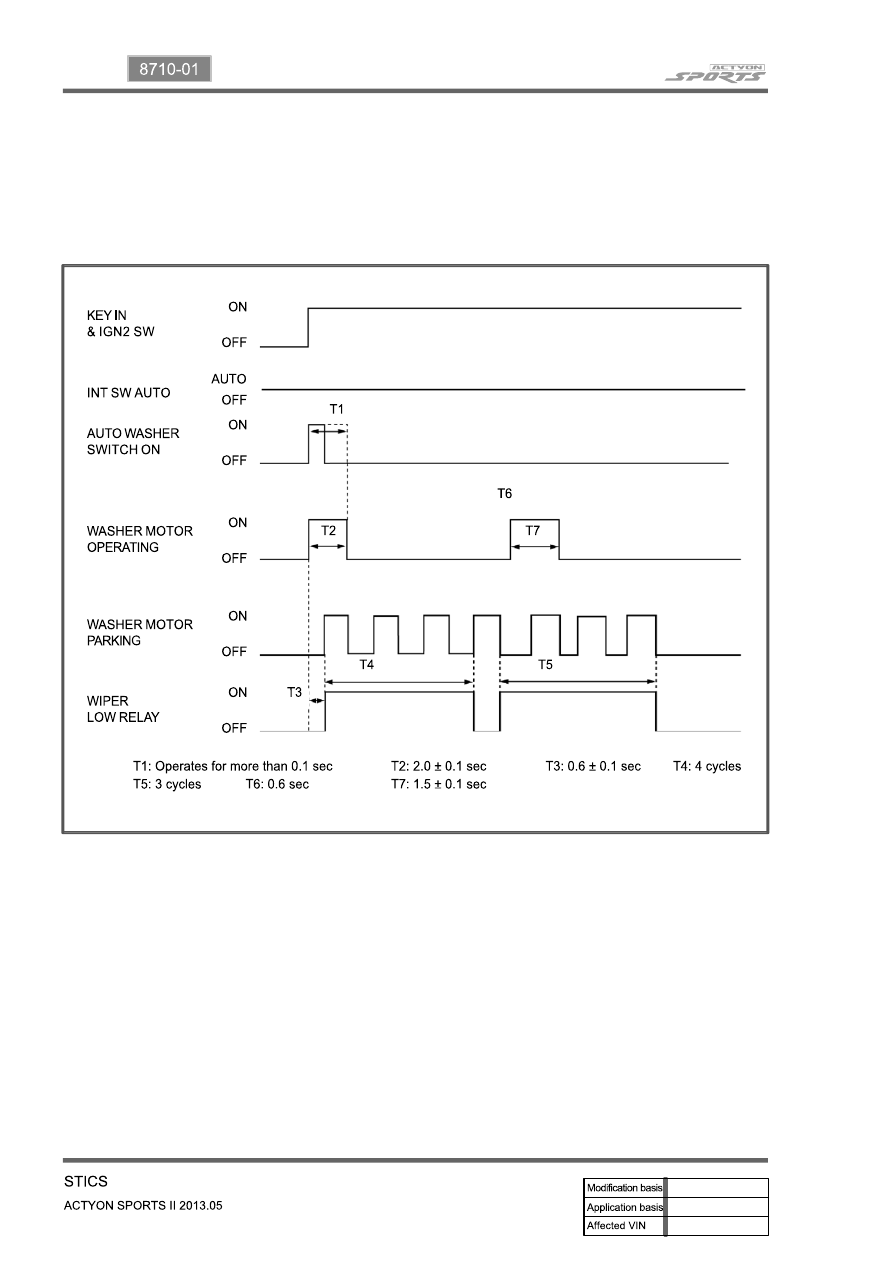

▶Auto Washer and Wiper Switch (AFW)

When the auto washer switch is turned on with the ignition switch "ON" and the INT switch

"OFF", the washer motor output gets ON for 1 second. If the system recognizes the output signal,

the wiper relay output gets ON during 4 cycles and the washer motor output gets ON for 1

second. Then, the wiper relay output gets OFF after 3 cycles.

-
