08-4

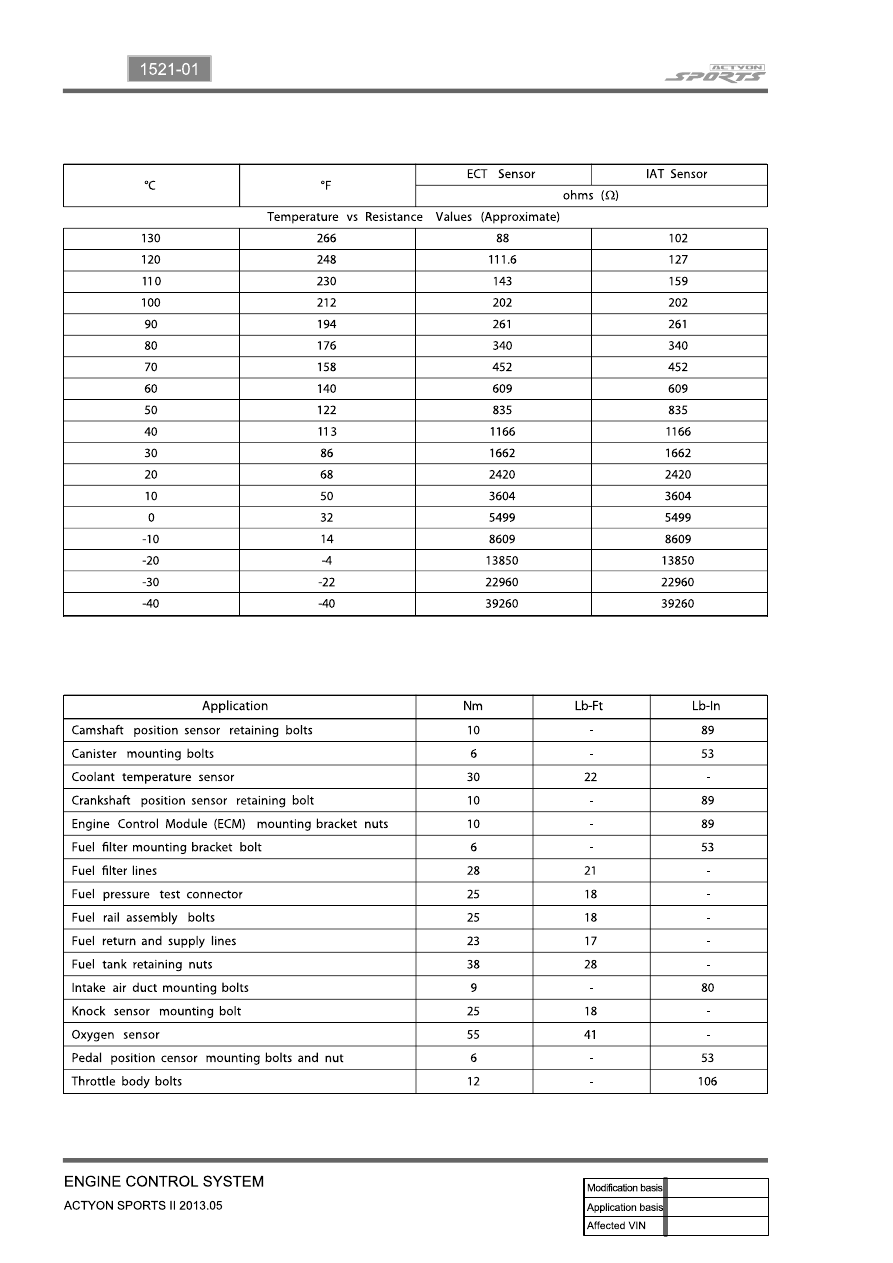

2. FASTENER TIGHTENING SPECIFICATIONS

1) TEMPERATURE VS RESISTANCE

01-3

8410-02

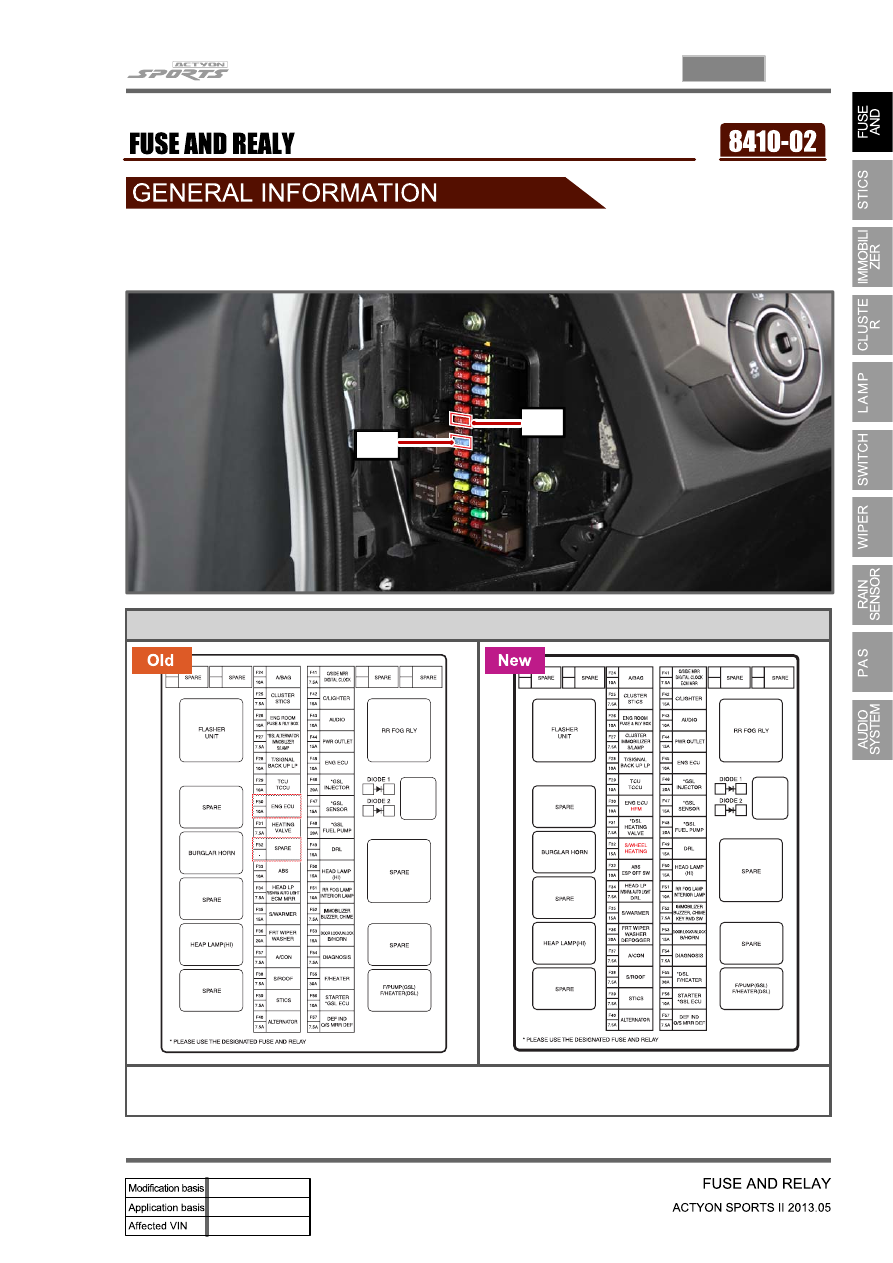

I/P - LH FUSE / RELAY BOX

- Power supply circuit for HFM sensor added (F30)
- Fuse for heated steering wheel added (F32)

1. MAJOR CHANGES

Driver’s interior fuse and relay box assembly changed

▶

F32

F30

01-4

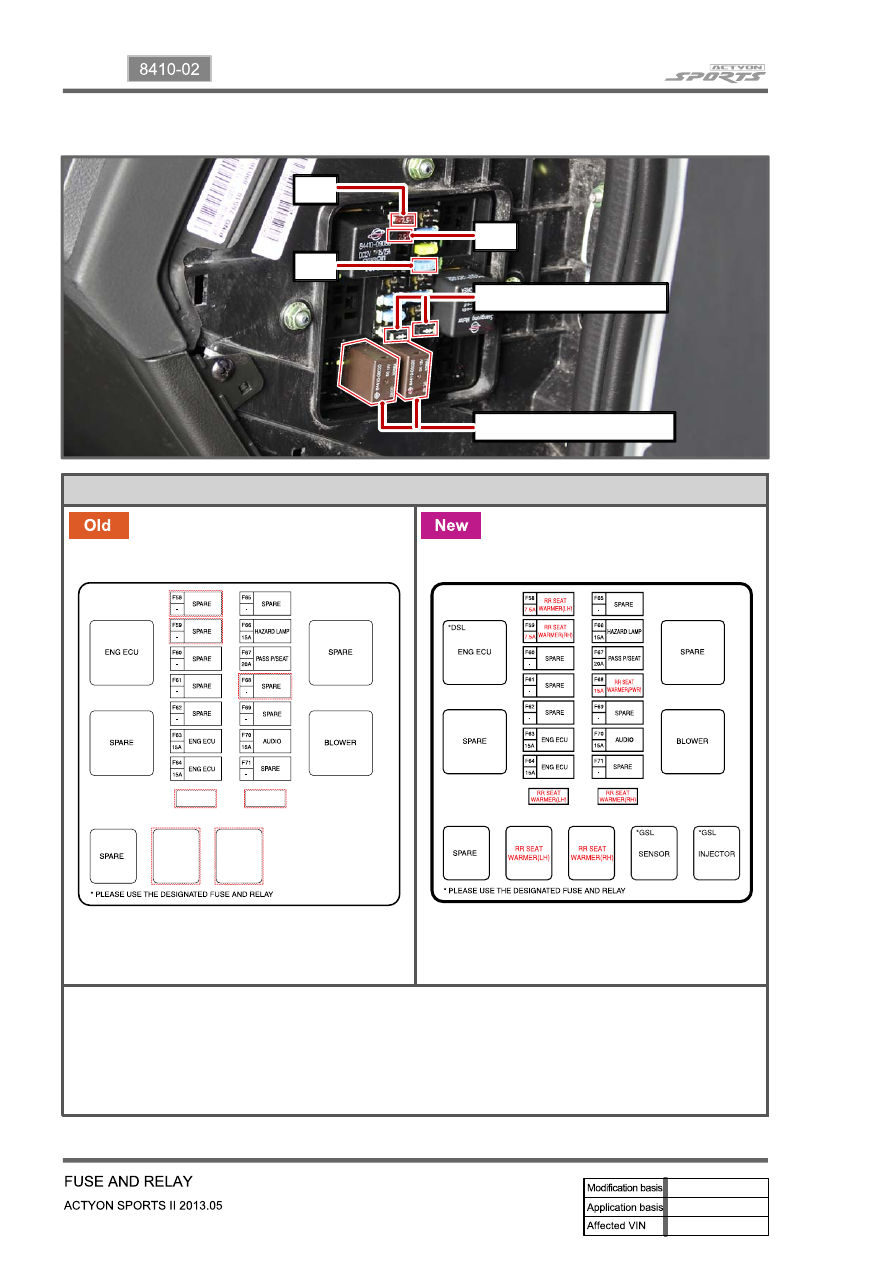

Passenger’s interior fuse and relay box assembly changed

▶

I/P - RH FUSE / RELAY BOX

Fuse, relay and diode for rear seat warmer added
- F58: Rear LH seat warmer fuse
- F59: Rear RH seat warmer fuse
- F68: Rear seat warmer power fuse
- 2 rear seat warmer diodes (LH & RH)
- 2 rear seat warmer relays (LH & RH)

F58

F59

F68

Rear seat warmer diode

Rear seat warmer relay

01-5

8410-02

ICM

Interior Fuse & Relay

Box (RH)

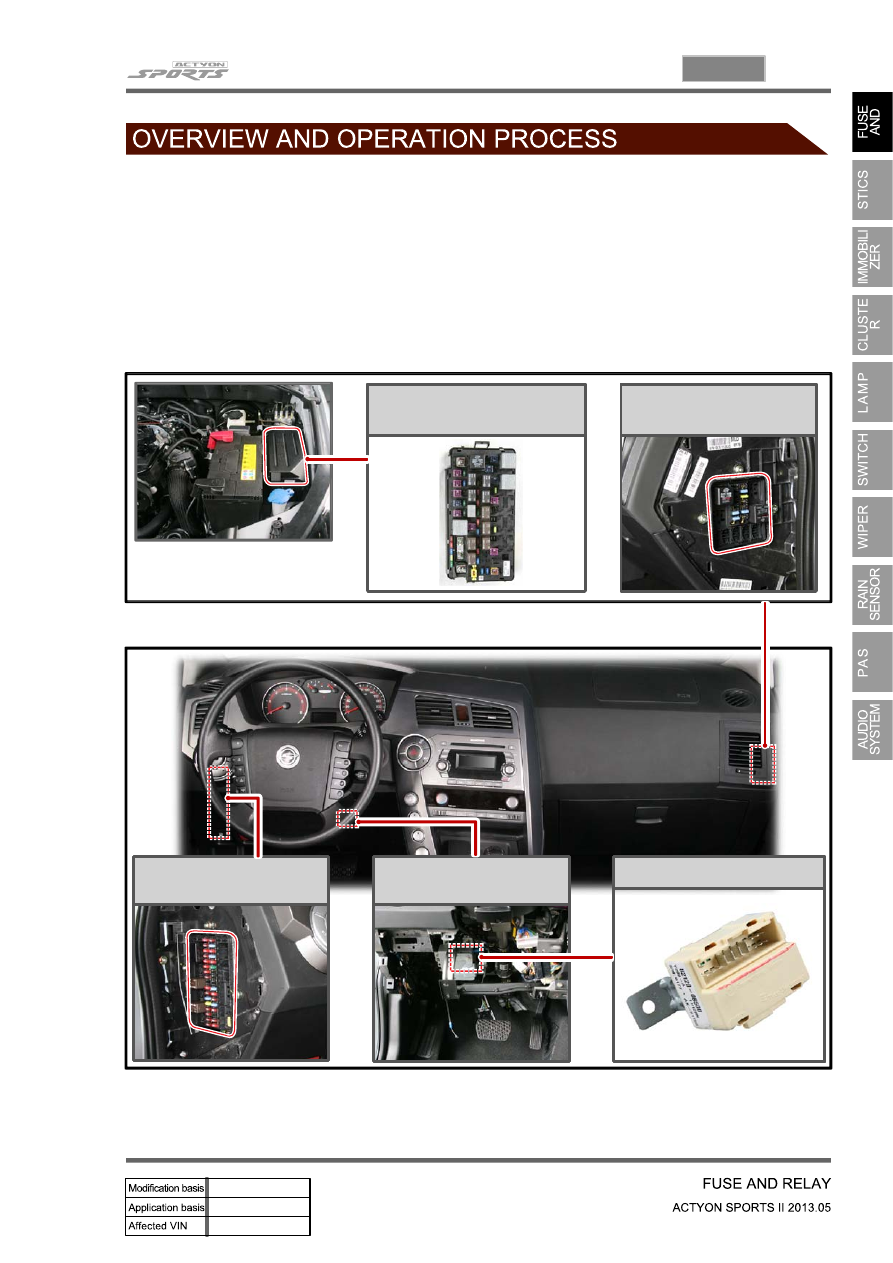

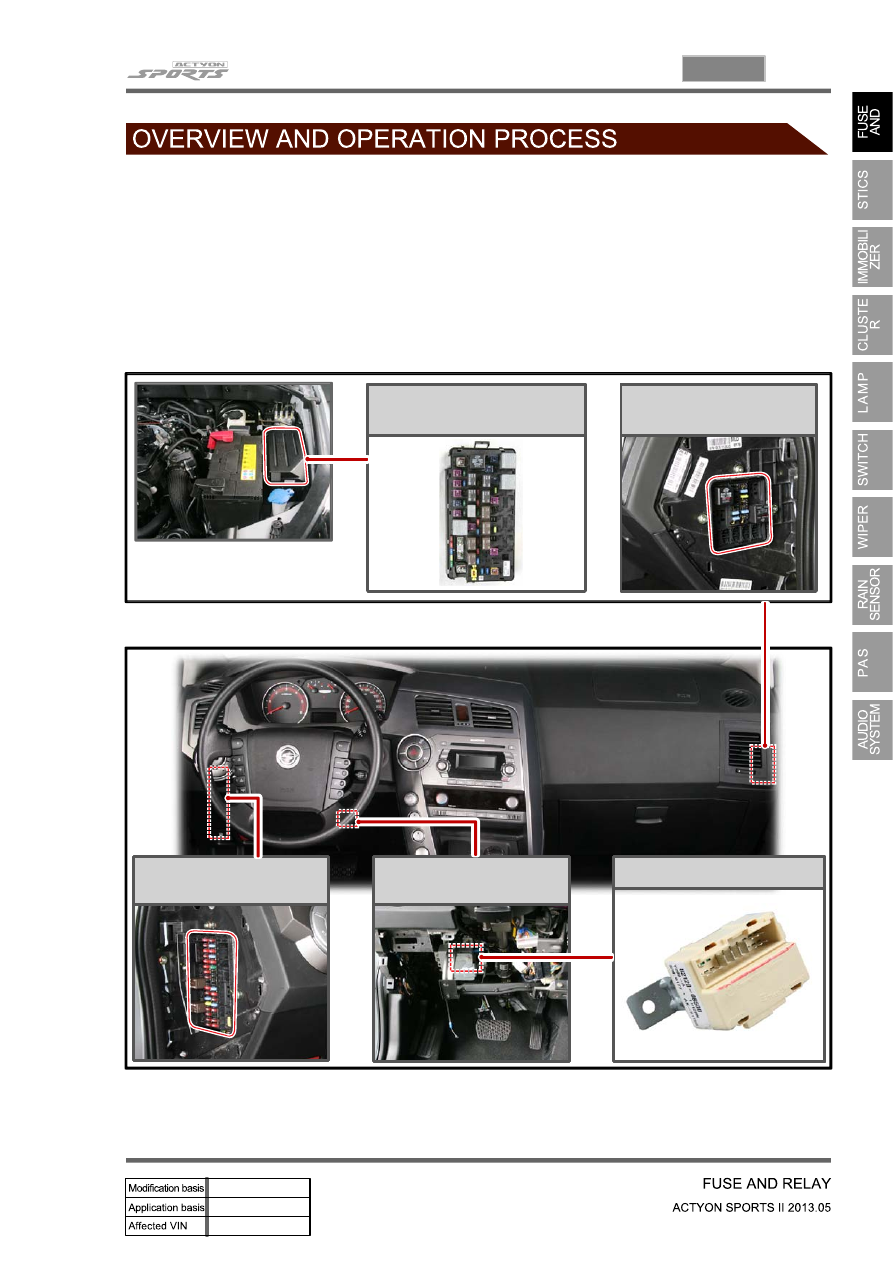

2. MOUNTING LOCATION

In engine compartment

▶

In vehicle

▶

Fuse & Relay Box In Engine

Compartment

1. OVERVIEW

The ICM (Integrated Control Module) mounted to the back of the STICS is integrated with the door

lock/unlock relay, windshield de-icer relay and turn signal lamp relay. There are four fuse & relay units.

Interior Fuse & Relay

Box (LH)

Mounting Location of

ICM
