SsangYong Actyon Sports II. Service manual - part 64





01-4

2) On-engine Service

Disconnect the negative battery cable before removing or installing any electrical unit, or when a

tool or equipment could easily come in contact with exposed electrical terminals.

 Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition

must also be in LOCK unless otherwise noted.

-

Any time the air cleaner is removed, the intake opening should be covered. This will protect

against accidental entrance of foreign material, which could follow the intake passage into the

cylinder and cause extensive damage when the engine is started.

-

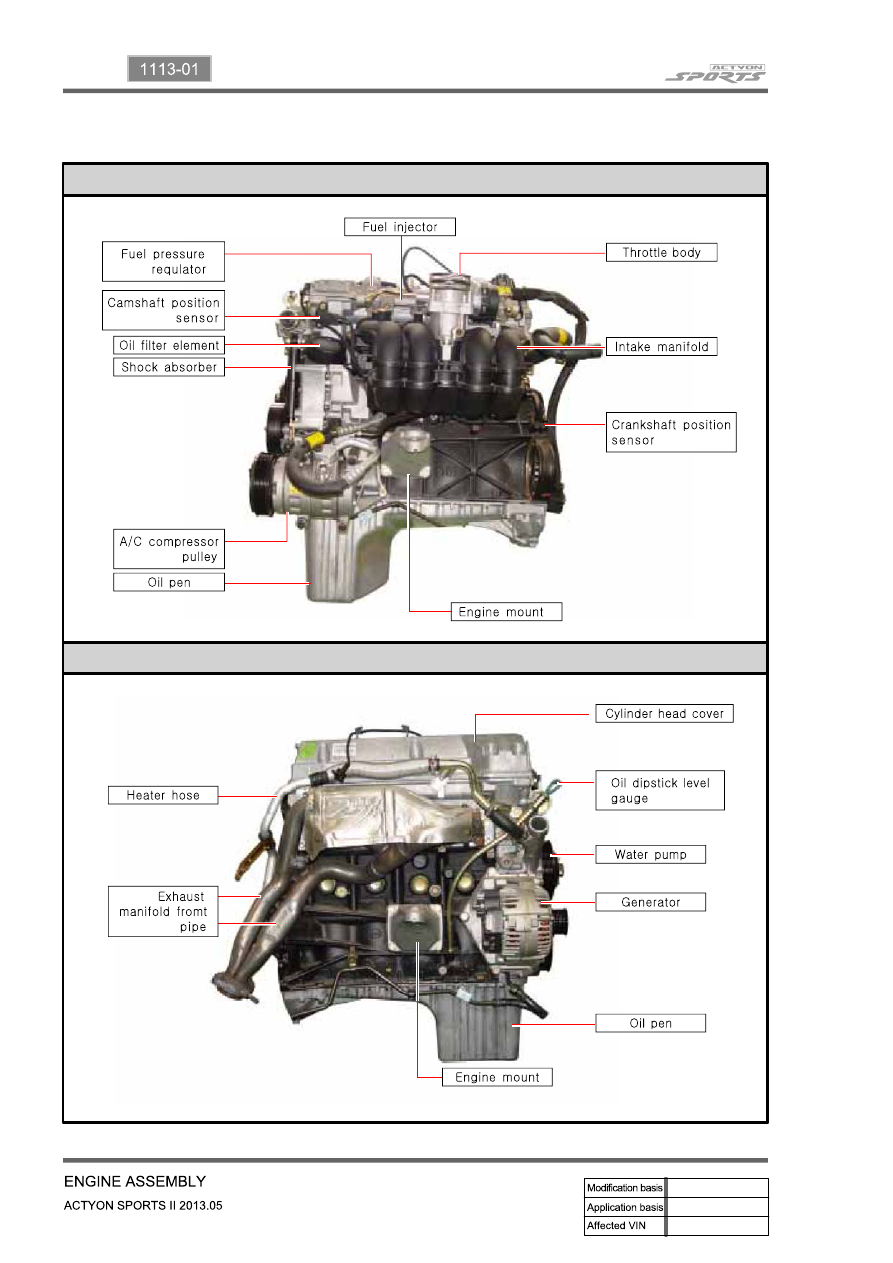

01-5

1113-01

Front View

Rear View

2. G23D ENGINE ASSEMBLY

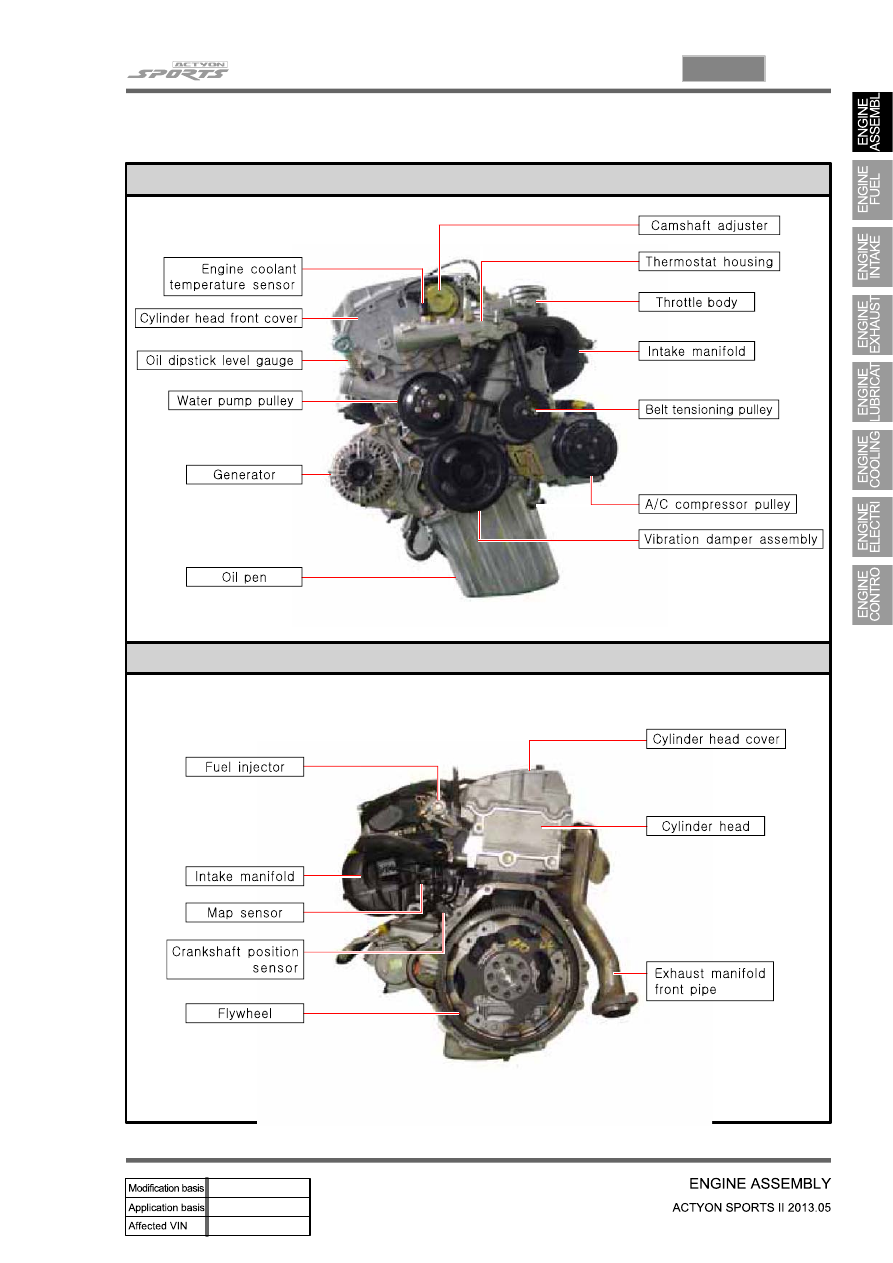

01-6

LH Side View

RH Side View

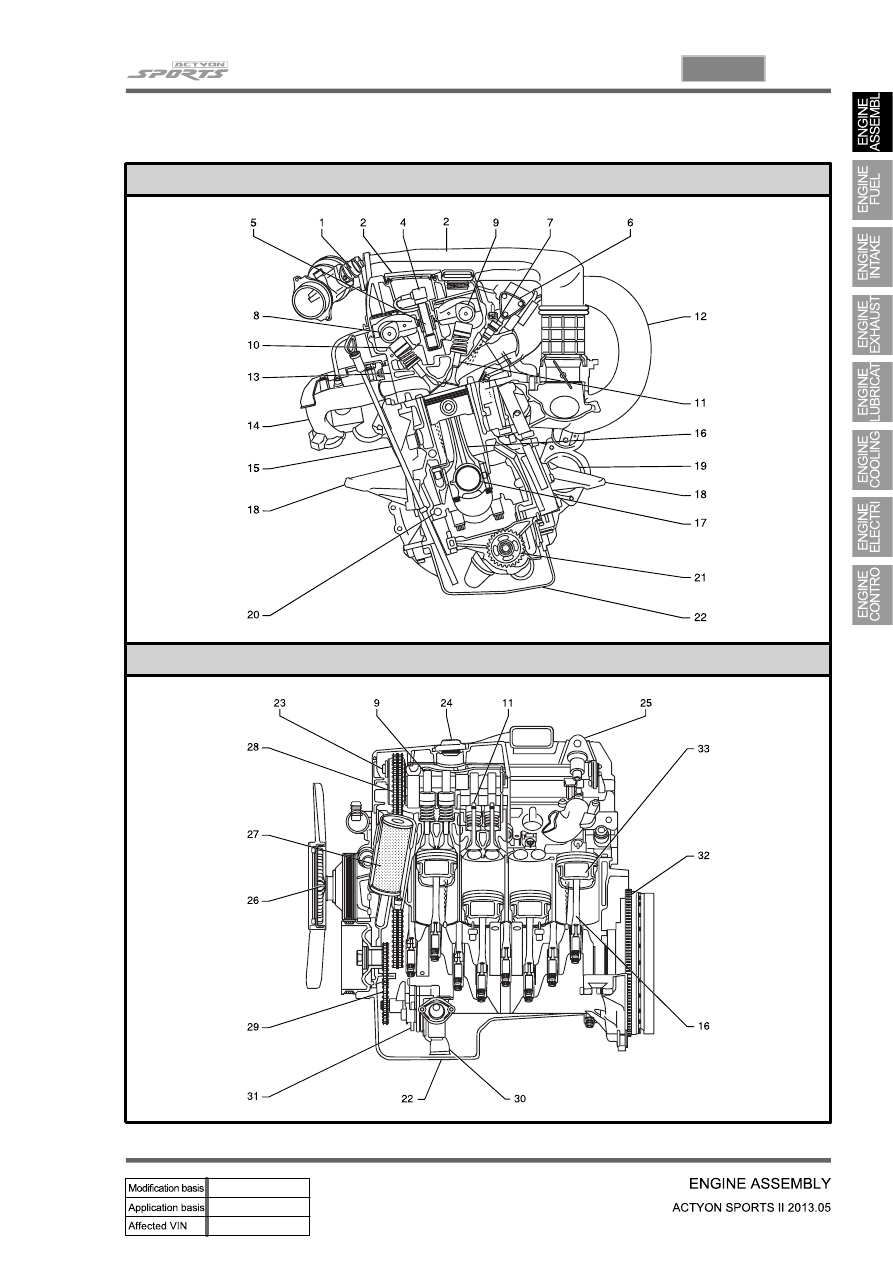

01-7

1113-01

3. G23D ENGINE STRUCTURE

Front View

Side View
