 FRONT SUSPENSION  2C-9

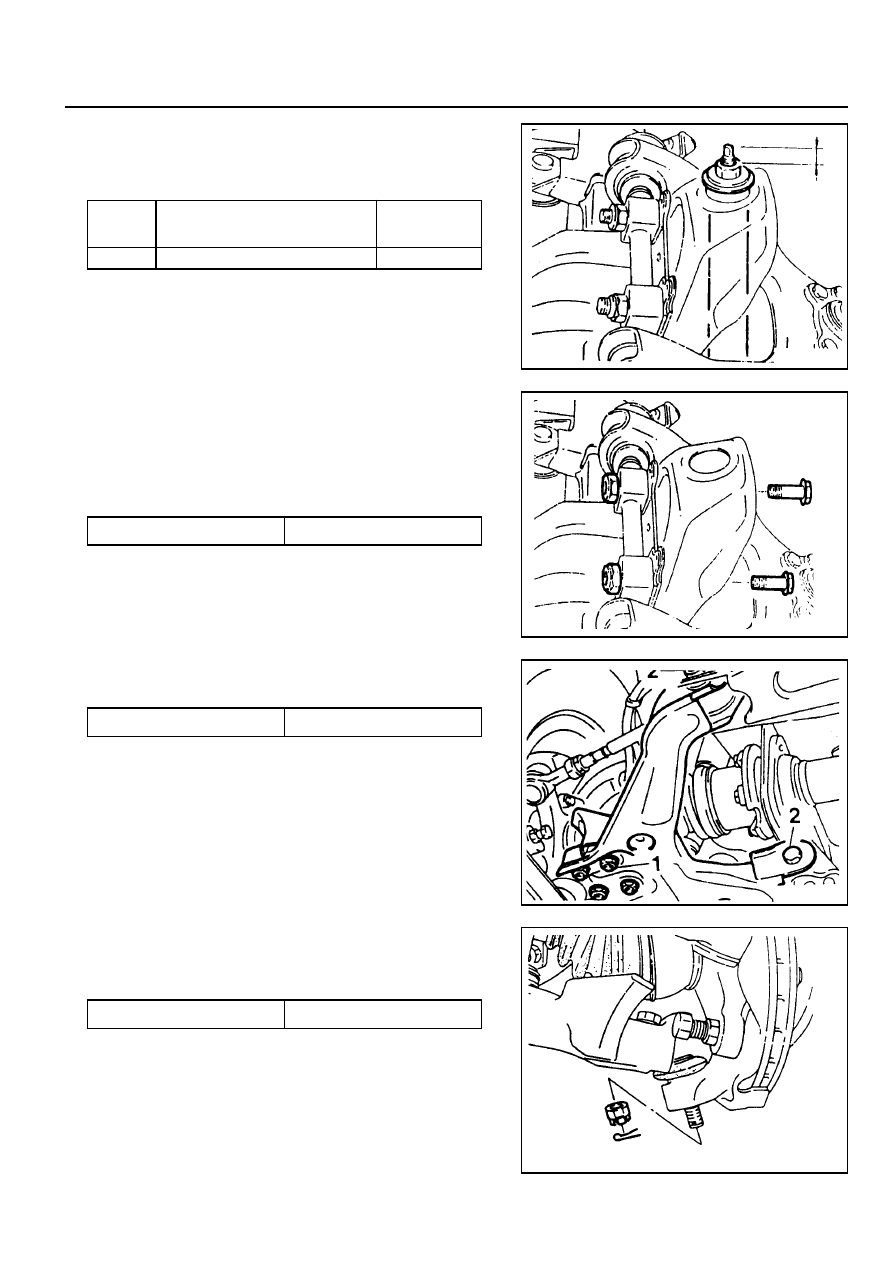

Removal & Installation Procedure

1. Remove the shock absorber.

Installation Notice

2. Remove the fulcrum pin mounting bolts and nuts and remove

the upper arm assembly.

Notice

Be careful not to damage or lose the adjusting shims.

Upper

Lower

Distance between the nut end

and the screw end

Tightening Torque

6 - 9 mm

60 - 80 Nm

3. Remove the lower arm mounting bolts (2).

Installation Notice

Tightening  Torque

120 - 140 Nm

4. Pull out the cotter pin from the lower arm ball end assembly

and remove lower arm after loosening the slotted nut.

Installation Notice

Tightening  Torque

150 - 180 Nm

Notice

Replace the cotter pin with new one.

5. Installation should follow the removal precedure in the

reverse order.

Tightening  Torque

120 - 180 Nm

Installation Notice

2C-10   FRONT SUSPENSION

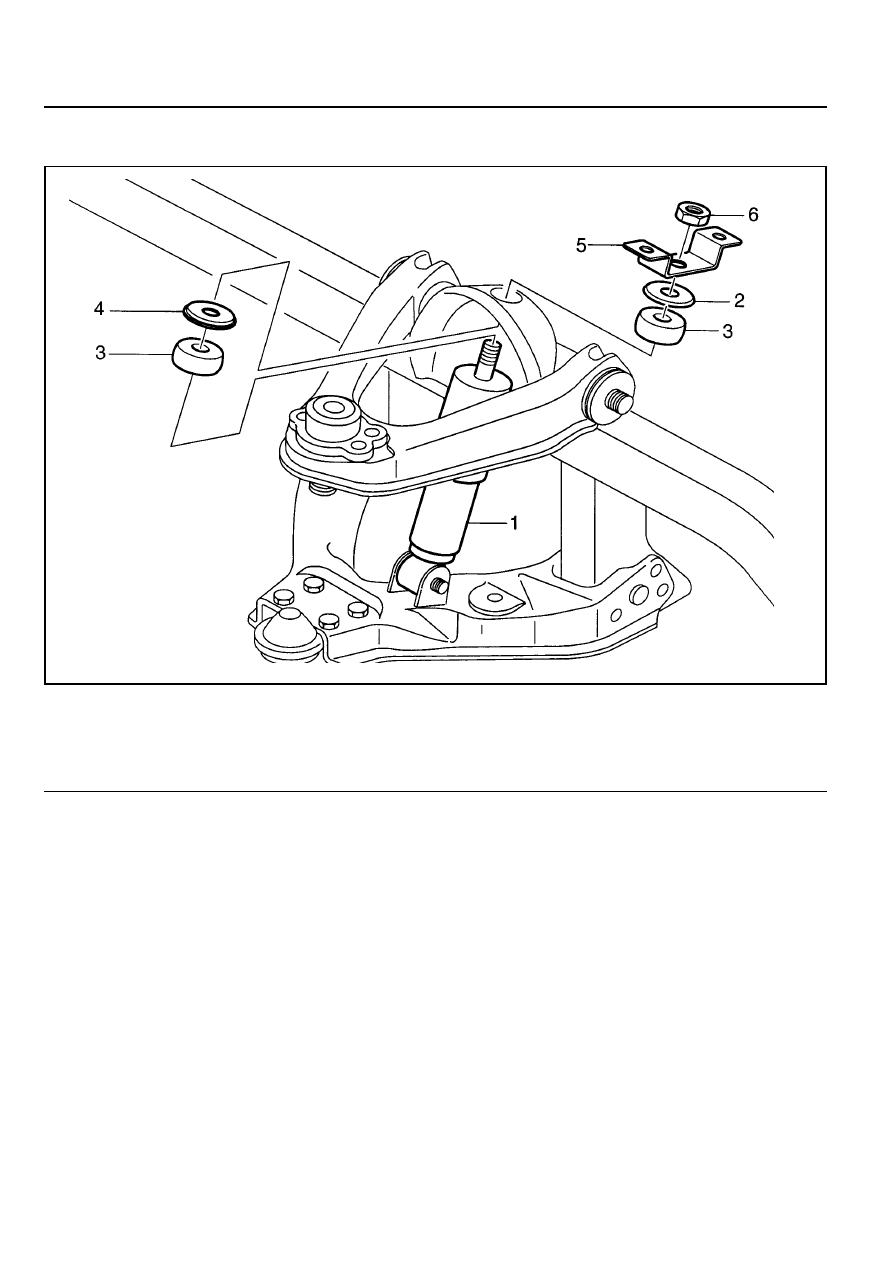

FRONT SHOCK ABSORBER

1 Front Shock Absorber
2 Washer
3 Bush

4 Center Washer
5 Actuator Mounting Bracket
6 Nut ........................................................ 40-60Nm

FRONT SUSPENSION  2C-11

Removal & Installation Procedure

1. Disconnect actuator connector and unscrew bolt and remove

actuator assembly.

Notice

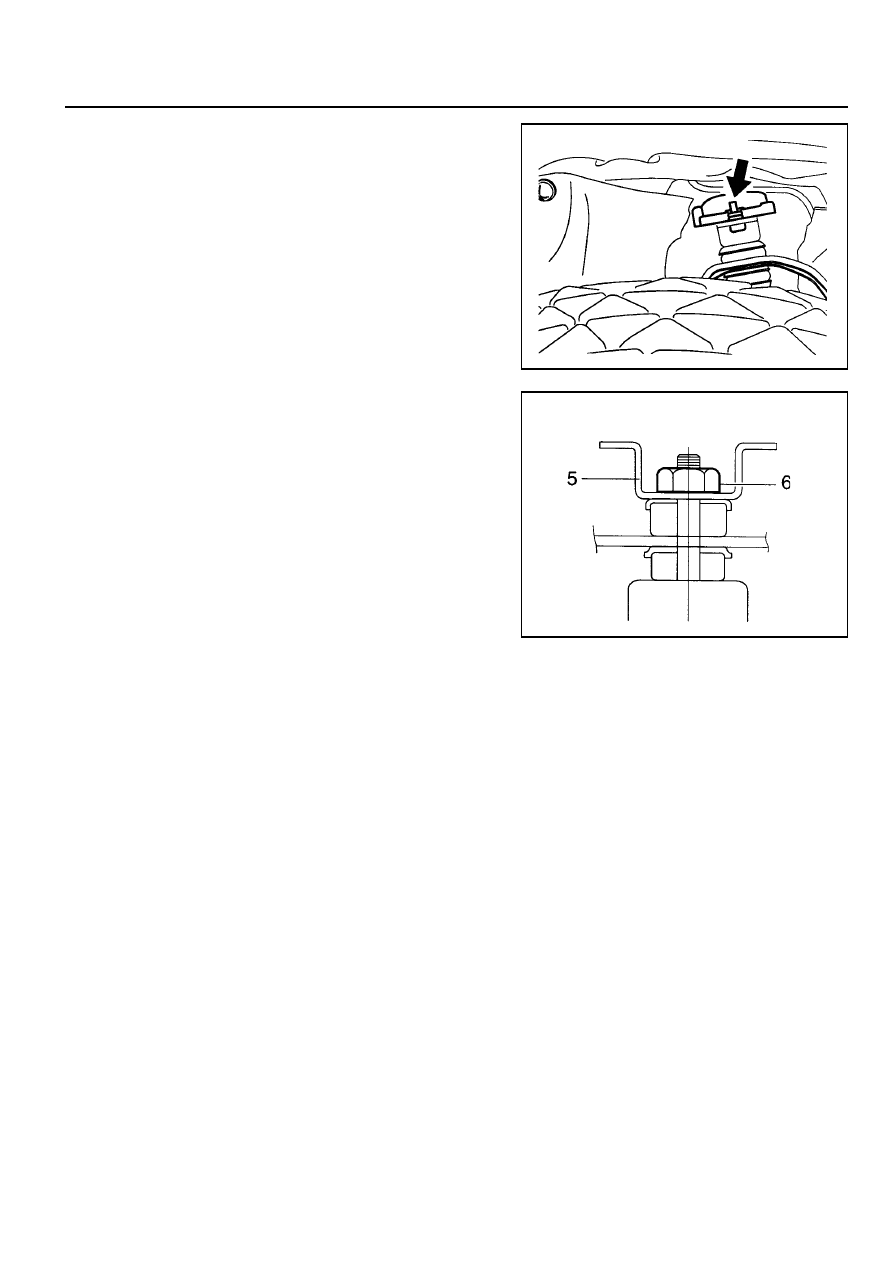

When installing the actuator to the mounting bracket, the
wiring should face the front of the frame.

2. Unscrew the upper nut (6).

Notice

When screwing the nut, actuator contacting surface of the
mounting bracket and rod end should be 0.5 - 1.5mm.

3. Remove the mounting bracket (5).

Notice

When installing the bracket, it should be vertical to the frame
side member.

4. Remove the bush and check for damage and replace if

necessary.

5. Unscrew shock absorber lower bolt and nut and remove

the shock absorber.

Notice

Shock absorber is filled with gas, never attempt to cut or
heat.

6. Installation should follow the removal procedure in the

reverse order.

2C-12   FRONT SUSPENSION

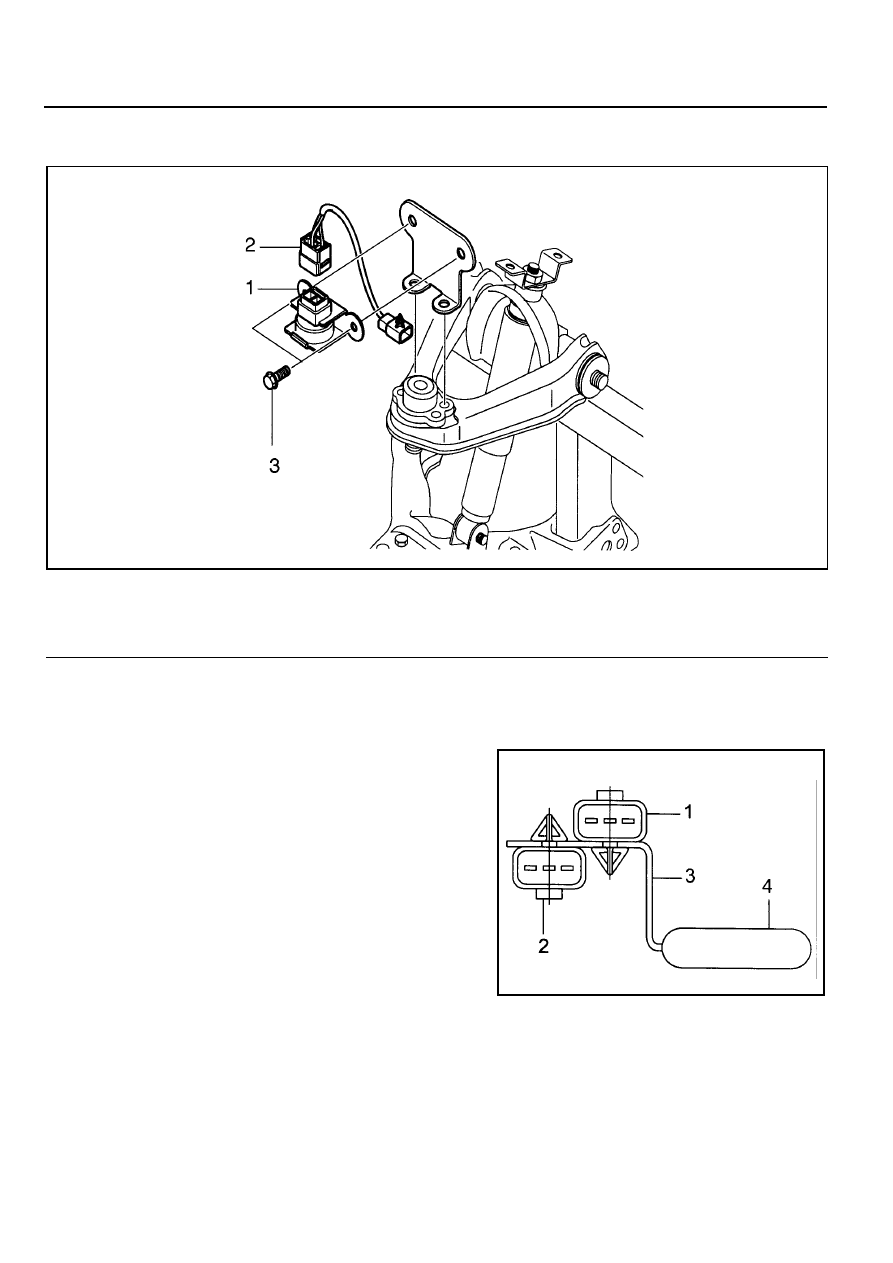

1 Axle Vertical Acceleration Sensor (wheel G

sensor)

Removal & Installation Procedure

1. Disconnect extension wiring connector (2) from the axle

vertical acceleration sensor.

Notice

Installation of wiring connector should be as shown in the
right drawing.

2. Unscrew bolts (3) and remove the axle vertical acceleration

sensor (1).

Notice

When installing the sensor to the bracket, the sensor wiring
should be upward.

3. Installation should follow the removal procedure in the

reverse order.

1

Actuator Connector

2

Axle Vertical Acceleration Sensor Connector

3

Front Hose Mounting Bracket

4

Frame Side Member

AXLE VERTICAL ACCELERATION SENSOR (WHEEL G SENSOR)

2 Extension Wiring
3 Bolt (M6) ............................................. 20 - 30Nm
