SsangYong Musso. Service manual - part 68

3-2  WIRING DIAGRAM FOR POWER SUPPLIES

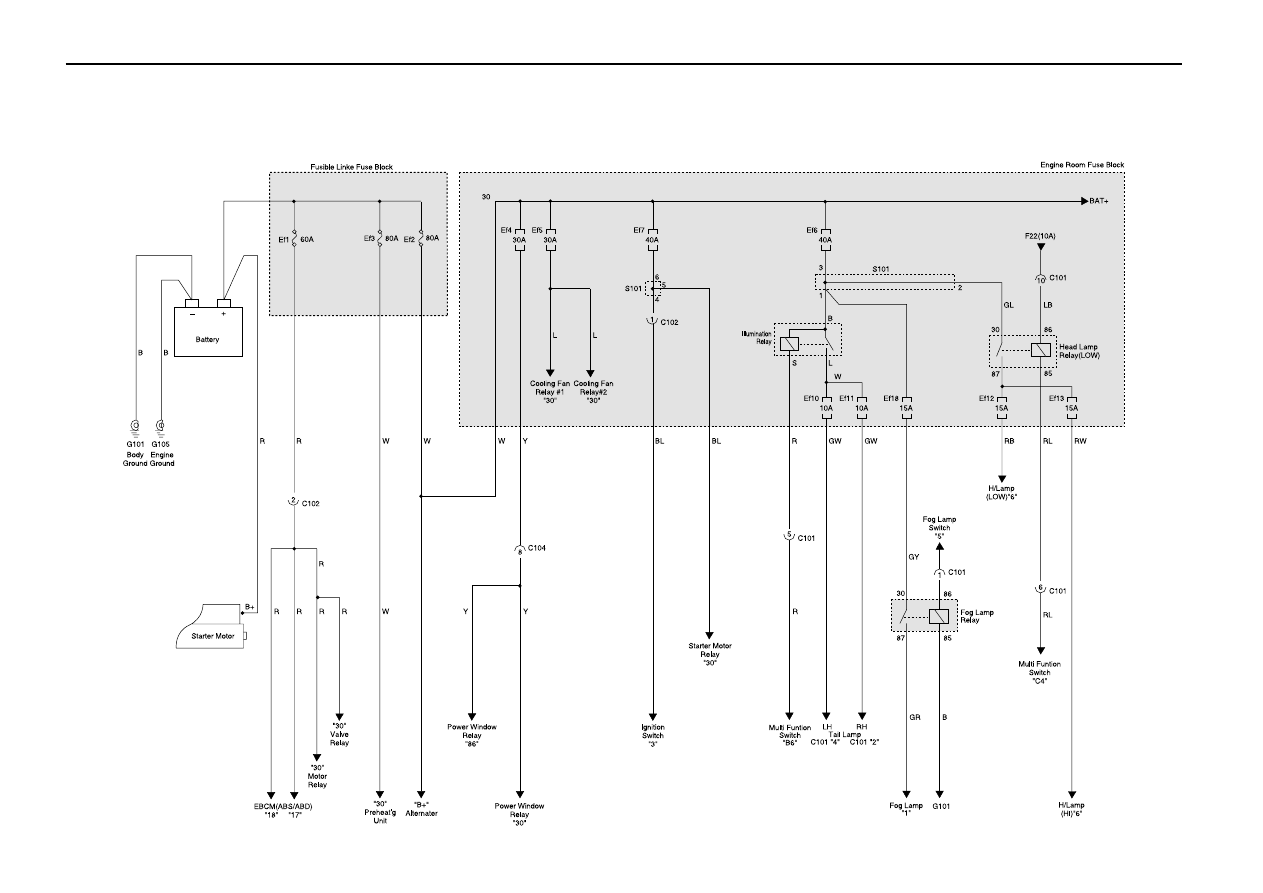

1. FUSIBLE LINK FUSE BLOCK & ENGINE ROOM FUSE BLOCK POWER DISTRIBUTION

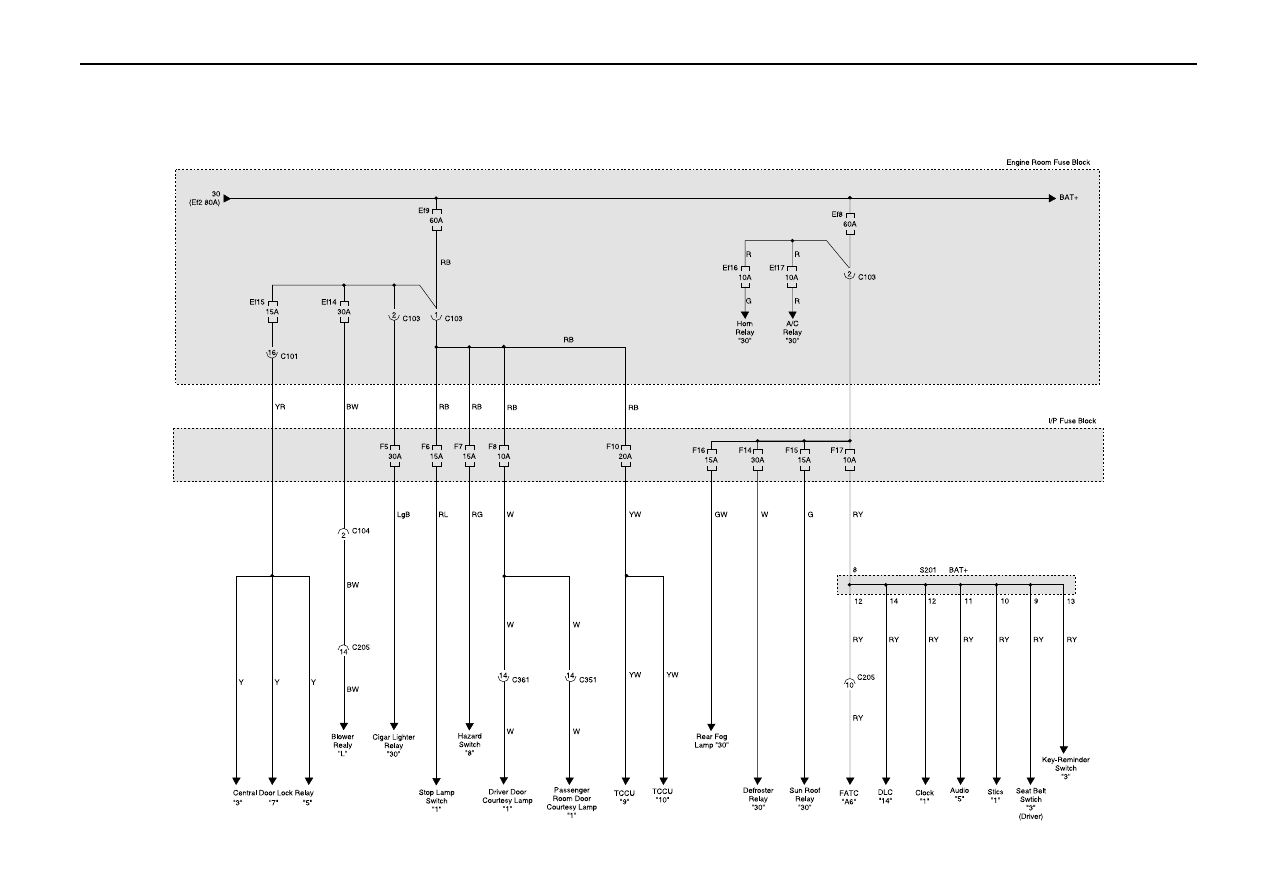

WIRING DIAGRAM FOR POWER SUPPLIES  3-3

2. I/P FUSE BLOCK POWER DISTRIBUTION

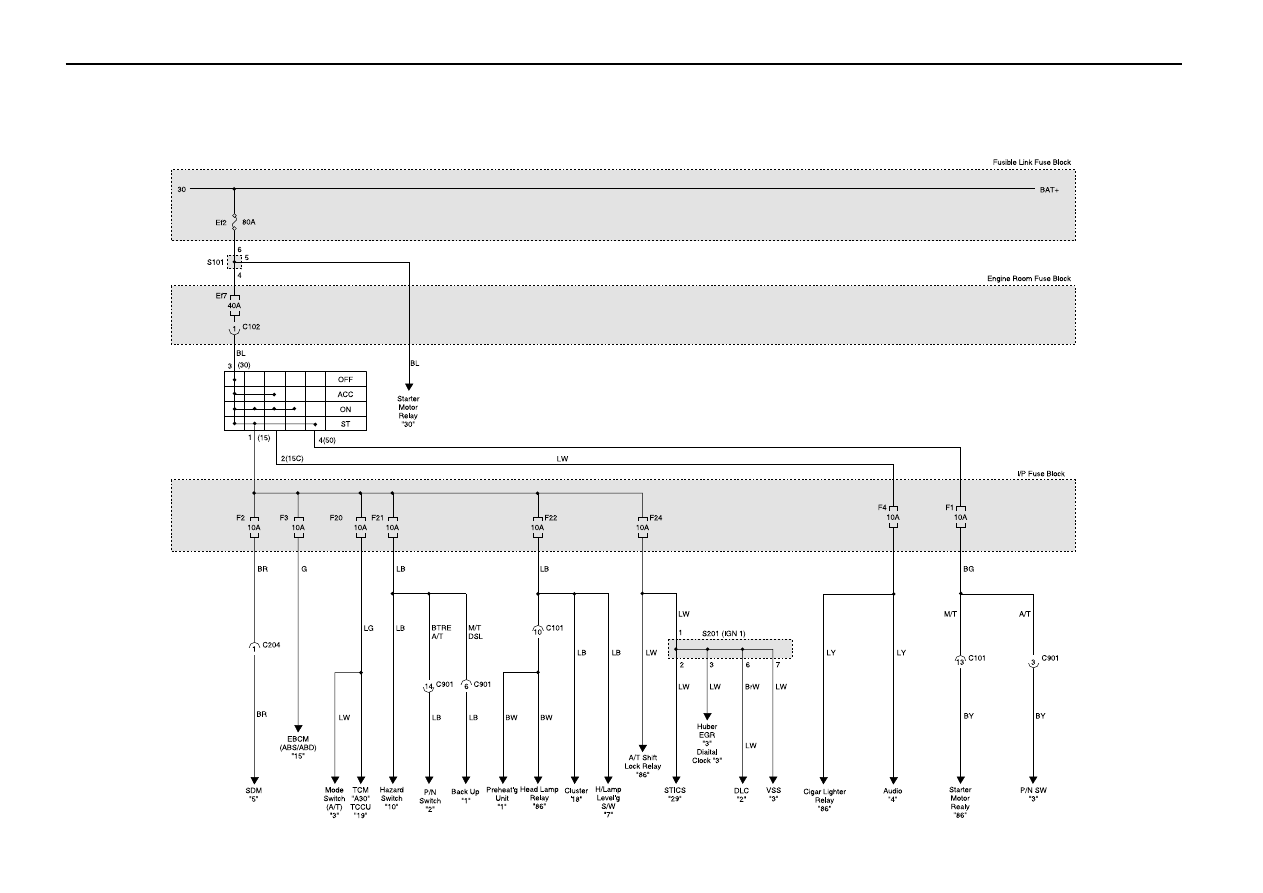

3-4  WIRING DIAGRAM FOR POWER SUPPLIES

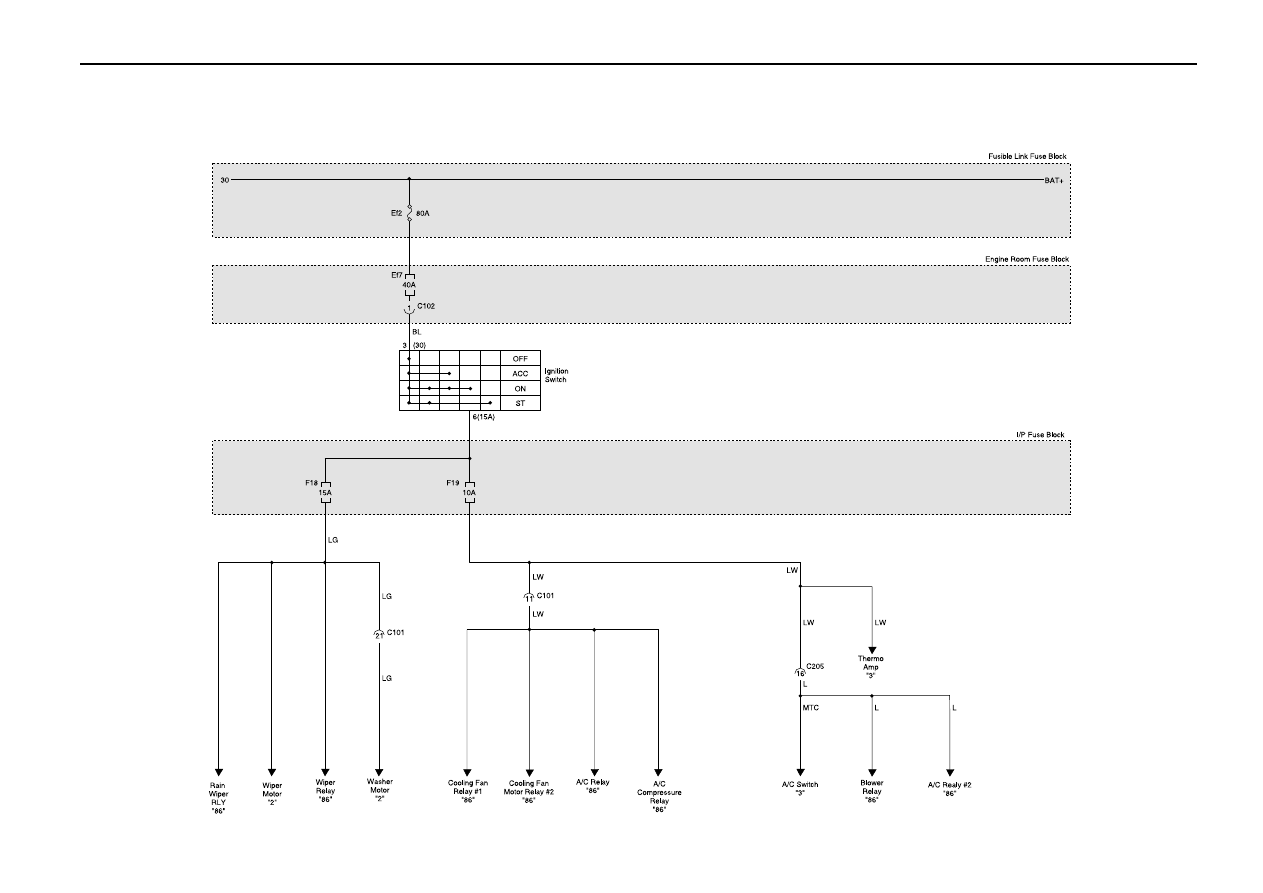

WIRING DIAGRAM FOR POWER SUPPLIES  3-5
