SsangYong Musso. Service manual - part 40

IMMOBILIZER SYSTEM  9W-13

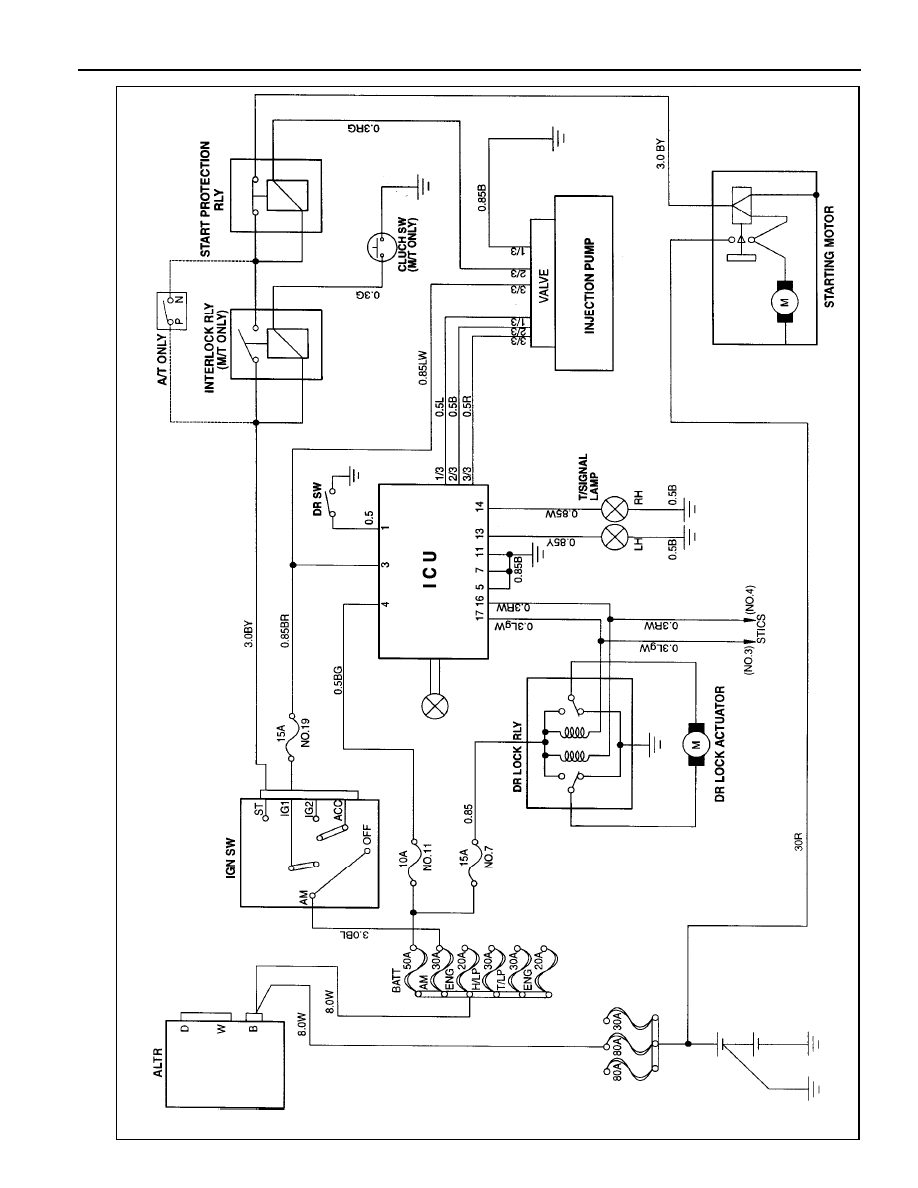

DIESEL ENGINE IMMOBILIZER

9W-14

  IMMOBILIZER SYSTEM

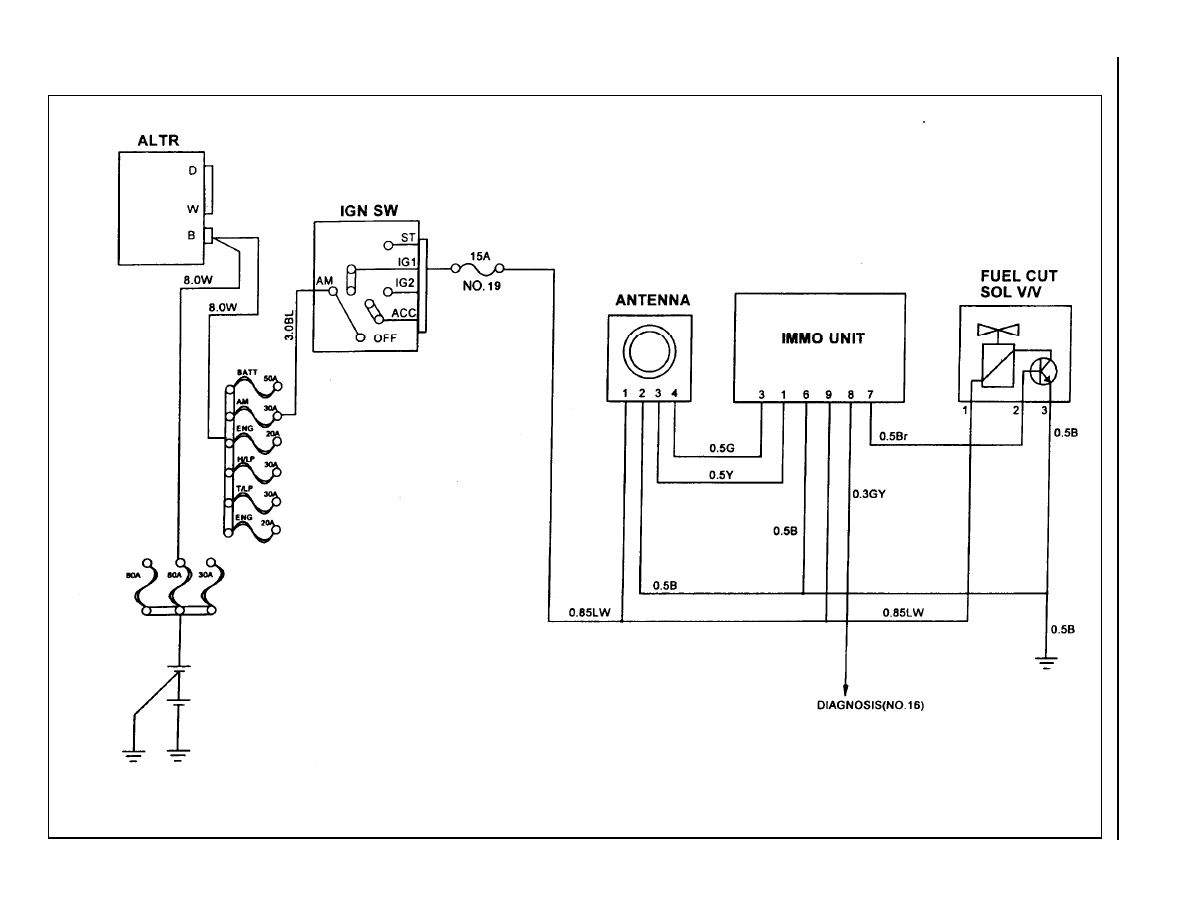

DIESEL ENGINE IMMOBILIZER - CRYPTO TYPE

IMMOBILIZER SYSTEM  9W-15

Notice

For circuit diagram of gasoline vehicle, refer to the ECU diagram.

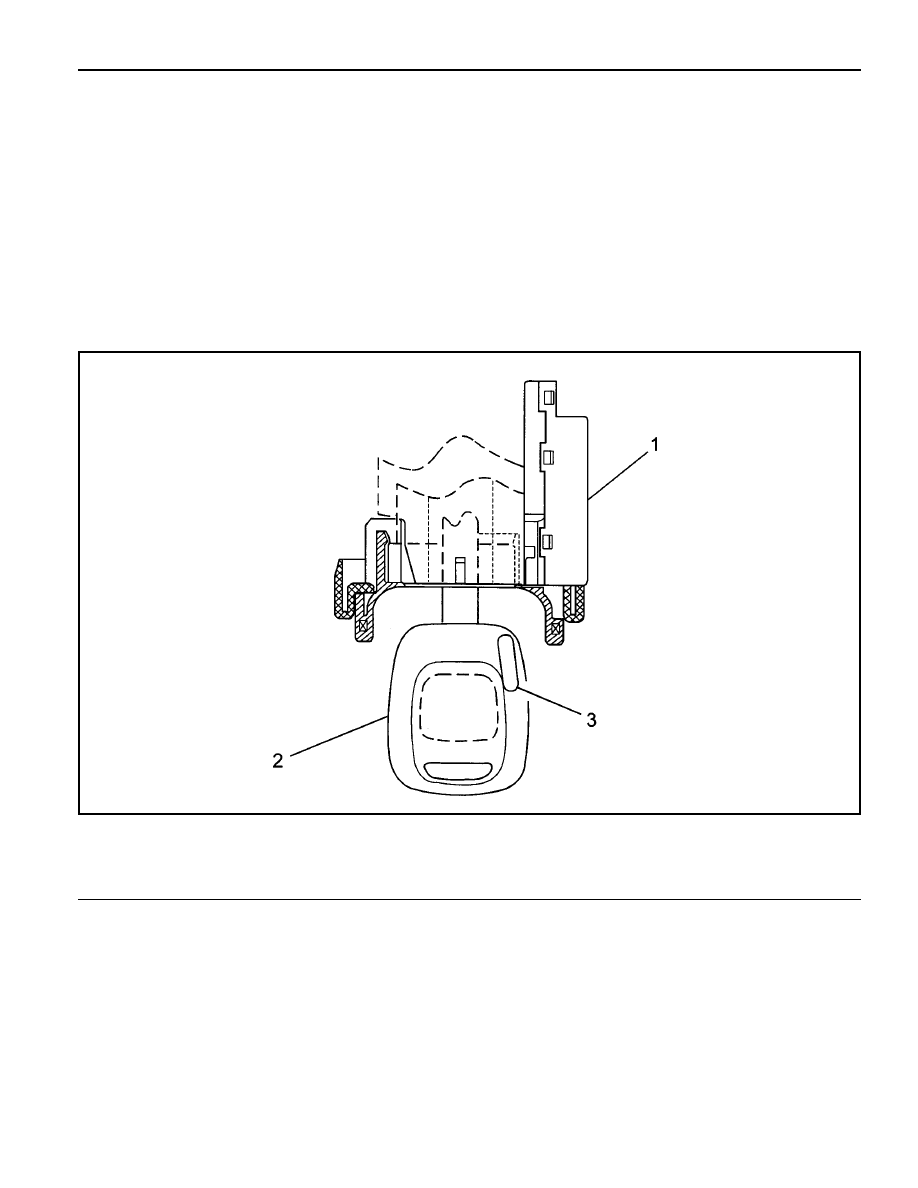

IMMOBILIZER ANTENNA

Immobilizer antenna is installed in key set outer surface (it is
installed in the location of key hall illumination).(see the figure)

1 Immobilizer Antenna
2 Key

3 Transponder

MAINTENANCE  AND REPAIR

ON-VEHICLE SERVICE

9W-16  IMMOBILIZER SYSTEM

4. Remove the transponder. Carefully remove the old shock

absorbing sealant with a razor blade if applied.

5. Replace the transponder with new one, and apply the small

amount of shock absorbing sealant.

6. Installation should follow the removal procedure in the

reverse order.

1

Transponder

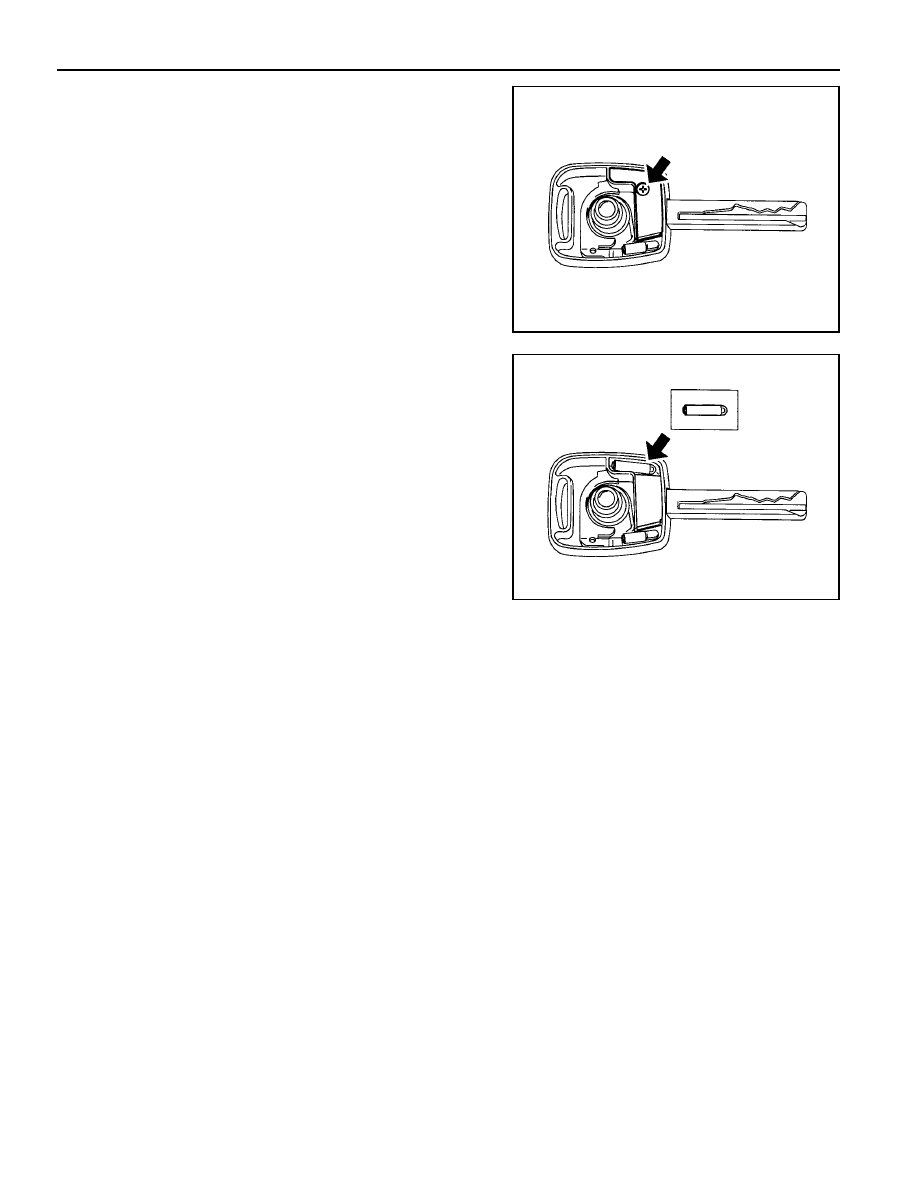

Replacement Procedure

1. Open the cover on key handle.

2. Remove the small screw in symmetrical position of key

illumination.

3. Remove the cover.
