9E-2  INSTRUMENTATION/DRIVER INFORMATION

CLUSTER

SCHEMATIC  AND ROUTING DIAGRAMS

INSTRUMENTATION/DRIVER INFORMATION  9E-3

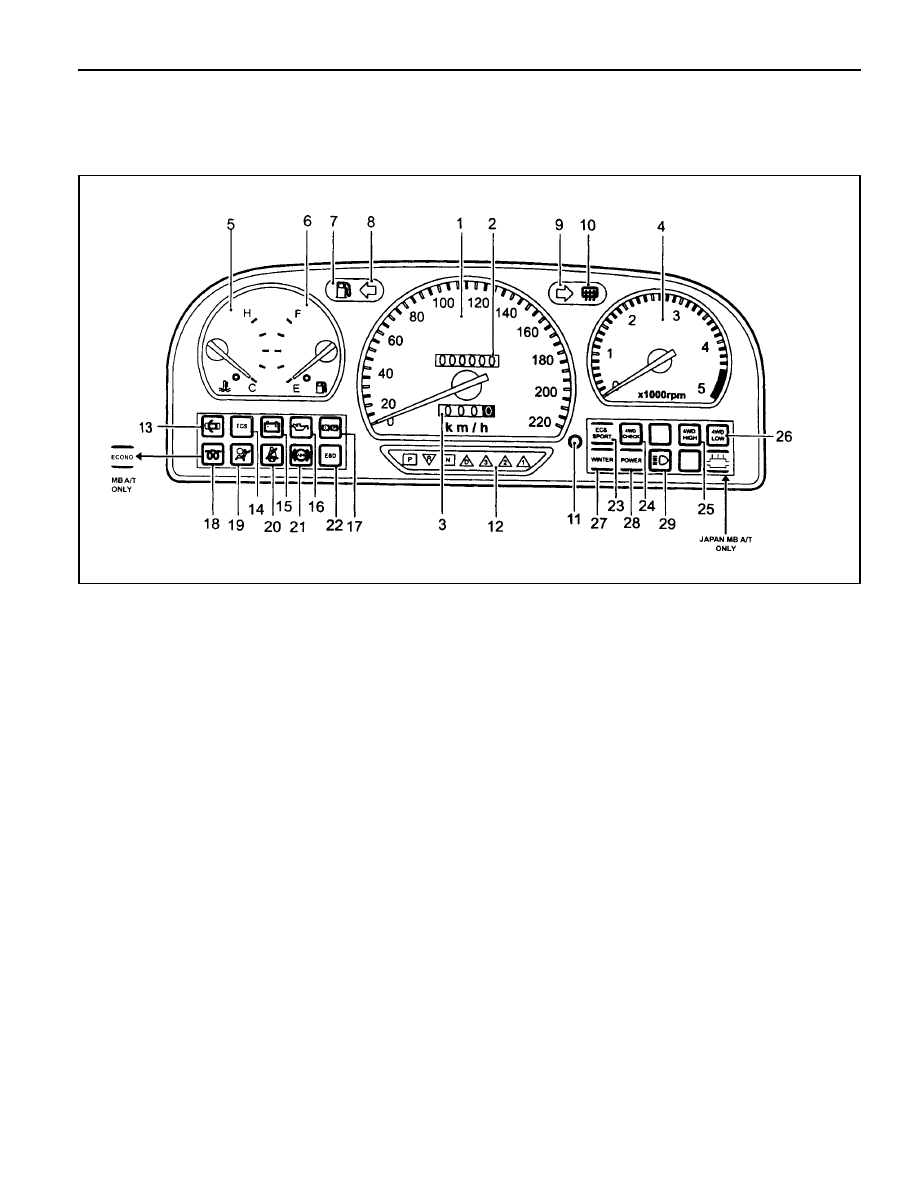

COMBINATION METER

COMPONENT LOCATOR

1. Speedometer
2. Odometer
3. Trip odometer
4. Tachometer
5. Coolant temperature gauge
6. Fuel gauge
7. Low fuel level warning light
8. Turn signal indicator (left)
9. Turn signal indicator (right)

10. Outside rearview mirror & tailgate heating switch
11. Reset button
12. Auto shift indicator*
13. Door open warning light
14. TCS indicator (equipped with ABD)*
21. ABS warning light*

22. EBD warning light*
23. ECS / SPORT warning light*
24. 4 - wheel warning light*
25. 4 - wheel high indicator
26. 4 - wheel low indicator
27. WINTER indicator
28. POWER indicator
29. High beam indicator
15. Alternator warning light
16. Engine oil pressure warning light
17. Brake system warning light
18. Glow indicator light (For Diesel engine)
19. Airbag warning light*
20. Seat belt reminder

9E-4  INSTRUMENTATION/DRIVER INFORMATION

COMBINATION METER

Diesel

1. Speedometer

(km/h)

2. Tachometer

Revolution

Tolerance

1000

+137

-63

2000

3000

+261

-39

4000

+298

-2

5000

-

+199

-51

Gasolin

1 Windshield Linkage

Speed

Tolerance

40

+3
+0

60

80

+5
+0

100

+5
+0

140

+5.5
+0.5

160

+5.5
+0.5

180

-

+4
+0

120

+5.5
+0.5

Speed

Tolerance

20

+4
+0

40

60

+4
+0

80

+5
+0

120

+5.5

+0

140

+5.5
+0.5

160

+5.5
+0.5

+3
+0

100

+5
+0

Speed

Tolerance

180

+6
+1

200 240

-

+6
+1

-

MAINTENANCE  AND REPAIR

ON VEHICLE SERVICE

INSTRUMENTATION/DRIVER INFORMATION  9E-5

3. Fuel Gauge

Resistance

Tolerance

E

97

2.5'

1/2

(32.5)

±5°

F

6

±2.5

Temperature

50 °C

86 °C

105.5 °C

120 °C

Resistance(

Ω

)

156.9

Ω

44.5

Ω

27.3

Ω

19.4

Ω

4. Temperature Gauge(Temperature Sensor)

Speed

Tolerance

1000

±100

2000 3000

±150

4000

±150

6000

±180

7000

±210

8000

-

±125

5000

±150

2. Tachometer
