LIGHTING SYSTEM  9B-7

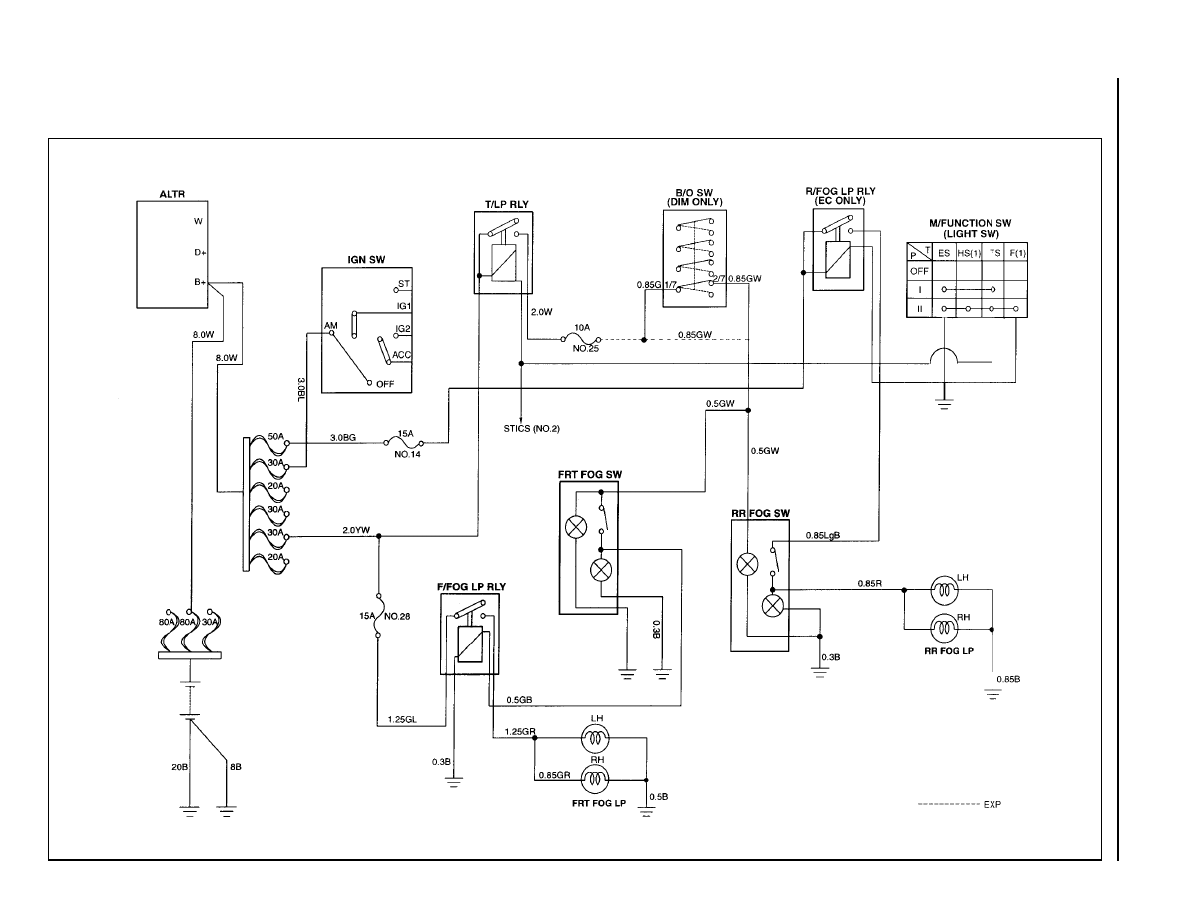

FRONT AND REAR FOG LAMP

9B-8  LIGHTING SYSTEM

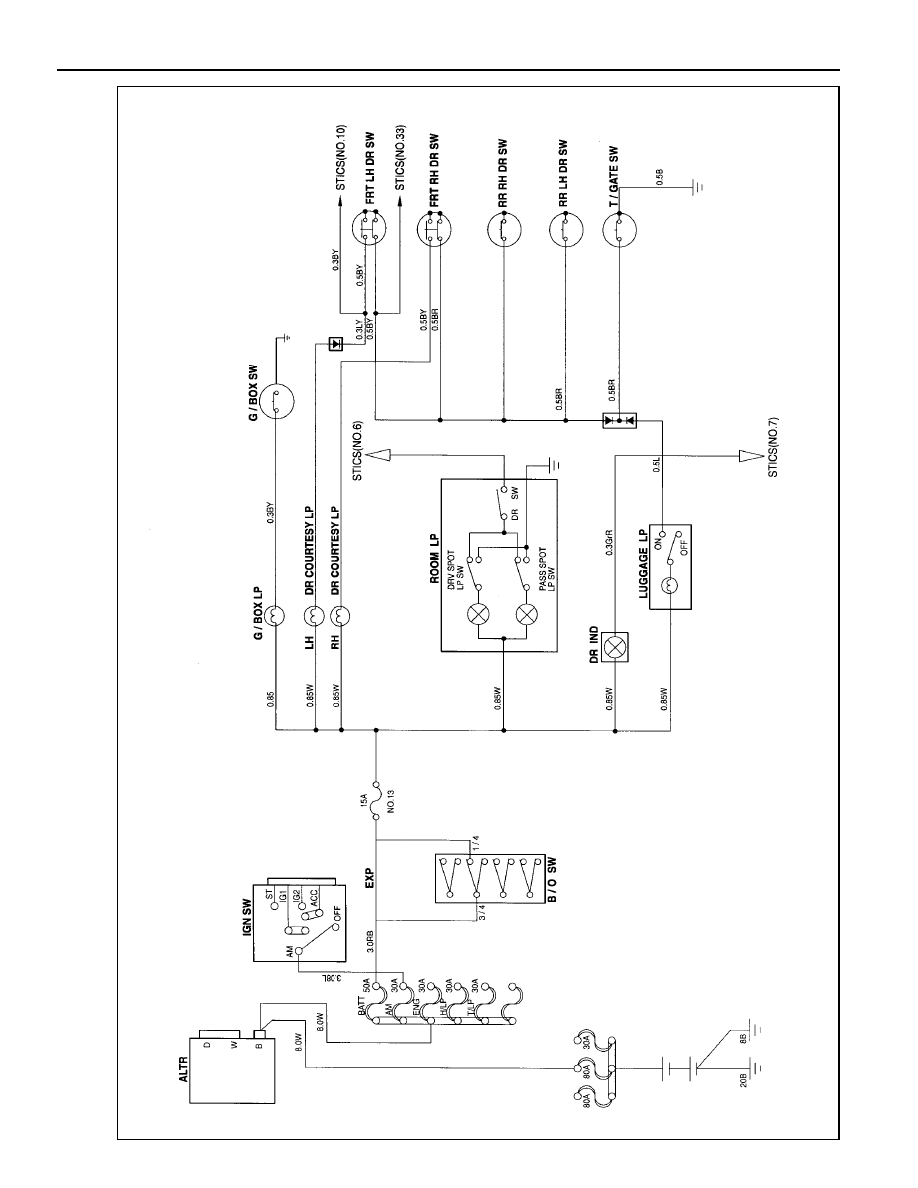

ROOM LAMP

LIGHTING SYSTEM  9B-9

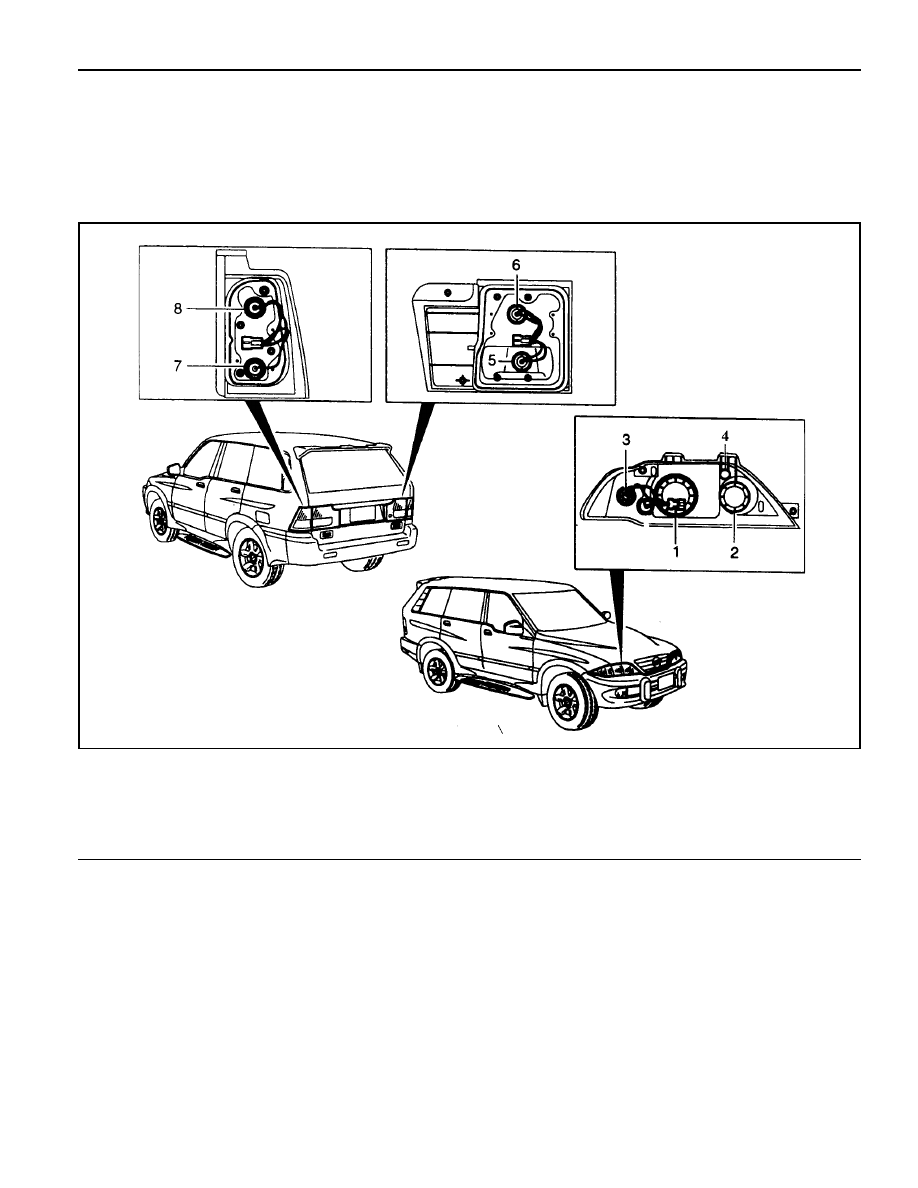

FRONT AND REAR LAMPS

1 Low-beam Head Lamp
2 High-beam Head Lamp
3 Turn Signal Lamp
4 Position Lamp

5 Back-up Lamp
6 Tail / Stop Lamp
7 Turn Signal Lamp
8 Tail / Stop Lamp

MAINTENANCE  AND REPAIR

ON-VEHICLE SERVICE

9B-10  LIGHTING SYSTEM

Head Lamp Focusing

When using the beam setting device

1. The head lamp focus should be adjusted by using a proper

beam setting device.

2. Adjust the head lamp focus by using Up/Down, Left/Right

adjusting screws.

When using the screen

1. Put the vehicle on the leveling surface.

2. One person is needed to seat on the driver's seat without

other loads(CVW) and check the tire pressure if it is in the
specification.

3. The distance between the headlamp and the screen is 25m.

4. Draw the vertical line (crossing the center of each headlamp)

on the screen.

5. Start the engine.

6. Check if the cut-off line of the headlamp on the screen is in

the specification.

1) Left/right direction

- The degree of the cross point at the cut-off line of the

headlamp and the vertical line should be 15.

2) Up/down direction

- The distance between the cut-off line of the headlamp

and the horizontal line should be 25cm.

7. Adjust the focus if the cut-off line of the headlamp is out of

the specification by using up/down, left/right adjusting
screws.

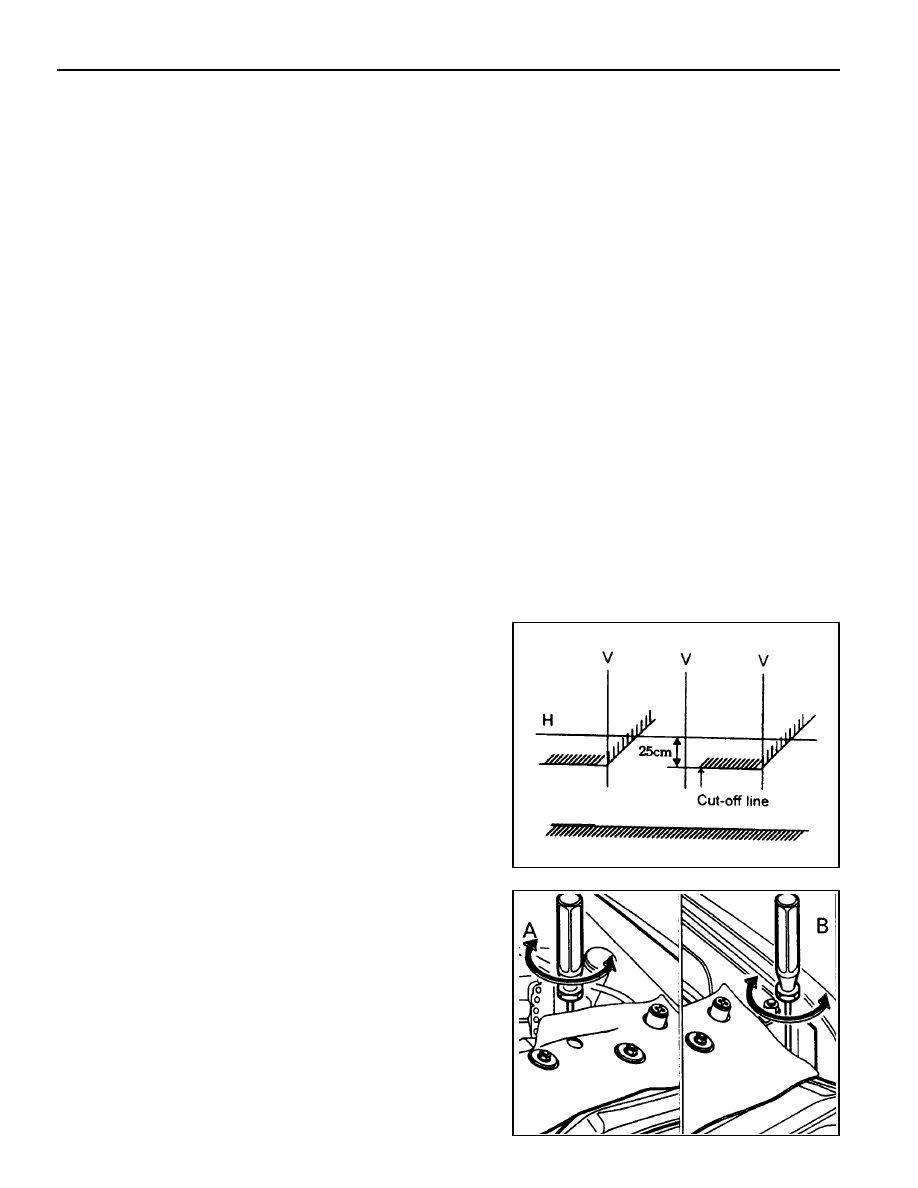

A : Up/down direction adjusting screw

B : Left/right direction adjusting secrw
