Transporting children safely

Child seat

Introduction

To reduce the risk of injury in an accident, children should only be transported

in child seats!

Please refer to the instructions in this Owner's Instruction and the child seat man-

ufacturer's instructions with regard to the installation and use of the child seat.
For safety reasons, we recommend that you always transport children on the

rear seats. Only transport a child on the passenger seat in exceptional circum-

stances.
Child seats complying with the ECE-R 44 Economic Commission for Europe

standard must be used.
Child seats that comply with the ECE-R 44 standard are identified with a test

mark that cannot be removed: large E within a circle with the test number be-

low.

WARNING

One should never carry children, and also not babies! - on one's lap.

When leaving the vehicle, do not leave children unattended in the vehicle.

Children might not be capable of leaving the vehicle or helping themselves

independently in the event of an emergency. Can be fatal at very high or

very low temperatures!

The child must be secured in the vehicle during the entire journey! Other-

wise, the child would be thrown through the vehicle in the event of an acci-

dent, causing fatal injuries to both the child and other occupants.

Children are exposed to an increased risk of injury in the event of an acci-

dent if they lean forward or adopt an incorrect seated position when the

vehicle is moving. This particularly applies to children who are transported

on the front passenger seat as they can suffer severe, or even fatal injuries

if the airbag system is deployed!

Pay particular attention to the information provided by the manufacturer

of the child safety seat regarding the correct routing of the belt. Seat belts

which are not correctly adjusted can themselves cause injuries even in mi-

nor accidents.

WARNING (Continued)

Safety belts must be checked to ensure that they are running properly.

One should also ensure that the belt is not damaged by sharp-edged fit-

tings.

When installing the child seat on the back seat, the corresponding front

seat must be adjusted so that there is no contact between the front seat

and the child seat or the child being transported in a child seat.

When installing a child seat in which the child faces forward, adjust the

head restraints so that they are as high as possible.

If the head restraints still prevent the child seat from being installed, even

in the highest position, you will need to remove them

» page 70

. After re-

moving the child seat, refit the head restraints.

Note

We recommend that you use child seats from ŠKODA Original Accessories.

These child seats were developed and also tested for use in ŠKODA vehicles.

They meet the ECE-R 44 standard.

28

Safety

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Use of a child seat on the front passenger seat (variant 1)

Does not apply to Taiwan

Fig. 24  Warning labels

Read and observe   on page 28 first.

Never use a rear-facing child restraint system on a seat which is protected

by an active airbag positioned in front of it. This could cause serious injury

to the child, even death.
This warning is also given on stickers that are located in the following places.

On the passenger sun visor

» Fig. 24

 - .

On the B-column on the front passenger side

» Fig. 24

 – .

The following instructions must be followed when using a child seat on the

front passenger seat.

It is essential to deactivate the front passenger airbag if using a child seat in

which the child is transported with its back facing the direction of travel

»

.

If possible, adjust the front passenger seat backrest so that it is as vertical, so

as to ensure secure contact between the passenger seat backrest and the

back of the child seat.

If possible, move the front passenger seat backwards so that there is no con-

tact between the front passenger seat and the child seat behind it.

Set the height-adjustable front passenger seat as high up as possible.

Set the front passenger seat belt as high up as possible.

With child safety seats in groups 2 and 3, make sure that the loop-around fit-

tings attached to the child seat headrest is positioned in front of or at the

same height as the loop-around fittings on the B pillar on the passenger side.

Adjust the height of the front passenger seat belt so that the belt does not

“jam” in the return pulley. In the event of an accident, there is the risk of in-

jury to the neck of the child carried due to the seat belt!

WARNING

Never use a rear-facing child seat on the front passenger seat if the pas-

senger airbag is activated. This child safety seat is positioned in the deploy-

ment area of the front passenger airbag. The airbag may cause the child se-

vere, or even fatal injuries, in the event of it being deployed.

Once a child seat in which the child is transported with its back to the di-

rection of travel is no longer being used on the passenger seat, the front

passenger airbag should be reactivated.

Use of a child seat on the front passenger seat (variant 2)

Applies to Taiwan

Fig. 25

Warning labels

Read and observe   on page 28 first.

No babies, infants or children are to be carried on the passenger seat.
A label to this effect can also be found on the passenger's sun visor

» Fig. 25

.

29

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Child safety and the side airbag

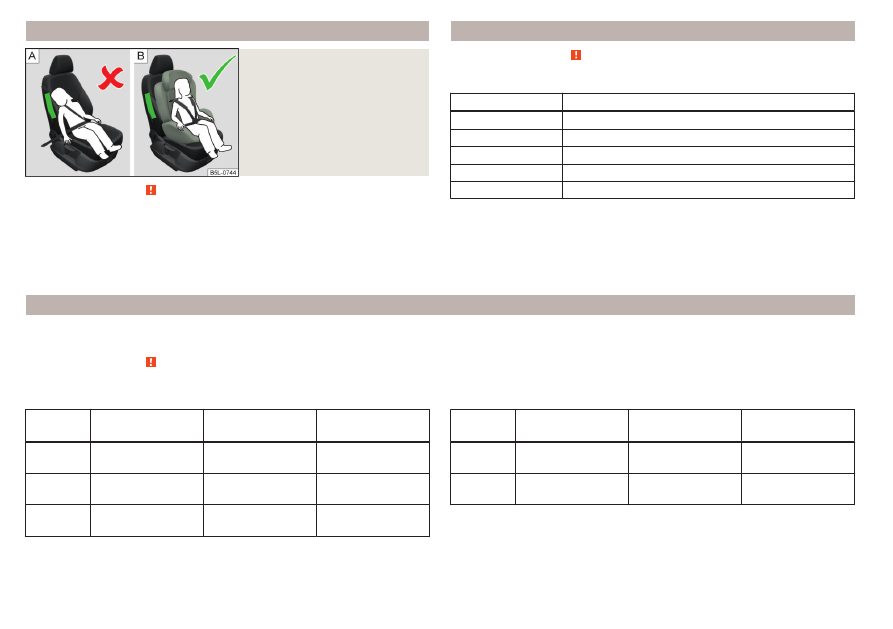

Fig. 26

Incorrect seated position of a

child who is not properly se-

cured – risk from the side air-

bag/Child properly protected by

safety seat

Read and observe   on page 28 first.

The child must not be positioned in the deployment area of the side airbag

» Fig. 26

 - .

There must be sufficient room between the child and the deployment area of

the side airbag that the airbag can provide as much protection as possible

» Fig. 26

 – .

Classification of child seats

Read and observe   on page 28 first.

Classification of child seats according to the ECE-R 44 standard.

Group

Weight of the child

0

up to 10 kg

0+

up to 13 kg

1

9 - 18 kg

2

15 - 25 kg

3

22-36 kg

Use of child safety seats which are secured using a seat belt

Never use a rear-facing child seat on the front passenger seat if the front passenger airbag is activated. This child safety seat is positioned in the deployment area

of the front passenger airbag. The airbag may cause the child severe, or even fatal injuries, in the event of it being deployed.

Read and observe   on page 28 first.

Overview of the usability of child seats fastened with a seat belt on each of the seats in accordance with the ECE-R 16 standard.

Group

Front passenger

seat

Rear seats

Outside

Rear seat

Centre

0

up to 10 kg

U

U

U

0+

up to 13 kg

U

U

U

1

9 - 18 kg

U

U

U

Group

Front passenger

seat

Rear seats

Outside

Rear seat

Centre

2

15 - 25 kg

U

U

U

a)

3

22 - 18 kg

U

U

U

a)

a)

If the middle rear seat is not provided with a headrest, then a child seat of Group 2 or 3 is only to be used if

this has its own built-in headrest. If the child seat of Group 2 or 3 does not have its own built-in headrest,

the child seat must be attached to the outer rear seat.

“Universal” child seat category - a child seat designed to be attached to

the seat using the seat belt.

U

30

Safety

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fastening systems

Attachment points of the -system

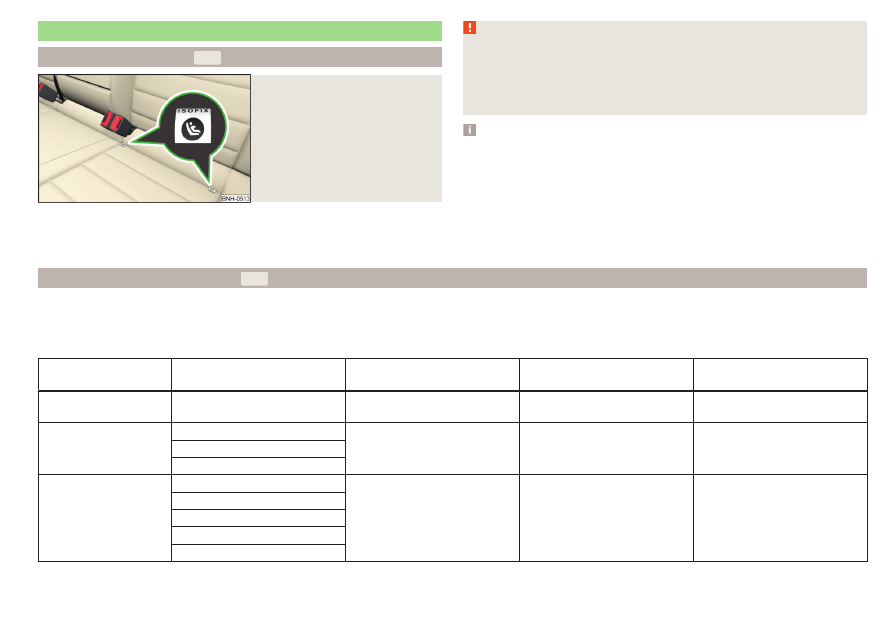

Fig. 27

Labels of the system 



 is a system for securing child seats quickly and safely.

There are two locking eyes between the rear exterior seats for fixing the child

in place using the -system

» Fig. 27

.

WARNING

Always refer to the instructions from the manufacturer of the child seat

when installing and removing a child seat with the -system.

Never attach other child seats, belts or objects to the attachment points

eyes intended for the installation of a child seat with the -system – risk

of death!

Note

A child seat fitted with the  system can only be mounted in a vehicle fit-

ted with a  system if the child seat has been approved for this type of ve-

hicle. Further information is available from a ŠKODA Partner.

Child seats with the -system can be purchased from ŠKODA Original Ac-

cessories.

Use of child safety seats with the  system

Never use a rear-facing child seat on the front passenger seat if the front passenger airbag is activated. This child safety seat is positioned in the deployment area

of the front passenger airbag. The airbag may cause the child severe, or even fatal injuries, in the event of it being deployed.

Overview of the usefulness of child seats fastened with the -system on each of the seats in accordance with the ECE-R 16 standard.

Group

Size class of

the child seat

a)

Front passenger seat

Outer rear seats

Rear seat middle

0

up to 10 kg

E

X

IL-SU

X

0+

up to 13 kg

E

X

IL-SU

X

D
C

1

9 - 18 kg

D

X

IL-SU

IUF

X

C
B

B1

A

31

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Group

Size class of

the child seat

a)

Front passenger seat

Outer rear seats

Rear seat middle

2

15 - 25 kg

-

X

IL-SU

X

3

22 - 18 kg

-

X

IL-SU

X

a)

The size category is shown on the label attached to the child seat.

IL-SU

The seat is suitable for the use of approved child seats in  in the “Semi-Universal”category. The “Semi-Universal” category means that the child

seat with the -system is approved for your vehicle. Observe the list of vehicles that comes with the child seat.

IUF

The seat is suitable for the installation of a  child seat with “Universal” approval and attachment with the   system belt.

X

The seat is not fitted with -system attachment points.

Attachment points of the  -system

Fig. 28

Attachment points of the 


-system



  is a fastening system, which restricts the movement of the upper part

of the child seat.

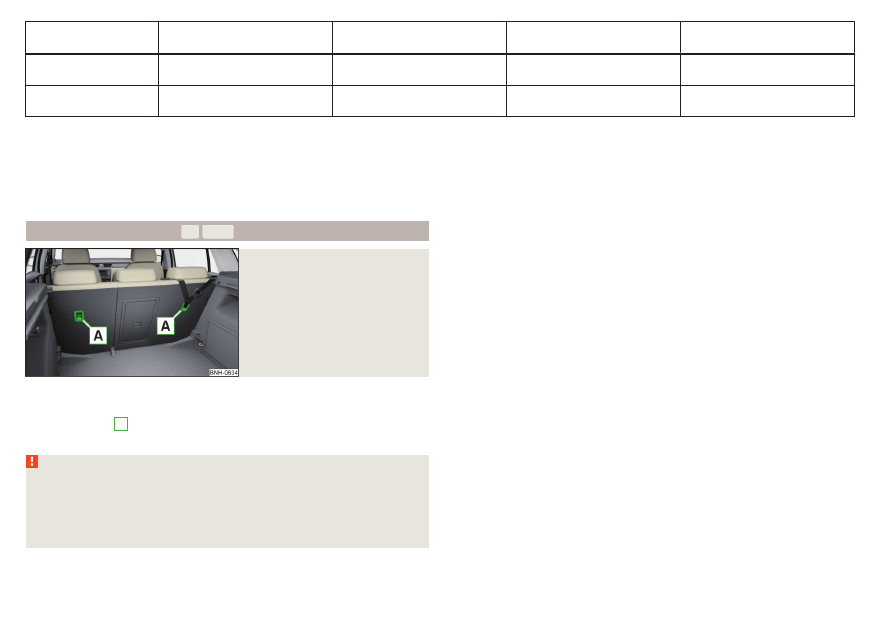

The locking eyes

A

 for attaching the belt of a child seat with the  

system are located on the rear side of the rear seat backrests

» Fig. 28

.

WARNING

Always refer to the instructions from the manufacturer of the child seat

when installing and removing a child seat with the  -system.

Only use child seats with the   system on the seats equipped with

attachment points with the logo  .

Only ever attach one belt from the child seat to a locking eye.

32

Safety

-------------------------------------------------------------------------------------------------------------------------------------------------------------

33

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

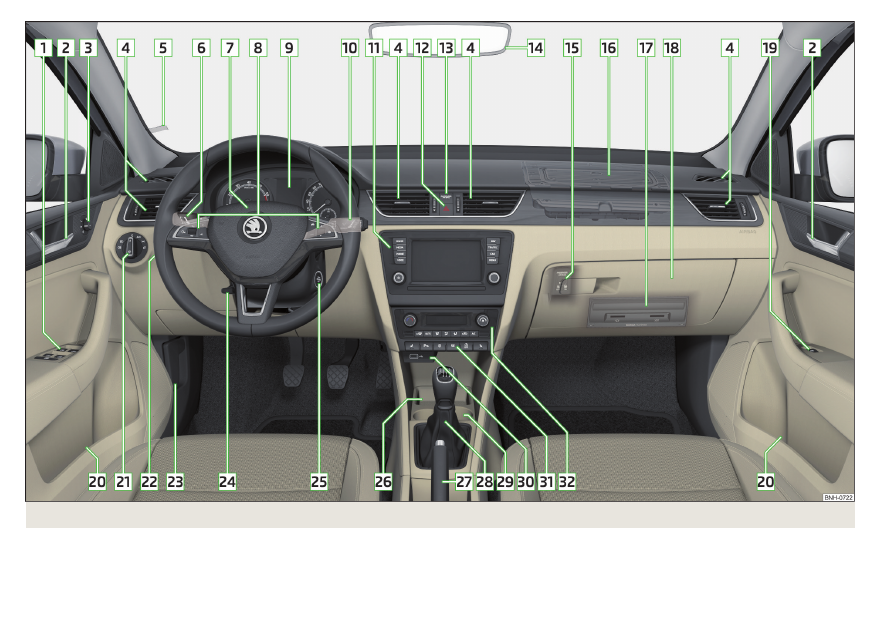

Fig. 29  Cockpit example for LHD models

34

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the system

Cockpit

Overview

Electric power windows

57

Door opening lever

55

Electric exterior mirror adjustment

68

Air outlet vents

90

Parking ticket holder

72

Operating lever (depending on equipment):

Indicator light and high-beam headlight

60

Speed regulating system

176

Speed limiter

177

Steering wheel with horn/with driver's front airbag

24

Buttons for operating the information system

45

Instrument cluster

36

Operating lever:

Windscreen wipers and washers

66

Information system

45

Depending on equipment fitted:

Storage compartment

73

Infotainment

91

Button for hazard warning light system

63

Warning light for the front seat passenger airbag

27

Interior rear-view mirror

67

Key switch for switching off the front passenger airbag (in front

passenger storage compartment)

27

Front passenger airbag

24

External Infotainment module (in the passenger storage com-

partment)

93

Storage compartment on the front passenger side

76

Power window in the front passenger door

57

Storage compartments

72

Light switch

59

1

2
3
4
5
6

7
8
9

10

11

12
13
14
15

16
17

18
19

20

21

Headlight range control (in the dashboard)

59

Bonnet release lever

199

Steering wheel locking lever

19

Depending on equipment fitted:

Ignition lock

160

Starter button

160

Storage compartment

73

Handbrake lever

163

Depending on equipment fitted:

Gearshift lever (instruction gearbox)

164

Selector lever (automatic gearbox)

165

Cup holder

73

USB input

73

Bar with keys depending on the equipment fitted:

 Left seat heating

71

 Traction control (TCS)

170

 Parking aid

171

 Central locking system

54

 Rear window heater

64

 START STOP

161

 Windscreen heater

64

 Right seat heating

71

Controls for heating/air conditioning

87

Note

The layout of the controls on right-hand drive vehicles differs partially from

that shown in this layout

» Fig. 29

.

22
23
24
25

26
27
28

29
30

31

32

35

Cockpit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and warning lights

Instrument cluster

Introduction

Fig. 30  Instrument cluster - Version 1

Fig. 31  Instrument cluster - Version 2

Engine revolutions counter

» page 36

with warning lights

» page 37

Display

» page 45

1

2

Speedometer

with warning lights

» page 37

Bar with warning lights

» page 37

Operation key:

Set the time

» page 46

Reset counter for distance travelled (trip)

» page 45

Displaying the distance and days until the next service interval

» page 51

Coolant temperature display

» page 37

Fuel gauge

» page 37

The brightness of the instrument illumination is set automatically depending

on the ambient lighting throughout. If the visibility is poor and the lights are

not on, the brightness of the instrument lighting reduces to alert the driver to

switch on the lights in due time.
The brightness of the instrument lighting can be adjusted in the Infotainment

menu



 →  → → Light.

Rev counter

The tachometer

1



» Fig. 30

 on page 36 or

» Fig. 31

 on page 36 shows the ac-

tual engine speed per minute.
The beginning of the red scale range of the tachometer indicates the maxi-

mum permitted engine speed of a driven-in and operating warm engine.
You should shift into the next highest gear before the red scale of the revolu-

tion counter is reached, or select mode D/S on the automatic gearbox.
The gear recommendation is important to note in order to maintain the opti-

mum engine speed

» page 46

.

CAUTION

The rev counter pointer may only move into the red area for a short time - oth-

erwise risk of engine damage!

3

4
5

6
7

36

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Coolant temperature gauge

Fig. 32

Coolant temperature gauge

Applies to cars with the instrument cluster variant 1

» Fig. 30

 on page 36.

The display only works if the ignition is switched on.

Cold area, The engine has not yet reached its operating temperature.

Avoid high speeds and high engine loads.
The operating range
High temperature range
, the warning light  illuminates in the instrument

cluster

» page 43

.

Fuel gauge

Fig. 33  Fuel gauge: in the instrument cluster / the display of the instru-

ment cluster

The display only works if the ignition is switched on.
The fuel tank has a capacity of about 55 litres.
If the fuel level reaches the reserve level

A

 or

B

, the warning light

 illumi-

nates in the instrument cluster

» page 41

.

A

B
C

WARNING

For the vehicle systems to function correctly, and thus for safe driving,

there must be sufficient fuel in the tank. Never drain the fuel tank com-

pletely – risk of accident!

CAUTION

Never drive until the fuel tank is completely empty! Irregular supply of fuel can

cause misfiring, which can result in damage to parts of the engine and the ex-

haust system.

Note

The arrow  next to the symbol  within the fuel gauge displays the installa-

tion location of the fuel filler on the right side of the vehicle.

Warning lights

Introduction

Handbrake

» page 38

Brake system

» page 38

Front seat belt warning light

» page 38







Power steering

Steering lock (engine start push-button)

» page 39

Stabilisation control (ESC)

Traction control (TCS)

» page 39

Traction control (ASR) deactivated

» page 40

Antilock brake system (ABS)

» page 40

Rear fog light

» page 40

Exhaust control system

» page 40



Engine performance check

» page 40

Airbag system

» page 40

Tyre pressure

» page 41

Fuel reserve

» page 41



Turning signal system

» page 41

Trailer turn signal lights

» page 41

37

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fog lights

» page 42

Speed regulating system

Speed limiter

» page 42

Brake pedal (automatic gearbox)

» page 42

High beam

» page 42

Automatic gearbox

» page 42

 

Rear seat belt warning light

» page 42

Alternator

» page 42

Coolant

» page 43

Engine oil pressure

» page 43

Engine oil level

» page 43

Bulb failure

» page 44

Particle filter

» page 44

Windscreen washer fluid level

» page 44

Headlight assist

» page 44

 

START-STOP system

» page 44

Display of a low temperature

» page 45

Distance warning (Front Assist)

» page 45

Advance warning/emergency braking (Front

Assist)

» page 45

Emergency call

» page 45

Service

» page 45

The warning lights in the instrument cluster indicate certain functions or faults.
Some warning lights can be accompanied by acoustic signals and messages in

the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-

tion test. If the tested systems are OK, the corresponding warning lights go

out a few seconds after switching on the ignition or after starting the engine.

Warning lights in the display

Depending on the significance, the warning light

 (danger) or

 (warning) il-

luminates along with some other warning lights in the display.

WARNING

Ignoring illuminated indicator lights and related messages or instructions

in the instrument cluster display may lead to serious personal injury or dam-

age to the vehicle.

If you have to stop for technical reasons, then park the vehicle at a safe

distance from the traffic, switch off the engine and switch on the hazard

warning lights

» page 63

. Place the warning triangle at the prescribed dis-

tance.

The engine compartment of your car is a hazardous area. The following

warning instructions must be followed at all times when working in the en-

gine compartment

» page 198

.

 handbrake

Read and observe   on page 38 first.

 illuminates - the hand brake is applied.

An acoustic signal will sound if you drive the vehicle above 5 km/h while the

handbrake is still on.

Release the handbrake.

 Braking system

Read and observe   on page 38 first.

 lights up – the brake fluid level in the brake system is too low.

Park the vehicle,

 stop driving! Seek help from a specialist garage.

WARNING

A fault to the braking system can increase the vehicle's braking distance -

risk of accident!

 Front seat belt warning light

Read and observe   on page 38 first.

 illuminates - the driver or front passenger has not fastened their seat belt.

At a speed of over 25 km/h, the warning light

 flashes and an audible warning

sounds at the same time.

38

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the seat belt is not fastened by the driver or front passenger during the next

approx. 2 minutes, the warning signal is deactivated and the warning light

illuminates permanently.



 Power steering/steering lock (engine start with button

press)

Read and observe   on page 38 first.

Fault in the power steering

 lights up – this indicates a complete failure of the power steering and the

steering assist is no longer working (significantly higher steering forces).

 illuminates - this indicates a partial failure of the power steering and the

steering forces may be greater.

Switch off the ignition, start the engine again and travel a short distance.

If the warning light

 does not go out, stop the vehicle,

 do not continue

to drive. Seek help from a specialist garage.

If the warning light

 does not go out, it is possible to continue driving ap-

propriately. Seek assistance from a specialist garage immediately.

Steering lock defective (engine start push-button)

 flashes

Message:

Steering lock faulty. Stop!

STOP VEHICLE STEERING FAULTY

Park the vehicle, and

 stop driving. After switching off the ignition, it is no

longer possible to lock the steering, to activate the electrical components

(e.g. Infotainment ), to switch on the ignition again and to start the engine.

Seek help from a specialist garage.

 flashes

Message:

Steering lock: workshop!

STEERING WORKSHOP

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

Steering lock not unlocked (engine start push-button)

 flashes

Message:

Please move the steering wheel.

MOVE STEERING WHEEL

Move the steering wheel slightly back and forth, thereby facilitating unlock-

ing the steering lock.

If the steering does also not unlock then, the help of a specialist garage is re-

quired.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the warning

light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after the motor is restarted and a short drive, the indicator light does not go

out, there is a system error.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

 Stability Control (ESC)/Traction control (TCS)

Read and observe   on page 38 first.

 flashes – the ESC or TCS is currently being activated.

 illuminates – there is an ESC or TCS fault.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

If the warning light

 comes on after starting the engine, the TCS may be

switched off for technical reasons.

Switch the ignition off and on again.

If the warning light

 does not illuminate after you switch the engine back on,

the ASR is fully functional again.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the indicator

light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-

ror.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

39

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

More information about the ESC system

» page 169

 or TCS system

» page 170

.

 Traction control (TCS) deactivated

Read and observe   on page 38 first.

 illuminates – the TCS system is disabled.

 Anti-lock braking system (ABS)

Read and observe   on page 38 first.

 lights up – there is an ABS fault.

The vehicle will only be braked by the normal brake system without the ABS.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

WARNING

If the warning light

 illuminates simultaneously with warning light

» page 38

 Braking system

 do not continue your journey! Seek help

from a specialist garage.

A fault to the ABS system or the braking system can increase the vehi-

cle's braking distance – risk of accident!

Rear fog light

Read and observe   on page 38 first.

 illuminates - the rear fog light is switched on.

 Emission control system

Read and observe   on page 38 first.

 illuminates – there is a fault in the emission control system. The system

makes it possible to drive on in emergency mode – there may be a noticeable

reduction in engine performance.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.



 engine electronics warning light

Read and observe   on page 38 first.



 lights up – there is a fault in the engine management system. The system

makes it possible to drive on in emergency mode – there may be a noticeable

reduction in engine performance.

You can drive on, exercising appropriate caution. Seek assistance from a spe-

cialist garage immediately.

 Airbag system

Read and observe   on page 38 first.

System fault

 illuminates

Message:

Error: airbag

AIRBAG ERROR

Seek help from a specialist garage.

The front passenger airbag has been disabled with the key switch

 illuminates for 4 seconds after the ignition has been switched on.

One of the airbags or a belt tensioner has been disabled by the diagnostic

tool

 lights up for around 4 seconds after the ignition is switched on and then

flashes for approximately 12 seconds

Message:

Airbag/ belt tensioner deactivated.

AIRBAG/ BELT TENSIONER OFF

WARNING

When a fault in the airbag system occurs, there is a risk of the system not

being triggered in the event of an accident. Therefore, this must be

checked immediately by a specialized garage.

40

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tyre pressure

Read and observe   on page 38 first.

Change of tyre pressure values

 illuminates - there was a pressure change in one of the tyres.

Immediately reduce speed and avoid sudden steering and braking manoeu-

vres.

Stop the vehicle, turn the ignition off and check the tyres and their inflation

pressure

» page 206

.

Correct the tyre pressure, if necessary or replace the affected wheel

» page 211

 or use the repair kit

» page 214

.

Save the tyre pressure values in the system

» page 182

.

System fault

 flashes for approximately 1 minute and remains lit – there may be a fault in

the tyre pressure monitoring system.

Stop the vehicle, turn the ignition off and start the engine again.

If the warning light

 flashes after starting the engine again, there is a system

error.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

Disconnecting the vehicle battery

If the vehicle's battery has been disconnected and reconnected, the indicator

light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-

ror.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

Other incidents

The illumination of the warning light

 can have the following reasons.

The vehicle is loaded on one side. Distribute the load evenly.

The wheels of one axle are loaded more heavily (e.g. when towing a trailer or

when driving uphill or downhill).

Snow chains are mounted.

A wheel has been changed.

CAUTION

Under certain circumstances (e.g. sporty style of driving, wintry or unpaved

roads) the warning light

 in the instrument cluster may be delayed or not

light up at all.

 Fuel reserve

Read and observe   on page 38 first.

 illuminates – the fuel level in the fuel tank is at the reserve level (approxi-

mately 7 litres).

Fill up with fuel

» page 196

.

Note

The text in the display goes out after refuelling and driving a short distance.

 

 Turn signal system

Read and observe   on page 38 first.

 flashes - the left turn signal is switched on.

 flashes – the right turn signal is turned on.

If there is a fault in the turn signal system, the warning light flashes at twice its

normal rate (does not apply when towing).
When the hazard warning light system is switched on, this will cause all of the

turn signal lights as well as both warning lights to flash.

 Trailer turn signal lights

Read and observe   on page 38 first.

 flashes - the trailer turn signals are switched on.

If a trailer is hitched and the warning light

 is not flashing, one of the trailer

turn signal lights has failed.

Check the trailer bulbs.

41

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Fog lights

Read and observe   on page 38 first.

 illuminates - the fog lights are switched on.

 Speed regulating system/speed limiter

Read and observe   on page 38 first.

 illuminates - the vehicle speed is controlled by the cruise control or the

speed limiter.

 flashes - the speed set with the speed limiter has been exceeded.

 Brake pedal (automatic gearbox)

Read and observe   on page 38 first.

 lights up – apply the brake.

 Main beam

Read and observe   on page 38 first.

 illuminates - the main beam or headlight flasher is switched on.

 Automatic gearbox

Read and observe   on page 38 first.

Gearbox overheated

The warning light  is only shown in the MAXI DOTdisplay.



 illuminates

Message:

Gearbox overheated. You can drive on.

GEARBOX OVERHEATED

The gearbox is overheated, which continued driving is possible with appropri-

ately cautious style of driving.



 illuminates

Message:

Gearbox overheated. Stop! Log book!

STOP VEHICLE GEARBOX OVERHEAT

 Do not continue to drive! Stop the vehicle and turn off the engine.

You can continue your journey as soon as the warning light disappears.

If the warning light does not go out,

 do not continue driving! Seek help

from a specialist garage.

Transmission problem

The warning light  is only shown in the MAXI DOTdisplay.



 illuminates

Message:

Gearbox faulty. Stop the vehicle safely!

GEARBOX FAULTY WORKSHOP

Park the vehicle,

 stop driving!. Seek help from a specialist garage.



 illuminates

Message:

Gearbox in emergency mode. No reverse gear.

GEARBOX ERROR REV_ GEAR NOT AVAIL

or

Error: gearbox. Speed is limited.

GEARBOX ERROR

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

 Rear seat belt warning light

Read and observe   on page 38 first.

 illuminates – a rear seat belt is not fastened.

 illuminates - a rear seat belt is fastened.

When the seat belt is fastened/unfastened, the particular light lights up briefly

and indicates the current belt status!

 Generator

Read and observe   on page 38 first.

 illuminates - the battery is not being charged while the engine is running.

42

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

As the battery discharges while driving, all non-essential electrical loads (e.g.

Infotainment) should be switched off.

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

CAUTION

If in addition to the light  the light  lights up while driving,

 stop driving -

risk of engine damage! Switch off the engine and seek assistance from a spe-

cialist garage.

 Coolant

Read and observe   on page 38 first.

Coolant level too low



 illuminates

Message:

Please check the coolant level. Log book!

ENGINE COOLANT PLEASE CHECK

Stop the vehicle, switch off the engine, and allow the engine to cool down.

Check the coolant level

» page 201

.

If the coolant level is within the specified range and the warning light  lights

up again, there may be a malfunction of the cooling fan.

Switch off the ignition.

Check the fuse for the radiator fan, replace if necessary.

If the coolant level and fan fuse are both OK but the warning light  lights up

again,

 stop driving!

Seek help from a specialist garage.

Coolant temperature too high



 illuminates

Message:

Engine overheat. Stop! Observe log book.

ENGINE OVERHEAT STOP

Stop the vehicle, switch off the engine, and allow the engine to cool down.

Continue your journey only after the warning light  has disappeared.

 Engine oil pressure

Read and observe   on page 38 first.



 flashes - the engine oil pressure is too low.

Stop the vehicle, switch off the engine, and check the engine oil level.

Even if the oil level is correct,

 do not drive any further if the warning light

is flashing. Also do not leave the engine running at an idling speed.

Seek help from a specialist garage.

CAUTION

If it is not possible to top up with engine oil,

 stop driving - there is a risk of

engine damage! Switch off the engine and seek assistance from a specialist

garage.

 Engine oil level

Read and observe   on page 38 first.

Engine oil level too low



 illuminates

Message:

Please add engine oil.

ADD OIL

Stop the vehicle, switch off the engine, and check the engine oil level, top up

if necessary.

The warning light will go out if the bonnet is left open for more than 30 sec-

onds. If the engine oil is not replenished, the warning light will come on again

after driving about 100 km.

Engine oil level too high



 illuminates

Message:

Please reduce oil level.

OIL LEVEL TOO HIGH

Continued driving is possible with appropriate caution. Seek assistance from

a specialist garage immediately.

43

Instruments and warning lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
