Bulb arrangement in the halogen headlights

Fig. 357

Left headlight

Read and observe   and   on page 300 first.

Bulb arrangement

» Fig. 357

Low beam
Main beam

Changing the bulb for the low beam

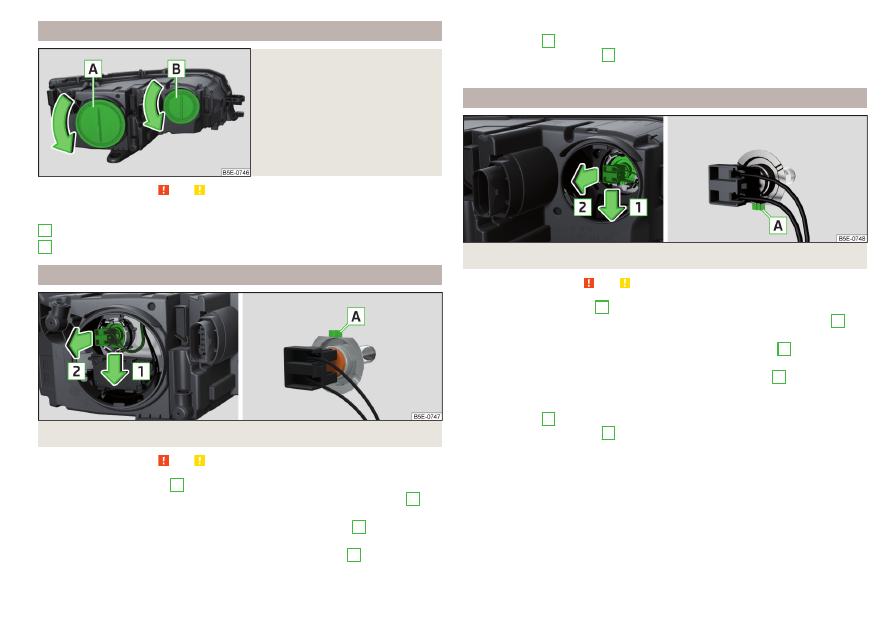

Fig. 358  Changing the bulb for the low beam

Read and observe   and   on page 300 first.

Turn the protective cap

A



» Fig. 357

 on page 301 in direction of the arrow.

Disconnect the connector with the light bulb in the direction of arrow

1

» Fig. 358

.

Remove the connector to the bulb in the direction of arrow

2

.

Remove the connector.

Plug the connector into the new bulb so that the fixing lug

A

 on the bulb

points upwards.

A
B

Insert the connector, with the bulb, into the headlight opposite to the direc-

tion of arrow

2

 until you feel it lock into place.

Insert the protective cap

A



» Fig. 357

 on page 301 and turn it opposite to

the direction of the arrow.

Changing the bulb for the main beam

Fig. 359  Changing the bulb for the main beam

Read and observe   and   on page 300 first.

Turn the protective cap

B



» Fig. 357

 on page 301 in direction of the arrow.

Disconnect the connector with the light bulb in the direction of arrow

1

» Fig. 359

.

Remove the connector to the bulb in the direction of arrow

2

.

Remove the connector.

Plug the connector into the new bulb so that the fixing lug

A

 on the bulb

points downwards.

Insert the connector, with the bulb, into the headlight opposite to the direc-

tion of arrow

2

 until you feel it lock into place.

Insert the protective cap

B



» Fig. 357

 on page 301 and turn it opposite to

the direction of the arrow.

301

Fuses and light bulbs

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Change bulb for fog lights switch - Variant 1

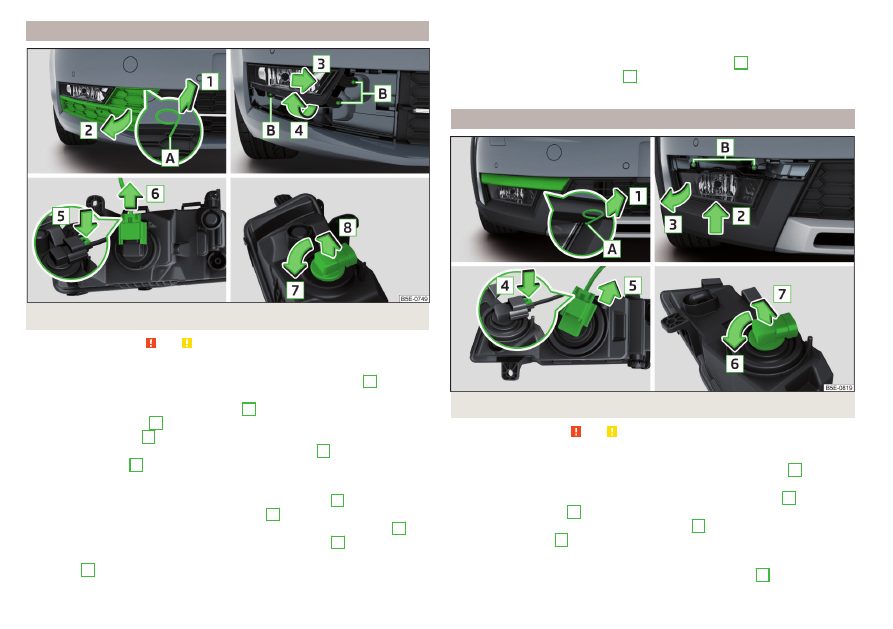

Fig. 360  Remove the fog lamp / bulb change - variant 1

Read and observe   and   on page 300 first.

Remove the protective grille and headlight

Insert the clamps for removing the full wheel trims into opening

A

» Fig. 360

.

By pulling the hook in direction of arrow

1

, remove the protective grille in

the direction of arrow

2

.

Unscrew the screws

B

 with the screwdriver from the tool kit.

Carefully move the headlights in the direction of arrow

3

 and remove in the

direction of arrow

4

.

Replacing the light bulb

Press the latch on the connector in the direction of arrow

5

.

Remove the key in the direction of the arrow

6

.

Turn the holder with the bulb to the stop in the direction of the arrow

7

.

Remove the holder with the bulb in the direction of arrow

8

 .

Insert a new holder with the bulb in the headlamp and turn it in the direction

of arrow

7

 as far as the stop.

Fit the connector.

Refit the headlight and grille

Insert the fog light opposite to the direction of arrow

4



» Fig. 360

, push op-

posite to the direction of arrow

3

 and bolt into place.

Insert the guard and push it gently until it locks into place.

Change bulb for fog lights switch - Variant 2

Fig. 361  Remove the fog lamp / bulb change - variant 2

Read and observe   and   on page 300 first.

Remove the cover and headlight

Insert the clamps for removing the full wheel trims into opening

A

» Fig. 361

.

Remove the cover by pulling the hook in the direction of arrow

1

.

Unscrew the screws

B

 with the screwdriver from the tool kit.

Raise the headlights in the direction of arrow

2

 and remove carefully in the

direction of arrow

3

.

Replacing the light bulb

Press the latch on the connector in the direction of arrow

4

.

302

Do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Remove the key in the direction of the arrow

5

.

Turn the holder with the bulb to the stop in the direction of the arrow

6

.

Remove the holder with the bulb in the direction of arrow

7

 .

Insert a new holder with the bulb in the headlamp and turn it in the direction

of arrow

6

 as far as the stop.

Fit the connector.

Refit the headlight and cover

Replace the fog light by inserting it in the opposite direction of the arrow

3

» Fig. 361

 and tighten.

Insert the guard and push it gently until it locks into place.

Removing/installing tail light

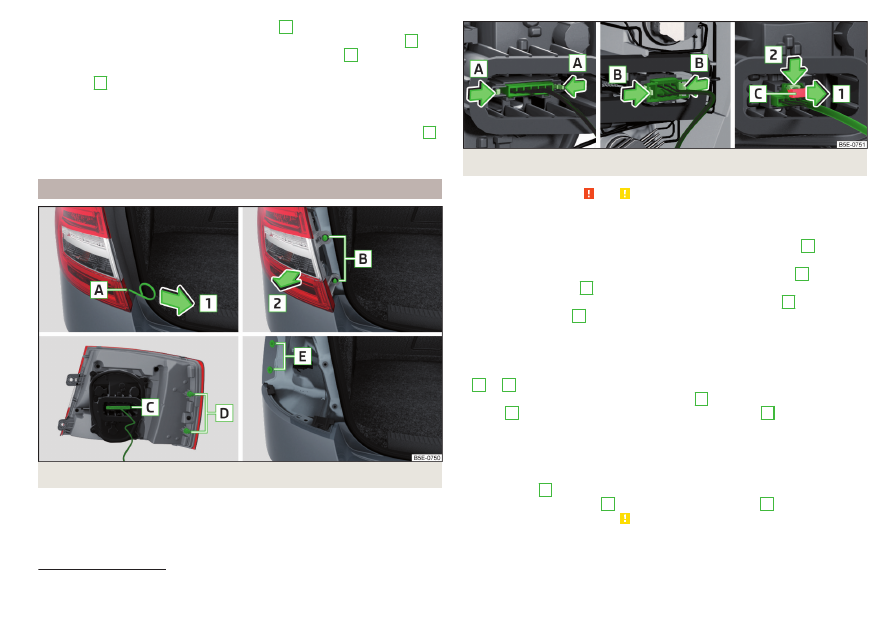

Fig. 362  Removing lamp

Fig. 363  Connector removal variants

Read and observe   and   on page 300 first.

Removing

Open the boot lid.

Insert the clamps for removing the full wheel trims into opening

A

1)

» Fig. 362

.

Remove the cover by pulling the hook in the direction of arrow

1

.

Unscrew the screws

B

 with the key from the tool kit.

Hold the light and carefully remove in the direction of arrow

2

.

Remove connector

C

 .

Remove the plug

The connector type varies according to the vehicle version

» Fig. 363

.

For connectors with lateral safety tabs, push these in the direction of arrows

A

 or

B

 and remove the connector carefully.

For connectors with removable safety tabs

C

, pull these in the direction of

arrow

1

, press the safety tabs in the direction of arrow

2

 and remove the

connector carefully.

Fitting

Insert the connector into the light and lock it securely.

With a plug with removable safety tab, secure this in the opposite direction

to the arrow

1

» Fig. 363

.

Insert the lamp with pins

D



» Fig. 362

 into the recesses

E

 in the body.

Carefully push the cover in

»

.

1)

The position of the opening may vary depending on the vehicle model.

303

Fuses and light bulbs

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Screw the tail lamp into place and install the cover. The cover must engage

securely.

Shut the boot lid.

CAUTION

Ensure that the cable bundle does not become stuck between the body and

the lamp when it is being refitted – or there is a risk of damage to the electrical

installation and risk of water ingress.

If you are not sure whether the cable bundle has become pinched, we rec-

ommend that you have the light connection checked by a specialist garage.

Ensure that the vehicle paintwork and the tail lamp are not damaged when

removing and installing the tail lamp.

Replacing the bulbs in the tail lamp assembly - Variant 1

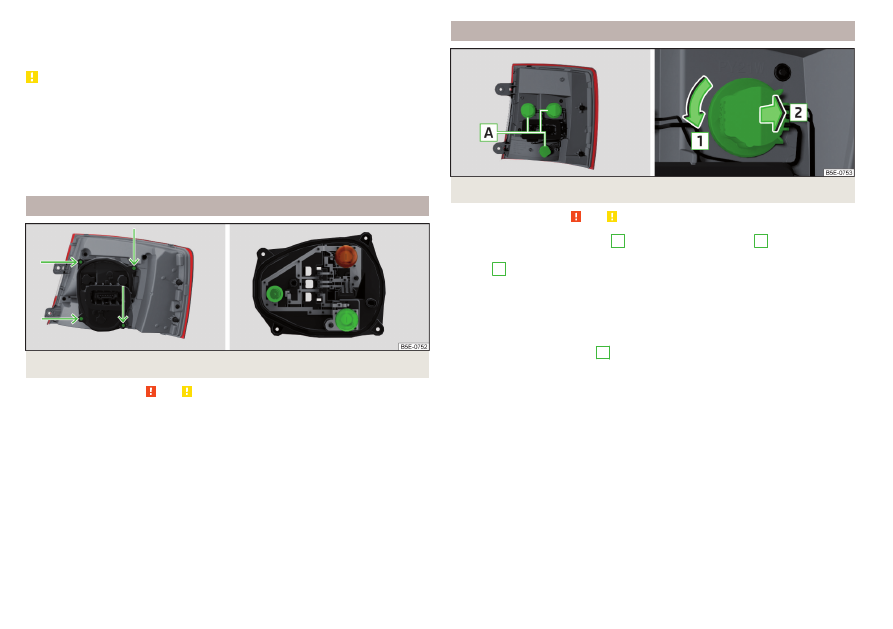

Fig. 364  Outer part of the lamp/holder with bulbs

Read and observe   and   on page 300 first.

Unscrew the lamp holder

» Fig. 364

 with the screwdriver from the car tool

kit, and remove the lamp holder from the light assembly.

Turn the respective light bulb counter-clockwise to the stop and remove it

from the bulb holder.

Insert a new bulb into the holder and turn in a clockwise direction to the

stop.

Insert the bulb holder into the light and screw in tightly.

Replacing the bulbs in the tail lamp assembly - Variant 2

Fig. 365  Outer part of the lamp/Remove holder with bulb

Read and observe   and   on page 300 first.

Turn the holder with the bulb

A

 in the direction of arrow

1



» Fig. 365

.

Remove the socket with the bulb from the lamp housing in the direction of

arrow

2

.

Push the faulty bulb into the holder, turn in anti -clockwise direction up to

the stop and remove.

Insert a new bulb into the holder and turn in a clockwise direction to the

stop.

Reinsert the holder with the bulb into the lamp housing and turn in the oppo-

site direction of the arrow

1

 to the stop.

304

Do-it-yourself

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

Technical data

Basic vehicle data

Introduction

The details given in the vehicle's technical documentation always take prece-

dence over the details in the Owner's Instruction.
The listed performance values were determined without performance-reduc-

ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with the rules and con-

ditions specified in statutory or technical regulations for determining opera-

tional and technical data for motor vehicles.
The values listed are for the basic model without any optional equipment.

Vehicle data

Fig. 366

Type plate

Type plate

The type plate

» Fig. 366

 is located at the bottom of the B-pillar on the right-

hand driver's side.
The type plate contains the following data.

Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)

1

2
3
4

Maximum permissible front axle load
Maximum permissible rear axle load

Vehicle identification number (VIN)

The vehicle identification number - VIN (vehicle body number) is stamped into

the engine compartment on the right hand suspension strut dome. This num-

ber is also located on a sign on the lower left hand edge below the windscreen

(together with a VIN bar code), and on the type plate.
The VIN can also be displayed in the



/  →  → Events menu.

Engine number

The engine number is embossed in the engine block.

Supplementary Information (applies to Russia)

The full type approval number of the means of transport is indicated in the

registration documents, field 17.

Maximum permissible towed weight

The listed maximum allowable trailer weight is only valid for altitudes up to

1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing

power. Therefore, for every additional 1000 m in height (or part), the maxi-

mum permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-

cle and the loaded trailer.

WARNING

Do not exceed the specified maximum permissible weights – risk of acci-

dent and damage!

Operating weight

This specification is only a guide value and corresponds to the lowest possible

operating weight without further weight-reducing equipment (e.g. spare

wheel etc.). This includes 75 kg driver's weight, the weight of the operating

fluids and the on-board tool kit and a fuel tank filled to min. 90%.

5
6

305

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operating weight - Octavia

Engine

Transmission

Operating weight (kg)

1.0 l/85 kW TSI

MG

1246

DSG

1268

1.4 l/110 kW TSI

MG

1265

DSG

1289

1.5 l/110 kW TSI

MG

1280

DSG

1295

1.6 l/81 kW MPI

MG

1223

AG

1263

1.8 ltr./132 kW TSI

DSG (EU5)

1343

DSG (EU6)

1345

2.0 l/140 kW TSI

DSG

1388

DSG 4x4

1473

1.6 ltr./85 kW TDI CR

MG

1348

MG 4x4

1463

DSG

1363

2.0 l/105 kW TDI CR

MG

1335

DSG

1355

2.0 l/110 kW TDI CR

MG

1373

DSG

1408

DSG 4x4

1501

2.0 ltr./135 kW TDI CR

DSG 4x4

1517

Operating weight - Octavia RS

Engine

Transmission

Operating weight (kg)

2.0 l/180 kW TSI

MG

1410

DSG

1442/1448

a)

2.0 l/135 kW TDI CR

DSG

1478

DSG 4x4

1551

a)

Applies to cars with the EU6BG emission standard.

Warning triangle – Octavia Combi

Engine

Transmission

Operating weight (kg)

1.0 l/85 kW TSI

MG

1268

DSG

1290

1.4 l/110 kW TSI

MG

1287

DSG

1311

1.5 l/96 kW TSI G-TEC

DSG

1389/1528

a)

1.5 l/110 kW TSI

MG

1302

DSG

1317

1.6 l/81 kW MPI

MG

1245

AG

1285

1.8 ltr./132 kW TSI

DSG (EU5)

1365

DSG (EU6)

1367

2.0 l/140 kW TSI

DSG

1410

DSG 4x4

1495

1.6 ltr./85 kW TDI CR

MG

1370

MG 4x4

1485

DSG

1385

2.0 l/105 kW TDI CR

MG

1357

DSG

1377

2.0 l/110 kW TDI CR

MG

1395

DSG

1430

DSG 4x4

1523

2.0 ltr./135 kW TDI CR

DSG 4x4

1539

a)

Applies to vehicles without a towing hitch.

Operating weight - Octavia Combi RS

Engine

Transmission

Operating weight (kg)

2.0 l/180 kW TSI

MG

1432

DSG

1464

a)

/1470

2.0 l/135 kW TDI CR

DSG

1500

DSG 4x4

1573

a)

Applies to cars with the EU6BG emission standard.

306

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operating weight - Octavia Combi Scout

Engine

Transmission

Operating weight (kg)

2.0 l/140 kW TSI

DSG 4x4

1566

2.0 l/110 kW TDI CR

DSG 4x4

1594

2.0 ltr./135 kW TDI CR

DSG 4x4

1608

Payload

It is possible to calculate the approximate maximum payload from the differ-

ence between the permissible total weight and the operating weight.
The payload consists of the following weights.

The weight of the passengers.

The weight of all items of luggage and other loads.

The weight of the roof load including the roof rack system.

The weight of the equipment that is excluded from the operating weight.

Trailer bearing load for trailer towing

» page 250

.

Measurement of fuel consumption and CO

2

 emissions according to

ECE Regulations and EU Directives

The data on fuel consumption and CO

2

 emissions were not available at the

time of going to press.
The valid specifications for your vehicle can be found in the technical vehicle

documentation (e.g. vehicle approval documentation, the COC document) or

at a ŠKODA partner.

Note

The emission and fuel consumption values have been determined in accord-

ance with rules and under conditions set out by legal or technical requirements

for determining operational and technical data for motor vehicles.

Depending on the range of equipment, style of driving, traffic situation,

weather influences and vehicle condition, consumption values may deviate

from the indicated values.

307

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dimensions - Octavia

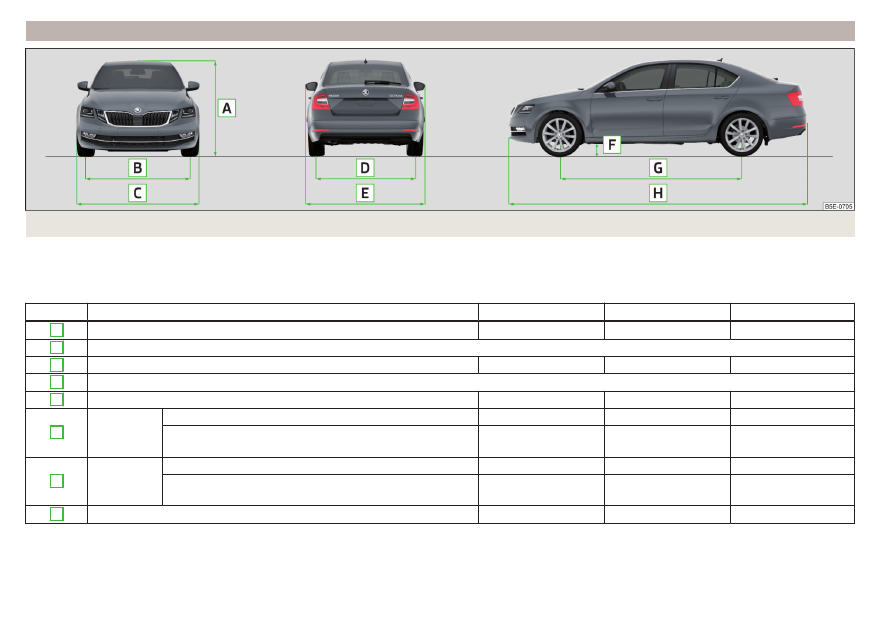

Fig. 367  Vehicle dimensions

The vehicle dimensions given in the vehicle's technical documentation always take precedence over the details in the Owner's Instruction.
The dimensions listed below are for the basic model without any optional equipment.

Vehicle dimensions for operating weight without driver (in mm)

» Fig. 367

Specification

Octavia

Octavia 4x4

Octavia RS

A

Height

1461

1459

1448- 1464

a)

B

Front track

» page 310

C

Width

1814

1814

1814

D

Rear track

» page 310

E

Width including exterior mirror

2017

2017

2017

F

Clearance

Basic dimension

141

138

142

Vehicles with the 2.0 l./180 kW TSI and 2.0 l./135 kW TDI

engine

-

-

-

b)

G

Wheel base

Basic dimension

2686

2680

2680

Vehicles with the 1.8 l./132 kW TSI and 2.0 l./140 kW TSI en-

gine

2680

-

-

H

Length

4670

4670

4689

a)

Only valid for some countries.

b)

The valueswere not available at the time of going to press.

308

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dimensions - Octavia estate

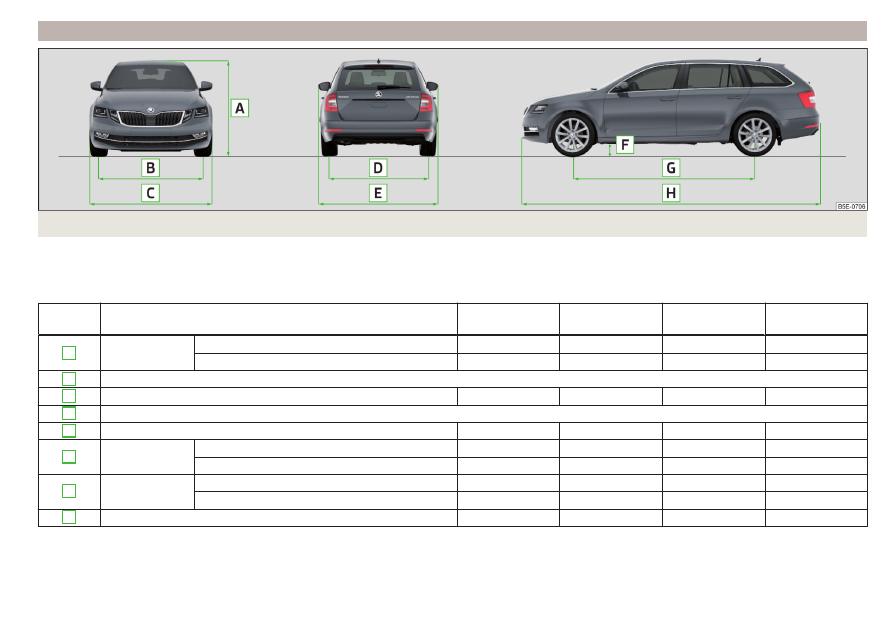

Fig. 368  Vehicle dimensions

The vehicle dimensions given in the vehicle's technical documentation always take precedence over the details in the Owner's Manual.
The dimensions listed below are for the basic model without any optional equipment.

Vehicle dimensions for operating weight without driver (in mm)

» Fig. 368

Specification

Octavia Estate

OCTAVIA Estate

4x4

Octavia Combi

RS

Octavia Combi

Scout

A

Height

Basic dimension

1465

1463

1452- 1467

a)

1531

G-TEC vehicles

-

b)

-

-

-

B

Front track

» page 310

C

Width

1814

1814

1814

1814

D

Rear track

» page 310

E

Width including exterior mirror

2017

2017

2017

2017

F

Clearance

Basic dimension

141

139

142

171

G-TEC vehicles

-

b)

-

-

-

G

Wheel base

Basic dimension

2686

2680

2680

2680

G-TEC vehicles

-

b)

-

-

-

H

Length

4667

4667

4689

4687

a)

Only valid for some countries.

b)

The valueswere not available at the time of going to press.

309

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Track gauge front/rear

Engine

Front track

Rear track

1.0 l/85 kW TSI

1549

1540

1.4 l/110 kW TSI

1543

1534

1.5 l/96 kW TSI G-TEC

-

a)

-

a)

1.5 l/110 kW TSI

1543

1534

1.6 l/81 kW MPI

1549

1540

1.8 ltr./132 kW TSI

1543

1542

2.0 l/140 kW TSI

1543- 1538

b)

1542- 1539

b)

2.0 ltr./180 kW TSI

1535

1544

1.6 ltr./85 kW TDI CR

1549

1540- 1548

c)

2.0 l/105 kW TDI CR

1543

1534

2.0 l/110 kW TDI CR

1543- 1538

b)

1534/1539

b)

/1542

c)

2.0 l/135 kW TDI CR

1543

c)

/1535

d)

/1538

b)

1542

c)

/1544

d)

/1539

b)

a)

The valueswere not available at the time of going to press.

b)

Applies to Octavia Scout vehicles.

c)

Applies to Octavia 4x4/Octavia Combi 4x4 vehicles.

d)

Applies to Octavia RS/Octavia Combi RS vehicles.

310

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Overhang angle

Fig. 369  Overhang angle: Octavia/Octavia Estate

Angle

» Fig. 369

Overhang angle, front
Overhang angle, rear

The values shown indicate the maximum incline of an embankment, up which

the vehicle can drive at a slow speed without collision of the bumper or under-

body. The values listed represent the maximum axle load at the front and rear.

A
B

Departure angle (°) - Octavia

» Fig. 369

Octavia

Octavia 4x4

Octavia RS

A

B

A

B

A

B

Base value

14.0

12.1

14.2

12.4

12.9- 14.1

a)

12.8- 12.9

a)

Vehicles with the 1.8 l./132 kW TSI and 2.0

l./140 kW TSI engine

14.1

12.5

-

-

-

-

a)

Only valid for some countries.

Departure angle (°) - Octavia Combi

» Fig. 369

Octavia Estate

OCTAVIA Estate 4x4

Octavia Combi RS

Octavia Combi Scout

A

B

A

B

A

B

A

B

Base value

14.0

12.4

14.2

12.3

12.8- 14.0

a)

12.5- 12.7

a)

16.6

14.5

G-TEC vehicles

-

b)

-

b)

-

-

-

-

-

-

a)

Only valid for some countries.

b)

The valueswere not available at the time of going to press.

311

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle-specific details per engine type

Introduction

The values given have been determined in accordance with the rules and conditions specified in statutory or technical regulations for determining operational

and technical data for motor vehicles.
The exhaust gas standard is specified in the vehicle's technical documentation, as well as in the declaration of conformity (in so-called COC document). The

declaration of conformity (the so-called. COC document) can be obtained from a ŠKODA Partner (only valid for some countries and some models).

1.0 l/85 kW TSI engine

Output (kW at 1/min)

85/5000-5500

Maximum torque (Nm at rpm)

200/2000-3500

Number of cylinders/displacement (cm

3

)

3- 999

Body

Octavia

Octavia Estate

Transmission

MG

DSG

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

205

(5)

205

(6)

199

(5)

198

(6)

Acceleration 0-100 km/h (s)

10.0

10.1

10.2

10.3

1.4 l/110 kW TSI engine

Output (kW at 1/min)

110/5000-6000

Maximum torque (Nm at rpm)

250/1500-3500

Number of cylinders/displacement (cm

3

)

4- 1395

Body

Octavia

Octavia Estate

Transmission

MG

DSG

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

222

(6)

223

(6)

215

(5)

214

(6)

Acceleration 0-100 km/h (s)

8.2

8.2

8.3

8.3

1.5 l/96 kW TSI G-TEC engine

The valueswere not available at the time of going to press.

312

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.5 l/110 kW TSI engine

Output (kW at 1/min)

110/5000-6000

Maximum torque (Nm at rpm)

250/1500-3500

Number of cylinders/displacement (cm

3

)

4- 1498

Body

Octavia

Octavia Estate

Transmission

MG

DSG

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

223

(6)

223

(6)

215

(5)

214

(6)

Acceleration 0-100 km/h (s)

8.3

8.3

8.4

8.4

1.6 l/81 kW MPI engine

Output (kW at 1/min)

81- 5800

Maximum torque (Nm at rpm)

155/3800-4000

Number of cylinders/displacement (cm

3

)

4- 1598

Body

Octavia

Octavia Estate

Transmission

MG

AG

MG

AG

Top speed (km/h)

with the mentioned gear engaged

195

(5)

195

(5)

189

(5)

188

(5)

Acceleration 0-100 km/h (s)

10.7

12.0

10.9

12.2

1.8 l/132 kW TSI engine

Output (kW at 1/min)

132/5100-6200

Maximum torque (Nm at rpm)

250/1250-5000

Number of cylinders/displacement (cm

3

)

4- 1798

Body

Octavia

Octavia Estate

Transmission

DSG

DSG

Top speed (km/h)

with the mentioned gear engaged

233

(7)

226

(6)

Acceleration 0-100 km/h (s)

7.7

7.7

313

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2.0 l/140 kW TSI engine

Output (kW at 1/min)

140/4200-6000

Maximum torque (Nm at rpm)

320/1500-4100

Number of cylinders/displacement (cm

3

)

4- 1984

Body

Octavia

Octavia Estate

Transmission

DSG

DSG 4x4

DSG

DSG 4x4

Top speed (km/h)

with the mentioned gear engaged

236

(6)

232

(6)

230

(6)

226- 217

a)

(6)

Acceleration 0-100 km/h (s)

7.3

6.7

7.4

6.8- 7.2

a)

a)

Applies to Octavia Combi Scout vehicles.

2.0 l/180 kW TSI engine

Output (kW at 1/min)

180/5000-6700 (180/5000-6200)

a)

Maximum torque (Nm at rpm)

370/1600-4300

Number of cylinders/displacement (cm

3

)

4- 1984

Body

Octavia RS

Octavia Combi RS

Transmission

MG

DSG

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

250

(6)

250

(6)

246

(6)

244

(6)

Acceleration 0-100 km/h (s)

6.6

6.6

6.7

6.7

a)

Applies to cars with the EU6BG emission standard.

1.6 l/85 kW TDI CR engine

Output (kW at 1/min)

85/3250-4000

Maximum torque (Nm at rpm)

250/1750-3200

Number of cylinders/displacement (cm

3

)

4- 1598

Body

Octavia

Octavia Estate

Transmission

MG

MG 4x4

DSG

MG

MG 4x4

DSG

Top speed (km/h)

with the mentioned gear engaged

205

(5)

200

(6)

204

(7)

198

(5)

194

(6)

198

(7)

Acceleration 0-100 km/h (s)

10.2

11.6

10.4

10.4

11.9

10.5

314

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2.0 l/105 kW TDI CR engine

Output (kW at 1/min)

105/3500-4000

Maximum torque (Nm at rpm)

320/1750-3000

Number of cylinders/displacement (cm

3

)

4- 1968

Body

Octavia

Octavia Estate

Transmission

MG

DSG

MG

DSG

Top speed (km/h)

with the mentioned gear engaged

219

(6)

213

(6)

212

(6)

207

(6)

Acceleration 0-100 km/h (s)

8.7

9.2

8.8

9.3

2.0 l/110 kW TDI CR engine

Output (kW at 1/min)

110/3500-4000

Maximum torque (Nm at rpm)

340/1750-3000

Number of cylinders/displacement (cm

3

)

4- 1968

Body

Octavia

Octavia Estate

Transmission

MG

DSG

DSG 4x4

MG

DSG

DSG 4x4

DSG 4x4

Scout

Top speed (km/h)

with the mentioned gear engaged

223

(6)

221

(7)

214

(7)

216

(6)

213

(7)

208

(6)

200

(6)

Acceleration 0-100 km/h (s)

8.5

8.9

8.7

8.6

9.1

8.9

9.4

2.0 l/135 kW TDI CR engine

Output (kW at 1/min)

135/3500-4000

Maximum torque (Nm at rpm)

380/1750-3250

Number of cylinders/displacement (cm

3

)

4- 1968

Body

Octavia

Octavia Estate

Transmission

DSG 4x4

DSG

RS

DSG 4x4

RS

DSG 4x4

DSG

RS

DSG 4x4

RS

DSG 4x4

Scout

Top speed (km/h)

with the mentioned gear engaged

230

(7)

233

(7)

228

(7)

222

(7)

226

(7)

218

(6)

215

(6)

Acceleration 0-100 km/h (s)

7.5

8.1

7.6

7.6

8.2

7.7

7.7

315

Technical data

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     17      18      19
