Practical features

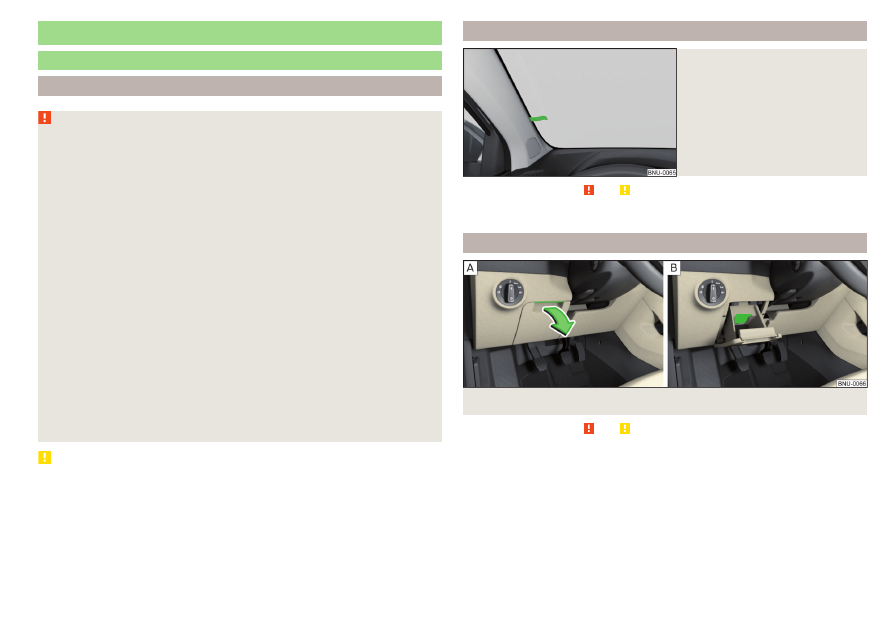

Passenger compartment features

Introduction

WARNING

Do not place anything on the dashboard. These objects might slide or fall

down when driving and may distract you from concentrating on the traffic

– risk of accident!

Make sure that while driving no objects can enter the driver's footwell -

cause an accident!

Do not carry any objects on the front passenger seat except objects de-

signed for this purpose (e.g. child seats) – risk of accident!

No objects should be placed in the storage compartments nor in the

drinks holders; the vehicle occupants could be endangered if there is sud-

den braking or the vehicle collides with something.

For safety reasons, lockable storage compartments must be closed while

driving - there is a risk of injury from the opened cover or from the items in

the compartment.

Make sure that no objects protrude from the compartments - there is

danger of injury!

Do not exceed the permissible load for the storage compartments and

pockets - it may cause injury or there is the risk of damaging the compart-

ments and pockets!

Ash, cigarettes, cigars and the like may only be placed in the ashtray - risk

of fire!

The storage compartments and the waste containers are not a substitute

for the ashtray and must also not be used for such purposes – risk of fire!

CAUTION

No not place large or sharp objects in the storage compartments and pockets

- there is a risk of damage to the compartments and pockets.

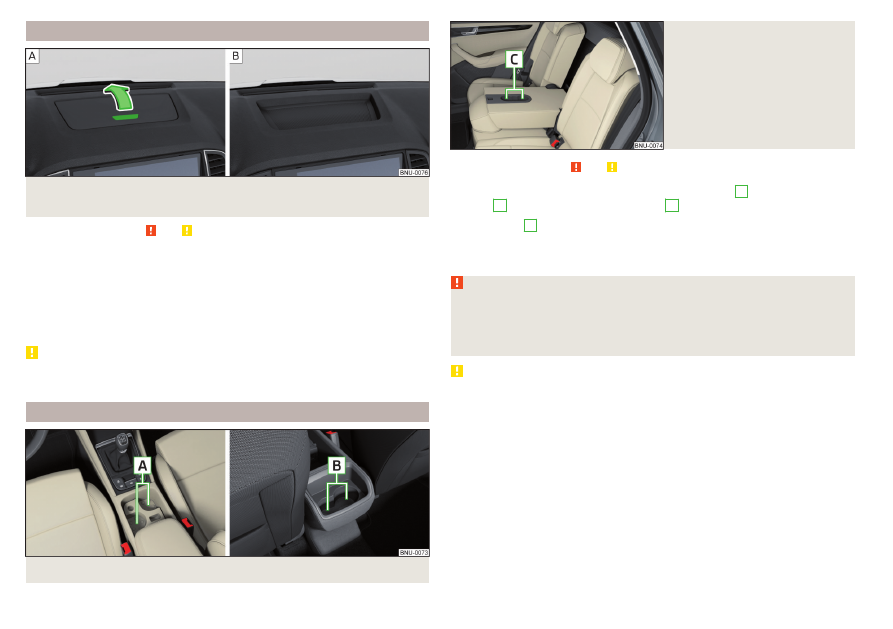

Parking ticket holder

Fig. 101

Parking ticket holder

Read and observe   and   on page 93 first.

The ticket holder is provided for the attachment of e.g. parking tickets.

Storage compartment on the driver's side

Fig. 102  Opening the storage compartment / card holder

Read and observe   and   on page 93 first.

To open, lift the handle and fold out the compartment

» Fig. 102

 .

To close, swing the lid against the direction of the arrow until it audibly clicks

into place.

A card holder is located in the storage compartment

» Fig. 102

 .

The maximum permissible load of the storage compartment is 0.5 kg.

93

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

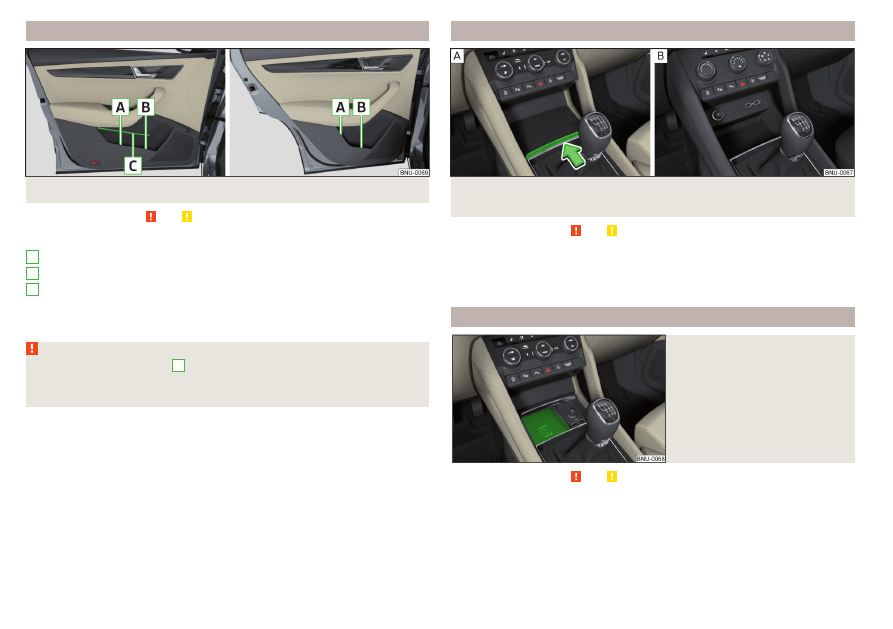

Storage compartments in the doors

Fig. 103  Storage compartments: in the front door/in the rear door

Read and observe   and   on page 93 first.

Storage compartments

» Fig. 103

Storage compartment
Bottle holder with a capacity of max. 1.5 l
Rubber band for storing newspapers

The reflective vest can be stowed in the storage compartments in the door

» page 278

.

WARNING

The storage compartment

A



» Fig. 103

n the front door is to be used exclu-

sively for storing objects which do not protrude - there is the danger of

limiting the operating range of the side airbags.

A
B
C

Storage compartment in the front centre console

Fig. 104  Opening storage compartment/ non-lockable storage com-

partment

Read and observe   and   on page 93 first.

To open, press the ridge in the direction of arrow

» Fig. 104

 - .

To close, pull on the ridge against the direction of the arrow.

Certain models do not have a storage compartment lid

» Fig. 104

 - .

Phonebox

Fig. 105

Phonebox

Read and observe   and   on page 93 first.

The storage compartment in the front centre console can be equipped with

the Phonebox function.
If a phone is placed face up on the pad in the storage compartment

» Fig. 105

,

the phone signal is amplified by the roof antenna.

94

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Telephones that support the standard for wireless Qi charging can be charged

wirelessly in the storage compartment.
While wireless charging is taking place, no objects may be between the pad

and the telephone being charged.

WARNING

The telephone may become warm during wireless charging, so this should

be removed carefully from the tray.

Metal objects between the pad and the telephone to be charged can get

hot due to the action of the induction field - There is a risk of injury. If there

is a metal object in the storage compartment that has become hot, then

take out the telephone and let the object cook in the storage compart-

ment!

CAUTION

Metal objects between the pad and the telephone to be charged can get hot

due to the action of the induction field - There is a risk damage to the tele-

phone.

With some telephones, the charging process may be interrupted or the tele-

phone may switch off due to getting hot.

No electronic or magnetic storage media (e.g. SD cards, USB sticks, cards

with magnetic strips or chip) may be placed between the support and tele-

phone to be charged - there is a risk of data loss and damage to this data carri-

er.

If a message appears in Infotainment that the telephone can not be charged,

then proceed as follows.

Check that no objects are between the pad and the telephone being charg-

ed. If this is the case, then take out the object and the telephone. Place the

telephone on the pad centrally on the telephone symbol.

Check if the position of the telephone to be charged has not changed dur-

ing the journey. If this is the case, then take out the telephone and place it

back on the pad centrally on the telephone symbol.

Note

At the start of the wireless charging process, the appropriate message ap-

pears on the Infotainment screen.

For the optimum telephone signal strength and uninterrupted wireless

charging, we recommend position the telephone in the storage compartment

without the protective sleeve, if possible.

Place a max. 160x80 mm phone in the storage compartment.

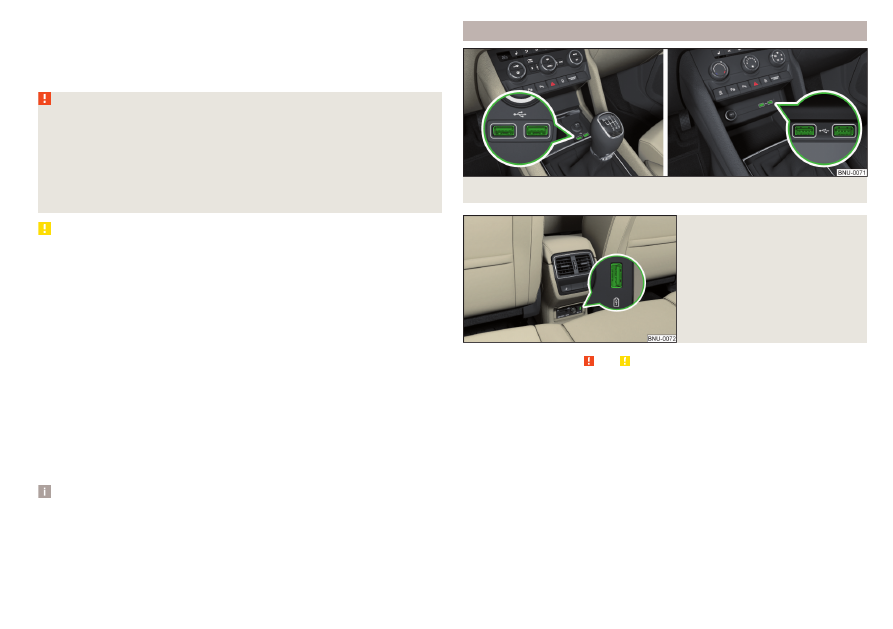

USB inputs

Fig. 106  USB front inputs

Fig. 107

USB rear input

Read and observe   and   on page 93 first.

One or two USB inputs are located in the lockable storage compartment or

above the non-lockable storage compartment in the front centre console

» Fig. 106

,

The USB input is also in the rear centre console depending on the equipment

fitted

» Fig. 107

.

The USB inputs in the front centre console can be used for charging and for

data transmission. The USB inputs in the rear centre console can only be used

for charging.
Information for use

» page 152

USB input.

95

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

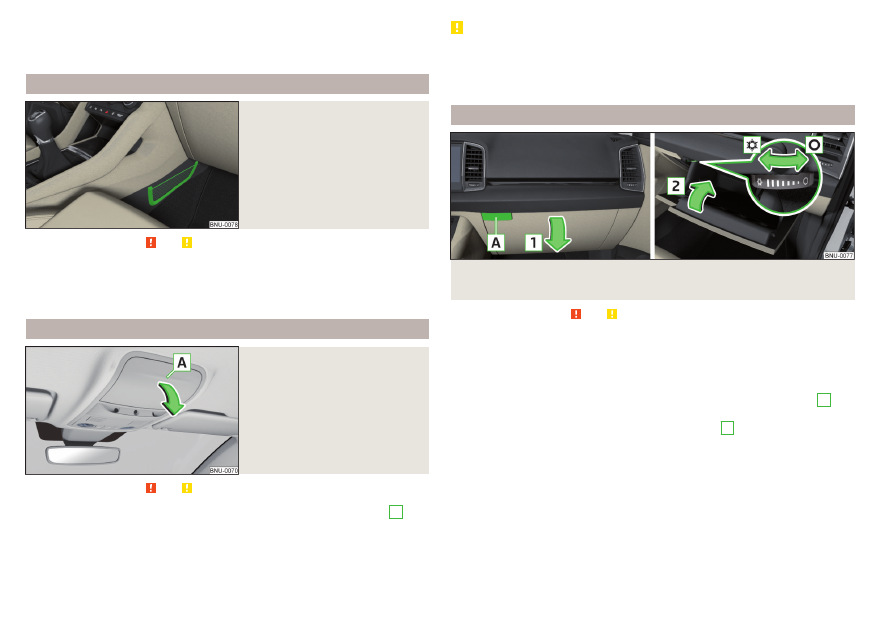

Storage compartment on the dash panel

Fig. 108  Opening storage compartment/ non-lockable storage com-

partment

Read and observe   and   on page 93 first.

To open press the button

» Fig. 108

 -  the cover opens in the direction of

arrow.

To close, swing the lid against the direction of the arrow until it audibly clicks

into place.

On some vehicles, the storage compartment does not have a lid

» Fig. 108

 - ,

or a loudspeaker grille is installed instead of the storage compartment.

CAUTION

Do not put any heat-sensitive objects in the storage compartment - in the

event of high temperatures there is risk of damage.

Cup holders

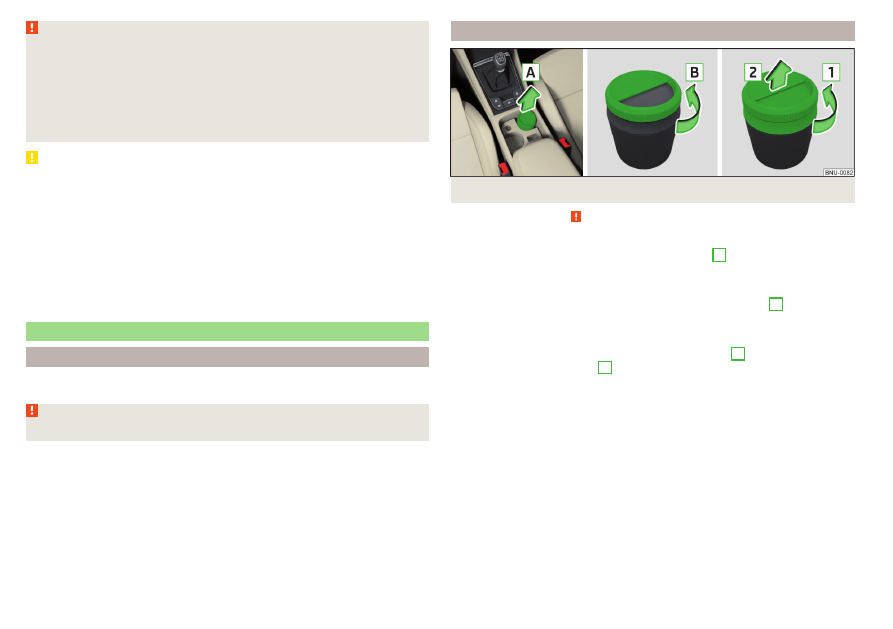

Fig. 109  Cup holder in front/rear centre console

Fig. 110

Beverage holder on the middle

rear seat backrest

Read and observe   and   on page 93 first.

The cup holders are located in the front centre console

A

, the rear centre

console

B



» Fig. 109

 and on the backrest

C



» Fig. 110

.

In the holders

A

, a beverage container can be opened with one hand by push-

ing the container into the holder and turning the lid.
The cup holder is also located in the folding table

» page 100

.

WARNING

Do not use any cups or beakers which are made of brittle material (e.g.

glass, porcelain). This could lead to injuries in the event of an accident.

Never put hot beverage containers in the cup holder. If the vehicle moves,

they may spill – risk of scalding!

CAUTION

Do not leave open beverage containers in the cup holder during the journey.

There is a risk of spilling e.g. when braking which may cause damage to the

electrical components or seat upholstery.

96

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Waste container

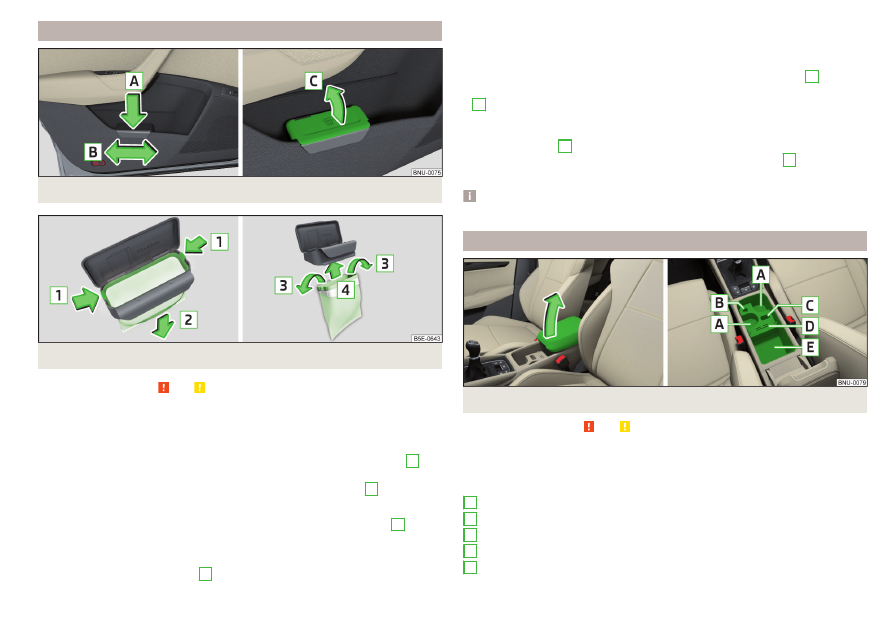

Fig. 111  Waste container: inserting and moving/opening

Fig. 112  Replace bags

Read and observe   and   on page 93 first.

The waste container can be inserted into the slot in the door.

Insert waste container

Position the waste container at the front edge of the slot.

Push the waste container in the rear area in the direction of the arrow

A

» Fig. 111

.

If required, push the waste container in the direction of arrow

B

.

Remove the waste container

Remove the waste container in the opposite direction to the arrow

A

» Fig. 111

.

Open/close waste container

Lift the cover in the direction

C

» Fig. 111

.

Closing takes place in reverse order.

Replace bags

Remove the waste container from the slot.

Press the two locking lugs on the frame in the direction of arrow

1

» Fig. 112

.

Pull the bag together with the frame downwards in the direction of arrow

2

.

Remove the bag from the frame.

Pull the new bag through the frame and pull it over the bag frame in the di-

rection of arrow

3

.

Insert the bag containing the frame in the direction of arrow

4

 into the con-

tainer body, so that the two lugs engage audibly with the frame.

Note

We recommend that you use 20 x 30 cm bags.

Storage compartment underneath the front armrest

Fig. 113  Open storage compartment / interior of the compartment

Read and observe   and   on page 93 first.

To open the storage compartment, lift the armrest until it stops

» Fig. 113

.

To close, lower the armrest.

Interior of the compartment

» Fig. 113

;

Cup holder
Storage compartment for storing the cover of the 12-volt power outlet
Storage compartment for storing the vehicle key
Storage compartment for storing two coins and a card
Storage compartment

A
B
C
D

E

97

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The part with the cup holder can be removed or rotated. By removing, the in-

terior of the storage compartment is increased, turning creates an additional

tray.

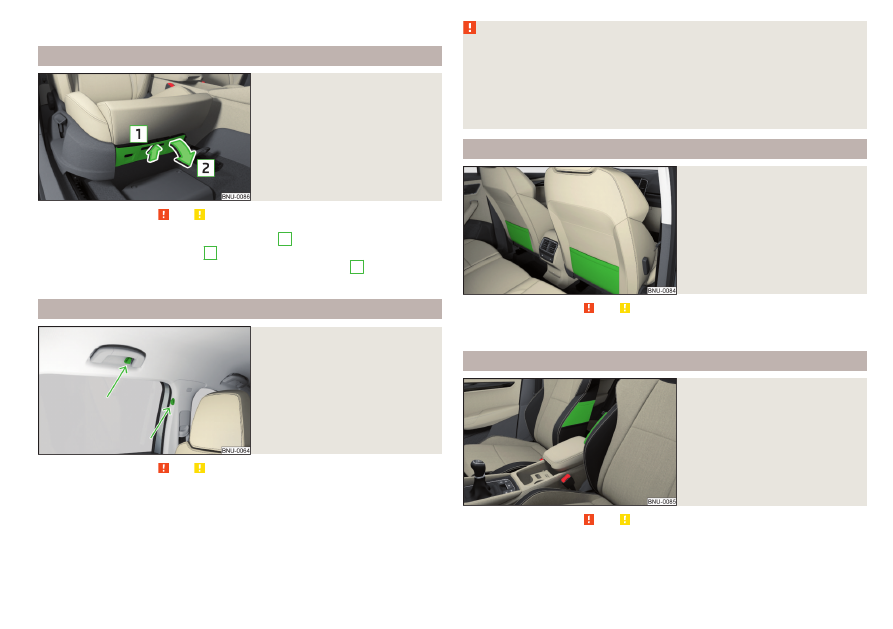

Storage net in the front centre console

Fig. 114

Storage net

Read and observe   and   on page 93 first.

The storage nets

» Fig. 114

 are intended for the storage of e.g. maps, maga-

zines, etc.
The maximum permissible load of the net is 0.5 kg.

Glasses storage box

Fig. 115

Opening the glasses storage box

Read and observe   and   on page 93 first.

To open, press on the outer edge of the glasses compartment in area

A

 .

The compartment folds in the direction of the arrow

» Fig. 115

.

To close, swivel the compartment against the direction of the arrow until it

audibly clicks into place.

The maximum permissible load of the glasses compartment is 250 g.

CAUTION

Do not put any heat-sensitive objects in the glasses storage box - with high

temperatures there is risk of damage.

The box must be closed before leaving and locking the vehicle – risk of im-

pairment to the functions of the anti-theft alarm system.

Storage compartment on the front passenger side

Fig. 116  Open storage compartment / close storage compartment and

open air supply

Read and observe   and   on page 93 first.

Storage compartment

The storage compartment is fitted with with an interior light (the light is on

when opening the storage compartment) equipped, a pen, card holder, with

storage compartments for storing coins, an SD card and an air outlet.

To open, press the -- button. The cover folds in the direction of arrow

1

» Fig. 116

.

To close, swivel the cover in the direction of arrow

2

 until it audibly clicks

into place.

Air supply

To open, turn the rotary switch until it stops in the position 

» Fig. 116

.

To close, turn the rotary switch until it stops in the position .

Opening the air supply when the air conditioning system is switched on allows

cooled air to flow into the storage compartment.
Opening the air inlet when the air conditioning system is on causes fresh or in-

terior air to flow into the storage compartment.

98

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The maximum permissible load of the storage compartment is 3 kg.

Storage compartment for an umbrella

Fig. 117

Opening the storage compart-

ment

Read and observe   and   on page 93 first.

To open, pull the handle in direction of arrow

1

 pull and open the compart-

ment in the direction of arrow

2

» Fig. 117

.

To close, screw in the lid in the opposite direction of arrow

2

 until it audibly

clicks into place.

Clothes hook

Fig. 118

Clothes hooks

Read and observe   and   on page 93 first.

The clothes hooks are located on the middle door pillars of the vehicle and on

the handle of the headliner above each of the rear doors

» Fig. 118

.

The maximum permissible load of each of the hooks is 2 kg.

WARNING

Never leave any heavy or sharp-edged objects in the pockets of the items

of clothing hung up.

To hang the clothes do not use hangers - there is a risk of limiting the ef-

fectiveness of head airbags.

Ensure that any clothes hanging from the hooks do not impair your vision

to the outside.

Storage pockets on the backs of the front seats

Fig. 119

Map pockets

Read and observe   and   on page 93 first.

The map pockets are intended for storage of maps, magazines, etc.

Storage pockets at the inner sides of the front seats

Fig. 120

Storage pocket

Read and observe   and   on page 93 first.

The storage pockets are located on the inside of the front seats

» Fig. 120

 and

are used to store small and light objects (e.g. mobile phones).
The maximum permissible load of each of the pockets is 200 g.

99

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Folding table on the front seat rest

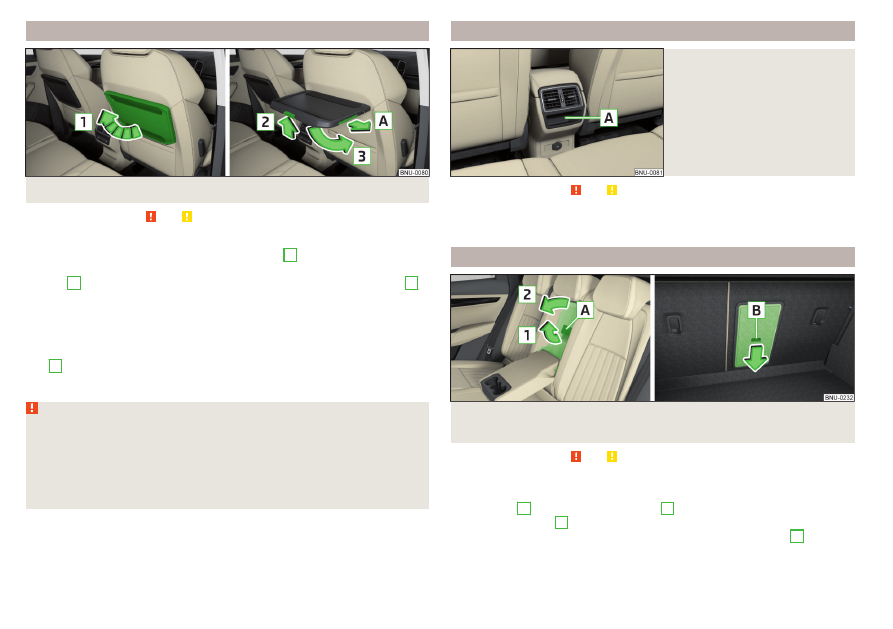

Fig. 121  Table fold up / fold down table and slide out cup holders

Read and observe   and   on page 93 first.

Folding up/folding down

To fold up, lift the table in the direction of arrow

1

» Fig. 121

.

To fold down or adjust tilt press the locking button in the direction of the

arrow

2

and adjust the tilt or fold down the table the direction of arrow

3

until stop.

The maximum permissible load for the table is 8.5 kg.

Cup holder

With the table folded up, the cup holder can be slid out in the direction of ar-

row

A



» Fig. 121

.

Insertion takes place in the reverse order.

WARNING

During the trip to the table must be in folded-down - otherwise there is

danger of injury.

Do not use any cups or beakers which are made of brittle material (e.g.

glass, porcelain). This could lead to injuries in the event of an accident.

Never put hot beverage containers in the cup holder. If the vehicle moves,

they may spill – risk of scalding!

Storage compartment in rear centre console

Fig. 122

Non-lockable storage compart-

ment

Read and observe   and   on page 93 first.

Depending on equipment, a non-lockable storage compartment is located in

the rear center console

» Fig. 122

.

Long cargo channel

Fig. 123  Open lid: from the passenger compartment / from the luggage

compartment

Read and observe   and   on page 93 first.

To open from the passenger compartment, fold down the rear armrest

slightly

» page 87

.

Pull handle

A

 in the direction of arrow

1

 and fold down the cover in the

direction of arrow

2



» Fig. 123

.

To open from the luggage compartment, push the securing tab

B

 in the di-

rection of the arrow and fold the cover with the armrest forwards.

To close, fold the cover and the rear armrest upwards until the stop. This

should audibly click into place.

100

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The cover must be secured after the closing process. Ensure that the red field

above the securing tab

B

 is not visible.

WARNING

The through-loading channel is only intended for transporting skis in a

properly secured, through-loading bag.

Removable bag for seats with through-loading device

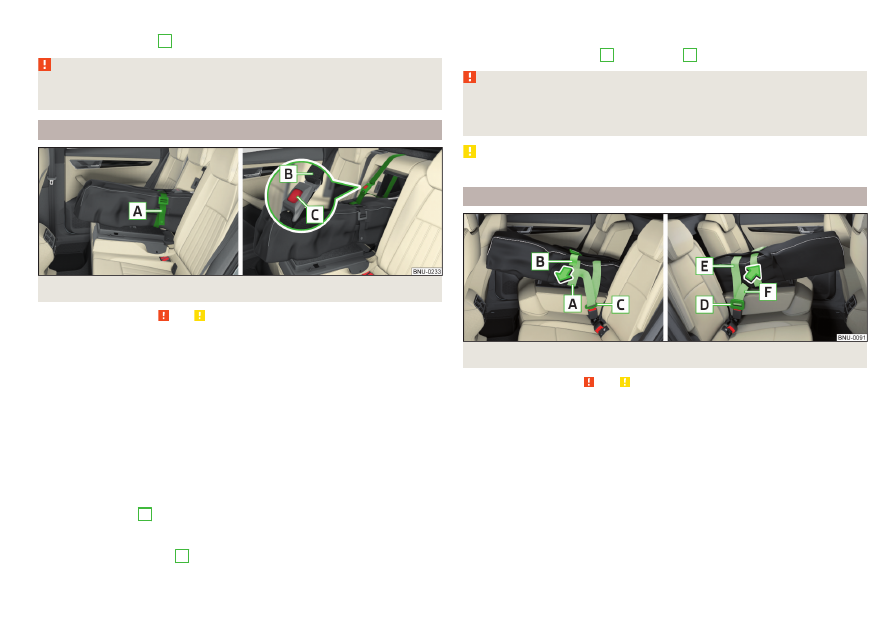

Fig. 124  Tighten ribbon / secure bag

Read and observe   and   on page 93 first.

Use the removable bag for seats with load-through device in the backrest.
The removable through-loading bag (hereinafter referred to as bag) is used ex-

clusively for transporting skis and poles (max. 4 pairs).

Stowing bag and skis

Fold the rear armrest and the cover in the seat backrest downwards

» Fig. 123

 on page 100.

Place the empty bag in the opening in such a way that the end of the bag

with the zip is in the boot.

Place the skis with the tips facing to the front and the sticks with the tips

facing to the rear into the bag and close the bag.

Securing bag and skis

Tighten the strap

A

 around the skis in front of the bindings

» Fig. 124

. The

strap must hold the skis tight.

Partially fold the middle seat backrest forward

» page 86

.

Guide the securing strap

B

 through the opening in the seat backrest around

the upper part of the seat backrest.

Then, fold the seat backrests back until the locking button clicks into place.

Check this by pulling on the seat backrest.

Insert the securing strap

B

 into the lock

C

 until it clicks into place.

WARNING

The total weight of the skis which are transported must not exceed 17 kg.

Always stow and secure the skis and the bag securely - otherwise there is

a risk of injury or accident!

CAUTION

Carefully handle the sack and skis - there is a risk of damage to the armrest.

Removable sack for VarioFlex seats

Fig. 125  Tighten band / secure bag - VarioFlex

Read and observe   and   on page 93 first.

Use the removable bag for VarioFlex rear seats.
The removable through-loading bag (hereinafter referred to as bag) is used ex-

clusively for transporting skis and poles (max. 2 pairs).

Stowing bag and skis

Fold the middle rear seat backrest forwards until it rests on the seat

» page 87

.

Place the empty bag in the opening in such a way that the end of the bag

with the zip is in the boot.

Push the skis and poles with the tips backwards into the bag and secure the

bag.

101

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Securing bag and skis

Pull the securing strap with both lock tongues out of the pocket of the bag.

Tighten the drawstring

A



» Fig. 125

 around the skis on the tie base and at

the free end

B

 in the direction of the arrow.

Plug the safety tape locking tongue

C

 into the lock on the left side of the

middle seat until you can hear it click into place.

Plug the safety tape locking tongue

D

 into the lock on the right side of the

middle seat until you can hear it click into place.

Tighten the safety tape

e

 between the base and the tip at the free end

F

in the direction of the arrow.

WARNING

The total weight of the skis which are transported must not exceed 10 kg.

Always stow and secure the skis and the bag securely - otherwise there is

a risk of injury or accident!

CAUTION

Carefully handle the sack and skis - there is a risk of damage to the armrest.

Electrical sockets

Introduction

WARNING

Do not place anything on the dashboard. These objects might slide or fall

down when driving and may distract you from concentrating on the traffic

– risk of accident!

Make sure that while driving no objects can enter the driver's footwell -

cause an accident!

Safely stow all devices during the journey to prevent them from being

thrown around the interior in the event of a sudden braking manoeuvre or

an accident – risk of death!

The devices may warm up during operation – risk of injury or fire!

Improper use of the power sockets and the electrical accessories can

cause fires, burns and other serious injuries.

The 12-Volt sockets also work if the ignition is switched off. When leaving

the vehicle, never leave persons who are not completely independent, such

as children, unattended in the vehicle.

CAUTION

When using the 12 volt power outlets the following notes are to be observed.

The sockets can only be used for the connection of approved electrical ac-

cessories with a total power consumption of up to 120 watts, otherwise the

electrical system of the vehicle may be damaged.

Connecting appliances when the engine is not running will drain the battery

of the vehicle!

Before switching the ignition on / off or before starting the engine, switch

off the devices which are connected to the sockets - there is a risk of damage

to the equipment due to voltage fluctuations.

12-volt socket in the front centre console

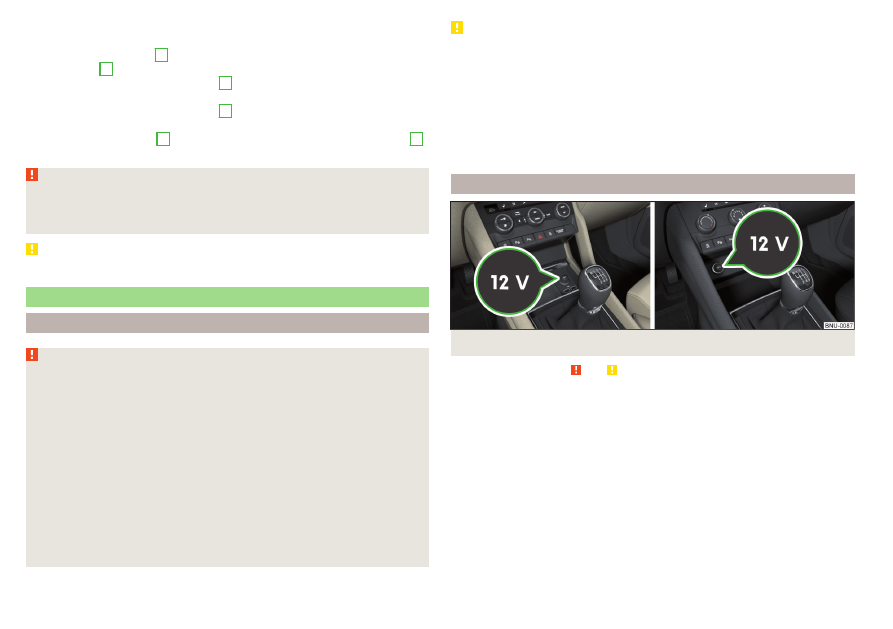

Fig. 126  Cover of the 12 volt power outlet

Read and observe   and   on page 102 first.

To use, open the storage compartment, remove the cover of the socket

» Fig. 126

 and plug the electrical appliance plug into the socket.

102

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12 volt socket in the rear centre console

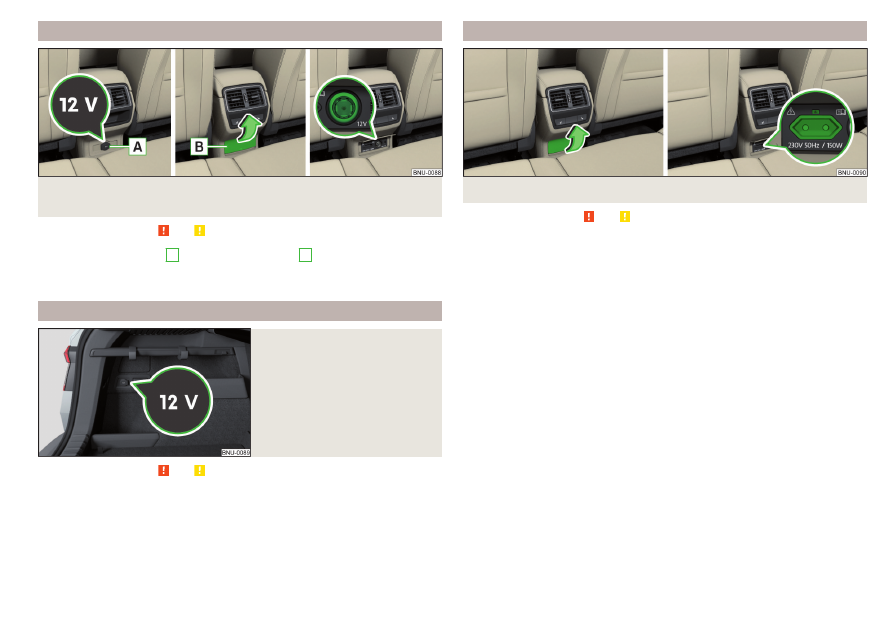

Fig. 127  Cover of the 12 volt outlet / Open the cover of the 12 volt out-

let

Read and observe   and   on page 102 first.

To use, open the cover

A

 or fold open the cover

B

 in the direction of arrow

» Fig. 127

.

Connect the plug for the electrical appliance to the socket.

12 volt socket in luggage compartment

Fig. 128

Cover of the 12 volt power out-

let

Read and observe   and   on page 102 first.

To use, open the cover of the socket

» Fig. 128

 and plug the electrical appli-

ance plug into the socket.

230-volt socket in the rear centre console

Fig. 129  Open the cover of the 230 volt outlet / 230 volt outlet

Read and observe   and   on page 102 first.

The 230-volt socket has a child safety lock. When inserting the plug, the fuse

is released, the socket is activated and the warning light above the socket is

illuminates green (if this flashes red, then the socket is deactivated).
The socket works with the engine running (in STOP mode in vehicles with the

START-STOP system) and for about 10 minutes after the engine is switched

off, provided an appliance was still connected prior to switching off the engine

(the warning light flashes green)).

To use, fold up the cover of the socket in the direction of arrow

» Fig. 129

and plug the electrical appliance plug into the socket.

An automatic deactivation of the socket can take place, for example, for

the following reasons.

Excessive current.

Low state of charge of the battery.

High outlet temperature.

If disabling reasons no longer exist, the automatic activation of the socket can

be done.
Should no automatic activation of the socket take place, the connected devi-

ces must be disconnected from the power outlet and reconnect after a short

time.

103

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Make sure that no liquid or moisture enters into the socket - it can be fa-

tal! If fluid does manage to get into the power socket, completely dry out

the socket before reuse.

The child lock on the power socket is unlocked when using adapters and

extension cables which carry volts – risk of injury!

Do no insert any objects (e.g. knitting needles) into the contacts of the

power socket – risk of death!

CAUTION

The power socket can only be used for connecting approved electrical ac-

cessories with a two-pin 230V plug, with a total power uptake of up to

150 watt.

The plug of the electrical appliance must be plugged in up to the stop, other-

wise the child safety lock can be unlocked and the socket may be activated

but the electric appliance is still not receiving power.

Do not connect bulbs with neon tubes in the socket - there is a risk of dam-

aging the lamp.

For appliances with an independent power source (e.g. such as notebooks),

first connect the power source itself and only after that connect the appliance.

Ashtray and cigarette lighter

Introduction

The ashtray can be used for disposing of ash, cigarettes, cigars and the like etc

WARNING

Never place hot or flammable objects in the ashtray – risk of fire!

Ashtray

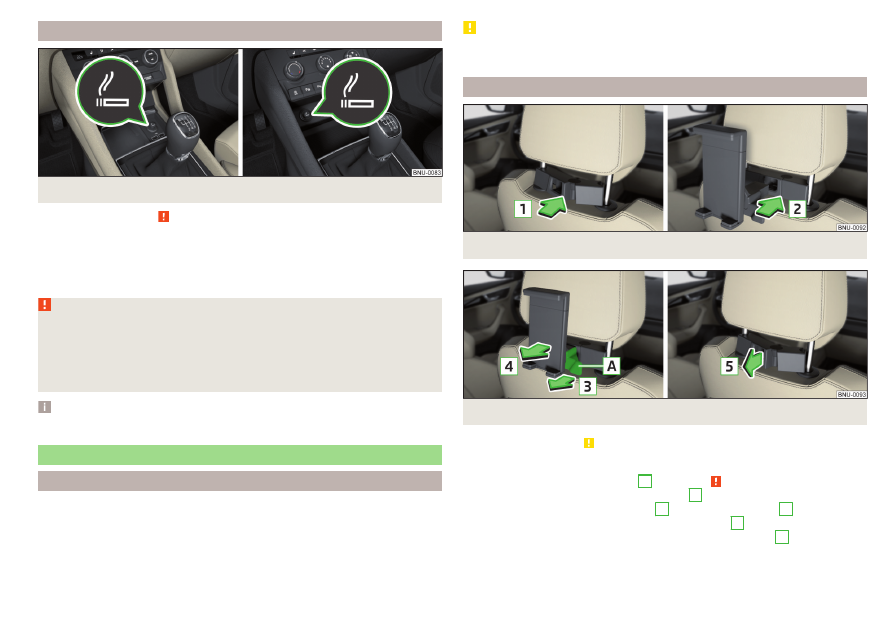

Fig. 130  Removing/opening/disassembling the ashtray

Read and observe   on page 104 first.

Removing/inserting

Remove the ashtray in the direction of the arrow

A



» Fig. 130

. To insert,

proceed in reverse order.

Open/close

To open the ashtray, turn the cover in the direction of arrow

B

Closing

takes place in reverse order.

Disassembling / assembling

To disassemble turn the entire cover in the direction

1

 until it stops and re-

move in direction of arrow

2

Assembly takes place in reverse order.

104

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cigarette lighter

Fig. 131  Cigarette lighter

Read and observe   on page 104 first.

To use, open the respective storage compartment and push in the lighter un-

til it stops

» Fig. 131

.

Wait until the glowing lighter protrudes, remove it immediately and use.

Put the lighter back in the socket and close the storage compartment.

WARNING

The cigarette lighter also works if the ignition is switched off. When leav-

ing the vehicle, never leave people who are not completely independent,

such as children, unattended in the vehicle - there is a risk of burning, fire or

damage to the vehicle interior.

Be careful when using the cigarette lighter - it can cause burns.

Note

The cigarette lighter socket can also be used as a 12 volt socket.

Tablet holder

Introduction

External devices (e.g. tablet, smartphone etc.) measuring min. 122 mm and

max. 195 mm can be secured in the holder.
The maximum permissible load of the compartment is 750 g.

CAUTION

Never exceed the maximum permissible load of the holder - there is a risk of

damage or functional impairment.

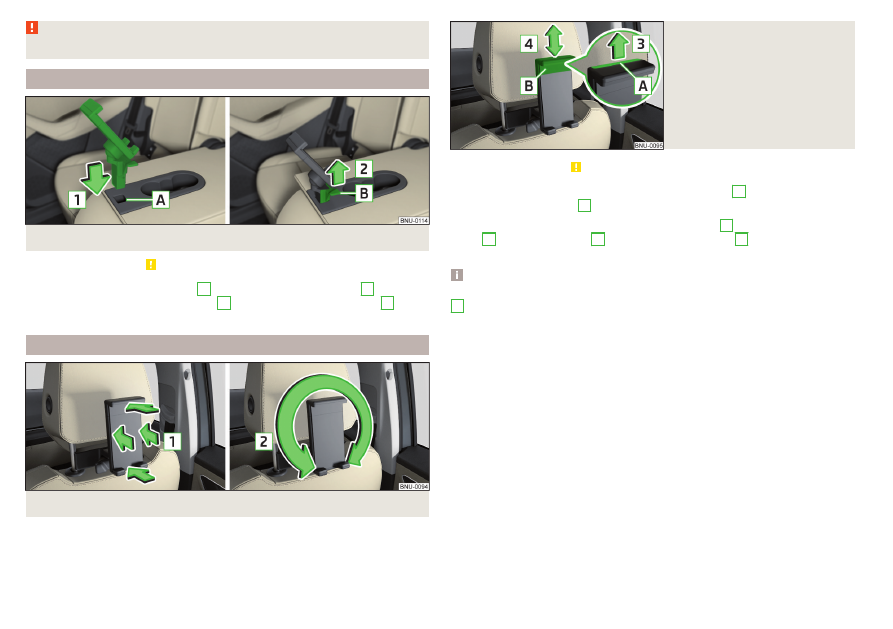

Attaching the rear headrests

Fig. 132  Inserting: Adapter/Holder

Fig. 133  Removal: Holder/Adapter

Read and observe   on page 105 first.

Toinsert, attach the opened adapter to the guide rods of the front headrest

and clip in the direction of arrow

1

» Fig. 132



»

.

Clip in the holder in the direction of arrow

2

 into the adapter.

To remove, pull on the securing tab

A

 in direction of arrow

3

 and take the

holder out of the adapter in the direction of arrow

4



» Fig. 133

.

Press the adapter and remove in the direction of the arrow

5

 from the

guide rods of the headrest.

105

Practical features

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Be care with the adapter - otherwise there is a risk of finger injury.

Attach in the opening in the middle backrest

Fig. 134  Inserting holder / Removing holder

Read and observe   on page 105 first.

Insert the holder in the opening

A

 in the direction of the arrow

1



» Fig. 134

.

To remove, pull on the securing tab

B

 in the direction of the arrow

2

 and

remove the holder.

Handling the holder

Fig. 135  Tilting and rotating the holder

Fig. 136

Adjusting the holder size

Read and observe   on page 105 first.

The holder may be by 30° in the direction of the arrow

1

 tipped and by 360°

in the direction of arrow

2

 turned

» Fig. 135

.

To adjust the holder size, pull out the securing tab

A

 in the direction of ar-

row

3

 and push the part

B

 in the direction of arrow

4

 to the desired posi-

tion

» Fig. 136

.

Note

If there is no external device in the holder, then we recommend that the part

B

 is moved fully down. Otherwise, irritating noises may occur at certain

speeds.

106

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Transport of cargo

Luggage compartment

Introduction

When transporting heavy objects, the driving characteristics change due to

the shift in centre-of-gravity. Therefore, adjust the speed and driving mode ac-

cordingly.

When transporting cargo the following the instructions must be adhered to

Distribute the load evenly in the luggage compartment and secure it with

suitable lashing straps to the lashing eyes or securing nets so that they can-

not slip.

Place heavy objects as far forward in the luggage compartment as possible.

Tyre pressure is to match the load.

In the event of an accident, even small and light objects gain so much kinetic

energy that they can cause severe injuries.
The magnitude of the kinetic energy is dependent on the speed at which the

vehicle is travelling and the weight of the object.

Luggage compartment light

The light switches on/off when the boot lid is opened or closed.
If the boot lid is open and the ignition switched off, the light will extinguish au-

tomatically after around 10 minutes.

WARNING

Never exceed the maximum permissible load of the respective fasteners,

nets, hooks etc. Heavy objects were not secured sufficiently – risk of injury!

An unfixed or improperly fixed load can slip during a sudden manoeuvre or

an accident - danger of injury!

Loose cargo could hit a deployed airbag and injure occupants – danger of

death!

When transporting loads in the luggage compartment that has been en-

larged by folding the rear seats forward, ensure the safety of the passen-

gers transported on the other rear seats .

CAUTION

Never exceed the maximum permissible load of the respective fasteners,

nets, hooks etc. - these could be damaged.

Make sure that the heating elements of the rear window heater or the fila-

ments of the antenna built into the rear are not damaged by abrasive items.

Do not place sharp objects in the nets and storage compartments in the lug-

gage compartment - there is a risk of damage to the net as well as the com-

partments.

Put the items in the storage compartments carefully and not load these

punctiform - there is a risk of damage to the compartments.

Fastening elements

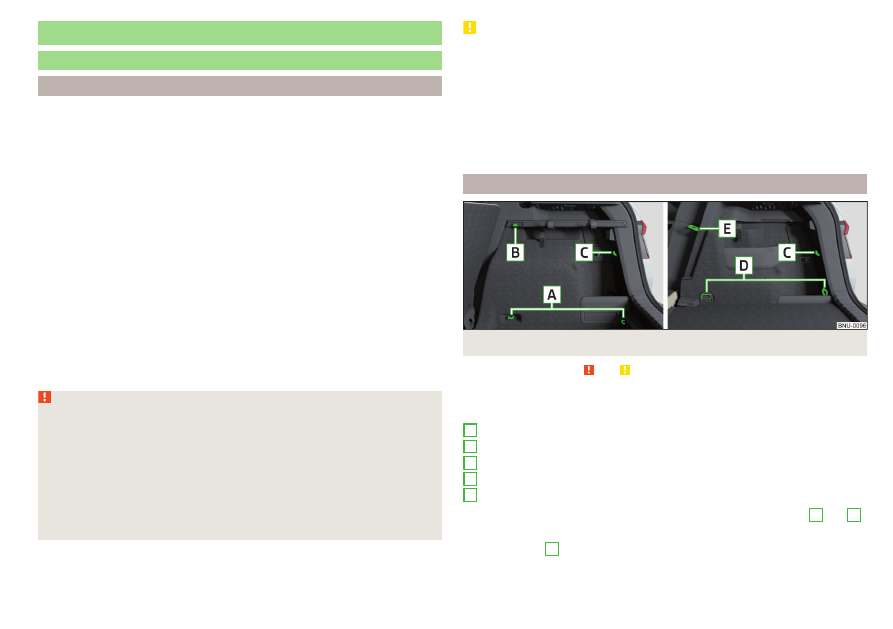

Fig. 137  Fastening elements: Version 1/version 2

Read and observe   and   on page 107 first.

The fasteners are located on both sides of the luggage compartment.
Overview of the fastening elements

» Fig. 137

Lashing eyes for fastening cargo and securing nets
Mounting bar with integrated hook only for fixing mounting networks
Hook only for fastening fixing nets
Lashing eyes for fastening the load
Lashing eyes only for fastening fixing nets

The maximum permissible static load for the individual lashing eyes

A

 and

D

is 350 kg.
The lashing eye

e

 is behind the hinged backrest (does not apply to the

VarioFlexseats).

A
B
C
D

E

107

Transport of cargo

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fixing nets

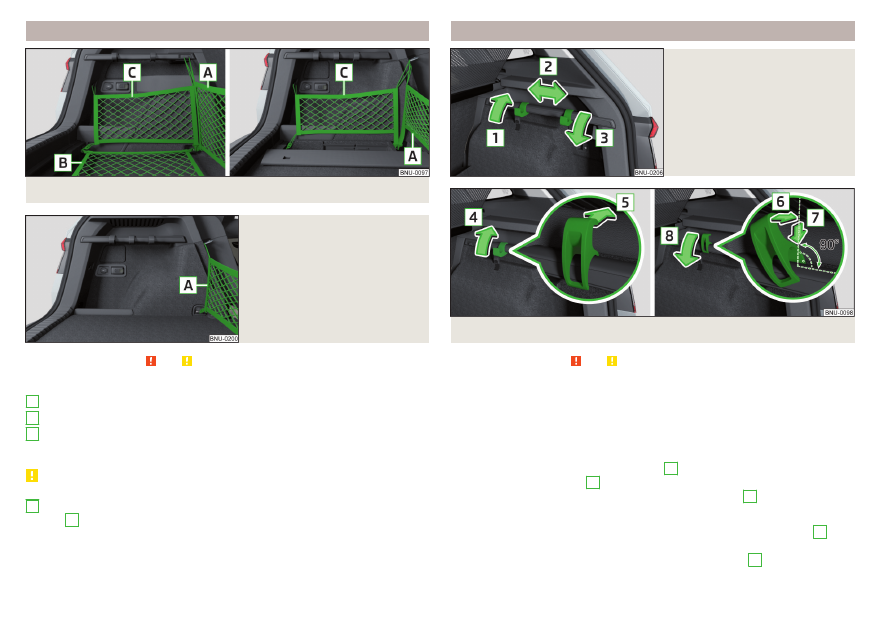

Fig. 138  Fastening examples for nets: Version 1/version 2

Fig. 139

Fastening examples for nets:

Variant 3

Read and observe   and   on page 107 first.

Fastening examples for nets

» Fig. 138

 and

» Fig. 139

Horizontal pocket
Floor net
Vertical pocket

The maximum permissible load of each of the nets is 1.5 kg.

CAUTION

For vehicles with the variable loading floor, only the crossbar can be fastened

A



» Fig. 139

 behind the seats (the net can be in the lower area at the front

eyelets

D



» Fig. 137

 on page 107).

A
B
C

Fastening strip with moveable hook

Fig. 140

Move the hook over the fasten-

ing strip

Fig. 141  Removing/inserting hook

Read and observe   and   on page 107 first.

The fastening strip with movable hooks for hanging small items of luggage

(e.g. bags etc.) is located on one or both luggage compartment sides depend-

ing on the equipment fitted.
The maximum permissible load of each of the hooks is 5 kg.

Moving the hook

Hold hook upward in direction of arrow

1

 and move to the desired position

in the direction of arrow

2



» Fig. 140

.

Fold down the hook until it stops in the arrow direction

3

.

Removing hooks

Move the hook into the vertical position in the direction of the arrow

4

» Fig. 141

.

Press and remove the hook in the direction of the arrow

5

.

108

Operation

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
