A warning signal sounds if the vehicle is inadvertently driven off with the
handbrake applied. The handbrake warning is activated if the vehicle is driven
at a speed of over 5 km/h for more than 3 seconds.

WARNING

Disengage the handbrake completely. A handbrake which is only partially
disengaged can result in the rear brakes overheating. This can have a nega-
tive effect on the operation of the brake system – risk of accident!

Note

Push the armrest cover all the way back to the stop before applying the hand-
brake

» page 71

.

Parking

Read and observe   on page 104 first.

When stopping and parking, look for a place with a suitable surface

»

 .

Only carry out the activities while parking in the specified order.

Bring the vehicle to a stop and depress the brake pedal.

Firmly apply the handbrake.

On vehicles with automatic transmission place the selector lever in the P po-
sition.

Switch off the engine.

For vehicles with Instruction transmission select the 1st gear or the Reverse
gear R
.

Release the brake pedal.

WARNING

The exhaust system components can become very hot. Therefore, never

stop the vehicle in places where the underside of your vehicle could come
into contact with flammable materials (e.g. dry grass, leaves, spilled fuel or
the like). - Risk of fire and serious injury can occur!

When leaving the vehicle, never leave people unattended in the car who

could, for example, lock the vehicle or release the brake - There is a risk of
accidents and injury!

Instruction gear changing and pedals

Introduction

This chapter contains information on the following subjects:
Instruction gear changing

105

Pedals

106

Instruction gear changing

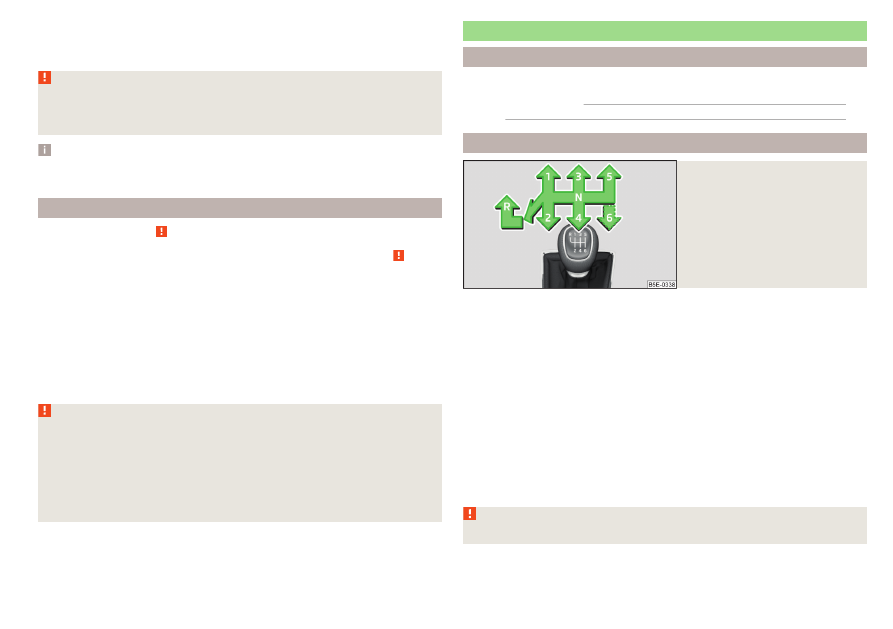

Fig. 126
The shift pattern

The shift pattern for the individual gear positions is shown on the gear lever

» Fig. 126

.

The gearshift indicator should be observed when changing gear

» page 39

.

Always depress the clutch pedal all the way down. This prevents uneven wear
on the clutch.

Reverse gear is engaged

Stop the vehicle.

The clutch pedal is fully depressed.

Switch the gear lever to N.

Push the shift lever downwards fully to the left and then forward into
R

» Fig. 126

.

The reversing lights will come on once reverse gear is engaged, provided the
ignition is on.

WARNING

Never engage reverse gear when driving – risk of accident!

105

Starting-off and Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

If not in the process of changing gear, do not leave your hand on the gearshift
lever while driving. The pressure from the hand can cause the gearshift mech-
anism to wear excessively.

Pedals

The operation of the pedals must not be hindered under any circumstances!
Only a floor mat (ex-factory or from the ŠKODA Original Accessories range)
which can be secured to the attachment points should be used in the driver's
footwell.

WARNING

There should be no objects in the driver's footwell, otherwise the pedal op-
eration can be impeded -There is a risk of an accident!

Automatic transmission

Introduction

This chapter contains information on the following subjects:
Select selector lever position

106

Selector lever lock

107

Instruction shifting (Tiptronic)

107

Starting-off and driving

108

The automatic transmission performs an automatic gear change irrespective of
the engine load, the operation of the accelerator, the vehicle speed and the
selected driving mode.
The modes of the automatic transmission can be adjusted by the driver by
means of the selector lever.

WARNING

Do not accelerate when selecting drive mode prior to moving off - There

is a risk of an accident!

Never move the selector lever to mode R or P when driving – There is a

risk of an accident!

WARNING (Continued)

If the vehicle stalls, with engine running, in the DSR or Tiptronic mode,

the vehicle must be prevented from rolling away by means of the brake
pedal or the parking brake. Even when the engine is idling, the power
transmission is never completely interrupted – the vehicle creeps.

When leaving the vehicle, the selector lever must always be set to P. Oth-

erwise, the vehicle could be set in motion - risk of accident!

CAUTION

If you want to move the selector lever from position N to position D / S whilst
driving, the engine must be running at idling speed.

Select selector lever position

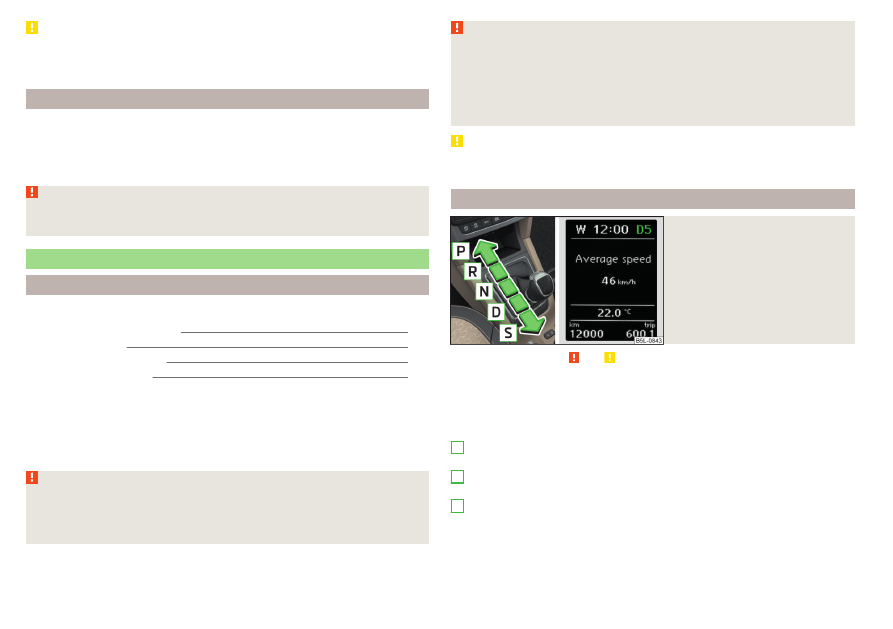

Fig. 127
Selector lever settings / display

Read and observe   and   on page 106 first.

The selector lever can be moved by shifting to one of the following positions

» Fig. 127

. In some positions you have to push the locking button

» page 107

.

When the ignition is switched on, the gearbox mode and the currently selected
gear are indicated in the display

» Fig. 127

.

Parking - the position can be set only when the vehicle is at a standstill
The drive wheels are mechanically locked.
Reverse gear - the position can only be selected when the vehicle is sta-
tionary and the engine is idling
Neutral (idle position) - power transmission to the drive wheels is inter-
rupted

P

R

N

106

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving forwards - In mode D, the forward gears are automatically
changed according to the engine load, accelerator pedal actuation and
driving speed
Sports mode - the gear change takes place in the position S at higher en-
gine speeds
 than in mode D
Before changing to mode S from mode D, press the lock button in the di-
rection of arrow

1



» Fig. 128

 on page 107.

Selector lever lock

Fig. 128
Shift lock button

Read and observe   and   on page 106 first.

The selector lever is locked in mode P and N to prevent that the forward driv-
ing is selected accidentally, thereby setting the vehicle in motion.
The selector lever is locked only when the vehicle is stationary and at speeds
up to 5 km/h.
The selector lever lock is indicated by the illumination of the warning light

.

Releasing selector lever from mode P or N (selector lever lock)

Press the brake pedal and the lock button at the same time in the direction
of

1



» Fig. 128

 .

To move the selector lever from mode N to D only the brake pedal must be
pressed.

The selector lever is not locked when quickly moving across the position N
(e.g. from R to D). This, for example, helps to rock out a vehicle that is stuck,
e.g. in a bank of snow. The selector lever lock will engage if the lever is in posi-
tion N for more than approx. 2 seconds without the brake pedal being de-
pressed.
If it is not possible to release the gear selector from mode P in the usual man-
ner, then this can be emergency unlocked

» page 166

.

D

S

Note

To switch the selector lever from mode P to mode D/S or vice versa, move the
selector lever quickly. This prevents that you accidentally select mode R or N.

Instruction shifting (Tiptronic)

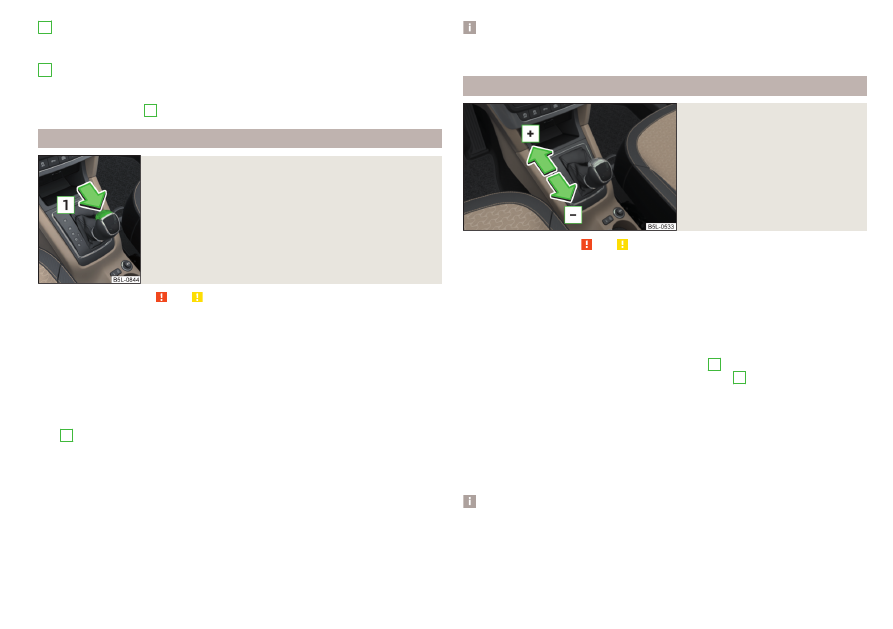

Fig. 129
Selector lever

Read and observe   and   on page 106 first.

Tiptronic mode makes it possible to instructionly shift gears on the selector lever.
This mode can be selected both while stopping and while driving.

Switching to instruction shifting using the selector lever

Push the gear selector from position D towards the right, or left in a right-
hand drive vehicle. The current gear is maintained.

Gear changing

To change up, tap the selector lever forwards

+



» Fig. 129

.

To change down, tap the selector lever backwards

-

» Fig. 129

.

The currently selected gear is indicated in the display

» Fig. 127

 on page 106.

The gearshift indicator should be observed when changing gear

» page 39

.

When accelerating, the gearbox automatically shifts up into the higher gear
just before the maximum permissible engine speed is reached. If a lower gear
is selected, the gearbox does not shift down until there is no risk of the engine
overrevving.

Note

It may be beneficial, for example, when travelling downhill, to use instruction
shifting of gears. Shifting to a lower gear reduces the load on the brakes and
hence the wear of the brakes.

107

Starting-off and Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Starting-off and driving

Read and observe   and   on page 106 first.

Moving off and pausing temporarily

Firmly depress and hold the brake pedal.

Start the engine.

Press the locking button and move the selector lever to the desired position

» page 106

.

Release the brake pedal and accelerate.

The selector lever position N does not have to be selected when stopping for a
short time (e.g. at a crossroads). However, the brake pedal should be de-
pressed, in order to prevent the vehicle from rolling.

Accelerating at maximum speed during the journey (kickdown function)
If the accelerator pedal is depressed while the vehicle is in forward drive mode,
the kick-down function is turned on.
The gear change is adjusted accordingly to achieve maximum acceleration.

Driving in neutral (“coasting”)

1)

When releasing the accelerator pedal, the vehicle moves without the braking
effect of the engine.
Operating conditions

The selector lever is in the D position.

In the MAXI DOT display in the menu Settings activate the menu item Coasting

» page 42

.

The vehicle is travelling at more than 20 km/h.

No trailer or other accessory is connected to the trailer socket.

The gear is automatically inserted again by depressing either the accelerator
or brake pedal.

WARNING

Rapid acceleration ( e.g. on slippery roads) can lead to a loss of control over
the vehicle – There is a risk of an accident!

Running in and economical driving

Introduction

This chapter contains information on the following subjects:
Running in the engine

108

Tips on economical driving

108

Running in the engine

During the first 1 500 km, the driving style is decisive for successful the run-
ning in process is.
During the first 1 000 km, the engine should not be charged with more than
3/4 of the maximum permitted engine revs and without the trailer.
From about 1 000 to 1 500 km, the engine can be pushed up to the maximum
permitted engine speed.

Tips on economical driving

Fuel consumption depends on the driving style, road and weather conditions,
and similar such factors.
For an economical driving style, the following instructions must be observed.

Avoid unnecessary acceleration and braking.

Engage the recommended gear

» page 39

.

Avoid full throttle and high speeds.

Reduce idling.

Avoid short distances.

Ensure the correct tyre inflation pressure is maintained

» page 151

.

Avoid unnecessary ballast.

Remove the roof rack before driving if it is not needed.

Only turn on electrical consumers (e.g. seat heating) for as long as necessary.

Briefly ventilate before turning on the cooling system, do not use the cooling
system with the windows open.

Do not leave windows open at high speeds.

1)

This function is only valid for some engines.

108

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Avoiding damage to your vehicle

Introduction

This chapter contains information on the following subjects:
Driving Tips

109

Driving through water

109

Driving Tips

Only drive on roads and terrain that are appropriate to the vehicle parameters

» page 175

Technical data.

The driver is always responsible for deciding whether the vehicle can cope
with the conditions and the terrain.
When travelling off paved roads, we recommend activating the OFF ROAD
mode

» page 112

.

WARNING

Adjust the speed and driving style to the current visibility, weather, road

and traffic conditions. Too high a speed or an erroneous manoeuvre may
cause serious injury and damage to the vehicle.

Combustible objects such as dry leaves or twigs caught under the base of

the vehicle could ignite on hot vehicle parts - risk of fire!

CAUTION

Pay attention to the ground clearance of the vehicle! When driving over ob-

jects which are larger than the ground clearance, the vehicle can get damaged.

Any objects that get trapped under the vehicle floor must be removed as

soon as possible. These items can cause damage to the vehicle (e.g. to parts of
the fuel or brake system).

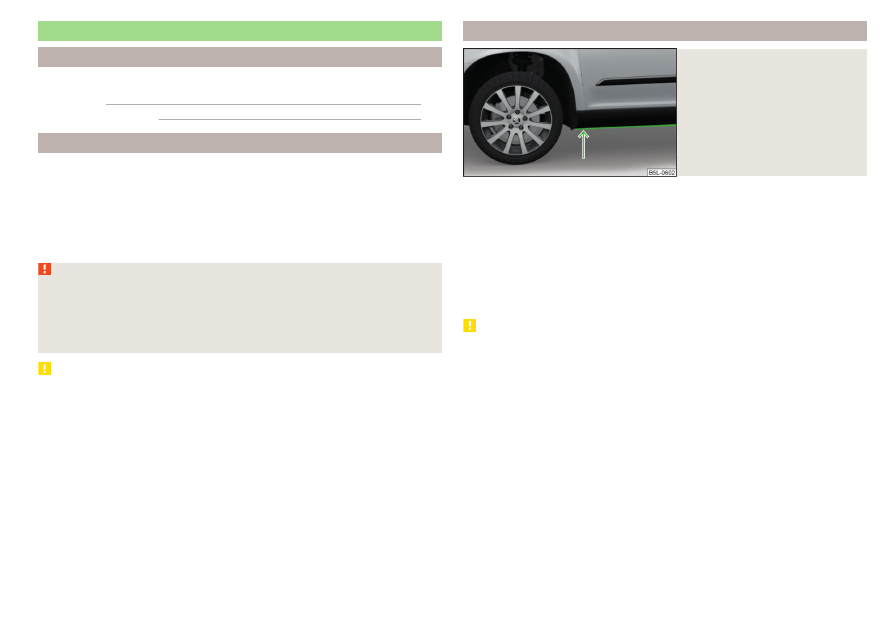

Driving through water

Fig. 130
Maximum permissible water lev-
el when driving through water

The following must be observed to avoid damage to the vehicle when driving
through bodies of water (e.g. flooded roads).

Therefore determine the depth of the water before driving through bodies of
water. The water level must not go above the web of the lower beam

» Fig. 130

.

Drive at no more than walking pace, otherwise a wave may form in front of
the vehicle, which could cause the water to enter into the vehicle’s systems
(e.g. the air intake system for the engine).

Never stop in the water, do not reverse and do not switch the engine off.

CAUTION

If water gets into the vehicle’s systems (e.g. the air intake system for the en-

gine) it can cause serious damage to the vehicle!

Oncoming vehicles can generate water waves which can exceed the permis-

sible water level for your vehicle.

Do not drive through salt water, as the salt can cause corrosion. An vehicle

coming into contact with salt water is to be thoroughly rinsed with fresh wa-
ter.

109

Starting-off and Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Assist systems

General information

WARNING

The assistance systems only serve to support and do not relieve the driv-

er of the responsibility for driving the vehicle.

The increased safety provision, as well as the increased occupant protec-

tion provided by the assistance systems must not tempt you to take risks -
risk of accident!

Adjust the speed and driving style to the current visibility, weather, road

and traffic conditions.

The assistance systems have physical and system-related limitations. For

this reason, the driver may experience some undesired or delayed system
responses in certain situations. You should therefore always be alert and
ready to intervene!

Only activate, deactivate or set the assistance systems so that you have

the car fully under control in every traffic situation - risk of accident!

Braking and stabilisation systems

Introduction

This chapter contains information on the following subjects:
Stability Control (ESC)

110

Anti-lock braking system (ABS)

110

Engine drag torque control (MSR)

110

Traction control (TCS)

111

Electronic Differential Lock (EDL)

111

Driver Steering Recommendation (DSR)

111

Brake Assist (HBA)

111

Hill Start Assist (HHC)

111

Trailer stabilization system (TSA)

112

The brake and stabilization systems are automatically activated each time the
ignition is switched on, unless otherwise indicated.
The error display is in Chapter

» page 31

Warning lights.

WARNING

The general information relating to the use of assistance systems must be
observed

» page 110,

   in section General information.

Stability Control (ESC)

Read and observe   on page 110 first.

The ESC improves vehicle stability when driving at the limit (e.g. if the vehicle
starts to skid) by braking individual wheels to maintain the desired direction.
If there is a TCS intervention, the warning light

 flashes in the instrument

cluster.

Anti-lock braking system (ABS)

Read and observe   on page 110 first.

ABS prevents the wheels locking when braking. Thus helping the driver to
maintain control of the vehicle.
The intervention of the ABS is noticeable from the pulsating movements of
the brake pedal
 which is accompanied by noises.
When the ABS system is active, do not brake periodically or reduce the pres-
sure on the brake pedal.

Engine drag torque control (MSR)

Read and observe   on page 110 first.

MSR counteracts the tendency of the drive wheels to lock during downshifts
or sudden deceleration (e.g. on icy or an otherwise slippery road surface).
If the drive wheels should lock, then the engine speed is automatically in-
creased. This reduces the braking effect of the engine and the wheels can ro-
tate freely again.

110

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Traction control (TCS)

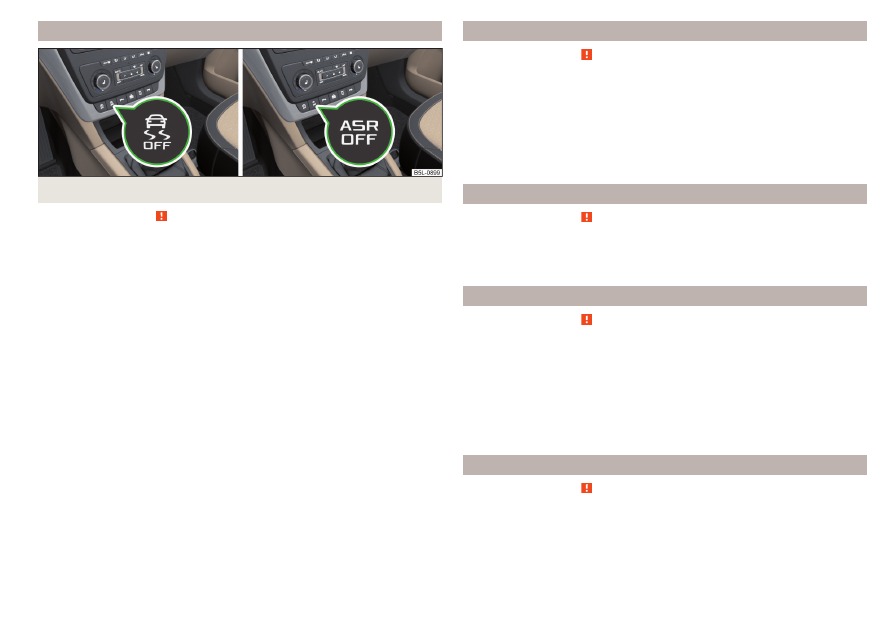

Fig. 131  System button: Vehicle with ESC / vehicle without ESC

Read and observe   on page 110 first.

TCS prevents the spinning of the wheels of the driven axle. TCS reduces the
drive power transmitted to the wheels in the case of slipping wheels. Thus, for
example, driving on road surfaces with low grip is made easier.
During a TCS intervention, the indicator light

 flashes in the instrument clus-

ter.
The deactivation/activation of TCS can be carried out, depending on equip-
ment, in one of the following ways.

By pressing the 

» Fig. 131

 button.

By pressing the 

» Fig. 131

 button.

With deactivation, the warning light

lights up in the instrument cluster and

an appropriate message is displayed in the instrument cluster.
With activation, the warning light

 is extinguished and an appropriate mes-

sage is displayed in the instrument cluster.
The TCS should normally always be enabled. The system should be deactivated
only in the following situations, for example.

When driving with snow chains.

When driving in deep snow or on a very loose surface.

When it is necessary to “rock” a car free when it has become stuck.

Electronic Differential Lock (EDL)

Read and observe   on page 110 first.

EDL prevents the turning of the respective wheel of the driven axle. EDL
brakes a spinning wheel if required and transfers the drive power force to the
other drive wheel. Driving becomes easier on road surfaces with different trac-
tion under each wheel of the driven axle.
EDL switches off automatically to avoid excessive heat generation on the
brake of the wheel being braked. Once the brakes have cooled down, there is
an automatic re-activation of EDL.

Driver Steering Recommendation (DSR)

Read and observe   on page 110 first.

In critical situations, the DSR provides the driver with a steering recommenda-
tion in order to stabilise the vehicle. DSR is activated, for example, on the right
and left vehicle side when braking sharply on different road surfaces.

Brake Assist (HBA)

Read and observe   on page 110 first.

The HBA increases the braking effect and helps to reduce the braking dis-
tance.
The HBA is activated by very quick operation of the brake pedal. In order to
achieve the shortest possible braking distance, the brake pedal must be ap-
plied firmly until the vehicle has come to a standstill.
The HBA function is automatically deactivated when the brake pedal is re-
leased.

Hill Start Assist (HHC)

Read and observe   on page 110 first.

When moving off on a gradient, HHC allows you to move your foot from the
brake pedal to the accelerator pedal without the vehicle rolling downhill.
The vehicle is braked by the system for about 2 seconds after releasing the
brake pedal.

111

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The HHC is active on gradients upwards up 5% if the driver door is closed. HHC
is only ever active on slopes when in forward or reverse start off.

Trailer stabilization system (TSA)

Read and observe   on page 110 first.

The TSA helps the combination stable in situations where the trailer sways
and then the whole trailer combination.
TSA brakes the individual wheels of the towing vehicle in order to damp the
rocking motion of the entire vehicle combination.
The following conditions are required for the correct TSA function.

The trailer was shipped from the factory or purchased from the ŠKODA
genuine accessories.
The trailer is electrically connected to the towing vehicle via the trailer
socket.
The TCS is activated.
The speed is greater than 60 km/h.

Further information

» page 124

Towing device and trailer.

OFF ROAD Mode

Introduction

This chapter contains information on the following subjects:
Operation

112

Hill Descent Assistant

113

TCSOFF ROAD

113

EDS OFF ROAD

113

ABS OFF ROAD

113

Start-Off Assistant

114

The OFF ROAD mode includes several features that help to overcome difficult
navigable routes when travelling on non-paved roads.
But even with OFF ROAD mode activated, your vehicle is never a true SUV.

WARNING

The general information relating to the use of assistance systems must

be observed

» page 110,

   in section General information.

A lack of fuel can cause irregular engine running or cause the engine to

shut down. This would lead the OFF ROAD mode to lose its effectiveness -
risk of accident!

CAUTION

The OFF ROAD mode is not designed for the use on common roads.

All four wheels must be fitted with the same tyres approved by the

ŠKODA AUTO to ensure theOFF ROAD mode operates correctly.

Operation

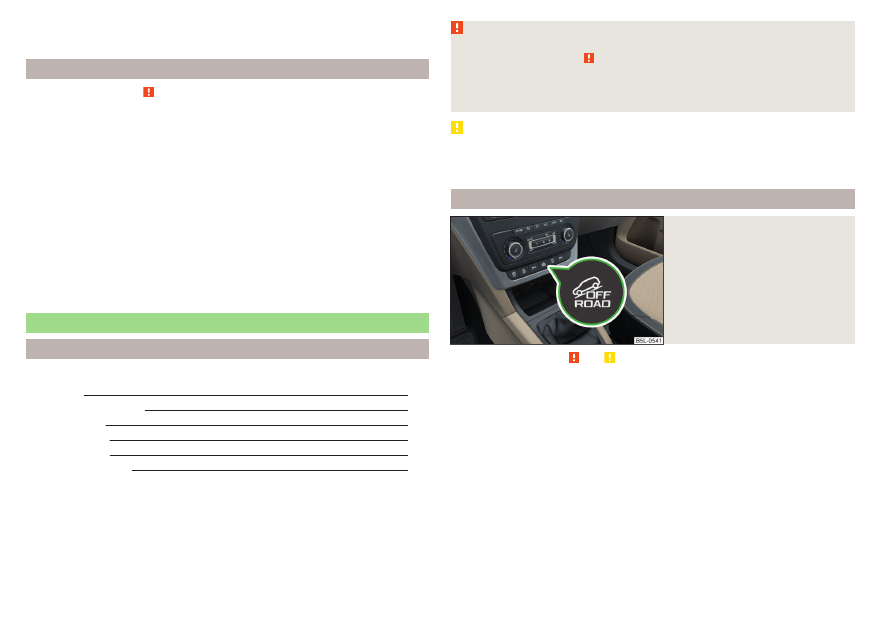

Fig. 132
OFF ROAD button

Read and observe   and   on page 112 first.

We recommend that you activate the OFF ROAD mode for every trip on non-
paved roads.

To activate, press the

» Fig. 132

 button.

The symbol in the button comes on.

To deactivate press the button 

» Fig. 132

 or switch off the ignition.

The symbol in the button is no longer illuminated.

So that an engagement of the OFF ROAD mode can take place, the following
conditions must be met.

The OFF ROAD mode is enabled.
The vehicle is moving at a speed of less than 30 km/h.
The warning light

 illuminates in the instrument cluster.

112

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The following functions are integrated in the OFF ROAD mode.

Downhill Drive Support

» page 113

.

TCS OFF ROAD

» page 113

.

EDL OFF ROAD

» page 113

.

ABS OFF ROAD

» page 113

.

Start-Off Assistant

» page 114

.

Note

If the engine stalls while driving and is started again within 30 seconds, then
OFF ROAD mode will be automatically activated.

Hill Descent Assistant

Read and observe   and   on page 112 first.

The hill descent assistant (hereinafter referred to as assistant), with its auto-
matic braking action on all wheels, ensures a constant speed is maintained on
a steep slope when driving forwards and reversing.
During an intervention of the Assistants, the warning light

 flashes in the in-

strument cluster.
The assistant is automatically engaged under the following conditions.

The engine is running.
For vehicles with Instruction transmission the shift lever is in the neutral po-
sition and or the 1st, 2nd, 3rd gear, or reverse gear is engaged.
On vehicles with an automatic transmission, the selector lever is in the R,
N, D, S position or in the Tiptronic position.
The downhill gradient is at least 10 % (when driving over sleepers, the lim-
it can briefly drop to 8 %).
Neither the accelerator nor the brake pedal is operated.

Driving speed
Initiate the downhill decent at a reasonable speed up to 30 km / h the hill de-
scent assist maintains this speed when driving downhill constant.
The assistant can maintain constant speed of about 2 - 30 km / h.
If a forwards or reverse gear is engaged for vehicles with Instruction transmis-
sion
, the speed must be high enough to avoid stalling the engine.

By pressing the accelerator or brake pedal, the speed can be increased or re-
duced. This is true even if the shift lever is in the neutral position and the se-
lector lever in the N position. The engagement of the assistant is resumed af-
ter the pedal is released.

WARNING

For the correct operation of the assistant the road surface must be suffi-
ciently adherent. The assistant cannot properly fulfil its function on slushy
soil due to physical reasons (e.g. ice or mud). - there is a risk of an accident!

Note

During an active intervention of the assistant, the brake lights do not light up.

TCSOFF ROAD

Read and observe   and   on page 112 first.

The ASR OFF ROAD makes starting and driving on an unpaved surface easier
as it partially allows wheel-spin.

Note

When disabled, the TCS

» page 111

 OFF ROAD mode works without the support

of the TCS OFF ROAD.

EDS OFF ROAD

Read and observe   and   on page 112 first.

The EDS supports OFF ROAD vehicle traction when driving on a surface with
different grip under the drive wheels or when driving over bumps.
A spinning wheel or wheels are braked earlier and with more force than with
the intervention of the standard EDS system.

ABS OFF ROAD

Read and observe   and   on page 112 first.

The ABS OFF ROAD supports the driver when braking on an unpaved surface
such as gravel, snow, etc.
The system generated by a controlled locking of the wheels braked wheel be-
fore a “wedge” of piled material, which shortens the braking distance.

113

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The system is only available, if the front wheels are in the straight-ahead posi-
tion.
The system operates at speeds of up to 50 km/h.

Start-Off Assistant

1)

Read and observe   and   on page 112 first.

The Start-Off assistant assists the driver when setting off, such as on a steep
slope or on a slippery surface. When the driver presses the accelerator, the
maximum engine speed is electronically limited so that a gentle approach is
possible.

Parking aid (ParkPilot)

Introduction

This chapter contains information on the following subjects:
Function

114

Display in the Infotainment display

115

Activation / deactivation

116

The parking aid (hereinafter referred to as system) draws attention via acous-
tic signals or the Infotainment display when manoeuvring around obstacles in
the vicinity of the vehicle.

WARNING

The general information relating to the use of assistance systems must

be observed

» page 110,

   in section General information.

Moving persons or objects may not be recognized by the system sensors.

Under certain circumstances, surfaces of certain objects and types of

clothing cannot reflect the system signals. There is a danger that such ob-
jects or people may not be recognised by the system sensors.

WARNING (Continued)

External noise sources may affect the signals of the system sensors.

There is a danger that obstacles may not be recognised by the system sen-
sors.

Before reversing, you should satisfy yourself that there are no small ob-

stacle, such as a rock, thin post etc., in front or behind your vehicle. Such
obstacles may not be recognised by the system sensors.

CAUTION

Keep the system sensors

» Fig. 133

 on page 114 clean, snow-and ice-free

and do not cover with any objects of any kind, otherwise the system function-
ing may be impaired.

In adverse weather conditions (heavy rain, water vapour, very low or high

temperatures, etc.), the functioning of the system may be impaired - “incorrect
recognition of obstacles”.

Accessories additionally installed on the vehicle rear, such as bicycle carriers,

can impair the system function.

Function

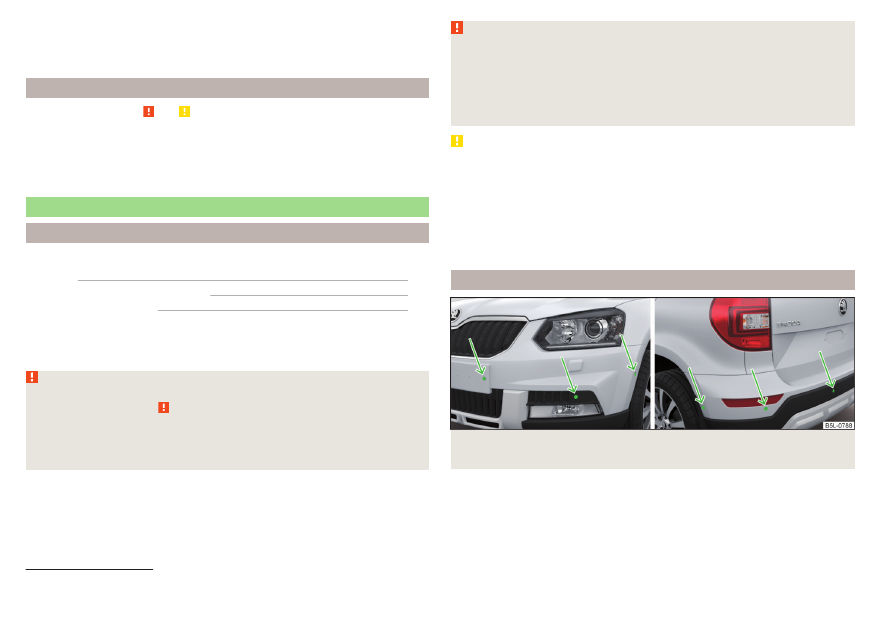

Fig. 133  Installation location of the sensors on the left side of the vehicle:
front / rear

1)

Only for vehicles with a petrol engine and manual transmission.

114

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fig. 134
Sampled areas and range of the
sensors

Read and observe   and   on page 114 first.

The system uses ultrasound waves to calculate the distance between the
bumper and an obstacle. The ultrasonic sensors are, depending on vehicle
equipment, located in the back or in the front bumper

» Fig. 133

.

Depending on the equipment, the following system variants are possible

» Fig. 134

.

Variant 1: warns of obstacles in the areas

C

D

.

Variant 2: warns of obstacles in the areas

A

B

C

D

.

Variant 3: warns of obstacles in the areas

A

B

C

D

E

.

Approximate range of sensors (in cm)

Area

» Fig. 134

Variant 1

(4 sensors)

Variant 2

(8 sensors)

Variant 3

(12 sensors)

A

-

120

120

B

-

60

60

C

160

160

160

D

60

60

60

E

-

-

60

Audible signals
The interval between the acoustic signals becomes shorter as the clearance is
reduced. At a distance of approx. 30 cm, a continuous tone starts to sound -
danger zone. From this moment do not continue to move towards the obsta-
cle!

Towing a trailer
When towing, or when another accessory is connected to the trailer socket on-
ly the areas

A

 and

B

» Fig. 134

 are active in the system.

Note

If with Version 3 vehicles not all fields around the vehicle are active after ac-

tivation the vehicle should be moved forwards or backwards.

The signal tones for front obstacle recognition are factory-set to be higher

than for rear obstacle recognition.

The sound of the park-assist can be adjusted via the MAXI DOT display in the

Assistants menu option

» page 43

.

Display in the Infotainment display

Fig. 135
Display

Read and observe   and   on page 114 first.

Functional interfaces and obstacle warning

» Fig. 135

Change to rear-view camera display .
Switching off park assistant display.

Switching audible parking signals on/off.

Message: Look! Safe to move?
An area without detected obstacles is shown as a transparent segment.
An obstacle which is currently outside of the collision area is shown by the
yellow segment.
An obstacle in the collision zone is shown as an orange-coloured segment.

 Stop moving in the direction of the obstacle!

  

A
B

C

115

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Activation / deactivation

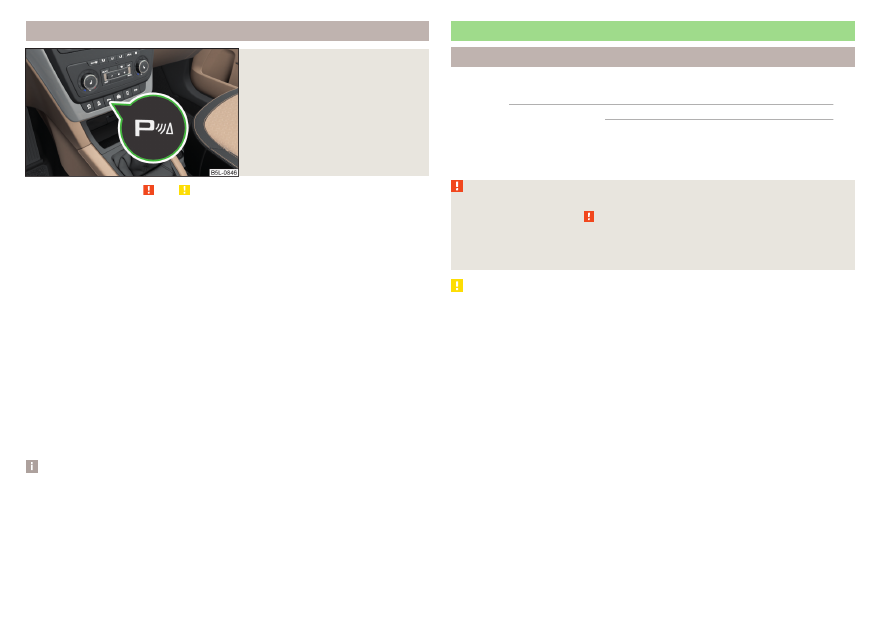

Fig. 136
System key (option 2, 3)

Read and observe   and   on page 114 first.

Activation
The activation of the system is initiated when the reverse gear is engaged, or,
with vehicles with the variant 2 and 3 , also by pressing the 

» Fig. 136

 but-

ton.
When activating, an alarm sounds and the symbol

 illuminates in the button.

Deactivation
On vehicles with Version 1, the system can be deactivated by moving out of re-
verse gear.
For vehicles with version 2 and 3, the system is automatically deactivated by
pressing the  button or at a speed above 15 km/h (the

 symbol in the but-

ton goes out).

Fault display
If a warning signal sounds for 3 seconds after activating the system and there
is no obstacle close to your car, this indicates a system fault. The fault is also
indicated by the symbol

 flashing in the button. Seek help from a specialist

garage.

Note

The system can only be activated with the button at a speed of below 15
km/h.

Reversing camera

Introduction

This chapter contains information on the following subjects:
Operation

117

Guidelines and function keys

117

The rear view camera (hereinafter referred to as system) helps the driver when
parking and manoeuvring by displaying the area behind the vehicle in the Info-
tainment display (hereinafter referred to as display).

WARNING

The general information relating to the use of assistance systems must

be observed

» page 110,

   in section General information.

The camera may not be soiled or obscured, otherwise the system function

will be significantly affected - there is a risk of an accident. For information
on cleaning

» page 136

Exterior car care.

CAUTION

The camera image is distorted by contrast with eyesight. The display is

therefore only of limited use for estimating distances to following vehicles.

Some items, such as thin columns, chain link fences or lattice, may not be

represented adequately in terms of display resolution.

In a crash or damage the vehicle's rear camera can possibly deviate from the

correct position. If this is the case, have the sensor checked by a specialist ga-
rage.

116

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation

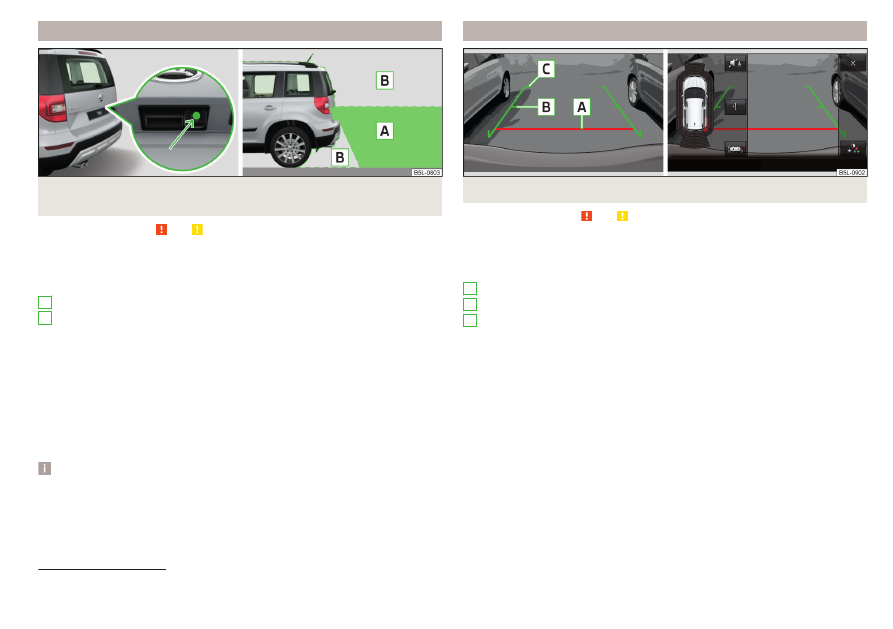

Fig. 137  Installation location of the camera / scanned area behind the ve-
hicle

Read and observe   and   on page 116 first.

The camera for capturing the area behind the vehicle is in the grip of the boot
lid

» Fig. 137

.

Area behind the vehicle

» Fig. 137

Detection range of the camera
Area outside the detection range of the camera

The system can assist the driver when parking and manoeuvring under the fol-
lowing basic conditions.

The ignition is switched on.
The reverse gear is engaged.

1)

The luggage compartment lid is completely closed.
The vehicle is travelling at less than 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.

Note

The display can be interrupted by pressing the symbol button 

» Fig. 136

 on

page 116.

After disengaging the reverse gear, automatic display of the parking aid is

carried out (variant 2, 3)

» page 114

.

A
B

Guidelines and function keys

Fig. 138  Infotainment display: Orientation lines / functional interfaces

Read and observe   and   on page 116 first.

Orientation lines are shown along with the monitored area behind the vehicle
in the display.
Distance of the orientation lines behind the vehicle

» Fig. 138

The distance is about 40 cm (safety distance limit).
The distance is about 100 cm.
The distance is about 200 cm.

The distance may vary slightly depending on the load of the vehicle and the
road inclination.
The distance between the side lines corresponds approximately to the vehicle
width including mirrors.
Functional surfaces

» Fig. 138

Depending on the Infotainment model: Turns the display of the area

behind the vehicle off
Display settings - brightness, contrast, colour

Switching on/off audible parking signals

Switching on/off the reduced park assistance display

Change to park assistance display

A
B
C

  

  

  

1)

The area behind the vehicle can be displayed for a few seconds more after disengaging the reverse gear.

117

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

The objects shown in the display can be closer or even further away than they
appear. This is especially the case in the following situations.

Protruding objects, such as the rear of a truck and the like.

When driving from a horizontal surface into a slope or a depression.

When driving from a slope or a depression onto a horizontal surface.

Park Assist

Introduction

This chapter contains information on the following subjects:
Functioning

118

Parking space search

119

Parking

120

Departing from a parallel parking space

120

Automatic brake assist

121

Malfunctions

121

Park Assist (hereinafter referred to as system) helps drivers park in suitable
parallel and perpendicular parking places or also to manoeuvre out of parallel
parking spaces.
The system takes over the steering movements only when parking or leaving a
parking space. The driver operates the brake, accelerator or clutch pedal and
the shift / selector lever.
The state in which the steering wheel is operated by the system, is referred to
as parking operation.
The Park Assist is an extension of the parking aid

» page 114

 and operates on

the basis of data collected by the ultrasonic sensors.
For this reason, the chapter on the parking aid is to be read carefully and the
safety notes are to be observed.

WARNING

The general information relating to the use of assistance systems must

be observed

» page 110,

   in section General information.

During the parking process, the system automatically performs rapid

steering movements. While it is doing so, do not place your hands between
the steering wheel – risk of injury!

During a parking manoeuvre on loose or slippery surfaces (gravel, snow,

ice, etc.) you may stray from the calculated road. It is therefore recommen-
ded that you do not use the system in such situations.

CAUTION

The correct evaluation of the parking space and the parking procedure de-
pends on the circumference of the wheels on the vehicle.

The system only works correctly if the vehicle is fitted with the wheel size

approved by ŠKODA AUTO.

Abstain from using the system when the vehicle is fitted with snow chains or

a temporary spare wheel.

If wheels other than those approved by ŠKODA AUTO are fitted, the resulting

position of the vehicle in the parking space can differ slightly. This can be avoi-
ded by readjusting the system at a specialist garage.

CAUTION

If other vehicles are parked behind or on the curb, the system can drive your
vehicle over the kerb or up to the kerb - there is a risk of damage to the
wheels. If necessary, intervene in good time.

Note

We recommend performing the parking at a safe speed to about 5 km/h.

The parking procedure can be stopped at any time by pressing the 

» Fig. 139

 on page 119 button or by a steering intervention.

Functioning

Read and observe   and   on page 118 first.

The system support is provided in the following manner.

While the parking space search is going on, a measurement and evaluation of
the parking space size is completed.

Suitable parking spaces are shown in the display of the instrument cluster
(hereinafter only in the display).

118

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The display shows instructions and information before the start and during
the parking.

Based on the calculated road surface, the front wheels will be automatically
rotated during the parking.

Conditions for the system function
The system can look for a parking space only if the following basic conditions
are met.

The system is activated.
The vehicle is travelling at less than 40 km/h.
The vehicle is travelling at less than 20 km/h.
The distance to a number of parked vehicles is approximately 0.5-1.5 m.
TCS is activated

» page 111

.

The system can only carry out the parking procedure if the following basic con-
ditions are met.

The vehicle is travelling at less than 7 km/h.
The parking procedure takes less than 6 minutes.
There is no driver intervention in the automatic steering operation.
TCS is activated

» page 111

.

The TCS does not engage.
No trailer or other accessory is connected to the trailer socket.

Activation/deactivation
The system can be activated/deactivated by pressing the  button

» Fig. 139

on page 119.
When the system is activated, the symbol

 illuminates.

Parking space search

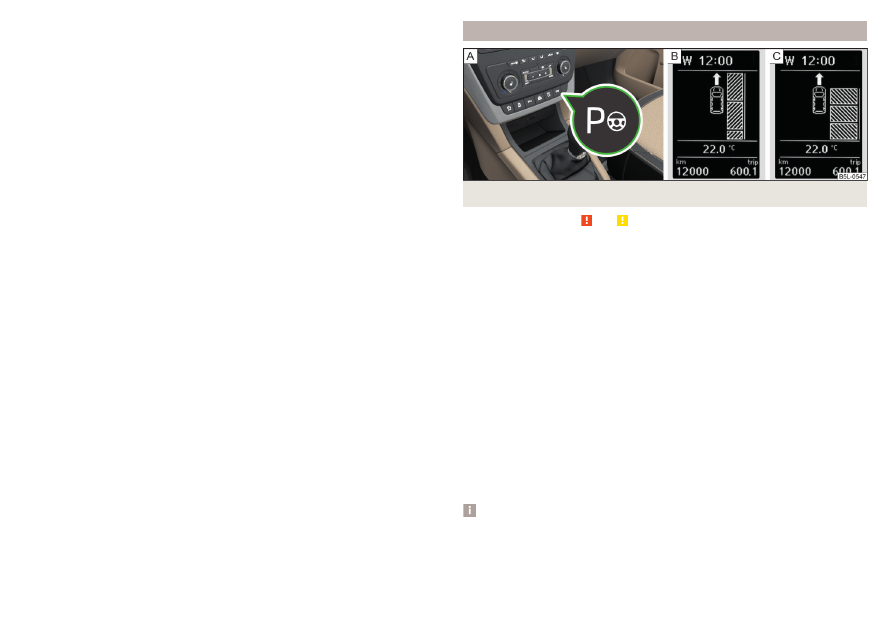

Fig. 139  System button / display

Read and observe   and   on page 118 first.

The system searches for a parking space in a number of parallel and transverse
parked vehicles on the passenger or driver's side.

Search for a parking space parallel to the roadway

Slowly drive past a row of parallel parked vehicles.

Press the button once

» Fig. 139

 - .

The display shows the following - .

Search for a parking space traverse to the roadway

Slowly drive past a row of traverse parked vehicles.

Press the button twice

» Fig. 139

 -  .

The display shows the following - 

Change sides for the parking
The system will automatically search for a parking space on the passenger
side.
Activate the turn signal on the driver's side if you wish to look fro a parking
space on this side of the road. The display changes and the system searches
for a parking space on the driver's side.

Note

If the symbol  (km / h) is shown in the display while you are looking for a
parking space, the vehicle speed should be reduced below 40 km / hr (parallel
parking) or below 20 km / hr (Transverse parking).

119

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Parking

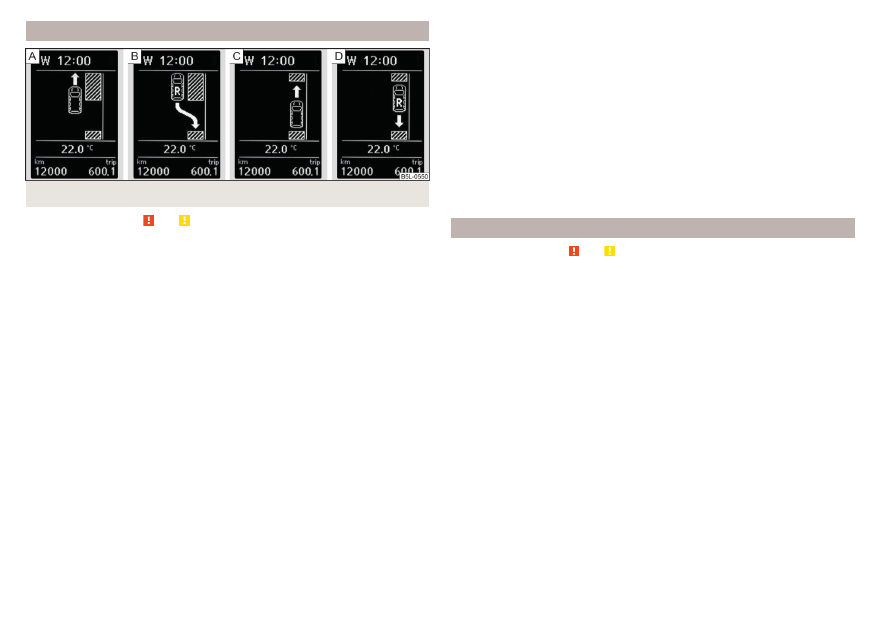

Fig. 140  Display

Read and observe   and   on page 118 first.

The system supports the driver when reverse parking in the parking space
found in a number of traverse and parallel parked vehicles.
Display

» Fig. 140

Parking space recognised with the information to drive on
Parking space recognised with the information to reverse
Note to drive on to the parking space
Note to reverse to the parking space

Parking manoeuvre
The parking space found is shown in the display

» Fig. 140

 - .

Continue driving forwards until  appears in the display.

Stop and ensure that the vehicle does not continue to move forward until
the parking procedure starts.

Select reverse gear or move the selector lever into position R.

As soon as the following message is shown in the display: Steering int. active.
Monitor area around veh.!
, let go of the steering wheel. The steering will be taken
over by the system.

Observe the direct vicinity of the vehicle and reverse carefully.

If necessary, the parking procedure can be continued with further steps.

If the arrow in the information display is flashing to the front , engage
1 gear or move the selector lever into the position D.

The display shows the  icon (brake pedal).

Depress the brake pedal and wait until the steering wheel automatically ro-
tates into the required position, the symbol  goes out.

Carefully drive forwards.

If the backwards arrow is flashing in the display - , select reverse gear
again or move the selector lever into position R.

The display shows the  icon (brake pedal).

Depress the brake pedal and wait until the steering wheel automatically ro-
tates into the required position, the symbol  goes out.

Carefully move backwards.

You can repeat these steps several times in succession.
As soon as the parking procedure is complete, an audible signal sounds and
the following message appears in the display.

Departing from a parallel parking space

Read and observe   and   on page 118 first.

The system supports the driver when leaving a parking space of a parallel
parking space.

Leaving a parking space process

Press the symbol key 

» Fig. 139

 on page 119.

The following message is displayed: PARK ASSIST Turn on turn signal and select reverse
gear.

Activate the turn signal for side of the vehicle where the parking space is out
of which you wish to manoeuvre.

Select reverse gear or move the selector lever into position R.

The further procedure is analogous to that for reverse parking.

Follow the system instructions shown in the display.

As soon as the parking procedure is complete, an audible signal sounds and
the following message appears in the display.
If the parking space is too small, it is not possible to use the system to leave
the parking space. A corresponding message is shown in the information clus-
ter display.

120

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
