Skoda Yeti (2017 year). Instruction - part 2





Group

Size class of

the child seat

a)

Front passenger seat

b)

Outer rear seats

Rear seat middle

1

9-18 kg

D

X

IL-SU

IUF

X

C
B

B1

A

2

15-25 kg

-

X

IL-SU

X

3

22-36 kg

-

X

IL-SU

X

a)

The size category is shown on the label attached to the child seat.

b)

If the front passenger seat is fitted with system attachment points, it is suitable for the installation of an  child seat with “Semi-Universal” approval.

IL-SU

The seat is suitable for the use of approved child seats in in the “Semi-Universal”category. The “Semi-Universal” category means that the child seat
with the  system is approved for your vehicle. Observe the list of vehicles that comes with the child seat.

IUF

The seat is suitable for the installation of a  child seat with “Universal” approval and attachment with the   system belt.

X

The seat is not fitted with  system attachment points.

Attachment points of the   system

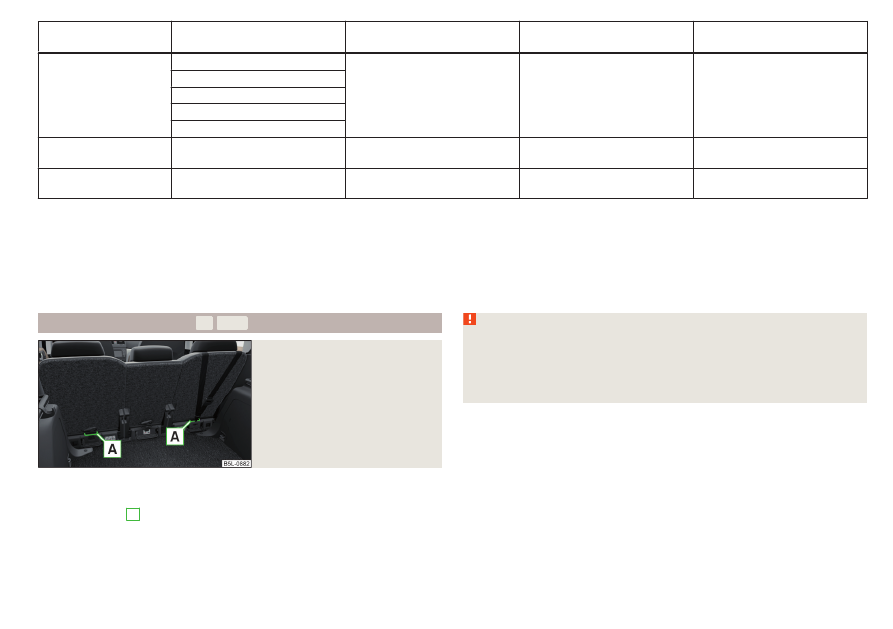

Fig. 15
Attachment points of the 


-system



  is a fastening system, which restricts the movement of the upper part

of the child seat.
The locking eyes

A

 for attaching the belt of a child seat with the   sys-

tem are located on the rear side of the outer rear seat backrests

» Fig. 15

.

WARNING

Always refer to the instructions from the manufacturer of the child seat

when installing and removing a child seat with the   system.

Only use child seats with the   system on the seats with the at-

tachment points.

Only ever attach one belt from the child seat to a locking eye.

25

Transporting children safely

-------------------------------------------------------------------------------------------------------------------------------------------------------------

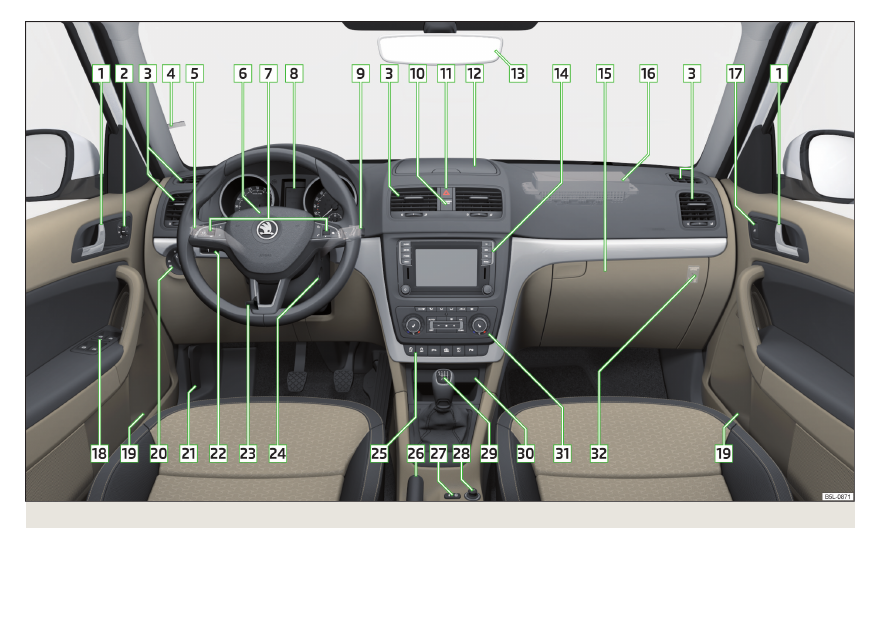

Fig. 16  Cockpit example for LHD models

26

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Using the system

Cockpit

Overview

Door opening lever

50

Electric exterior mirror adjustment

67

Air outlet vents

96

Ticket holder

75

Operating lever (depending on equipment):

Direction and high beam

59

Speed regulating system

121

Steering wheel with horn / with driver's front airbag

16

Buttons for operating the information system

38

Instrument cluster

28

Operating lever:

Windscreen wipers and washers

64

Information system

38

Warning light for the front passenger airbag

20

Button for hazard warning light system

61

Storage compartment

76

Interior rear-view mirror

66

Depending on specification:

Radio

Infotainment

Storage compartment on the front passenger side

82

Front passenger airbag

16

Electric window in the front passenger door

54

Electric windows

54

Storage compartment

76

Light switch

58

Bonnet release lever

143

Regulator for instrument lighting and regulator for headlight
beam range adjustment

29, 58

Steering wheel locking lever

11

1

2
3
4
5

6

7

8
9

10

11

12
13
14

15
16
17
18
19

20

21

22

23

Depending on equipment fitted:

Ignition lock

101

Starter button

101

Bar with keys depending on the equipment fitted:

 START STOP

102

 Traction control TCS

111

 Electronic Stability Control ESC

110

 Parking aid

114

 OFF ROAD-mode

112

 Tyre pressure control indicator

123

 Park Assist

118

Handbrake lever

104

Central locking system

49

Depending on equipment fitted:

12-Volt power socket

79

Cigarette lighter

78

Depending on equipment fitted:

Gearshift lever (instruction gearbox)

105

Selector lever (automatic gearbox)

106

Storage compartment

76

Controls for heating / air conditioning

93

Key switch for switching off the front passenger airbag (in front
passenger storage compartment)

20

Note

The layout of the controls on right-hand drive vehicles differs partially from
that shown in this layout

» Fig. 16

.

24

25

26
27
28

29

30

31

32

27

Cockpit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and Indicator Lights

Instrument cluster

Introduction

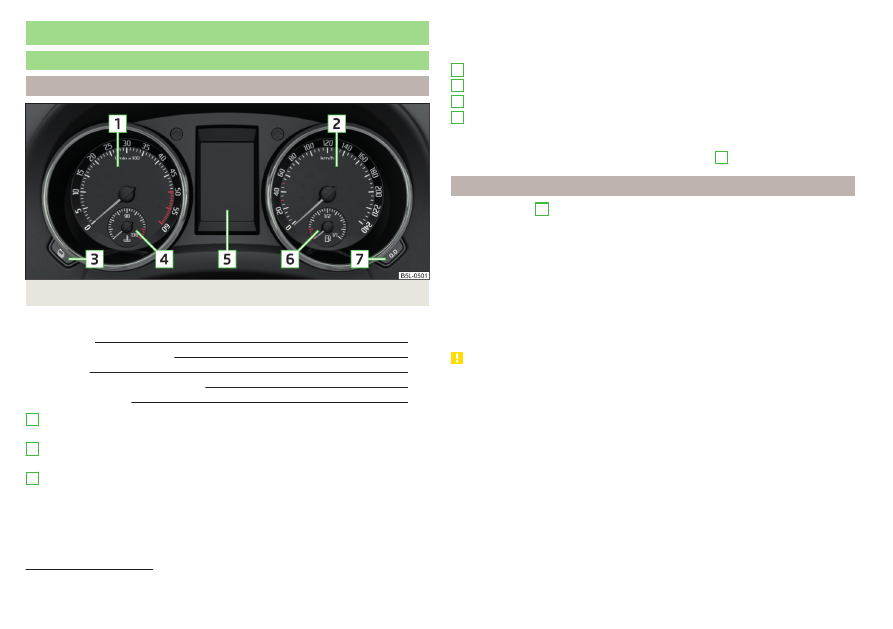

Fig. 17  Instrument cluster

This chapter contains information on the following subjects:
Rev counter

28

Coolant temperature gauge

29

Fuel gauge

29

Lighting of the instrument cluster

29

Auto Check Control

30

Engine revolutions counter

» page 28

with warning lights

» page 31

Speedometer

with warning lights

» page 31

Operation key:

Setting the time

» page 39

Switching the display for the second speedometer on/off

1)



» page 39

1

2

3

Displaying the distance and days until the next service interval

1)

» page 44

Show AdBlue range

1)



» page 39

Coolant temperature gauge

» page 29

Display

» page 38

Fuel gauge

» page 29

Operation key:

Reset counter for distance travelled (trip)

» page 38

Setting the time

Enable / disable the mode selected using the

3

 button

Rev counter

The tachometer

1



» Fig. 17

 on page 28 shows the actual engine speed per mi-

nute.
The beginning of the tachometer red scale range indicates the maximum per-
mitted speed for an engine that has been driven-in and has reached operating
temperature.
You should shift into the next highest gear before the red scale of the revolu-
tion counter is reached, or select mode D / S on the automatic gearbox.
The gear recommendation is important to note in order to maintain the opti-
mum engine speed

» page 39

.

CAUTION

The rev counter pointer may only move into the red area for a short time - oth-
erwise there is a risk of engine damage!

4
5
6

7

1)

Applies to vehicles with a segment display.

28

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Coolant temperature gauge

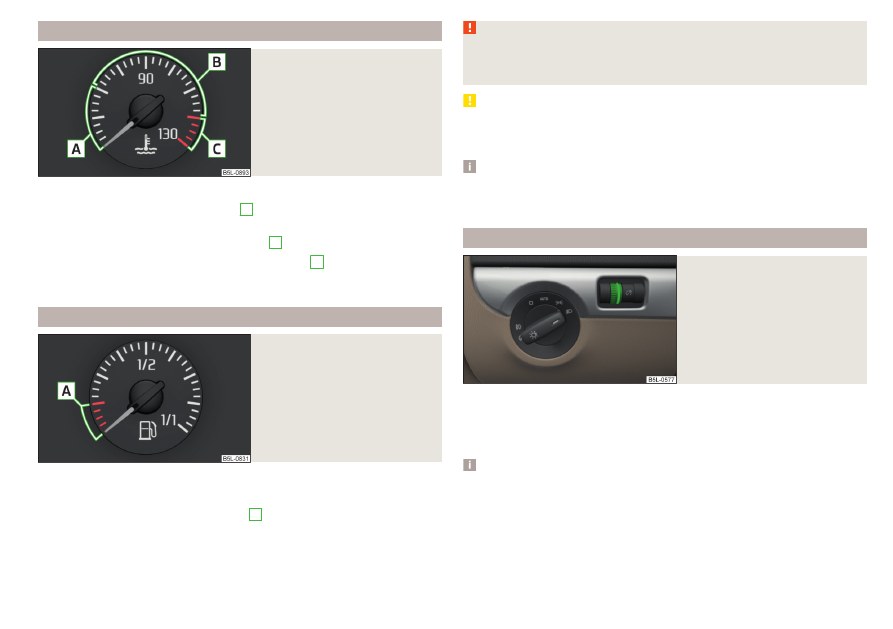

Fig. 18
Coolant temperature gauge

The display

» Fig. 18

 only works if the ignition is switched on.

Cold range - the pointer is in the range

A

, the engine has not yet reached its

operating temperature. Avoid high speeds and high engine loads.
Operating range - the pointer is in the range

B

.

High temperature range - the pointer is in the range

C

. The coolant tempera-

ture is too high. The warning light

» page 32

 illuminates in the instrument

cluster .

Fuel gauge

Fig. 19
Fuel gauge

The display

» Fig. 19

 only works if the ignition is switched on.

The tank capacity is 55 litres or approximately 60 litres for Yeti 4x4.
If the fuel level reaches the reserve level

A



» Fig. 19

, the warning light

 illu-

minates in the instrument cluster

» page 36

.

WARNING

For the vehicle systems to function correctly, and thus for safe driving,
there must be sufficient fuel in the tank. Never drain the fuel tank com-
pletely – risk of accident!

CAUTION

Never drive until the fuel tank is completely empty! Irregular supply of fuel can
cause misfiring, which can result in damage to parts of the engine and the ex-
haust system.

Note

After filling up, it can occur that during dynamic driving (e.g. numerous curves,
braking, driving downhill and climbing a steep hill) the fuel gauge indicates a
fraction less.

Lighting of the instrument cluster

Fig. 20
Controller for instrument cluster
lighting

The brightness of the of the instrument cluster lighting can be adjusted indi-
vidually when the dipped beam / parking light is switched.

To Control of lighting brightness the regulator of the instrument cluster 
turn

» Fig. 20

.

Note

On vehicles with MAXI DOT display, the brightness of the instrument lighting is
set automatically. A instruction brightness adjustment can therefore only have a
limited effect.

29

Instruments and Indicator Lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Auto Check Control

Vehicle condition
Certain functions and conditions of individual vehicle systems are checked
continuously when the ignition is switched on. If there is a system failure, the
relevant message is displayed in the MAXI DOTDisplay, in conjunction with in-
dicator lights, if necessary, indicator light illumination takes place in the instru-
ment cluster

» page 31

Warning lights.

The menu item Vehicle status is shown in the main menu of the MAXI DOT dis-
play whenever at least one fault message exists. After selecting this menu,
the first of the error messages is displayed.
Several error messages are shown on the display under the message e.g. 1/3.
This indicates that the first of a total of three error messages is being dis-
played.

Warning lights in the MAXI DOT display

Engine oil pressure too low

» page 33

Check engine oil level
Engine oil sensor defective

» page 145

Engine-speed limitation

» page 30

Water in fuel filter (diesel engine).

» page 30

Automatic gearbox DSG overheated

» page 30

AdBlue

®

 level too low

» page 30

 Engine-speed limitation

The information about the maximum permissible engine speed is displayed to-
gether with this indicator light.

Do not exceed the indicated maximum engine speed!

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

 Water in the fuel filter (diesel engine)

The fuel filter with water separator, filters out dirt and water from the fuel.

If too much water is present in the separator, the following information ap-
pears on the instrument cluster display.
The indicator light

 is only shown in the MAXI DOTdisplay.

 Illuminates


Water in fuel filter. Log book!
FUEL FILTER SEE MANUAL

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

 Automatic gearbox DSG

Gearbox overheated. Stop! Log book!

 Stop driving! Stop the vehicle and turn off the engine.

You can continue your journey as soon as the warning light disappears.

If the indicator light does not go out,

 stop driving! Seek help from a spe-

cialist garage.

 /

 AdBlue

®

level too low

The indicator light

 and

is only shown in the MAXI DOTdisplay.

Further information on refilling of AdBlue

®

 is shown in the display.


Refill AdBlue (DEF)! Range: ...
ADBLUE RANGE …

The range in the display indicates the distance that can be driven with the re-
maining AdBlue

®

 left in the tank.

Add AdBlue

®



» page 142

.


 Refill AdBlue (DEF)! No engine start in …

ADBLUE NO START IN …

The range in the display indicates the distance to travel, after which no engine
restart is possible, as long as no AdBlue

®

is added.

Add AdBlue

®



» page 142

.


 Refill AdBlue (DEF)! No engine start possible.

ADBLUE NO RESTART

It is no longer possible to start the engine.

Refill AdBlue

®



» page 142

.

30

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

If you have to stop for technical reasons, then park the vehicle at a safe
distance from the traffic, switch off the engine and switch on the hazard
warning light system

» page 61

. Place the warning triangle at the prescri-

bed distance.

Note

If the MAXI DOT display shows warning messages, these messages must be

confirmed in order to access the main menu

» page 40

 .

As long as the operational faults are not rectified, the warning lights are al-

ways indicated again. After they are displayed for the first time, the warning
lights continue to be indicated without any extra messages for the driver.

Warning lights

Introduction

This chapter contains information on the following subjects:

 Handbrake

32

Braking system

32

 Front seat belt indicator light

32

 Alternator

32

 Door open

32

 Coolant

32

 Boot lid

32



 Power steering / steering lock (KESSY system)

33



 Engine oil

33

 Stability control (ESC) / Traction control (TCS)

34

 Traction control (TCS) deactivated

34

 Anti-lock braking system (ABS)

34

 Rear fog light

34

 Lamp failure

34

 Xenon headlights (AFS)

34

 Emission control system

35

Preheating unit (diesel)

35



 Control of the engine electronics (petrol engine)

35

 Diesel particle filter (diesel)

35

 Fuel reserve

36

 Airbag system

36

 Tyre pressure

36

 Windscreen washer fluid level

37



 Turn signal system

37

 Fog lights

37

 Cruise control system

37

 Brake pedal (automatic transmission)

37

 OFF ROADmode

37

 Main beam

37

 Display of a low temperature

37

The warning lights in the instrument cluster indicate certain functions or
faults.
Some warning lights can be accompanied by acoustic signals and messages in
the display of the instrument cluster.
After switching on the ignition, some warning lights light up briefly as a func-
tion test. If the tested systems are OK, the corresponding warning lights go
out a few seconds after switching on the ignition or after starting the engine.
The warning lights are located at the following positions in the instrument
cluster

» Fig. 17

 on page 28.

Engine revolutions counter

1

Speedometer

2

Display

5

WARNING

Ignoring illuminated warning lights and related messages or instructions

in the display of the instrument cluster may lead to serious personal injury
or damage to the vehicle.

If you have to stop for technical reasons, then park the vehicle at a safe

distance from the traffic, switch off the engine and switch on the hazard
warning light system

» page 61

. Place the warning triangle at the prescri-

bed distance.

The engine compartment of your car is a hazardous area. The following

warning instructions must be followed at all times when working in the en-
gine compartment

» page 142

Engine compartment.

31

Instruments and Indicator Lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Handbrake

Read and observe   on page 31 first.

 lights up – the hand brake has been applied.

An acoustic signal will sound if you drive the vehicle above 6 km/h while the
handbrake is still on.

Release the handbrake.

Braking system

Read and observe   on page 31 first.

 illuminates – the brake fluid level in the brake system is too low.

Park the vehicle,

 stop driving! Seek help from a specialist garage.

WARNING

A fault to the braking system can increase the vehicle's braking distance -
There is risk of accident!

 Front seat belt indicator light

Read and observe   on page 31 first.

 lights up - the driver or front passenger has not fastened their seat belt.

At a speed of over 20 km/h, the indicator light

 flashes and an audible warn-

ing sounds at the same time.
If the seat belt is not fastened by the driver or front passenger during the next
approx. 2 minutes, the warning signal is deactivated and the warning light

illuminates permanently.

 Alternator

Read and observe   on page 31 first.

 lights up – the battery is not being charged whilst the engine is running.

As the battery discharges while driving, all non-essential electrical loads (e.g.
Infotainment) should be switched off.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

CAUTION

If, in addition to the light

 the light



lights up while driving, stop driving -

There is a risk of engine damage! Switch off the engine and seek assistance
from a specialist garage.

 Door open

Read and observe   on page 31 first.

 illuminates - one or more doors are open.

On vehicles with MAXI DOT display, this indicator is replaced by a vehicle icon
on the display

» page 38

 .

 Coolant

Read and observe   on page 31 first.

 lights up or flashes – the coolant temperature is too high or the coolant lev-

el is too low.

Stop the vehicle, switch off the engine, and allow the engine to cool down.

Check the coolant level

» page 146

Checking and refilling.

If the coolant level is within the specified range and the warning light

 lights

up again, there may be a malfunction of the cooling fan.

Switch off the ignition.

Check the fuse for the radiator fan, replace if necessary.

If the coolant level and fan fuse are both OK but the warning light

lights up

again,

 stop driving!

Seek help from a specialist garage.

 Boot lid

Read and observe   on page 31 first.

 illuminates - the boot lid is open.

On vehicles with MAXI DOT display, this indicator is replaced by a vehicle icon
on the display

» page 38

 .

32

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------



 Power steering / steering lock (KESSY system)

Read and observe   on page 31 first.

Fault in the power steering

 lights up – this indicates a complete failure of the power steering and the

steering assist is no longer working (significantly higher steering forces).

 lights up – this indicates a partial failure of the power steering and the

steering forces can be greater.

Switch off the ignition, start the engine again and travel a short distance.

If the warning light

 does not go out, stop the vehicle,

 Stop driving!.

Seek help from a specialist garage.

If the warning light

 does not go out, you can drive on, exercising appropri-

ate caution. Seek assistance from a specialist garage immediately.

Steering column lock not unlocked (System KESSY)

 flashes - for vehicles with the KESSY system, the steering lock is not re-

leased.

Move the steering wheel slightly back and forth, thereby facilitating unlock-
ing the steering lock.

If the steering does also not unlock then, the help of a specialist garage is
required.

Steering lock defect (KESSY system)
An audible signal sounds as a warning.

 flashes

Steering column lock faulty.

Park the vehicle,

stop driving. After switching off the ignition, it is no lon-

ger possible to lock the steering, to activate the electrical components (e.g.
Infotainment ), to switch on the ignition again and to start the engine. Seek
help from a specialist garage.

 flashes

Steering lock: Workshop!

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

Disconnecting the vehicle battery
If the vehicle's battery has been disconnected and reconnected, the indicator
light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.

If, after the motor is restarted and a short drive, the indicator light does not go
out, there is a system error.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.



 Engine oil

Read and observe   on page 31 first.

Low oil pressure

 flashes

Oil pressure: Engine off! Log book!

Stop the vehicle, switch off the engine, and check the engine oil level.

If the warning light flashes

 do not drive an further!even if the oil level

is correct! Also do not leave the engine running at an idling speed.

Seek help from a specialist garage.

Engine oil level too low

 Illumi-

nates

Check oil level!

Stop the vehicle, switch off the engine, and check the engine oil level, top up
if necessary.

The warning light will go out if the bonnet is left open for more than 30 sec-
onds. If the engine oil is not replenished, the warning light will come on again
after driving about 100 km.

Fault on the engine oil level sensor

 flashes

Oil sensor: Workshop!

The warning light

 flashes several times after switching on the ignition and

there is audible signal.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

CAUTION

If, under the given conditions, it is not possible to top up with engine oil,

stop driving - there is a risk of engine damage! Switch off the engine and seek
assistance from a specialist garage.

33

Instruments and Indicator Lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Stability control (ESC) / Traction control (TCS)

Read and observe   on page 31 first.

If your vehicle is equipped with the ESC system, the TCS is part of the ESC sys-
tem.

 flashes – the ESC or TCS is currently active.

System fault

 lights up – there is an ESC or TCS fault.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

If the warning light

 comes on after starting the engine, the TCS may be

switched off for technical reasons.

Switch the ignition off and on again.

If the warning light

 does not illuminate after you switch the engine back on,

the ASR is fully functional again.

Disconnecting the vehicle battery
If the vehicle's battery has been disconnected and reconnected, the warning
light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-
ror.

You can drive on, exercising appropriate caution. Seek assistance from a spe-
cialist garage immediately.

For more information on the ESC system

» page 110

 or TCS system

» page 111

.

 Traction control (TCS) deactivated

Read and observe   on page 31 first.

 illuminates – the TCS system is disabled.

 Anti-lock braking system (ABS)

Read and observe   on page 31 first.

 lights up – there is an ABS fault.

The vehicle will only be braked by the normal brake system without the ABS.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

WARNING

If the warning light

 lights up together with the warning light

» page 32

 stop driving! Seek help from a specialist garage.

A fault to the ABS system or the braking system can increase the vehi-

cle's braking distance – risk of accident!

 Rear fog light

Read and observe   on page 31 first.

 lights up – the rear fog light is switched on.

 Lamp failure

Read and observe   on page 31 first.

 illuminates – one of the vehicle's exterior lights is defective. A message will

appear in the display about the affected lamp.

 illuminates within a few seconds after switching on the ignition or when a

light with a faulty bulb is switched on.

 Xenon headlights (AFS)

Read and observe   on page 31 first.

 flashes for 1 minute while driving or after the ignition is switched on - there

is a fault in the xenon headlights (AFS).
The MAXI DOT display shows the following.

Note

With the Xenon headlight “tourist light” (travel mode) activated, the warning
light

 flashes after switching on the ignition for 10 seconds.

34

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Emission control system

Read and observe   on page 31 first.

 lights up – there is a fault in the emission control system. The system

makes it possible to drive on in emergency mode - there may be a noticeable
reduction in engine performance.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

Preheating unit (diesel)

Read and observe   on page 31 first.

 The warning light comes on after the ignition has been switched on. Once

the light has gone out, the engine can be started immediately. There is a fault
in the glow plug system if the warning light

 does not come on or illuminates

continuously.

Seek help from a specialist garage.

 flashes – there is a fault in the engine management system. The system

makes it possible to drive on in emergency mode - there may be a noticeable
reduction in engine performance.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.



 Control of the engine electronics (petrol engine)

Read and observe   on page 31 first.



 lights up – there is a fault in the engine management system. The system

makes it possible to drive on in emergency mode - there may be a noticeable
reduction in engine performance.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

 Diesel particle filter (diesel)

Read and observe   on page 31 first.

The diesel particulate filter separates the soot particles from the exhaust. The
soot particles collect in the diesel particulate filter where they are burnt on a
regular basis.

 illuminates – the filter is clogged with soot.

To clean the filter, and where traffic conditions permit

»

, drive as follows for

at least 15 minutes or until the indicator light

 goes out.

4. or 5. gear engaged (automatic gearbox:S position).
Vehicle speed at least 70 km/h.
Engine speed between 1800-2500 rpm.

If the filter is properly cleaned, the warning light

 extinguishes.

If the filter is not properly cleaned, the warning light

 does not go out and

the warning light

 begins to flash.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

WARNING

Always adjust the speed and driving style to the actual weather, road, ter-

rain and traffic conditions.

The diesel particulate filter reaches very high temperatures - there is a

fire hazard and serious injury could be caused. Therefore, never stop the
vehicle at places where the underside of your vehicle can come into contact
with flammable materials, such as dry grass, undergrowth, leaves, spilled
fuel or the like.

CAUTION

As long as the warning light

 illuminates, one must take into account an

increased fuel consumption and a power reduction of the engine.

Using diesel fuel with an increased sulphur content can considerably reduce

the life of the diesel particle filter. A ŠKODA partner will be able to tell you
which countries use diesel fuel with a high sulphur content.

Note

We encourage you to avoid constant short journeys. This will improve the com-
bustion process of the soot particles in the diesel particulate filter.

35

Instruments and Indicator Lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Fuel reserve

Read and observe   on page 31 first.

 illuminates – the fuel level in the fuel tank is at the reserve level (approxi-

mately 9 litres).
An audible signal sounds as a warning.

Please refuel

» page 139

.

Note

The text in the display goes out after refuelling and driving a short distance.

 Airbag system

Read and observe   on page 31 first.

System fault

 lights up - there is a fault in the airbag system.

Error: Airbag

Seek help from a specialist garage.

The front passenger airbag has been disabled with the key switch

 illuminates for around 4 seconds after the ignition has been switched on.

One of the airbags or a belt tensioner has been disabled by the diagnostic
tool

 illuminates for around 4 seconds after the ignition is switched on and then

flashes for approximately 12 seconds.

Airbag / belt tensioner deactivated.

WARNING

When a fault in the airbag system occurs, there is a risk of the system not
being triggered in the event of an accident. Therefore, this must be
checked immediately by a specialized garage.

 Tyre pressure

Read and observe   on page 31 first.

Change of tyre pressure values

 lights up - there was a pressure change in one of the tyres.

An audible signal sounds as a warning.

Immediately reduce speed and avoid sudden steering and braking manoeu-
vres.

Stop the vehicle, turn the ignition off and check the tyres and their inflation
pressures

» page 151

.

Correct the tyre pressure, if necessary or replace the affected wheel

» page 155

 or use the repair kit

» page 159

.

Save the tyre pressure values in the system

» page 123

.

System fault

 flashes for approximately 1 minute and remains lit – there may be a fault in

the tyre pressure monitoring system.

Stop the vehicle, turn the ignition off and start the engine again.

If the warning light

 flashes again after the engine has started, there is a

system error.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

Disconnecting the vehicle battery
If the vehicle's battery has been disconnected and reconnected, the indicator
light

 comes on after switching on the ignition.

The warning light should go out after driving a short distance.
If, after a short drive, the indicator light does not go out, there is a system er-
ror.

Continued driving is possible with appropriate caution. Seek assistance from
a specialist garage immediately.

Other incidents
The following reasons can explain the warning light

 being illuminated.

The vehicle is loaded on one side. Distribute the load evenly.

The wheels of one axle are loaded more heavily (e.g. when towing a trailer or
when driving uphill or downhill).

Snow chains are mounted.

A wheel has been changed.

CAUTION

Under certain circumstances (e.g. sporty style of driving, wintry or unpaved
roads) the warning light

 can be delayed or does not light up at all.

36

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 Windscreen washer fluid level

Read and observe   on page 31 first.

 illuminates – the windscreen washer fluid level is too low.

Top up the windscreen washer fluid

» page 144

.



 Turn signal system

Read and observe   on page 31 first.

 flashes – the left turn signal is turned on.

 flashes – the right turn signal is turned on.

If there is a fault in the turn signal system, the warning light flashes at twice
its normal rate (does not apply when towing).
When the hazard warning light system is switched on, this will cause all of the
turn signal lights as well as both warning lights to flash.

 Fog lights

Read and observe   on page 31 first.

 illuminates – the fog lights are switched on.

 Cruise control system

Read and observe   on page 31 first.

 lights up – the vehicle speed is regulated by the cruise control system.

 Brake pedal (automatic transmission)

Read and observe   on page 31 first.

 lights up – apply the brake.

 OFF ROADmode

Read and observe   on page 31 first.

 illuminates – the conditions for the engagement of OFF ROADmode are

met

» page 112

OFF ROAD Mode.

 flashes – the hill descent assistant is engaged at the moment.

 Main beam

Read and observe   on page 31 first.

 lights up – the main beam or the headlight flasher is switched on.

 Display of a low temperature

Read and observe   on page 31 first.

 illuminates – the outside temperature is below +4 °C.

WARNING

Even at temperatures of around +4 °C, black ice may still be on the road
surface! You should therefore not only rely on the outside temperature dis-
play for accurate information as to whether there is ice on the road.

37

Instruments and Indicator Lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Information system

Driver information system

Introduction

This chapter contains information on the following subjects:
Display in the instrument cluster

38

Setting the time

39

Display of the second speedometer

39

Display of AdBlue range

39

Gear recommendation

39

Display in the instrument cluster

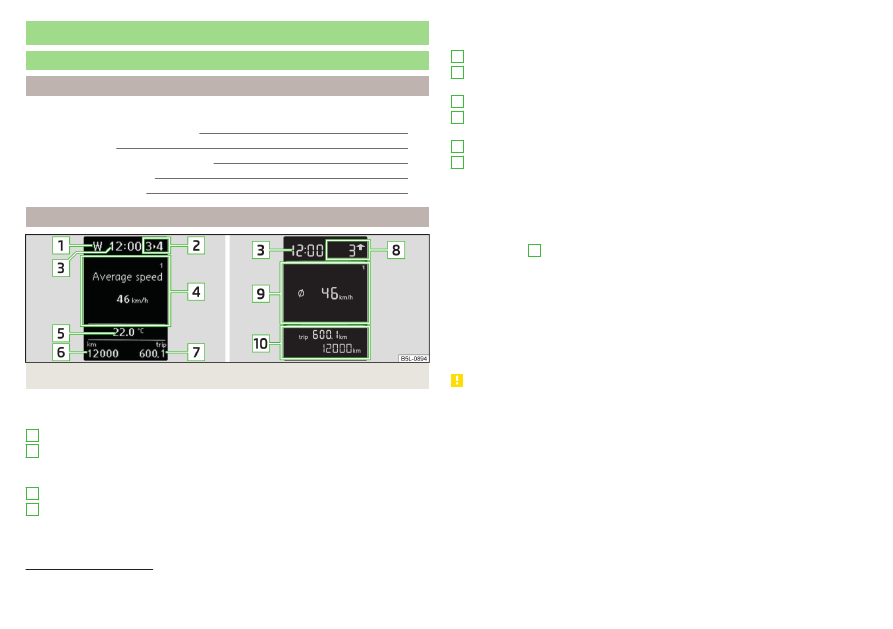

Fig. 21  Display types: MAXI DOT / segment display

Depending on the vehicle's equipment, the information system uses the dis-
play in the instrument cluster to provide the following information

» Fig. 21

.

Compass display

1)

Engaged gear / gear recommendation
Selector lever positions for the automatic gearbox
Warning lights of the START-STOP system
Time
Driving data (multi-function display - MFD)
Warning lights
Information messages

1

2

3
4

Door alarm
Service interval display
Outside temperature
Total distance travelled
Speed regulating system
Distance travelled by resetting the memory (trip)
Engaged gear / gear recommendation
Selector lever positions for the automatic gearbox
Driving data (multi-function display - MFD)
Distance travelled by resetting the memory (trip)
Total distance travelled / Second speedometer display
Speed regulating system
Service interval display
Information messages

Reset counter for distance travelled (trip)

Press button

B



» Fig. 22

 on page 39.

Door, luggage compartment and bonnet alarm
When the door or luggage compartment / bonnet is open, a warning indicator
appears in theMAXI DOT display. An acoustic signal will also sound if you drive
the vehicle above 6 km/h when a door is open.
Segment display - with the door or tailgate open, the warning light

 or.

illuminates in the instrument cluster. An acoustic signal will also sound if

you drive the vehicle above 6 km/h when a door is open.

CAUTION

remove the ignition key when touching the display,(. E.g. when cleaning) (As
regards vehicles with the KESSY system, switch off the ignition and open the
driver's door) - otherwise there is a risk of damage to the display.

5
6

7

8

9

10

1)

Applies to vehicles with factory-installed navigation system.

38

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Setting the time

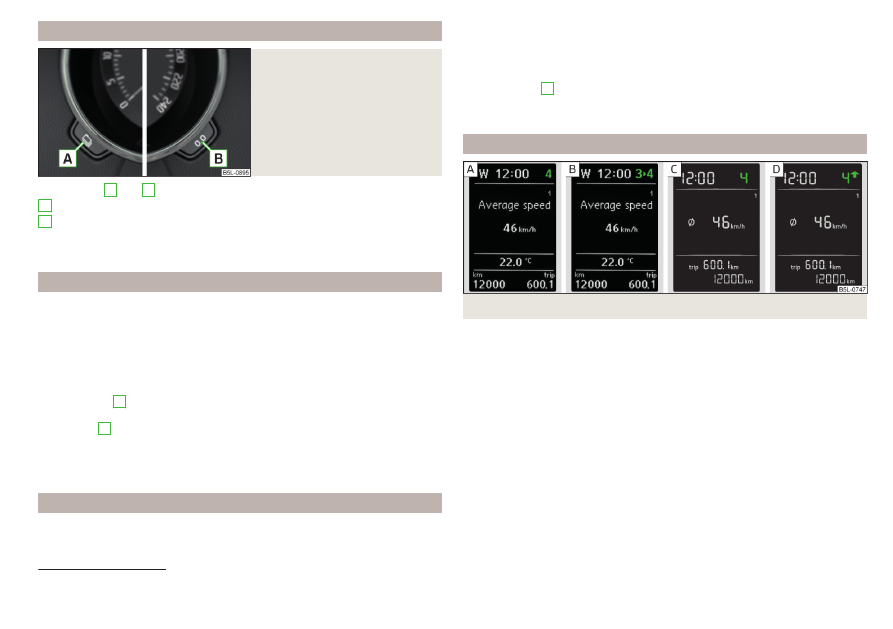

Fig. 22
Buttons in the instrument clus-
ter

Use buttons

A

 and

B

 to set the time

» Fig. 22

.

The choice to change the display (hours or minutes).
The change of the displayed value.

In vehicles equipped with the MAXI DOT display, it is also possible to set the
Time in the Time menu

» page 43

Menu item Settings.

Display of the second speedometer

The display can show the current speed in mph

1)

. This feature is provided for

driving in countries with different speed units.

MAXI DOT display
The display of the second speedometer can be set in the Alt. speed dis. menu
item

» page 43

Menu item Settings.

Segment display

Press button

A



» Fig. 22

 on page 39repeatedly, until the odometer display

flashes.

Press the

B

 button while the display flashes.

The second speedometer is displayed instead of the odometer. The display of
the second speedometer is switched offin the same manner as it is switched
on.

Display of AdBlue range

The display shows the distance in km that can still be driven with the remain-
ing AdBlue tank capacity.

A
B

MAXI DOT display
The display of AdBlue range is part of the multi-function display

» page 41

,

Information overview.

Segment display

Press button

A



» Fig. 22

 on page 39 repeatedly until instead of total kilome-

tres travelled, the AdBlue Range is displayed.

Wait around 5 seconds - the system switches to the initial setting.

Gear recommendation

Fig. 23  Information on the selected gear / Gear recommendation

A suitable engaged gear or, where appropriate, a recommended gear is dis-
played, with the aim of conserving the life of the engine and increasing driving
efficiency.
For vehicles with automatic transmission the recommended gear will be
shown provided the mode for manual switching (Tiptronic) is selected.

Display
MAXI DOT display

» Fig. 23

Optimal gear engaged
Gear recommendation (e.g.    means that it is advantageous to switch
from 3. to 4. gear)

Segment display

» Fig. 23

Optimal gear engaged
Recommended gear

 - Recommends that you change up to a higher gear

1)

For models with the speedometer in mph, the second speedometer is displayed in km/h.

39

Information system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

 - Recommends that you change down to a lower gear

On vehicles with a manual gearbox, the recommended gear and an ar-
row symbol is displayed (e.g.   means that it is advantageous to
change up from a lower gear to 4. gear).

On vehicles with an automatic gearbox in manual shifting mode (Tip-
tronic), gearcurrently engaged and an arrow symbol is displayed, (e.g.  
means that it is advantageous to change up from 4 to a higher gear).

WARNING

The driver is always responsible for selecting the correct gear in different
driving situations (e.g. when overtaking).

Operation of the information system

Operation via the operating lever

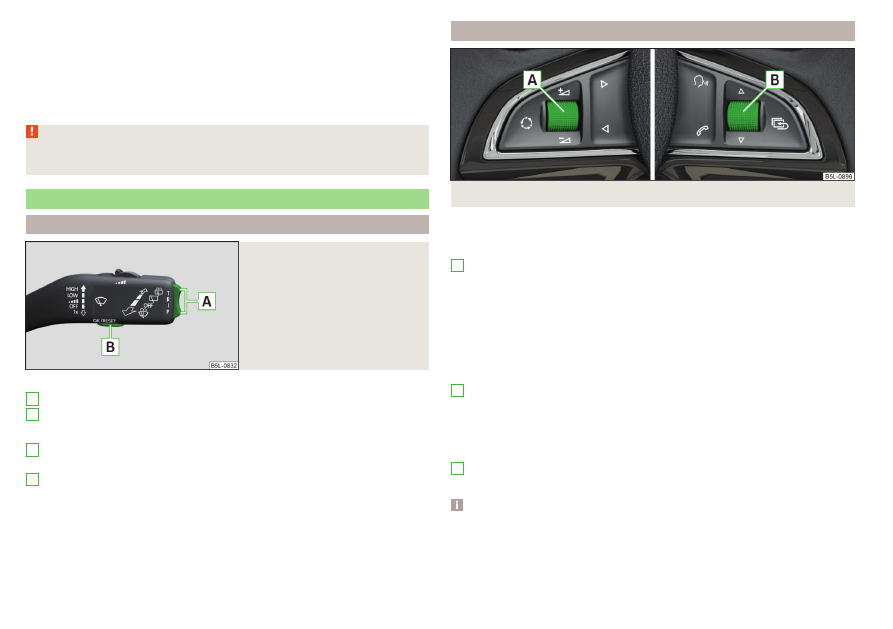

Fig. 24
Buttons on the control lever

Operating the multifunction display

Press (up or down) - select data / Setting values
Press - show / confirm entry

Operating the MAXI DOT display

Press (up or down) - move to the selected menu
Hold (up or down) - display main menu
Press - confirm selected menu item

A
B

A

B

Operation via the multifunction steering wheel

Fig. 25  Buttons/dials on the multifunction steering wheel

Buttons/dials on the multifunction steering wheel

Press- Change frequency range (e.g. FM/AM/DAB) / Switch audio source
(e.g. SD card/USB input)
Turn - sets the volume
Press - sound on / off
Skip to next track/station
Switch to previous track/station
Switch on/off voice control
Press - display the phone menu; accept/end the call; select contact
Hold - repeat last call; reject call

Operating the multifunction display

Turn - select data / set values
Press - show / confirm entry

Operating the MAXI DOT display

Hold - display main menu
Press - return to a previous level in the menu
Turn - move in the selected menu
Press - confirm selected menu item

Note

Depending on equipment not all functions may be available. The system indi-
cates this through a text message on the display.

A

B

B

40

Using the system

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..      1      2      3      ..
