204

Infotainment system

Media Mode

Introduction

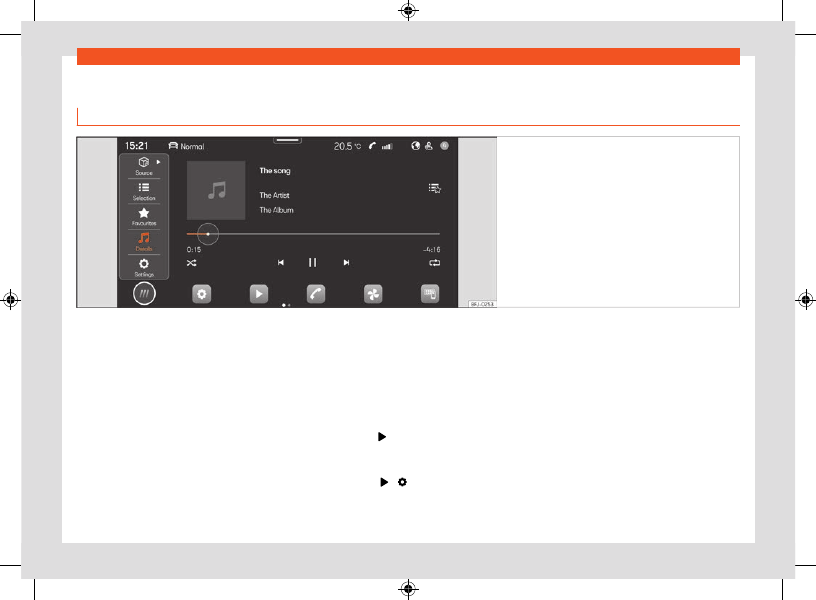

Fig. 133

Schematic diagram: Media view

In Media mode you can play multimedia
files from data media and streaming services
through the infotainment system.
Depending on the equipment, the following
data media can be used:

●

USB storage support (for example, a USB

stick, a mobile phone connected via USB).

●

Bluetooth® device (for example, a mobile

phone or a tablet).
Depending on the equipment, the following
types of multimedia files can be played:

●

Audio files.

●

Video files (depends on the system).

You can also use streaming services. The avail-
ability of streaming services depends on the
equipment and the country.
To use streaming services you need to have
your own user account in the streaming service
in question.

Access the MEDIA menu

●

Press

HOME >

Fig. 133

Access the settings

●

Press

HOME > >

Limitations and indications of data media

Data media may not work if they have been ex-
posed to high temperatures or have been dam-
aged. Please bear in mind the manufacturer’s
indications.
Quality differences between data media pro-
duced by different manufacturers can cause
multimedia playback malfunctions.
Incorrect configuration on a data media may
cause the data media to be unreadable.
Playlists only specify a playback order and re-
fer to the storage location of the multimedia
files within the folder structure. In a playlist
there are no multimedia files saved. To play a

Infotainment system

205

Media Mode

playlist, multimedia files have to be found in the
storage places of the data media to which the
playlist refers.

Note

SEAT assumes no liability for any deteriora-
tion or loss of files on data storage devices.

Equipment features and media sym-
bols

Audio, multimedia and connectivity:

●

Media playback and control via Bluetooth®.

●

Audio playback in these formats: AAC, ALAC,

AVI, FLAC, MP3, MP4, WMA.

●

Video playback in these formats: MPEG-1

and MPEG-2 (.mpg, .mpeg), ISO MPEG4, DivX
3, 4 and 5 Xvid (.avi), ISO MPEG4 H.264
(.mp4, .m4v, .mov), Windows Media Video 10
(.wmv, .asf).

●

Playlists on any type of device.

●

Multimedia streaming (online).

●

Multimedia search.

Universal symbols in Media mode

Start playback.
Pause playback.
Change to the previous track.
Change to the next track.

Repeat the track that is playing.
Repeat all titles.
Activate the shuffle playback order.
Display a list of favourites.
Add a media file as favourite.
Top right: select media source.
Access the settings.
Open the search.
Return to the top folder of the media
source.

Select and play a multimedia source

Select multimedia source

Before playing multimedia files you must first
connect a multimedia source.
To use streaming services you must be connec-
ted to the Internet.

●

Connect an external multimedia source.

●

Select the connected media source to be

used for playback.

Playing audio and video files

You can search and play multimedia files from
an available multimedia source in different
ways.

Search in the folder structure

Multimedia files can be catalogued by catego-
ries (for example, album, artist, title). In

My me-

dia

this category view is always displayed. The

classic folder structure of individual USB data
media is also found in

My media

1. Activate the folder structure.

The folder structure of the selected multi-
media source is displayed. When

My media

is selected, the categories (music, videos,
playlists) and connected multimedia sour-
ces are displayed first.

2. Search for the title you want in the folder

structure.

OR:

press to start a text search The input

field is displayed.

3. Enter the name of the desired title. The list

of the titles found is updated while entering
the text.

4. Press the desired title.

If at the beginning of the playback your se-
lection is in a folder of a multimedia source,
the multimedia files that are in it are also
added to the playback.
If a playlist is played, all available titles in
the playlist are added to the playback.

5. Close your selection with .

Select favourites

In favourites you can save titles, music genres,
artists and albums individually for playback.

206

Infotainment system

●

Access favourites .

●

Press the favourite you want.

Depending on your selection, all the titles be-
longing to the favourite are added to the play-
back.

Save favourites

Only multimedia files in

My media

of the info-

tainment system can be saved as favourites.
You can save up to a maximum of 30 titles, al-
bums, artists and music genres individually as
favourites.

1. Start playback.
2. Access favourites.
3. Tap a favourite that is not assigned.

OR:

press and hold on an existing favourite

for approx. 3 seconds.

4. Select from the selection list: Title, Album,

Artist, Genres, Playlist.

The selection is saved instead of the previously
selected favourite. If the favourite was already
assigned, the previously saved favourite is over-
written.
The selectable options in the selection list de-
pend on the data attached to the multimedia
file. If the music genre is not indicated in the
music files, for example, you cannot save the
music genre as favourite.
If a video file is playing, only that video can be
saved as favourite.

Configure streaming services

Depending on the equipment you can use
streaming services directly through the infotain-
ment system. For this you need to have a pre-
mium user account of the streaming service in
question and you have to log in with it in the
infotainment system. You also need to be con-
nected to the Internet.
1. Select

Streaming

as the multimedia

source.
A list of available streaming services is dis-
played.

2. Select the streaming service you want.
3. Follow the steps indicated by the infotain-

ment system.
The streaming service is added to the list
of multimedia sources as a new function
button.

Playing entertainment content in the
infotainment system

Depending on the infotainment system, videos
can be played.

Video mode

When in video mode, a video can be played
on the infotainment screen if this is stored on a
data media, in

My media

or is sourced from a

streaming service. In this case, the video sound
is played through the vehicle's speakers.

The image is only displayed if the vehicle is
stopped. When the vehicle is in motion, the in-
fotainment screen turns off. The sound of the
video can still be heard.
A stable Internet connection is required for
playback from a streaming service. In this case,
telephony costs may be generated.

Infotainment system

207

Navigation

Navigation

Introduction

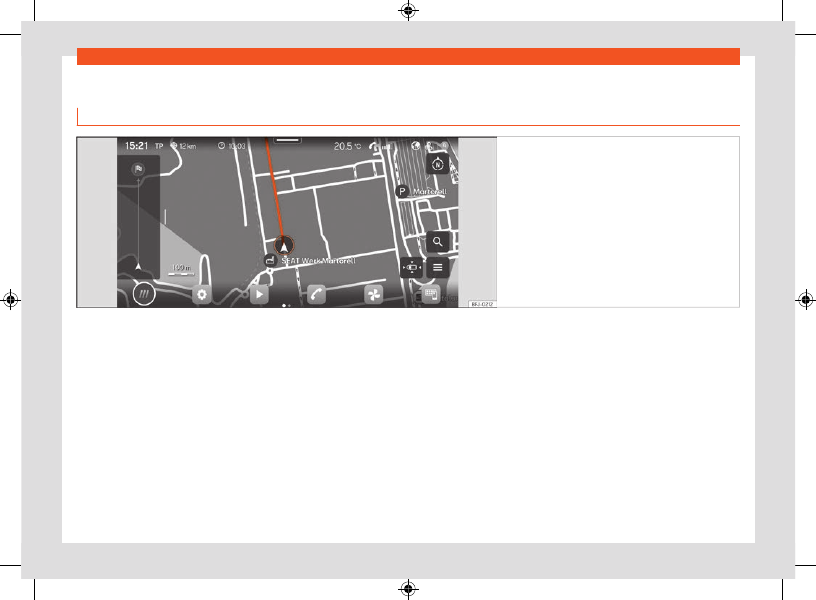

Fig. 134

Schematic diagram: Navigation view.

A global satellite system determines the current
position of the vehicle and the sensors moun-
ted on the vehicle analyse the routes taken.
All measured values and possible traffic events
are compared with the available maps to allow
optimal navigation to the destination.
Navigation announcements and graphic repre-
sentations will guide you to your destination.
Navigation management is carried out on the
screen.
Depending on the country, some functions of
the infotainment system will not be available
on the screen when travelling above a certain
speed. It is not a malfunction, but is due to com-
pliance with legislation.

Navigation announcements

Navigation announcements are acoustic indi-
cations for driving referred to the current route.
The type and frequency of navigation an-
nouncements depend on the driving situation,
for example, starting the guide to the destina-
tion, driving on the motorway or on a round-
about and the settings.
If the exact destination cannot be reached be-
cause, for example, it is in a non-digitised area,
indications relating to the address and the dis-
tance to the destination are displayed on the
screen.

During dynamic route guidance, you will re-
ceive information about reported traffic con-
gestion on the route. An additional navigation
announcement is given if the route is recalcula-
ted due to traffic congestion.
While a navigation announcement is playing,
its volume can be adjusted. The following navi-
gation announcements provided will be played
with the newly adjusted volume.

Limitations during navigation

If the infotainment system cannot receive data
from GPS satellites, for example, in a tunnel or
in an underground garage, navigation contin-
ues using the vehicle's sensors.

208

Infotainment system

In areas that are not digitised or are only parti-
ally digitised on the infotainment memory, the
infotainment system will still attempt to provide
route guidance.
In the case of missing or incomplete navigation
data, it may not be possible to determine the
exact position of the vehicle. This may mean
that navigation is not as precise as usual.
Roads and streets are subject to constant
change (e.g. new roads, road works, roads
closed to traffic, changes to street names and
building numbers). If the navigation data is ob-
solete, this may lead to errors or inaccuracies
during the route guidance.

Managing the navigation map

To allow an optimal view, you can also man-
age the navigation map with additional finger
movements.

Moving the map

Tip: use your index finger

●

Move the map with your finger.

Zoom in

Tip: use your index finger

●

To increase the view in a certain position,

double-click on the map.

Zoom out

Tip: use your index and middle fingers

●

Press on the map with both fingers at the

same time.

Change view

Tip: use your index finger

●

Press twice on the map and keep your finger

pressed on the screen.

●

To zoom out the view of the map, move your

finger upwards. To zoom in the view of the map,
move your finger downwards.

Change view

Tip: use your thumb and index finger

●

Press on the map with both fingers at the

same time and keep them pressed.

●

To zoom out the view of the map, move one

finger towards the other. To zoom in the view of
the map, move one finger away from the other.

Tilt the view

Tip: use your index and middle fingers

●

Press on the map with both fingers at the

same time and horizontal to each other, keep
them pressed.

●

To tilt the view of the map forward, move your

fingers upwards. To tilt the view of the map
backward, move your fingers downwards.

Rotate the map

Tip: use your thumb and index finger

●

Press on the map with both fingers at the

same time and keep them pressed.

●

To rotate the map view, turn your fingers

clockwise anticlockwise.

Saved data

The infotainment system saves certain data, for
example, frequent routes and position data, to
make the entry of the destination more agile
and optimise the route guidance.

Delete saved data

●

Press

Settings > Basic function settings >

Delete

and then

WARNING

Select the settings, enter the destination and
the modifications for navigation only with the
vehicle at a standstill.

Note

●

If a detour is passed during route guidance,

navigation may recalculate the route.

●

The quality of the navigation recommen-

dations given by the Infotainment system de-
pends on the navigation data available and
any reported traffic congestions.

●

Navigation announcements are not emit-

ted if the sound is muted in the infotainment
system.

Infotainment system

209

Navigation

Navigation functions and symbols

Navigation

Navigation functions depend on the equipment
and country.

Functions

●

Entering the destination and route calcula-

tion (offline and online).

●

Display of two navigation maps at the same

time (screen and instrument cluster).

●

Update of online maps.

●

Predictive navigation.

●

3D urban maps.

●

Online traffic information.

●

Dynamic POIs (points of interest).

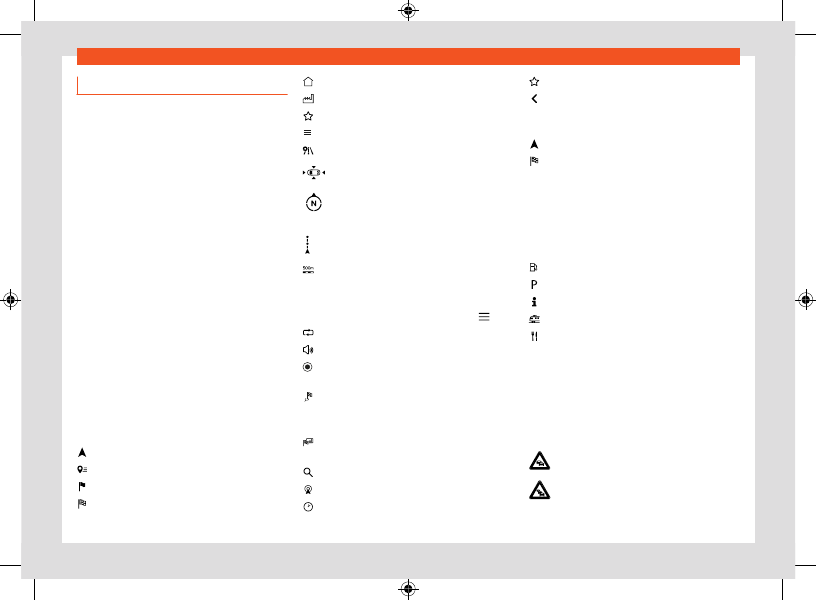

Symbols on the map

The buttons and indications depend on the set-
tings and the current driving situation.
Symbols for traffic events and points of inter-
est (POIs) are displayed on the map, for exam-
ple, petrol stations, train stations or interesting
stopovers, provided navigation has such data

Current position.
Search for destinations.
Destinations along the route.
Final destination.

Home address.
Work address.
Favourite destinations.
Additional window with more options.
Additional window with route options.

Centre the map on the current position.

Change view: 2D oriented to the north, or
2D oriented to the direction of travel, or
3D to the direction of travel.

Information about the current route guid-
ance.
Map scale.

Symbols in the additional window

●

To open the additional window, press .

Repeat the last navigation announcement.
Volume of navigation announcements.
Map lighting in Automatic, Day or Night
mode.
Offer new guidance routes.

Other symbols

Entering the detailed destination for an ad-
dress.
Search for destinations.
Frequent destinations.
Last destinations.

Favourite destinations.
Back

Symbols in the route details

Current position.
Destination of the current guidance.

POI symbols (points of interest)

POIs (points of interest) are shown on the map,
provided the navigation has said data.
Click on the desired POI (point of interest) to
start a route guidance

page 210

Petrol station.
Parking lot.
Tourist information offices.
Train station.
Restaurant.

Traffic information.

POIs (points of interest) are shown on the
map, provided the navigation has said data

Click on a traffic event to open an additional
window with further details

Slow traffic.

Traffic jam.

210

Infotainment system

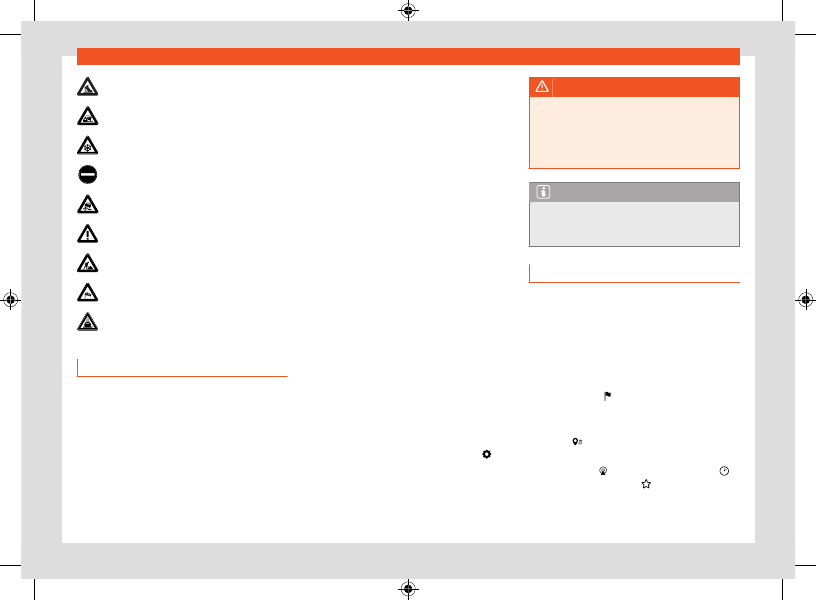

Accident.

Broken down vehicle.

Slippery surface (ice or snow).

Road closed to traffic.

Slippery road hazard.

Danger.

Road works.

Strong wind.

Reduced visibility.

Navigation data

The Infotainment system is equipped with a
built-in navigation data memory. Depending
on the country, the necessary navigation data
may already be pre-installed.
To provide correct route guidance and make
the most of the functions offered, the infotain-
ment system should be updated on a regular
basis.

Using obsolete data may lead to errors during
navigation. Current routes cannot be traced or
the route guidances will lead to mistaken desti-
nations.
Ensure navigation data is updated at all times.

Online updating of navigation data

The navigation data of the regions through
which you travel frequently is automatically up-
dated in the background if the Internet connec-
tion is established and the privacy settings are
valid.

●

With the ignition switched on, the navigation

data is updated automatically.

Manual update of navigation data

Current navigation data for large regions, for
example Western Europe, can be downloaded
from www.seat.com and stored on USB data
devices.

●

Download the navigation data to a USB data

device.

●

Turn on the ignition of the vehicle.

●

Connect the USB data device to the infotain-

ment system. Navigation data is automatically
updated in the background.
The map version is displayed in

HOME > >

System information

WARNING

If you update the navigation data manually
while driving, it may cause accidents with se-
rious injuries.

●

Update the navigation data only with the

vehicle at a standstill.

Note

Automatic update of the navigation data is
subject to the privacy settings. No update is
made in incognito mode.

Start route guidance

Depending on the country and equipment, dif-
ferent functions are available to enter destina-
tions.
The different functions for entering destinations
are found in the navigation main menu.

Opening the Navigation main menu

●

Press

HOME >

Select the destination and start navigation

1. Press .
2. Select the desired destination. You can

chose from

Frequent destinations,

Last destinations or Favourite desti-
nations.

Infotainment system

211

Navigation

OR:

press and enter the address in the

input screen.

OR:

detailed address.

3. Press

Start

Frequent destinations

The destination synopsis uses recorded data to
propose possible destinations.

Select the destination and start navigation:

1. Press and then .
2. Select the desired destination. The route

guidance starts automatically.

Quick start:

for a quick start, press and hold

the desired destination for a few seconds.

Recent destinations

Navigation saves the last destinations to make
them available for a route guidance.

Select the destination and start navigation:

1. Press and then .
2. Press the desired destination.
3. Press

Start

Quick start:

for a quick start, press and hold

the desired destination for a few seconds.

Favourite destinations

Save up to 20 destinations as favourites.

To save a destination as a favourite press in
the split screen when entering the destination.

Select the destination and start navigation:

1. Press and then .
2. Press the desired destination.
3. Press

Start

Note

Enter the destination as accurately as possi-
ble. If you enter a destination incorrectly, the
route guidance will not be able to start or it
will guide you to an incorrect destination.

Start route guidance by selecting from the
map

The navigation map includes active areas at
many points that are suitable for entering the
destination. To do this, press the desired posi-
tion or place on the map. If there is map data at
this point, you can start a route guidance.
Whether it is possible to enter the destination
through the navigation map depends on the
state of the data and it is not possible for all
positions.
To start “offroad navigation”, press an empty
area without position data.

Start navigation:

1. Press .
2. Move the view on the map until the desired

position can be selected. The navigation
map can be used by means of additional
finger movements

page 207

3. Press the desired destination on the map.
4. Press

Route

Offroad navigation

“Offroad navigation” calculates routes to se-
lected destination points using unknown data.
When a destination point is outside the known
roads or position data, navigation finds the
route to the next point of the known road and
completes the path to the next destination
point with a direct connection.

Start navigation:

1. Move the view on the map until the desired

position can be selected. The navigation
map can be used by means of additional
finger movements

page 207

2. Press on any point on the map without posi-

tion data.

3. Press

Route

Start route guidance using contact details

Start route guidance with the saved address
data of a contact. Contacts saved without ad-
dress data cannot be used for route guidance.

212

Infotainment system

Start navigation:

1. Press .
2. Press on the contact you want.
3. Press

Route

Note

If the address details of a contact are ob-
solete, the route guidance will nevertheless
take you to the registered address. Check
that the contact address is updated.

Traffic information

The infotainment system receives detailed traf-
fic information automatically if the Internet con-
nection is established. This information is shown
with symbols and highlighting the road network
in colour on the map.

Traffic incidents

Traffic incidents, for example, traffic jams or
congested traffic, are shown on the navigation
map using symbols.
With an active route guidance, traffic incidents
that are on the current route are shown in the
route details. Such traffic incidents can be avoi-
ded

page 212,

Function descriptions

Hazard information

Hazard information is shown on the navigation
map with symbols in the same way as traffic
incidents. In this case, the source of this infor-

mation is another vehicle that has detected the
hazard and has uploaded the information to the
service provider.
The hazards shown are: accident, broken down
vehicle and slippery road surface.

Traffic flow indication

The navigation map shows traffic flow accord-
ing to current traffic events, highlighting the
road network in colour.

●

Yellow:

Slow traffic.

●

Red:

Traffic jam.

Note

Traffic information receipt is subject to the
privacy settings. In maximum Privacy mode,
no traffic information is received. Tracking or
Location level setting is necessary.

Function descriptions

Route details

The route details contain information on all inci-
dents, for example, the starting point, stopovers,
traffic events, POIs and destination, provided
the navigation has such data.
If you press on an incident, an additional win-
dow opens providing more options. The avail-
able options depend on the incident and the
current settings.

Open and close the route details

●

To open them, press or swipe it.

●

To close them, press or swipe it.

Edit route guidance

To edit the route guidance, move the stopovers
to the destination in the TripView view.

●

Hold the desired destination pressed until it is

visibly highlighted.

●

Move the destination to the desired position.

●

Remove your finger from the screen. The

route will recalculate.

Avoid traffic incidents

The details of the route show the current traf-
fic incidents if the navigation has such data.
Avoid traffic incidents by editing route details

●

Press on a traffic event.

●

Press on

Avoid

. The route will recalculate.

Split screen

When handling navigation functions, an addi-
tional window with other options may open.
Possible options depend on the function being
used.

Infotainment system

213

Navigation

Close the additional screen

●

Press on an empty area outside the addi-

tional window.

●

OR:

press .

●

OR:

press

Functions in the additional window:

Show on
map

Show what is selected on the map.

Add stop-
over desti-
nation

Add a stopover to the route guid-
ance.

Direct
route

Starts direct route guidance.

Delete

Delete a stopover from the route
guidance.

Avoid

Avoid traffic jam. The route will re-
calculate.

Stop route
guidance

Ends the current route guidance.

Close the additional window.

Add a destination to favourites.

Learn usage pattern

When the vehicle is in motion, navigation saves
routes and destinations used to automatically
generate destination proposals. Destinations
are learned based on the time of day and the
day of the week.

Navigation can propose up to 5 routes at the
same time. The proposed routes may be differ-
ent from the routes of the normal route guid-
ance.
If one of the proposed destinations is selected,
the guide to that destination is started.
The route guidance follows the selected route
until the vehicle deviates from it. In that case,
the route is recalculated and takes you back
along the most direct path to the initially selec-
ted destination.
Important traffic jams are taken into account
in the route guidance, and are avoided if alter-
native routes are available, provided navigation
has such data.
You can activate and deactivate the function
whenever you want.

Enable and disable learning usage pattern

The setting is in the corresponding navigation
menu

> Basic function settings

●

To activate the function, activate

Learn us-

age pattern

●

To disable the function, disable

Learn usage

pattern

●

To delete saved data, press

Delete usage

pattern

214

Infotainment system

Telephone interface

Introduction

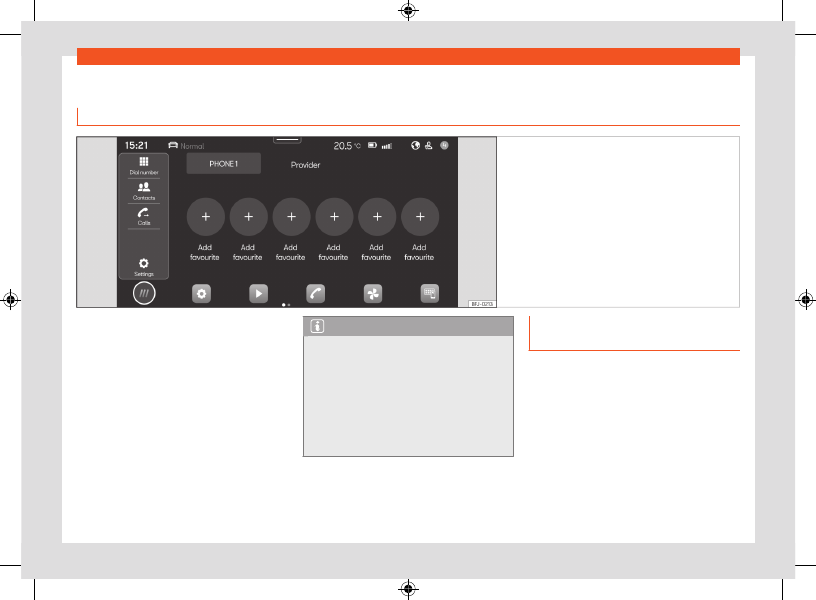

Fig. 135

Schematic diagram: Phone view.

You can use the telephone interface to connect
your mobile to the infotainment system and op-
erate phone functions through it. The sound is
played through the vehicle's speakers.
You can connect up to two mobile phone devi-
ces simultaneously to the infotainment system.
High speeds, poor weather or road conditions
and a noisy ambience (even outside of the ve-
hicle), as well as the quality of reception can all
affect the quality of a telephone conversation
in the vehicle.

Note

●

As a general rule, pairing a device (for ex-

ample, a mobile phone device) is only nec-
essary once. You can restore the device con-
nection via Bluetooth® or Wi-Fi with the info-
tainment system whenever you want without
having to pair the device again.

●

The availability of some telephone func-

tions will depend on the mobile phone con-
nected to the infotainment system.

Telephone interface equipment and
symbols

Equipment features

●

Hands-free function.

●

Use up to two phones at the same time.

●

Phone book with up to 5,000 contacts, de-

pending on the infotainment system.

●

SMS functions via Bluetooth®: SMS reading,

SMS writing (templates included), SMS play-
back, message history.

●

Email functions via Bluetooth®: reading email,

writing email.

Infotainment system

215

Telephone interface

●

Connection to wireless charging option.

●

Connection to the microphone mounted on

the vehicle.

Symbols in the main menu

Contacts.
List of incoming and outgoing calls.
Enter telephone number.
Text messages (SMS and emails).
Telephone interface settings.

Symbols for calls

The symbols may be different depending on
the infotainment system.

Start a call or bringing it to the foreground.
End or reject a call.
Open contact list.
Enter telephone number.
Mute the sound of the hands-free
Hold call.
Continue call.
Start conference call.
Pass call to private mode.
Make an emergency call.
Voice mail.

Get help in case of breakdown.

Obtain information on the SEAT brand
and selected additional services related to
traffic and your travel.

Call list symbols

●

To open the call lists, press .

Incoming call.
Outgoing call.
Missed call.
Telephone number (company).
Telephone number (private).
Mobile telephone number (company).
Mobile telephone number (private).
Fax (private).
Fax.

Symbols for text messages

The symbols may be different depending on
the infotainment system.

●

To open the text messages, press .

Activate voice control input

page 198

Templates for text messages.

Places with special regulations

Switch off the mobile telephone and the tel-
ephone interface in places with a risk of ex-
plosion. These places are not always clearly
marked. They include, for example:

●

The vicinity of chemical pipelines and tanks.

●

The lower decks of boats and ferries.

●

In the proximity of vehicles that run on lique-

fied gas (such as propane or butane).

●

Places where the air is laden with chemicals

or particles such as flour, dust or metal powder.

●

All other places where the engine or tele-

phone must be switched off.

WARNING

Switch off the mobile phone in areas with a
risk of explosion!

Note

In areas where special regulations apply or
the use of mobile phones is forbidden, it
must be switched off at all times. The radi-
ation produced by the mobile phone when
switched on may interfere with sensitive
technical and medical equipment, possibly
resulting in malfunction or damage to the
equipment.

Pair, connect and manage

Requirement for pairing:

●

Bluetooth® is activated on the mobile phone

device.

●

Bluetooth® is activated on the infotainment

system.

216

Infotainment system

Active

Passive

●

Depending on the mobile device, it will be

necessary to have the Bluetooth® menu open
or activate the

Visibility

option so that the de-

vice is visible from the infotainment system.
Pair a mobile phone device suitable for teleph-
ony with the infotainment system to use the
telephone interface functions. On the first con-
nection, the mobile phone device is paired with
the infotainment system. Doing so saves a user
profile

page 216,

User profiles

The pairing can take a few minutes. The func-
tions available depend on the mobile phone
device used and its operating system.

Pair a mobile phone device

1. Open the list of available Bluetooth® devi-

ces on the mobile phone device and select
the name of the infotainment system.

2. Please note and, if necessary, confirm the

messages that appear on the mobile phone
device and on the infotainment system. If
the pairing was successful, the phone data
is saved in the user profile.

Optional:

confirm the data transfer mes-

sage on the mobile phone device.

Active and passive connection

To use the functions of the telephone interface,
there must be at least one mobile phone device
connected to the infotainment system. If there
are several mobile phone devices connected
to the infotainment system, you can switch be-

tween active and passive connections. To use
the telephone interface with the desired mobile
phone device, establish the active connection
with the infotainment system.

Difference between connection types

The mobile phone device is paired and

connected. The functions of the telephone
interface are performed with the data of
said mobile phone device.

The mobile phone device is paired and

connected. Calls can be managed but the
phone book, messages or other functions
will not be active.

Paired mobile phone devices are stored in the
infotainment system, even if they are not cur-
rently connected.

Connect a mobile phone device

Requirement: the mobile phone device is paired
with the infotainment system.

●

Bluetooth® is activated on the mobile phone

device.

Establish an active connection

Requirement: several mobile phone devices are
connected to the infotainment system at the
same time.

●

Select the desired mobile phone device from

the drop-down menu. All other mobile phone
devices are automatically in the passive con-
nection.

User profiles

For each of the paired mobile phone devices an
individual user profile is automatically created.
In the user profile, data from the mobile phone
device is stored, for example, contact details or
settings. A maximum of four user profiles can be
saved in the infotainment system at the same
time.

WARNING

If you perform the pairing while driving, it
could cause an accident or injury.

●

Perform pairing only with the vehicle at a

standstill.

Note

●

While the infotainment system is in the

Known mobile phones menu, the wireless
charging function is disabled. When you exit
this menu, the wireless charging function is
activated again.

●

In the pairing of some mobile phone devi-

ces, a PIN number is shown on the screen of
the mobile phone device. Enter that number
in the infotainment system to complete the
pairing.

Basic and Comfort Telephony

Depending on the equipment, two types of tel-
ephone interface can be used:

Infotainment system

217

Telephone interface

●

Basic telephone interface.

●

Comfort telephone interface.

Basic telephone interface

The Basic telephone interface uses the Blue-
tooth® HFP profile for transmission. This inter-
face allows the use of telephone functions
through the infotainment system and playback
through the vehicle's speakers.

Comfort telephone interface

Like the Basic telephone interface, the Comfort
telephone interface also uses the Bluetooth®
HFP profile.
The Comfort phone interface can be equip-
ped with the wireless charging function

page 218

In order to use the functions of the wireless
charging function, you have to place a suitable
mobile phone device correctly in the storage
compartment. The mobile phone device will
then connect to the vehicle antenna. This im-
proves the reception and sound quality of calls.

Calling and sending messages

Open the telephone interface

●

Press

HOME >

Make a call

Select a phone number to start a call. Different
functions are available for selecting a phone
number:

Contacts

If a contact has several registered phone num-
bers you have to select one.

●

Press and press a number on the list to

start the call.

OR:

press and enter the contact name in the

input field to search for it. Press on the contact
to start the call.

OR:

press a favourite in the telephone interface

main menu to start the call.

Calls

The telephone interface shows the call list of
the mobile telephone device. Start a call from
the call list.

●

Press

> All

and press a number on the list

to start the call.

OR:

press and filter the call list entries (for

example, missed calls or dialled numbers). In
filtered list, press a number to start the call.

Dial number

Manually enter a phone number to start a call.
While entering the phone number, contacts that
match that number are shown on the infotain-
ment screen.

●

Press and enter the telephone number.

Press to start the call.
The last call is dialled by pressing and hold-
ing the button on the multifunction steering
wheel.

Send messages

Depending on the mobile phone device and the
infotainment system used, you can send and
receive SMS and e-mails through the telephone
interface.

Send an SMS:

1. Press

> Text message > Enter new mes-

sage

and enter the message on the screen.

2. Enter the contact you want in the search

bar.

3. To send the message press

Send an email:

●

Press

> E-mail > Enter new message

and

enter the message on the screen.

●

Enter the contact you want in the search bar.

●

To send the message press

218

Infotainment system

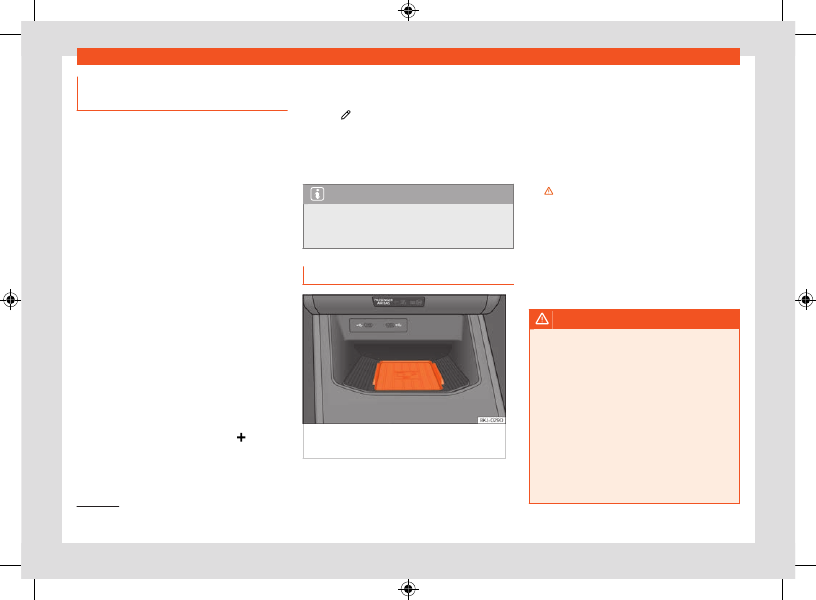

Qi technology allows you to charge your mobile phone wirelessly.

Phone book, favourites and speed
dial buttons

In the first connection of a telephone with the
infotainment system, the phone book is saved
in the infotainment system. It may be necessary
to confirm the data transmission on the mobile
phone.
Each time the phone is reconnected, the phone
book is updated.
If conference calls are supported, the phone
book can be accessed during a call. If there is a
saved image for a contact, it can be displayed
in the list next to the entry.

Favourites

A speed dial button can be assigned to a phone
book favourite up to a maximum of six. If there
is a registered photo saved to the contact, it is
shown on the speed dial button.
All speed dial buttons have to be manually
edited and will be assigned to a user profile

page 215

Assign the speed dial button

●

In the

Favourites

menu, press the button,

then open the phone book to select a contact
as a favourite. If the contact has several phone
numbers, press on the number in the list.

Edit the speed dial button

●

To edit or delete a favourite contact press on

the icon in the

Favourites

menu screen. You

can delete one or more favourites.

Call a favourite

●

Press the assigned speed dial button.

Note

Favourites are not updated automatically. If
you change a contact's phone number, you
have to reassign the speed dial button.

Connectivity Box

Fig. 136

Centre console: slot for mobile phone

connection.

The Connectivity Box includes the Wireless
Charger functionality.

Wireless charger

The Wireless Charger allows mobile devices
with Qi

technology to be charged without a

cable.
To charge your mobile phone wirelessly:

●

Place your mobile device in the middle of

the pad with the screen facing up

Fig. 136

Make sure there are no objects between the
pad and the mobile phone.
The mobile phone will start charging automat-
ically. For further information about whether
your mobile device uses Qi technology, check
your phone's user manual or visit the SEAT
website

WARNING

Notifications on the screen of the mobile de-
vice can distract the driver’s attention and
increase the risk of a serious accident.

●

Only place one suitable mobile device,

with Qi compatibility if applicable. To ensure
that it operates properly, place it without
the protective case and ensure that it has
maximum dimensions (width x length) of 80 x
140 mm (3.15 x 5.512 inches) on the base of
the Connectivity Box as indicated.

●

If the mobile device is not placed on the

base of the Connectivity Box, in the correct
position, or if its dimensions exceed those

Infotainment system

219

Telephone interface

specified, it may not be recognised or may
not charge correctly. Under certain circum-
stances, the infotainment system indicates
that there is a foreign object in the storage
compartment. Using a suitable mobile phone
device and correcting its position can elimi-
nate the fault.

●

If necessary, remove any objects that may

obstruct the cover’s closing function.

WARNING

●

The mobile phone may heat up due to the

wireless charging. Think about this before
you pick it up, and take care when removing
it.

●

There must be no metallic or other objects

between the mobile phone and the housing,
to prevent the functionality of the Connectiv-
ity Box from being affected.

NOTICE

The base of the Connectivity Box is not re-
movable.

Note

●

Your mobile device must support the Qi

inductive charging interface standard for
proper operation.

●

The charging time and the temperature

vary in accordance with the device used.

●

The maximum charging capacity is 5 W.

●

Qi technology does not allow you to

charge more than one mobile device simul-
taneously.

●

You are advised to keep the engine running

to guarantee proper wireless charging.

●

When a telephone with Qi technology is

connected by USB, it will be charged by the
means specified by the manufacturer.

220

Storing objects

Storing objects

Positioning the luggage
and cargo

General information

Placing luggage inside the vehicle safely

It is possible to carry objects and luggage in the
vehicle, in a trailer

and on the roof

. When doing so, please consider

all legal provisions.

●

Distribute the load in the vehicle as evenly as

possible.

●

Always place luggage and heavy objects as

far forwards as possible in the luggage com-
partment

●

Take into account the maximum authorised

weight per axle, as well as the maximum au-
thorised weight of the vehicle

page 310

●

Secure the objects to the fastening rings

of the boot using appropriate chains or belts

page 223

●

Also place small objects safely.

●

In vehicles with dynamic headlight range

control, the lights adapt automatically.

●

Adapt tyre pressure to the load. Take into

account the pressure sticker of the tyres

page 278

●

In vehicles equipped with tyre pressure con-

trol system, adjust to the new load status if nec-
essary

page 288

WARNING

Loose or unsecured objects can cause seri-
ous injury in case of sudden manoeuvring
or braking or in case of an accident. Partic-
ularly if the airbag hits them when deploying
and they are thrown across the inside of the
vehicle. Please observe the following rules to
minimise the risk of injury:

●

Place all objects inside the vehicle safely.

●

Secure all objects, little and large.

●

Place the objects in the cabin in such a

way that they can never reach the airbag de-
ployment areas while the vehicle is in motion.

●

Keep the storage compartments closed at

all times while the vehicle is in motion.

●

Place the objects in such a way that they

never force any occupant of the vehicle to sit
in an incorrect position.

●

When transporting objects that take up a

seat, never let anyone use that seat.

●

Never leave hard, sharp or heavy objects

loose in open storage compartment of the
vehicle, on the cover behind the rear seat or
on the instrument panel.

●

Remove all hard, sharp or heavy objects

from the fabrics and bags inside the cabin
and store them safely.

WARNING

The transport of heavy object changes vehi-
cle handling and increases braking distance.
Heavy objects that are not properly placed
or secured may cause loss of control of the
vehicle and thus severe injuries.

●

Never put too much load in the vehicle.

Both the carrying capacity as well as the
distribution of the load in the vehicle have
effects on the driving behaviour and braking
ability.

●

When transporting heavy objects, the driv-

ing behaviour of the vehicle varies due to the
displacement of the centre of gravity.

●

Always distribute the load in the vehicle as

evenly and horizontally as possible.

●

Always place heavy objects in the boot be-

fore the rear axle and as far away from it as
possible.

●

Objects in the luggage compartment that

are unsecured could move suddenly and
modify the handling of the vehicle.

●

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions.

●

Accelerate with particular care and cau-

tion.

●

Avoid sudden braking and manoeuvres.

●

Brake earlier than usual.

Storing objects

221

Luggage compartment

NOTICE

Electrical wires or, depending on the fea-
tures, the antenna embedded into the rear
windows could be damaged, even irrepara-
bly, if they are in contact with objects.

Note

Straps for securing the load to the fasten-
ing rings are commercially available from
accessory shops.

Luggage compartment

Luggage compartment shelf

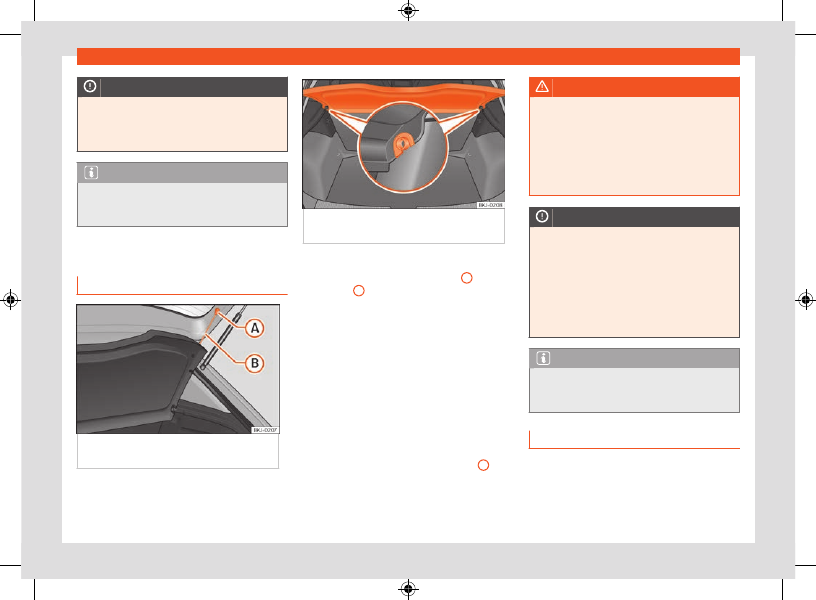

Fig. 137

In the boot: removing and installing

the shelf.

Fig. 138

In the boot: removing and installing

the shelf.

Removing

●

Detach the cord loops

Fig. 137

from

their hooks

●

Remove the rear shelf from the side supports

Fig. 138

by pulling it upwards and then take

it out.
If necessary, the rear shelf can be stored un-
der the luggage compartment double floor

page 221

Fitting

●

Insert the cover horizontally so that the

“recess” fits onto the axis of the supports

Fig. 138

and press down until it engages.

●

Attach the securing straps

Fig. 137

onto

the rear lid.

WARNING

Animals, loose or unsecured or objects car-
ried on the rear shelf can cause serious injury
in case of sudden manoeuvring or braking or
in case of an accident.

●

Do not leave hard, sharp or heavy objects

or in bags on the rear shelf.

●

Never transport animals on the rear shelf.

NOTICE

●

Before closing the rear lid, ensure that the

rear shelf is correctly fitted.

●

An overloaded luggage compartment

could mean that the rear shelf is not cor-
rectly seated and it may be bent or dam-
aged.

●

If the luggage compartment is overloaded,

remove the tray.

Note

Ensure that, when placing items of clothing
on the luggage compartment cover, rear visi-
bility is not reduced.

Store the rear shelf

Depending on the equipment, once the lug-
gage compartment shelf has been removed, it
can be stored under the variable floor of the
luggage compartment.

222

Storing objects

●

Remove the side cover by sliding it upwards.

●

Place the luggage compartment shelf in the

space provided for this purpose.

●

Place the cover back in its original position.

Variable luggage compartment floor

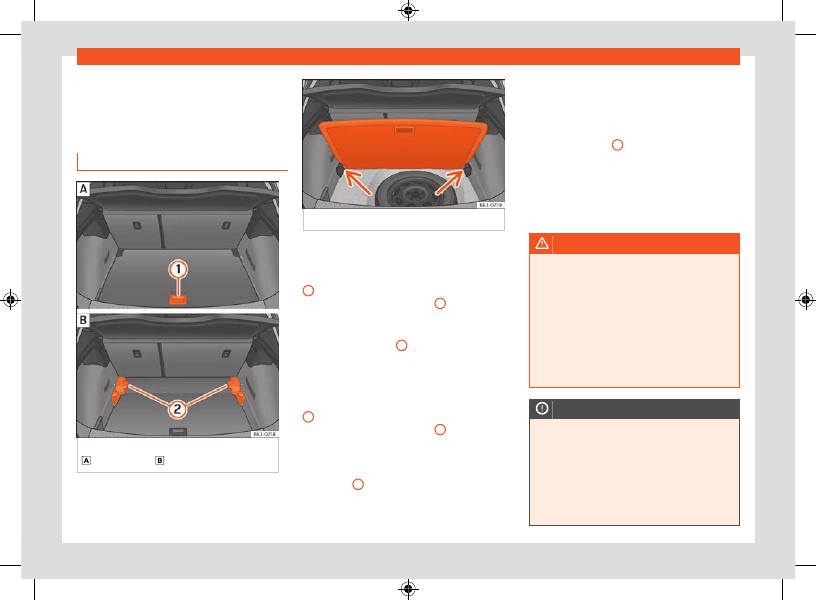

Fig. 139

Variable luggage compartment floor:

raised position; lowered position.

Fig. 140

Variable boot floor: tilted position.

Variable floor in high position

●

To move from the low position to the high po-

sition, lift the floor using the handle

Fig. 139

, and pull it back until the front of the floor

has fully passed the supports

●

Move the floor forward over the supports as

far as the rear seat backrest and then lower the
floor with the handle

Variable floor in low position

●

To move from the high position to the low po-

sition, lift the floor using the handle

Fig. 139

, and pull it back until the front of the floor

has fully passed the supports

●

Now let the front part fall to the floor and

slide the floor forwards as far as the rear seat
backrest; lower the floor at the same time with
the handle

Variable floor in the tilted position

When the variable floor is tilted you can access
the spare wheel or anti-puncture kit area.

●

Lift the variable floor in the high position using

handle

Fig. 139

, pull it up and push it

towards the backrest of the rear seats until it
folds along the hinge line and the movable part
of the floor is resting on itself.

●

Rest the floor on its housings

Fig. 140

(ar-

rows).

WARNING

●

Always secure objects, even when the lug-

gage compartment floor is properly lifted.

●

Only objects that do not protrude more

than 2/3 the height of the floor may be car-
ried between the rear seat and the raised
luggage compartment floor.

●

Only objects that do not weigh than ap-

proximately 7.5 kg may be carried between
the rear seat and the raised luggage com-
partment floor.

NOTICE

●

The maximum weight that can be loaded

on the luggage compartment variable floor
in the top position is 100 kg.

●

Do not let the luggage compartment floor

fall when closing it. Always carefully guide
it downwards in a controlled manner. Other-
wise, the lining and the floor of the luggage
compartment could be damaged.

Storing objects

223

Roof carrier

Luggage compartment
equipment

Fastening rings

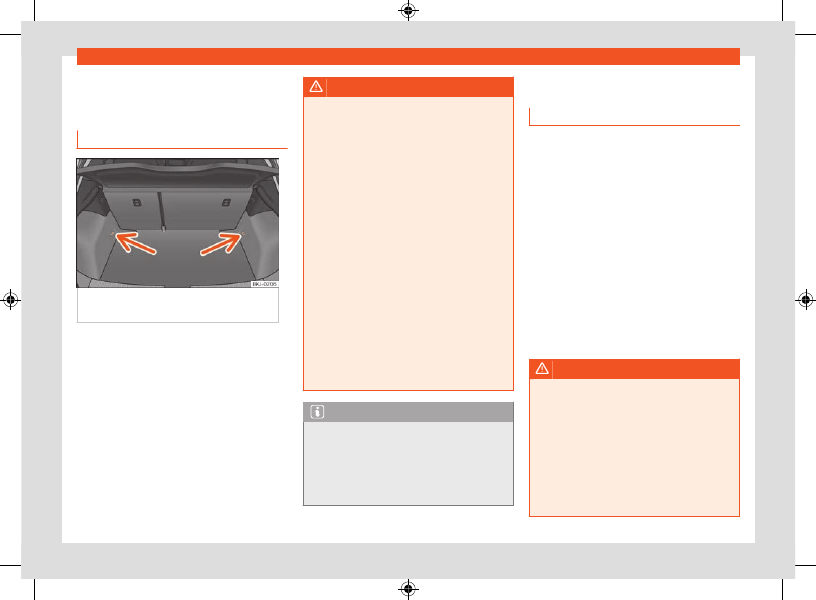

Fig. 141

Location of fastening rings in luggage

compartment.

There are fastening rings

Fig. 141

on the front

and rear of the boot to secure loose objects
and luggage with fastening belts and cords.

WARNING

If unsuitable or damaged belts or retaining
straps are used, they could break in the
event of braking or an accident. Objects
could then be launched across the passen-
ger compartment and cause serious or fatal
injuries.

●

Always use belts or straps that are suitable

and in good condition.

●

Tighten the belts and straps in a cross

layout over the load placed on the boot
floor and secure them to the fastening rings
safely.

●

Never exceed the maximum tensile load of

the fastening rings when securing objects.

●

Make sure that, particularly for flat ob-

jects, the upper edge of the load is higher
than the fastening rings.

●

Depending on the features, take into ac-

count the instruction panels on the boot on
how to place the load.

●

Never secure a child seat to the fastening

rings.

Note

●

The maximum tensile load that the fasten-

ing rings can support is approx. 3.5 kN.

●

Belts, straps and securing systems for the

appropriate load can be obtained from spe-
cialised dealerships. SEAT recommends visit-
ing a SEAT dealership for this.

Roof carrier

Introduction

The vehicle roof has been designed to optimise
aerodynamics. For this reason, cross bars or
conventional roof carrier systems cannot be
secured to the roof water drains.
As the roof water drains are integrated in the
roof to reduce air resistance, only SEAT-ap-
proved cross bars and roof carrier systems can
be used.

Cases in which cross bars and the roof car-
rier system should be disassembled.

●

When they are not used.

●

When the vehicle is washed in a car wash.

●

When the vehicle height exceeds the maxi-

mum height, for example, in some garages.

WARNING

●

Always secure the load properly using

belts or retaining straps that are suitable and
in a good condition.

●

Bulky, heavy, long or flat loads have a neg-

ative effect on aerodynamics, the centre of
gravity and driving performance.

●

Avoid sudden braking and manoeuvres.

●

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions.

224

Storing objects

NOTICE

●

Remove the cross bars and the roof carrier

system before entering a car wash.

●

Vehicle height is increased by the installa-

tion of cross bars or a roof carrier system
and the load secured on them. For this pur-
pose, check that your vehicle's height does
not surpass the headspace limit, for exam-
ple, for underpasses or for entering garage
doors.

●

Cross bars, the roof carrier system and the

load secured on them should not interfere
with the roof aerial or hamper the path of the
panoramic sun roof and the rear lid.

●

On opening the rear lid make sure that it

does not knock into the roof load.

For the sake of the environment

When cross bars and a roof carrier system
are installed, the increased air resistance
means that the vehicle uses more fuel.

Securing the crossbars and the roof
carrier system

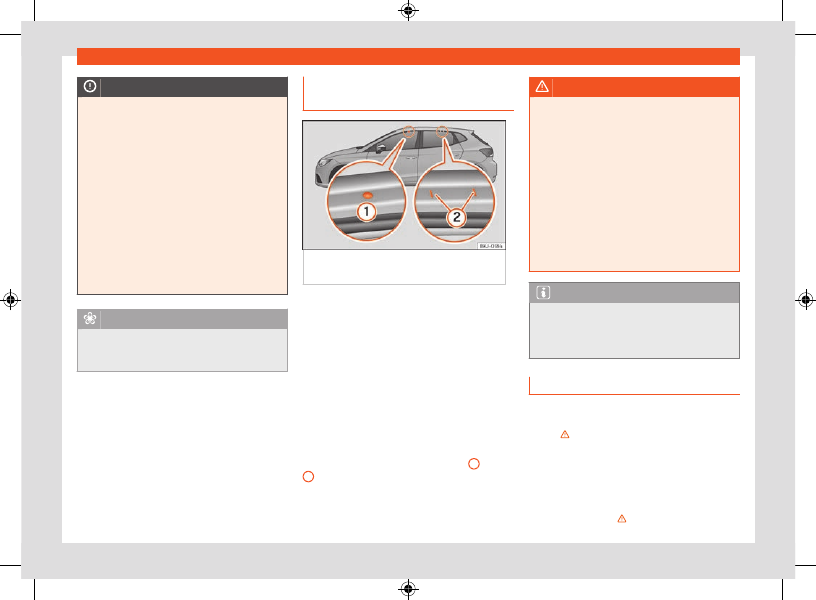

Fig. 142

Attachment points for the roof railings

for the roof carrier

The crossbars are the basis of a series of spe-
cial roof carrier systems. For safety reasons,
special fixtures must be used to safely transport
luggage, bicycles, skis, surf boards or boats on
the roof. Suitable accessories can be acquired
at SEAT dealerships.
Always secure the crossbars and the roof car-
rier system properly. Always take the assembly
instructions that come with the crossbars and
the roof carrier system in question into account.

Installing the bars

The front and rear attachment points

and

are only visible when the doors are open

Fig. 142

WARNING

Incorrect attachment and use of the cross-
bars and the roof carrier system may cause
the whole system to detach from the roof
and cause an accident and injuries.

●

Always take the manufacturer assembly

instructions into account.

●

Check threaded joints and attachments

travelling and if necessary tighten them after
you have travelled a short distance. When
making long trips, check the threaded joints
whenever you stop for a rest.

●

Do not modify or repair the crossbars or

roof carrier system.

Note

Always read the assembly instructions that
come with the crossbars and the roof carrier
system carefully and keep them in the vehi-
cle.

Loading the roof carrier system

The load can only be secured if the crossbars
and the roof carrier system are properly instal-
led

Maximum authorised cargo on the roof

The maximum permissible roof load is

75 kg

This figure comes from the combined weight
of the roof carrier, the cross bars and the load
itself on the roof

Storing objects

225

Trailer mode

Always check the weight of the roof carrier
system, the cross bars and the weight of the
load to be transported and weigh them if nec-
essary. Never exceed the maximum authorised
roof load.
If you are using cross bars and a roof carrier
with a lower weight rating, you will not be able
to carry the maximum authorised roof load. In
this case, do not exceed the maximum weight
limit for the roof carrier which is listed in the
fitting instructions.

Distributing a load

Distribute loads uniformly and secure them cor-
rectly

Check attachments

Once the cross bars and roof carrier system
have been installed, check the bolted connec-
tions and attachments after a short journey and
subsequently with a certain frequency.

WARNING

●

Never exceed the maximum authorised

load on the roof and on the axles or the ve-
hicle's maximum authorised weight.

●

Never exceed the load capacity of the

cross bars and the roof carrier system, even
if the maximum authorised roof load has not
been reached.

●

Secure heavy items as far forward as

possible and distribute the vehicle load uni-
formly.

WARNING

If the load is loose or not secured, it could
fall from the roof carrier system or cause ac-
cidents and injuries.

●

Always use belts or retaining straps that

are suitable and in a good condition.

Trailer mode

Introduction

Take into account country-specific regulations
about driving with a trailer and the use of a
towing bracket.
The vehicle has been developed primarily for
carrying people, although it can also be used
to tow a trailer if fitted with the corresponding
technical equipment. This additional load has

an effect on the useful life, fuel consumption
and vehicle performance and in some cases
can reduce the service intervals.
Driving with a trailer requires more force from
the vehicle, and thus more concentration from
the driver.
In winter, winter tyres should be fitted on both
the vehicle

and

the trailer.

Maximum vertical load technically permit-
ted on the coupling device

The

maximum

vertical load technically permit-

ted from the trailer draw bar on the towing
bracket's tow ball is

50 kg

Vehicles with the Start-Stop system

If the vehicle has a factory-fitted towing
bracket or one that is retrofitted by SEAT, the
Start-Stop system operates as normal. No spe-
cial characteristics need to be taken into ac-
count.
If the system does not recognise the trailer or
the trailer bracket has not been retrofitted by
SEAT, the Start-Stop system must be discon-
nected by pressing the corresponding button
in the lower part of the centre console before
driving with the trailer, and it should remain off
for the rest of the journey

226

Storing objects

Vehicles with driving profile selection

If you are going to be towing a trailer, the use of
the

Eco

driving profile is not recommended. You

are advised to select another of the available
driving profiles before beginning to drive with a
trailer.

Trailer weight/drawbar load

Never exceed the authorised trailer weight. If
you do not load the trailer up to the maximum
permitted trailer weight, you can then climb
correspondingly steeper slopes.
The maximum trailer weights listed are only ap-
plicable for

altitudes

up to 1000 m above sea

level. Since higher altitude decreases engine
performance and the ability to climb slopes, the
tow load decreases proportionally. The weight
of the vehicle and trailer combination must be
reduced by 10% for every 1000 m of altitude.
When possible, operate the trailer with the max-
imum

authorised drawbar load

on the ball

joint of the towing bracket, but

do not exceed

the specified limit.

WARNING

Never use the trailer to transport people,
since it would put their life in danger and is
also prohibited.

WARNING

Undue use of the towing bracket may cause
injury and accidents.

●

Only use the towing bracket if it is in a per-

fect state of repair and is properly secured.

●

Never modify or repair the towing bracket

in any way.

●

In order to reduce the danger of injury in

the event of rear-end collisions and to avoid
injury to pedestrians and cyclists when park-
ing the vehicle, cover or remove the tow hook
when you are not using a trailer.

●

According to EU regulation 2021_535 it is

not permitted to install a towing device that
completely or partially covers the rear num-
ber plate.

●

Never fit a towing bracket “with weight dis-

tribution” or “load compensation”. The vehi-
cle has not been designed for this type of
towing bracket. The towing bracket could fail
and the trailer could be released from the
vehicle.

WARNING

Driving with a trailer and transporting heavy
or large objects can affect driving properties
and even cause an accident.

●

Always secure the load properly using

belts or straps that are suitable and in good
condition.

●

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions.

●

Trailers with a high centre of gravity are

more likely to overturn than those with a low
one.

●

Avoid sudden braking and manoeuvres.

●

Take great care when overtaking.

●

Reduce speed immediately if you notice

that the trailer is swaying, however slightly.

●

Never drive at more than 80 km/h (50 mph)

when towing a trailer (or at more than
100 km/h (60 mph) in exceptional circum-
stances). This also applies in countries where
driving at higher speeds is permitted. Take
into account the speed limit for vehicles with
trailers in the corresponding country, as it
could be less than the speed limit for vehi-
cles without a trailer.

●

Never attempt to “straighten” the towing

vehicle and trailer while accelerating.

Storing objects

227

Trailer mode

WARNING

If the towing bracket has been retrofitted by
a non-SEAT workshop, the Start-Stop system
must be disconnected manually whenever
driving with a trailer. Otherwise the brake
system could be damaged and could conse-
quently cause a serious accident or injury.

●

Always disconnect the Start-Stop system

manually when using a towing bracket that
has not been fitted by a SEAT workshop.

Note

●

Before hitching or unhitching a trailer,

always deactivate the anti-theft alarm

page 74

. Otherwise, the tilt sensor could

cause the alarm to go off.

●

Do not drive with a trailer for the engine's

first 1000 km

page 114

●

Some retrofitted towing brackets cover the

rear towing eye. In these cases, the towing
eye should not be used for tow-starting or
for towing other vehicles. For this reason, if
the vehicle has been retrofitted with a towing
bracket, always keep the tow hook in the ve-
hicle when you remove it.

Note

●

If a removable and retractable tow hook is

fitted, it should not be mounted when not in
use. In the event of a rear-end collision, the
damage to the vehicle could be greater if the
tow hook is fitted.

Technical requirements

If the

vehicle is retrofitted with a tow bracket

only a bracket that is authorised for the max-
imum authorised load of the trailer that is to
be towed may be fitted. The towing bracket
must be suitable for the vehicle and the trailer
and must be properly secured to the vehicle's
chassis. Only use a towing bracket that has
been authorised by SEAT for this vehicle. Al-
ways check and take into account the towing
bracket manufacturer's instructions.

Towing bracket fitted on the bumper

Never fit a towing bracket to the bumper or to
the area where the bumper is mounted. The
towing bracket should not impair the bumper's
function. Do not make modifications or repairs
to the exhaust system or the brake system.
Make regular checks to ensure that the towing
bracket is secure.

Engine cooling system

Driving with a trailer increases the load on the
engine and cooling system. The cooling system
should have sufficient coolant and be prepared
for the additional effort involved in driving with
a trailer.

Trailer brakes

If the trailer has its own brake system, please
take the relevant legal requirements into ac-
count. Never connect the trailer's brake system
to the vehicle's brake system.

Tow cable

Always use a cable between the vehicle and
the trailer

page 228

Trailer tail lights

The trailer's rear lights should comply with the
statutory safety regulations

page 228

Never connect the trailer's rear lights directly
to the vehicle's electric system. If you are not
sure that the trailer's electrical connection is
correct, have it checked by a specialised work-
shop. SEAT recommends visiting a SEAT dealer-
ship for this.

Exterior mirrors

If you cannot see the area behind the trailer
with the exterior mirrors of the towing vehicle,
additional mirrors will have to be installed in
accordance with the regulations of the country
in question. The exterior mirrors should be ad-
justed before you start driving and must provide
a sufficient field of vision at the rear.

Trailer maximum electricity consumption

Never exceed the values indicated!

228

Storing objects

Brake lights (total)

84 Watts

Turn signal (on each side)

42 Watts

Side lights (on each side)

50 Watts

Reverse lights (in total)

42 Watts

Rear fog light

42 Watts

WARNING

If the towing bracket is wrongly fitted or is
not the right one, the trailer could become
detached from the vehicle and cause serious
injury.

NOTICE

●

If the rear lights of the trailer are not

correctly connected, the vehicle's electronic
system may be damaged.

●

If the trailer absorbs excessive electric cur-

rent, the vehicle's electronic system may be
damaged.

●

Never connect the trailer's electric system

directly to the electrical connections of the
tail lights or any other power sources. Only
use the connections intended for providing
electric current to the trailer.

Hitching and connecting a trailer

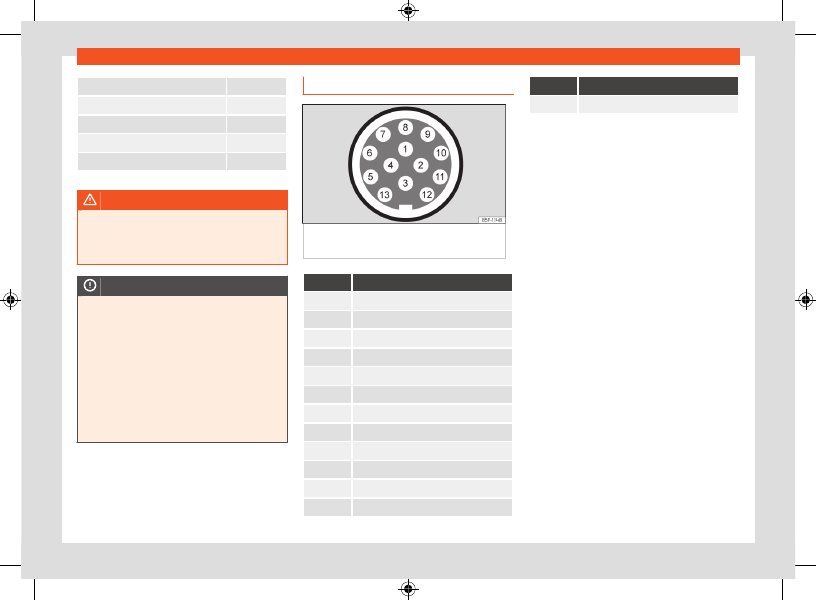

Fig. 143

Diagram: assignment of the pins of

the trailer's electrical socket.

Meaning

Left turn signal

Rear fog light

Earth for pins 1, 2, 4, 5, 6, 7 and 8

Right turn signal

Rear light, right

Brake lights

Rear light, left

Reverse lights

Permanent live

Live charge cable

Earth for pin 10

Unassigned

Meaning

Earth for pin 9

Power socket for trailer

The vehicle is fitted with a 13-pole power socket
for the connection between the trailer and the
vehicle. With the engine running, electrical devi-
ces on the trailer receive power from the elec-
trical connection (pin 9 and pin 10 of the trailer
power socket).
If the system detects that a trailer has been
connected, the consumers on the trailer will re-
ceive electricity through this connection (pins 9
and 10). Pin 9 has a permanent live. This pow-
ers, for example, the trailer's interior lighting.
Electrical devices such as a fridge in a caravan

only

receive electrical power if the engine is

running (through pin 10).
To avoid overloading the electrical system, you
cannot connect the ground wires of pin 3, pin 11
or pin 13.
If the trailer has a

7-contact connector

, you

will need to use an adapter cable. In this case
the function corresponding to pin 10 will not be
available.

Storing objects

229

Trailer mode

Tow cable

The tow rope must always be securely fixed to
the towing vehicle and loose enough so that the
vehicle can handle turns smoothly. However,
make sure that the cable does not rub on the
ground while driving.

Trailer tail lights

Always check the trailer's rear lights to ensure
they are working correctly and that they com-
ply with the relevant safety regulations. Make
sure that the maximum permissible power that
can be absorbed by the trailer is not exceeded

page 227

Include in the anti-theft alarm

The trailer is included in the anti-theft system if
the following conditions are met:

●

If the vehicle is factory-equipped with an

anti-theft alarm.

●

If the trailer is electrically connected to the

towing vehicle through the trailer power socket.

●

If the electrical systems of the vehicle and

trailer are in perfect condition and have no
faults or damage.

●

If the vehicle is locked with the key and the

anti-theft alarm is activated.
When the vehicle is locked, the alarm is trig-
gered if the electrical connection with the
trailer is cut off.

Before hitching or unhitching a trailer, always
turn off the anti-theft alarm. Otherwise, the tilt
sensor could cause the alarm to go off.

Trailers with LED tail lights

For technical reasons, trailers fitted with LED
rear lights cannot be connected to the anti-
theft alarm system.
When the vehicle is locked, the alarm does not
go off when the electrical connection with the
trailer is cut if it has rear lights with light-emit-
ting diodes.

If the

Eco

driving profile was selected when

hitching the trailer, this will automatically switch
to the

Normal

profile. If the system cannot de-

tect the attached trailer or if the towing bracket
has been retrofitted by an auto repair shop
other than SEAT, you must manually select the

Normal

profile before you start driving with a

trailer attached. To reconnect the

Eco

profile

once the trailer has been unhitched, switch the
ignition off and back on once.

WARNING

If the cables are improperly or incorrectly
connected, it may lead to an excessive
amount of current supplied to the trailer,
which can cause abnormalities in the entire
vehicle electronic system, as well as acci-
dents and serious injuries.

●

Ensure that any repairs that need to be

carried out on the electrical system are car-
ried out by a specialised workshop.

●

Never connect the trailer's electric system

directly to the electrical connections of the
tail lights or any other power sources.

WARNING

Contact between the pins of the trailer
power socket can cause short circuits, over-
loading of the electrical system or failure of
the lighting system, and consequently can
cause accidents and serious injuries.

●

Never connect the pins of the trailer power

socket to each other.

●

Make sure any work on bent pins is carried

out by a specialised workshop.

230

Storing objects

NOTICE

Do not leave the trailer connected to the ve-
hicle when parked; place it on its support
wheel or its supports. If the vehicle rises or
falls due, for example, to a variation of the
load or a burst tyre, increased pressure will
be placed on the towing bracket and the
trailer, and both the vehicle and the trailer
can be damaged.

Note

●

In case of anomalies in the electrical sys-

tems of the vehicle or trailer, as well as in the
anti-theft alarm system, have them inspec-
ted by a specialised workshop.

●

If the trailer accessories consume energy

through the power socket to the trailer and
the engine is turned off, the battery will dis-
charge.

●

If the vehicle battery is running low, the

electrical connection with the trailer will be
automatically cut.

Trailer loading

Technically permissible maximum trailer
weight and vertical load on the coupling de-
vice

The technically permissible maximum trailer
weight is the weight that the vehicle can tow

. The vertical load on the coupling is ex-

erted vertically from above on the hook of the
towing bracket.
The information on the maximum trailer weight
and vertical load on the coupling device con-
tained in the type plate of the towing bracket
are experimental values only. The correct fig-
ures for your specific model, which may be
lower than these figures, are given in the vehicle
documentation. The information in the vehicle
documentation takes precedence at all times.
To promote safety while driving, SEAT recom-
mends making the most of the maximum ver-
tical load technically permissible on the cou-
pling device

page 225

. An insufficient ver-

tical load has a negative influence on the be-
haviour of both the vehicle and trailer.
The vertical load increases the weight on the
rear axle, reducing the vehicle's carrying ca-
pacity.

Gross combination weight of the towing ve-
hicle and trailer

The gross combination weight is the actual
weight of the loaded vehicle plus the actual
weight of the loaded trailer.
In some countries trailers are classified into
distinct categories. SEAT recommends obtain-
ing information from a specialised workshop re-
garding which type of trailer is most suitable for
your vehicle.

Trailer loading

The weight of the towing vehicle and trailer
must be balanced. In order to do this, the load
must be as close as possible to the maximum
vertical load technically permissible on the
coupling point, and it must be evenly distributed
between the back and front of the trailer:

●

Distribute loads in the trailer so that heavy

objects are as near to the axle as possible or
above it.

●

Secure the trailer load properly.

Tyre pressure

Set the tyre pressure of the trailer tyres in ac-
cordance with the trailer manufacturer's rec-
ommendations.
When towing a trailer, inflate the tyres of the
towing vehicle with the maximum allowable
pressure

page 278

Storing objects

231

Trailer mode

This does not apply for vehicles with Full LED xenon headlights.

WARNING

If the maximum permissible axle weight, the
maximum load technically permissible on the
coupling point, the maximum authorised ve-
hicle weight or the gross combination weight
of the towing vehicle and trailer are excee-
ded, accidents and serious injuries may oc-
cur.

●

Never exceed the indicated values.

●

The actual weight on the front and rear

axles must never exceed the maximum per-
missible axle weight. The weight on the front
and rear axles must never exceed the maxi-
mum permissible weight.

WARNING

A shift in weight could jeopardize the stability
and security of the towing vehicle and trailer,
which could lead to accidents and serious
injuries.

●

Always load the trailer correctly.

●

Always secure the load properly using

belts or straps that are suitable and in good
condition.

Driving with a trailer

Adjusting the headlights

The front part of the vehicle may be raised
when the trailer is connected and the light may
dazzle the rest of the traffic.
Adapt the height of the headlights using the
headlight range adjuster

page 95

Specific features of driving with a trailer

●

If your trailer has an

overrun brake

, brake

gently at first

and then rapidly. This will prevent

the jerking that can be caused by the locking of
trailer wheels.

●

Due to the gross combination weight of the

towing vehicle and trailer, the braking distance
increases.

●

When going down a slope, engage a lower

gear (with a manual gearbox, or use the auto-
matic gearbox's tiptronic mode) to use engine
braking. Otherwise, the brake system could
overheat and even fail.

●

The trailer weight, as well as the gross combi-

nation weight of the towing vehicle and trailer,
change the centre of gravity and the properties
of the vehicle.

●

If the towing vehicle is empty and the trailer

is loaded, then the load distribution is incorrect.
Under these conditions, drive slowly and with
extra caution.

Hill starts with a trailer

Depending on the slope of the hill and the
combination weight of the towing vehicle and
trailer, the vehicle might start rolling backwards
slightly when you first start up.
For hill starts with a trailer hitched:

●

Press and hold the brake pedal.

●

Manual gearbox:

Depress the clutch pedal

fully and engage 1st gear.

Automatic gearbox:

Move the selector lever to

the

D/S

position.

●

Apply the handbrake.

●

Release the brake pedal.

●

Move off slowly.

Manual transmission:

release the clutch pedal

slowly.

●

Do not release the hand brake until the en-

gine has sufficient power to start driving

WARNING

If a trailer is pulled incorrectly, this may lead
to loss of control of the vehicle and serious
injury.

●

Driving with a trailer and transporting

heavy or large objects will change the vehi-
cle handling and braking distances.

●

Always drive cautiously and carefully.

Brake earlier than usual.

232

Storing objects

●

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions. Slow down, especially
when driving down hills or slopes.

●

Accelerate with particular care and cau-

tion. Avoid sudden braking and manoeuvres.

●

Take great care when overtaking. Reduce

speed immediately if you notice that the
trailer is swaying, however slightly.

●

Never attempt to “straighten” the towing

vehicle and trailer while accelerating.

●

Take into account the speed limit for vehi-

cles with a trailer, as it could be lower than
for vehicles without a trailer.

Stabilisation of the towing vehicle
and trailer combination

The stabilisation of the vehicle and trailer com-
bination is an additional function of the elec-
tronic stability control (ESC).
If the system detects that the trailer is weaving,
it intervenes to reduce the swaying of the trailer.

Vehicle and trailer combination stabilisation
requirements

●

The vehicle is factory-equipped with a tow-

ing bracket or has been retro-fitted with a com-
patible towing bracket.

●

The ESC and TCS are active. The control

lamp or is not lit up on the instrument clus-
ter.

●

The trailer is connected to the towing vehicle

through the trailer power socket.

●

The vehicle is travelling at over 60 km/h (ap-

prox. 37 mph).

●

The maximum vertical load technically per-

missible is not being exceeded on the coupling
device.

●

The trailer has a rigid draw bar.

●

If the trailer has brakes, it must be equipped

with a mechanical overrun brake.

WARNING

The enhanced safety provided by the elec-
tric stability control of the vehicle and trailer
should not lead you to take any risks that
could compromise your safety.

●

Adapt your speed and driving style at all

times to suit visibility, weather, road and
traffic conditions.

●

Accelerate with caution when the road is

slippery.

●

When adjusting any settings, stop acceler-

ating.

WARNING

The electric stability control for the vehicle
and trailer may not correctly detect all driv-
ing conditions.

●

When the ESC is switched off, the stabili-

sation of the towing vehicle and trailer is also
switched off.

●

The stability system does not always de-

tect light trailers, so it may not stabilise
these correctly.

●

When driving on surfaces with poor grip,

the trailer can even interfere with the stabil-
ity system.

●

Trailers with a high centre of gravity can tip

over without having previously weaved.

●

If a trailer is not attached, but a connector

is plugged into the power socket (e.g. instal-
lation of a bicycle rack with lights), repea-
ted automatic braking may occur in extreme
driving conditions.

Installing a rear carrier system or a
bicycle rack on the trailer hitch

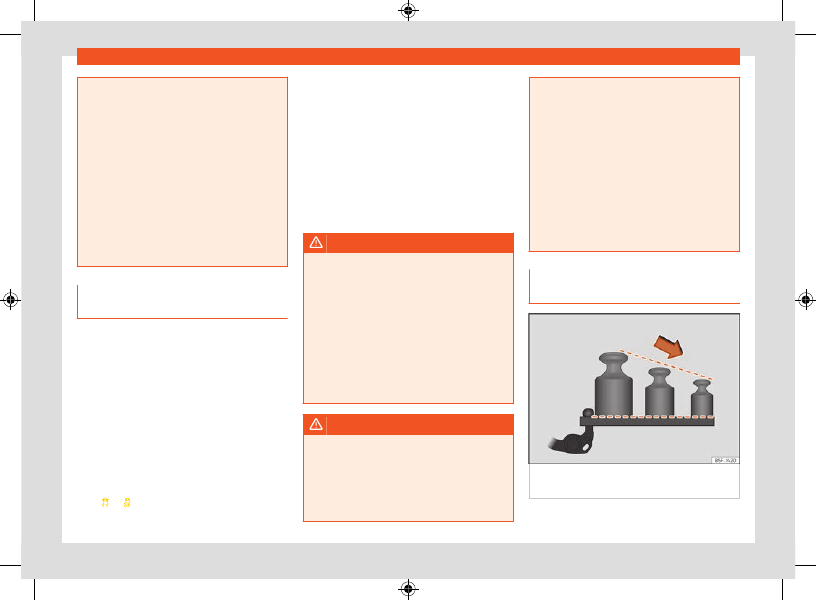

Fig. 144

Recommended weight distribution on

the rear support system.

Storing objects

233

Trailer mode

Examples of rear carrier systems are bicycle
racks or multi-purpose boxes that are installed
on the trailer hitch.
Only use rear carrier systems that have been
specified by the respective manufacturer for
the vehicle model, model year and version of
the vehicle in question

SEAT recommends the use of genuine SEAT
spare parts and accessories, which can be pur-
chased from the brand’s dealers. Install the rear
carrier system according to the manufacturer’s
installation instructions.
The load capacity results from the weight of the
rear carrier system and the weight of the load
carried on it.
The recommended maximum load capacity of
the rear carrier system installed on the trailer
hitch may be different from the maximum verti-
cal load on the specific vehicle coupling.
However, it is not permitted to exceed the max-
imum permitted vertical load on the tow hitch
(which depends on the model).
The load capacity is reduced due to the lever
effect that occurs the further the carrier system
is from the ball head.
Place heavy objects as close as possible to the
trailer hitch

Fig. 144

Maximum load capacity depending on the
vehicle

To find out the recommended load capacity for
your vehicle, check the maximum vertical load
on its coupling

page 310

. Please refer to the

following table for the load capacity.
In accordance with the UN-R-55 guideline,
SEAT recommends not carrying more bicycles
than recommended on the rear rack system.

Maximum vertical

load on the vehi-

cle's specific cou-

pling

Maximum

load ca-

pacity

Number of

bicycles

50 kg

55 kg

From 75 kg

75 kg

Maximum load overhang of the rear carrier
system

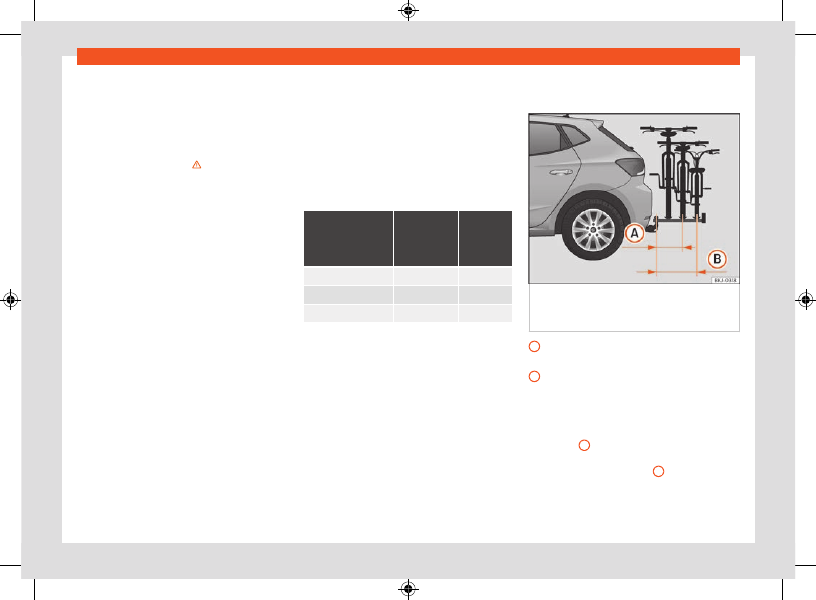

Fig. 145

Schematic representation of the

maximum load overhang of a bicycle rack for two
or three bicycles.

With up to 55 kg load capacity: 500 mm
(approx. 19.7 in)
With 75 kg load capacity: 700 mm (approx.
27.6 in)

The maximum overhang shall not exceed
500 mm from the centre of the ball head to
the to the centre of the rail of the last support

Fig. 145

for two-bicycle racks. In the case

of three-bicycle racks, the overhang must not
exceed 700 mm

Fig. 145

234

Storing objects

WARNING

The incorrect use of a rear carrier system in-
stalled on the tow hook can cause accidents
and injury.

●

Make sure that the carrier system is suita-

ble for your vehicle.

●

Read and observe the installation instruc-

tions of the rear carrier system manufacturer.

●

Never attach a rear carrier system below

the ball head of the trailer hitch. The system
could slip due to the shape of the hitch.

Note

Before setting off, SEAT recommends remov-
ing, to the extent possible, all accessories
from the load attached to the carrier system.
Examples of these accessories are baskets
and panniers, child seats or batteries. This
improves the aerodynamics and centre of
gravity of the rear carrier system.

Retrofitting a towing bracket

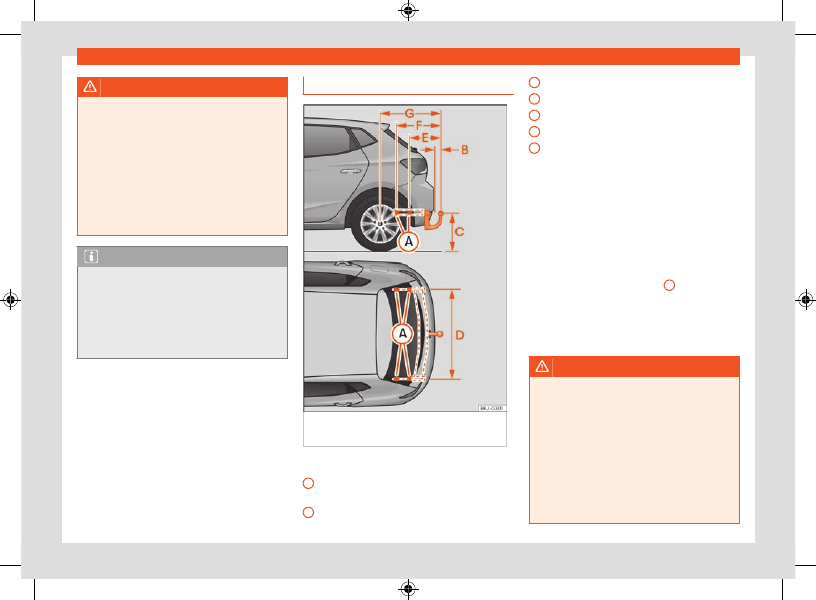

Fig. 146

Limits and attachment points for

retrofitting a towing bracket.

Distance measurements:

Attachment points (lower part of the vehi-
cle)

65 mm (minimum)

350 mm to 420 mm (fully laden vehicle)

1,025 mm

322 mm

448 mm

771.5 mm

SEAT recommends that towing brackets be ret-
rofitted at a specialised workshop. For exam-
ple, it may very well be necessary to adjust
the cooling system or mount thermal protection
plates. SEAT recommends visiting a SEAT deal-
ership for this.
If a towing bracket is retrofitted, the distance
specifications should always be kept in mind.
The distance between the centre of the ball
head and the road

Fig. 146

must never

be less than that indicated. This also applies
when the vehicle is fully loaded, including the
technically permissible maximum vertical load
on the coupling device.

WARNING

If the cables are improperly or incorrectly
connected, this may lead to malfunctions in
the entire vehicle electronic system, as well
as to accidents and serious injuries.

●

Never connect the trailer's electric sys-

tem to the electrical connections of the tail
lights or any other unsuitable power sources.
Only use suitable connectors to connect the
trailer.

●

The towing bracket should be retrofitted

only at a specialised workshop.
