Renault Megane (2023 year). Manual in english

Section 1: Getting to know your vehicle

Key, radio frequency remote control: general information, use, deadlocking

1.2

Card: general information, use, deadlocking

1.6

Locking and unlocking the doors

1.14

Opening and closing the doors

1.17

Automatic locking when driving

1.19

Headrests - Seats

1.20

Seat belts

1.29

Additional methods of restraint:

1.34

in addition to the front seat belts

1.34

to the rear seat belts

1.40

side protection

1.41

Child safety: general information

1.43

choosing a child seat mounting

1.46

fitting a child seat, general information

1.50

Child seats: attachment by seat belt or by ISOFIX system.

1.52

deactivating, activating the front passenger airbag. .

1.58

Audible and visual signals

1.61

Driving position

1.62

instrument panel:

1.66

trip computer

1.84

vehicle settings customisation menu

1.92

Steering wheel

1.95

Power-assisted steering

1.96

Clock and outdoor temperature

1.97

Rear view mirrors

1.99

Headlight beam adjustment

1.101

Exterior lighting and signals

1.102

Washers, wipers

1.108

Fuel tank (filling with fuel)

1.116

Reagent tank

1.119

1.1

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: general information (1/2)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

1 Locks all the opening elements.

activating equipment such as the

2 Unlocks all the opening elements.

electric windows or locking the

doors.

3 Ignition and front door key.

Also, in hot and/or sunny weather,

5 Locking/unlocking the boot only.

please remember that the tempera-

Remote control with switchblade

ture inside the passenger compart-

key:

ment increases very quickly.

4 Locking/unlocking using the switch-

Advice

RISK OF DEATH OR SERIOUS

blade key. To release the insert from

Avoid leaving the remote control in

INJURY.

its housing, press button 4, it comes

hot, cold or humid areas.

out automatically. Press button 4 and

guide the insert back into its housing.

The key must not be used for any

function other than those described

in the handbook (removing the cap

from a bottle, etc.).

1.2

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: general information (2/2)

Radio frequency remote

control operating range

This varies according to the surround-

ings: take care not to lock or unlock the

doors by inadvertently pressing the but-

tons on the remote control.

Note: if a door or the boot is open or not

properly shut, locking is not carried out.

A beep sounds and the hazard warning

Replacement and additional keys

lights and side repeaters do not flash.

or remote controls.

Interference

You must only contact an approved

Interference by factors in the immediate

dealer:

vicinity (external installations or the use

- If you need to replace a key it will

of equipment operating on the same

be necessary to take the vehicle

frequency as the remote control) may

and all of its keys to an approved

affect the operation of the remote con-

Dealer in order to initialise the

trol.

system.

- Depending on the vehicle, you

have the option of using up to

four remote controls.

Remote control unit failure

Make sure that the correct battery

type is being used, and that the

battery is in good condition and in-

serted correctly. These batteries

have a service life of approximately

two years.

How to change the battery ➥ 5.34.

1.3

CarManuals2.co

RADIO FREQUENCY REMOTE CONTROL UNIT: use

The remote control A can be used to

Unlocking the doors

lock or unlock the doors and boot.

Pressing button 2 unlocks the doors

It is powered by a battery which can be

and tailgate.

replaced. ➥ 5.34.

Unlocking is indicated by one flash of

the hazard warning lights and the indi-

Locking the doors

cator lights.

Press locking button 1.

Note: with the ignition on and the

The side indicator lights and hazard

engine running ➥ 2.3, buttons on the

warning lights flash twice to indicate

remote control are not activated.

that the doors have been locked.

Pressing the 1 button twice locks the

vehicle and enables the closure of the

front, rear windows and sunroof (de-

pending on the vehicle).

Note: if a door or the boot is open or not

Locking/unlocking only the

properly shut, locking is not carried out.

boot

A beep sounds and the hazard warning

Press the button 3 to lock/unlock the

lights and side repeaters do not flash.

boot only.

Driver’s responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone on

your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine,

activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside

the passenger compartment increases very quickly.

Depending on the vehicle, the door

RISK OF DEATH OR SERIOUS INJURY.

mirrors fold in/out automatically

when the vehicle is locked/unlocked

➥ 1.99.

1.4

CarManuals2.co

RADIO FREQUENCY REMOTE CONTROL UNIT: deadlocking

If the vehicle is equipped with a dead-

locking function, this allows you to lock

the opening elements and to prevent

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

To do this, press button 1 twice in quick

succession.

Locking is confirmed by two slow

flashes followed by three quick

flashes of the hazard warning lights

and side repeaters.

Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked ➥ 1.99.

Never use deadlocking if

someone is still inside the

vehicle.

1.5

CarManuals2.co

CARD: general information (1/3)

The card is used for:

Card operating range

- locking/unlocking the doors and tail-

This varies according to the surround-

gate (doors, tailgate) and the fuel

ings. It is important to make sure when

filler flap (see the following pages);

handling the card that you do not lock

- switching on the vehicle lighting re-

or unlock the doors by inadvertently

motely (refer to the following pages);

pressing the buttons.

- automatic remote closing of the elec-

Note: if a door or the boot is open or not

tric windows ➥ 3.28 and, depending

properly shut, locking is not carried out.

on the vehicle, the sunroof ➥ 3.30;

A beep sounds and the hazard warning

- starting the engine ➥ 2.5.

lights and side repeaters do not flash.

Battery life

Interference

Make sure that the correct battery type

Interference by factors in the immediate

is being used, and that the battery is in

vicinity (external installations or the use

good condition and inserted correctly.

1 Unlocking the doors and tailgate.

of equipment operating on the same

Its service life is approximately two

frequency as the card) may disrupt its

2 Locking all doors and tailgate.

years: it should be replaced when the

operation.

3 Locking/unlocking the boot only.

message “Keycard Battery Low” ap-

pears on the instrument panel ➥ 5.32.

4 Switching on the lighting remotely.

When the battery is flat, you can still

lock/unlock and start your vehicle.

➥ 1.14 ➥ 2.5.

1.6

CarManuals2.co

CARD: general information (2/3)

Advice

Avoid leaving the card in hot, cold or

Driver’s responsibility

humid areas.

when parking or stopping

Do not keep the card in a place

the vehicle

where it could be bent or dam-

Never leave an animal,

aged accidentally, such as in a back

child or adult who is not self-suffi-

pocket of a garment.

cient alone in your vehicle, even for

a short time.

Distance lighting function

They may pose a risk to themselves

or to others by starting the engine,

Pressing button

4 switches on the

activating equipment such as the

dipped beam headlights and the exte-

electric windows or locking the

rior lighting for approximately 20 sec-

doors, for example.

onds. This can be used, for example,

Replacement: need for an

to identify the vehicle from a distance

additional card

Also, in hot and/or sunny weather,

please remember that the tempera-

when parked in a car park.

If you lose your card or require an-

ture inside the passenger compart-

Pressing and holding the 4 button for

other, you can obtain one from an

ment increases very quickly.

approximately two seconds activates

authorised dealer.

RISK OF DEATH OR SERIOUS

the exterior lighting and a sound is

If a card is replaced, it will be neces-

INJURY.

emitted.

sary to take the vehicle and all its

Note: Pressing button 4 again switches

cards to an approved Dealer to ini-

off the lighting.

tialise the system.

You may use up to four cards per

vehicle.

1.7

CarManuals2.co

CARD: general information (3/3)

Fitting a hand strap 7

Insert the hand strap into the 8 com-

ponent and pass the end of the strap

Slide the rear casing

5 downwards

through the buckle.

while pressing on zone A.

Position the strap at the 6 opening and

close the cartridge.

Note: check that the diameter of the 7

strap cord fits the 6 opening.

Never insert screwdriver-type tools

into the 6 opening.

1.8

CarManuals2.co

“HANDS-FREE” CARD: use (1/4)

Deactivating/activating the

“hands-free” mode

Depending on the vehicle, you can de-

activate/activate:

- unlocking when approaching and

locking when moving away from the

vehicle;

- locking and unlocking by pressing on

the buttons on the door handle.

Driver’s responsibility

You can also disable/activate the sound

when parking or stopping

signal that is emitted upon locking when

the vehicle

moving away from the vehicle ➥ 1.92.

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

There are three ways to unlock/lock the

a short time.

vehicle:

They may pose a risk to themselves

- “hands-free”, when approaching and

or to others by starting the engine,

moving away from the vehicle;

activating equipment such as the

- “hands-free”, using the 2 button on

electric windows or locking the

the 1 handle of one of the front doors;

doors, for example.

- using the card in remote control

Also, in hot and/or sunny weather,

mode.

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

Do not store the card anywhere it

may come into contact with other

electronic equipment

(computer,

phone etc.) as this could hinder its

Never leave your vehicle

operation.

with the card inside.

1.9

CarManuals2.co

“HANDS-FREE” CARD: use (2/4)

Hands-free unlocking, when

Hands-free locking when

If the card has been within the detec-

tion area 3 for approximately 15 min-

approaching the vehicle;

moving away from the

utes, remote locking is disabled. To lock

vehicle

With the card in access zone 3, the ve-

the vehicle, press the 2 button on the 1

hicle will unlock. Unlocking is indicated

With the card on you, doors and lug-

handle or the 5 button on the card.

by one flash of the hazard warning

gage compartment door closed, move

The vehicle cannot be remotely locked

lights and the indicator lights.

away from the vehicle: it will lock auto-

if the card is within the area 4.

matically once you have left the access

zone 3.

Note: the distance at which the vehicle

locks depends on the surroundings.

To indicate that the vehicle has been

locked, the hazard warning lights

flash twice and then light up for ap-

Depending on the vehicle, the door

proximately four seconds, and a beep

mirrors fold in/out automatically

sounds in confirmation.

when the vehicle is locked/unlocked

➥ 1.99.

1.10

CarManuals2.co

“HANDS-FREE” CARD: use (3/4)

To indicate that the vehicle has been

locked, the hazard warning lights flash

twice and then light up for approxi-

mately four seconds.

Special features of the

unlocking system

Under certain circumstances, approach

unlocking is deactivated:

- after eight days of no use of the vehi-

cle;

- if the card remains close to the 3

area of the vehicle during approxi-

mately five minutes after the vehicle

“Hands-free” unlocking/

has been locked;

Special features relating to

locking using button 2

- after several passes in the vicinity of

hands-free locking

the 3 area of the vehicle and without

With the card in zone 3 and the vehi-

After locking in “hands-free” mode, you

the door being unlocked.

cle locked, press the button 2 on the

have to wait approximately three sec-

handle 1 of one of the two front doors:

Press button

2 (front door or boot

onds to be able to unlock the vehicle

the vehicle unlocks. Press the button 2

handle) or use the remote control card

again. During these three seconds, the

also unlocks all the doors and the tail-

(refer to the following pages) to unlock

door handles can be tried to make sure

gate.

the vehicle and reactivate the mode.

that the vehicle is locked properly.

Unlocking is indicated by one flash of

Note: if a door or the boot is open or not

the hazard warning lights and the indi-

properly shut, locking is not carried out.

cator lights.

A beep sounds and the hazard warning

lights and side repeaters do not flash.

Pressing the 2 button again locks the

vehicle.

1.11

CarManuals2.co

“HANDS-FREE” CARD: use (4/4)

Locking using the card

With the doors and boot closed, press

button 5: the vehicle locks.

To indicate that the vehicle has been

locked, the hazard warning lights flash

twice and then light up for approxi-

mately four seconds.

Pressing the 5 button twice locks the

vehicle and enables the closure of the

front, rear windows and sunroof (de-

pending on the vehicle).

Note:

- the maximum distance at which the

vehicle locks depends on the sur-

Using the card as a remote

roundings;

If, while the engine is running, a door

is opened and closed, and the card is

control

- if a door or the boot is open or not

no longer in the zone 4, the message

properly shut, locking is not carried

Unlocking with the card

“Keycard Not Detected” indicates that

out. A beep sounds and the hazard

the card is not inside the vehicle. This

Press button 7.

warning lights and side repeaters do

will, for example, prevent you from driv-

Unlocking is indicated by one flash of

not flash.

ing away after dropping off a passenger

the hazard warning lights and the indi-

who has kept the card on them.

cator lights.

The warning disappears when the card

is detected again.

Locking/unlocking only the

boot

Press the button 6 to lock/unlock the

boot only.

The card buttons are deactivated

when the engine is running.

1.12

CarManuals2.co

CARD: deadlocking

To activate deadlocking

Press button 2 twice in quick succes-

sion.

Locking is confirmed by two slow

flashes and three quick flashes of the

hazard warning lights and side indica-

tor lights.

Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked ➥ 1.99.

To deactivate deadlocking

Press the 1 button.

If the vehicle is equipped with a dead-

The hazard warning lights flash once

locking function, this allows you to lock

to indicate that the doors have been un-

the opening elements and to prevent

locked.

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

Never use deadlocking if

someone is still inside the

vehicle.

1.13

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (1/3)

If the remote control or,

depending on the vehicle, the

card does not work

In some cases, the radio frequency

remote control or the card may not

work:

- card or radio frequency remote con-

trol battery worn or run flat, vehicle

battery flat etc;

- use of appliances operating on the

same frequency as the card (mobile

phone, etc.);

- vehicle located in a high electromag-

netic radiation zone.

It is then possible:

The card’s built-in key

- depending on the vehicle, use the

radio frequency remote control or

The integrated 2 key is used to lock or

the emergency key integrated in the

unlock the front left-hand door if the

card to unlock the front left-hand

card does not work.

door;

- to lock each of the doors manually;

Access with key 2

- to use the interior door locking/un-

Slide the rear casing

1 downwards

locking control (refer to the following

while pressing on zone A.

pages).

1.14

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (2/3)

Using the key integrated in the card

Vehicles with key/remote

Locking the doors manually

- Insert the tip of the key 2 into the

control

Turn screw 6 with the door open (using

notch 3 at the bottom of the cover B

the end of the key) and close the door.

on the front left-hand door;

Using the key

This means that the doors are then

- Move it upwards to remove the

Insert the key 5 into the lock 4 and lock

locked from the outside.

cover B;

or unlock the front left-hand door.

- Insert the key 2 into the lock and lock

The doors may then only be opened

or unlock the front left-hand door.

from the inside or by using the key in

the front left-hand door.

Once you are inside the vehicle, put the

key back in its casing in the card.

1.15

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (3/3)

If transporting an object with the tail-

Door and tailgate status

gate open, you can still lock the doors:

indicator

with the engine stopped, press and

When the ignition is on, the indicator

hold switch 7 for more than five sec-

light integrated in switch 7 informs you

onds to lock the other doors.

of the status of the doors and tailgate:

- indicator light on, the doors and tail-

Locking the opening

gate are locked;

elements without the card or

- indicator light off, the doors and tail-

the key

gate are unlocked.

For example, in the event of a dis-

When you lock the doors from the out-

charged battery or the card or key tem-

side, the indicator light remains lit for a

porarily not working etc.

moment, and then goes out.

With the engine switched off and a

door or tailgate open, press and hold

switch 7 for more than five seconds.

Interior locking/unlocking

door control

When the door is closed, all the doors

and the tailgate will be locked.

Switch 7 controls the doors, the boot

and the fuel filler flap simultaneously.

Unlocking the vehicle from the outside

Never leave your vehicle

is only possible with the card in the ve-

If a door or the boot is open or not prop-

with the key or card inside.

hicle access zone or by using the key.

erly shut, locking is not carried out. A

beep sounds and the hazard warning

lights and side repeaters do not flash.

Driver’s responsibility

If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

1.16

CarManuals2.co

OPENING AND CLOSING THE DOORS (1/2)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

Opening the doors from the

Opening from the inside

activating equipment such as the

outside

electric windows or by locking the

Pull on the handle 2.

doors.

With the doors unlocked or, depending

on the vehicle, the card on you, hold the

Also, in hot and/or sunny weather,

handle 1 and pull it towards you.

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

1.17

CarManuals2.co

OPENING AND CLOSING THE DOORS (2/2)

Lights-on reminder buzzer

A warning beep sounds when the driv-

er’s door is opened to warn you that the

lights are still on.

Door/tailgate open buzzer

Child safety

At a standstill, warning light 3 lights

Move lever 5 and check from the inside

up on the instrument panel alongside

that the doors are securely locked, to

warning light 4, indicating the opening

prevent the rear doors being opened

element(s) (door, boot) open or incor-

from the inside.

rectly closed.

Once the vehicle reaches a speed of

approximately 12 mph (20 km/h), a

warning light indicates if the door(s)

or luggage compartment are open

or not properly closed, along with the

message “WARNING: Boot Open” or

“WARNING: Door Open” and a beep

As a safety precaution,

will sound for around 40 seconds or

the doors should only be

until the door/luggage compartment is

opened or closed when the

closed.

vehicle is stationary.

1.18

CarManuals2.co

AUTOMATIC LOCKING WHEN DRIVING

Activating/deactivating the

Operating faults

function

If you experience an operating fault (no

To switch it on: with the vehicle at a

automatic locking, the indicator light in-

standstill and the engine running, press

corporated in switch 2 does not light up

switch 2 until a beep sounds.

when trying to lock the doors and boot,

etc.), make sure that locking has not

To deactivate: with the vehicle at a

been deactivated by mistake and check

standstill and the engine running, press

that the doors and boot are properly

switch 2 until two beeps sound.

closed. If they are correctly locked and

You can also activate/deactivate the

the fault is still present, contact an au-

function from the multimedia screen

thorised dealer.

menu 1 ➥ 1.92.

Operating principle

After the vehicle is started, the system

automatically locks the doors when you

are driving at approximately 6 mph

(10 km/h) and over.

The door can be unlocked:

- by pressing central door unlocking

switch 2.

- at a standstill, by opening a front

door from inside the vehicle.

Note: if a door is opened or closed, it

Driver’s responsibility

will automatically lock again when the

If you decide to keep the

vehicle reaches a speed of 6 mph

doors locked when you are

(10 km/h).

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

1.19

CarManuals2.co

FRONT HEADRESTS

To adjust the angle of the

headrest

If your vehicle is thus equipped, move

the A section towards or away from you

to the required position

To remove the headrest

Raise the headrest to its highest po-

sition

(tilt the seatback backwards if

necessary). Press button 2 and lift the

headrest to release it.

To refit the headrest

Check that the headrest rods are

To raise the headrest

clean 1. The rod with a notch should be

Pull the headrest upwards to the de-

inserted into the slot 3 fitted with a lock-

sired height. Check that the bonnet is

ing button 2. Insert the headrest rods

correctly locked.

into the holes (tilt the seatback back-

wards if necessary). Press the 2 button

and push in the headrest as far as it will

To lower the headrest

go, then adjust it to the desired height.

Press button 2 and guide the headrest

Check that each rod 1 on the seatback

down to the desired height. Check that

is securely locked.

The headrest is an impor-

the bonnet is correctly locked.

tant safety component:

ensure that it is in place and

in the correct position. The

distance between your head and the

headrest and the distance between

the head and section A should be

as small as possible.

1.20

CarManuals2.co

FRONT SEATS WITH MANUAL CONTROL (1/3)

Settings

To tilt the seatback

Lift handle 3 and tilt the seatback to the

To move the seat forwards or back

desired position. Release the handle at

Lift handle 1 to release. Release the

the desired position and make sure that

For safety reasons, carry

handle at the desired position and

it is locked.

out any adjustments while

make sure that it is locked.

the vehicle is stationary.

To adjust the seat’s lumbar position

We would advise you not

To raise or lower the seat base

Depending on the vehicle:

to recline the seatbacks too far to

Move lever 2 as many times as neces-

ensure that the effectiveness of the

- move the switch 4 forwards, back-

sary upwards or downwards.

seat belts is not reduced.

wards, up or down;

Nothing should be placed on the

floor (area in front of driver) as such

- lower the handle 5 to increase the

objects may slide under the pedal

support and lift it to decrease it.

during braking manoeuvres, thus

obstructing its use.

1.21

CarManuals2.co

FRONT SEATS WITH MANUAL CONTROL (2/3)

When using the passenger seat in table

position, you must not use the two rear

seats immediately behind it.

After making adjustments,

make sure that the seat-

backs are correctly locked

in place.

Table function

Depending on the vehicle, the passen-

ger seatback may be folded down onto

When the front seatback is

the seat base to create a table.

in the table position, you

- Lower the headrest;

must deactivate the front

- move the seat back;

passenger airbag ➥ 1.58.

- lift the lever 3 and tilt the seatback

forwards as far as possible;

Risk of serious injury caused by

- pull the handle 6 and fully lower the

items resting on the seatback table

seatback.

which may be dislodged when the

airbagairbag is deployed.

The label (on the dashboard) and

the markings (on the windscreen)

remind you of these instructions.

For your safety, attach any

For safety reasons, carry

transported objects when

out any adjustments when

the seat is in the table po-

the vehicle is not being

sition.

driven.

1.22

CarManuals2.co

FRONT SEATS WITH MANUAL CONTROL (3/3)

Repositioning the seat

Heated seats

Make sure that nothing prevents the

With the ignition on:

seat from moving.

- pressing the switch 7 on the required

- Pull the handle 6 and raise the seat-

seat for the first time activates the

back, ensuring that it locks firmly in

heating system at maximum power.

place.

Both integrated switch warning lights

- Reposition the seat base.

come on;

- a second press decreases the heat-

ing to minimum power. One inte-

grated warning light comes on;

- pressing for the third time turns the

heating off.

1.23

CarManuals2.co

DRIVER’S SEAT WITH ELECTRIC CONTROLS (1/2)

On vehicles that are equipped, the

Adjusting the seat position

switch 1 can be used to access the

To move the seat forwards or back

“Seats” menu on the multimedia screen

Move switch 4 forwards or backwards.

(see following pages).

To raise or lower the seat base

Move the back of switch 4 up or down.

Adjusting the seatback

To tilt the seat base

To tilt the seatback, move the top of

(depending on the vehicle)

switch 2 forwards or backwards.

Move the front of switch 4 upwards or

downwards.

Adjusting the lumbar support

on the driver’s seat

Move the switch 3 forwards, back-

wards, up or down.

1.24

CarManuals2.co

DRIVER’S SEAT WITH ELECTRIC CONTROLS (2/2)

For safety reasons, carry

Heated seats

out any adjustments when

the vehicle is not being

With the ignition on:

driven.

- Pressing the switch 5 on the required

We would advise you not to recline

seat for the first time activates the

the seatbacks too far to ensure that

heating system on high. Both switch

the effectiveness of the seat belts is

indicator lights are illuminated;

not reduced.

- pressing the switch for the second

No object should be placed on the

time changes the heating to low.

floor

(in front of the driver). such

Only one indicator light is illumi-

objects may slide under the pedals

nated;

during sudden braking manoeuvres

- pressing for the third time turns the

and obstruct their use.

heating off.

1.25

CarManuals2.co

FRONT SEATS: Functions (1/3)

Browse the “Driver” menu to:

- select the massage type

(Tonic,

Massage

Relaxing or Lumbar);

- adjust the intensity (+ or -);

Tonic

Relaxing Lumbar

- adjust the speed (+ or -);

Intensity

- reset the settings selected on the

Speed

dropdown menu 2;

- activate/deactivate the massage

seat (ON or OFF).

Note: the mode selected in the MULTI-

SENSE menu may affect the configura-

tion of the massage ➥ 3.2.

A number of seat functions are avail-

Massage

able from the multifunction screen, de-

You can activate the driver’s seat mas-

pending on the vehicle.

sage function.

On equipped vehicles, the switch 1 pro-

Refer to the multimedia instructions for

vides direct access to the “Seats” menu

information on accessing the settings.

on the multimedia screen.

Refer to the multimedia instructions for

more information.

1.26

CarManuals2.co

FRONT SEATS: Functions (2/3)

Easy driver access

Press ON or OFF to activate or deacti-

vate this function.

When this function is activated, the seat

automatically moves back when the

driver leaves the vehicle, and returns

to its position when the start button is

pressed.

Visual feedback

Easy access driver

Easy passenger access

Courtesy for passenger

Settings

Refer to the multimedia instructions for

information on accessing the settings.

You can activate or deactivate the fol-

lowing elements:

- easy driver access;

- visual feedback of current move-

ment.

1.27

CarManuals2.co

FRONT SEATS: Functions (3/3)

Position

It is possible to store the driving posi-

tion of the driver seat.

The driving position includes the set-

tings for the seat base and seatback.

The driving position can be stored and

Save

Recall

recalled by pressing the buttons:

Visual feedback

- hands-free card detected;

- when the driver’s door is opened.

Easy access driver

Easy passenger access

Courtesy for passenger

Storing your driving position

Recalling the driving position

Adjust the driver’s seat using

Refer to the multimedia instructions for

switches 3, 4 and 5 (refer to previous

information on recalling the driving po-

page).

sition.

Refer to the multimedia instructions for

Note: recall of the stored driving po-

information on accessing the stored

sition is interrupted if one of the seat

driving position.

adjustment buttons is pressed during

recall.

The position of the driver is then stored.

When driving, it is not possible to

recall a driving position.

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

1.28

CarManuals2.co

SEAT BELTS (1/5)

Always wear your seat belt when trav-

Before starting, first adjust your driv-

elling in your vehicle. You must also

ing position, then ask all occupants

comply with the legislation of the par-

to adjust their seat belts to ensure

ticular country you are in.

optimum protection.

Adjusting your driving

position

Sit well back in your seat (having

removed your coat or jacket etc.).

This is essential to ensure your back

Make sure that the rear bench seat

is positioned correctly;

is locked in position correctly so that

adjust the distance between the

the rear seat belts will operate cor-

seat and the pedals. Your seat

rectly. ➥ 3.44.

should be as far back as possible

while still allowing you to fully de-

press the pedals. The seatback

Adjusting the seat belts

should be adjusted so that your arms

Sit with your back firmly against the

Incorrectly adjusted or

are slightly bent when you hold the

seatback.

twisted seat belts may

steering wheel;

cause injuries in the event

Shoulder strap 1 should be as close as

adjust the position of your head-

of an accident.

possible to the base of the neck but not

rest. For maximum safety, your head

must be as close as possible to the

on it.

Use one seat belt per person,

whether child or adult.

headrest;

Lap belt 2 should be worn flat over the

adjust the height of the seat. This

thighs and against the pelvis.

Even pregnant women should wear

adjustment allows you to select the

a seat belt. In this case, ensure that

The belt should be worn so that it is

seat position which offers you the

the lap belt is not exerting too much

as close as possible to your body, i.e.:

best possible view ;

pressure on the abdomen, but do

avoid wearing heavy clothing or keep-

adjust the position of the steering

not allow any slack.

ing bulky objects under the belts, etc.

wheel.

1.29

CarManuals2.co

SEAT BELTS (2/5)

Driver’s seat belt reminder

and, depending on the vehi-

cle, front passenger seat belt re-

minder

This appears on the central display

when the ignition is switched on and if

the driver’s or front passenger’s seat

belt (as long as the passenger seat is

occupied) is not fastened. Depending

on the vehicle, if the seat is occupied

and one of these seat belts is not fas-

tened or becomes unfastened while

the vehicle is moving at a speed over

approximately 12 mph (20 km/h), the

warning light flashes and a beep

Locking

sounds for approximately 120 seconds.

Unwind the belt slowly and smoothly

Note: an object placed on the passen-

and ensure that buckle 3 locks into

ger seat base may activate the warning

catch 5 (check that it is locked by pull-

light in some cases.

ing on buckle 3).

If the belt jams, allow it to return slightly

Unlocking

before attempting to unwind it again.

Press button 4 and the seat belt will be

If your seat belt is completely jammed,

rewound by the inertia reel. Guide the

pull slowly, but firmly, so that just over

belt.

3 cm unwinds. Allow it to return slightly

before attempting to unwind it again.

If there is still a problem, contact an ap-

proved dealer.

1.30

CarManuals2.co

SEAT BELTS (3/5)

When the vehicle speed is below ap-

proximately

12 mph (20 km/h), the

graphic 6 appears during approximately

60 seconds every time one of the rear

seat belts is fastened or unfastened.

If one of the rear seat belts is unfas-

tened during the journey, the ß

warning light flashes on the central

display and a beep sounds for around

30 seconds when the vehicle speed

reaches or exceeds 12 mph (20 km/h).

In addition, the graphic 6 is displayed

for at least 60 seconds and the indica-

tor for the seat concerned changes to a

red symbol.

Rear seat belt reminder (depending

Always make sure that the rear pas-

on vehicle)

sengers are properly fastened and that

The 6 graphic is displayed on the in-

the number of fastened seat belts in-

strument panel when the ignition is

dicated corresponds to the number of

switched on. This informs the driver of

rear seats occupied.

the fastening status of each of the rear

seat belts every time:

- the ignition is switched on;

- opening a door;

- fastening or unfastening of a rear

seat belt.

Understanding the graphic 6:

- indicator green: seatbelt fastened;

– indicator red: seatbelt unfastened.

1.31

CarManuals2.co

SEAT BELTS (4/5)

Adjusting the height of the

Rear seat belts 8

front seat belts

The belts are locked, unlocked and

Use button 7 to adjust the seat belt

adjusted in the same way as the front

height so that the shoulder strap is

belts.

worn as shown previously. Press the 7

control and raise or lower the seat belt.

Make sure that the seat belt is locked

in position correctly after you have ad-

justed it.

Check that the rear seat

belts are positioned and

operating correctly each

time the rear bench seat is

moved.

1.32

CarManuals2.co

SEAT BELTS (5/5)

The following information applies to the vehicle’s front and rear seat belts.

- No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and

their mountings. For special operations (e.g. fitting child seats), contact an authorised dealer.

- Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too

loosely may cause injury in the event of an accident.

Never wear the shoulder strap under your arm or behind your back.

–

Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around

them.

- The belt should never be twisted.

–

Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as

they show any signs of wear.

When positioning the rear bench seat, make sure that the seat belts and buckles are correctly positioned so that they can

be used properly.

Make sure that the buckle is inserted into the appropriate catch.

–

Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-

cured.

Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-

jects).

1.33

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)

Depending on the vehicle, they are

- Have the entire restraint

composed of:

system checked following

- seat belt inertia reel pretension-

an accident.

ers;

- No operation whatso-

- central seat belt pretensioners;

ever is permitted on any part

- chest-level load limiter;

of the system

(pretensioners,

- airbags driver and passenger

airbags, computers, wiring) and

front.

the system components must not

be reused on any other vehicle,

These systems are designed to act in-

even if identical.

dependently or together when the vehi-

cle is subjected to a frontal impact.

Only qualified personnel from our

Network may work on the airbags;

Depending on the severity of the

otherwise the system may trigger

impact, the system can trigger:

accidentally and cause injury.

seat belt locking;

Pretensioners

The electric trigger system may

–

the seat belt inertia reel pretensioner

only be tested by a specially

The pretensioners hold the seat belt

(which engages to correct seat belt

trained technician using special

against the body, holding the occupant

slack);

equipment.

more securely against the seat, thus in-

the lap belt pretensioners to hold the

When the vehicle is scrapped,

creasing the seat belt’s efficiency.

occupant in his seat;

contact an approved dealer for

In the event of a severe frontal impact

disposal of the pretensioner and

the front airbag.

and if the ignition is switched on, the

airbags gas generators.

system may engage the following de-

pending on the force of the impact:

- the seat belt inertia reel preten-

sioner 1 which instantly retracts the

seat belt;

- the lap seat belt inertia reel preten-

sioner 2 on the front seats.

1.34

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/6)

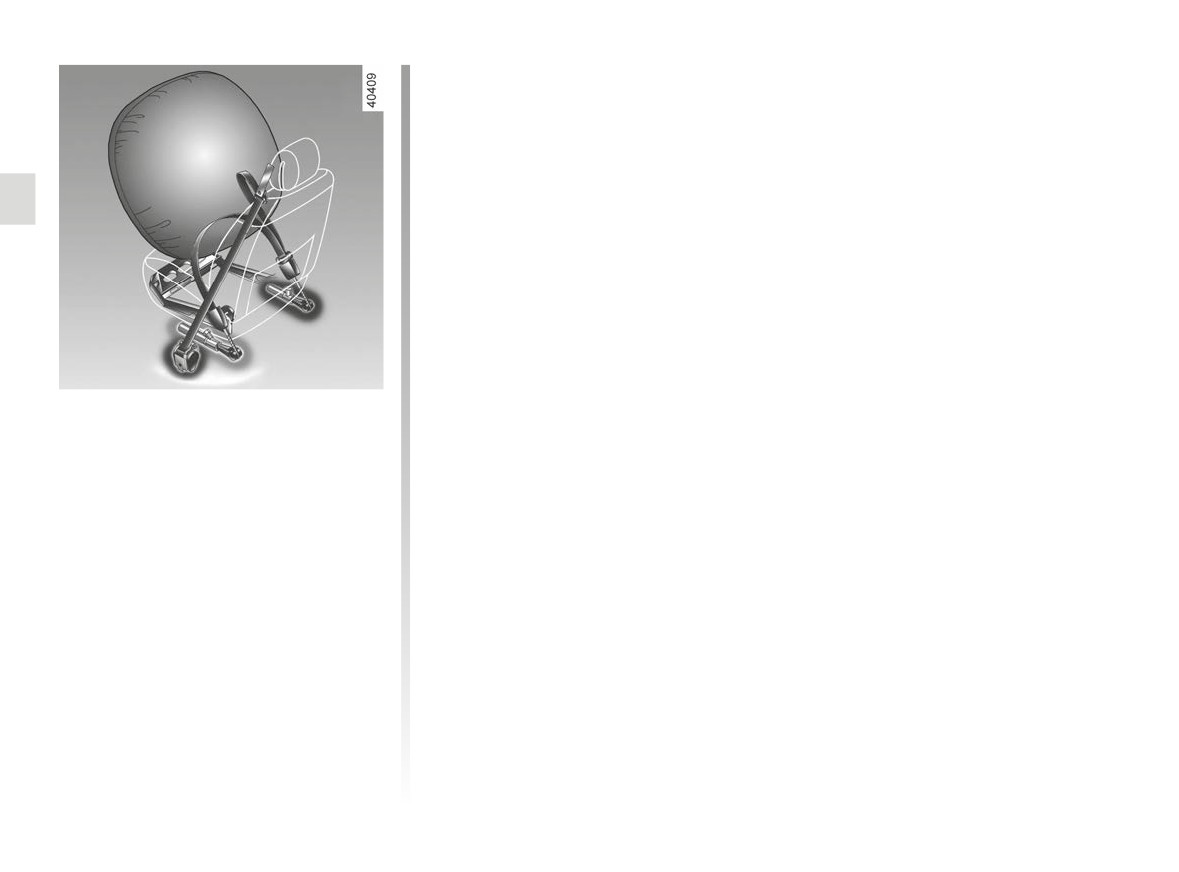

Load limiter

driver and passenger front

Above a certain severity of impact, this

Airbags

mechanism is used to limit the force of

Fitted to the driver and passenger

the belt against the body so that it is at

sides.

an acceptable level.

The presence of this equipment is indi-

cated by the word “airbag" on the steer-

ing wheel, dashboard (in the area of the

airbag A) and, depending on the vehi-

cle, a label on the lower section of the

windscreen.

Each airbag system consists of:

an airbag and gas generator fitted on

the steering wheel for the driver and

in the dashboard for the passenger;

an electronic unit for system monitor-

ing which controls the gas generator

electrical trigger system;

remote sensors;

–

a single warning light å

on the

The airbag system uses py-

instrument panel.

rotechnic principles. This

explains why, when the

airbag inflates, it will gener-

ate heat, produce smoke (this does

not mean that a fire is about to start)

and make a banging noise. In a situ-

ation where an airbag is required, it

will inflate immediately and this may

cause some minor, superficial graz-

ing to the skin or other problems.

1.35

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)

Operating faults

This warning light comes on

when the engine is started and then

goes out after approximately three sec-

onds.

If it does not come on when the ignition

is switched on or if it stays on, there is a

fault in the system.

Contact your approved Dealer as soon

as possible.

Your protection will be reduced until this

fault is rectified.

Operation

This system is only operational when

the ignition is switched on.

In a severe frontal impact, the airbags

inflate rapidly, cushioning the impact

of the driver's head and chest against

the steering wheel and of the front pas-

senger against the dashboard. The air

bags then deflate immediately so that

the passengers are not in any way hin-

dered from leaving the vehicle.

1.36

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

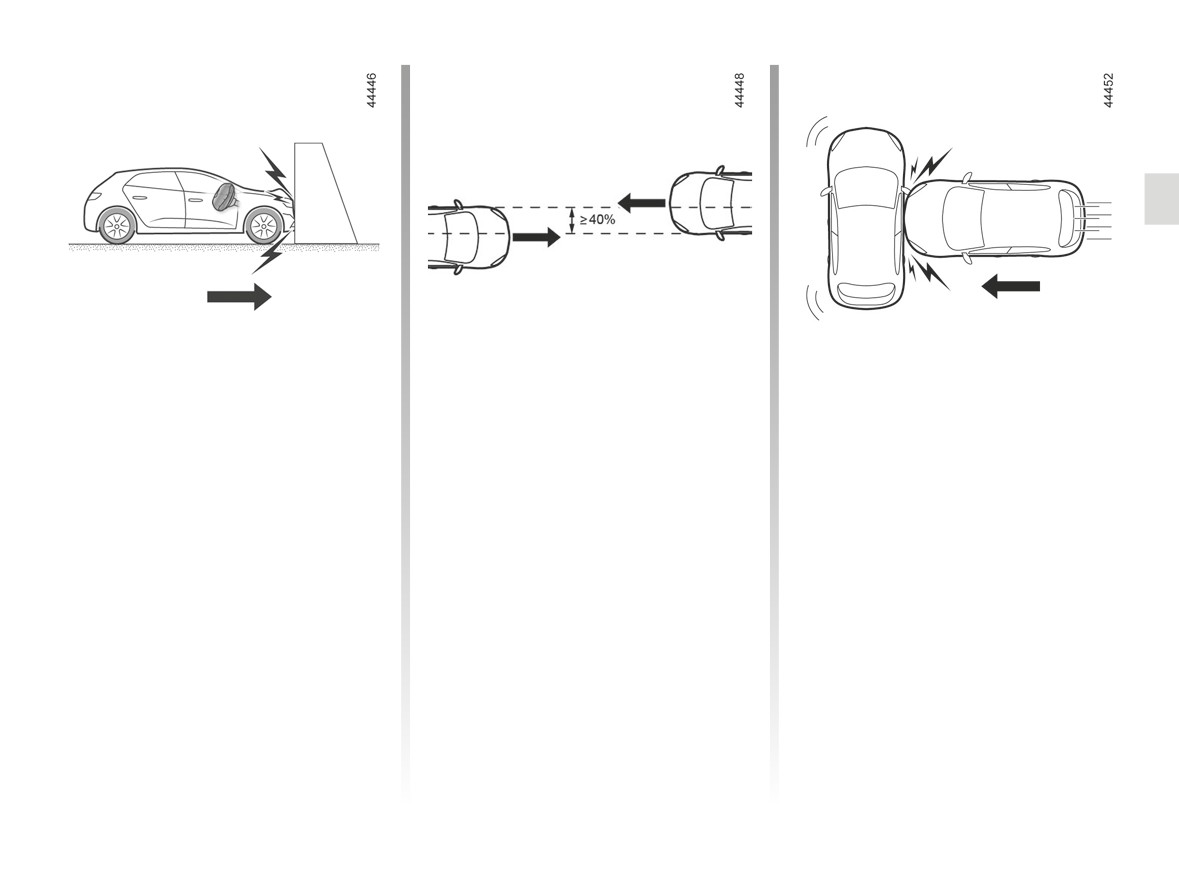

The following cases trigger the pre-

In a frontal impact with another vehi-

In a side impact with another vehicle

tensioners or airbags.

cle of an equivalent or higher category,

of an equivalent or higher category, at

with an impact area equal to or greater

an impact speed equal to or greater

In a frontal impact against a rigid

than 40%, where the speed of both ve-

than 31 mph (50 km/h).

(non-deformable) surface at an impact

hicles is equal to or greater than

speed equal to or greater than 16 mph

25 mph (40 km/h).

(25 km/h).

1.37

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

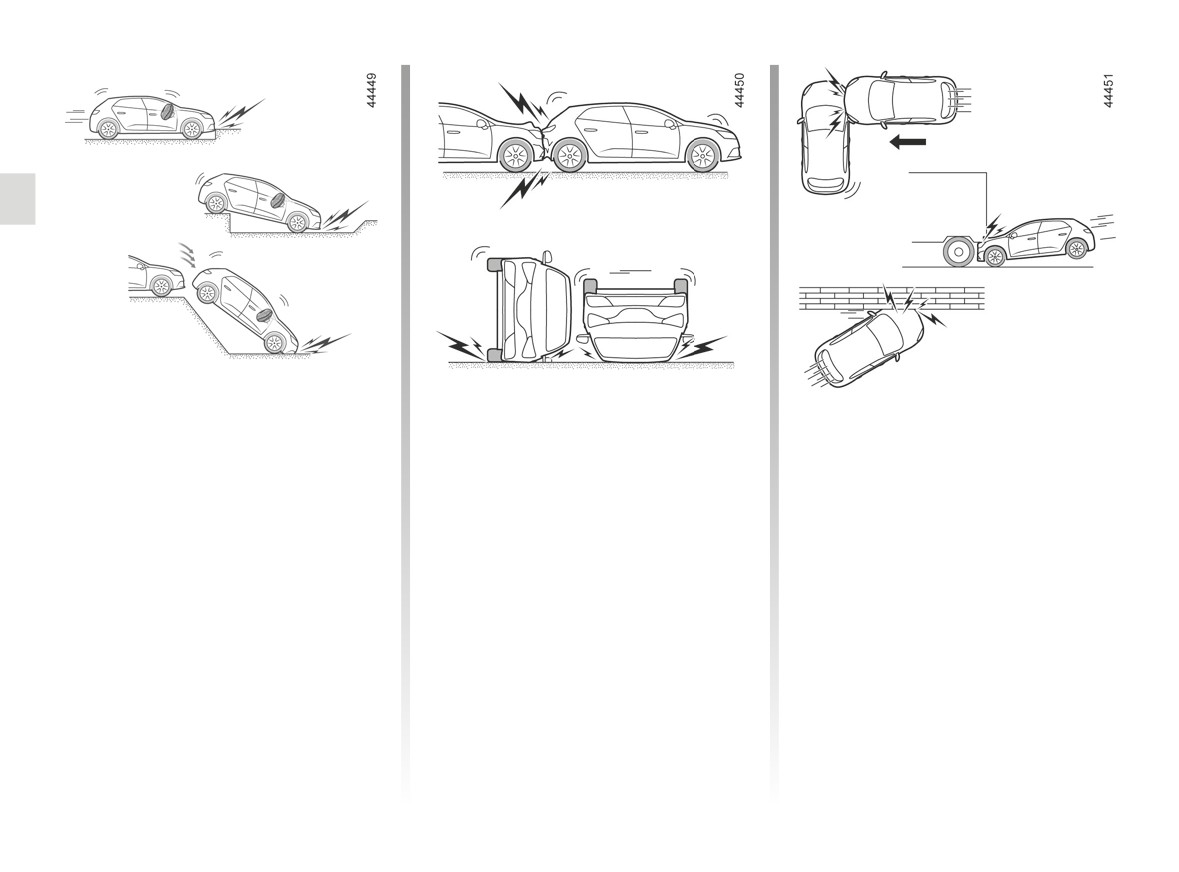

In the following examples, the pre-

In the following examples, there is a

- side impact to the front or rear of the

tensioners or the airbags could op-

risk that pretensioners orairbags may

vehicle;

erate:

not be triggered:

- frontal impact, under the tail of a

- impact under vehicle such as pave-

- rear impact, however severe;

lorry;

ment;

- the vehicle overturning;

- frontal impact against an obstacle

- potholes;

with a sharp angle;

– ...

- drop or hard landing;

- ...

- stones;

– ...

1.38

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (6/6)

All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

Warnings concerning the driver’s airbag

- Do not modify the steering wheel or the steering wheel boss.

- Do not cover the steering wheel boss under any circumstances.

- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.

- The steering wheel must not be removed (except by qualified personnel from our Network).

- Do not sit too close to the steering wheel when driving: sit with your arms slightly bent (see “Adjusting your driving position”

➥ 1.29). This will allow sufficient space for the air bag to deploy correctly and to be fully effective.

Warnings concerning the passenger airbag

- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.

- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).

- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may be sustained.

In general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.)

- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure

the protection of the passenger in the event of an impact.

A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE

RESTRAINT SYSTEMS IN ADDITION TO THE FRONT PASSENGER SEATBELT ARE DEACTIVATED ➥ 1.58.

1.39

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS

Force limiter

Above a certain severity of impact, this

mechanism is used to limit the force of

the belt against the body so that it is at

an acceptable level.

- Have the entire restraint

system checked following

an accident.

- No operation whatsoever

is permitted on any part of the

system (air bags, electronic con-

trol units, wiring) and the system

components must not be reused

on any other vehicle, even if iden-

tical.

- Only qualified personnel from

our Network may work on the air

bags; otherwise the system may

trigger accidentally and cause

injury.

1.40

CarManuals2.co

SIDE PROTECTION DEVICES

Side air bags

These air bags are fitted to the front

seats and are activated at the sides of

the seats (door side) to protect the oc-

cupants in the event of a severe side

impact.

Curtain air bags

These are airbags fitted along the sides

of the vehicle in the ceiling which trigger

along the front and rear door side win-

dows to protect the passengers in case

of a severe side impact.

Warning concerning the side air bag

- Fitting seat covers: seats equipped with an air bag require covers

specifically designed for your vehicle. Contact an approved Dealer to find

out if these covers are available. The use of any covers other than those

designed for your vehicle (including those designed for another vehicle) may

affect the operation of the air bags and reduce your protection.

- Do not place any accessories, objects or even pets between the seatback, the

door and the internal fittings. Do not cover the seatback with any items such as

clothes or accessories. This may prevent the air bag from operating correctly

or cause injury when the air bag is deployed.

Depending on the vehicle, a mark-

- No work or modification whatsoever may be carried out on the seat or internal

ing on the windscreen informs you

fittings, except by qualified personnel from an approved dealer.

of the presence of additional means

of restraint (airbags, pretensioners,

etc.) in the passenger compartment.

1.41

CarManuals2.co

ADDITIONAL METHODS OF RESTRAINT

All of the warnings below are given so that the air bag is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when the air bag inflates.

The air bag is designed to complement the action of the seat belt. Both the air bags and seat belts are integral parts of

the same protection system. It is therefore essential to wear seat belts at all times. If seat belts are not worn, the occu-

pants are exposed to the risk of serious injury in the event of an accident. It may also increase the risk of minor super-

ficial injuries occurring when the air bag is deployed, although such minor injuries are always possible with air bags.

If the vehicle should overturn or suffer a rear impact, however severe, the pretensioners and air bags are not always triggered.

Shocks to the underbody of the vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.

- No work or modification whatsoever may be carried out on any part of the air bag system (air bags, pretensioners, compu-

ter, wiring harness, etc.), except by qualified personnel from an approved dealer.

- To ensure that the system is in good working order and to avoid accidental triggering of the system which may cause injury,

only qualified Network personnel may work on the air bag system.

- As a safety precaution, have the air bag system checked if your vehicle has been involved in an accident, or is stolen or

broken into.

- When selling or lending the vehicle, inform the user of these points and hand over this driver’s handbook with the vehicle.

- When scrapping your vehicle, contact your approved dealer for disposal of the gas generator(s).

1.42

CarManuals2.co

CHILD SAFETY: General information (1/2)

Carrying children

Please ensure that you comply with the

legislation of your country.

Children, and adults, must be correctly

seated and strapped in for all journeys.

The children being carried in your vehi-

cle are your responsibility.

Driver’s responsibility

A child is not a miniature adult. Children

when parking or stopping

are at risk of specific injuries as their

the vehicle

muscles and bones have not yet fin-

ished growing. The seat belt alone

Never leave an animal,

would not provide suitable protection.

child or adult who is not self-suffi-

Use an approved child seat and ensure

cient alone on your vehicle, even for

you use it correctly.

a short time.

A collision

mph

(50 km/h) is the same as

They may pose a risk to themselves

falling a distance of

or to others by starting the engine,

metres.

activating equipment such as the

electric windows or by locking the

Transporting a child without

doors.

a restraint is the equivalent of allow-

ing him or her to play on a fourth-

Also, in hot and/or sunny weather,

floor balcony without railings.

please remember that the tempera-

ture inside the passenger compart-

Never travel with a child held in your

ment increases very quickly.

arms.

RISK OF DEATH OR SERIOUS

In the event of an accident, you will

INJURY.

not be able to keep hold of the child,

even if you yourself are wearing a

seat belt.

To prevent the doors being

If your vehicle has been involved in

opened, use the “Child lock”

a road accident, replace the child

feature. ➥ 1.17.

seat and have the seat belts and

ISOFIX anchorage points checked.

1.43

CarManuals2.co

CHILD SAFETY: General information (2/2)

Using a child seat

Before fitting a child seat, read the

manual and respect its instructions. If

The level of protection offered by the

you experience any difficulties during

child seat depends on its ability to re-

installation, contact the manufacturer

strain your child and on its installation.

of the equipment. Keep the instructions

Incorrect installation compromises the

with the seat.

protection it offers the child in the event

of harsh braking or an impact.

Before purchasing a child seat, check

that it complies with the regulations for

the country you are in and that it can

be fitted in your vehicle. Consult an ap-

proved dealer to find out which seats

are recommended for your vehicle.

The regulations on transporting chil-

Never leave a child unat-

dren are specific to each country. The

tended in the vehicle.

use of a child seat during transport de-

pends on the age and/or the size and/

Check that your child is

or weight of the child.

always strapped in and that

the belt or safety harness used is

For children who do not need to be

Set a good example by always fas-

correctly set and adjusted. Avoid

transported in a child seat, make sure

tening your seat belt and teaching

wearing bulky clothing which could

that the seat belt is correctly adjusted

your child:

cause the belts to slacken.

and fastened.

- to strap themselves in correctly;

Never let your child put their head or

In all cases, you must comply with the

- to always get in and out of the car

arms out of the window.

regulations of the particular country you

at the kerb, away from busy traf-

are in.

Check that the child is in the correct

fic.

position for the entire journey, espe-

Do not use a second-hand child

cially if asleep.

seat or one without an instruction

manual.

Check that there are no objects in

the vicinity of the child seat which

could impede its operation.

1.44

CarManuals2.co

CHILD SAFETY: choosing a child seat

Rear-facing child seats

Forward-facing child seats

Booster cushions

A baby’s head is, proportionally, heavier

Up to 18 kg or 4 years, the child may

From 15 kg or 4 years, the child can

than that of an adult and its neck is very

travel on a forward-facing seat.

travel using a booster seat, which will

fragile. Transport the child in this po-

enable the seat belt to be adapted

Choose your seat according the child’s

sition for as long as possible (until the

to suit his/her size and shape. The

size: their head and abdomen are the

age of 2 at the very least). It supports

booster seat cushion must be fitted with

areas which must be most protected. A

both the head and the neck.

guides to position the seat belt on the

forward-facing child seat which is firmly

child’s thighs rather than the stomach.

Choose a bucket type seat for best side

attached to the vehicle will reduce the

It is recommended that you use a seat-

protection and change it as soon as the

risk of impact to the head. Ensure your

back fitted with a belt strap guide which

child’s head is higher than the shell.

child travels in a forward-facing seat

can be adjusted in terms of height to

with a harness for as long as their size

position the seat belt in the centre of the

permits.

shoulder. It must never rest on the neck

Choose a bucket type seat for optimum

or on the arm.

side protection.

Choose a bucket type seat for optimum

side protection.

1.45

CarManuals2.co

CHILD SAFETY: choosing a child seat mounting (1/4)

There are two ways of attaching child

Attachment via the seat belt

seats: via the seat belt or using the

The seat belt must be adjusted to

ISOFIX system.

ensure that it is effective in the event of

harsh braking or an impact.

Ensure that the strap paths indicated

by the child seat manufacturer are re-

spected.

Always check that the seat belt is cor-

rectly fastened by pulling it up, then

pulling it out fully whilst pressing on the

child seat.

Check that the seat is correctly held by

moving it from side to side and back

to front: the seat should remain firmly

fixed.

Check that the child seat has not been

installed at an angle and that it is not

The seat belt must never

resting against a window.

be twisted or the tension

relieved. Never pass the

shoulder strap under the

arm or behind the back.

Check that the seat belt has not

been damaged by sharp edges.

If the seat belt does not operate nor-

mally, it will not protect the child.

Do not use the child seat

Consult an approved dealer. Do not

if it may unfasten the seat

use this seat until the seat belt has

belt restraining it: the base

been repaired.

of the seat must not rest on

the buckle and/or catch of the seat

belt.

1.46

CarManuals2.co

CHILD SAFETY: choosing a child seat mounting (2/4)

Attachment using the ISOFIX

Attach the child seat with the ISOFIX

system

locks, if these are provided. The ISOFIX

system allows quick, easy, safe fitting.

Approved child seats ISOFIX are stand-

ardised in accordance with current reg-

The ISOFIX system consists of 2 rings

ulations if any of the four cases below

and, in some cases, a third ring.

applies:

- ISOFIX universal 3-point forward-

facing seat;

- ISOFIX semi-universal 2-point seat;

- Specific;

- i-Size Which has:

- either a belt which attaches to the

third ring of the seat concerned;

- or a strut that rests on the vehi-

cle floor, compatible with the ap-

proved seat i-Size, the role of

No modifications may be

which is to prevent the child seat

made to the component

from moving in the event of a col-

parts of the restraint system

lision.

(ISOFIX seat belts, seats

and their mountings) originally fitted.

In the latter three cases check that your

child seat can be installed by consulting

the list of compatible vehicles.

Before using an ISOFIX

child seat that you pur-

chased for another vehicle,

check that its installation is

authorised. Consult the list of ve-

hicles which can be fitted with the

seat from the equipment manufac-

turer.

1.47

CarManuals2.co

CHILD SAFETY: choosing a child seat mounting (3/4)

The rings are located on the rear seat-

backs and indicated by the symbol .

In all cases, attach the strap hook to the

corresponding ring 3 or 4 and place the

seat in the desired position.

Pull the belt so that the back of the child

seat comes into contact with the back

of the vehicle seat.

Attachment using the ISOFIX

The third ring 3 or 4 is used to attach

system

the upper strap on some seats ISOFIX.

Check that the seatback

of the forward-facing child

The two rings 1 are located between

seat is in contact with the

the seatback and the seat base of the

seatback of the vehicle

seat and are identified by a marking. To

seat. In this case, the child seat may

position and lock the child seat on the

not always rest on the seat base of

rings 1, insert the child seat mountings

the vehicle seat.

in the access guides 2.

The ISOFIX anchorage points have been exclusively designed for child

The child seat strap must

seats with the ISOFIX system. Never fit a different type of child seat, seat

be attached to the corre-

belt or other objects to these anchorage points. Check that nothing is ob-

sponding ring.

structing the anchorage points.

Do not use any other

If your vehicle has been involved in a road accident, have the ISOFIX anchorage

mounting point.

points checked and replace your child seat.

1.48

CarManuals2.co

CHILD SAFETY: choosing a child seat mounting (4/4)

The rings are located behind the rear

seats and indicated by the symbol .

Attach the strap hook to the corre-

sponding ring 3 and place the vehicle

seat in the desired position.

Pull the belt so that the back of the child

seat comes into contact with the back

of the vehicle seat.

Attachment using the ISOFIX

The third ring 3 is used to attach the

system

upper strap on some seats ISOFIX.

Check that the seatback

(4-door version)

of the forward-facing child

The two rings 1 are located between

seat is in contact with the

the seatback and the seat base of the

seatback of the vehicle

seat and are identified by a marking. To

seat. In this case, the child seat may

position and lock the child seat on the

not always rest on the seat base of

rings 1, insert the child seat mountings

the vehicle seat.

in the access guides 2.

The ISOFIX anchorage points have been exclusively designed for child

The child seat strap must

seats with the ISOFIX system. Never fit a different type of child seat, seat

be attached to the corre-

belt or other objects to these anchorage points. Check that nothing is ob-

sponding ring.

structing the anchorage points.

Do not use any other

If your vehicle has been involved in a road accident, have the ISOFIX anchorage

mounting point.

points checked and replace your child seat.

1.49

CarManuals2.co

Renault Megane (2023 year). Manual in english - page 1
