KEY, RADIO FREQUENCY REMOTE CONTROL: general information (1/3)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

Radio frequency remote

activating equipment such as the

control A

control B

electric windows or locking the

doors.

1 Locking all the opening elements.

2 Unlock the front doors or, depending

Also, in hot and/or sunny weather,

2 Unlocking all the opening elements.

on the vehicle, all the opening ele-

please remember that the tempera-

3 Key for ignition switch, doors and

ments. ➥ 1.5.

ture inside the passenger compart-

fuel filler cap.

3 Key for ignition switch, doors and

ment increases very quickly.

fuel filler cap.

RISK OF DEATH OR SERIOUS

4 Locking/unlocking the luggage com-

INJURY.

partment and, depending on the ve-

hicle, the sliding side doors.

The key must not be used for any

function other than those described

Advice

in the handbook (removing the cap

Avoid leaving the remote control in

from a bottle, etc.).

hot, cold or humid areas.

1.2

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: general information (2/3)

Radio frequency remote

control operating range

This varies according to the environ-

ment: take care not to lock or unlock

the doors by inadvertently pressing the

buttons on the remote control.

Note: on certain vehicles, if a door is

not opened within approximately two

minutes of the door being unlocked by

remote control, the doors will lock again

automatically.

Interference

Interference by factors in the imme-

Radio frequency remote

diate vicinity (external installations or

control C

control D

the use of equipment operating on the

1 Locking all the opening elements.

same frequency as the remote control)

1 Locking all the opening elements.

2 Unlock the front doors or, depending

may affect the operation of the remote

2 Unlocking all the opening elements.

on the vehicle, all the opening ele-

control.

3 Key for ignition switch, doors and

ments. ➥ 1.5.

fuel filler cap.

3 Key for ignition switch, doors and

5 Locking/unlocking the key insert for

fuel filler cap.

remote control C.

5 To release the insert from its hous-

To release the insert from its hous-

ing, press button 5, it comes out au-

tomatically. Press button 5 and guide

tomatically.

the insert back into its housing.

Press button 5 and guide the insert

6 Locking/unlocking the luggage com-

back into its housing.

partment and, depending on the ve-

hicle, the sliding doors.

1.3

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: general information (3/3)

Replacement, additional remote

Driver’s responsibility

when parking or stopping

control or transmitter/receiver

the vehicle

You must only contact an approved

Never leave an animal,

Dealer.

child or adult who is not self-suffi-

- If you need to replace a remote

cient alone on your vehicle, even for

control, it will be necessary to

a short time.

take the vehicle and all of its keys

They may pose a risk to themselves

to an approved Dealer in order to

or to others by starting the engine,

initialise the system.

Hands-free access

activating equipment such as the

- Depending on the vehicle, you

transmitter/receiver E

electric windows or locking the

may use up to four remote con-

doors.

This enables the vehicle doors to be

trols or two transmitter/receivers.

locked/unlocked without using the

Also, in hot and/or sunny weather,

remote control. ➥ 1.8.

Remote control unit failure

please remember that the tempera-

Make sure that the correct battery

ture inside the passenger compart-

type is being used, and that the

ment increases very quickly.

battery is in good condition and in-

RISK OF DEATH OR SERIOUS

serted correctly. These batteries

INJURY.

have a service life of approximately

two years.

How to change the battery ➥ 5.35.

1.4

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: use (1/2)

To lock/unlock the doors from the

inside ➥ 1.10.

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.

Remote controls A and B are used to

Note: depending on the vehicle, if a

They may pose a risk to themselves

lock and unlock the doors.

door or the luggage compartment is

or to others by starting the engine,

They are powered by a battery which

open or not properly shut, they will lock

activating equipment such as the

can be replaced ➥ 5.35.

and unlock in quick succession with-

electric windows or locking the

out any flashing of the hazard warning

doors, for example.

lights and side indicator lights.

Also, in hot and/or sunny weather,

Locking the doors

please remember that the tempera-

Press locking button 1. The side indi-

ture inside the passenger compart-

Unlocking the doors

cator lights and hazard warning lights

ment increases very quickly.

confirm the locking by flashing twice.

Pressing button 2 unlocks the doors

RISK OF DEATH OR SERIOUS

and tailgate. The unlocking is con-

INJURY.

firmed by one flash of the hazard warn-

ing lights and the side indicator lights.

1.5

CarManuals2.co

KEY, RADIO FREQUENCY REMOTE CONTROL: use (2/2)

Unlocking the doors

Briefly pressing button 2 unlocks the

front doors or, depending on the vehi-

cle, all the doors.

Depending on the vehicle, briefly press-

ing button 2 twice in succession un-

locks all the doors.

A short press on button 3 locks/unlocks

the tailgate and, depending on the ve-

hicle, the sliding side doors. The un-

locking is confirmed by one flash of

the hazard warning lights and the side

indicator lights.

Remote controls C and D are used to

The side indicator lights and hazard

lock and unlock the doors and the lug-

warning lights confirm the locking by

gage compartment.

flashing twice.

They are powered by a battery which

Note: depending on the vehicle, if a

can be replaced ➥ 5.35.

door or the luggage compartment is

open or not properly shut, they will lock

Locking the doors

and unlock in quick succession with-

out any flashing of the hazard warning

Pressing button 1 locks the doors and

lights and side indicator lights.

tailgate.

A short press on button 3 locks/unlocks

the luggage compartment and, de-

pending on the vehicle, the sliding side

doors.

The key must not be used for any

function other than those described

in the handbook (removing the cap

from a bottle, etc.).

1.6

CarManuals2.co

DEADLOCKING

If fitted to the vehicle, this allows the

To activate deadlocking

doors to be locked and prevents them

Press button 1 twice in quick succes-

from being opened with the interior

sion.

handles (for example, by breaking the

The side indicator lights and hazard

window and then trying to open the

warning lights flash five times to indi-

doors from the inside).

cate that the doors have locked.

To deactivate deadlocking

Unlock the vehicle using button 2.

The hazard warning lights and side in-

dicator lights flash once to indicate that

the doors have unlocked.

Never use deadlocking if

someone is still inside the

vehicle.

1.7

CarManuals2.co

HANDS-FREE ACCESS TRANSMITTER, RECEIVER: use (1/2)

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

For vehicles equipped with transmitter/

It is powered by a battery which can be

activating equipment such as the

receiver 1, in addition to the functions

replaced. ➥ 5.37.

electric windows or locking the

of the remote control, it can be used to

doors.

lock/unlock without using the remote

control locking unit when it is in access

Also, in hot and/or sunny weather,

zone 2.

please remember that the tempera-

ture inside the passenger compart-

Note: the hands-free access transmit-

ment increases very quickly.

ter/receiver only works with the front

doors and the tailgate.

RISK OF DEATH OR SERIOUS

INJURY.

1.8

CarManuals2.co

HANDS-FREE ACCESS TRANSMITTER, RECEIVER: use (2/2)

Interference

Unlocking the vehicle

Locking the vehicle

Interference by factors in the imme-

With the transmitter/receiver in one

diate vicinity (external installations or

of the access zones 2, press button 3

the use of equipment operating on the

or 4: all of the doors will unlock.

or 4: all of the doors will lock.

same frequency as the remote control)

The hazard warning lights confirm the

may affect the operation of the remote

unlocking of the doors by flashing

locking of the doors by illuminating

control.

once.

for 4 seconds.

Note: when a door or the tailgate is

open or is not properly closed, all of

the doors and the tailgate lock/unlock

quickly without the hazard warning

lights flashing.

1.9

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (1/2)

If the remote control does not

work

In some cases, the radio frequency

remote control may not work:

- radio frequency remote control bat-

tery worn out or vehicle battery dis-

charged, etc.

- due to the use of electronic devices

near to the remote control

(e.g.

mobile telephone);

- vehicle located in a high electromag-

netic radiation zone.

It is then possible:

- to use the key integrated in the radio

frequency remote control to unlock

the front left-hand door;

Manual control

Locking the doors manually

- to lock each of the doors manually;

Turn screw 2 with the door open (using

- to use the interior door locking/un-

Using the key

the end of the key) and close the door.

locking control (refer to the following

Lock or unlock the doors equipped

pages).

This means that the doors are then

with locks by inserting the key fully into

locked from the outside.

lock 1, then turning it.

The doors may then only be opened

from inside the vehicle or with the key

for the front doors.

1.10

CarManuals2.co

LOCKING, UNLOCKING THE DOORS (2/2)

Locking the opening

Locking the doors with the

elements without the remote

tailgate open

control

To lock the vehicle leaving a door open

With the engine off, the rear doors

(e.g. when transporting something in

closed and a front door open,, press

the luggage compartment which pre-

switch 3 for more than five seconds.

vents it from being closed), or when

the vehicle is located in a zone of high

Make sure you have your key with you

electromagnetic radiation, or if the key

before you leave your vehicle.

is faulty: with the engine switched off,

When the door is closed, all the doors

press and hold switch 3 for more than

and tailgate will be locked.

five seconds.

Unlocking the driver’s door from out-

side the vehicle is only possible with the

key or the remote control.

Interior locking/unlocking

Doors and tailgate status

door control

indicator light

Driver’s responsibility

The switch 3 simultaneously controls all

When the ignition is on, the 3 switch

If you decide to keep the

the doors.

warning light indicates the locking

doors locked when you are

If a door or the tailgate is open or not

status of the opening elements:

driving, remember that it

closed properly, the doors and tailgate

– indicator light on, the doors and tail-

may be more difficult for those as-

lock/unlock quickly.

gate are locked;

sisting you to gain access to the

– light off, the doors and tailgate are

passenger compartment in the

unlocked.

event of an emergency.

When the ignition is off, the indicator

light remains lit and then goes out when

you lock the doors.

Never leave your vehicle

with the key, remote con-

trol or transmitter/receiver

inside.

1.11

CarManuals2.co

RAID (AUTOMATIC LOCKING WHEN DRIVING)

Activating/deactivating the

Operating faults

function

If you experience an operating fault

To activate it: with the ignition on,

(no automatic locking, switch indica-

press switch 1 for approximately five

tor light 1 does not light up when trying

seconds until you hear a beep. The

to lock the opening elements etc.), first

switch indicator light comes on when

check that the opening elements are

the doors are locked.

properly closed. If they are properly

closed and the fault is still present, con-

To deactivate it: with the ignition on,

tact an approved Dealer.

press switch 1 for approximately five

seconds until you hear a beep. The

Also make sure that locking has not

warning light goes out.

been inadvertently deactivated.

If it has, switch the ignition off and on

again and reactivate it.

You can decide whether you want to

activate this function.

Operating principle

After the vehicle is started, the system

automatically locks the opening ele-

ments once your speed reaches ap-

proximately 4 mph (7 km/h).

The door can be unlocked:

Driver’s responsibility

- by pressing the central door unlock-

ing switch 1;

If you decide to keep the

doors locked when you are

- at a standstill, by opening a front

driving, remember that it

door from inside the vehicle.

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

1.12

CarManuals2.co

FRONT DOORS (1/2)

Opening the doors from the

Opening from the inside

outside

Pull handle 4 and open the door.

Unlock a door equipped with lock 2

using the key.

Closing from the inside

Vehicles with a remote control

Pull the door using only handle 5.

Pull handle 1.

Note: do not use the handle 4 to close

Vehicles with a transmitter/receiver

the door.

Press button 3 and pull handle 1.

Closing from the outside

Push the door. Use the key in lock 2 to

lock it, or use the remote control or the

As a safety precaution,

hands-free access transmitter/receiver

the doors should only be

by pressing button 3.

opened or closed when the

vehicle is stationary.

1.13

CarManuals2.co

FRONT DOORS (2/2)

Lights-on reminder buzzer

If you have switched off the ignition

and left the lights switched on, a re-

minder buzzer will sound when a door

is opened.

Driver’s responsibility

when parking or stopping

the vehicle

Never leave an animal,

child or adult who is not self-suffi-

cient alone on your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or by locking the

doors.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.

RISK OF DEATH OR SERIOUS

INJURY.

1.14

CarManuals2.co

SLIDING SIDE DOOR (1/2)

Closing from the outside

Pull handle 1 and slide the door to-

wards the front of the vehicle until it

closes completely. Lock with the key or

using the remote control.

Closing from the inside

Pull lever 2 towards the front and close

the door until it latches.

Manual locking from inside

Lower button 3.

Opening the doors from the

Opening from the inside

outside

Pull lever 2 towards the rear and open

Unlock the lock with the key or with

the sliding door until it locks into posi-

the remote control, if the vehicle is

tion.

equipped with this function.

Pull handle 1 towards you and slide the

door towards the rear.

Note: the transmitter/receiver does not

work on the sliding side door (no button

on the handle).

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

1.15

CarManuals2.co

SLIDING SIDE DOOR (2/2)

Recommendations con-

cerning the sliding side

door.

Care must be taken when

opening or closing the sliding door,

as is the case for any of the opening

elements on the vehicle:

- Check that the door will not come

into contact with any person, part

of the body, animal or object.

- Only use the handles on the

inside and outside of the door to

operate it.

- Take care when opening and

Child locks

closing the door.

With the door open, turn lever 4 and

- Take particular care when the ve-

close the door.

hicle is parked on a slope: open

This means that the door is then locked

or close the door fully until it

from the inside.

latches into its locking position.

The door can only be opened from the

- Before moving off, always ensure

outside of the vehicle.

that the sliding door is properly

closed.

1.16

CarManuals2.co

REAR DOORS (1/2)

Opening the doors from the

Pull the lever 4 to open the door.

Opening the doors to 180°

outside

Open the door, but not fully.

Unlock lock 1 using the key or, on

Remove tie rod 7 from its housing 5.

equipped vehicles, use the remote con-

Lock the tie rod on the hook 6.

trol or the hands-free access remote

Open the door as far as possible.

control by pressing button 3. Pull

If the vehicle is parked on

handle 2 towards you and open the

the hard shoulder with tail-

door.

gate open, the rear lights

may be obscured. You

should make other road users aware

of your vehicle by using a warning

triangle or other equipment speci-

Do not leave the hinged

fied by the road traffic regulations of

For your safety, check that

rear doors open in case

the country you are driving in.

all the vehicle’s doors are

of strong winds. Risk of

properly closed before

injury.

starting the engine.

1.17

CarManuals2.co

REAR DOORS (2/2)

Opening the doors to 270°

Opening from the inside

Closing from the inside

Remove the check-strap from its hous-

Lower lever 9 and push door A.

Partially close door B, then slam it shut.

ing as when opening to 180°. Open

Push lever 4 and open door B.

Do the same with door A using

the door fully until the magnets 8 make

handle 10.

contact.

Locking/unlocking

Closing from the outside

Turn button 11.

Partially close the left-hand door, then

slam it shut.

Then repeat this with the right-hand

door.

Lock.

For your safety, check that

all the vehicle’s doors are

properly closed before

starting the engine.

1.18

CarManuals2.co

HEADRESTS

To raise the headrest

To refit the headrest

Simply slide it up.

Insert the rods into the holes, with the

notches to the front, and lower the

headrest to the desired height by press-

To lower the headrest

ing tab 1.

Press tab 1 and lower it at the same

time.

Adjusting the angle of the

headrest

To remove the headrest

The headrest is an impor-

(depending on the vehicle)

tant safety component:

Raise the headrest then press tabs 1

Move section B towards or away from

ensure that it is in place and

and 2 to release it.

you to the required position.

in the correct position. The

distance between your head and the

headrest and the distance between

the head and section A should be

as small as possible.

1.19

CarManuals2.co

FRONT SEATS (1/3)

Heated seats

(depending on the vehicle)

With the ignition on, press switch 5.

The integrated indicator comes on.

Adjusting seat A

Lumbar adjustment

(depending on the vehicle)

To move forwards or backwards

Turn control knob 3 to increase or de-

Lift handle 1 to release. Release the

crease support.

For safety reasons, carry

handle once the seat is in the correct

out any adjustments when

position and ensure that the seat is

To tilt the seatback

the vehicle is not being

locked.

driven.

Move lever 4.

We would advise you not to recline

To adjust the height of the seat base

the seatbacks too far to ensure that

Lower or pull lever 2 as many times as

the effectiveness of the seat belts is

is necessary to raise or lower the seat

not reduced.

base.

Nothing should be placed on the

floor (area in front of driver) as such

objects may slide under the pedal

After making adjustments,

during braking manoeuvres, thus

make sure that the seat-

obstructing its use.

backs are correctly locked

in place.

1.20

CarManuals2.co

FRONT SEATS (2/3)

Heated seats

(depending on the vehicle)

With the ignition on, press switch 8.

The integrated indicator comes on.

The system, which has a thermostat,

decides whether or not the heating is

needed.

Adjusting seat B with

Lumbar adjustment

suspension

Activate bulb 12 to make it firmer.

Press switch 13 to make it less firm.

To move forwards or backwards

Lift handle 11 to release. Release the

To adjust the seat suspension

handle once the seat is in the correct

position and ensure that the seat is

Turn control knob 6 to the right to stiffen

locked.

the suspension and to the left to reduce

it.

To tilt the seatback

Lower or pull control 7 towards you.

To adjust the height of the seat base

Move control 9 to adjust the rear of the

seat base or control 10 to adjust the

front of the seat base.

1.21

CarManuals2.co

FRONT SEATS (3/3)

To pivot the seats

- Detach the seat belt buckle from its

unit;

- raise the armrests;

- move the seat as far back as possi-

ble;

- adjust the seat base to its lowest po-

sition;

- adjust the seatback to the vertical

position;

- open the door;

- lift handle 20 and pivot the seat to

unlock it from its “forward-facing” po-

sition, then release handle 20.

Returning to the driving position

Adjusting the pivoting seat C

Adjusting the angle of the seat base

Pivot the seat to the “forward facing”

Move handle 16 to adjust the angle of

position;

To move the seat forwards or back

the seat base.

make sure the seat is correctly

Move handle 15 to unlock it. Release

Adjusting the height of the armrests

locked in position;

the handle once the seat is in the cor-

Turn control knob 17 or 19.

adjust the seat to your driving posi-

rect position and ensure that the seat

tion.

is locked.

Lumbar adjustment

To move the seat forwards or back

Activate bulb 22 to make it firmer.

Lift handle 18 to move the seat base

Press switch 21 to make it less firm.

forwards or back.

To tilt the seatback

Lower or pull handle 14 towards you.

The “rear facing” seat po-

sition should only be used

when the vehicle is station-

ary and the engine not run-

ning.

1.22

CarManuals2.co

SEAT BELTS (1/5)

Always wear your seat belt when trav-

Before starting, first adjust your driv-

elling in your vehicle. You must also

ing position, then ask all occupants

comply with the legislation of the par-

to adjust their seat belts to ensure

ticular country you are in.

optimum protection.

Adjusting your driving

position

–

Sit well back in your seat

(having

removed your coat or jacket etc.).

This is essential to ensure your back

is positioned correctly;

adjust the distance between the

seat and the pedals. Your seat

should be as far back as possible

while still allowing you to fully de-

press the pedals. The seatback

Adjusting the seat belts

should be adjusted so that your arms

Sit with your back firmly against the

Seat belts which are incor-

are slightly bent when you hold the

seatback.

rectly adjusted or twisted

steering wheel;

may cause injuries in the

Shoulder strap 1 should be as close as

adjust the position of your head-

event of an accident.

possible to the base of the neck but not

rest. For maximum safety, your head

must be as close as possible to the

on it.

Use one seat belt per person,

whether child or adult.

headrest;

Lap belt 2 should be worn flat over the

adjust the height of the seat. This

thighs and against the pelvis.

Even pregnant women should wear

adjustment allows you to select the

a seat belt. In this case, ensure that

The belt should be worn so that it is

seat position which offers you the

the lap belt is not exerting too much

as close as possible to your body, i.e.:

best possible view.

pressure on the abdomen, but do

avoid wearing heavy clothing or keep-

adjust the position of the steering

not allow any slack.

ing bulky objects under the belts, etc.

wheel.

1.23

CarManuals2.co

SEAT BELTS (2/5)

Unfastening

Press button 4 and the seat belt will be

rewound by the inertia reel. Guide the

belt.

Driver’s seat belt

reminder and,

depending on the vehicle,

front passenger seat belt

reminder

This appears on the central display 6

when the ignition is switched on and

if the driver’s and/or front passenger’s

seat belt(s) (if the passenger seat is oc-

Locking

Note: an object placed on the passen-

cupied) is not fastened.

ger seat may activate the warning light

Unwind the belt slowly and smoothly

Depending on the vehicle, if the seat is

in some cases, depending on the ve-

and ensure that buckle 3 locks into

occupied and one of these seat belts is

hicle.

catch 5 (check that it is locked by pull-

not fastened or becomes unfastened

ing on buckle 3).

while the vehicle is moving at a speed

If the belt jams, allow it to return slightly

over approximately 12 mph (20 km/h),

before attempting to unwind it again.

the ß

warning light flashes and a

If your seat belt is completely jammed,

beep sounds:

pull slowly, but firmly so that just over

- for around 120 seconds on versions

3 cm unwinds. Allow it to return slightly

fitted with one front seat;

before attempting to unwind it again.

- until the seat belt is fastened again

If there is still a problem, contact an ap-

on versions fitted with two front

proved dealer.

seats.

1.24

CarManuals2.co

SEAT BELTS (3/5)

Understanding the graphic 7:

Always make sure that the rear passen-

gers are properly fastened in and that

- white symbol: seatbelt fastened;

the number of seat belts indicated cor-

- black symbol: seatbelt unfastened.

responds to the number of rear seats

When the vehicle speed is below ap-

occupied.

proximately

12 mph (20 km/h), the

graphic 7 appears during approximately

60 seconds every time one of the rear

seat belts is fastened or unfastened.

When the vehicle speed reaches or ex-

ceeds 12 mph (20 km/h), if one of the

rear seat belts is unfastened during the

journey:

- the

warning light flashes on

Rear seat belt reminder (depending

the central display;

on the vehicle)

and

The 7 warning light is displayed on the

- a beep sounds for around 30 sec-

instrument panel when the ignition is

onds;

switched on. This informs the driver

and

of the fastening status of the rear seat

belts every time:

- the 7 symbol is displayed for at least

60 seconds and the symbol for the

- the ignition is switched on;

seat concerned changes to black.

- a door is opened;

- a rear seat belt is fasted or unfas-

tened.

1.25

CarManuals2.co

SEAT BELTS (4/5)

Adjusting the height of the

Seat with armrest(s)

front seat belts

Ensure the seat belt is passed under-

Use button 8 to adjust the seat belt

neath armrest 9, check that buckle 3 is

height so that the shoulder strap is

fastened in catch 5.

worn as shown previously.

Lower armrest 9 on the door side

Press button 8 and raise or lower the

(movement A).

seat belt.

Unwind the belt slowly and smoothly.

Make sure that the seat belt is locked

Pass the lap belt under armrest 10 and

in position correctly after you have ad-

the shoulder strap over armrest 10.

justed it.

Make sure the buckle locks into the

catch (check that it is locked by pulling

on the buckle).

1.26

CarManuals2.co

SEAT BELTS (5/5)

- No modification may be made to the component parts of the restraint system - belts and seats and their mountings

- fitted originally. For special operations (e.g. fitting child seats) contact an approved Dealer.

- Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.) as a seat belt which is worn too

loosely may cause injury in the event of an accident.

- Never wear the shoulder strap under your arm or behind your back.

- Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around

them.

- The belt should never be twisted.

- Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as

they show any signs of wear.

- Make sure that the buckle is inserted into the appropriate catch.

- Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-

cured.

- Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-

jects).

1.27

CarManuals2.co

REAR SEAT BELTS (1/2)

Lap belts with manual

adjustment 5

The strap should be worn flat over your

thighs and against your pelvis.

The belt should be worn so that it is

as close as possible to your body, i.e.

avoid wearing heavy clothing or keep-

ing bulky objects under the belts, etc.

To tighten, pull on free section 6 of the

belt.

To slacken, turn adjusting buckle 4 so

it is at 90 degrees to the belt and press

the buckle while pulling lap belt 5.

Rear seat belts with inertia

Unfastening

reel 1

Press the button on catch 3 and the

Seat belts which are incor-

seat belt will be rewound by the inertia

rectly adjusted or twisted

Locking

reel. Guide the belt.

may cause injuries in the

Unwind the belt slowly and smoothly

event of an accident.

and ensure that buckle 2 locks into

catch 3 (check that it is locked by pull-

Use one seat belt per person,

ing on buckle 2).

whether child or adult.

Even pregnant women should wear

a seat belt. In this case, ensure that

the lap belt is not exerting too much

Check that the rear seat

pressure on the abdomen, but do

belts are positioned and op-

not allow any slack.

erating correctly each time

the rear seats are moved.

1.28

CarManuals2.co

REAR SEAT BELTS (2/2)

Special note for versions

fitted with a rear bench seat

with three seats.

This version differs in that it has rear

seatbelts and headrests on the rear

side seats only. Never seat a passen-

ger in the centre seat area.

The A label informs you that it is prohib-

ited to seat passengers in areas other

than the seats provided.

Check that the rear seat

belts are positioned and op-

erating correctly each time

the rear seats are moved.

1.29

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/5)

Depending on the vehicle, they are

- Have the entire restraint

composed of:

system checked following

- seat belt pretensioners;

an accident.

- chest-level load limiters;

- No operation whatso-

- airbags driver and passenger

ever is permitted on any part

front.

of the system

(pretensioners,

airbags, computers, wiring) and

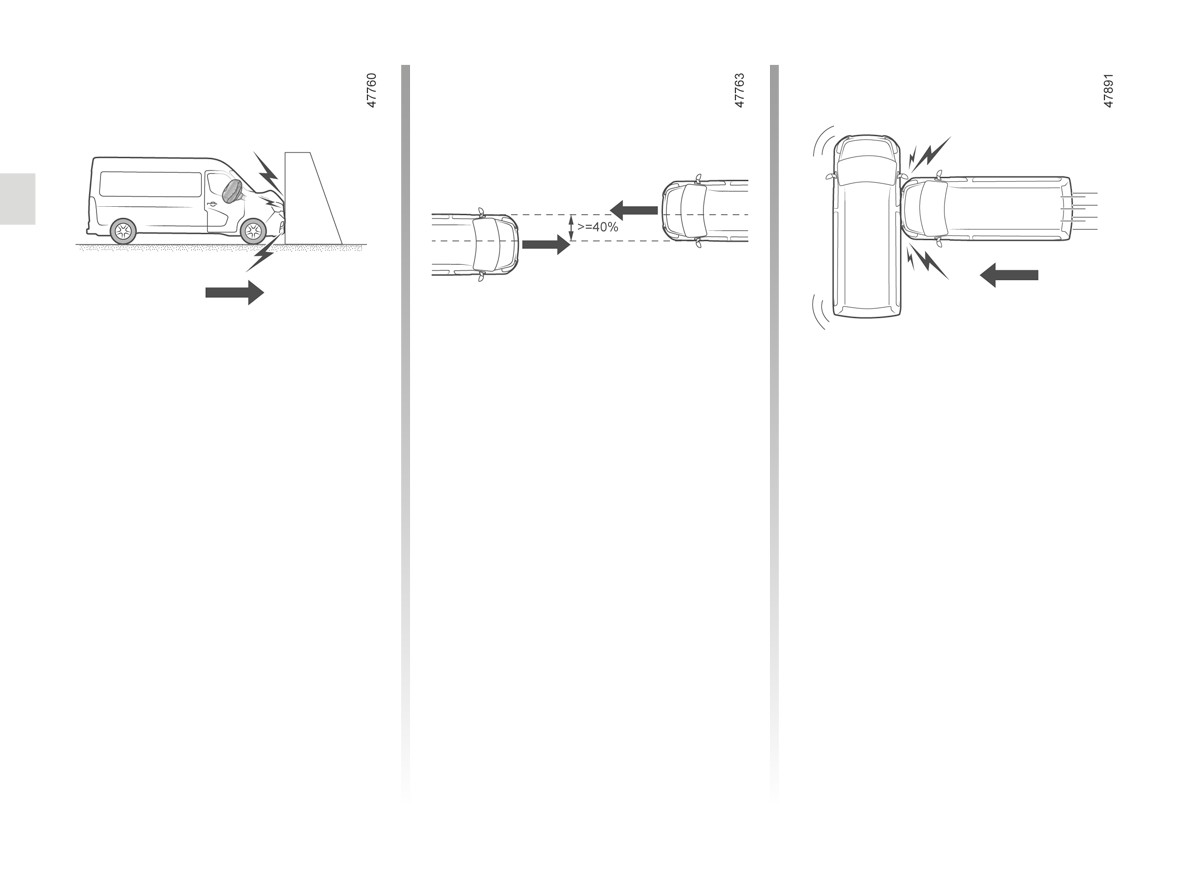

These systems are designed to act in-

the system components must not

dependently or together when the vehi-

be reused on any other vehicle,

cle is subjected to a frontal impact.

even if identical.

Depending on the severity of the

Only qualified personnel from our

impact, the system can trigger:

Network may work on the airbags;

- seat belt locking;

otherwise the system may trigger

accidentally and cause injury.

- the seat belt seat belt pretensioner

to hold the occupant in the seat, and

Pretensioners

The electric trigger system may

the force limiter;

only be tested by a specially

The pretensioners hold the seat belt

trained technician using special

– the front airbag .

against the body, holding the occupant

equipment.

more securely against the seat, thus in-

When the vehicle is scrapped,

creasing the seat belt’s efficiency.

contact an approved dealer for

With the ignition switched on, if the

disposal of the pretensioner and

vehicle is subject to a significant fron-

airbags gas generators.

tal impact the system may, depending

on the severity of the impact, trigger a

piston which instantly retracts the belt.

Load limiter

Above a certain level of impact force,

The passenger airbag protects the

this mechanism is used to limit the force

front passenger(s) (depending on

of the belt against the body so that it is

whether there is a conventional seat

at an acceptable level.

or a bench seat in the front).

1.30

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (2/5)

driver and passenger front

Operation

Airbags

This system is only operational when

the ignition is switched on.

They are fitted to the front seats on the

driver’s side and, depending on the ve-

If a severe frontal impact occurs, the

hicle, on the passenger’s side as well.

airbag(s) inflate(s) rapidly, cushion-

ing the impact of the driver’s head and

Depending on the vehicle the “airbag”

chest against the steering wheel and

marking on the steering wheel and the

the front passenger’s head against the

dashboard (airbag A area) indicates

dashboard. the air bag(s) then deflate

that this device is fitted.

immediately after the impact to prevent

Each airbag system consists of:

the occupants from being impeded in

an airbag and gas generator fitted on

any way when leaving the vehicle.

the steering wheel for the driver and

in the dashboard for the passenger;

Operating faults

an electronic unit for system monitor-

ing which controls the gas generator

This indicator light comes

electrical trigger system;

on when the ignition or the engine is

switched on and goes off after a few

a special å

tell-tale light;

seconds.

–

remote sensors.

If it does not light up when the ignition

The air bag system uses

is switched on, or if it lights up when the

pyrotechnic principles. This

engine is running, it indicates a fault in

explains why, when the air

the system.

bag inflates, it will gener-

ate heat, produce smoke (this does

Contact your approved Dealer as soon

not mean that a fire is about to start)

as possible.

and make a noise upon detonation.

Your protection will be reduced until this

In a situation where an air bag is

fault is rectified.

required, it will inflate immediately

and this may cause some minor, su-

perficial grazing to the skin or other

problems.

1.31

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/5)

The following conditions will trigger

In the event of a frontal impact with

In a side impact with another vehicle

the pretensioners or airbags.

another vehicle of an equivalent or

of an equivalent or higher category, at

higher category, with an impact area

an impact speed equal to or greater

In a frontal impact against a rigid

equal to or greater than 40%, where

than 31 mph (50 km/h).

(non-deformable) surface at an impact

the speed of both vehicles is equal to or

speed equal to or greater than 16 mph

greater than 35 mph (56 km/h).

(25 km/h).

1.32

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/5)

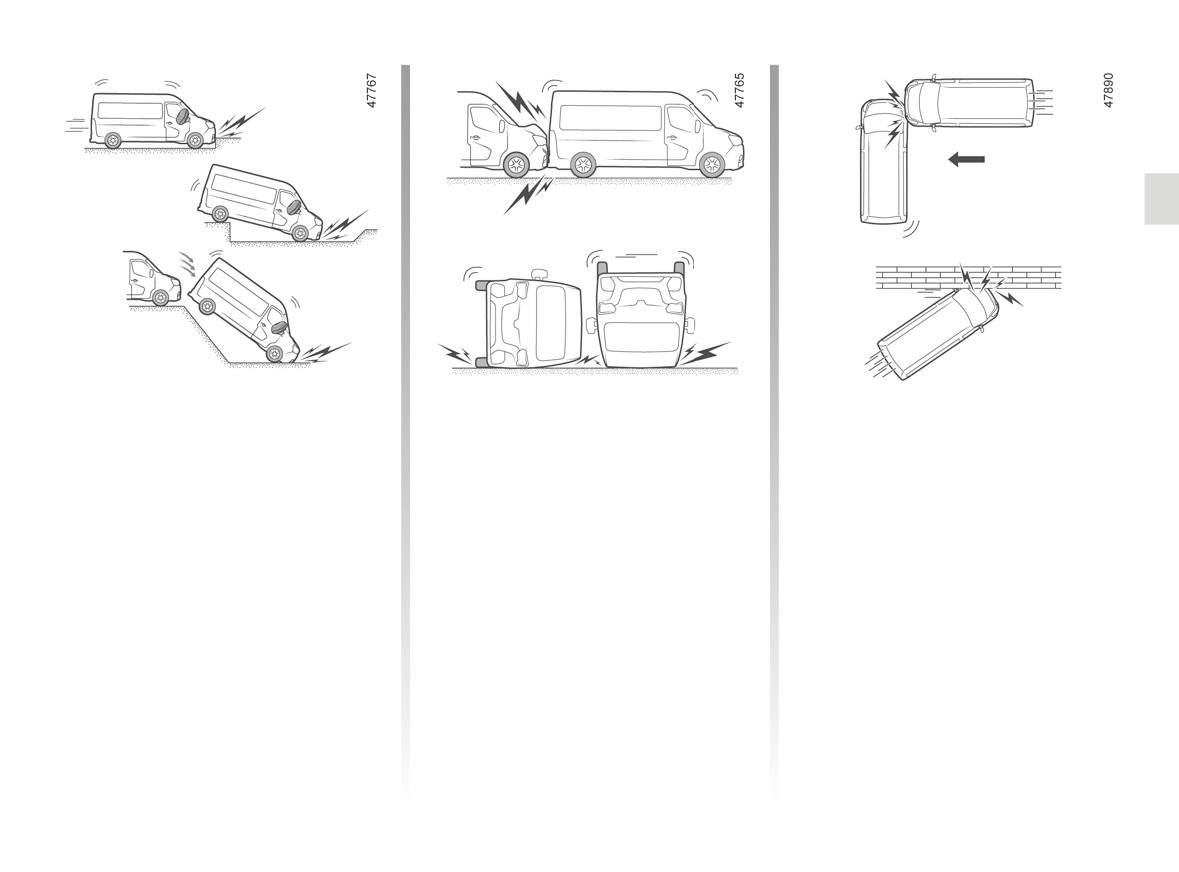

In the following examples, the pre-

In the following examples, there is a

- side impact to the front or rear of the

tensioners or the airbags could op-

risk that pretensioners orairbags may

vehicle;

erate:

not be triggered:

- frontal impact against an obstacle

- impact under vehicle such as pave-

- rear impact, however severe;

with a sharp angle;

ment;

– the vehicle overturning;

- ...

- potholes;

- a fall or a hard landing;

- stones;

– ...

1.33

CarManuals2.co

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/5)

All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent

the risk of serious injuries caused by items which may be dislodged when it inflates.

Warnings concerning the driver’s airbag

- Do not modify the steering wheel or the steering wheel boss.

- Do not cover the steering wheel boss under any circumstances.

- Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.

- The steering wheel must not be removed (except by qualified personnel from our Network).

- Do not drive too close to the steering wheel: adopt a driving position whereby your arms are slightly folded ➥ 1.23. This will

allow sufficient space for the airbag to deploy correctly and be fully effective.

Warnings concerning the passenger airbag

- Do not attach or glue any objects (badge, logo, clock, telephone holder, etc.) to the dashboard on or near the airbag.

- Do not place anything between the dashboard and the passenger (pet, umbrella, walking stick, parcels, etc.).

- The passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In

general, parts of the body should be kept away from the dashboard (knees, hands, head, etc.).

- The devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure

the protection of the passenger in the event of an impact.

A CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE

FRONT PASSENGER SEATBELT ADDITIONAL SYSTEMS ARE DEACTIVATED ➥ 1.80.

1.34

CarManuals2.co

SIDE PROTECTION DEVICES

Side air bags

These air bags may be fitted to the front

seats and are deployed at the sides of

the seats (door side) to protect the oc-

cupants in the event of a severe side

impact.

Warnings concerning the side air bag

- Fitting seat covers: seats equipped with an airbag require covers

specifically designed for your vehicle. Contact an authorised dealer to

find out if these covers are available. The use of any covers other than

those designed for your vehicle (including those designed for another vehicle)

may affect the operation of these airbags and reduce your protection.

Depending on the vehicle, a mark-

ing on the windscreen informs you

Do not place any accessories, objects or even pets between the seatback, the

of the presence of additional means

door and the internal fittings. Do not cover the seatback with any items such as

of restraint (air bags, pretensioners,

clothes or accessories. This may prevent the air bag from operating correctly

etc.) in the passenger compartment.

or cause injury when the air bag is deployed.

No work or modification whatsoever may be carried out on the seat or internal

fittings, except by qualified personnel from an approved dealer.

The area between the rear bench seatback and the trim is the area of airbag

These air bags operate

operation: Never place any objects here.

through slits in the front

seatbacks

(door side):

never insert any objects in

these slits.

1.35

CarManuals2.co

ADDITIONAL METHODS OF RESTRAINT

All of the warnings below are given so that the air bag is not obstructed in any

way when it is inflated and also to prevent the risk of serious injuries caused

by items which may be dislodged when the air bag inflates.

The air bag is designed to complement the action of the seat belt. Both

the air bags and seat belts are integral parts of the same protection

system. It is therefore essential to wear seat belts at all times. If seat belts

are not worn, the occupants are exposed to the risk of serious injury in

the event of an accident. It may also increase the risk of minor superficial injuries

occurring when the air bag is deployed, although such minor injuries are always

possible with air bags.

If the vehicle should overturn or suffer a rear impact, however severe, the pre-

tensioners and air bags are not always triggered. Shocks to the underbody of the

vehicle, e.g. from pavements, potholes or stones, can all trigger these systems.

- No work or modification whatsoever may be carried out on any part of the air

bag system (air bags, pretensioners, computer, wiring harness, etc.), except

Operating faults

by qualified personnel from an approved dealer.

– To ensure that the system is in good working order and to avoid accidental trig-

Indicator light 1, å, lights up when

gering of the system which may cause injury, only qualified Network personnel

the ignition is switched on and goes out

may work on the air bag system.

after a few seconds.

– As a safety precaution, have the air bag system checked if your vehicle has

If it does not light up when the ignition

been involved in an accident, or is stolen or broken into.

is switched on, or comes on when the

- When selling or lending the vehicle, inform the user of these points and hand

engine is running, there is a fault in the

over this driver’s handbook with the vehicle.

system.

- When scrapping your vehicle, contact your approved dealer for disposal of the

Contact your approved dealer as soon

gas generator(s).

as possible. Your protection will be re-

duced until this fault is rectified.

1.36

CarManuals2.co

CHILD SAFETY: General information (1/2)

Carrying children

Please ensure that you comply with the

legislation of your country.

Children, and adults, must be correctly

seated and strapped in for all journeys.

The children being carried in your vehi-

cle are your responsibility.

Driver’s responsibility

A child is not a miniature adult. Children

when parking or stopping

are at risk of specific injuries as their

the vehicle

muscles and bones have not yet fin-

ished growing. The seat belt alone

Never leave an animal,

would not provide suitable protection.

child or adult who is not self-suffi-

Use an approved child seat and ensure

cient alone on your vehicle, even for

you use it correctly.

a short time.

They may pose a risk to themselves

collision

mph

or to others by starting the engine,

(50 km/ h) is the same

activating equipment such as the

as falling a distance of

electric windows or by locking the

10 metres. Transporting a

doors.

child without a restraint is the equiv-

alent of allowing him or her to play

Also, in hot and/or sunny weather,

on a fourth-floor balcony without

please remember that the tempera-

railings.

ture inside the passenger compart-

ment increases very quickly.

Never travel with a child held in your

arms. In the event of an accident,

RISK OF DEATH OR SERIOUS

you will not be able to keep hold of

INJURY.

the child, even if you yourself are

wearing a seat belt.

If your vehicle has been involved in

To prevent the doors being

a road accident, replace the child

opened, use the “Child lock”

seat and have the seat belts and

feature ➥ 1.10.

ISOFIX anchorage points checked.

1.37

CarManuals2.co

CHILD SAFETY: General information (2/2)

Using a child seat

Before fitting a child seat, read the

manual and respect its instructions. If

The level of protection offered by the

you experience any difficulties during

child seat depends on its ability to re-

installation, contact the manufacturer

strain your child and on its installation.

of the equipment. Keep the instructions

Incorrect installation compromises the

with the seat.

protection it offers the child in the event

of harsh braking or an impact.

Before purchasing a child seat, check

that it complies with the regulations for

the country you are in and that it can

be fitted in your vehicle. Consult an ap-

proved dealer to find out which seats

are recommended for your vehicle.

The regulations on transporting chil-

Never leave a child unat-

dren are specific to each country. The

tended in the vehicle.

use of a child seat during transport de-

pends on the age and/or the size and/

Check that your child is

or weight of the child. For children who

always strapped in and that

do not need to be transported in a child

the belt or safety harness used is

seat, make sure that the seat belt is

Set a good example by always fas-

correctly set and adjusted. Avoid

correctly adjusted and fastened. In all

tening your seat belt and teaching

wearing bulky clothing which could

cases, you must comply with the regu-

your child:

cause the belts to slacken.

lations of the particular country you are

- to strap themselves in correctly;

Never let your child put their head or

in.

- to always get in and out of the car

arms out of the window.

at the kerb, away from busy traf-

Check that the child is in the correct

fic.

position for the entire journey, espe-

Do not use a second-hand child

cially if asleep.

seat or one without an instruction

manual.

Check that there are no objects in

the vicinity of the child seat which

could impede its operation.

1.38

CarManuals2.co

CHILD SAFETY: choosing a child seat

Rear-facing child seats

Forward-facing child seats

Booster cushions

A baby’s head is, proportionally, heavier

Up to 18 kg or 4 years, the child may

From 15 kg or 4 years, the child can

than that of an adult and its neck is very

travel on a forward-facing seat. Choose

travel using a booster seat, which will

fragile. Transport the child in this po-

your seat according the child’s size:

enable the seat belt to be adapted to

sition for as long as possible (until the

their head and abdomen are the areas

suit his size and shape. The booster

age of 2 at the very least). It supports

which must be most protected. A for-

seat cushion must be fitted with guides

both the head and the neck.

ward-facing child seat which is firmly

to position the seat belt on the child’s

attached to the vehicle will reduce the

thighs rather than the stomach. It is

Choose a bucket type seat for best side

risk of impact to the head. Ensure your

recommended that you use a seat-

protection and change it as soon as the

child travels in a forward-facing seat

back which can be adjusted in terms

child’s head is higher than the shell.

with a harness for as long as their size

of height to position the seat belt in the

permits.

centre of the shoulder. It must never

rest on the neck or on the arm.

Choose a bucket type seat for optimum

side protection.

Choose a bucket type seat for optimum

side protection.

1.39

CarManuals2.co

CHILD SAFETY: choosing a child, baby seat mounting (1/2)

There are two ways of attaching child

Check that the child seat has not been

Attachment using the ISOFIX

seats: via the seat belt or using the

installed at an angle and that it is not

system

ISOFIX system.

resting against a window.

Authorised ISOFIX child seats are ap-

proved in accordance with current reg-

Attachment via the seat belt

ulations if any of the three cases below

The seat belt must be adjusted to

applies:

ensure that it is effective in the event of

- universal ISOFIX 3-point forward-

harsh braking or an impact.

facing seat;

- semi-universal ISOFIX 2-point seat;

Ensure that the strap paths indicated

- specific.

by the child seat manufacturer are re-

The seat belt must never

spected.

For the latter two, check that your child

be twisted or the tension

seat can be installed by consulting the

Always check that the seat belt is cor-

relieved. Never pass the

list of compatible vehicles.

rectly fastened by pulling it up, then

shoulder strap under the

pulling it out fully whilst pressing on the

arm or behind the back.

Attach the child seat with the ISOFIX

child seat.

Check that the seat belt has not

locks, if these are provided. The ISOFIX

been damaged by sharp edges.

system allows quick, easy, safe fitting.

Check that the seat is correctly held by

If the seat belt does not operate nor-

The ISOFIX system consists of 2 rings

moving it from side to side and back

mally, it will not protect the child.

and, in some cases, a third ring.

to front: the seat should remain firmly

fixed.

Consult an approved dealer. Do not

use this seat until the seat belt has

been repaired.

Before using an ISOFIX

child seat that you pur-

Do not use the child seat

chased for another vehicle,

if it may unfasten the seat

check that its installation is

belt restraining it: the base

authorised. Consult the list of ve-

of the seat must not rest on

No modifications may be

hicles which can be fitted with the

the buckle and/or catch of the seat

made to the component

seat from the equipment manufac-

belt.

parts of the restraint system

turer.

(ISOFIX seat belts, seats

and their mountings) originally fitted.

1.40

CarManuals2.co

CHILD SAFETY: choosing a child, baby seat mounting (2/2)

Check that the seatback

of the forward-facing child

seat is in contact with the

back of the vehicle seat.

In this case, the child seat may not

always rest on the base of the vehi-

cle seat.

The two rings 1 are located between the

The third ring is used to attach the

The ISOFIX anchorage

seatback and the seat base of the seat

upper strap on some child seats.

points have been exclu-

- Place the headrest in the top position

and are identified by a ü

symbol.

sively designed for child

or remove it;

seats with the ISOFIX

- pass the belt 2 (supplied with the

system. Never fit a different type of

seat) between the two rear headrest

child seat, seat belt or other objects

rods;

to these anchorage points.

- the hook 3 must be attached to the

Check that nothing is obstructing

ring 4 located behind the seatback

the anchorage points.

and marked by the symbol ;

If your vehicle has been involved in

a road accident, have the ISOFIX

- tighten the belt.

anchorage points checked and re-

place your child seat.

1.41

CarManuals2.co

CHILD SAFETY: fitting a child seat: general information (1/2)

Some seats are not suitable for fitting

Front seats

Always fully raise the seat headrest so

child seats. The diagrams on the fol-

that it does not interfere with the child

The laws concerning children travel-

lowing pages show you how to attach

seat ➥ 1.19.

ling in the front passenger seat differ in

a child seat.

every country. Consult the legislation in

After installing the child seat, when this

The types of child seats indicated may

force and follow the indications on the

is possible, you can move the vehi-

not be available. Before using a differ-

diagrams on the following pages.

cle seat forward if necessary (so as to

ent child seat, check with the manufac-

leave enough space in the rear seats

Before fitting a child seat in this seat (if

turer that it can be fitted.

for passengers or other child seats). In

authorised):

the case of a rear-facing child seat, do

- lower the seat belt as far as possible;

not let it touch the dashboard or move it

to the furthest forward position.

- on equipped vehicles, push the seat

back as far as possible;

Do not change other settings after in-

stalling the child seat.

- on equipped vehicles, tilt the seat-

back slightly (approximately 25°);

- on equipped vehicles, raise the seat

base as far as possible.

Fit the child seat in a rear

seat wherever possible.

To install an ISOFIX seat in

this seat, unbuckle the seat

belt by hand before engaging the

bolts.

Fitting a seat ISOFIX in

RISK OF DEATH OR

the rear-left seat means

SERIOUS INJURY: before

the middle seat cannot be

fitting a child seat in the

used. The central seat belt

front passenger seat, make

will no longer be either accessible or

sure that the front passenger airbag

useable.

has been deactivated. ➥ 1.80.

1.42

CarManuals2.co

CHILD SAFETY: fitting a child seat, general information (2/2)

In the rear seat

A carrycot can be installed across the

vehicle and will take up at least two

seats. Position the child with his or her

feet nearest the door.

Move the front seat as far forward as

possible to install a rear-facing child

seat, then move back the seat in front

as far as it will go, although without al-

lowing it to come into contact with the

child seat.

For the safety of the child in the for-

ward-facing position:

- do not push the seat in front of the

child back further than halfway along

its runners;

- do not recline the seatback too far

(maximum of 25°) and raise the seat

as much as possible.

Always remove the headrest from the

rear seat on which the child seat is po-

sitioned. ➥ 1.19. This must be done

before fitting the child seat.

Check that the forward-facing child seat

is resting against the back of the vehi-

A child seat with a floor sup-

cle seat.

port must never be installed

on the rear centre seat.

RISK OF DEATH OR

SERIOUS INJURY.

1.43

CarManuals2.co

CHILD SEATS: attachment by seat belt (1/24)

2-seater van version

Using a child safety system

which is not approved for

this vehicle will not correctly

Check the status of the airbag

Seat which allows a child seat

protect the baby or child.

before fitting a child seat or allowing a

with “Universal” approval to be attached

They risk serious or even fatal injury.

passenger to use the seat.

by a seat belt.

B2: Seat enabling a child seat with “B2”

Seat not suitable for fitting child

approval to be attached by seat belt.

seats.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a child seat in the

front passenger seat, make

sure that the front passenger airbag

has been deactivated. ➥ 1.80.

1.44

CarManuals2.co

CHILD SEATS: attachment by seat belt (2/24)

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

WITHOUT PASSENGER

2-seater van version

WITH PASSENGER AIRBAG

AIRBAG

Child seat group

Weight of the child

Front passenger seat

Rear-facing shell seat

< 13 kg

U (1) (2)

U (2)

Group 0 or 0 +

Rear-facing seat

< 13 kg and

U (1) (2)

U (2)

Group 0+ and 1

9 to 18 kg

Forward-facing seat

9 to 18 kg

U (1) (2)

U (2)

Group 1

Booster seat

15 kg to 25 kg and

U / B2 (1) (2)

U / B2 (2)

Group 2 and 3

22 to 36 kg

U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.

B2 = Seat enabling a child seat with “B2” approval to be attached by seat belt; check that it can be fitted.

RISK OF DEATH OR SERIOUS INJURY, before installing a child seat:

(1) on the front passenger seat, check that the airbag has been deactivated ➥ 1.80;

(2) position the vehicle seat as far back and as high as possible. Tilt the seatback slightly ➥ 1.20. Adjust the seat belt

position to the lowest position. Make sure that the seat belt is locked in position correctly after you have adjusted it

➥ 1.23.

1.45

CarManuals2.co

CHILD SEATS: attachment by seat belt (3/24)

3-seater van version

Using a child safety system

which is not approved for

this vehicle will not correctly

Check the status of the airbag

Seat which allows a child seat

protect the baby or child.

before fitting a child seat or allowing a

with “Universal” approval to be attached

They risk serious or even fatal injury.

passenger to use the seat.

by a seat belt.

B2: Seat enabling a child seat with “B2”

Seat not suitable for fitting child

approval to be attached by seat belt.

seats.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a child seat in the

front passenger seat, make

sure that the front passenger airbag

has been deactivated. ➥ 1.80.

1.46

CarManuals2.co

CHILD SEATS: attachment by seat belt (4/24)

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

3-seater van version

WITH PASSENGER AIRBAG

WITHOUT PASSENGER AIRBAG

Central front

Side front

Central front

Side front

Child seat group

Weight of the child

passenger seat

Rear-facing shell seat

< 13 kg

U (1)

Group 0 or 0 +

Rear-facing seat

< 13 kg and

U (1)

Group 0+ and 1

9 to 18 kg

Forward-facing seat

9 to 18 kg

U (1)

Group 1

Booster seat

15 kg to 25 kg and

U (1)

U / B2 (1)

U / B2

Group 2 and 3

22 to 36 kg

U = Seat allowing a child seat with “Universal” approval to be attached by the seat belt; check that it can be fitted.

B2 = Seat enabling a child seat with “B2” approval to be attached by seat belt; check that it can be fitted.

(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a child seat in the front passenger seat, make sure that the

front passenger airbag has been deactivated ➥ 1.80.

1.47

CarManuals2.co

CHILD SEATS: attachment by seat belt (5/24)

7-seater double cab version

Using a child safety system

which is not approved for

this vehicle will not correctly

Check the status of the airbag

Seat which allows a child seat

protect the baby or child.

before fitting a child seat or allowing a

with “Universal” approval to be attached

They risk serious or even fatal injury.

passenger to use the seat.

by a seat belt.

B2: Seat enabling a child seat with “B2“

Seat not suitable for fitting child

approval to be attached by seat belt.

seats.

B3: Seat enabling a child seat with “B3“

approval to be attached by seat belt.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a child seat in the

front passenger seat, make

sure that the front passenger airbag

has been deactivated. ➥ 1.80.

1.48

CarManuals2.co

Renault Master (2023 year). Manual in english - page 1
