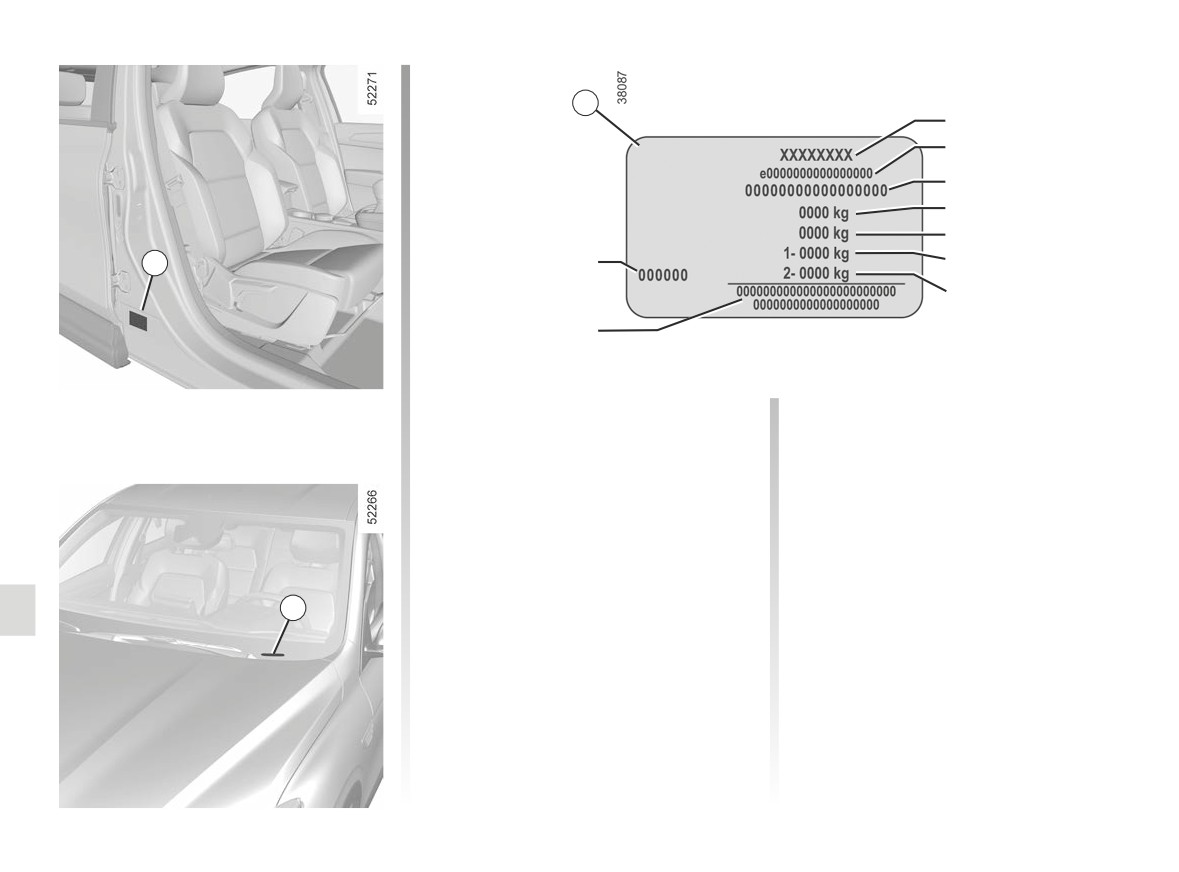

VEHICLE IDENTIFICATION PLATES
A
1
2
3
4
5
A
9
6
7
8
The information shown on the ve-
4
MMAC (Maximum authorised
hicle identification plate should be
Mass).
quoted on all correspondence or
5
MTR (Gross Train Weight: vehicle
orders.
fully loaded, with trailer).
The presence and location of the in-
6
MMTA (Maximum Permissible
formation depends on the vehicle.
Weight) front axle.
Vehicle identification plate A
7
MMTA rear axle.
1
Manufacturer name.
8
Reserved for related or additional
B
entries.
2
EC design number or approval
number.
9
Paint reference (colour code).
3
Identification number.
Depending on the vehicle, this in-
formation is also given on mark-
ing B.
6.2
CarManuals2.co

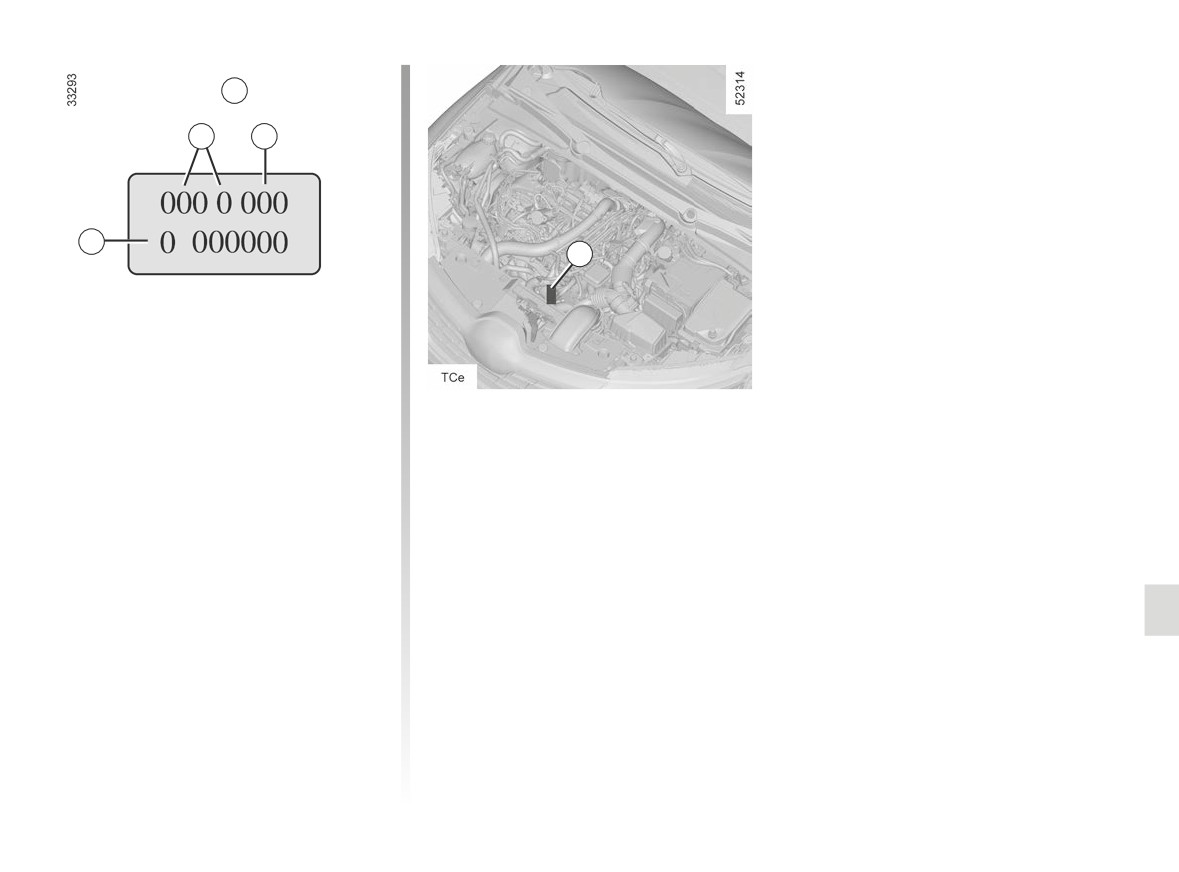

ENGINE IDENTIFICATION PLATES
A
1
2
3
A
Please quote the information on the
engine plate or label A in all corre-
spondence or orders.
(Location varies depending on engine)
1
Engine type.
2
Engine suffix.
3
Engine number.
6.3
CarManuals2.co

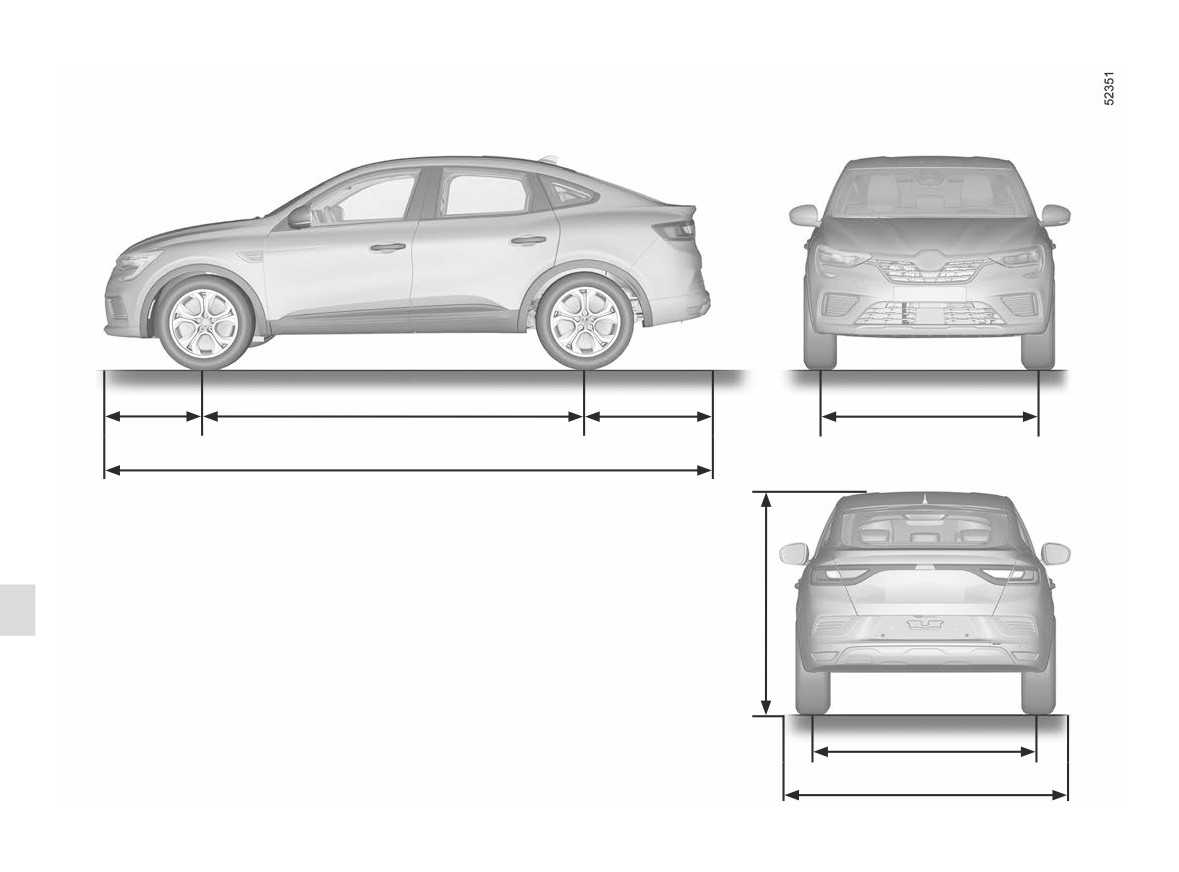

DIMENSIONS (in metres)
878
2,720
970
1,562
4,568
1,571*
1,584
2,035
* unladen
6.4
CarManuals2.co
ENGINE SPECIFICATIONS
Versions
TCe 260
Engine type
H5H
(see engine plate)
Cubic capacity (cc)
1,332
Type of fuel
Petrol
Octane rating
You must use unleaded petrol with the octane rating stated on the label inside the fuel filler
flap. ➥ 1.104
Spark plugs
Only use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label affixed inside the engine compartment. If it is not then
contact an approved Dealer.
Fitting spark plugs other than those specified may damage the engine.
Fuel types that meet
European standards and are
compatible with the engines
Unleaded petrol compliant with standard EN 228 contains up to 5% eth-
of vehicles sold in Europe
anol in volume.
(in any other case, contact an
Approved Dealer).
Unleaded petrol compliant with standard EN 228 contains up to 10%
ethanol in volume.
6.5
CarManuals2.co
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary depending on your vehicle’s equipment. Consult
your approved Dealer.
Maximum Authorised Mass (MMAC)
Maximum Permissible Weight (MMTA)
Weights indicated on the vehicle identification plate ➥ 6.2
Gross Train Weight (MTR)
Braked Trailer Weight*
found by calculating: MTR - MMAC
Unbraked Trailer Weight*
705 kg
Permissible nose weight*
75 kg
Maximum permissible load on roof
80 kg (including carrying device)
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the MTR - MMAC calculation is equal to zero, or when the MTR is equal to zero (or is not listed) on
the identification plate.
- It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the Road Traffic Regulations. Contact an approved Dealer about any towing equipment.
- When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded. However the following is
permitted:
- rear axle MMTA exceeded by no more than 15%,
- maximum MMAC exceeded by no more than 10% or 100 kg (whichever is reached first).
In either case, the maximum speed of the vehicle and trailer must not exceed 60 mph (100 km/h) and the tyre pressures must
be increased by 0.2 bar (3 PSI).
- The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by
10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 metres thereafter.
6.6
CarManuals2.co
REPLACEMENT PARTS AND REPAIRS
Original parts are based on strict specifications and are subject to highly-specialised tests. Therefore, they are of at least the same
level of quality as the parts fitted originally.
If you always fit genuine replacement parts to your vehicle, you will ensure that it performs well. Furthermore, repairs carried out
within the manufacturer’s Network using original parts are guaranteed according to the conditions set out on the reverse of the
repair order.
6.7
CarManuals2.co
SERVICE SHEETS (1/6)
VIN:
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
6.8
CarManuals2.co
SERVICE SHEETS (2/6)
VIN:
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
6.9
CarManuals2.co
SERVICE SHEETS (3/6)
VIN:
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
6.10
CarManuals2.co
SERVICE SHEETS (4/6)
VIN:
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
6.11
CarManuals2.co
SERVICE SHEETS (5/6)
VIN:
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
6.12
CarManuals2.co
SERVICE SHEETS (6/6)
VIN:
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
Date:
Miles (Km):
Invoice number:
Comments/miscellaneous
Type of operation:
Stamp
Service
□
□
Anti-corrosion check:
OK □ Not OK* □
*See specific page
6.13
CarManuals2.co
ANTICORROSION CHECK (1/5)
If the continuation of the warranty is subject to repair, it is indicated below.
VIN:
Corrosion repair operation to be carried
Stamp
out:
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
6.14
CarManuals2.co
ANTICORROSION CHECK (2/5)
If the continuation of the warranty is subject to repair, it is indicated below.
VIN:
Corrosion repair operation to be carried
Stamp
out:
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
6.15
CarManuals2.co
ANTICORROSION CHECK (3/5)
If the continuation of the warranty is subject to repair, it is indicated below.
VIN:
Corrosion repair operation to be carried
Stamp
out:
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
6.16
CarManuals2.co
ANTICORROSION CHECK (4/5)
If the continuation of the warranty is subject to repair, it is indicated below.
VIN:
Corrosion repair operation to be carried
Stamp
out:
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
6.17
CarManuals2.co
ANTICORROSION CHECK (5/5)
If the continuation of the warranty is subject to repair, it is indicated below.
VIN:
Corrosion repair operation to be carried
Stamp
out:
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
Repair to be carried out:
Stamp
Date of repair:
