Aérateurs (sorties d’air) (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Air vents

aiR vents: air outlets

(1/2)

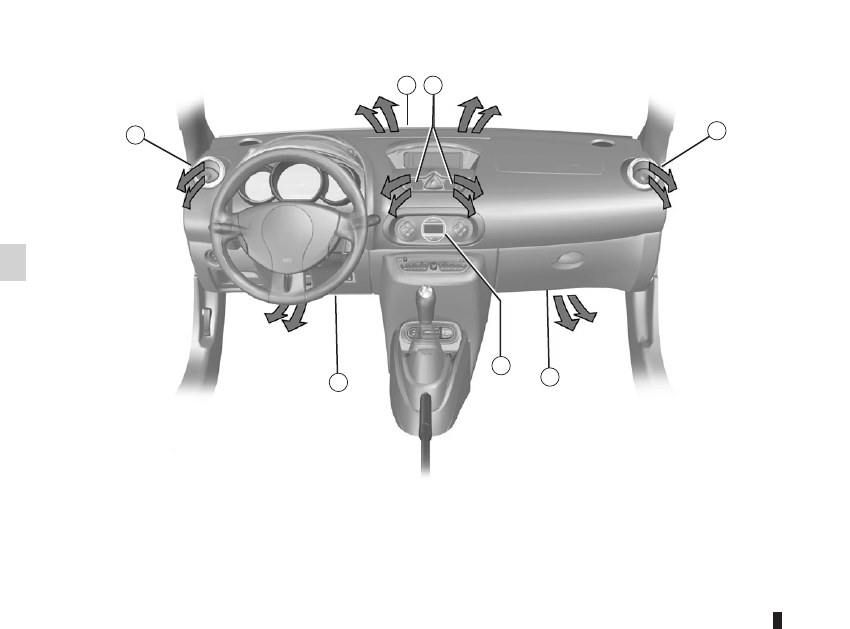

1  left-hand side air vent
2  windscreen demister outlets
3  centre air vents
4  right-hand side air vent
5  passenger footwell heater outlets
6  air conditioning control panel.

3.7

ENG_UD20477_2

Aérateurs (sorties d’air) (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

aiR vents: air outlets

(2/2)

To remove bad odours from your ve-

hicles, only use the systems designed

for this purpose. Consult an approved

Dealer.

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

there is a risk of damage or of

fire.

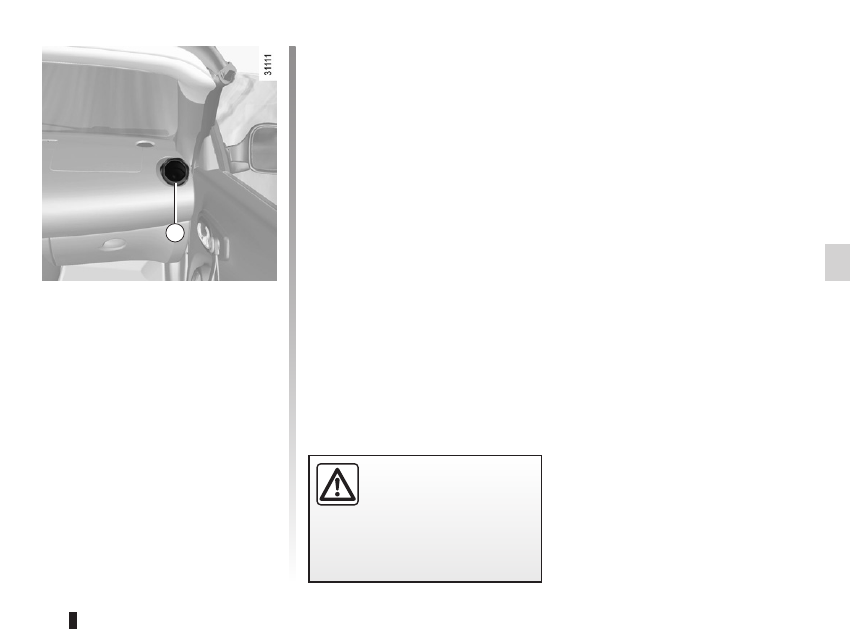

side vent 1

To open, press on the air vent.
Turn the vent to position it.

heating system .....................................(up to the end of the DU)

ventilation .............................................(up to the end of the DU)

air conditioning .....................................(up to the end of the DU)

3.8

ENG_UD13546_1

Chauffage - ventilation avec isolation de l’habitacle (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Manual air conditioning/heating system

Manual aiR ConDitioning/Heating systeM

(1/4)

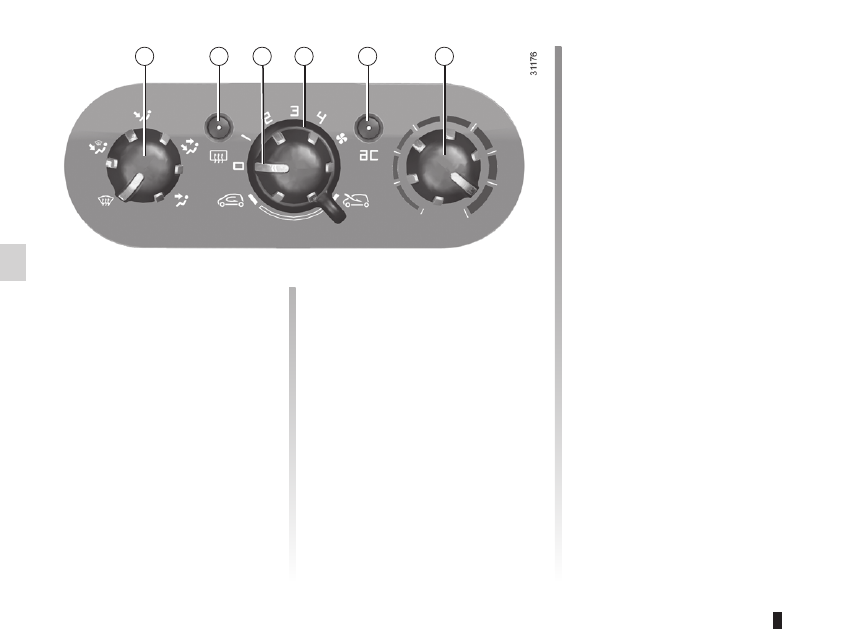

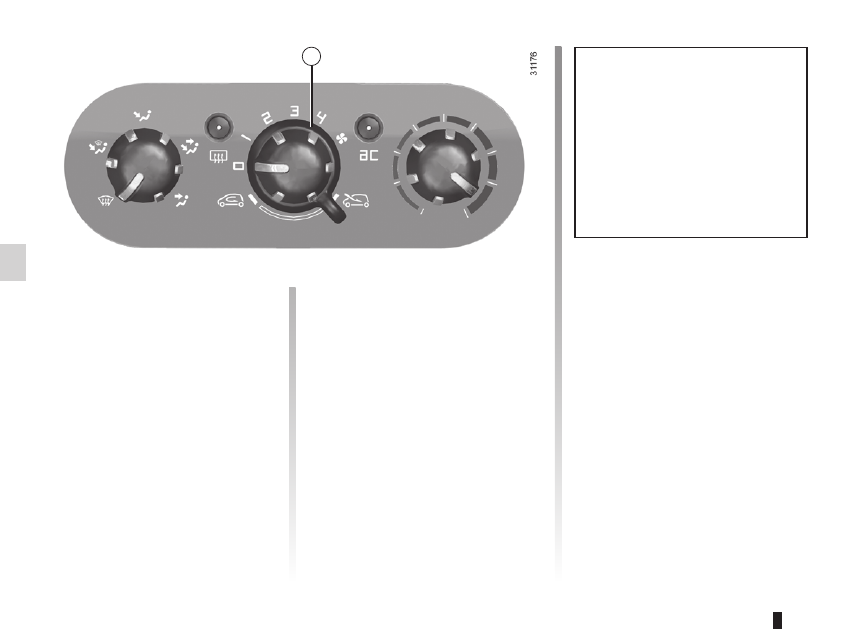

Controls

(depending on the vehicle)
A Adjusting the distribution of air in the

passenger compartment.

B Heated rear screen and heated door

mirror de-icing/demisting control and

indicator light.

C Adjusting the ventilation speed.
D Air recirculation and isolation of the

passenger compartment.

E Air conditioning operating indicator

light and button.

F Adjusting the air temperature.

information and advice for use:
Refer to the end of the paragraph on

“Automatic climate control”.

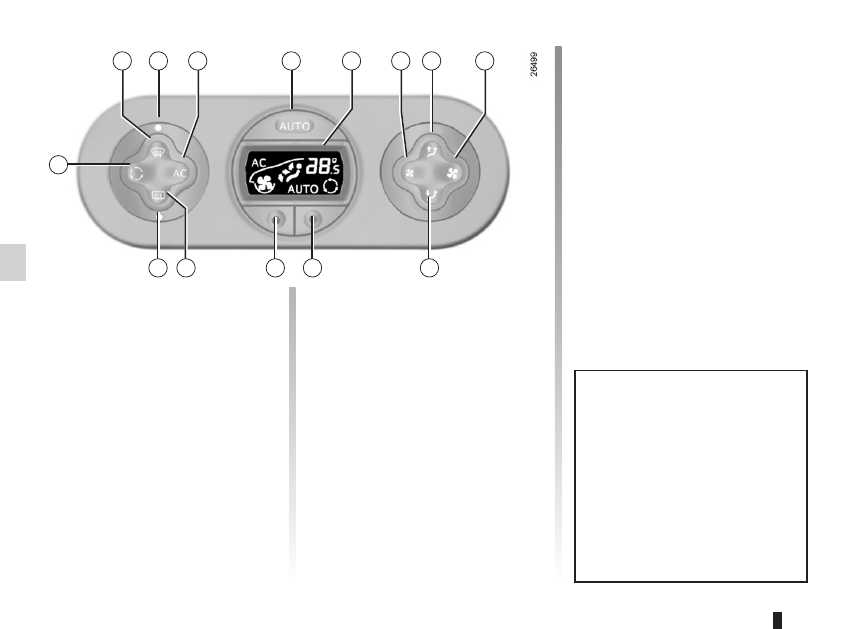

Distribution of air in the

passenger compartment

Turn control A.

Close the dashboard vents

for more effective demisting.

All the air flow is directed to the wind-

screen demisting vents.

The air flow is distributed be-

tween the air vents, the wind-

screen demisting vents and the foot-

wells.

The air flow is directed mainly

towards the footwells.

demisting

rear screen .......................................................(current page)

rear screen

demisting .........................................................(current page)

3.9

ENG_UD13546_1

Chauffage - ventilation avec isolation de l’habitacle (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

The air flow is directed towards

the dashboard vents and the

footwells.

All the air flow is directed to the

dashboard vents.

This selection is not appropriate if all

the air vents are closed.

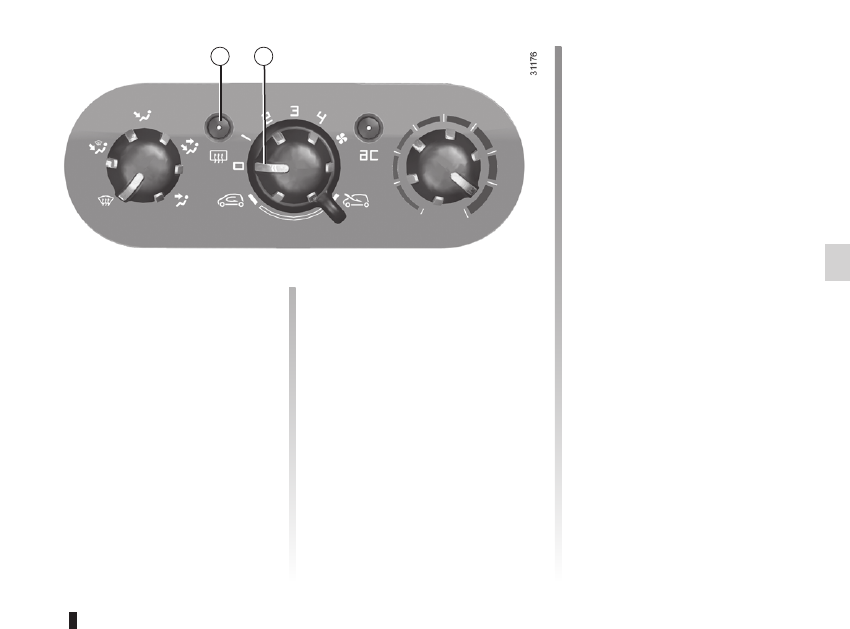

Rear screen de-icing/

demisting

With the engine running, press

button B, the operating tell-tale for the

button will come on.
This function permits rapid demisting/

de-icing of the rear screen and de-icing

of the door mirrors (on equipped vehi-

cles).
To exit this function, press button B

again.
Demisting automatically stops by de-

fault.

adjusting the ventilation

speed

Turn control C from 0 to 4.
The passenger compartment is ven-

tilated by blown air. The blower deter-

mines how much air enters but vehicle

speed has a slight effect on this.
The further the control is positioned to

the right, the greater the amount of air

blown into the passenger compartment.

Manual aiR ConDitioning/Heating systeM

(2/4)

3.10

ENG_UD13546_1

Chauffage - ventilation avec isolation de l’habitacle (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

air recirculation operation

(isolation of the passenger

compartment)

Turn control D towards air recirculation

symbol

In these conditions air is taken from the

passenger compartment and is recircu-

lated, with no air being taken from out-

side the vehicle.

air recirculation is for:
– isolating the vehicle from the exter-

nal atmosphere (driving in polluted

areas, etc.);

– bringing the passenger compartment

to the desired temperature as quickly

as possible.

Prolonged use of this position (iso-

lation mode) may mist up the win-

dows slightly or cause odours due

to the air not being renewed.

It is therefore advisable to return to

normal operation (external air) by

pressing control D when you have

passed through the polluted area.

Manual aiR ConDitioning/Heating systeM

(3/4)

3.11

ENG_UD13546_1

Chauffage - ventilation avec isolation de l’habitacle (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Manual aiR ConDitioning/Heating systeM

(4/4)

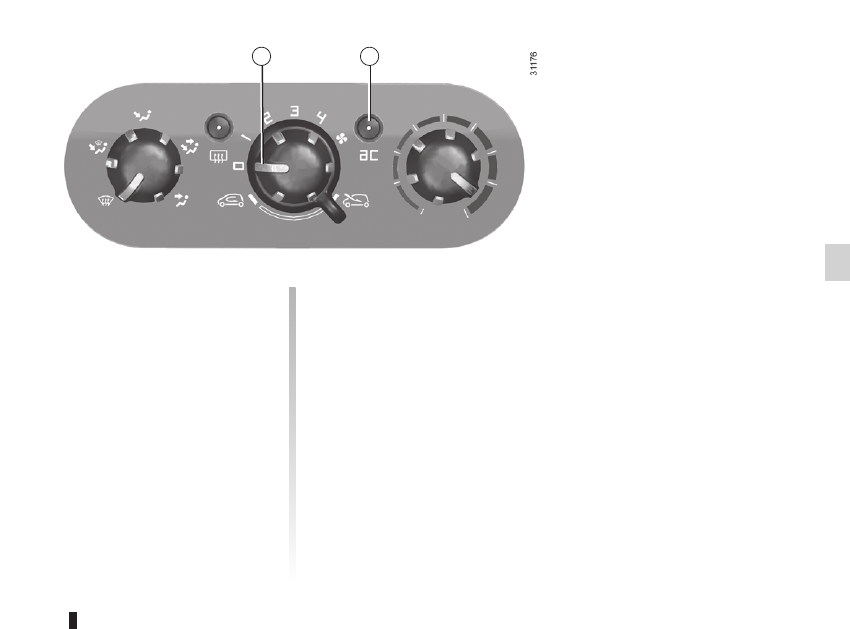

air conditioning control

The air conditioning is switched on (in-

dicator light on) or off (indicator light off)

using button E.
The system

cannot be switched on if

control C is set to 0.
The air conditioning system is used for:
– lowering the temperature inside the

passenger compartment;

– eliminating condensation more

quickly.

Use the air recirculation function to

lower the temperature as quickly as

possible to the required level. Switch

off the air recirculation function once a

comfortable level has been reached.
note: the air conditioning may be used

in all conditions but does not operate

when the external temperature is low.

air conditioning .....................................(up to the end of the DU)

heating system .....................................(up to the end of the DU)

temperature regulation .........................(up to the end of the DU)

ventilation .............................................(up to the end of the DU)

air conditioning .....................................(up to the end of the DU)

3.12

ENG_UD11200_1

Air conditionné automatique (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Automatic climate control

autoMatiC CliMate ContRol

(1/6)

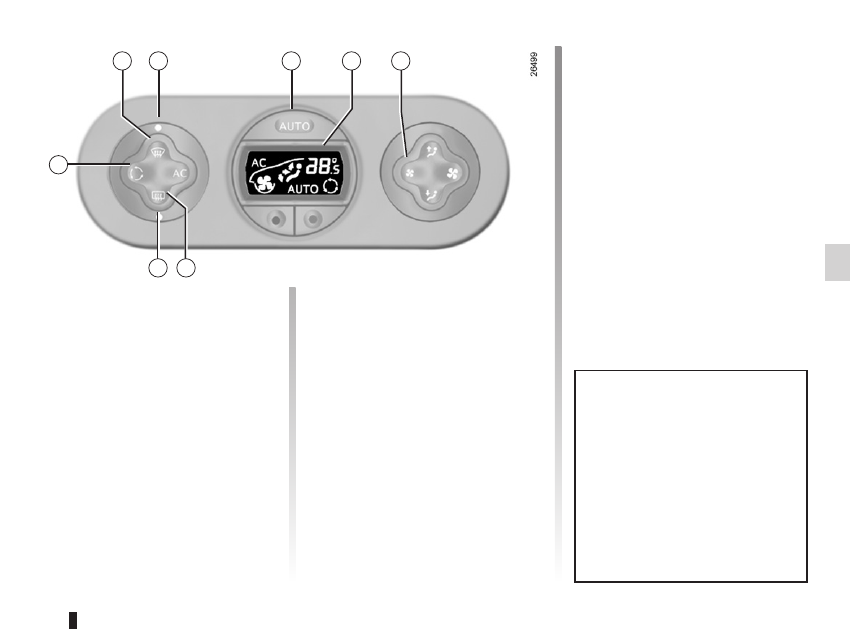

Controls

(depending on vehicle)
1 “Clear view” button for demisting and

de-icing the windows and/or heated

door mirrors.

Air conditioning on/off button.

4 Starting automatic mode.
5 Display.

6 and 8 Adjusting the ventilation

speed.

7 and 9 Passenger compartment air

distribution adjustment.

10 and 11 Adjusting the air tempera-

ture.

12 Heated rear screen and/or heated

door mirror de-icing.

Air recirculation control.

Buttons 1 and 12 are comple-

mented by operating indicator lights

(2 and 13):
– indicator light on, the function is

switched on,

– indicator light off, the function is

switched off.

information and advice for use
Refer to information on “Air condition-

ing: information and advice on use”.

3.13

ENG_UD11200_1

Air conditionné automatique (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

autoMatiC CliMate ContRol

(2/6)

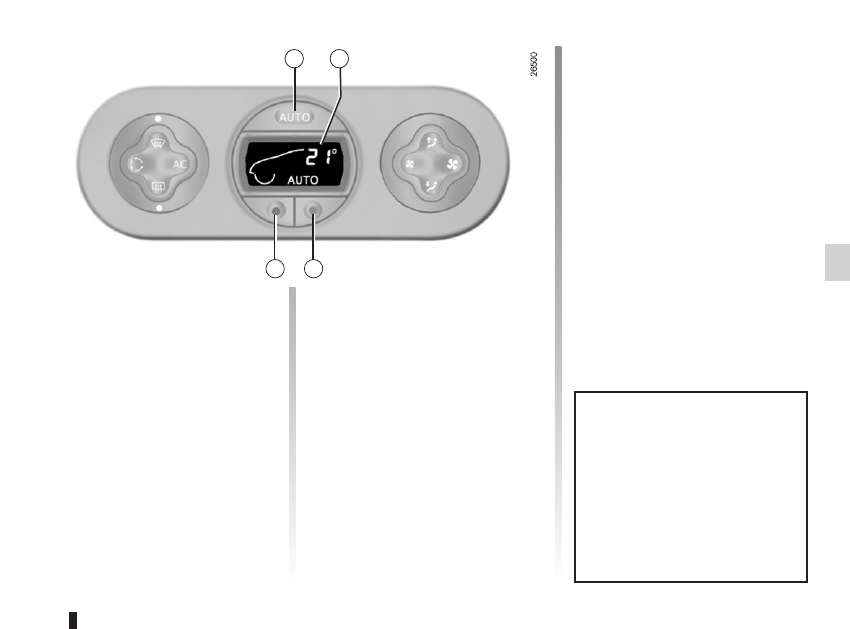

only the temperature and the auto

symbol are displayed
Functions managed in automatic mode

are not displayed.
– press button 10 to increase the tem-

perature;

– press button 11 to decrease the tem-

perature.

note: The maximum and minimum

settings of 15°C and 27°C allow the

system to produce a minimum or maxi-

mum temperature, whatever the ambi-

ent conditions.

In automatic mode (AUTO lit on the

display), all heating and air condi-

tioning functions are controlled by

the system.
When you modify certain functions,

AUTO goes out. Only the modified

function stops being controlled by

the system.

To reach and keep the chosen comfort

level and to maintain good visibility, the

system controls:
–  ventilation speed;
–  air distribution;
–  air recirculation management;
–  air conditioning start/stop;
–  the air temperature.

automatic mode

Press button 4. AUTO lights up on dis-

play 5.
In most cases, the automatic climate

control system ensures a comfortable

temperature in the passenger compart-

ment, while maintaining good visibility

and optimising fuel consumption.
this is the recommended mode of

use.

3.14

ENG_UD11200_1

Air conditionné automatique (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

autoMatiC CliMate ContRol

(3/6)

adjusting automatic mode

The system normally operates in auto-

matic mode but you can alter the stand-

ard settings used by the system (air

distribution, etc.). These options are

explained on the following pages.

automatic mode is the recom-

mended mode of use
In most cases, the automatic cli-

mate control system ensures a com-

fortable temperature in the passen-

ger compartment, while maintaining

good visibility and optimising fuel

consumption.
The types of adjustments that can

be made are described in the follow-

ing pages.
Return to automatic mode as soon

as possible.

The displayed temperature values

show a comfort level.
When starting the engine, increas-

ing or decreasing the value dis-

played will not allow the com-

fort level to be reached any more

quickly. The system will always op-

timise the temperature increase or

decrease (the ventilation system

does not start instantly at maximum

speed: it gradually increases). This

may take several minutes.
Generally speaking, unless there is

a particular reason not to, the dash-

board air vents should remain open.

rear screen de-icing/demisting ..............................(current page)

windscreen de-icing/demisting ..............................(current page)

3.15

ENG_UD11200_1

Air conditionné automatique (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

autoMatiC CliMate ContRol

(4/6)

The air flow is directed mainly

to the dashboard air vents.

The air flow is directed towards

all the air vents and the pas-

senger footwells.

The air flow is directed mainly

towards the footwells.

The manual air distribution option

causes the operating tell-tale light

on display 5 to go out (automatic

mode), but only air distribution is no

longer controlled automatically by

the system.
Press button 4 to return to auto-

matic mode.

Distribution of air in the

passenger compartment

There are five possible combinations

for air distribution, which may be se-

lected by pressing buttons 6 and 8 re-

peatedly. The arrows on display 4 indi-

cate the setting selected:

The air flow is directed to the

windscreen demisting vents.

The air flow is directed to the

windscreen demisting vents

and the passenger footwells.

3.16

ENG_UD11200_1

Air conditionné automatique (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

autoMatiC CliMate ContRol

(5/6)

In automatic mode, depending on

the outside air conditions, the ven-

tilation may not start immediately at

maximum power but will increase

progressively until the engine tem-

perature is warm enough to heat the

passenger compartment air. This

may take from a few seconds to

several minutes.

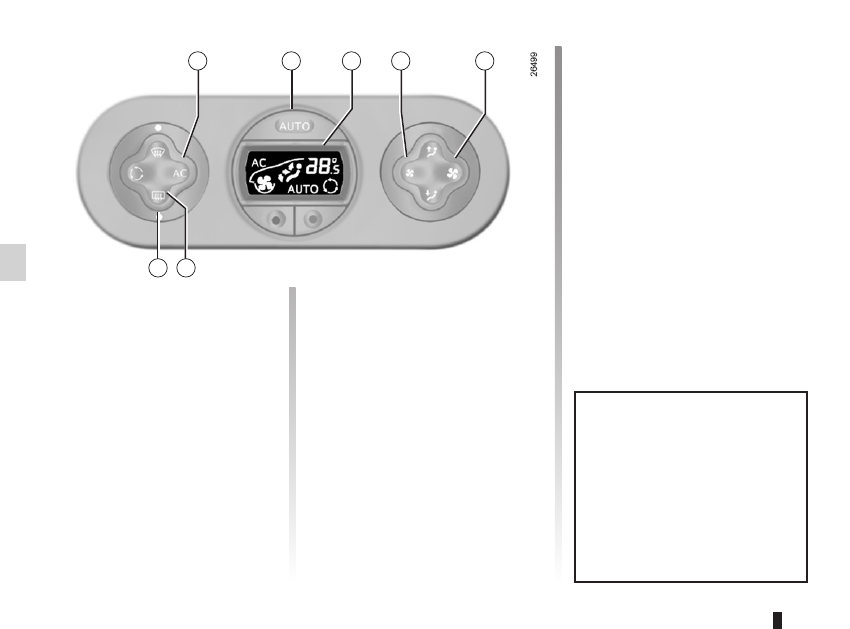

switching air conditioning on

or off

In automatic mode, the system switches

the air conditioning system on or off,

depending on the climate conditions.
Exit automatic mode by pressing

button 3: AUTO goes out on display 5

and AC OFF lights up.
note: the “Clear View” function auto-

matically activates the air conditioning.

Press button 4 to return to automatic

mode.

varying the ventilation speed

In automatic mode, the system uses

the most suitable amount of air to reach

and maintain the desired comfort level.
Exit automatic mode by pressing but-

tons 6 and 8.
These buttons allow you to increase or

decrease ventilation speed.

Rear screen and/or door

mirror de-icing/demisting.

Press button 12; indicator light 13

comes on.
This function allows electric demisting

of the rear screen and/or the electric

heated door mirrors, depending on the

vehicle.
to exit this function, press button 12

again. Demisting automatically stops

by default.

3.17

ENG_UD11200_1

Air conditionné automatique (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

autoMatiC CliMate ContRol

(6/6)

Clear view function

Press button 1; indicator lights 2 and 13

come on.
AUTO goes out on display 5.
This function rapidly demists/de-ices

the windscreen, the front side windows

and the door mirrors.
It imposes automatic operation of the

air conditioning and heating of the rear

screen and/or heated door mirrors, and

inhibits air recirculation.

Press button 12 if you do not wish to

switch on the heated rear screen and/

or heated door mirrors.
note: if you wish to reduce the air flow

(which may produce a certain amount

of noise in the passenger compart-

ment), press button 6.
to exit this function, press:
– button 1 again;
– or button 4 (AUTO lights up on dis-

play 5).

air recirculation

Pressing button 14 activates air recir-

culation (the symbol lights up on the

display).
During recirculation, air is taken from

the passenger compartment and is re-

cycled, with no air being taken from out-

side the vehicle.
Air recirculation allows the external at-

mosphere to be cut off (when driving in

polluted areas, etc.).

Prolonged use of the air recircula-

tion mode may cause the windows

to mist up or lead to odours, as the

air is not renewed.
We therefore advise you to return

to normal mode (external air) as

soon as the air recirculation function

is no longer required, by pressing

button 14 again.

air conditioning .....................................(up to the end of the DU)

heating system .....................................(up to the end of the DU)

air conditioning .....................................(up to the end of the DU)

temperature regulation .........................(up to the end of the DU)

ventilation .............................................(up to the end of the DU)

heating and air conditioning system ......................(current page)

3.18

ENG_UD11524_2

Air conditionné : informations et conseils d’utilisation (X77 ph2 - Renault)

ENG_NU_865-6_E33_Renault_3

aiR ConDitioning: information and advice on use

Fuel consumption
You will normally notice an increase

in fuel consumption (especially

when driving in town) when the air

conditioning is operating. For vehi-

cles fitted with manual air condition-

ing, switch off the system when it is

not required.
advice for reducing consumption

and therefore helping to preserve

the environment:
Drive with the air vents open and

the windows closed.
If the vehicle has been parked in

the sun, open the doors for a few

moments to let the hot air escape

before starting the engine.

Maintenance
Refer to the Maintenance Document

for your vehicle for the inspection

frequency.

Do not open the refriger-

ant fluid circuit. The fluid

may damage eyes or skin.

note
Presence of water under the ve-

hicle. After prolonged use of the air

conditioning system, it is normal for

water to be present under the vehi-

cle. This is caused by condensation.

operating faults
As a general rule, contact your ap-

proved Dealer in the event of an op-

erating fault.
– Reduction in de-icing, demist-

ing or air conditioning per-

formance. This may be caused

by the passenger compartment

filter cartridge becoming clogged.

– no cold air is being produced.

Check that the controls are set

correctly and that the fuses are

sound. Otherwise, switch off the

system.

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

there is a risk of damage or of

fire.

electric windows ...................................(up to the end of the DU)

child safety.............................................................(current page)

children (safety) .....................................................(current page)

sunroof..................................................(up to the end of the DU)

3.19

ENG_UD24366_2

Lève-vitres électriques (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Electric windows

eleCtRiC winDows

operation

With the ignition switched on, press the

switch for the relevant window upwards

to raise it to the desired height.
Press the switch for the window con-

cerned downwards to lower it to the de-

sired height.

From the driver’s seat

1 for the driver’s side;
2 for the front passenger side.

one-touch mode

(lowering the window only)
Press switch 1 or 2 down briefly: the

window will open completely.
Pressing the switch again while the

window is moving will stop its move-

ment.

Avoid resting any objects against a

half-open window: there is a risk that

the electric window winder could be

damaged.

Driver’s responsibility
Never leave your vehicle

with the key or remote con-

trol inside and never leave a

child (or a pet) unsupervised, even

for a short while. The reason for this

is that the child may endanger him-

self or others by starting the engine

and activating equipment such as

the window winders or the sunroof.

If any part of the body becomes

trapped, reverse the direction of the

window immediately by pressing the

relevant switch.
Risk of serious injury.

operating faults

window fails to close and/or battery

disconnected
The system has to be reinitialised:
With the door closed and the ignition

switched on,
– Raise the window fully and keep the

button pressed for 2 seconds after it

has stopped moving.

– Lower the window fully and keep the

button pressed for 2 seconds after it

has stopped moving.

If necessary, contact an authorised

dealer.
if the window closes or opens jerk-

ily, the system is faulty.
Press the button to close the window as

many times as necessary and contact

an authorised dealer.

lighting:

interior .............................................(up to the end of the DU)

courtesy light ........................................(up to the end of the DU)

map reading lights ................................(up to the end of the DU)

sun visor ...............................................(up to the end of the DU)

courtesy mirrors ....................................(up to the end of the DU)

3.20

ENG_UD11203_1

Eclairage intérieur (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Courtesy light

Tilt switch 1 to move it to the position

for:
– continuous lighting;

– intermittent lighting, which comes on

when a door is opened. It goes out

when the doors concerned are prop-

erly closed;

– immediate switching off.

Interior lighting

Sun visor

inteRioR ligHting

sun visoR

Unlocking the vehicle or opening

the doors switches on the timed

courtesy lights.

luggage compartment light

The light comes on when the luggage

compartment is opened.

sun visor

Lower sun visor 2.

automatic operation of interior

lighting (depending on the vehi-

cle)
– if the doors are unlocked using

the remote control, the interior

lights are switched on for approx-

imately 15 seconds;

– if the doors are locked using the

remote control, the lights are

switched off immediately;

– if the door is open (or not properly

closed), the lights are switched

on for a period of approximately

15 minutes;

– if all the doors are closed, the in-

terior lights start to dim when the

ignition is switched on.

storage compartments ..........................(up to the end of the DU)

storage compartment............................(up to the end of the DU)

fittings ...................................................(up to the end of the DU)

3.21

ENG_UD21755_2

Rangements / aménagements habitacle (E33 - X33 - Renault)

ENG_NU_865-6_E33_Renault_3

Driver’s storage

compartment 2

Passenger compartment storage space and fittings

Door pockets 1

These can be used to hold cups or the

ashtray.

PassengeR CoMPaRtMent stoRage sPaCe anD Fittings

(1/2)

Nothing should be placed

on the floor area in front of

the driver as such objects

may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

Ensure that no hard, heavy

or pointed objects are

placed in the “open” storage

compartments in such a

way that they may fall onto passen-

gers during sudden turning, braking

or in the event of an accident.

When turning corners,

accelerating or braking,

ensure that the recepta-

cle being held by the cup

holder is not dislodged.
There is a risk of burning if hot liquid

escapes.

Content .. 4 5 6 7 ..
