bulbs

changing .........................................(up to the end of the DU)

fog lights ...............................................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

lights:

fog lights .........................................(up to the end of the DU)

bulbs

changing .........................................(up to the end of the DU)

lights

additional ........................................(up to the end of the DU)

lights

fog lights .........................................(up to the end of the DU)

5.14

ENG_UD11884_2

Projecteurs avant Feux de brouillard avant additionnels (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

heaDlIghts: additional/front fog lights

additional lights

If you wish to fit fog lights or long range

headlights to your vehicle, consult an

approved Dealer.

Any operation on (or modi-

fication to) the electrical

system must be performed

by an approved dealer

since an incorrect connection might

damage the electrical equipment

(harness, components and in partic-

ular the alternator). In addition, your

Dealer has all the parts required for

fitting these units.

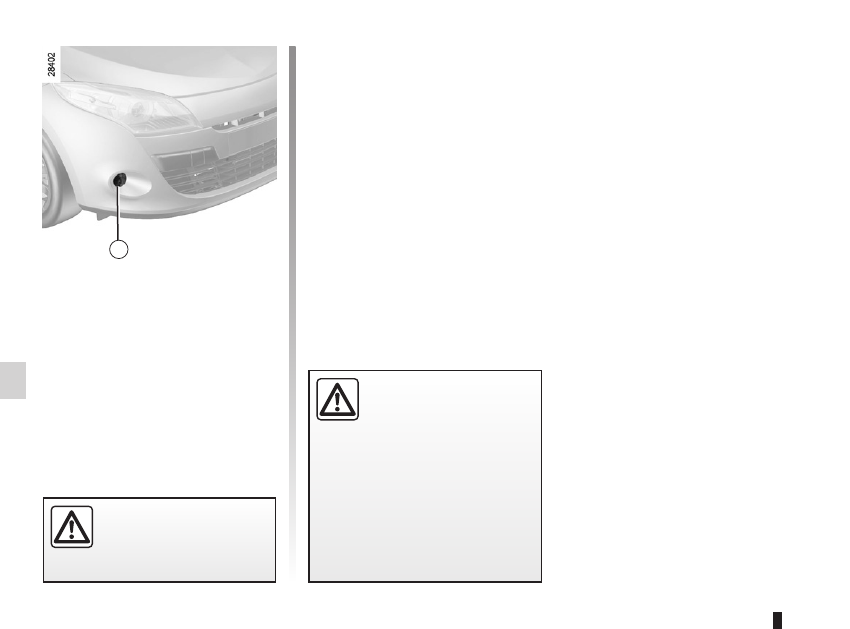

Front fog lights 1

However, because the front bumper

needs to be removed,

you are advised

to have your bulbs replaced by an

approved dealer.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

bulbs

changing .........................................(up to the end of the DU)

changing a bulb ....................................(up to the end of the DU)

lights:

direction indicators ...........................................(current page)

lights:

side lights .........................................................(current page)

lights:

brake lights ......................................................(current page)

lights:

reversing lights .................................................(current page)

lights:

fog lights ..........................................................(current page)

indicators:

direction indicators ...........................................(current page)

bulbs

changing .........................................(up to the end of the DU)

5.15

ENG_UD18877_3

Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Rear lights (changing bulbs)

rear lIghts anD InDIcatOr lIghts: changing bulbs

(1/6)

– loosen nut 1, press down on it to

release the front of the light (move-

ment A) then remove the nut;

– from the outside, pull the light to-

wards you (movement B);

– remove the bulb holder 3 by releas-

ing the clips 4.

Direction indicator lights 5
Bulb type: Py21w.
side light and brake light 6
Bulb type: P21/5w.
refitting
To refit, proceed in the reverse order,

taking care not to damage the wiring.

Five-door versions

Direction indicator lights/brake and

side lights
– Unclip the cover to access nuts 1

and 2;

– unscrew nut 2 without removing it

completely;

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.16

ENG_UD18877_3

Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

rear lIghts anD InDIcatOr lIghts: changing bulbs

(2/6)

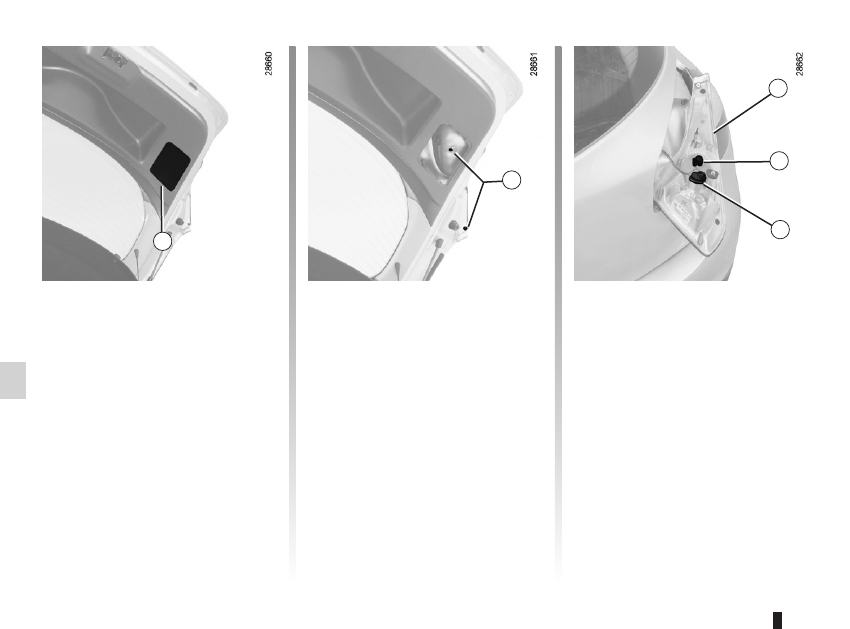

Five-door versions

(continued)
Fog lights/side lights and reversing

lights
– From the luggage compartment,

unclip flap 7, then remove the

bolts 8.

– Lower the tailgate, then pull light 9

towards the rear to release it.

– Unscrew the bulb holder for the bulb

concerned.

reversing light 10
Bulb type: w16w.
Fog light/side light 11
Bulb type: P21/4w.

5.17

ENG_UD18877_3

Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

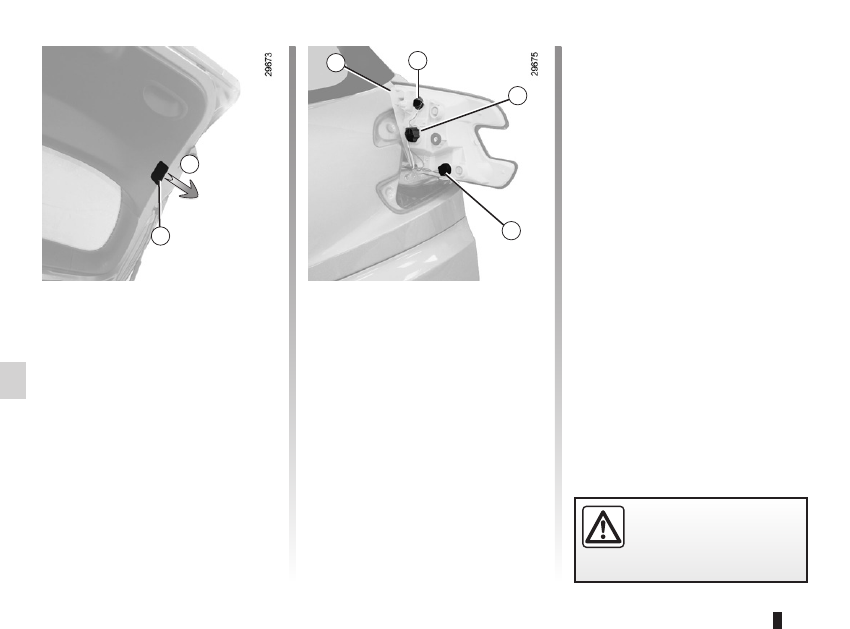

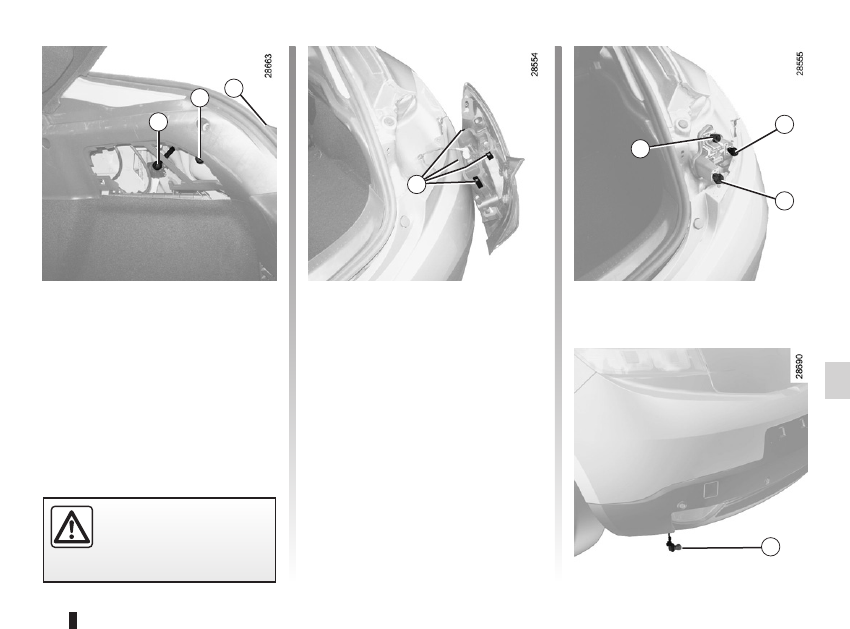

three-door versions

–  Unclip the access flap;
–  unscrew nuts 12 and 13;
–  from  the  outside,  remove  bolt 14,

then pull on the light;

– remove the bulb holder by releasing

the clips 15;

16 side light/stop light

Bulb type: P21/5w.

17 Direction indicator light

Bulb type: Py21w.

18 reversing light

Bulb type: P21w.

rear fog light
Undo bulb holder 19, turning it towards

the centre of the vehicle by accessing it

from underneath.
Bulb type: P21w.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

rear lIghts anD InDIcatOr lIghts: changing bulbs

(3/6)

13 14

5.18

ENG_UD18877_3

Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

rear lIghts anD InDIcatOr lIghts: changing bulbs

(4/6)

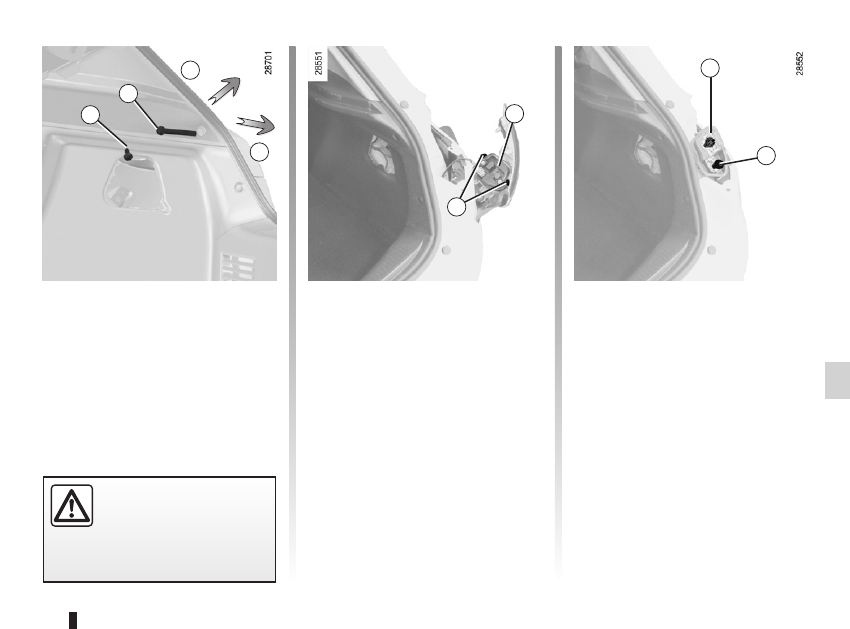

sport tourer Versions

side lights/reversing lights and fog

lights
– From the luggage compartment,

unclip flap 20 (movement C), then

remove the bolts .

– Lower the tailgate, then pull light 21

towards the rear to release it.

– Turn the bulb holder of the bulb con-

cerned a quarter of a turn.

side light 22
Bulb type: w5w.
reversing light 23
Bulb type: P21w.
Fog light 24
Bulb type: h21w.
refitting
To refit, proceed in the reverse order,

taking care not to damage the wiring.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

5.19

ENG_UD18877_3

Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

rear lIghts anD InDIcatOr lIghts: changing bulbs

(5/6)

side light and brake light 28
Bulb type: P21/5w.
Direction indicator lights 29
Bulb type: Py21w.

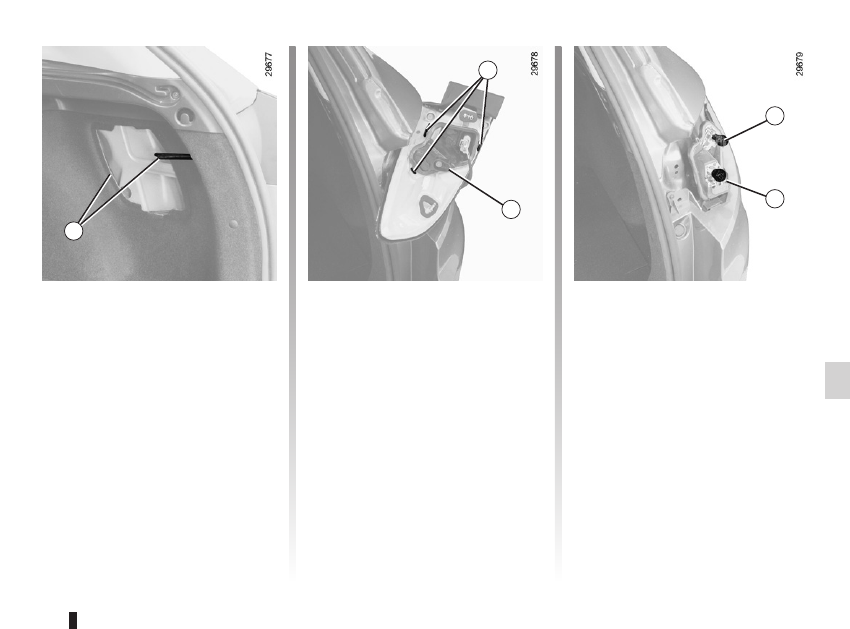

estate versions

(continued)
Brake and side lights/direction

indicator lights
–  Unclip covers 25 to access the nuts;
–  unscrew the 2 nuts;
–  from  the  outside,  pull  the  light  to-

wards you;

– remove the bulb holder 27 by releas-

ing the clips 26.

side indicator lights

changing bulbs .................................................(current page)

lights:

number plate lights ..........................................(current page)

5.20

ENG_UD18877_3

Feux arrière et latéraux : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Rear lights (changing bulbs)

rear lIghts anD InDIcatOr lIghts: changing bulbs

(6/6)

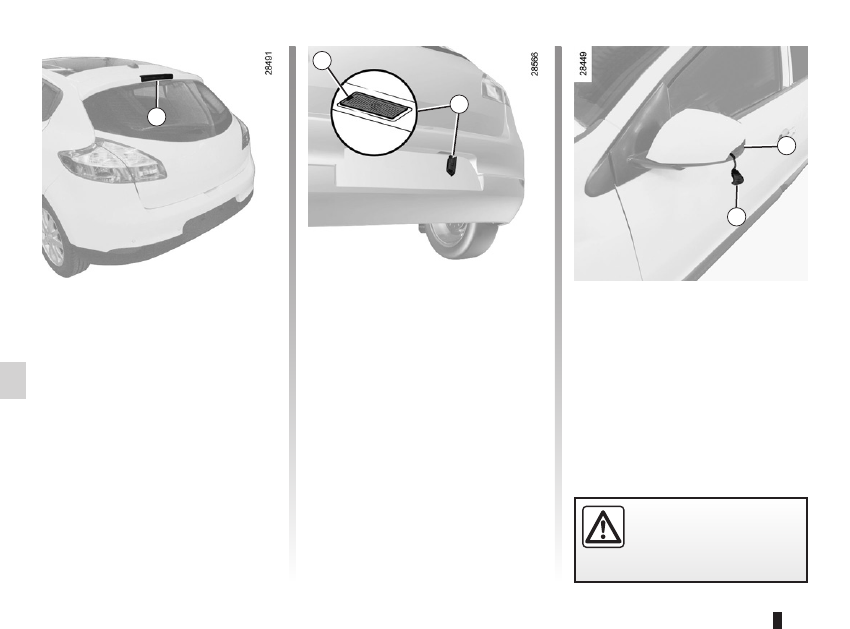

Indicator lights 33

– Unclip indicator light 33 (using a

flat-blade screwdriver type tool po-

sitioned at D to move the indicator

light towards the front of the vehicle);

– turn the bulb holder a quarter of a

turn and take out the bulb.

Bulb type: w5w.

number plate lights 32

– Unclip light 32 by pressing tab 31;
– remove the light cover to gain access

to the bulb.

Bulb type: w5w.

high level brake light 30

Consult an approved Dealer.

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

courtesy light ........................................(up to the end of the DU)

lighting:

interior .............................................(up to the end of the DU)

5.21

ENG_UD17364_2

Eclairage intérieur : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Interior lights (changing bulbs)

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

InterIOr lIghtIng: changing bulbs

(1/2)

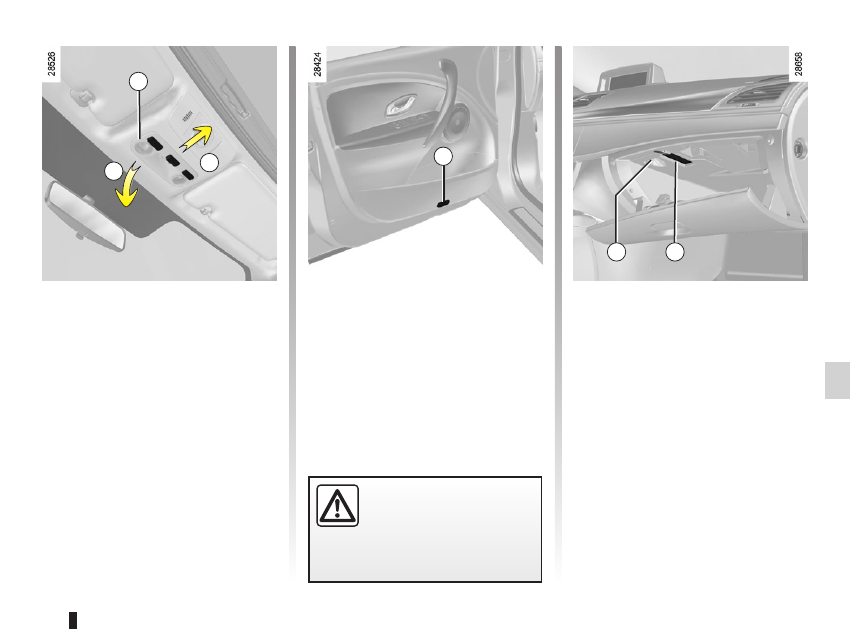

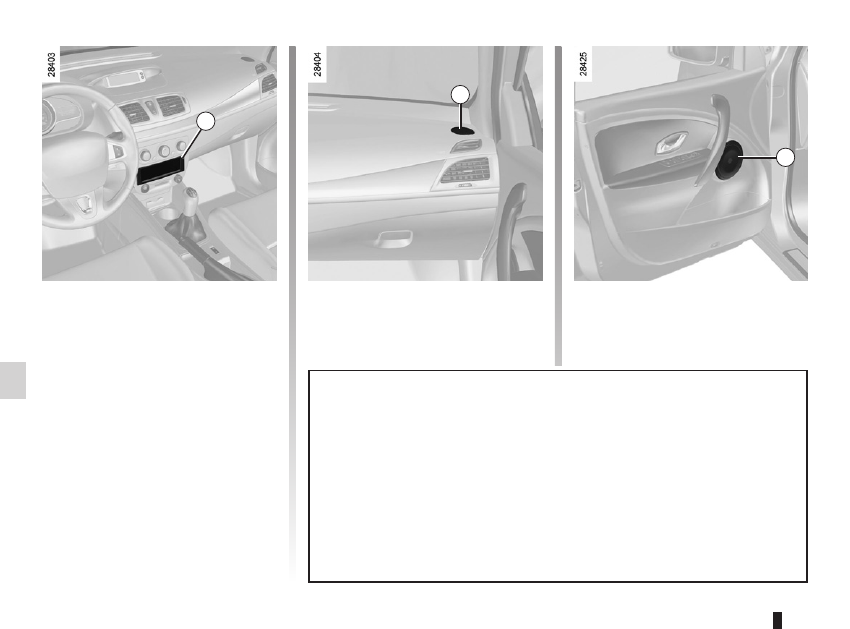

courtesy light

– Position the 3 switches in the central

position;

– move the courtesy light backwards

(movement A) then tilt the front

downwards (movement B);

– when removing the courtesy light,

ensure that you do not pull the elec-

trical wires;

– unclip the lens 1;
note: to remove the defective bulb, you

can use a flat-blade screwdriver or sim-

ilar.
Bulb type: w5w.

glove box light

Open the access cover 3, you can then

unclip the bulb holder more easily 4.
Bulb type: c5w.

Door lights

Unclip light 2 (using a flat-blade screw-

driver or similar).
Turn the bulb holder a quarter of a turn

and take out the bulb.
Bulb type: w5w.

5.22

ENG_UD17364_2

Eclairage intérieur : remplacement des lampes (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

The bulbs are under pres-

sure and can break when

replaced.
Risk of injury.

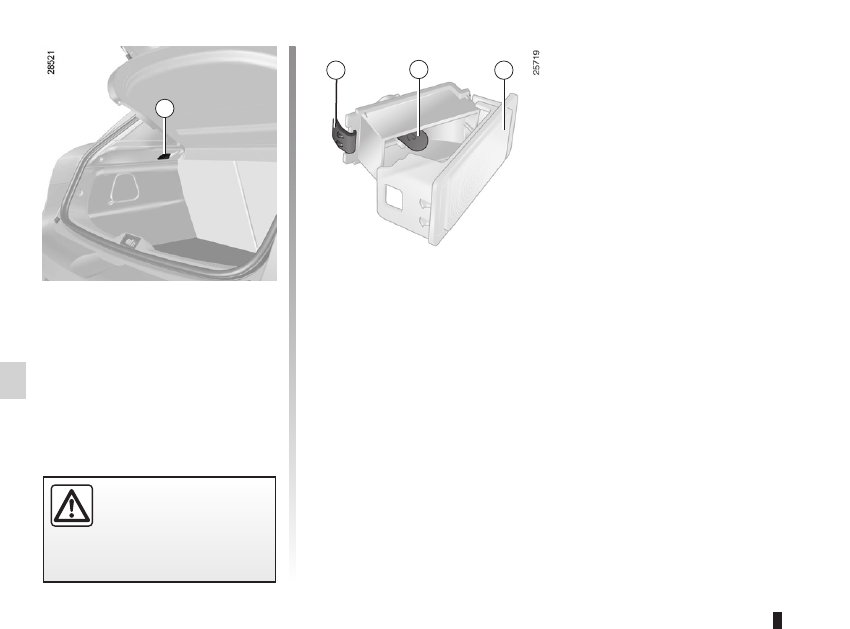

luggage compartment light

Unclip the light at 5 using a flat-blade

screwdriver or similar.

Disconnect the light.
Press tab 6 to release lens 8 and

access bulb 7.
Bulb type: w5w.

InterIOr lIghtIng: changing bulbs

(2/2)

fuses .....................................................(up to the end of the DU)

5.23

ENG_UD14417_2

Fusibles (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

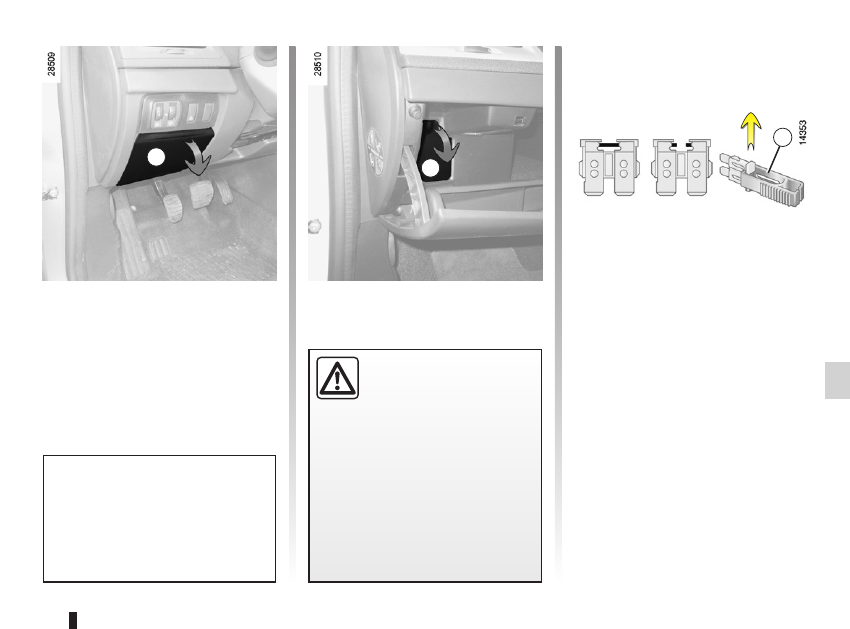

Fuse box

If any electrical component does not

work, check the condition of the fuses.
Unclip cover A or B (depending on ve-

hicle).

tweezers 1

Remove the fuse using tweezers 3, lo-

cated at the back of cover A or B.
To remove the fuse from the tweezers,

slide the fuse to the side.
It is not advisable to use the free fuse

locations.

Fuses

INCORRECT

CORRECT

Check the fuse in question

and

replace it, if neces-

sary,

by a fuse of the same

rating.

If a fuse is fitted where the rating is

too high, it may cause the electrical

circuit to overheat (risk of fire) in the

event of an item of equipment using

an excessive amount of current.

Fuses

(1/2)

In accordance with local legislation

or as a precautionary measure:
Obtain an emergency kit containing

a set of spare bulbs and fuses from

an approved Dealer.

5.24

ENG_UD14417_2

Fusibles (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Fuses

(2/2)

Some accessories are protected by

fuses located in the engine compart-

ment in fuse box C.
However, because of their reduced ac-

cessibility, we advise you to have your

fuses replaced by an approved Dealer.

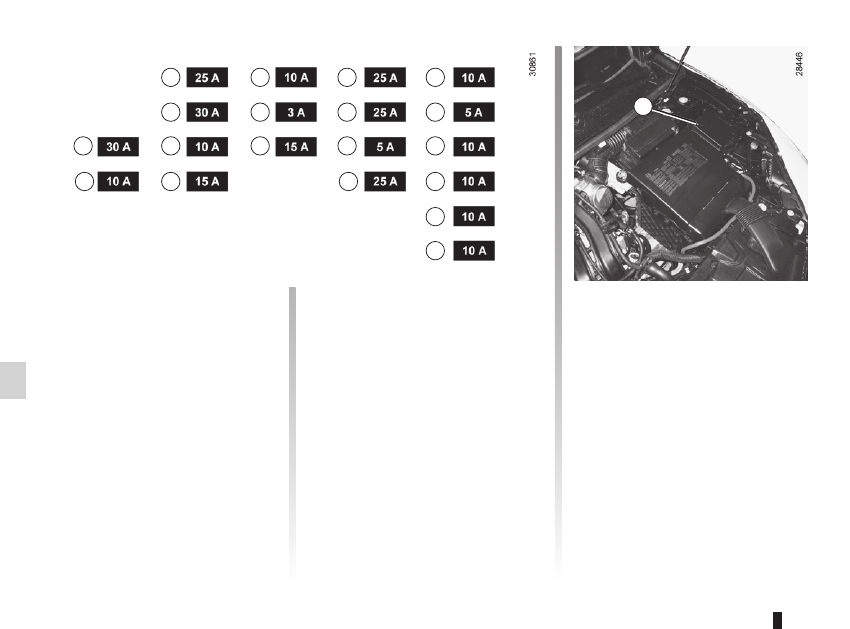

allocation of fuses

(the presence of certain fuses depends

on the vehicle equipment level)
1 Electronic parking brake;
2 Brake lights;
3 Automatic door locking;
4 Driver’s electric window;
5 Passenger compartment unit;
6 Direction indicator lights;
7 Navigation system;

8 Interior rear-view mirror;
9 Rear screen wiper;
10 and 11 Rear electric windows;
12 ABS/ESP;
13 Passenger electric window;
14 Windscreen washer;
15 Heated door mirrors;
16 Radio;
17 Luggage compartment accessories

socket;
18 Rear seat accessories socket;
19 Cigarette lighter.

battery

troubleshooting ...............................(up to the end of the DU)

5.25

ENG_UD9611_2

Batterie : dépannage (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

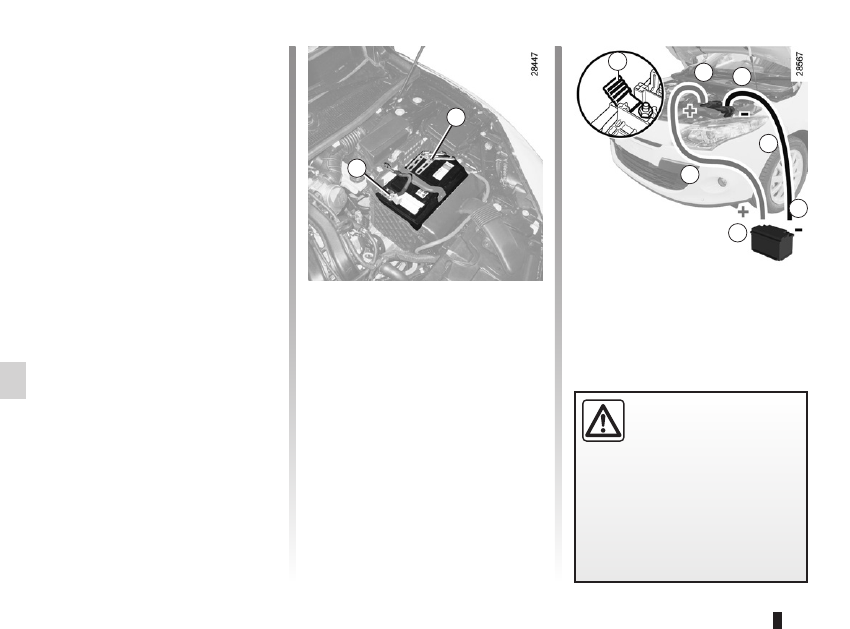

Battery

Battery: troubleshooting

(1/2)

to avoid all risk of sparks:

– Ensure that any electrical consumers

(courtesy lights, etc.) are switched

off before disconnecting or recon-

necting the battery.

– When charging, stop the charger

before connecting or disconnecting

the battery.

– Do not place metal objects on the

battery to avoid creating a short cir-

cuit between the terminals.

– Always wait at least one minute after

the engine has been switched off

before disconnecting a battery.

– Make sure that you reconnect the

battery terminals after refitting.

connecting a battery charger

the battery charger must be com-

patible with a battery with nominal

voltage of 12 volts.
Do not disconnect the battery when the

engine is running.

Follow the instruc-

tions given by the manufacturer of

the battery charger you are using.

Special procedures may be

required to charge some

batteries. Contact your ap-

proved dealer.

Avoid all risk of sparks which may

cause an immediate explosion, and

charge the battery in a well-venti-

lated area. Risk of serious injury.

Handle the battery with care

as it contains sulphuric acid,

which must not come into

contact with eyes or skin. If

it does, wash the affected area with

plenty of cold water. If necessary,

consult a doctor.
Ensure that naked flames, red hot

objects and sparks do not come into

contact with the battery as there is a

risk of explosion.
The engine may be hot when car-

rying out operations in close prox-

imity. In addition, the engine cooling

fan can come on at any moment.
Risk of injury.

5.26

ENG_UD9611_2

Batterie : dépannage (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Attach positive lead A to mounting 1

attached to (+) terminal 2 then to

(+)

terminal 3 of the battery supplying

the current.
Attach the negative lead B to the

(– )

terminal 4 of the battery supplying

the current, then to the (–)

terminal 5

of the discharged battery.
Start the engine. As soon as it is run-

ning, disconnect leads A and B in the

reverse order

( 5 - 4 - 3 - 2 ).

starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.
the two batteries must have an iden-

tical nominal voltage of 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

charged battery.
Ensure that there is no risk of contact

between the two vehicles (risk of short

circuiting when the positive terminals

are connected) and that the discharged

battery is properly connected. Switch

off your vehicle ignition.
Start the engine of the vehicle supply-

ing the current and run it at an interme-

diate engine speed.

Battery: troubleshooting

(2/2)

Check that there is no con-

tact between leads A and B

and that the positive lead A

is not touching any metal

parts on the vehicle supplying the

current.
Risk of injury and/or damage to the

vehicle.

RENAULT card

battery .............................................(up to the end of the DU)

RENAULT card battery .........................(up to the end of the DU)

5.27

ENG_UD14060_2

Carte RENAULT : pile (X91 - B91 - K91 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Operating faults

If the battery is too weak to ensure cor-

rect operation, you may start (insert the

RENAULT card in the card reader) and

lock/unlock the vehicle (refer to the in-

formation on “Locking/unlocking the

doors” in Section 1).

RENAULT card: battery

renault carD: battery

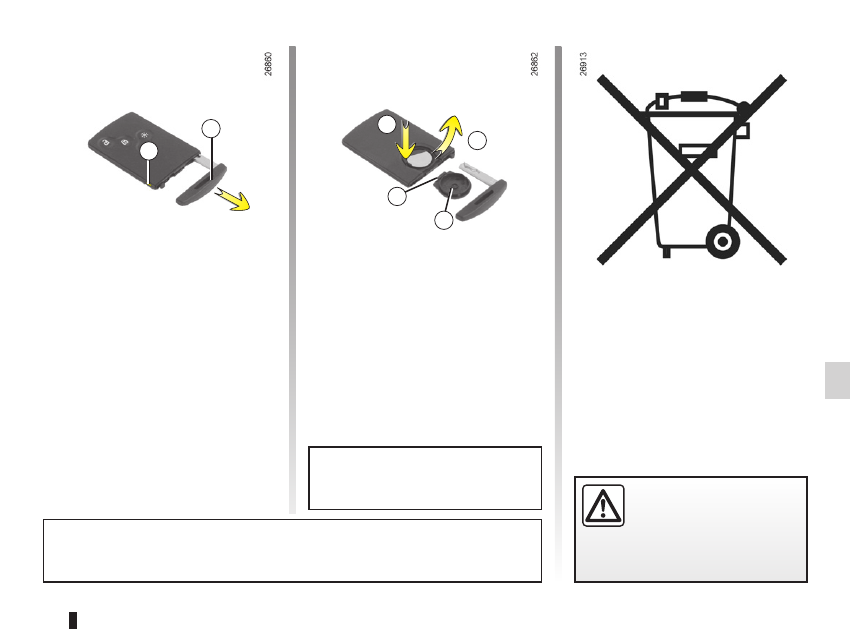

replacing the battery

When the message “Low card battery”

appears on the instrument panel, re-

place the RENAULTcard battery, press

button 1, pulling on emergency key 2,

then unclip cover 3 using tab 4.

Remove the battery by pressing on one

side (movement A) and by lifting the

other (movement B) then replace it, en-

suring the polarity and model, shown

on cover 3 are respected.

Do not throw away your

used batteries; give them to

an organisation responsible

for collecting and recycling

batteries.

When refitting, proceed in the reverse

order, then press one of the buttons on

the card four times, close to the vehicle:

the next time the vehicle is started, the

message will disappear.
note: it is not advisable to touch the

electronic circuit or contacts on the

RENAULT card when replacing the bat-

tery.

The batteries are available from approved Dealers, and their service life approxi-

mately two years. Check that there is no dye on the battery: risk of an incorrect

electrical contact.

Check that the cover is clipped shut.

fitting a radio .........................................(up to the end of the DU)

speakers

location ...........................................(up to the end of the DU)

radio

fitting a radio ...................................(up to the end of the DU)

fitting a radio .........................................(up to the end of the DU)

5.28

ENG_UD6351_1

Prééquipement radio (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Fitting a radio

FIttIng a raDIO

If your vehicle is not fitted with an audio

system, one can be fitted and locations

have been provided for:
– the radio 1;

– tweeter speakers 2;

– bass speakers 3.
To install any equipment, please con-

sult an approved dealer.

radio location 1

Unclip the blanking cover. The aerial, +

and – supply and speaker wire connec-

tions are located behind it.

– In all cases, it is very important to follow the manufacturer’s instructions care-

fully.

– The specifications of the brackets and wires (available from our network) vary

depending on the equipment level of your vehicle and the type of radio.

Consult an approved Dealer to find out the correct part number.
– No work may be carried out on the vehicle’s electrical or radio circuits, except

by approved dealers: an incorrectly connected system may result in damage

being caused to the electrical equipment and/or the components connected to

it.

accessories...........................................(up to the end of the DU)

5.29

ENG_UD12965_3

Accessoires (S65 - X84 - B84 - C84 - E84 - L84 - K84 - J84 - X85 - B85 - C85 - S85 - X91 - B91 - K91 - D91 - B65 - C65 - K85 - X95 - B95 - D95 - J95 - R95 - X33 - X38 -

ENG_NU_837-6_BDK95_Renault_5

Accessories

accessOrIes

use of transmission/

receiving devices

(telephones, cB

equipment etc.).

Telephones and CB equipment with

integrated aerials may cause inter-

ference to the original electronic

systems fitted to the vehicle: it is ad-

visable only to use equipment with

an external aerial.
Furthermore, we remind you of

the need to comply with the legis-

lation in force concerning the use

of such equipment.

electrical and electronic

accessories
– Connect accessories

with a maximum power of

120 Watts only.

Fire hazard.
– No work may be carried out on

the vehicle’s electrical or radio

circuits, except by approved

Dealers: an incorrectly con-

nected system may result in

damage being caused to the

electrical equipment and/or the

components connected to it;

– if the vehicle is fitted with any

aftermarket electrical equip-

ment, make sure that the unit

is correctly protected by a fuse.

Establish the rating and position

of this fuse.

Before fitting an electrical or

electronic device (particu-

larly for transmitters/receiv-

ers: frequency bandwidth,

power level, position of the aerial

etc.), ensure that it is compatible

with your vehicle.
Contact an approved dealer for this

information.

Fitting after-market

accessories

If you wish to install acces-

sories on the vehicle: con-

sult an approved dealer.

Also, to ensure the correct opera-

tion of your vehicle, and to avoid

any risk to your safety, we recom-

mend that you use only specific ac-

cessories, designed for your vehi-

cle, which are the only accessories

for which the manufacturer will pro-

vide a warranty.

If you are using an anti-theft

device, only attach it to the

brake pedal.

Content .. 10 11 12 13 ..
