Parking the vehicle

When the vehicle is stopped, move the

lever to position

P while keeping your

foot on the brake pedal: the gearbox is

in neutral and the drive wheels are me-

chanically locked by the driveshaft.
apply the handbrake or, depending

on the vehicle, ensure that the elec-

tronic parking brake is applied.

Special circumstances

–

If the road contours and bends

do not allow you to stay in auto-

matic mode (e.g.: in the mountains),

we recommend that you change to

manual mode.

This will prevent the automatic gear-

box from changing gears repeatedly

when climbing, and permit engine

braking on long descents.

–

In cold weather, to prevent the

engine from stalling, wait a few mo-

ments before shifting the selector

lever from position

P or N and en-

gaging

D or R.

–

vehicles not fitted with traction

control: on a slippery surface or

surface with a low level of adhe-

sion, change to manual mode and

select second gear before starting

the engine to avoid wheelspin when

starting.

Driving in manual mode

With the selector lever in position

move the lever to the left. Shifting the

lever repeatedly allows you to change

gears manually:
– To move down through the gears,

push the lever backwards;

– To move up through the gears, push

the lever forwards.

The gear selected is displayed on the

instrument panel.

Special cases

Under certain driving conditions (e.g.

engine protection, electronic stability

program (ESP) operational etc.: ESC),

the “automatic system” may change

gear automatically.
Likewise, to prevent incorrect manoeu-

vres, a gear change may be refused by

the automatic system: in this case the

gear display flashes for a few seconds

as a warning.

aUtoMatIC GeaRbox

(2/3)

An impact to the underside

of the vehicle (e.g.: striking

a post, raised kerb or other

street furniture) may result

in damage to the vehicle (e.g.: de-

formation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

In very cold weather, the system

may prevent the gears from being

shifted in manual mode until the

gearbox reaches the right tempera-

ture.

2.39

ENG_UD27633_9

Boîte de vitesses automatique (X91 - B91 - K91 - D91 - Renault)

ENG_NU_936-5_BK91_Renault_2

aUtoMatIC GeaRbox

(3/3)

operating faults

–

When driving, if the message

“Check auto gearbox” and the

warning light appear on the

instrument panel, this indicates a

fault.
Contact your approved Dealer as

soon as possible.

–

When driving, if the message “gear-

box overheating” accompanied by

warning light appears on the

instrument panel, stop the vehicle to

allow the gearbox to cool down.
Contact your approved Dealer as

soon as possible.

–

If a vehicle with an automatic

gearbox breaks down, refer to the

information on “Towing” in Section 5.

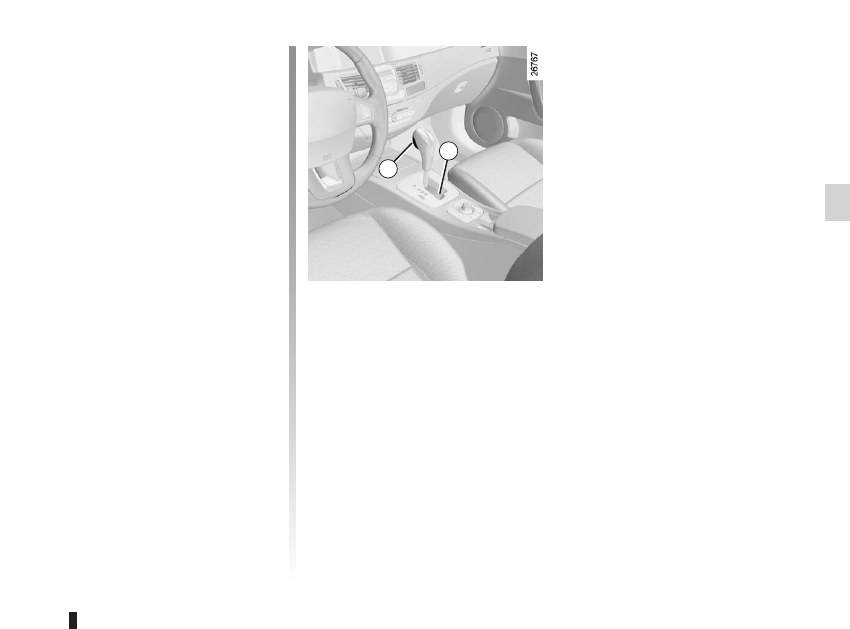

When setting off, if the lever is locked

in position

P even though you are de-

pressing the brake pedal and pressing

unlocking button 2, the lever can be re-

leased manually. To do this, press the

button by inserting an object into the

hole 10 and simultaneously press un-

locking button 2 located on the lever.

3.1

ENG_UD29777_15

Sommaire 3 (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Section 3: Your comfort

Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2

Manual air conditioning/heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4

Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6

Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10

Electric windows, Electric sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11

Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.14

Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15

Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17

Ashtray/cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21

Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21

Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22

Rear bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23

Luggage compartment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.24

Opening rear screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.25

Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.26

Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.27

Boot storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28

Transporting objects: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30

in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.30

towbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.31

Luggage net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.32

Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.35

air vents ................................................(up to the end of the DU)

3.2

ENG_UD22211_6

Aérateurs (sorties d’air) (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Air vents

AIR VENTS, air outlets

(1/2)

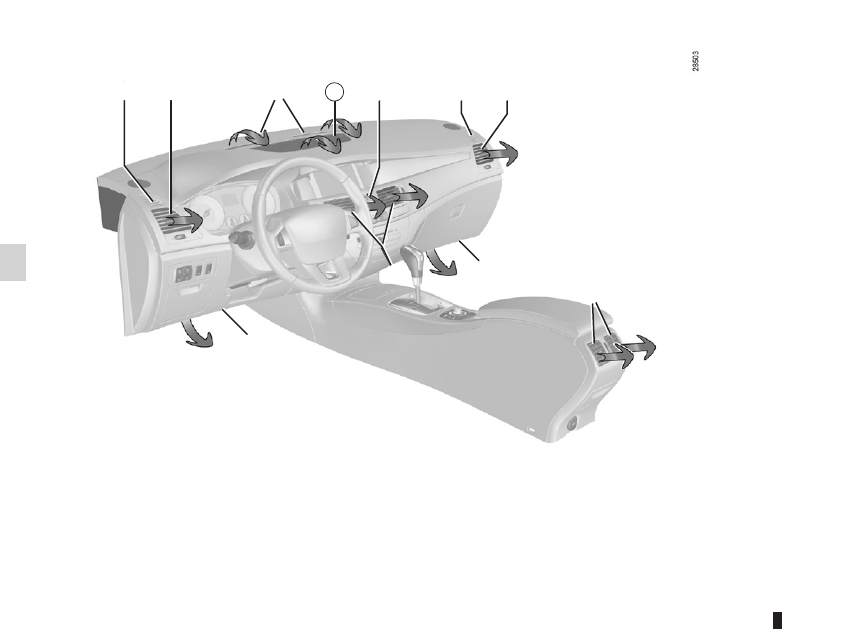

1 left-hand side window demister

outlet

2  left-hand side air vent
3  windscreen demister outlets
4  dashboard upper air vent
5  air conditioning control panel

6 right-hand side window demister

outlet

7  right-hand side air vent
8  passenger footwell heater outlets
9  centre air vents
10 rear passenger air vents

3.3

ENG_UD22211_6

Aérateurs (sorties d’air) (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

AIR VENTS, air outlets

(2/2)

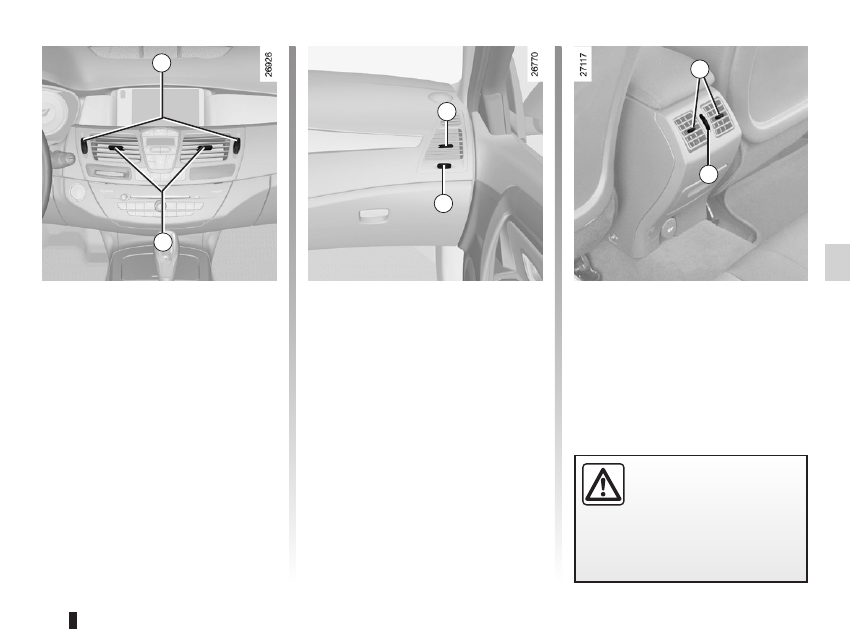

Air flow

Move the control knob 1 (beyond the

point of resistance).
Up: maximum air flow.
Down: closed.
Move control knob 3 (beyond the point

of resistance).
To the right: maximum air flow.
To the left: closed.

Direction

Right/left: move tabs 2 to the right or

left.
Up/down: lower or raise tabs 2.

To remove bad odours from your ve-

hicles, only use the systems designed

for this purpose. Consult an approved

Dealer.

Do not add anything to the

vehicle’s ventilation circuit

(for example, to remove

bad odours).

There is a risk of damage or of

fire.

heating system .....................................(up to the end of the DU)

air conditioning .....................................(up to the end of the DU)

ventilation .............................................(up to the end of the DU)

air conditioning .....................................(up to the end of the DU)

3.4

ENG_UD12313_3

Chauffage / air conditionné (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

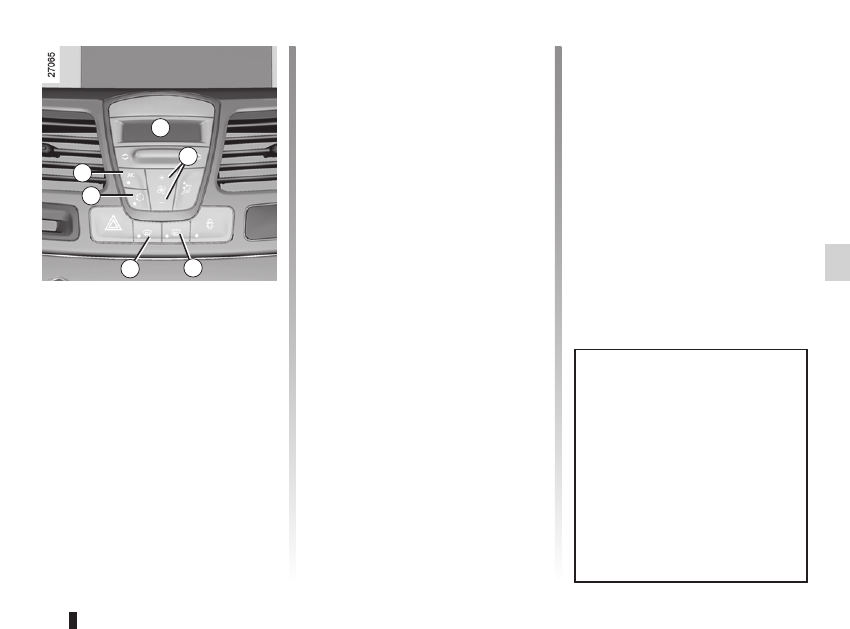

Manual air conditioning/heating system

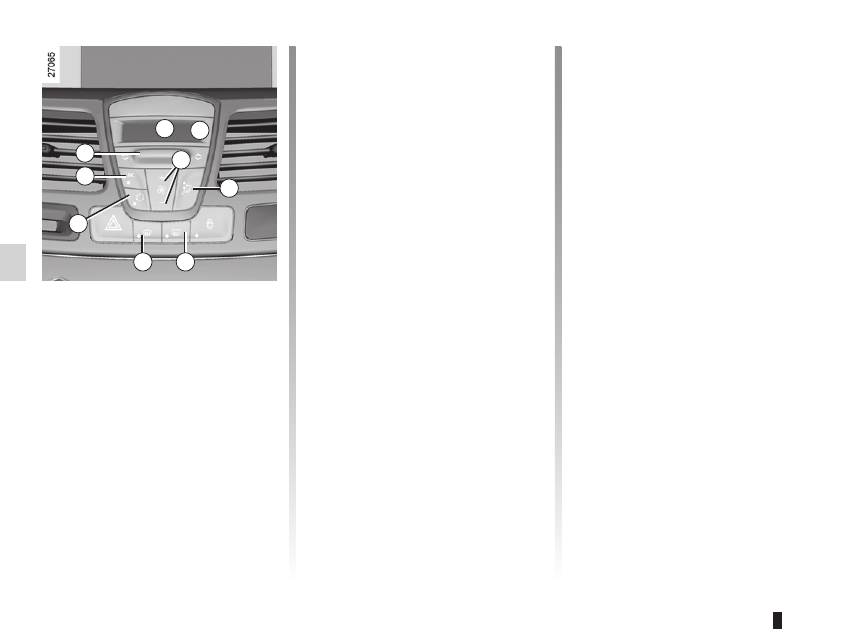

The controls

1  Air conditioning.
2  Air temperature.
3  Display.
4  Ventilation speed.
5  Distribution of air in the passenger

compartment.

6 De-icing/demisting of the rear screen

and, depending on the vehicle, the

door mirrors.

7  “Clear View” function.
8  Air recirculation.
Information  and  operating  instruc-

tions: refer to the end of the paragraph.

The arrows located in area a on dis-

play 3 combine to show you the distri-

bution selected:

The air flow is directed towards

the outlet located on the top of

the dashboard (position which allows

the greatest distribution of ventilation).

„

the air flow is directed towards

the dashboard air vents (posi-

tion which allows the passenger com-

partment to be heated or cooled as

quickly as possible).

the air flow is directed mainly

towards the passenger foot-

wells.

‚

the air flow is directed towards

the side window and wind-

screen demisting vents (position which

prevents condensation forming).

Stopping the system

Press the bottom of button 4 several

times to stop the system. To start, press

the top of button 4.

MANuAl AIR coNDITIoNINg/hEATINg SySTEM

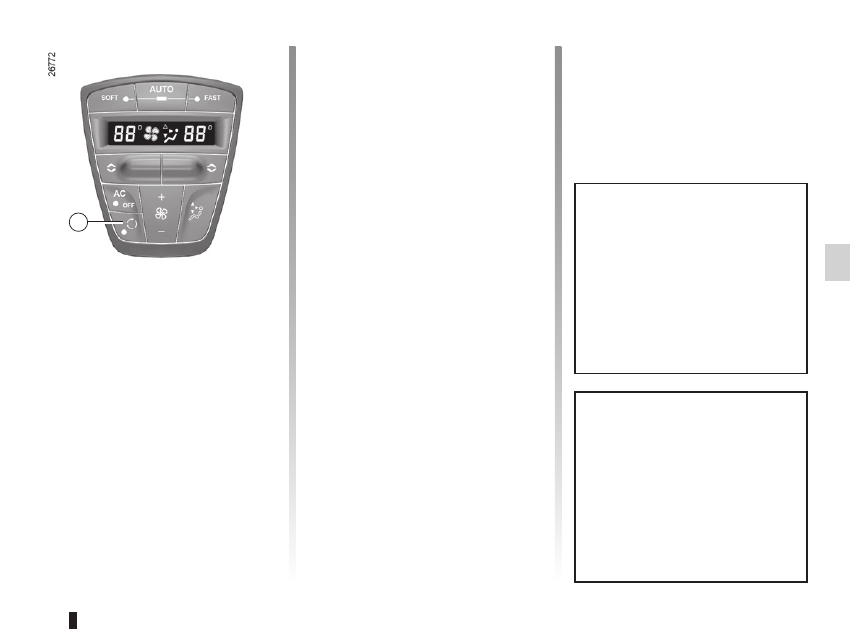

Switching air conditioning on

or off

The air conditioning is switched on (in-

dicator light illuminated) or off (indicator

light extinguished) using button 1.
The air conditioning system is used

for:

– lowering the temperature inside the

passenger compartment;

– eliminating condensation more

quickly.

The air conditioning does not operate

when the exterior temperature is low.

Adjusting the air temperature

Use control 2 to set the required tem-

perature. The more squares lit on the

display, the higher the temperature.

The fewer squares lit on the display, the

lower the temperature.

Distribution of air in the

passenger compartment

There are six air distribution options.

Press button 5 to scroll through them.

rear screen de-icing/demisting ..............................(current page)

windscreen de-icing/demisting ..............................(current page)

3.5

ENG_UD12313_3

Chauffage / air conditionné (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

MANuAl AIR coNDITIoNINg/hEATINg SySTEM

(continued)

Adjusting the ventilation

speed

Normal use
Pressing on the top or bottom of

button 4 increases or decreases the

ventilation speed: the more blades of

the ventilation fan seen in zone b are

lit, the higher the ventilation speed.
Note: to maintain a comfortable level,

we advise you to use a position be-

tween

3 and 5, half-lit.

Position 0 (ventilation fan in zone b

empty)
the system is deactivated: the ventila-

tion speed for the passenger compart-

ment air is zero (vehicle stationary),

you can however still feel a slight flow

of air when the vehicle is moving.

clear View function

Press button 7: the integrated indicator

light comes on.
This function quickly demists and de-

ices the windscreen, the rear screen,

the front side windows, and the door

mirrors (depending on the vehicle). The

air conditioning and rear screen de-ic-

ing functions must be activated.
Press button 6 to stop the heated rear

screen operating, and the integrated in-

dicator goes out.
To change the ventilation speed: press

button 4.
To exit this function, press button 7

again.

Switching the air

recirculation on

Press air recirculation button 8: the in-

dicator light comes on.
In these conditions air is taken from the

passenger compartment and is recircu-

lated, with no air being taken from out-

side the vehicle.

Air recirculation is for:

– isolating the vehicle from the exter-

nal atmosphere (driving in polluted

areas, etc.);

– lowering the passenger compart-

ment temperature as quickly as pos-

sible.

Prolonged use of air recirculation

can lead to condensation form-

ing on the side windows and wind-

screen, and discomfort due to the

use of non-renewed air in the pas-

senger compartment.
We therefore advise you to return

to normal mode (external air) as

soon as the air recirculation function

is no longer required, by pressing

button 8 again.

air conditioning .....................................(up to the end of the DU)

heating system .....................................(up to the end of the DU)

temperature regulation .........................(up to the end of the DU)

ventilation .............................................(up to the end of the DU)

air conditioning .....................................(up to the end of the DU)

3.6

ENG_UD22215_6

Air conditionné automatique (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Automatic climate control

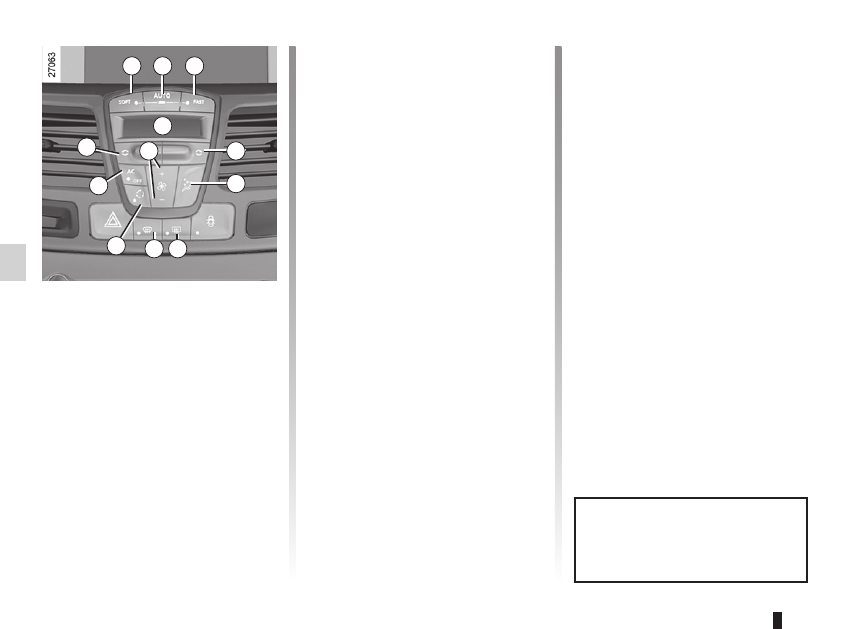

The controls

1 and 5 Air temperature.
2, 3 and 4 Automatic programmes.
6 Distribution of air in the passenger

compartment.

7 De-icing/demisting of the rear screen

and, depending on the vehicle, the

door mirrors.

8 “Clear View” function.
9 Air recirculation.
10 Air conditioning.
11 Ventilation speed.
12 Display.

Some buttons have an operating

tell-tale which indicates the operat-

ing status.

AuToMATIc clIMATE coNTRol

(1/4)

Automatic mode

The automatic climate control system

guarantees comfort in the passen-

ger compartment and good visibility

(except in the event of extreme condi-

tions), whilst optimising consumption.

The system controls the ventilation

speed, air distribution, air recircula-

tion, and starting and stopping the air

conditioning and air temperature. This

mode consists of a choice of three pro-

grammes:
AuTo: allows the selected comfort

level to be best attained, depending on

the exterior conditions. Press button 3.
SoFT: gently brings the temperature to

the desired comfort level. The comfort

level is then maintained gently and si-

lently. Press button 2.
FAST: emphasises the actions of the

system to reach the desired comfort

level more quickly. Use this programme

when you have passengers in the rear.

Press button 4.

2 3

Temperature adjustment

Press either button 1 or 5 to increase

or decrease the temperature. Pressing

button 3 for more than 2 seconds sets

the passenger temperature to the driv-

er’s temperature.
Special note: the highest and lowest

settings allow the system to produce

maximum hot or cold temperature levels

(“LO” and “HI” display on screen 12).

Stopping the system

Press the bottom of button 11 sev-

eral times to stop the system. To start

it, press the top of switch 11 or one of

switches 2, 3 or 4.

3.7

ENG_UD22215_6

Air conditionné automatique (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

AuToMATIc clIMATE coNTRol

(2/4)

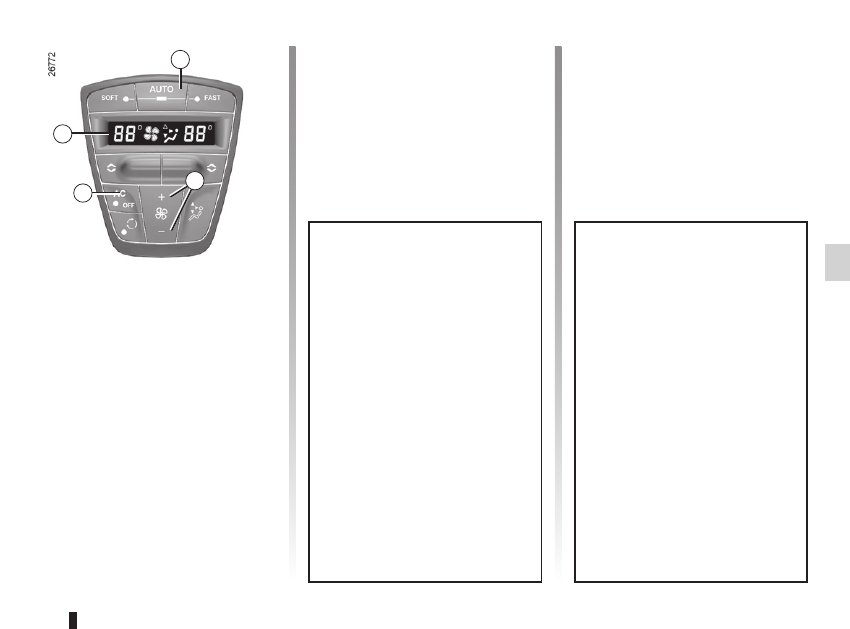

The displayed temperature values

show a comfort level.
When starting the engine, increas-

ing or decreasing the value dis-

played will not allow the com-

fort level to be reached any more

quickly. The system will always op-

timise the temperature increase or

decrease (the ventilation system

does not start instantly at maximum

speed: it gradually increases). This

may take several minutes.
Generally speaking, unless there is

a particular reason not to, the dash-

board air vents should remain open.

Switching air conditioning on

or off

In automatic mode, the system switches

the air conditioning system on or off,

depending on the climate conditions.
Press button 10 to switch off the air

conditioning.

Varying the ventilation speed

In automatic mode, the system uses

the most suitable amount of air to reach

and maintain the desired comfort level.
You can always adjust the ventilation

speed by pressing on the top or bottom

of button 11 to increase or decrease the

ventilation speed.
In this situation, the ventilation speed,

which is no longer automatically con-

trolled, appears on the display.

Where possible, it is recom-

mended that automatic mode is

used by selecting one of the auto-

matic programmes: AuTo, SoFT

or FAST.
In automatic mode (indicator light

for button

3 on), all heating and air

conditioning functions are controlled

by the system.
You can also change the system

selection, in this case, indicator

light for button

3 will go out and

the changed function, which is no

longer controlled by the system, is

shown on display 12.
To return to automatic mode, press

one of programmes:

AuTo, SoFT

FAST.

rear screen de-icing/demisting ..............................(current page)

windscreen de-icing/demisting ..............................(current page)

3.8

ENG_UD22215_6

Air conditionné automatique (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

AuToMATIc clIMATE coNTRol

(3/4)

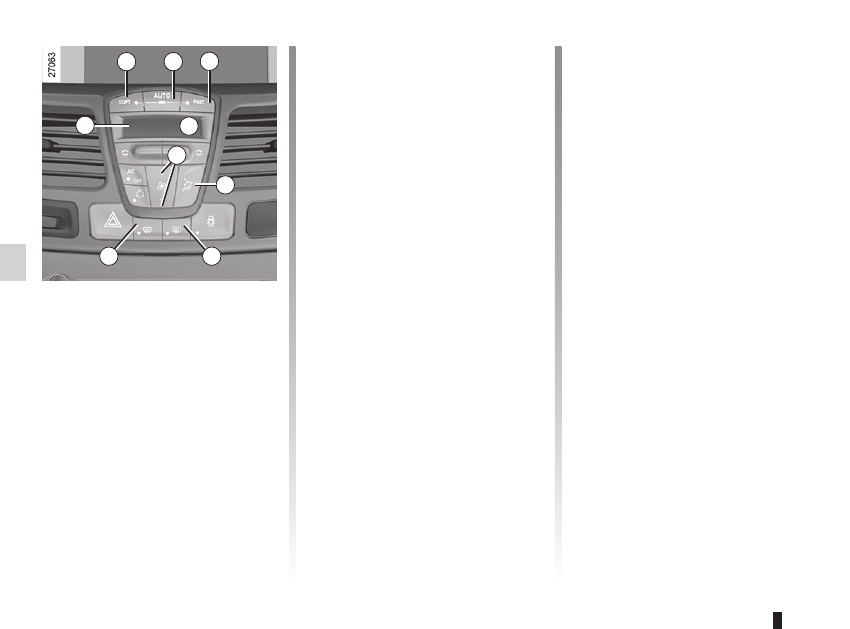

clear View function

Press button 8, the integrated indica-

tor comes on and the indicator light for

button 3 goes out.
This function quickly demists and de-

ices the windscreen, the rear screen,

the front side windows, and the door

mirrors (depending on the vehicle). The

air conditioning and rear screen de-ic-

ing functions must be activated.
Press button 7 to stop the heated rear

screen operating, and the integrated in-

dicator goes out.
You can change the ventilation speed

by pressing button 11.
To exit this function, press:
– button 8 again;
– one of either button 2, 3 or 4.

Adjusting the distribution

of air in the passenger

compartment

There are seven air distribution options.

Press switch 6 to scroll through them.

The arrows located in area a on the dis-

play 12 combine to show you the distri-

bution selected:

The air flow is directed towards

the outlet located on the top of

the dashboard (position which allows

the greatest distribution of ventilation).

„

the air flow is directed towards

the dashboard air vents (posi-

tion which allows the passenger com-

partment to be heated or cooled as

quickly as possible).

the air flow is directed mainly

towards the footwells.

‚

the air flow is directed towards

the side window and wind-

screen demisting vents (position which

prevents condensation forming).
In this situation, the distribution of air in

the passenger compartment, which is

no longer automatically controlled, ap-

pears on the display.

Rear screen de-icing/

demisting

Press button 7: the integrated indica-

tor light comes on. This function per-

mits rapid demisting/de-icing of the rear

screen and de-icing of the door mirrors

(on equipped vehicles).
To exit this function, press button 7

again. Demisting automatically stops

by default.

3.9

ENG_UD22215_6

Air conditionné automatique (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

AuToMATIc clIMATE coNTRol

(4/4)

Air recirculation

This function is controlled automati-

cally, but it can also be activated manu-

ally.

Automatic operation

Your system is fitted with a sensor which

measures the air on a quality index. it

may therefore decide to activate air re-

circulation,

in this case the integrated

indicator does not come on.

Note:

– during recirculation, air is taken from

the passenger compartment and

is recycled, with no air being taken

from outside the vehicle;

– air recirculation allows the external

atmosphere to be cut off (when driv-

ing in polluted areas, etc.).

Manual use
Pressing button 9 allows air recircula-

tion to be activated,

in this case, the

integrated indicator comes on;
Prolonged use of this position may lead

to odours, caused by non-renewal of

air, and the formation of condensation

on the windows.
We therefore advise you to return to au-

tomatic mode as soon as the air recir-

culation function is no longer required,

by pressing button 9 again.

The demisting/de-icing will still take

priority over the air recirculation.
In some situations (high humidity,

etc.) air recirculation is not activated

automatically, to ensure visibility

remains the priority (ventilation is

maintained using air from the out-

side).

In automatic mode (AUTO lit on the

display), all heating and air condi-

tioning functions are controlled by

the system.
When you modify certain functions,

AUTO goes out. Only the modified

function stops being controlled by

the system.

3.10

ENG_UD10081_2

Air conditionné : informations et conseils d’utilisation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Air conditioning: information and advice on use

AIR coNDITIoNINg: information and advice on use

Fuel consumption
You will normally notice an increase

in fuel consumption (especially

when driving in town) when the air

conditioning is operating.
For vehicles fitted with manual air

conditioning, switch off the system

when it is not required.

Advice for reducing

consumption and therefore

helping to preserve the

environment:
Drive with the air vents open and

the windows closed.
If the vehicle has been parked in

the sun, open the doors for a few

moments to let the hot air escape

before starting the engine.

Maintenance
Refer to the Maintenance Document

for your vehicle for the inspection

frequency.

operating faults
As a general rule, contact your ap-

proved Dealer in the event of an op-

erating fault:
–

reduction in de-icing, demist-

ing or air conditioning per-

formance. This may be caused

by the passenger compartment

filter cartridge becoming clogged;

–

no cold air is being produced.

Check that the controls are set

correctly and that the fuses are

sound. Otherwise, switch off the

system.

Advice on use
In some situations, (air conditioning

off, air recirculation activated, venti-

lation speed at zero or low, etc.) you

may notice that condensation starts

to form on the windows and wind-

screen.
If there is condensation, use the

“clear View” function to remove it,

then use the air conditioning in auto-

matic mode to stop it forming again.

If the condensation does not clear,

use the FAST programme.

Do not open the refriger-

ant fluid circuit. The fluid

may damage eyes or skin.

Note
Presence of water under the ve-

hicle. After prolonged use of the air

conditioning system, it is normal for

water to be present under the vehi-

cle. This is caused by condensation.

electric windows ...................................(up to the end of the DU)

child safety.............................................................(current page)

children (safety) .....................................................(current page)

sunroof..................................................(up to the end of the DU)

3.11

ENG_UD23646_7

Lève-vitres électriques (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Electric windows, electric sunroof

ElEcTRIc WINDoWS, ElEcTRIc SuNRooF

(1/3)

These systems operate with the igni-

tion on or off, until the driver’s door is

opened (limited to about 5 minutes).

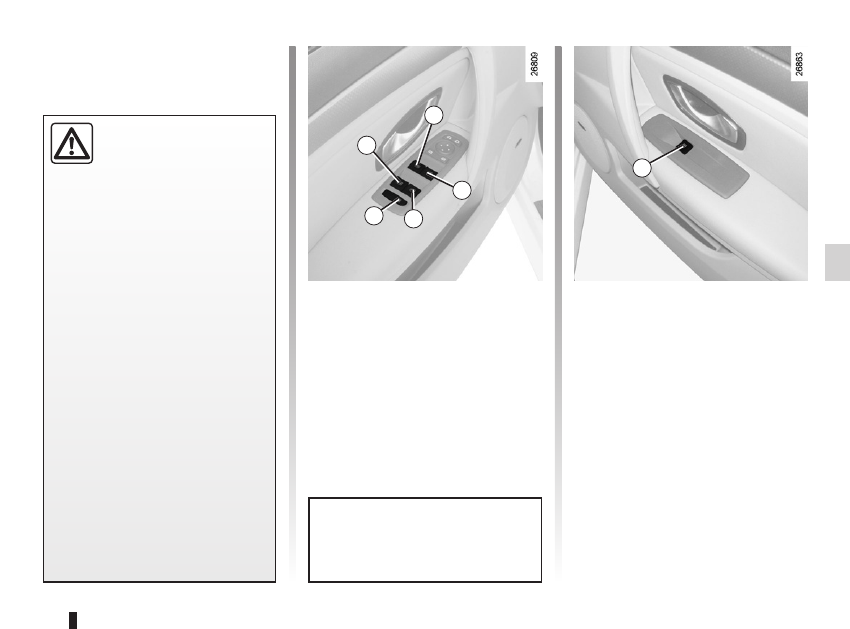

Electric windows

Press or pull the switch to raise or lower

a window to the desired height (the rear

windows do not open fully); Operate the

switches as follows:

1 for the driver’s window;

2 for the front passenger window;

3 and 5 for the rear windows.

From the passenger seats, use

switch 6.

one-touch mode

Depending on the vehicle, this mode is

additional to the operation of the elec-

tric windows. It may be fitted to the driv-

er’s window only, or to all the windows.

Briefly press or pull (fully) the window

switch: the window is fully lowered or

raised. Pressing the switch again stops

the window moving.
Note: if the window detects resistance

when closing (e.g. fingers, branch of

a tree, etc.) it stops and then lowers

again by a few centimetres.

Avoid resting any objects against a

half-open window: there is a risk that

the electric window winder could be

damaged.

Safety of rear occupants

Depending on the vehicle,

the driver can disable op-

eration of the electric win-

dows and the rear doors by press-

ing switch 4. The indicator light

integrated in the switch lights up to

confirm that the locks have been ac-

tivated.

Driver’s responsibility

Never leave your vehicle with the

RENAULT card inside and never

leave a child (or a pet) unsuper-

vised, even for a short while. The

reason for this is that the child may

endanger himself or others by start-

ing the engine, activating equipment

such as the electric window, or lock-

ing the doors. If any part of the body

becomes trapped, reverse the di-

rection of the window immediately

by pressing the relevant switch.

Risk of serious injury.

3.12

ENG_UD23646_7

Lève-vitres électriques (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

ElEcTRIc WINDoWS, ElEcTRIc SuNRooF

(2/3)

Sunroof

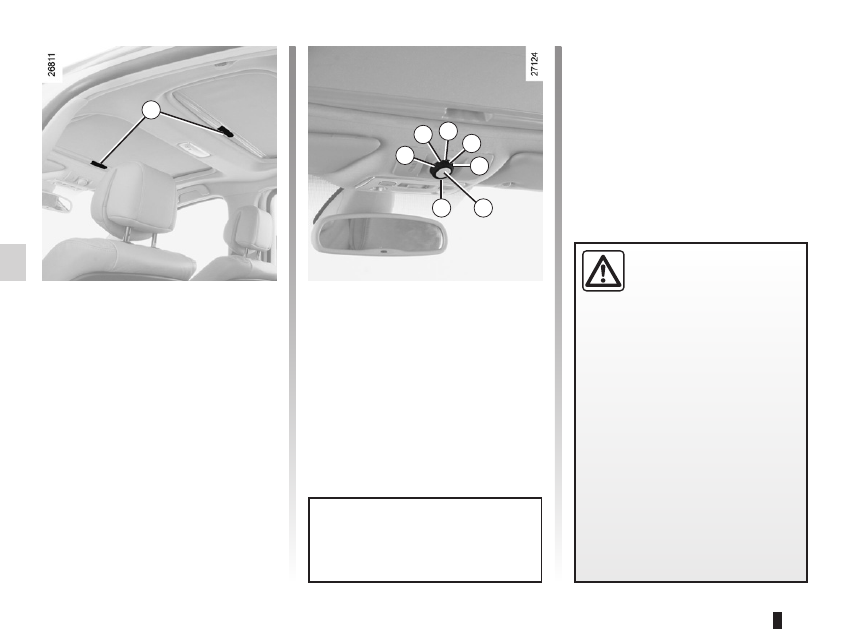

– open the blind
–

To open slightly: turn button 9 to

position A;

–

To open fully: turn button 9 to po-

sition B, C or D, depending on the

opening position required;

–

To close: turn button 9 to position 0.

Sunroof blind

Only ever operate the blind with the

sunroof closed:
–

to open: push handle 7 upwards

and guide the blind as it retracts;

–

to close: pull handle 7 until it clicks

into the catch.

Special note

Your vehicle is equipped with an anti-

pinch facility: when the sunroof encoun-

ters resistance whilst closing, (some-

body’s fingers, etc.) it stops and then

moves back several centimetres.

– Never operate the sunroof with

the blind closed.

– Never drive with the sunroof open

and the sun blind closed.

A B c

Driver’s responsibility

Never leave your vehicle

with the RENAULT card

inside and never leave a

child (or a pet) unsupervised, even

for a short while. The reason for

this is that the child may endanger

himself or others by starting the

engine, activating equipment such

as the electric window, or locking

the doors. If any part of the body be-

comes trapped, reverse the direc-

tion of the window immediately by

pressing the relevant switch.

Risk of serious injury.

3.13

ENG_UD23646_7

Lève-vitres électriques (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

ElEcTRIc WINDoWS, ElEcTRIc SuNRooF

(3/3)

Precautions during use

– check that the sunroof is properly

closed before leaving your vehicle;

– clean the seal every three months

using products recommended by our

Technical Department;

– do not open the sunroof immedi-

ately after the vehicle has been in

the rain or after your car has been

washed.

– Vehicle with roof bars

As a general rule, if there is a load

on the roof, use of the sunroof is not

recommended.
Before using the sunroof, check the

objects and/or accessories (bike

racks, roof boxes, etc.) attached to

the roof bars: they should be prop-

erly arranged and secured and

should not interfere with the opera-

tion of the sunroof.
Contact an approved Dealer for de-

tails of possible conversions.

operating faults

Electric windows
In case of a fault when closing a

window, the system reverts to normal

mode: pull the switch concerned up as

often as necessary to fully close the

window, then hold the switch (still on

the closure side) for three seconds then

lower and raise the window fully to rein-

itialise the system.
If necessary, contact an approved

Dealer.

Electric sunroof
If the roof does not close, turn button 9

to the 0 position and then press button 8

until the roof is fully closed: consult an

approved Dealer.

Remote control window

closing

(for vehicles with one-touch windows

on all windows).
When you lock the doors from the out-

side,

press the locking button on the

RENAulT card twice in quick suc-

cession, or on the driver's door in

hands-free mode, and all the windows

will close automatically.
It is recommended that the user only

operates the system when the vehi-

cle can be seen clearly and no one is

inside.
Note: locking the doors using the

RENAULT card deactivates hands-free

mode.

Closing windows can cause

serious injury.

If the vehicle is equipped

with this function, this action

will activate deadlocking.
Check that there is no-one

still inside the vehicle

Important: during this operation,

the sunroof anti-pinch facility is de-

activated. Contact your approved

Dealer as soon as possible.

sun visor ...............................................(up to the end of the DU)

courtesy mirrors ....................................(up to the end of the DU)

sun blinds .............................................(up to the end of the DU)

sun visor ................................................................(current page)

3.14

ENG_UD5633_2

Pare-soleils/pare-brise (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_3

Pare-soleil

SuN VISoR

Front sun visor

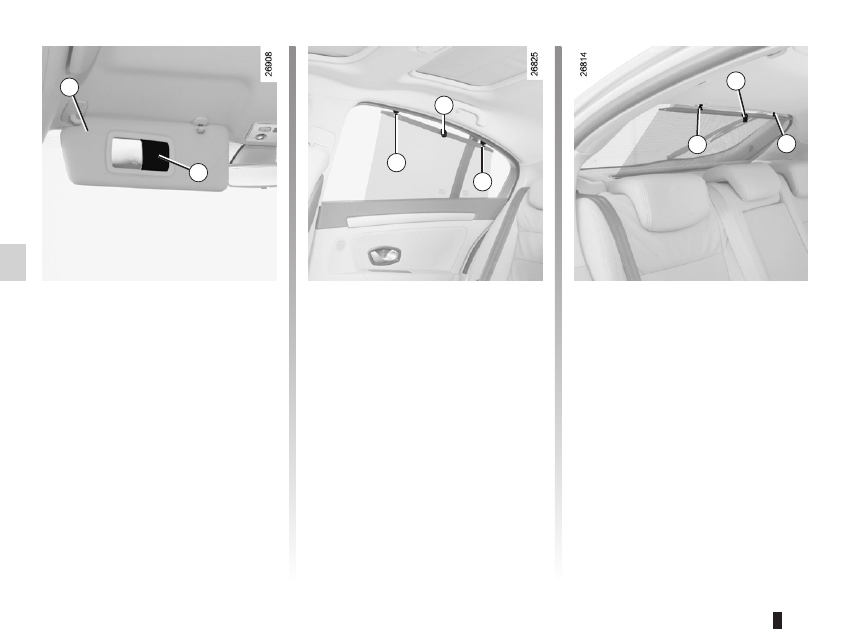

Lower the sun visor 1 over the wind-

screen or unclip it and turn it over the

side window.

courtesy mirrors

Slide cover 2, depending on the vehi-

cle, the mirror is lit.

Side sun blind

Pull the sun visor upwards using tab 3

until hooks 4 engage in their hous-

ing (make sure the hooks are properly

locked in position).

Rear sun blind

Pull the sun visor upwards using tab 5

until hooks 6 engage in their hous-

ing (make sure the hooks are properly

locked in position).

Renault Laguna Tourer (2012 year). Manual - part 8
