Renault Laguna Coupe (2012 year). Manual

rear drive wheels ...................................................(current page)

2.26

ENG_UD27695_10

Dispositifs de correction et d’assistance à la de conduite (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

Rear wheel steering

On equipped vehicles, this system,

when the vehicle is being driven, steers

the rear wheels according to driving

conditions: at low speed this system

offers manoeuvrability, at higher speeds

it optimises stability.

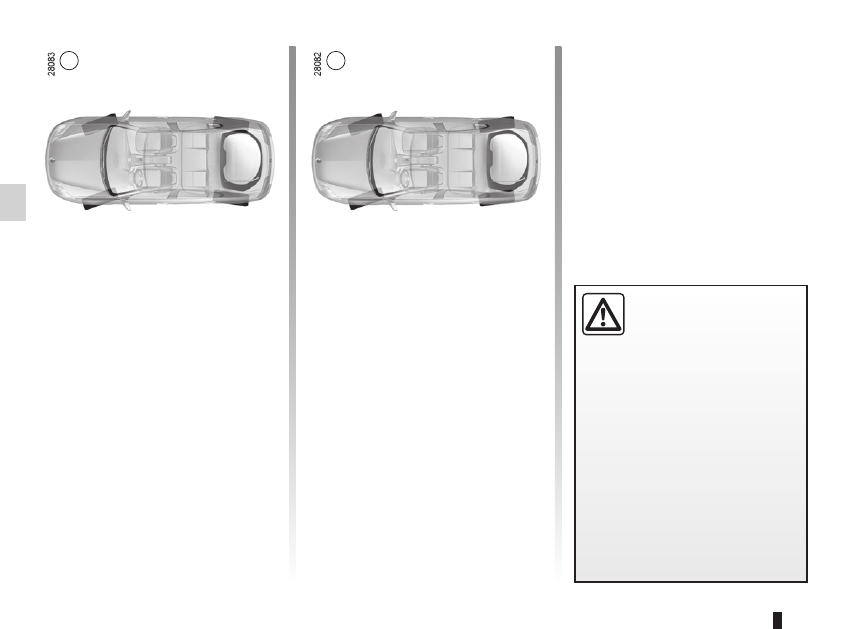

When driving at low speeds, the rear

wheels steer in the opposite direction to

the front wheels (figure A) to increase

the vehicle’s manoeuvrability. This is

used when driving in towns, on winding

roads, during parking manoeuvres, etc.

When driving at speeds above 40 mph

(60 km/h), the rear wheels steer in the

same direction as the front wheels

(figure B) to optimise the vehicle’s sta-

bility. This is useful when changing

lanes or when cornering etc.

operating faults

– If the

warning light, together

with the message “Check power

steering”, is displayed on the instru-

ment panel: please contact an au-

thorised dealer.

– If the warning light

, together

with the message “Power steering

fault”, is displayed on the instrument

panel,

this indicates a fault in the

system.

DRIVeR CoRReCtIoN DeVICeS aND aIDS

(5/5)

requires you to stop

as soon as traffic conditions

allow. Contact an approved

Dealer.
An impact to the underside of the

vehicle (e.g.: striking a post, raised

kerb or other street furniture) may

result in damage to the vehicle (e.g.:

deformation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

speed limiter .........................................(up to the end of the DU)

cruise control-speed limiter...................(up to the end of the DU)

cruise control ........................................(up to the end of the DU)

driving ...................................................(up to the end of the DU)

2.27

ENG_UD22200_6

Régulateur-limiteur de vitesse : fonction limiteur (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

Speed limiter

CRUISe CoNtRoL/SPeeD LIMIteR: speed limiter function

(1/3)

The speed limiter function helps you

stay within the driving speed limit that

you choose, known as the

limit speed.

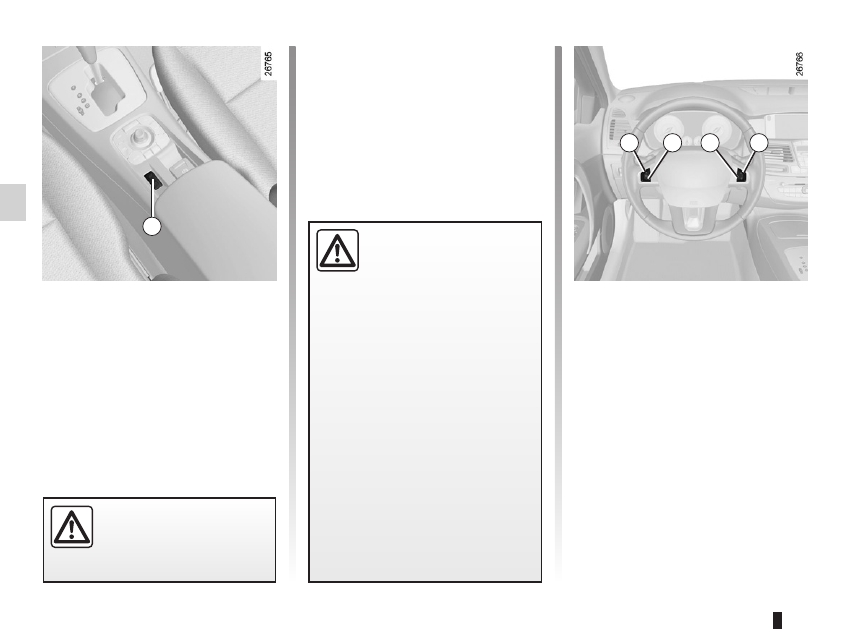

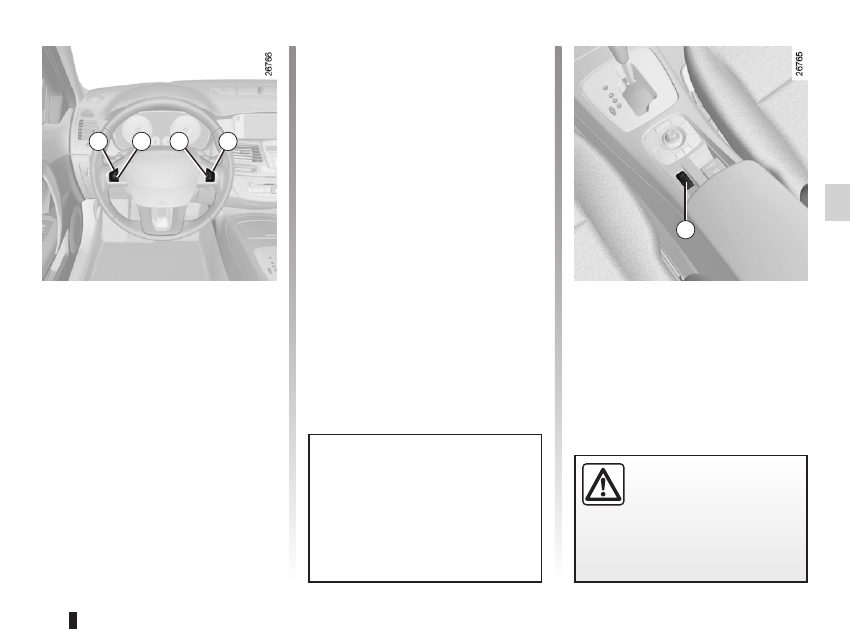

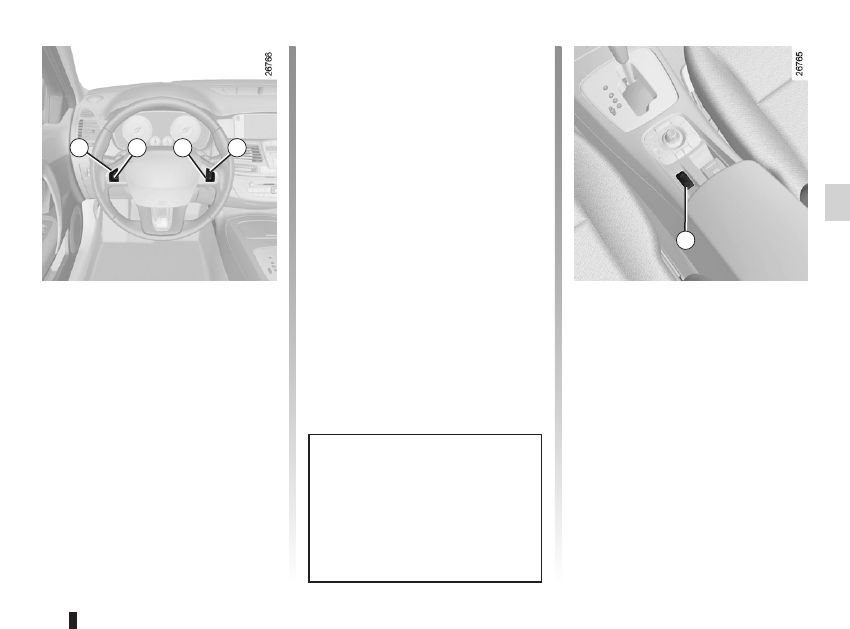

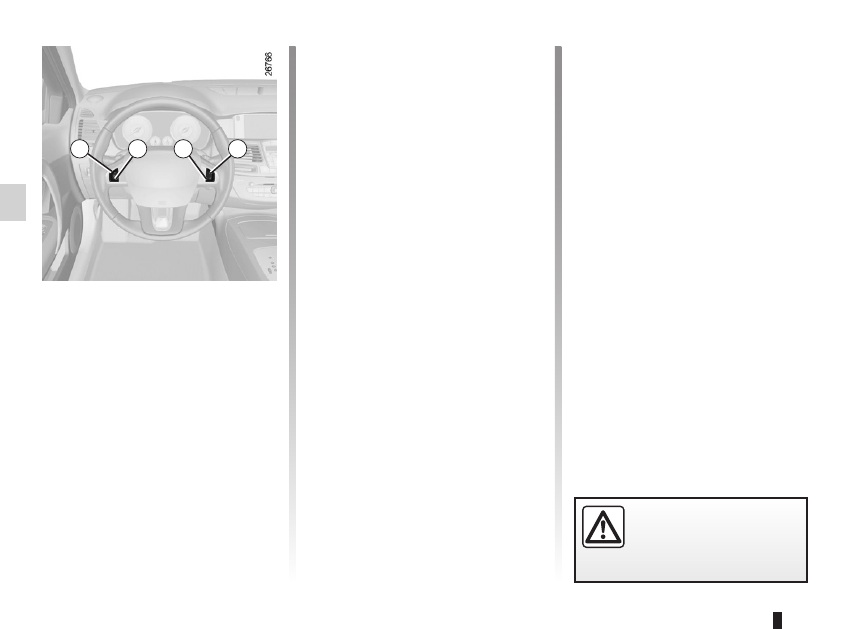

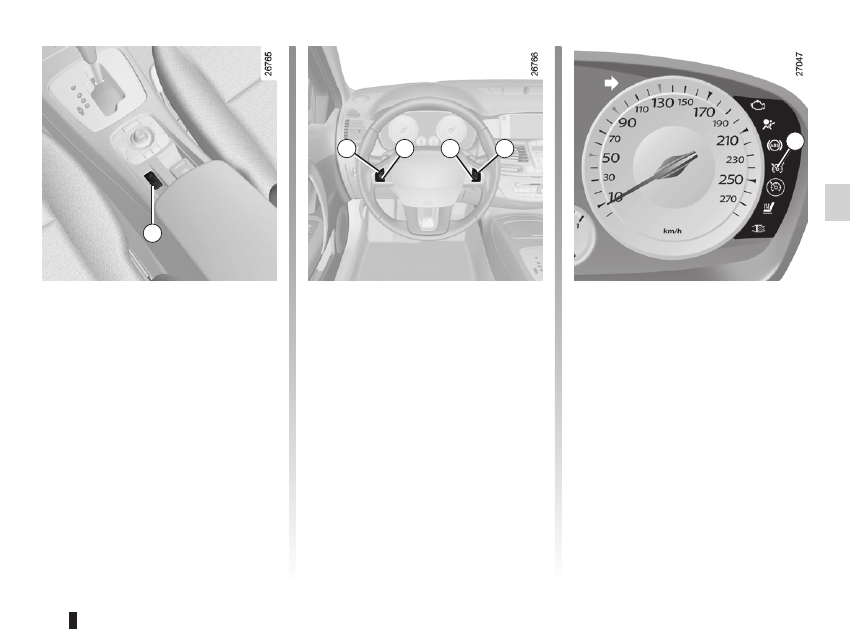

Controls

1 Main “On/Off” switch.
2 Limit speed activation, storage and

increase switch (+).

3 Limit speed activation, storage and

decrease switch ( - ).

4 Switch the function to standby, with

limit speed stored (O).

5 Limit speed activation, storage and

recall (R).

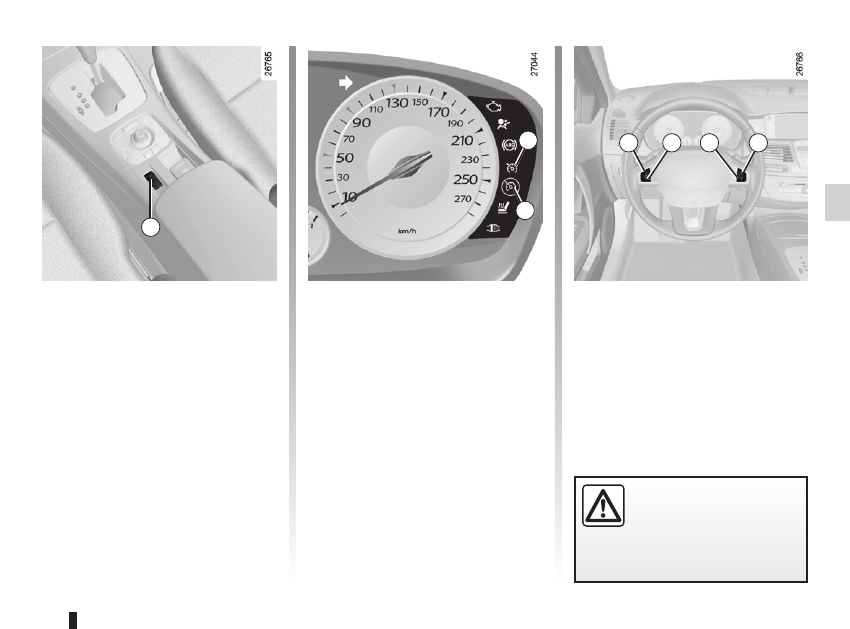

Switching on

Press switch 1 on the side showing



Indicator light 6 comes on, lit orange,

and the message “speed limiter” ap-

pears on the instrument panel, accom-

panied by dashes to indicate that the

speed limiter function is activated and

waiting to store a limit speed.

To store the current speed, press

switch 2 (+) or 3 (-): the limited speed

will replace the dashes. The minimum

stored speed is 20 mph (30 km/h).

2.28

ENG_UD22200_6

Régulateur-limiteur de vitesse : fonction limiteur (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

CRUISe CoNtRoL/SPeeD LIMIteR: speed limiter function

(2/3)

Driving

When a limited speed has been stored

and this speed is not reached, driving is

similar to driving a vehicle without the

speed limiter function.
Once you have reached the stored

speed, no effort on the accelera-

tor pedal will allow you to exceed

the programmed speed except in an

emergency (refer to information on

“Exceeding the limit speed”).

Varying the limit speed

To vary the limit speed, press switch 2

(+) repeatedly to increase the speed or

switch 3 (-) to decrease it.

exceeding the limit speed

It is possible to exceed the limit speed

at any moment. To do this: press the

accelerator pedal

firmly and fully

(beyond the kickdown point).
Whilst the speed is being exceeded,

the cruising speed displayed on the in-

strument panel flashes.
Then, release the accelerator pedal:

the speed limiter function will return as

soon as you reach a speed lower than

the stored speed.

Limited speed cannot be maintained
When driving down a steep gradient,

the system is unable to maintain the

limit speed: the stored speed will flash

on the instrument panel information dis-

play to inform you of this situation.

The speed limiter function is

in no way linked to the brak-

ing system.

2.29

ENG_UD22200_6

Régulateur-limiteur de vitesse : fonction limiteur (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

CRUISe CoNtRoL/SPeeD LIMIteR: speed limiter function

(3/3)

Putting the function on

standby

The speed limiter function is sus-

pended when you press switch 4 (O).

In this case, the limit speed remains

stored and the message "stored" ac-

companied by this speed appears on

the instrument panel.

Recalling the limit speed

If a speed has been stored, it can be re-

called by pressing switch 5 (R).

When the speed limiter is sus-

pended, pressing switches 2 (+)

or 3 (-) reactivates the function with-

out taking into account the stored

speed: it is the speed at which the

vehicle is moving that is taken into

account.

Switching off the function

The speed limiter function is deac-

tivated if you press switch 1: in this

case a speed is no longer stored. The

orange



instrument panel indicator

light goes out to confirm that the func-

tion is deactivated.

cruise control ........................................(up to the end of the DU)

cruise control-speed limiter...................(up to the end of the DU)

driving ...................................................(up to the end of the DU)

2.30

ENG_UD22201_5

Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 - K91 - Renault)

ENG_NU_939-3_D91_Renault_2

Cruise control

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function

(1/4)

The cruise control function helps you to

maintain your driving speed at a speed

that you choose, called the

cruising

speed.
This cruising speed may be set at any

speed above 20 mph (30 km/h).

The cruise control function

is in no way linked to the

braking system.

This function is an addi-

tional driving aid. However,

the function does not take

the place of the driver.

Therefore, it can under no circum-

stances replace the driver’s respon-

sibility to respect speed limits and to

be vigilant (the driver must always

be ready to brake). Cruise control

must not be used in heavy traffic, on

undulating or slippery roads (black

ice, aquaplaning, gravel) and during

bad weather (fog, rain, side winds

etc.).
There is a risk of accidents.

Controls

1 Main “On/Off” switch.

2 Limit speed activation, storage and

increase switch (+).

3 Limit speed activation, storage and

decrease switch (-).

4 Switch the function to standby

(with memorised cruising speed)

(O).

5 Cruising speed activation, storage

and recall (R).

2.31

ENG_UD22201_5

Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 - K91 - Renault)

ENG_NU_939-3_D91_Renault_2

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function

(2/4)

Switching on

Press switch 1 on the side showing



Indicator light 6 comes on, lit green,

and the message “cruise control” ap-

pears on the instrument panel, accom-

panied by dashes to indicate that the

cruise control function is activated and

waiting to store a cruising speed.

activating cruise control

At a steady speed (above 20 mph

(30 km/ h) approximately) press

switch 2 (+) or 3 (-): the function is ac-

tivated and the current speed is stored.
Cruise control activation is confirmed

when indicator light 7 is lit up in green

in addition to indicator light 6.

Driving

Once a cruising speed is stored and

the cruise control function is active,

you may lift your foot off the accelera-

tor pedal.

Important: you are never-

theless advised to keep

your feet close to the pedals

in order to react if neces-

sary.

2.32

ENG_UD22201_5

Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 - K91 - Renault)

ENG_NU_939-3_D91_Renault_2

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function

(3/4)

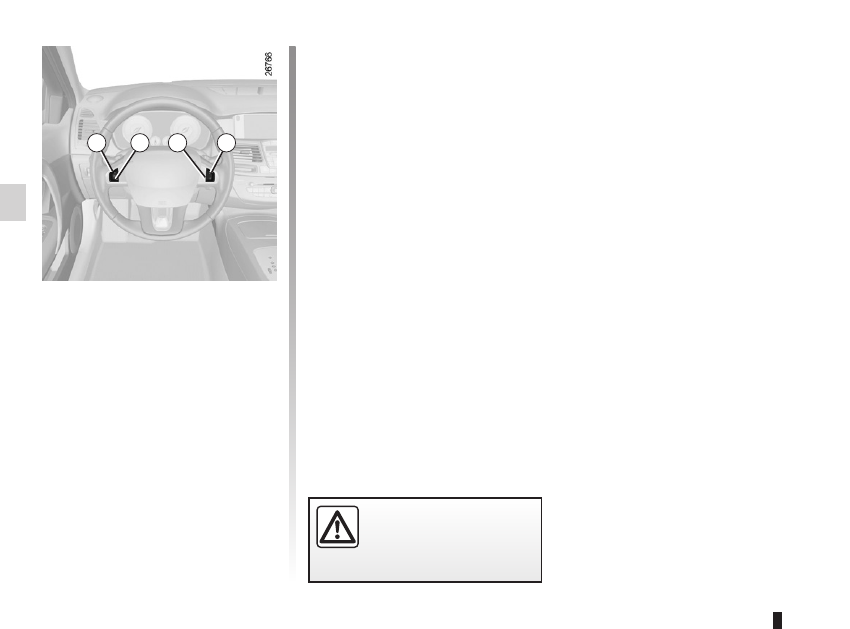

adjusting the cruising speed

The cruising speed may be changed by

pressing the following repeatedly:
– switch 2 (+) to increase the speed,
– switch 3 (-) to decrease the speed.

The cruise control function

is in no way linked to the

braking system.

exceeding the cruising speed

The cruising speed may be exceeded

at any time by depressing the accelera-

tor pedal. While it is being exceeded,

the cruising speed flashes on the in-

strument panel.
Then, release the accelerator: after a

few seconds, the vehicle will automati-

cally return to its set cruising speed.

Cruising speed cannot be

maintained
When driving down a steep gradient,

the system is unable to maintain the

cruising speed: the stored speed will

flash on the instrument panel informa-

tion display to inform you of this situ-

ation.

2.33

ENG_UD22201_5

Régulateur-limiteur de vitesse : fonction régulateur (X91 - B91 - K91 - Renault)

ENG_NU_939-3_D91_Renault_2

CRUISe CoNtRoL/SPeeD LIMIteR: cruise control function

(4/4)

Putting the function on

standby

The function is suspended when you:
–  the switch 4 (O);
–  the brake pedal;
–  depress the clutch pedal or shift into

neutral if the vehicle has an auto-

matic gearbox.

In all three cases, the cruising speed re-

mains stored and the message “Stored”

appears on the instrument panel.
Standby is confirmed when indicator

light



goes out.

Returning to the cruising speed
If a speed is stored, it can be recalled,

once you are sure that the road condi-

tions are suitable (traffic, road surface,

weather conditions, etc.). With a ve-

hicle speed above 20 mph (30 km/h),

press switch 5 (R).
Note: if the speed previously stored is

much higher than the current speed,

the vehicle will accelerate more rapidly

to reach this threshold.

When the cruise control is sus-

pended, pressing switches 2 (+)

or 3 (-) reactivates the function with-

out taking into account the stored

speed: it is the speed at which the

vehicle is moving that is taken into

account.

Switching off the function

The cruise control function is deacti-

vated if you press switch 1: in this case

a speed is no longer stored. The green



and



instrument panel indicator

lights go out, confirming that the func-

tion is deactivated.

Putting the cruise control

on standby or switching it

off does not cause a rapid

reduction in speed: you

must brake by depressing the brake

pedal.

parking distance control........................(up to the end of the DU)

driving ...................................................(up to the end of the DU)

reversing sensor ...................................(up to the end of the DU)

2.34

ENG_UD27734_1

Aide au parking (X91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

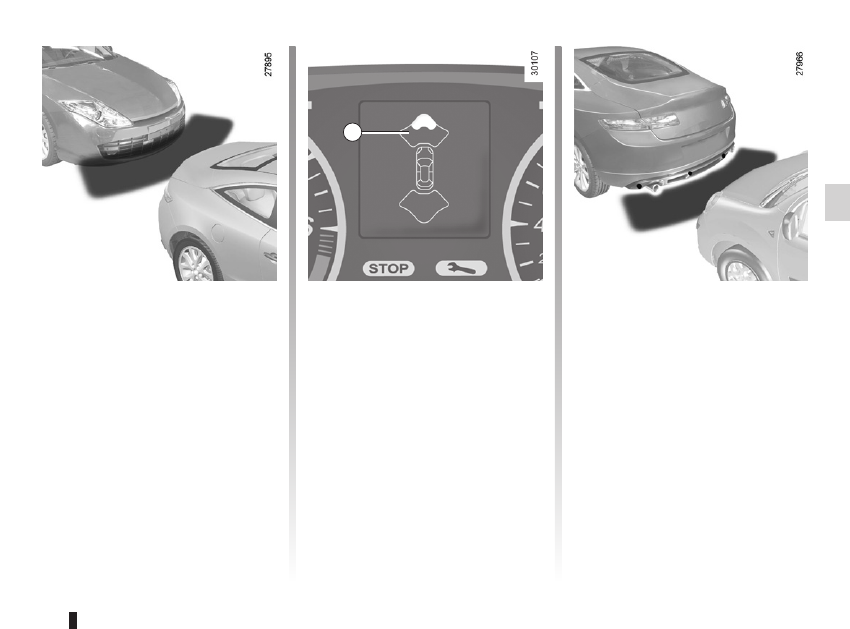

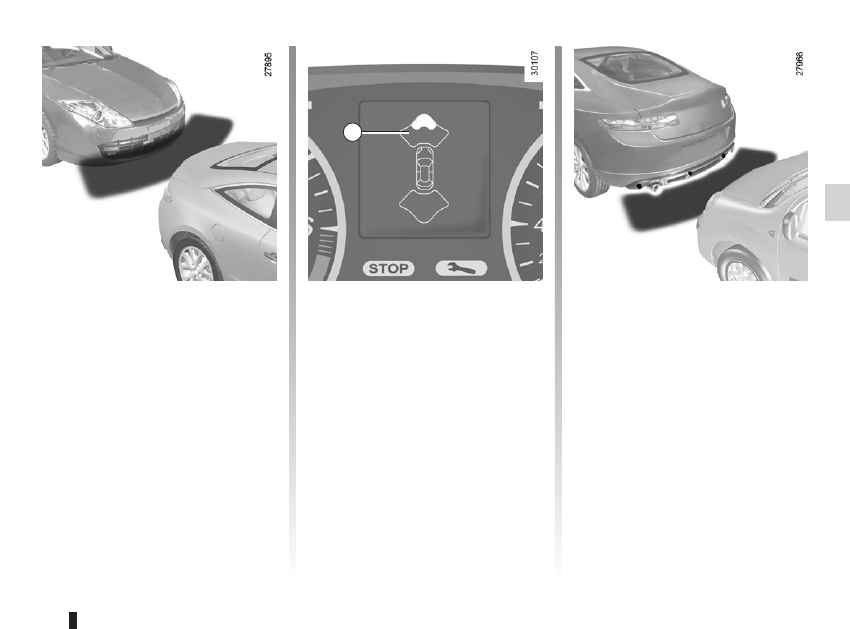

Parking distance control

This function is an additional aid that indicates the distance between the

vehicle and an obstacle whilst reversing, using sound signals.
Under no circumstances should it replace the driver’s care or responsibil-

ity whilst reversing.

The driver should always look out for sudden hazards during driving: always

ensure that there are no moving obstacles (such as a child, animal, pram or bi-

cycle, etc.) or small, narrow objects such as stones or posts in your path when

manoeuvring.

operating principle

Ultrasonic detectors, installed in the

front or rear bumper depending on the

vehicle, measure the distance between

the vehicle and an obstacle whilst re-

versing.
This measurement is indicated by

beeps which become more frequent the

closer you come to the obstacle, until

they become a continuous beep when

the vehicle is approximately 25 centi-

metres from the obstacle.

PaRKING DIStaNCe CoNtRoL

(1/3)

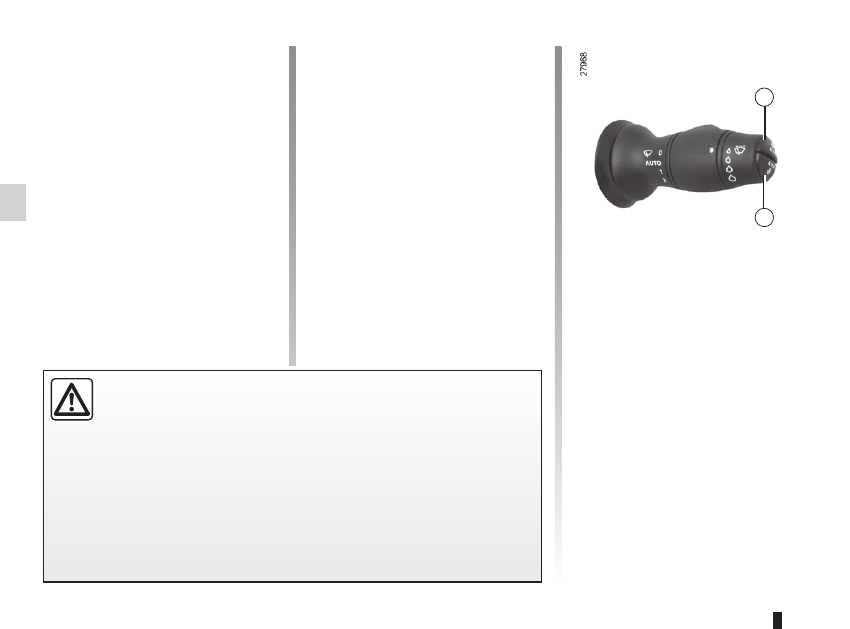

adjusting the parking

distance control volume

From the vehicle settings customisation

menu (refer to “vehicle settings cus-

tomisation menu” in Section 1), select

the line for the parking distance control

volume, adjust the volume and press

key 1 or 2 to confirm.

2.35

ENG_UD27734_1

Aide au parking (X91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

PaRKING DIStaNCe CoNtRoL

(2/3)

Rear parking distance control

operation

When reversing, most objects located

less than approximately 1.50 metres

away from the rear of the vehicle are

detected and a beep is emitted.
If there are obstacles located close to

both the front and rear of the vehicle,

only the closest of the two will be ac-

knowledged and the corresponding

front or rear beep sound will be emit-

ted. If obstacles are detected both to

the front and to the rear of the vehicle at

the same time, and they are both less

than 30 centimetres away from the ve-

hicle, the corresponding front and rear

beeps will be emitted alternately.

automatic activation/deactivation of

the front and rear parking distance

control
The system deactivates:

– when the electronic parking brake is

applied;

– when the vehicle speed is above

approximately 4 mph (6 km/h);

– when the vehicle is stationary for

more than approximately five sec-

onds and an obstacle is detected

(such as when in a traffic jam etc.);

– when the vehicle is in neutral or

when the gear lever has been

shifted to

N or P for automatic gear-

boxes;

Front parking distance

control

operation
The parking distance control system

is only activated when the vehicle is

driven at a speed below approximately

4 mph (6 km/h).
Most objects located less than approx-

imately 60 centimetres away from the

front of the vehicle are detected and a

beep is emitted.
Display A shows the detection zones

and a beep sounds.

2.36

ENG_UD27734_1

Aide au parking (X91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

PaRKING DIStaNCe CoNtRoL

(3/3)

Special features

Make sure that the ultrasonic sensors

are not obscured (by dirt, mud, snow,

etc.).

operating faults

When the system detects an operating

fault there will be a 5-second continu-

ous beep as a warning. Consult an ap-

proved dealer.

When the vehicle is being driven at

a speed below approximately 6 mph

(10 km/h), certain noises (motorcy-

cle, lorry, pneumatic drill, etc.) may

trigger the beeping sound.

Prolonged deactivation of the

system

You may permanently activate or deac-

tivate the front or rear parking distance

control separately.
From the vehicle settings personalisa-

tion menu (refer to the information on

the “Vehicle settings personalisation

menu” in Section 1), select the line

“front parking distance control” or “rear

parking distance control” then activate

or deactivate the system:

: function deactivated;

: function activated.

An impact to the underside

of the vehicle (e.g.: striking

a post, raised kerb or other

street furniture) may result

in damage to the vehicle (e.g.: de-

formation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

automatic gearbox (use) .......................(up to the end of the DU)

automatic gearbox selector lever..........(up to the end of the DU)

changing gear .......................................(up to the end of the DU)

reverse gear

selecting ..........................................(up to the end of the DU)

driving ...................................................(up to the end of the DU)

2.37

ENG_UD27633_9

Boîte de vitesses automatique (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

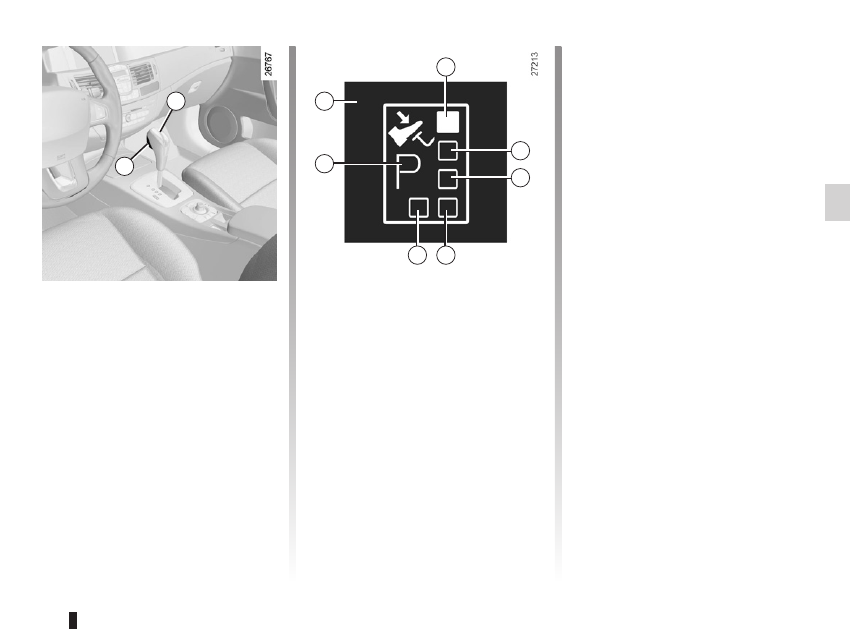

Automatic gearbox

Selector lever 1

Display 3 on the instrument panel

shows the mode and gear selected.
4:  P: park
5:  R: reverse gear
6:  N: neutral
7:  D: automatic mode
8 :   manual mode
9 :    zone displaying gearbox mode or

gear engaged in manual mode

operation

With gear lever 1 in position P, switch

on the ignition.
To move out of position

P, you must de-

press the brake pedal before pressing

unlocking button 2.
With your foot on the brake pedal

(warning light

on display 3 goes

out), move the lever out of position

only engage D or R when the vehi-

cle is stopped, with your foot on the

brake and the accelerator pedal re-

leased.

aUtoMatIC GeaRBox

(1/3)

Driving in automatic mode

Select position

D. In most traffic con-

ditions, you will not have to touch the

gear selector lever again: the gears will

change automatically at the right time

and at the most suitable engine speed

because the automatic system takes

into account the vehicle load and road

contour and adjusts itself to the particu-

lar driving style you have chosen.

economical driving

When driving, always leave the lever

in position

D, keeping the accelerator

pedal lightly depressed to ensure auto-

matic gear changes at a lower engine

speed.

accelerating and overtaking

Depress the accelerator pedal firmly

and fully (so that it goes beyond the

kickdown point).
this will enable you to change down

to the optimum gear within the

engine range.

5
6

2.38

ENG_UD27633_9

Boîte de vitesses automatique (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

Parking the vehicle

When the vehicle is stopped, move the

lever to position

P while keeping your

foot on the brake pedal: the gearbox is

in neutral and the drive wheels are me-

chanically locked by the driveshaft.
apply the handbrake or, depending

on the vehicle, ensure that the elec-

tronic parking brake is applied.

Special circumstances

–

If the road contours and bends

do not allow you to stay in auto-

matic mode (e.g.: in the mountains),

we recommend that you change to

manual mode.

This will prevent the automatic gear-

box from changing gears repeatedly

when climbing, and permit engine

braking on long descents.

–

In cold weather, to prevent the

engine from stalling, wait a few mo-

ments before shifting the selector

lever from position

P or N and en-

gaging

D or R.

–

Vehicles not fitted with traction

control: on a slippery surface or

surface with a low level of adhe-

sion, change to manual mode and

select second gear before starting

the engine to avoid wheelspin when

starting.

Driving in manual mode

With the selector lever in position

move the lever to the left. Shifting the

lever repeatedly allows you to change

gears manually:
– To move down through the gears,

push the lever backwards;

– To move up through the gears, push

the lever forwards.

The gear selected is displayed on the

instrument panel.

Special cases

Under certain driving conditions (e.g.

engine protection, electronic stability

program (ESP) operational etc.: ESC),

the “automatic system” may change

gear automatically.
Likewise, to prevent incorrect manoeu-

vres, a gear change may be refused by

the automatic system: in this case the

gear display flashes for a few seconds

as a warning.

aUtoMatIC GeaRBox

(2/3)

An impact to the underside

of the vehicle (e.g.: striking

a post, raised kerb or other

street furniture) may result

in damage to the vehicle (e.g.: de-

formation of an axle).
To avoid any risk of accident, have

your vehicle checked by an ap-

proved Dealer.

In very cold weather, the system

may prevent the gears from being

shifted in manual mode until the

gearbox reaches the right tempera-

ture.

2.39

ENG_UD27633_9

Boîte de vitesses automatique (X91 - B91 - K91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_2

aUtoMatIC GeaRBox

(3/3)

operating faults

–

When driving, if the message

“Check auto gearbox” and the

warning light appear on the

instrument panel, this indicates a

fault.
Contact your approved Dealer as

soon as possible.

–

When driving, if the message “gear-

box overheating” accompanied by

warning light appears on the

instrument panel, stop the vehicle to

allow the gearbox to cool down.
Contact your approved Dealer as

soon as possible.

–

If a vehicle with an automatic

gearbox breaks down, refer to the

information on “Towing” in Section 5.

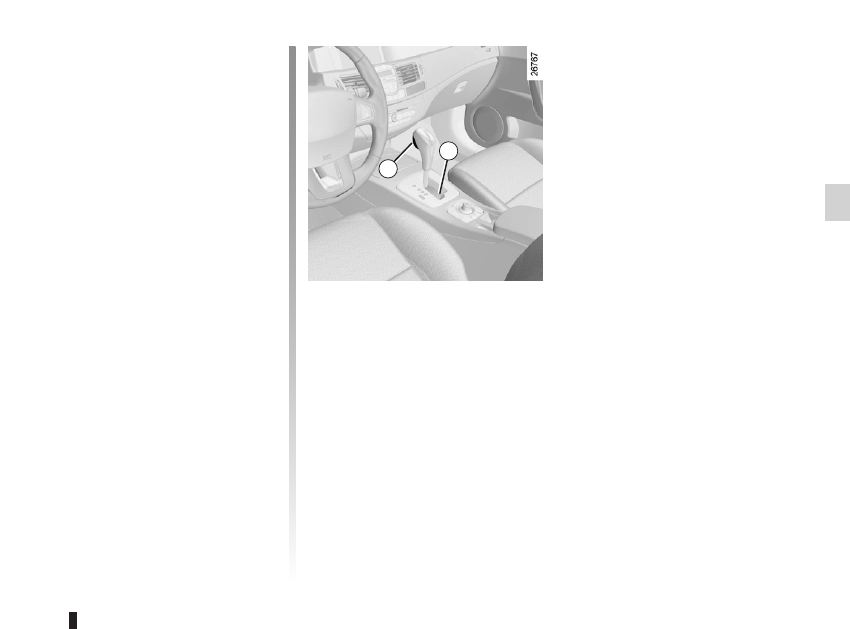

When setting off, if the lever is locked

in position

P even though you are de-

pressing the brake pedal and pressing

unlocking button 2, the lever can be re-

leased manually. To do this, press the

button by inserting an object into the

hole 10 and simultaneously press un-

locking button 2 located on the lever.

3.1

ENG_UD29929_4

Sommaire 3 (X91 - D91 - Renault)

ENG_NU_939-3_D91_Renault_3

Section 3: Your comfort

Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2

Manual air conditioning and heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4

Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6

Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10

Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11

Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13

Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15

Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19

Ashtray, cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19

Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20

Rear bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21

Boot storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22

Transporting objects: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.23

in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.23

towbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.24

Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.25

air vents ................................................(up to the end of the DU)

3.2

ENG_UD22211_6

Aérateurs (sorties d’air) (X91 - B91 - K91 - Renault)

ENG_NU_939-3_D91_Renault_3

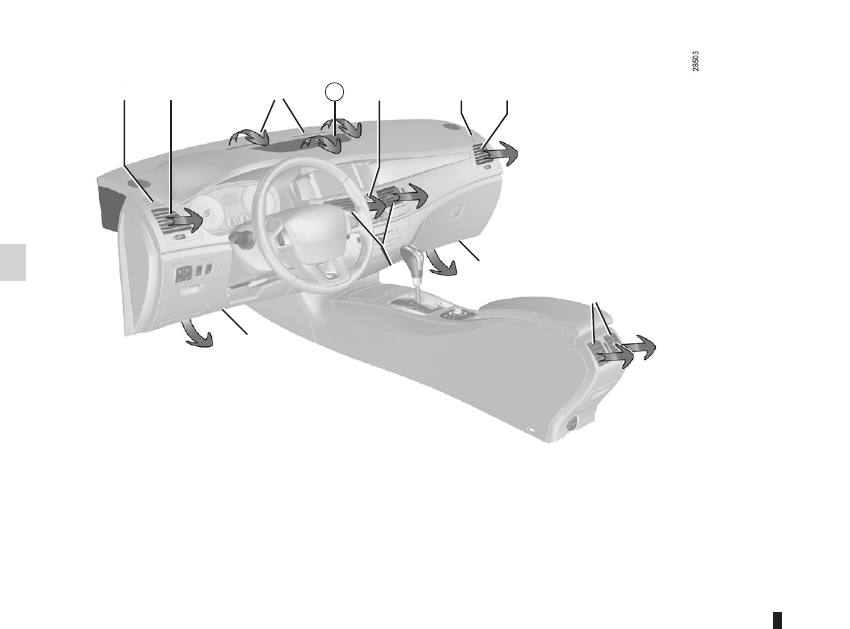

Air vents

AIR VENTS, air outlets

(1/2)

1 left-hand side window demister

outlet

2  left-hand side air vent
3  windscreen demister outlets
4  dashboard upper air vent
5  air conditioning control panel

6 right-hand side window demister

outlet

7  right-hand side air vent
8  passenger footwell heater outlets
9  centre air vents
10 rear passenger air vents

Renault Laguna Coupe (2012 year). Manual - part 7
