Renault Koleos (2018 year). Manual

1.50

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

5 6

12 13

1.51

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

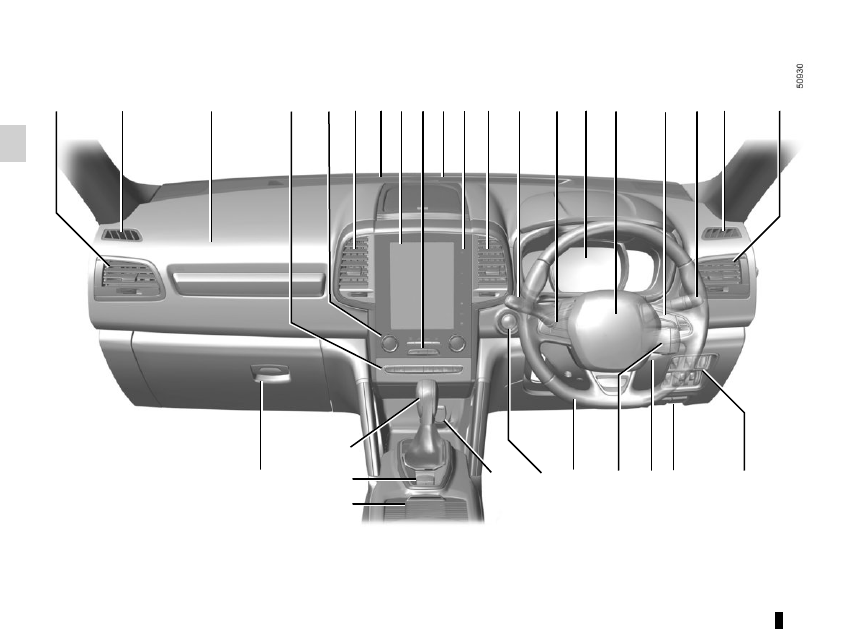

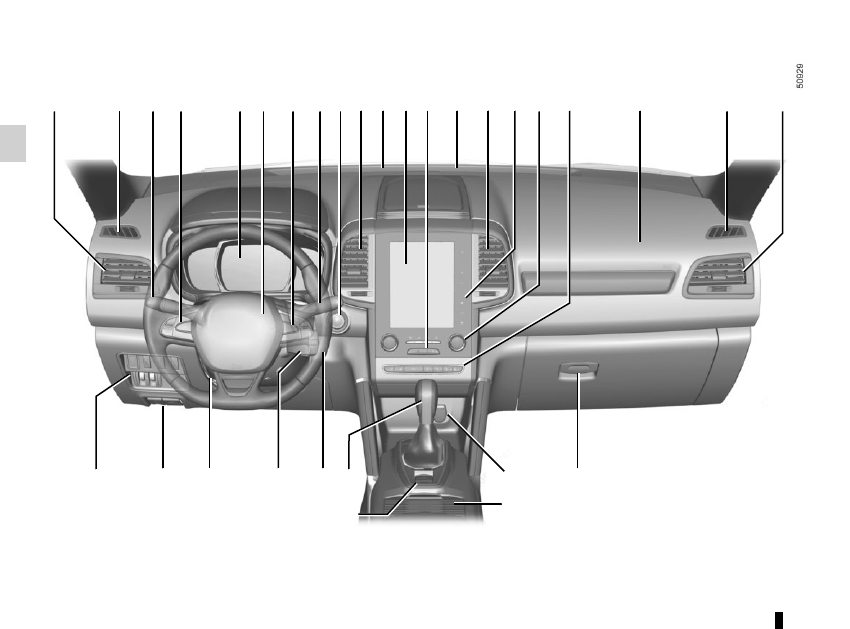

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

19 Controls for:

–

Cruise control/speed limiter main

control,

– Assisted parking.

20 Gear lever.

21 Ignition switch (vehicles with key).

22 Controls for remote radio and navi-

gation system.

23 Control for adjusting steering

wheel height and reach.

24 Unlocking controls:

– bonnet,

– fuel filler flap.

25 Controls for:

–

Electric headlight beam adjust-

ment,

–

Instrument panel lighting dimmer,

–

Tailgate opening or Lane depar-

ture warning on/off (depeding on

the vehicle),

– Heated steering wheel on/off,

– ESC and Traction Control system,

–

Two and four-wheel drive mode

selector.

1 Air vent.

2 Demister outlet.

3 Stalk for:

– direction indicator lights;

– exterior lights;

– fog lights.

4 Cruise control/speed limiter con-

trols.

5 Instrument panel.

6 Driver Airbag and horn location.

7 Controls for on-board computer in-

formation read-out and vehicle set-

tings customisation menu.

8 Steering column stalk for wind-

screen and rear screen wash/

wiper.

9 Engine start/stop button (vehicle

with RENAULT card).

10 Multifunction screen.

11 Hazard warning light switch, cen-

tral door locking warning light.

12 Multifunction screen controls for:

– power on/off,

– volume,

– home menu,

–

driving aids menu,

– display settings.

13 Heating or air conditioning con-

trols.

14 Controls for:

– heated front seats,

– ventilated front seats,

–

activation/deactivation of ECO

mode,

–

activation/deactivation of assisted

parking,

–

activation/deactivation of the Stop

and Start function.

15 Passenger

Airbag location.

16 Glovebox.

17 Accessories socket or cigarette

lighter.

18 Cup holders.

1.52

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

11 12

23
22

1.53

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

16 Unlocking controls:

– bonnet,

– fuel filler flap.

17 Ignition switch (vehicles with key).

18 Control for remote radio and navi-

gation system.

19 Control for adjusting steering

wheel height and reach.

20 Engine start/stop button (vehicle

with RENAULT card).

21 Accessories socket or cigarette

lighter.

22 Cup holder

23 Controls for:

–

Cruise control/speed limiter main

control,

– Assisted parking.

24 Gear lever.

25 Glovebox.

1 Air vent.

2 Demister outlet.

3 Passenger

Airbag location.

4 Controls for:

– heated front seats,

– ventilated front seats,

–

activation/deactivation of ECO

mode,

–

activation/deactivation of assisted

parking,

–

activation/deactivation of the Stop

and Start function.

5 Heating or air conditioning con-

trols.

6 Multifunction screen.

7 Hazard warning light switch, cen-

tral door locking warning light.

8 Multifunction screen controls for:

– power on/off,

– volume,

– home menu,

–

driving aids menu,

– display settings.

9 Stalk for:

– direction indicator lights;

– exterior lights;

– fog lights.

10 Cruise control/speed limiter con-

trols.

11 Instrument panel.

12 Driver Airbag and horn location.

13 Controls for on-board computer in-

formation read-out and vehicle set-

tings customisation menu.

14 Steering column stalk for wind-

screen and rear screen wash/

wiper.

15 Controls for:

–

Electric headlight beam adjust-

ment,

–

Instrument panel lighting dimmer,

–

Tailgate opening or Lane depar-

ture warning on/off (depeding on

the vehicle),

– Heated steering wheel on/off,

– ESC and Traction Control system,

–

Two and four-wheel drive mode

selector.

1.54

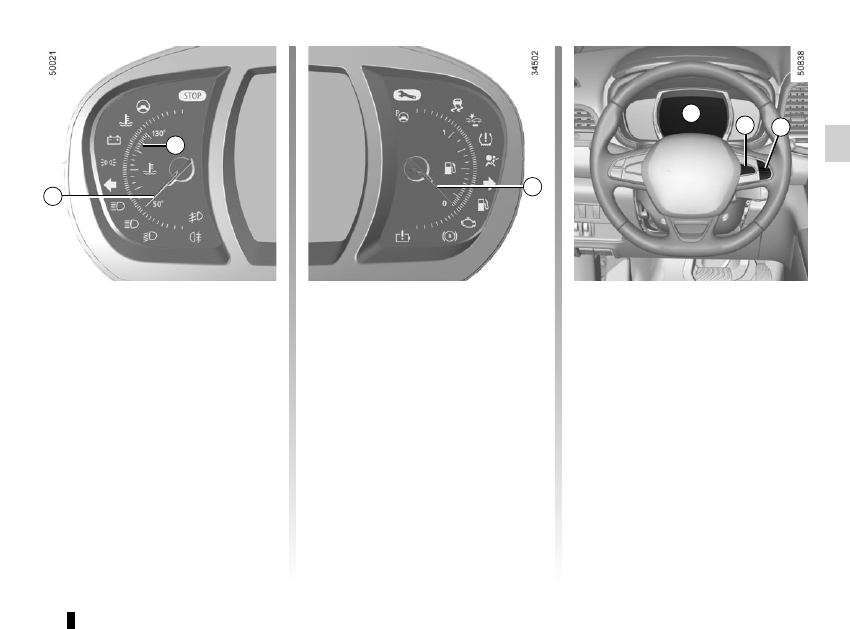

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

Side light warning light

Main beam headlight tell-

tale

Dipped beam headlight tell-

tale

Front fog light tell-tale

Rear fog light telltale



Automatic main beam head-

light indicator light

Please refer to the information

on “External signals and lights” in

Section 1.

Left-hand direction indicator

tell-tale

Right-hand direction indica-

tor tell-tale

Low fuel level warning light

It lights up orange when the ig-

nition or the engine is switched on and

goes off after a few seconds.

If it comes on orange while driving and

is accompanied by a beep, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left.

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

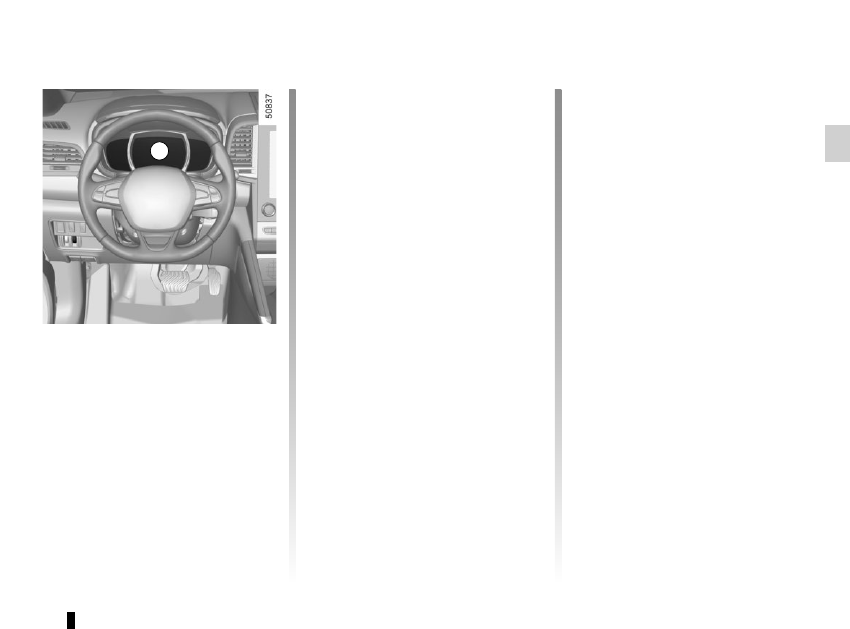

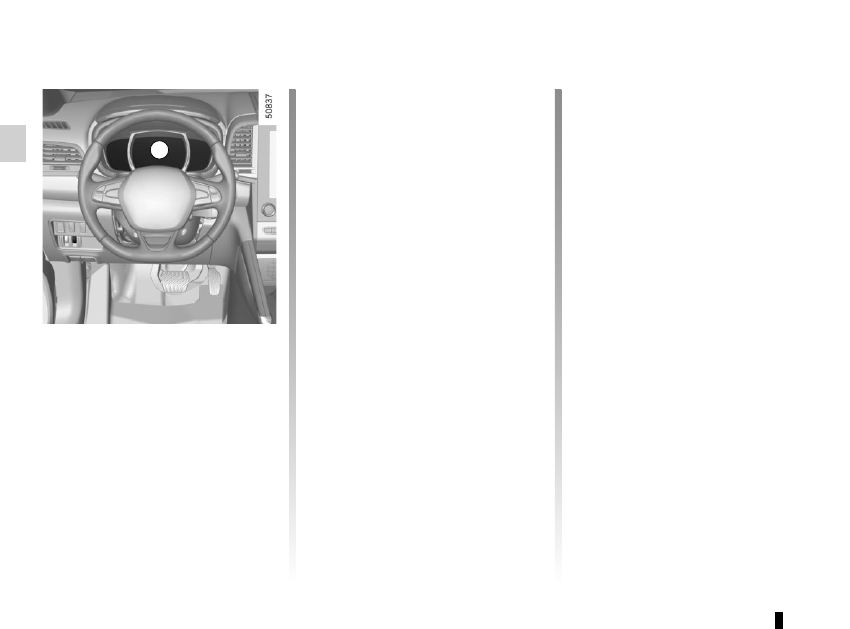

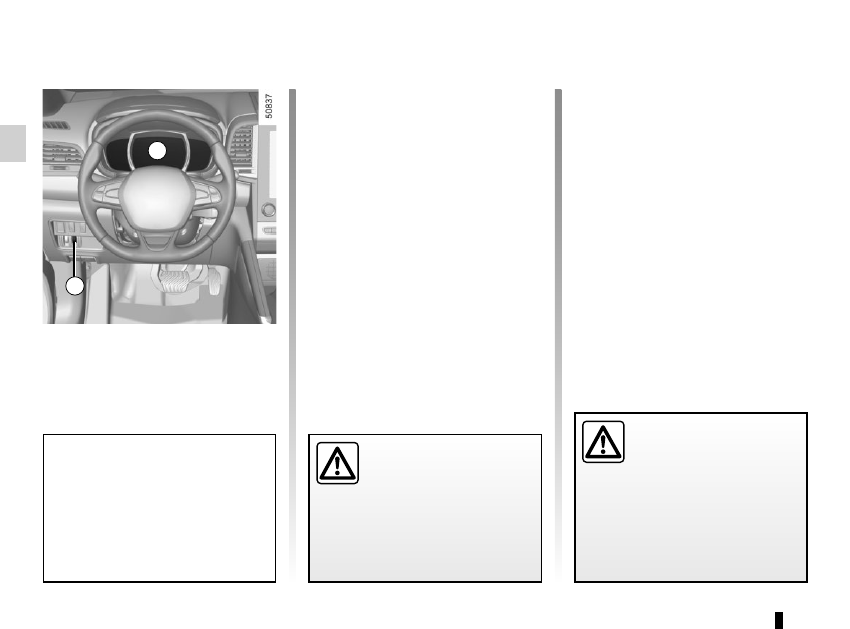

Instrument panel A: lights up when the

driver’s door is opened. When the igni-

tion is switched on, turn wheel 1 to set

the brightness of the instrument panel.

The

warning light means

you should drive very carefully to

an approved dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions

allow. Switch off the engine and do

not restart it. Contact an approved

Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

WARNING LIGHTS

(1/6)

1.55

WARNING LIGHTS

(2/6)

STOP light

This lights up when the igni-

tion or engine is switched on and goes

out as soon as the engine is running. It

comes on with other warning lights and/

or messages, and is accompanied by

a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

Oil pressure warning light
It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it comes on on the road, accompa-
nied by the

warning light and

a beep, stop immediately and cut the

ignition.
Check the oil level. If the level is normal,

the indicator light is being lit by some-

thing else. Contact an approved Dealer.

Variable power-assisted

steering warning light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
If it comes on while driving, alongside
the warning light

, this means

there is a system fault.
Contact an authorised dealer.

Brake circuit fault warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
If it comes on during braking and is ac-
companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

authorised dealer.

Battery charge warning light
It lights up when the ignition or

the engine is switched on and goes off

after a few seconds.
If it comes on on the road, accompa-
nied by the

warning light and a

beep, this indicates an overload or dis-

charge in the electrical circuit.
Stop as soon as traffic conditions allow

and contact an approved Dealer.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.56

WARNING LIGHTS

(3/6)

Anti-lock braking warning

light

It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.

If it lights up when you are driving, it in-

dicates a fault in the anti-lock braking

system.

Braking will then be as normal, without

the ABS. Contact an approved Dealer

as soon as possible.

Coolant temperature warn-

ing light

This lights up red when the ignition is

switched on or the engine is started.
If it turns red, stop and let the engine

idle for a minute or two.
The temperature should drop.

Otherwise, stop the engine. Let the

engine cool down before checking the

coolant.
Contact an approved Dealer.

Warning light

This lights up when the ignition

or engine is switched on and goes out

as soon as the engine is running. It can

light up in conjunction with other warn-

ing lights and/or messages on the in-

strument panel.

It means you should drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

Toxic Fume Filter System

Warning Light

On vehicles which are equipped with it,

this light comes on when the engine is

started and, depending on the vehicle,

when the ignition is switched off if the

vehicle is in the engine standby phase

(refer to the information on the “Stop

and Start Function” in section 2) then

goes out.
– If it lights up continuously, consult

your approved dealer as soon as

possible;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to the information on “Advice:

antipollution, fuel economy and driving”

in Section 2.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.57

WARNING LIGHTS

(4/6)

Preheating warning light

(diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation.
It goes out when preheating is com-

plete. The engine can be started.

Door(s) open warning light

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Air bag warning light

This warning light will be dis-

played on the instrument panel when

the ignition is switched on or the engine

is started, and will then go out after a

few seconds.

If it does not come on when the igni-

tion is switched on, or comes on when

the engine is running, there is a fault in

the system.

Contact your approved Dealer as soon

as possible.

Brake pedal warning light
This lights up when the brake

pedal should be depressed. Refer to

the information on the “Automatic gear-

box” in Section 2.
Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

}

Footbrake or electronic

parking brake warning light

Refer to the information on the “Assisted

parking brake” in Section 2.

Rear seat belt reminder (depending

on vehicle)

Warning light

comes on, accom-

panied (depending on the vehicle) by

a message indicating the number of

fastened seat belts on the instrument

panel for approximately 30 seconds,

each time the vehicle is started, a door

is opened or a rear seat belt is fas-

tened/unfastened. Check that the rear

passengers are wearing seat belts and

that the number of seat belts shown as

fastened corresponds to the number of

rear seat places occupied.

‰

Gear change indicator

This lights up to advise you to

change to a higher gear (up arrow) or

lower gear (down arrow).

Please refer to the information on

“Driving advice, Eco-driving” in

Section 2.

1.58

WARNING LIGHTS

(5/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.



Assisted parking brake fault

light

Please refer to the information on the

“Assisted parking brake” in Section 2.



Emergency active brake

assist

Refer to the information on “Driving cor-

rection devices and aids” in Section 2.



Electronic Stability Program

(ESC) and traction control

system warning light
It lights up when the ignition or the

engine is switched on and goes off after

a few seconds.
There are several reasons for the warn-

ing light to come on: please refer to the

information on “Driver correction de-

vices and aids” in Section 2.

ÐÏ

Speed limiter and cruise

control indicator lights

See the information on the “Speed lim-

iter” and “Cruise control” in Section 2.



Tyre pressure monitoring

system

Refer to the information on the “Tyre

pressure monitoring system” in Section



ECO mode warning light
This comes on when ECO

mode is activated.
Please refer to the information on “Eco-

driving” in Section 2.



Engine standby warning

light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.



Unavailability of engine

standby warning light

Please see information in the para-

graph on “Stop and Start Function” in

Section 2.

1.59

WARNING LIGHTS

(6/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

On display B



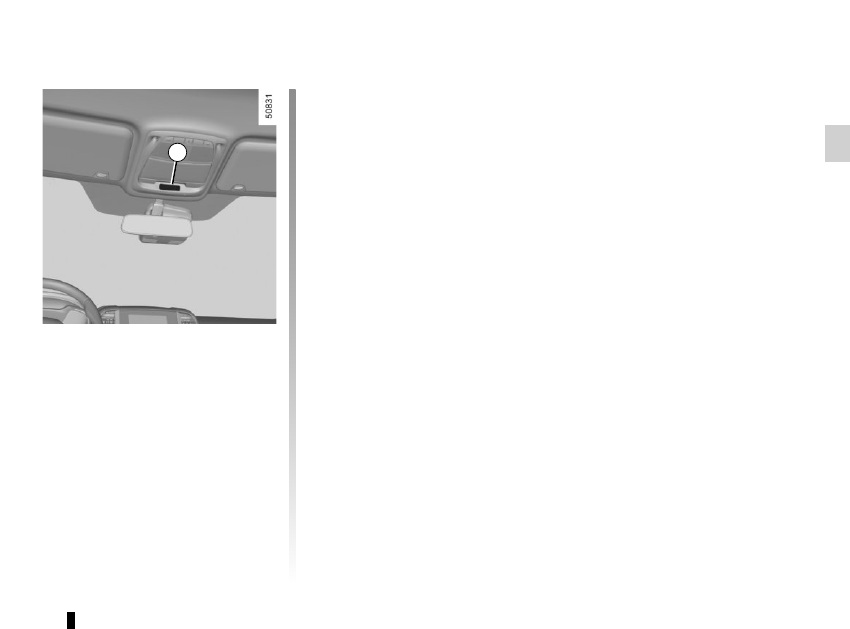

Passenger airbag ON

Please refer to the information

on “Child safety: deactivating/activating

the front passenger airbag” in Section 1.

Passenger airbag OFF

Please refer to the information

on “Child safety: deactivating/activating

the front passenger airbag” in Section 1.

Driver’s seat belt reminder

and, depending on the vehi-

cle, front passenger seat belt re-

minder

This lights up when the ignition is

switched on, then, if the driver's or front

passenger's (if this seat is occupied)

seat belt is not fastened and the vehicle

has reached approximately 12.4 mph

(20 km/h), it flashes and a beep sounds

for around 2 minutes.

Note: an object placed on the passen-

ger seat base can activate the warning

light.

1.60

DISPLAYS AND INDICATORS

(1/2)

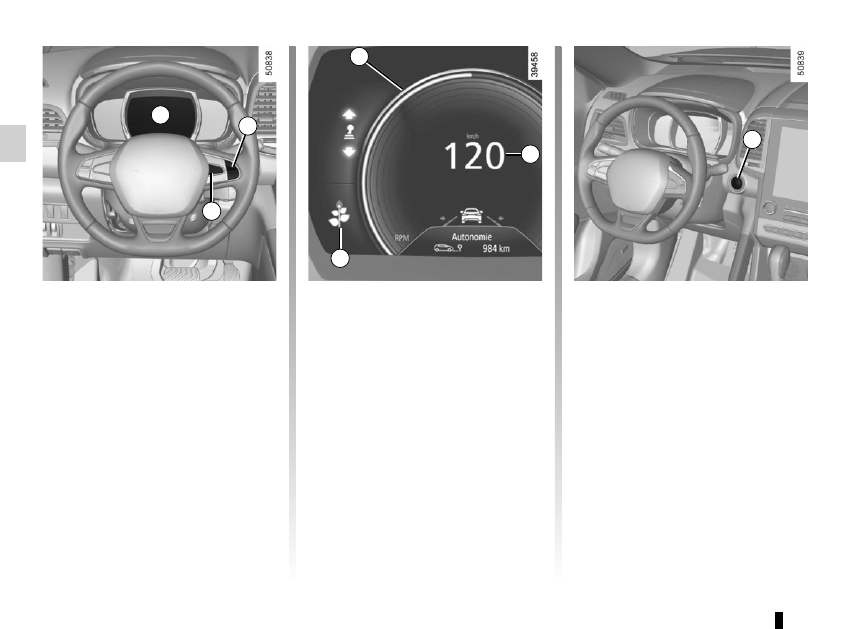

Instrument panel A

Depending on the vehicle, you can cus-

tomise your instrument panel with the

content and colours of your choice.
From the multifunction screen , select

“System”, then “User profile”. Refer to

the handbook for the equipment.

Driving style indicator 3

Please refer to the information on “Eco-

driving” in Section 2.

Rev counter 4

(graduations x 1000)

Speedometer 5

(km or miles per hour)
This is displayed differently according

to how the instrument panel is custom-

ised.

Overspeed buzzer
Depending on the vehicle and coun-

try, a buzzer sounds for approximately

10 seconds every 40 seconds, as long

as the vehicle is travelling in excess of

72 mph (120 km/h).

Instrument panel in miles

(option to switch to km/h)
Vehicles not fitted with a navigation

system

– With the ignition off, press the OK

button 2 and the start button 6;

– using control 1, select “Settings”,

“Instrument panel”, then the unit;

– Press the OK button 2 to confirm.
To return to the previous mode, repeat

the same operation.

1.61

DISPLAYS AND INDICATORS

(2/2)

Engine oil level low warning

When the engine is started, the instru-

ment panel display A alerts you when

the minimum oil level is reached. Refer

to the information on the “Engine oil

level” in Section 4.
The first time the warning appears,

it can be cleared by pressing the OK

button 2.
Subsequent warnings will disappear

automatically after 30 seconds.

Coolant temperature

indicator 7

In normal use, indicator 7 should be

before arear 8. Under “intensive” op-

erating conditions, the needle may ap-

proach this zone. This is not serious
unless the warning light

comes

on accompanied by a message on the

instrument panel and a beep.

Fuel level gauge 9

If the level is at the minimum, warn-

ing light

integrated in the indica-

tor comes on orange, accompanied by

a beep. Fill up as soon as possible.

Vehicles fitted with a navigation

system

On the multifunction screen, select

“System” , “User profile” and “Unit”.
Note: In both cases, once the battery

is switched off, the on-board computer

automatically returns to the original unit

of measurement.

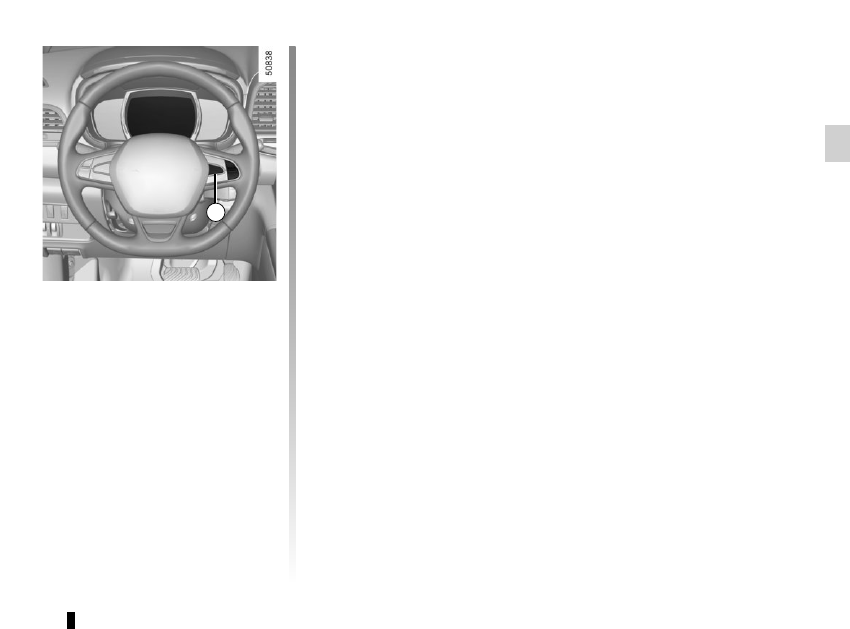

Trip computer and warning

system

Refer to the information on the “Trip

computer and warning system” in

Section 1.

1.62

Display selection keys 2

Scroll through the following information

by repeated short presses on the con-

trol 2 (the display depends on the vehi-

cle equipment and country):
a) total mileage and trip mileage re-

corder;

b) journey parameters:

– average fuel consumption;
–

current fuel consumption;

– estimated range;
– distance travelled;
– average speed;

c) mileage before service;
d) tyre pressure reset;
e) trip log, operating faults and informa-

tion message readout.

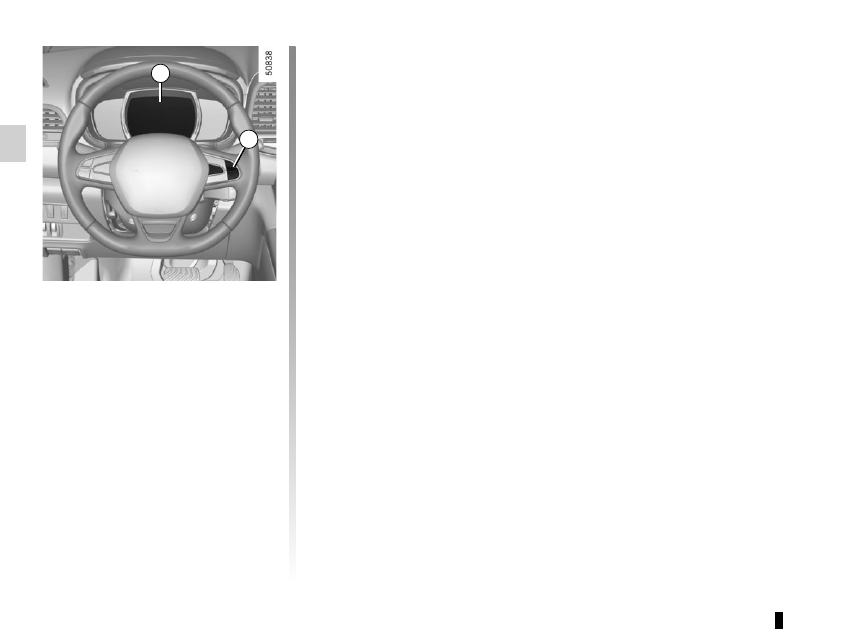

On-board computer 1

Depending on the vehicle, this includes

the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (associ-

ated with the

warning light);

– warning messages (associated with

the

warning light);

All these functions are described on the

following pages.

TRIP COMPUTER: general information

1.63

ON-BOARD COMPUTER: general information

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption and average speed will

become more stable and reliable the

further you have travelled since the last

time the Reset button was pressed.
The average fuel consumption may de-

crease when:
–

the vehicle stops accelerating;

–

the engine reaches its operating

temperature (if the engine was cold

when the reset key was pressed);

–

when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

Trip mileage resetting

With “trip mileage recorder” selected

on the display, press key OK 3 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

with the display showing one of the trip

settings, press key OK 3 until the dis-

play is reset to zero.

1.64

ON-BOARD COMPUTER: trip settings

(1/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

101778 km

a) Total mileage and trip mileage recorder.

112.4 km

Average

b) Journey parameters:
Average fuel consumption since the last reset.

The value is displayed after having travelled at least 400 metres since the last

reset.

5.8 L/100

Current

Current fuel consumption.

This value is displayed after a speed of approximately 6 mph (10 km/h) is reached.

7.4 L/100

1.65

ON-BOARD COMPUTER: trip settings

(2/5)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

Range

Estimated range with remaining fuel.

The value is displayed after driving 400 metres.

541 km

Distance

Distance

travelled since last reset.

522 km

Average

Average

speed since the last reset.

The value is displayed after driving 400 metres.

123.4 km/h

Renault Koleos (2018 year). Manual - part 4
