Renault Fluence (2012 year). Manual - part 5

1.63

ENG_UD25557_2

Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER: trip settings

(3/5)

The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

c) Oil change interval

Distance remaining until the next service (displayed in

miles/kilometres and months), then when the service

nears, several scenarios are possible:

– distance/time remaining less than

900 miles

(1,500 km) or one month: the message “Service due

in” is displayed accompanied by the nearest term (dis-

tance or time);

– distance/time remaining

0 km/miles or service date

reached: the message “Service required” is displayed

accompanied by warning light

The vehicle requires an oil change as soon as possible.

Service in

30000km /24 MONTHS

Service due in 100km

Service due in 10 days

NB: depending on the vehicle, the service interval varies according to the driving style (frequent driving at low speed, door-to-

door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next oil change can therefore

decrease more quickly in some cases than the actual distance travelled.
The oil change intervals are independent of the vehicle’s maintenance schedule: please refer to your vehicle’s Maintenance

Service Booklet.
Resetting: to reset the oil change interval, press and hold one of the display reset buttons for approximately 10 seconds until

the display shows the interval permanently.

1.64

ENG_UD25557_2

Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER: trip settings

(4/5)

The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

d) Tyre pressure monitor

Refer to the information on the “Tyre pressure monitor”

in Section 2.

FRONT TYRES

2.2

REAR TYRES

2.2

1.65

ENG_UD25557_2

Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER: trip settings

(5/5)

The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

e) Vehicle settings customisation menu.

Enables certain vehicle functions to be set (instrument panel language, parking

distance control, etc.). Refer to the information on “Vehicle settings customisation

menu” in Section 1.

Settings menu:

press and hold

f) Trip log.

Successive display:
– information messages (passenger airbag OFF etc.),
– operating fault messages (check the injection system, etc.).

No message available

1.66

ENG_UD23767_1

Ordinateur de bord : messages d’information (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER AND WARNINg sYsTEM: information messages

Examples of messages

Interpreting the display selected

“Battery low start engine” Indicates that the vehicle must be started to recharge the battery (eg. after the engine has been

switched off for some time whilst listening to the radio).

“please remove keycard” Request to remove the RENAULT card from the reader when you leave the vehicle.

“Checking control

functions”

Displayed with the ignition on when the vehicle is running self-diagnostics.

“Traction control off”

Indicates that you have deactivated the ASR function.

“Turn steering

wheel + sTART”

Turn the steering wheel slightly whilst pressing the vehicle start button to unlock the steering

column.

“No message available” No warning is stored.

“steering wheel

not locked”

Indicates that the steering column has not been locked.

“stop vehicle”

Indicates an electronic parking brake fault. Apply the electronic parking brake manually and

ensure that the vehicle is immobilised using a chock.

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

1.67

ENG_UD23768_1

Ordinateur de bord : messages d’anomalies de fonctionnement (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER AND WARNINg sYsTEM: operating fault messages

These appear with the

warning light and mean that you should drive very carefully to an approved dealer as soon

as possible. If you fail to follow this recommendation, you risk damaging your vehicle.

They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

warning light stays on. Examples of operating fault messages are given in the following pages.

Examples of messages

Interpreting the display selected

« Clean diesel filter »

Indicates the presence of water in the diesel filter.

« Check lighting »

Indicates a fault in the directional headlights.

« Check vehicle »

Indicates a fault on one of the pedal sensors or in the battery management

system.

« Check airbag »

Indicates a fault in the restraint system in addition to the seat belts. In the event

of an accident, it is possible that they may not be triggered.

« Check antipollution system »

Indicates a fault in the vehicle’s particle filter system.

« Check injection system »

Indicates an engine fault.

1.68

ENG_UD23769_1

Ordinateur de bord : messages d’alerte (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

These appear with the

warning light and require you to stop immediately, for your own safety, as soon as traffic

conditions allow. stop your engine and do not restart it. Contact an approved Dealer.

Examples of warning messages are given in the following pages.

Note: the messages appear on the display either individually

or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpreting the display selected

« Engine failure hazard »

Indicates engine overheating, or an injection or engine oil pressure fault.

“power steering fault” or

“Risk of steering locking”

Indicates a fault in the steering.

« Battery charging fault »

Indicates a fault in the vehicle battery charging circuit (alternator etc.).

« puncture »

Indicates a puncture on the tyre displayed on the instrument panel.

TRIp COMpUTER AND WARNINg sYsTEM

warning messages

menu for customising the vehicle settings (up to the end of the DU)

customising the vehicle settings ...........(up to the end of the DU)

customised vehicle settings ..................(up to the end of the DU)

1.69

ENG_UD24231_2

Menu de personnalisation des réglages du véhicule (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

vehicle settings customisation menu

VEhICLE sETTINgs CUsTOMIsATION MENU

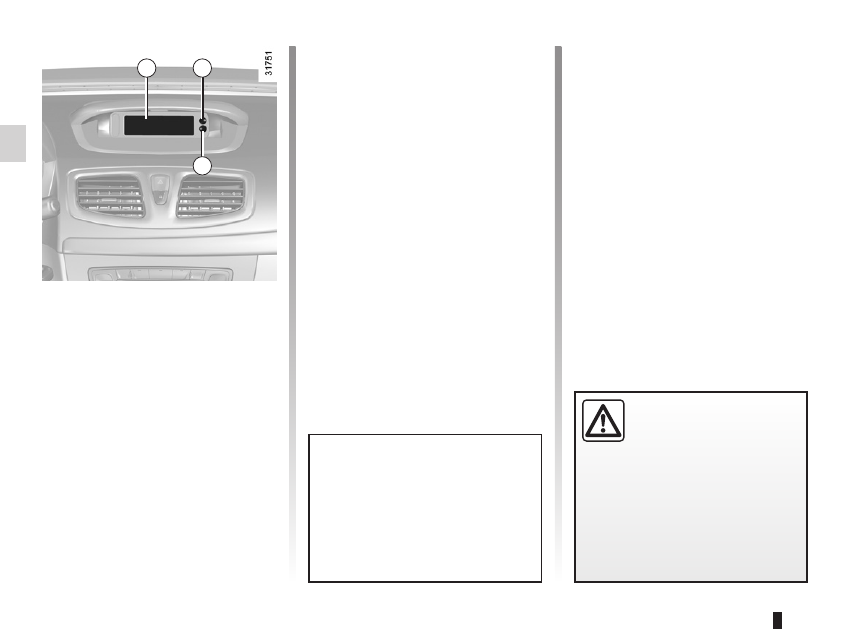

Adjusting the settings

Press one of buttons 2 or 3 to select a

function to change:

a) Auto door locking while driving;

b) Auto rear wipe with reverse gear;

c) Auto dipped-beam headlights;

d) Rear parking sensor ;

e) Parking sensor volume;

f) LANGUAGE.

function activated

function deactivated

On equipped vehicles, this function,

which is integrated in the trip compu-

ter and warning system 1, allows you

to activate/deactivate some of the vehi-

cle’s functions.

Accessing the settings

customisation menu

With the vehicle stationary, press

either button 2 or 3 until the mes-

sage “Settings menu: press and hold”

appears on display 1. Press either

button 2 or 3 for longer than 2 seconds

to enter the menu.

Once a line has been selected, keep

pressing either button 2 or 3 to change

the function: If you select either “Parking

sensor volume” or “LANGUAGE”, you

will be given a new choice of options

(parking distance control volume or in-

strument panel language). In this case,

make your selection and confirm it by

holding either button 2 or 3, the value
selected is shown by a

in front

of the line.
To exit the menu, select “EXIT” or

“BACK” then confirm by holding either

button 2 or 3. It may be necessary to

carry out this operation several times.

The vehicle settings customisation

menu cannot be used when driv-

ing. At speeds of above 12 mph (20

km/h) for vehicles with a manual

gearbox (0 mph for vehicles with an

automatic gearbox), the on-board

display returns automatically to the

trip computer and warning system

mode.

clock .....................................................(up to the end of the DU)

external temperature ............................(up to the end of the DU)

indicators:

exterior temperature indicator ..........................(current page)

1.70

ENG_UD21621_3

Heure et température extérieure (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Vehicles equipped with a

navigation system, radio, etc.

For vehicles which are not fitted with

buttons 2 and 3, refer to the specific

equipment instructions to discover the

special features.

Clock and exterior temperature

With the ignition on, the time and,

depending on the vehicle, the exterior

temperature are displayed.

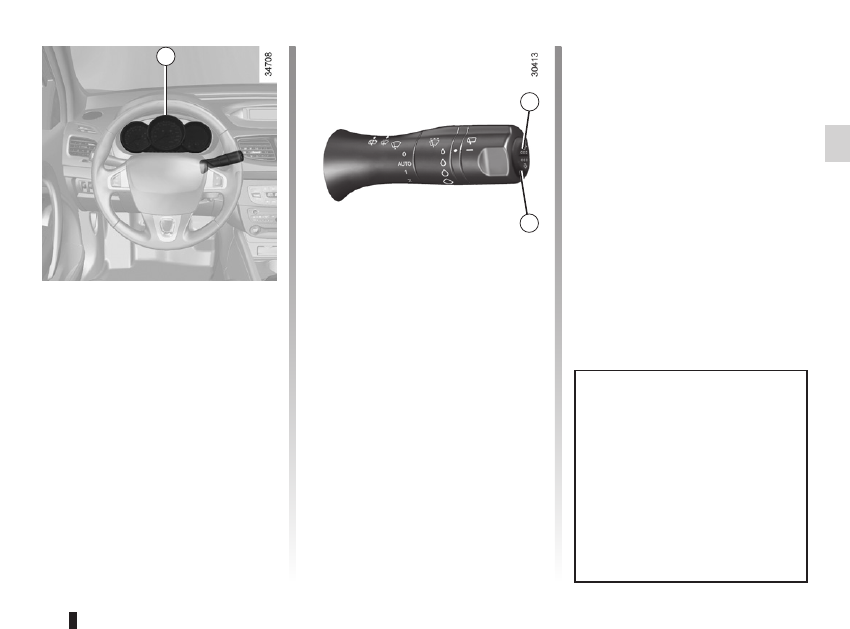

Resetting the clock 1

On equipped vehicles, buttons 2 and 3

are used to set the clock.
Press button 2 to adjust the hours and

button 3 to adjust the minutes.

External temperature

indicator
As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

CLOCK AND EXTERIOR TEMpERATURE

(1/2)

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

External temperature

indicator

special note:
When the external temperature is be-

tween –3°C and +3°C, the °C charac-

ters flash (indicates risk of ice forma-

tion).

1.71

ENG_UD21621_3

Heure et température extérieure (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

25177

25314

Finishing by pressing and holding

button 6 to confirm the time set.
When the minutes flash, repeatedly

press or press and hold button 5 to set

them.
The fixed display on the hours and min-

utes for two seconds confirms the hour

and minute setting.
Press button 5 or 6 to exit time setting

mode.

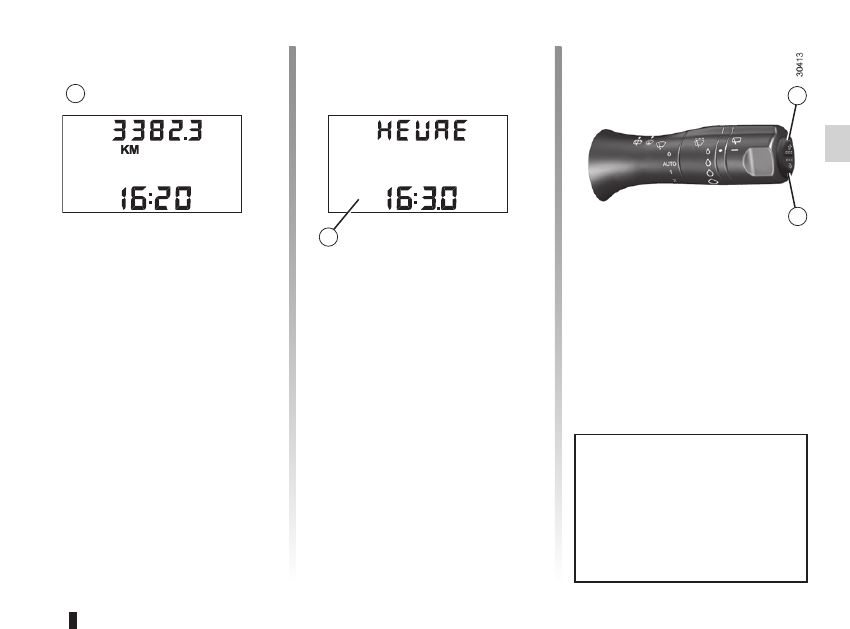

setting the time on display A

(vehicle with setting buttons 5 and 6)
With the ignition on, press button 5 or 6

to enter time setting mode: display 4

appears.
Wait for the hours and minutes to flash.
Press and hold button 6 to select the

hours.
When the hours flash, repeatedly press

or press and hold button 5 to set them.

CLOCK AND EXTERIOR TEMpERATURE

(2/2)

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

rear view mirrors ...................................(up to the end of the DU)

1.72

ENG_UD21622_2

Rétroviseurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

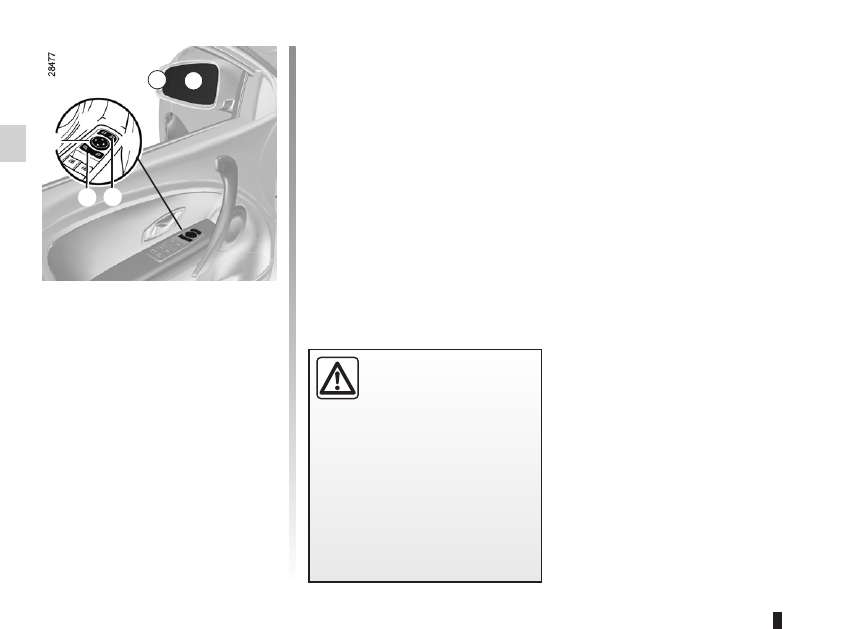

Door mirrors

Folding door mirrors

(depending on the vehicle)
The door mirrors automatically fold in

when the vehicle is locked (switch 2 in

position B). In this case, they will fold

out when the ignition is next switched

on.
In any case, you can make the door

mirrors fold in (switch 2 in position C) or

fold out (switch 2 in position A).
Automatic mode is then deactivated. To

reactivate it, position switch 2 to B.

REAR VIEW MIRRORs

(1/2)

Door mirrors

Adjustment

Select the door mirror using switch 3,

then use button 1 to adjust it to the de-

sired position.

heated door mirrors

(depending on the vehicle)
Mirror de-icing is carried out at the

same time as rear screen de-icing.

The driver’s door mirror

may have two clearly de-

fined zones. Zone E shows

what can normally be seen

in an ordinary rear view mirror.

Zone D increases rear side visibility.
The objects in zone D look much

further away than they really are.

1.73

ENG_UD21622_2

Rétroviseurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

REAR VIEW MIRRORs

(2/2)

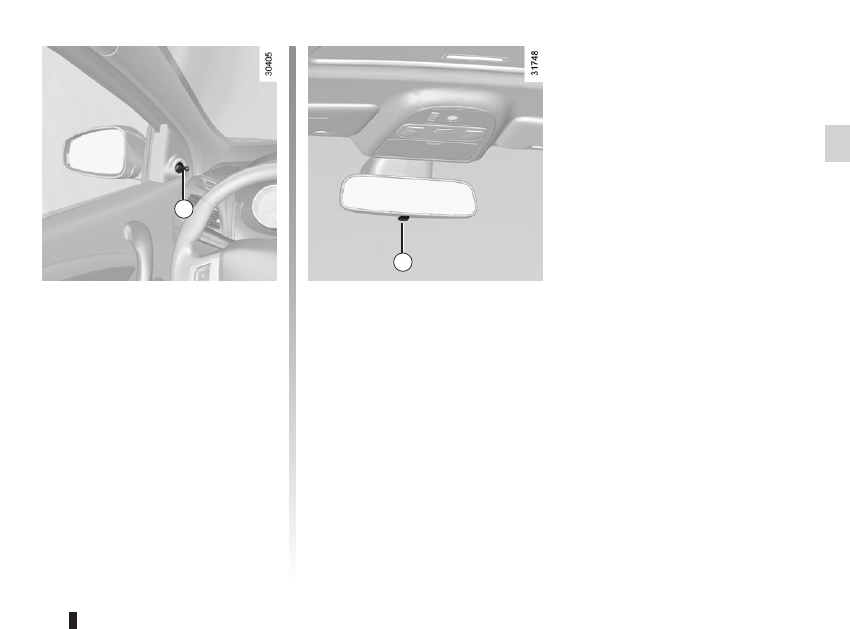

Interior rear view mirror

Its position can be adjusted.

Rear view mirror with lever 5
When driving at night, to avoid being

dazzled by the headlights of the vehicle

behind, move the small lever 5 located

behind the rear view mirror.

Rear view mirror without lever 5
The rear view mirror darkens automati-

cally at night if you are being followed

by a vehicle with its lights on.

Door mirrors with manual

adjustment

To adjust the mirror, move lever 4.

warning buzzer .....................................(up to the end of the DU)

headlight flashers .................................(up to the end of the DU)

indicators ..............................................(up to the end of the DU)

lights:

hazard warning ...............................(up to the end of the DU)

lights:

direction indicators ..........................(up to the end of the DU)

indicators:

direction indicators ..........................(up to the end of the DU)

hazard warning lights signal .................(up to the end of the DU)

horn ......................................................(up to the end of the DU)

horn:

flash .................................................................(current page)

horn:

sounding the horn ............................................(current page)

horn .......................................................................(current page)

audible and visual signals.....................(up to the end of the DU)

1.74

ENG_UD21429_2

Avertisseurs sonore et lumineux (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Audible and visual signals

AUDIBLE AND VIsUAL sIgNALs

horn

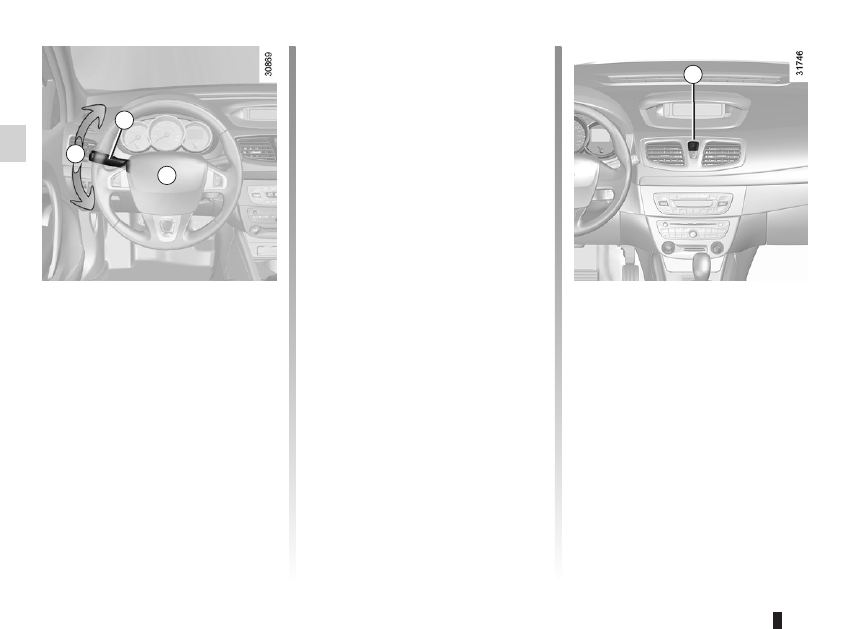

Press on the sides of the steering wheel

boss A.

headlight flasher

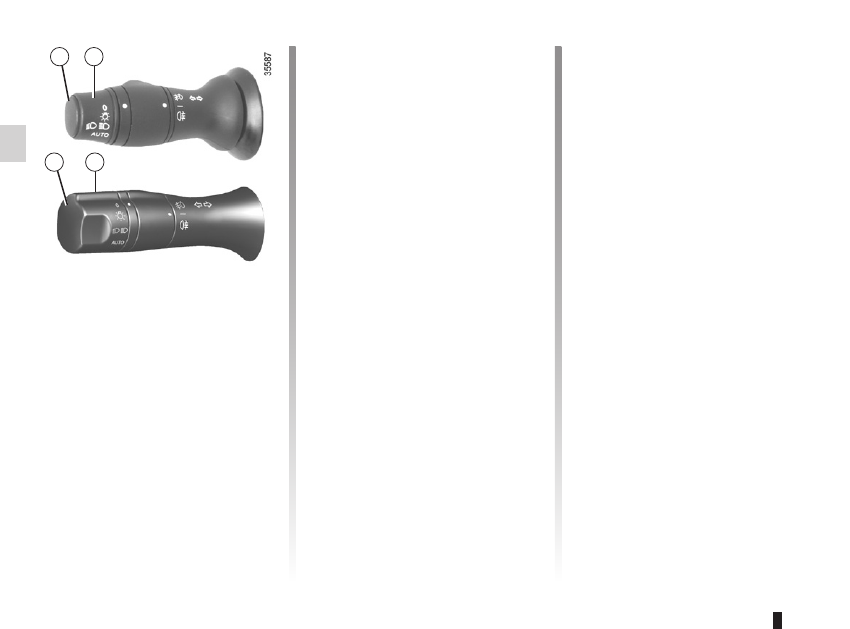

Pull stalk 1 towards you to flash the

headlights.

hazard warning lights

Press switch 2. This switch ac-

tivates all four direction indicators and

the side indicator lights simultaneously.

It must only be used in an emergency to

warn drivers of other vehicles that you

have had to stop in an area where stop-

ping is prohibited or unexpected or that

you are obliged to drive under special

conditions.
Depending on the vehicle, the hazard

warning lights may come on automati-

cally under heavy deceleration. You can

switch them off by pressing switch 2.

Direction indicators

Move stalk 1 parallel to the steering

wheel and in the direction you are going

to turn it.
When driving on the motorway, the

steering wheel is not often turned

enough to return the stalk automatically

to 0. There is an intermediate position

in which the stalk may be held when

changing lanes.
When the stalk is released, it automati-

cally returns to 0.

lighting:

exterior ............................................(up to the end of the DU)

instrument panel ....................................................(current page)

lights:

side lights .........................................................(current page)

lights:

dipped beam headlights ...................................(current page)

hazard warning lights signal ..................................(current page)

signals and lights ..................................(up to the end of the DU)

lighting:

instrument panel ..............................................(current page)

daytime running lights............................................(current page)

1.75

ENG_UD27178_2

Éclairages et signalisations extérieurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Main beam headlights

With the dipped beam head-

lights lit, pull stalk 1 towards you. This

indicator light on the instrument panel

comes on.
To return to the dipped headlight posi-

tion, pull stalk 1 towards you again.

Exterior lighting and signals

Before driving at night,

check that the electrical

equipment is operating cor-

rectly and adjust the head-

light beams (if your vehicle is not

carrying its normal load). As a gen-

eral precaution, check that the lights

are not obscured (by dirt, mud,

snow or objects being transported).

EXTERIOR LIghTINg AND sIgNALs

(1/3)

side lights

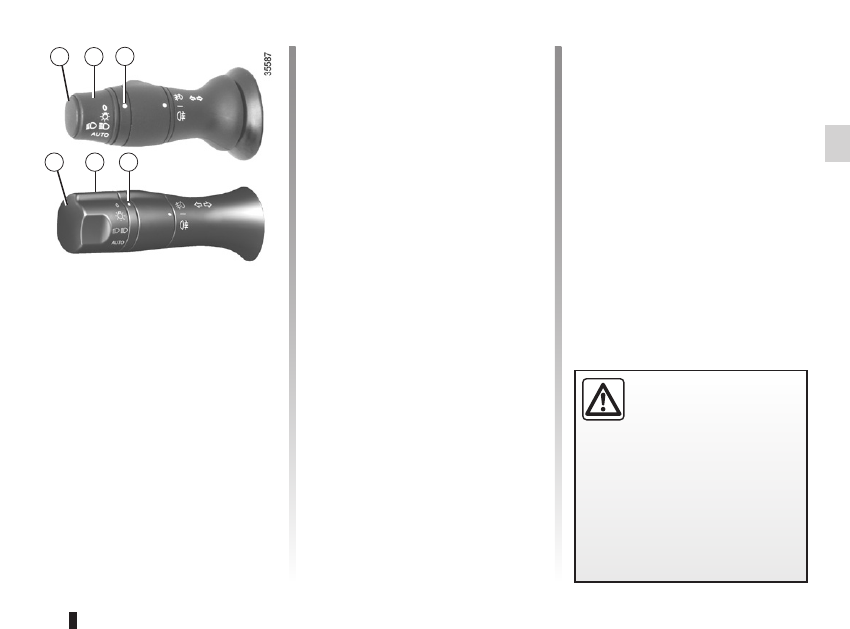

Turn the ring 2 until the symbol

is opposite mark 3.

Daytime running lights

function

Depending on the vehicle, the daytime

running lights come on automatically

when the engine is started. To activate

or deactivate this function, refer to the

information on the “Vehicle settings

customisation menu” in Section 1.

Dipped beam

headlights

Manual operation

Turn the ring 2 until the symbol is oppo-

site mark 3. This indicator light on the

instrument panel comes on.

Automatic operation

(depending on vehicle)

Turn ring 2 until the AUTO symbol is op-

posite mark 3: with the engine running,

the dipped beam headlights switch on

or off automatically depending on the

brightness of the light outside, without

any action on stalk 1.

lights:

main beam headlights ......................................(current page)

warning buzzer ......................................................(current page)

see-me-home lighting ............................................(current page)

lights

mobile directional .............................................(current page)

1.76

ENG_UD27178_2

Éclairages et signalisations extérieurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

EXTERIOR LIghTINg AND sIgNALs

(2/3)

special note:

– If the dipped beam headlights are

manually switched on and if the light

is sufficient, the directional head-

lights will remain fixed;

– If the lights come on automatically

when cornering, the directional

headlights will start working from the

next time the vehicle corners;

– When the dipped beam headlights

are switched on with the engine

running and the vehicle stationary,

the lights move to reinitialise them-

selves. If not, there is a system fault.

switching off the lights

There are two possibilities:

– Manually, move ring 2 to position 0;

– automatically, the lights will go out

when the engine is switched off, the

driver’s door is opened or the vehicle

is locked. In this case, the next time

the engine is started the lights will be

switched back on according to the

position of the ring 2.

Note: if the fog lights are lit, the lights

are not switched off automatically.

“see-me-home lighting”

function

Depending on the vehicle, this func-

tion allows you to briefly switch on the

dipped beam headlights (to provide

light when opening a gate, etc.).
With the engine and lights off, and

ring 2 in position 0, pull stalk 1 towards

you: the dipped beam headlights come

on for approximately thirty seconds.

To increase this duration, you may pull

the stalk up to four times (total time re-

stricted to two minutes). Depending

on the vehicle, the message “See-me-

home _ _ _” accompanied by the light-

ing time is displayed on the instrument

panel to confirm the action.
To switch off the lights before they go

out automatically, turn ring 2 to any po-

sition, then return it to position

Directional headlights

Depending on the vehicle, with the

dipped beam headlights on and under

certain conditions (speed, steering

wheel angle, forwards gear selected,

etc.) when cornering, the dipped beam

headlights move to light the inside of

the bend.
Operating faults
Depending on the vehicle, when the

message “Check lighting” appears on

the instrument panel along with the

warning light, this indicates that

there is a lighting fault.

Consult an approved dealer.

lights:

fog lights ..........................................................(current page)

1.77

ENG_UD27178_2

Éclairages et signalisations extérieurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

EXTERIOR LIghTINg AND sIgNALs

(3/3)

When driving in fog or snow, or

when transporting objects which are

higher than the roof, the headlights

do not come on automatically.
Switching on the fog lights remains

the responsibility of the driver: the

indicator lights on the instrument

panel inform you whether the fog

lights are lit (indicator light on) or not

(indicator light not on).

Front fog lights

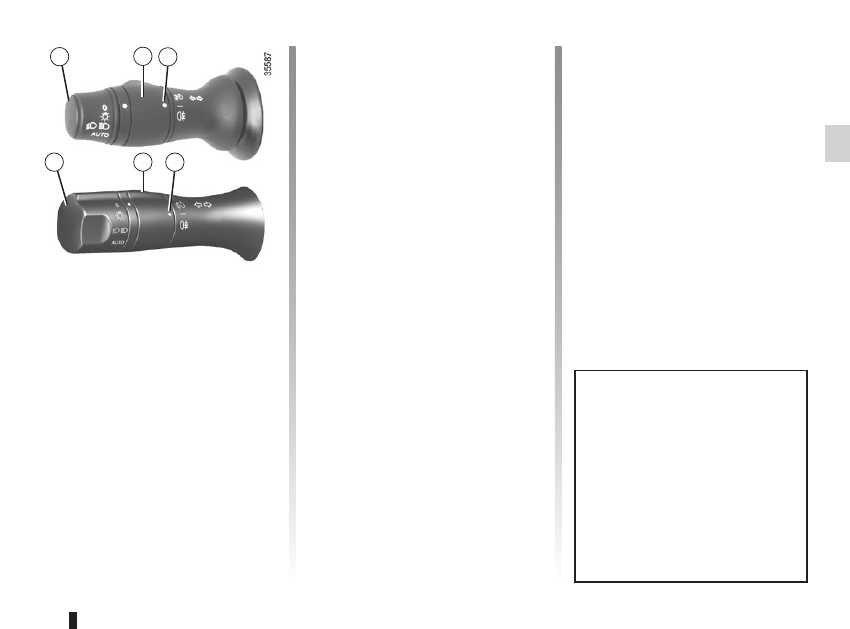

Turn centre ring 4 on stalk 1

until the symbol faces mark 5, then re-

lease it.
Operation of the fog lights depends on

the exterior lighting position selected,

and an indicator light will light up on the

instrument panel.

Rear fog light

Turn centre ring 4 on the stalk

until the symbol faces mark 5, then re-

lease it.
Operation of the fog lights depends on

the exterior lighting selected, and an in-

dicator light will light up on the instru-

ment panel.
To avoid inconveniencing other road

users, remember to switch off the rear

fog light when it is no longer needed.

Lights-on reminder buzzer

If the lights are on after the engine is

switched off, a warning beep sounds

when the driver’s door is opened to

warn you that the lights are still on.

switching off the lights

Turn ring 4 again until mark 5 is oppo-

site the symbol for the fog light that you

wish to switch off. The corresponding

indicator light on the instrument panel

goes out.
The front and rear fog lights switch off

when the exterior lights are switched

off.

4 5

electric beam height adjustment ...........(up to the end of the DU)

see-me-home lighting ...........................(up to the end of the DU)

lights:

adjusting .........................................(up to the end of the DU)

lights

adjustment ......................................(up to the end of the DU)

signals and lights ..................................(up to the end of the DU)

headlight beam adjustment ..................(up to the end of the DU)

1.78

ENG_UD13644_1

Réglage électrique de la hauteur des faisceaux (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Headlight beam adjustment

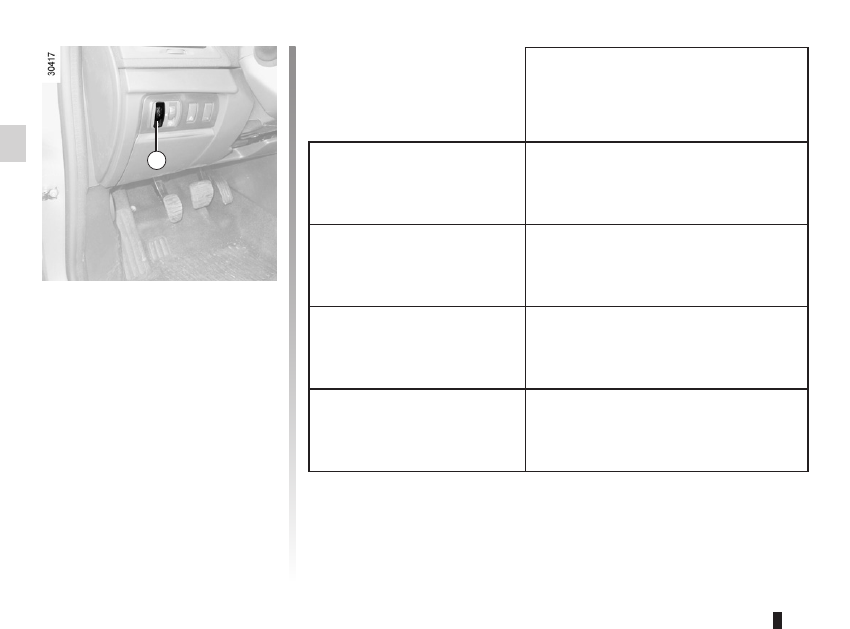

On vehicles fitted with this function,

control A allows you to adjust the height

of the beams according to the load.
Turn control A downwards to lower the

headlights and upwards to raise them.
For vehicles not fitted with control A,

adjustment is automatic.

ELECTRICAL ADJUsTMENT OF ThE DIppED BEAM hEADLIghTs

For manual setting

Examples of positions for adjusting

control A according to the load

Driver alone or with front

passenger

Driver with one front passenger

and one rear passenger

Driver with one front passenger

and two or three rear

passengers

Driver with one front passenger,

three rear passengers and

luggage

Content .. 3 4 5 6 ..
