Renault Alaskan (2017 year). Manual

(Day/Night) button

(Display brightness (Day/Night mode) button)

Turn the MENU button to set the display

brightness
The illumination brightness level is linked to the

headlight switch. When the headlights are

switched “ON” the brightness is dimmed

automatically. Press the button to toggle

illumination brightness levels between daytime

setting and nighttime setting independent of

headlamp status.

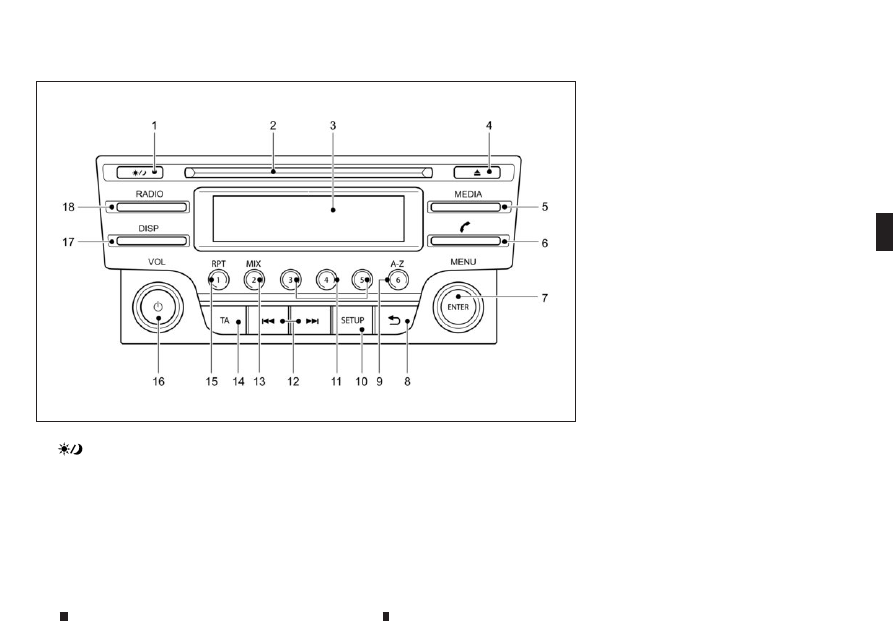

2. CD slot
3. Display
4. CD eject button
5. MEDIA button

Switch between the audio sources (CD, USB,

AUX, BT Audio) (if connected)

6. Telephone button
7. Radio mode: TUNE dial

Audio unit mode: MENU dial

Confirmation (ENTER) button

8. Back button
9. Radio mode: Preset button

USB/MP3 CD/iPod or Phone mode: Quick

search button

10. SETUP button
11. Radio mode: Preset buttons
12. Fast Forward (Cue)/Forward Track and

Rewind/Previous Track buttons

13. Radio mode: Preset button

CD/iPod/USB/Bluetooth audio mode: MIX

button

14. Traffic Announcement (TA) button
15. Radio mode: Preset button

CD/iPod/USB/Bluetooth audio mode: Repeat

(RPT) button

16. Power ON·OFF button/Volume control (VOL)

knob

17. DISP button (Display)

Provides on screen information when available

(music tags, RDS, etc.)

18. RADIO button

NAA1575

FM AM RADIO WITH COMPACT DISC (CD) PLAYER (Type A)

Display screen, heater and air conditioner, and audio system

4-37

AUDIO MAIN OPERATION

The audio unit operates when the ignition switch is

in ACC or ON position.

Power ON/OFF button

Press the

button to switch on the audio unit. If

the audio unit was switched off using the ignition

switch, it can also be switched on with the ignition

switch. The source that was playing immediately

before the unit was switched off will resume playing

and the volume will be set to the previous volume

level.
The audio unit can be switched off by pressing

or by turning the ignition switch to the “OFF” or

LOCK position.

Volume (VOL) level control

Turn the <VOL> dial clockwise or anticlockwise to

adjust the volume level.
The audio unit is equipped with a speed control vol-

ume function, this means that the audio system au-

tomatically adjusts the volume level in relation to

vehicle speed. For details, see “[Speed Volume]

menu” later in this section.

RADIO OPERATION

When the

(power ON/OFF) button is pressed,

the audio unit will switch on with the last received

radio station, if the audio unit was previously

switched off in radio mode.

The radio is able to receive multiple kinds of audio

transmissions:
– FM
– DAB (Digital Audio Broadcasting) indicated as

DR (where fitted)

– AM

Radio band select buttons

Press the <RADIO> button to change the audio

transmission source as follows:
FM1

→

FM2

→

DR1

→

DR2

→

FM1

When <RADIO> button is pressed, the radio will

come on at the last received radio station. If audio is

already playing using one of the other input sources

(iPod, Bluetooth, CD, USB, AUX-in) pressing the

<RADIO> button will switch off the playing source

mode and the last received radio station will be se-

lected.

Setting preset stations

Auto populating the [FM List]:
When the <RADIO> button is pressed for more than

1.5 seconds the six stations with the strongest sig-

nals are stored in the preset (1 to 6) buttons of the

band. During the search, a notification message

[Updating FM List] appears in the display and the

sound is muted until the operation is complete. Once

completed, the radio reverts to the previously se-

lected radio station.

Manual tuning

When adjusting the broadcasting station frequency

manually access the [FM List] and turn the <MENU>

dial until the desired station is tuned in.
The frequency increases or decreases in steps of

100 kHz on the FM band, and 9 kHz on the AM

band.

WARNING

The radio should not be tuned while driving in

order for full attention to be given to the driving

operation.

SEEK tuning buttons

FM mode:

Pressing the

button starts the tuning

mode. A short press of the button will increase or

decrease the frequency a single step. Pressing the

button longer will activate the seek mode. The radio

tuner seeks from low to high or high to low frequen-

cies and stops at the next broadcasting station. Dur-

ing seek mode, the audio output is muted. If no

broadcasting station can be found within the com-

plete band cycle, it will return to the initial frequency.
DR mode:

Press to

select the next or previous sta-

tion

4-38

Display screen, heater and air conditioner, and audio system

Preset station buttons

➀➁➂➃➄➅

Pressing a preset button for less than 2 seconds will

select the stored radio station.
Pressing a preset button for more than 2 seconds

while in the [FM list] or radio main screen will cause

the station currently being received to be stored

against that preset button.

•

Twelve stations (if available) can be stored in the

FM bands. (Six each for FM1 and FM2)

•

Twelve stations (if available) can be stored in the

DR bands. (Six each for DR1 and DR2) (where

fitted)

•

Six stations (if available) can be set for the AM

band.

If the battery is disconnected, or if the fuse blows,

the radio memory will be erased. In that case, reset

the desired stations after battery connection or fuse

replacement.

DAB and Radio Data System (RDS)

operation (where fitted)

The RDS is a system through which encoded digital

information is transmitted by FM radio stations in

addition to the normal FM radio broadcasting. The

RDS provides information services such as station

name, traffic information, or news.
DAB (Digital Audio Broadcast)

NOTE

•

When in DR mode operation is similar to FM

mode but may slightly differ.

•

In some countries or regions, some of these

services may not be available.

Alternative Frequency (AF) mode:
The AF mode operates in the FM (radio) mode.

•

The AF mode operates in the FM (radio), AUX or

CD mode (if FM was previously selected in the

radio mode).

•

The AF function compares signal strengths and

selects the station with the optimum reception

conditions for the currently tuned-in station.

DAB and RDS functions

Programme Service (PS) function (station name

display function):
– FM:

When an RDS station is tuned in with seek or

manual tuning, the RDS data is received and the

PS name is displayed.

– DR:

When a station is tuned in with seek or manual

tuning, the data is received and the PS name is

displayed.

TA Traffic announcement

This function operates in FM/DR (Radio) mode. This

function will still operate in the background if any

media source is selected (CD, USB or MEDIA

mode).

•

Pressing the <TA> button selects the TA mode.

The TA indicator is displayed while TA mode is

on.

•

When <TA> is pressed again. The mode will be

switched off and the TA indicator will disappear

from the display.

Traffic announcement interrupt function:
When a traffic announcement is received, the an-

nouncement is tuned in and the display shows a

notification message with the radio station name e.g.

[TA: Radio 1].
Once the traffic announcement has finished, the unit

returns to the source that was active before the traf-

fic announcement started.
If <TA> is pressed during a traffic announcement,

the traffic announcement interrupt mode is can-

celled. The TA mode returns to the standby mode

and the audio unit returns to the previous source.

SETUP BUTTON

To configure [Audio], [Clock], [Radio], and [Lan-

guage] settings, perform the following procedure:
1. Press the <SETUP> button.

Display screen, heater and air conditioner, and audio system

4-39

2. Turn the <MENU> dial clockwise or anticlock-

wise, the display will appear in the following or-

der:
[Audio]

⇔

[Clock]

⇔

[Radio]

⇔

[Language]

After the desired levels have been set, press either

the

(Back) button repeatedly, or the <SETUP>

button.

Audio adjustments

1. Press the <SETUP> button to enter the setup

menu screen then select [Audio].

2. Turn the <MENU> dial clockwise or anticlock-

wise, the display will appear in the following or-

der:
[Sound]

→

[AUX in]

→

[Speed Volume]

→

[Bass

Boost]

→

[Audio Default]

[Sound] menu:
Submenus in the sound menu:

[Bass]

Use this control to enhance or

attenuate bass response sound.

Turn the <MENU> dial clockwise

or anticlockwise to adjust the bass

settings then press <ENTER> to

confirm.

[Treble]

Use this control to enhance or

attenuate the treble.

Turn the <MENU> dial clockwise

or anticlockwise to adjust the

treble settings then press

<ENTER> to confirm.

[Balance]

Use this control to adjust the bal-

ance of the volume between the

left and right speakers.

Turn the <MENU> dial

anticlockwise or clockwise to

adjust the left/right balance then

press <ENTER> to confirm.

[Fade]

Use this control to adjust the bal-

ance of the volume between the

front and rear speakers.

Turn the <MENU> dial

anticlockwise or clockwise to

adjust the front/rear balance then

press <ENTER> to confirm.

[AUX in] menu:
Use this control to adjust the volume output from the

auxiliary source.

Turn the <MENU> dial anticlockwise or clockwise

to select [Low], [Medium], or [High] mode then

press <ENTER> to confirm.
[Speed Volume] menu:
This mode controls the volume output from the

speakers automatically in relation to vehicle speed.

When [Speed Volume] is displayed, turn the

<MENU> dial clockwise or anticlockwise to adjust

the volume level.

Adjusting the setting to 0 (zero) turns off the speed

volume feature. Increasing the speed volume setting

results in the audio volume increasing more rapidly

with vehicle speed. Once chosen, press <ENTER>

to save the setting.
[Bass Boost] menu:
Switch [Bass boost] [ON] or [OFF]
[Audio default] menu:
The audio unit has a saved preset settings as a fac-

tory default. Select [Yes] to change all settings back

to the factory preset settings. Select [No] to exit the

menu keeping the current settings.

Setting the clock

The clock menu screen set up screen will appear

when selecting the [Clock] item from the set up

menu.

4-40

Display screen, heater and air conditioner, and audio system

[Set Time]:
Select [Set Time] then adjust the clock as follows:
1. The hour display will start flashing. Turn the

<MENU> dial to adjust the hour.

2. Press the <ENTER> button. The minute display

will start flashing.

3. Turn the <MENU> dial to adjust the minute.
4. Press <ENTER> to finish the clock adjustment.
[On/Off]:
Set the clock display between on or off when the

audio unit is turned off.
If set in the [ON] position, the clock will be dis-

played when the audio unit is turned off either by

pressing the

button or when the ignition switch

is placed in the “OFF” position.
[Format]:
Set the clock display between 24-hour mode and

12-hour clock mode.

[Radio] menu

For activation or deactivation details, see “SETUP

button” earlier in this section.

[TA]

Use this control to switch Traffic

Announcements on or off when

the unit starts.

Turn the <MENU> dial clockwise

or anticlockwise to select then

press <ENTER> to confirm.

[DR Inter-

rupt{]

For models fitted with DAB

(Digital Audio Broadcasting)

functionality only.

Switch on or off specific listed

Digital Interruptions. When

selected the DAB radio stations

will be interrupted if a specific

message is available.

Turn the <MENU> dial clockwise

or anticlockwise to adjust then

press <ENTER> to select.

[Ref. FM

List]

Manually update the FM station

list

Press the <ENTER> to start the

search of the stations. The text

[Updating FM list...] appears. In a

short period of time the stations

are updated and the last station (if

possible) starts playing.

Language settings

Select the appropriate language and press the

<ENTER> button. Upon completion, the screen will

automatically adapt the language setting.

•

[Chinese]

•

[Chinese Simplified]

•

[Deutsch]

•

[Español]

•

[Français]

•

[Korean]

•

[Italiano]

•

[Nederlands]

•

[Polski]

•

[Português]

•

[Türkçe]

•

[UK English]

•

[русский]

COMPACT DISC (CD) OPERATION

The CD player can play a music CD or an encoded

MP3/WMA CD and while listening to those CD’s

music information tags (track and artist information)

can be displayed (when CD encoded with text is

being used).
Press the <MEDIA> button and the CD (if loaded)

will start to play.
When <MEDIA> is pressed and the radio or another

source mode is already operating, it will automati-

cally turn off the playing source and the CD play

mode will start.

Display screen, heater and air conditioner, and audio system

4-41

CAUTION

•

Do not force the CD into the slot. This could

damage the player.

•

Do not use 8 cm (3.1 in) discs.

CD insert (CD player)

Insert the CD disc into the slot with the label side

facing up. The disc will be guided automatically into

the slot and will start playing. After loading the disc,

track information will be displayed.
NOTE

•

The CD player accepts normal audio CD or

CD recorded with MP3/WMA files.

•

Inserting a CD recorded with MP3/WMA files,

the audio unit will automatically detect and

[MP3CD] will be indicated.

•

An error notification message will be

displayed when inserting a wrong disc type

(e.g. DVD), or the player cannot read the CD

disc. Eject the disc and insert another disc.

MEDIA button

Load a CD disc. After a short loading period the CD

starts playing.
If the disc was already loaded:

Press the <MEDIA> button (depending on other

connected audio sources if necessary multiple

times) to select CD. Playing starts from the track

that was being played when the CD play mode was

switched off.

Audio main operation

List view:
While the track is being played, either press the

<ENTER> button or turn the <MENU> dial to dis-

play the available tracks in a listed view mode. To

select a track from the list, or a track to start listen-

ing from, turn the <MENU> dial then press

<ENTER>.

Press the

button to return to the song.

Fast Forward (Cue), Fast

Reverse (Review) buttons:

When the

(Cue) or

(Review) button is

pressed continuously, the track will be played at

high speed. When the button is released, the track

will be played at normal playing speed.

Track up/down buttons:

Pressing the

button once, the track will

be skipped forward to the next track or backward to

the beginning of the current played track. Press the

button more than once to skip through

the tracks.
Folder browsing:
If the recorded media contains folders with music

files, pressing the

button will play in

sequence the tracks of each folder.
To select a preferred folder:
1. Press the <ENTER> button or turn the <MENU>

dial and a list of tracks in the current folder is dis-

played.

2. Turn the <MENU> dial for the preferred folder.
3. Press <ENTER> to access the folder. Press

<ENTER> again to start playing the first track or

turn the <MENU> dial, and press <ENTER> to

select another track.

If the current selected folder contains sub folders,

press <ENTER>, a new screen with a list of sub

folders will be displayed. Turn the <MENU> dial for

the sub folder then press <ENTER> to select. Se-

lect the [Root] folder item when songs are recorded

additionally in the root folder.
To return to the previous folder screen, press

Repeat button:

Push the

➀

button and the current track will

be played continuously.

button:

Push the

➁

button and all the tracks in the

current folder (MP3 CD/USB) or playlist (iPod) will

be played in a random order.
When the entire folder/playlist has been played the

system will start playing the next folder/playlist.

button:

While a CD with recorded music information tags

(CD-text/ID3–text tags) is being played, the title of

the played track is displayed. If the title information

is not provided then [Track] is displayed.

4-42

Display screen, heater and air conditioner, and audio system

When the

➄

button is pressed repeatedly,

further information about the track can be displayed

along with the track title as follows:
CD:
Track time

→

Artist name

→

Album title

→

Track

time
CD with MP3/WMA:
Track time

→

Artist name

→

Album title

→

Folder

name

→

Track time

The track name is always displayed.
Track details:
A long press on the

➄

button will turn the

display into a detailed overview and after a few sec-

onds it returns to the main display, or press

➄

briefly.

Quick search:
When a MP3 CD with recorded music information

tags (ID3–text tags) is being played from list view

mode, a quick search can be performed to find a

track from the list.
Push the <A-Z>

➅

button then turn the <MENU>

dial for the first alphabetic/numerical letter of the

track title then press <ENTER>. When found, a list

of the available tracks will be displayed. When there

is no match (the display shows [No match] the next

item will be shown. Select, and press <ENTER> to

play the preferred track.

CD eject button

CD player:
Press the

(eject) button and the CD will be

ejected.
Ejecting CD (with ignition switch in “OFF” or

LOCK):
When the ignition switch is in the “OFF” or LOCK

position it is possible to eject the currently played

CD. However the audio unit will not be activated.
Press the

button and the CD will be ejected.

NOTE

•

When the CD is ejected and not removed

within 8 seconds, it will automatically retract

into the slot to protect it from damage.

•

If an error message appears in the display,

press

to eject the faulty CD and insert an-

other CD or check if the ejected CD is in-

serted upside down.

AUX (Auxiliary) SOCKET
Audio main operation

The AUX IN jack is located on the centre console.

The AUX IN audio input jack accepts any standard

analog audio input such as from a portable cassette

tape/CD player, MP3 player or laptop computer.

RENAULT strongly recommends using a stereo mini

plug cable when connecting your music device to

the audio system. Music may not play properly when

a monaural cable is used.

Press the <MEDIA> button for the AUX mode.

Use the play mode of the device to play the audio.

USB (Universal Serial Bus)

CONNECTION PORT (where fitted)

See “Audio system (where fitted)” earlier in this sec-

tion for the location of the USB port. If the system

has been turned off while the USB device was play-

ing, pushing the PWR button will start the USB

device.

WARNING

Do not connect, disconnect or operate the USB

device while driving. Doing so can be a distrac-

tion. If distracted you could lose control of your

vehicle and cause an accident or serious injury.

Connecting USB memory

Connect a USB memory stick or another USB de-

vice. The display will show the notification message

[USB Detected Please Wait...] for a few seconds,

while it is reading the data.
If the audio system has been turned off while the

USB memory was playing, pressing

will start

the USB device operation.

Display screen, heater and air conditioner, and audio system

4-43

CAUTION

•

Do not force the USB device into the USB

port. Inserting the USB device tilted or up-

side-down into the port may damage the port.

Make sure that the USB device is connected

correctly into the USB port.

•

Do not grab the USB port cover (where fitted)

when pulling the USB device out of the port.

This could damage the port and the cover.

•

Do not leave the USB cable in a place where

it can be pulled unintentionally. Pulling the

cable may damage the port.

•

Do not locate objects near the USB device to

prevent the objects from leaning on the USB

device and the port. Pressure from the ob-

jects may damage the USB device and the

port.

The vehicle is not equipped with a USB device.

USB devices should be purchased separately as

necessary.
This system cannot be used to format USB devices.

To format a USB device, use a personal computer.
In some areas, the USB device for the front seats

plays only sound without images for regulatory rea-

sons, even when the vehicle is parked.
This system supports various USB connection port

devices, USB hard drives and iPod players. Some

USB devices may not be supported by this system.

•

Partitioned USB devices may not play correctly.

•

Some characters used in other languages (Chi-

nese, Japanese, etc.) may not appear properly in

the display. Using English language characters

with a USB device is recommended.

General notes for USB use:
Refer to your device manufacturer’s owner informa-

tion regarding the proper use and care of the de-

vice.

MEDIA button

To operate the USB device press <MEDIA> once or

repeatedly until [USB] is available.

Audio main operation

The following operations are identical to the audio

main operation of the Compact Disc (CD) opera-

tion. For details, see “Compact Disc (CD)

operation” earlier in this section.

•

List view

•

Quick search

•

MIX (Random play)

•

RPT (Repeat track)

•

Folder browsing

Quick search:
When a USB device with recorded music informa-

tion tags (ID3–text tags) is being played from list

view mode, a quick search can be performed to find

a track from the list.
Push the <A-Z>

➅

button then turn the <MENU>

dial for the first alphabetic/numerical letter of the

track title then press <ENTER>. When found, a list

of the available tracks will be displayed. When there

is no match (the display shows [No match] the next

item will be shown. Select, and press <ENTER> to

play the preferred track.

button

➄

While a track with recorded music information tags

(ID3–tags) is being played, the title of the played

track is displayed. If the tags are not provided then

a notification message is displayed.
When the

➄

button is pressed repeatedly,

further information about the track can be displayed

along with the track title as follows:
Track time

→

Artist name

→

Album title

→

Track

time

4-44

Display screen, heater and air conditioner, and audio system

Track details:
A long press on the

➄

button will turn the

display into a detailed overview and after a few sec-

onds it returns to the main display, or press

➄

briefly.

iPod PLAYER OPERATION

(where fitted)
Connecting iPod

Open the console lid and connect the iPod cable to

the USB connector. The battery of the iPod will be

charged during the connection to the vehicle. The

display will show the notification message [iPod

<Name> Detected...] for a few seconds, while it is

reading the data.
If the audio system has been turned off while the

iPod was playing, pressing

will start the iPod

operation. During the connection, the iPod can only

be operated with the audio controls.
* iPod and iPhone are trademarks of Apple Inc., reg-

istered in the U.S. and other countries.

WARNING

Do not connect, disconnect or operate the USB

device while driving. Doing so can be a distrac-

tion. If distracted you could lose control of your

vehicle and cause an accident or serious injury.
CAUTION

•

Do not force the iPod cable into the USB port.

Inserting the iPod cable tilted or upside- down

into the port may damage the port. Make sure

that the iPod cable is connected correctly into

the USB port.

•

Do not locate objects near the iPod cable to

prevent the objects from leaning on the iPod

cable and the port. Pressure from the objects

may damage the iPod cable and the port.

Refer to your device manufacturer’s owners manual

regarding the proper use and care of the device.
Compatibility:
NOTE

•

At the time of publication, this audio system

was tested with the latest iPod players/iPhone

available. Due to the frequent update of con-

sumer devices like MP3 players, RENAULT

cannot guarantee that all new iPod players/

iPhone launched will be compatible with this

audio system.

•

Some iPod operations may not be available

with this system.

•

Make sure that the iPod/iPhone is updated

with the latest firmware.

•

iPod Shuffle and iPod mini cannot be used

with this system.

•

Full functionality of iPhone USB and Bluetooth

Audio may not be available to the user if the

same device is connected by USB and Blue-

tooth simultaneously.

MEDIA button

To operate the iPod press <MEDIA> once or re-

peatedly until [iPod <Name>] is shown.

Audio main operation

Interface:
The interface for iPod operation shown on the audio

system display is similar to the iPod interface. Use

the <MENU> dial and the <ENTER> button to play

a track on the iPod.

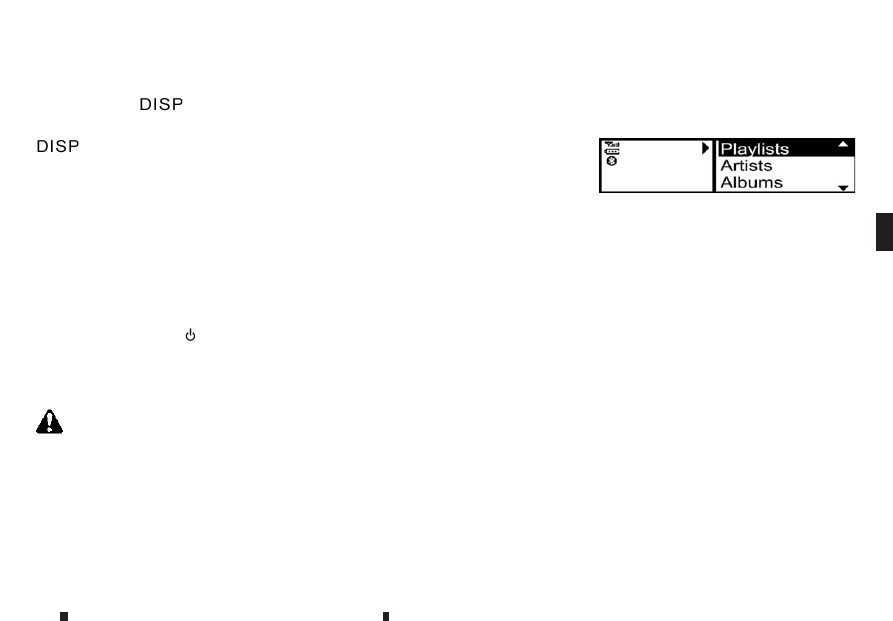

The following items can be chosen from the menu

list screen.

•

[Playlists]

•

[Artists]

•

[Albums]

•

[Tracks]

•

[More...]

•

[Composers]

•

[Genre]

•

[Podcasts]

For further information about each item, see the

iPod owner’s manual.

Display screen, heater and air conditioner, and audio system

4-45

The following operations are identical to the audio

main operation of the Compact Disc (CD) opera-

tion. For details, see “Compact Disc (CD)

operation” earlier in this section.

•

List view

•

MIX (Random play)

•

RPT (Repeat track)

•

Folder browsing

button

➄

While a track with recorded music information tags

(ID3–tags) is being played, the title of the played

track is displayed. If the tags are not provided then

a notification message is displayed.
When the

➄

button is pressed repeatedly,

further information about the track can be displayed

along with the track title as follows:
Track time

→

Artist name

→

Album title

→

Track

time
Track details:
A long press on the

➄

button, the screen

displays the song title, artist name, and album title.

After a few seconds it returns to the main display or

press

➄

briefly.

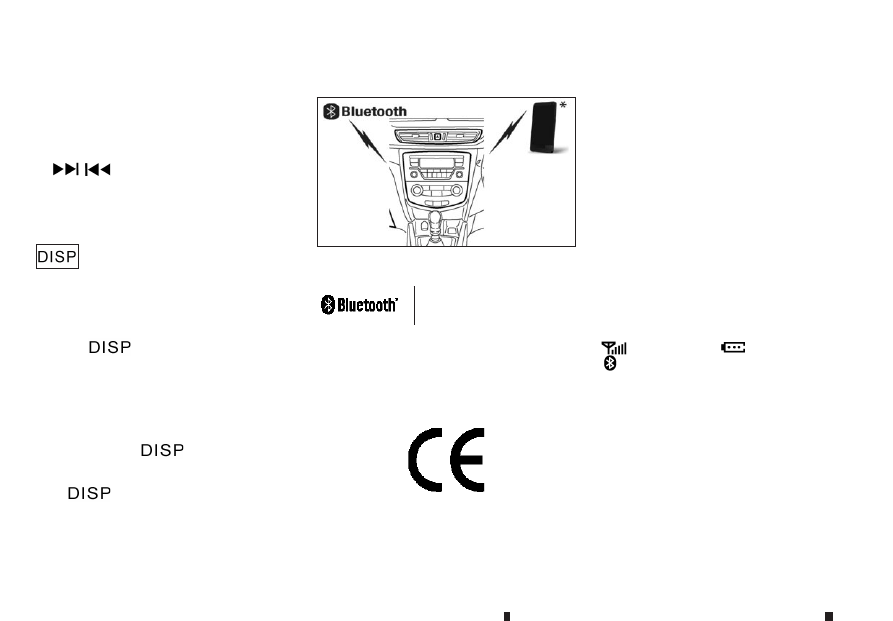

BLUETOOTH® OPERATION

Regulatory information

Bluetooth® is a trademark

owned by Bluetooth SIG, Inc.

CE statement

Hereby Yanfeng Visteon Automotive Electronics

Co., Ltd. declares that this system is in compliance

with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

NOTE
The audio system only supports Bluetooth® de-

vices with AVRCP (Audio Video Remote Control

Profile) version 1.4 or earlier.

BLUETOOTH® settings

To pair a device, make sure the Bluetooth is

switched on and use the [Scan device] key or the

[Pair device] key For details, see “[Scan devices]”

later in this section.
Up to 5 different Bluetooth devices can be con-

nected. However, only one device can be used at a

time. If 5 different Bluetooth registered devices are

registered, a new device can only replace one of the

5 existing paired devices. Use [Del. device] key to

delete one of the existing paired devices. For de-

tails, see “[Pair device]” later in this section.
When successfully paired a notification message

will be displayed, then the audio system display will

return to the current audio source display. During

connection the following status icons will be dis-

played (top left of the display): Signal strength

(

), Battery status* (

) and Bluetooth “ON”

(

*: If the low battery message comes on, the Blue-

tooth® device must be recharged soon.

The pairing procedure and operation may vary ac-

cording to device type and compatibility. See the

Bluetooth® owner’s manual for further details.
NOTE

•

For device details, see your audio/mobile

phone Owner’s Manual.

•

For assistance with the Bluetooth® audio/

mobile phone integration, please visit your lo-

cal approved dealer or qualified workshop.

NAA1392

*: a device with bluetooth capabilities

4-46

Display screen, heater and air conditioner, and audio system

To set up the Bluetooth system with a device the

following items are available:

•

[Scan devices]
Bluetooth devices can be paired with the sys-

tem. A maximum of 5 Bluetooth devices can be

registered.

•

[Pair device]
Bluetooth devices can be paired with the sys-

tem. A maximum of 5 Bluetooth devices can be

registered.

•

[Sel. device]
Paired Bluetooth devices are listed and can be

selected for connection.

•

[Del. device]
A registered Bluetooth device can be deleted.

•

[Bluetooth]
If this setting is turned off, the connection be-

tween the Bluetooth devices and the in-vehicle

Bluetooth module will be cancelled.

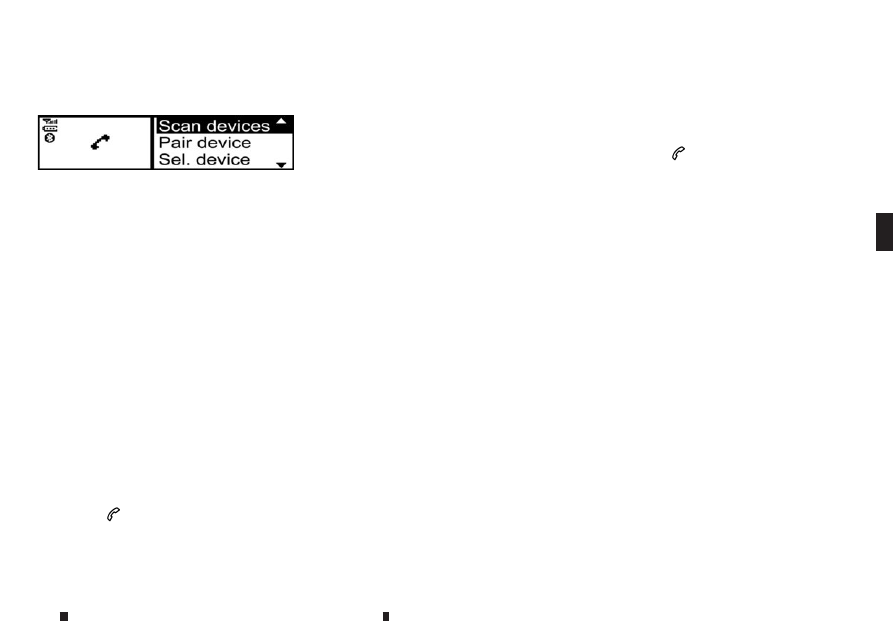

[Scan devices]:
1) Press the

button. Select [Scan device]

The audio unit searches bluetooth devices and

shows all visible devices.

Make sure your Bluetooth device is visible at this

time.

2) Select the device to be paired.

Use the <MENU> dial and press to select.

3) The pairing procedure may depend on the de-

vice to be connected:
1) Device without PIN code:

The Bluetooth connection will be automati-

cally connected without any further input.

2) Device with PIN code:

Two different ways of pairing are possible

depending on the device:
– Type A:

The message [To pair] [Enter Pin] 0000

will be displayed.

Confirm the PIN code on the device.

The Bluetooth connection will be made.

– Type B:

The message [Pairing request] [Confirm

password] together with a 6 digit code

will be displayed. The unique and identi-

cal code should be displayed on the de-

vice. If the code is identical confirm on the

device.

The Bluetooth connection will be made.

[Pair device]:

•

Turn the audio unit Bluetooth® on. See [Blue-

tooth] description.

•

Use the audio unit to pair:

Press the

button. Select the [Pair Device]

key.

The pairing procedure depends on the Blue-

tooth® device to be connected:
1) Device without PIN code:

The Bluetooth® connection will be automati-

cally connected without any further input.

2) Device with PIN code:

Two different ways of pairing are possible

depending on the device, for the correct pro-

cedure details, see “[Pair device]” earlier in

this section.

•

Use the Bluetooth® audio/mobile phone device

to pair:
1) Follow the instructions in the owner’s manual

for the Bluetooth® enabled device to search

for the audio unit.

If the search mode finds the audio unit it will

be shown on the device display.

2) Select the audio unit shown as [My Car].
3) Follow the instructions in the owner’s manual

for the Bluetooth® enabled device to estab-

lish a connection with the audio unit.

Display screen, heater and air conditioner, and audio system

4-47

4) Enter the PIN code shown on the relevant

device with the device’s own keypad, and

press the confirmation key on the device it-

self.

Refer to the relevant Bluetooth® device own-

er’s manual for further details.

[Sel. device]:
The paired device list shows which Bluetooth® au-

dio or mobile phone devices have been paired or

registered with the Bluetooth® audio system. If the

list contains devices then select the appropriate de-

vice to connect to the Bluetooth® audio system.
The following symbols (where fitted) indicate the

capability of the registered device:

•

: Mobile phone integration

•

: Audio streaming (A2DP – Advanced Audio

Distribution Profile)

[Del. device]:
A registered device can be removed from the Blue-

tooth audio system. Select a registered device then

press <ENTER> to confirm to deletion.
[Bluetooth]:
If Bluetooth® has been switched off a notification

message [ON/OFF] appears when you select [Blue-

tooth] from the phone menu (press

). To switch

the Bluetooth® signal on, press <ENTER> and a

follow up screen will appear. Then select [ON] and

press <ENTER> to display the Bluetooth® settings

menu screen.

Bluetooth

audio streaming main

operation

Turn the ignition switch to the ACC or ON position.

If the audio system was turned off while the Blue-

tooth® audio was playing, pressing the <

> but-

ton will start the Bluetooth® audio streaming.
MEDIA button:
To operate the Bluetooth® audio streaming use the

following method:

•

Press <MEDIA> repeatedly until [BT Audio] is

shown.

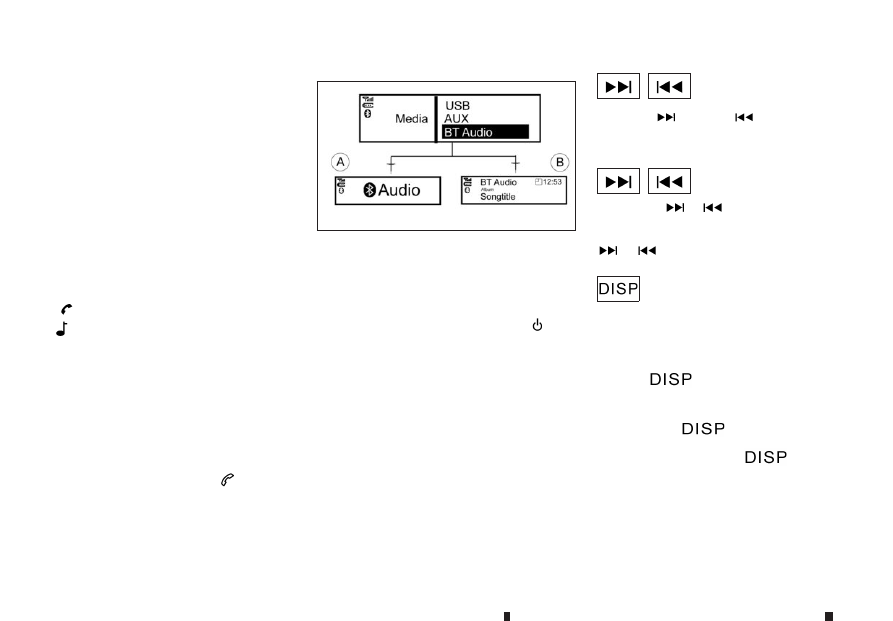

The type of display,

A or

B , shown on the audio

system can vary depending on the Bluetooth® ver-

sion of the device.

Fast Forward (Cue), Fast

Reverse (Review) buttons:

When the

(Cue) or

(Review) button is

pressed continuously, the track will be played at

high speed. When the button is released, the track

will be played at normal playing speed.

Track up/down buttons:

Pressing the

button once, the track will

be skipped forward to the next track or backward to

the beginning of the current played track. Press the

button more than once to skip through

the tracks.

button

If the song contains music information tags (ID3–

tags), the title of the played song will be displayed.

If tags are not provided then the display will not

show any messages.
When the

button is pressed repeatedly fur-

ther information about the song can be displayed

along with the song title.
A long press on

will turn the display into a

detailed overview which after a few seconds returns

to the main display; or press

briefly.

Bluetooth

mobile phone feature

This system offers a hands-free facility for your mo-

bile telephone with Bluetooth® to enhance driving

safety, and comfort. For details, see “Bluetooth®

Hands-Free Phone System (without navigation sys-

tem and colour display)” later in this section.

NAA1583

4-48

Display screen, heater and air conditioner, and audio system

Specification chart

Supported media

CD-R, CD-ROM, CD-RW, USB 2.0 MSC

CD Size

12 cm diameter. up to 1.9 mm thickness

Supported file systems for CD

ISO9660 LEVEL1, ISO9660 LEVEL2, Romeo, Joliet

* ISO9660 Level 3 (packet writing) is not supported.

* Files saved using the Live File System Component (on a Windows Vista-based

computer) are not supported.

Supported file systems for USB

FAT-16, FAT-32

Supported versions *1 MP3

Version

MPEG1, Layer 3

Sampling frequency

32 KHz - 44.1 KHz - 48 kHz

Bit rate

32, 40, 48, 56, 64, 80, 96, 112, 128, 144, 160, 192, 224, 256, 288, 320, Kbps,

VBR *4

WMA *3

Version

WMA7, WMA8, WMA9

Sampling frequency

16 KHz, 22.05 KHz, 32 KHz, 44.1KHz, 48 kHz

Bit rate

48, 64, 80, 96, 128, 160, 192, 256, 320 Kbps, VBR *4

AAC

Version

MPEG-4, AAC

Sampling frequency

8, 11.025, 16, 22.05, 32, 44.1, 48 kHz

Bit rate

32, 48, 64, 80, 96, 128, 160, 192 Kbps, VBR *4

Tag information (Song title and Artist

and Album name)

CDDA

MP3

ID3 tag ver. 1.0, 1.1, 2.2, 2.4

WMA

WMA tag

AAC

AAC tag

Tracks/Files support

CDDA — 99 tracks

MP3/WMA/AAC in CD — 999 files

USB — 30000 files

4-50

Display screen, heater and air conditioner, and audio system

Folders support

100 folders in CD

2500 folders in USB

Depth — Till 8, Deeper folders shall be under 8, subject to the maximum.

Playlists support in USB

M3U, WPL, PLS — 1000 playlists.

Text character support

Adjustable character length,

depending upon content of

media.

File Name: Min 11 Characters (Max 30 Characters) ID3 TAG : Min 24

Characters. (Max 60 Characters) *5

Displayable character codes *2

Unicode, ISO8859–15(French),

ISO8859–5(Russian Cyrillic),

GB18030–2000(Chinese), BIG-

5(Taiwanese), KSX1001–

2002(Korean)

01:ASCll, 02: ISO-8859-1, ISO8859–15(French), ISO8859–5(Russian Cyrillic),

03: UNICODE(UTF-16 BOM Big Endian), 04: UNICODE (UTF-16 Ncn-BOM Big

Endian), 05: UNICODE(UTF-8), 06:UNICODE(Non-UTF-16 BOM Little Endian),

07: SHIFT-JIS, GB18030–2000(Chinese), BIG-5(Taiwanese), KSX1001–

2002(Korean)

Browsing

File/Folder browsing for CD/MP3, USB

*1 Files created with a combination of 48 kHz sampling frequency and 64 Kbps bit rate cannot be played.
*2 Available codes depend on what kind of media, versions and information are going to be displayed.
*3 Protected WMA files (DRM) cannot be played.
*4 When VBR files are played, the playback time may not be displayed correctly. WMA7 and WMA8 are not applied to VBR.
*5 Support 128 Bytes but it depends on display width and character type.

Display screen, heater and air conditioner, and audio system

4-51

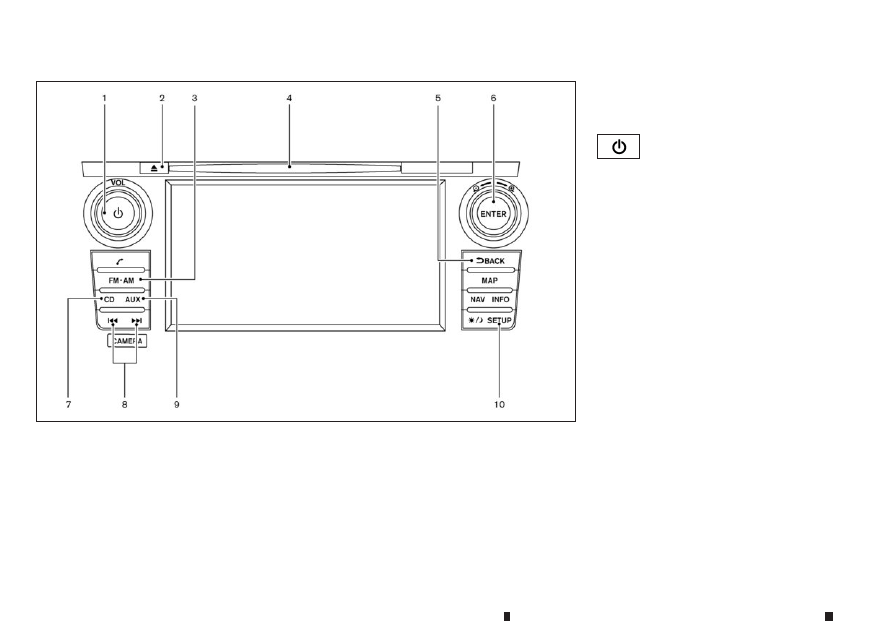

1 Power/VOL (volume) dial
2. Disc eject button
3. FM·AM button/RADIO button (where fitted)
4. Disc insert slot
5. BACK button
6. ENTER/Scroll dial

7. CD button
8. Seek/Track buttons
9. AUX (auxiliary) button
10. SETUP button

AUDIO MAIN OPERATION

The audio system operates when the ignition switch

is placed in the ON or ACC position.

Power/VOLUME dial

Push Power/VOLUME dial to turn on and off the

audio system.
Turn the Power/VOLUME dial to adjust the volume.
This vehicle may be equipped with Speed Sensitive

Volume (SSV) function for audio. When this func-

tion is turned on, the audio volume will be adjusted

automatically as the vehicle speed changes. For op-

erations to turn on and off the SSV function, see

“How to use <SETUP> button” earlier in this sec-

tion.

Audio settings

For the operations to adjust the audio settings, see

“How to use <SETUP> button” earlier in this sec-

tion.

Traffic Announcement

Touch [TA] on the audio screen to turn on or off the

Traffic Information setting. When a traffic announce-

ment is received, the Traffic Information will inter-

rupt the music that was playing and informs the

driver of the received traffic information.

Radio operation

The audio system operates when the ignition switch

is placed in the ON or ACC position.

JVH1072XZ

FM-AM RADIO WITH COMPACT DISC (CD) PLAYER (Type B)

4-52

Display screen, heater and air conditioner, and audio system

Renault Alaskan (2017 year). Manual - part 11
