INTRENAL BODY TRIM

72 - 3

UPPER FRONT PILLAR COVERING

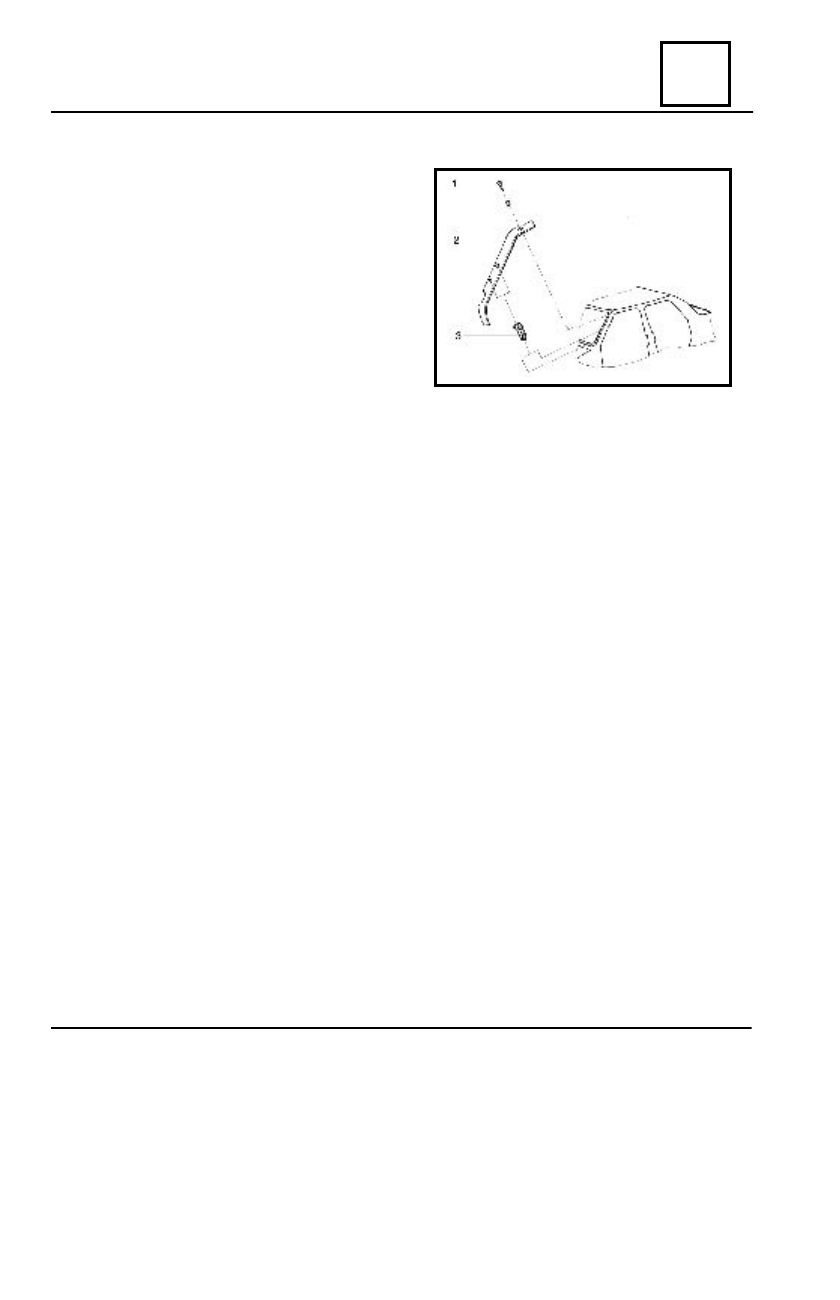

DISMOUNTING
Dismount:

- the attachment screw (1) of the upper

front pillar covering (2) on the roof lining

- detach from clips (3)  the upper  front pillar

covering and release it.

REMOUNTING
Perform in the reverse order the dismounting

operations.

71

INTRENAL BODY TRIM

72 - 4

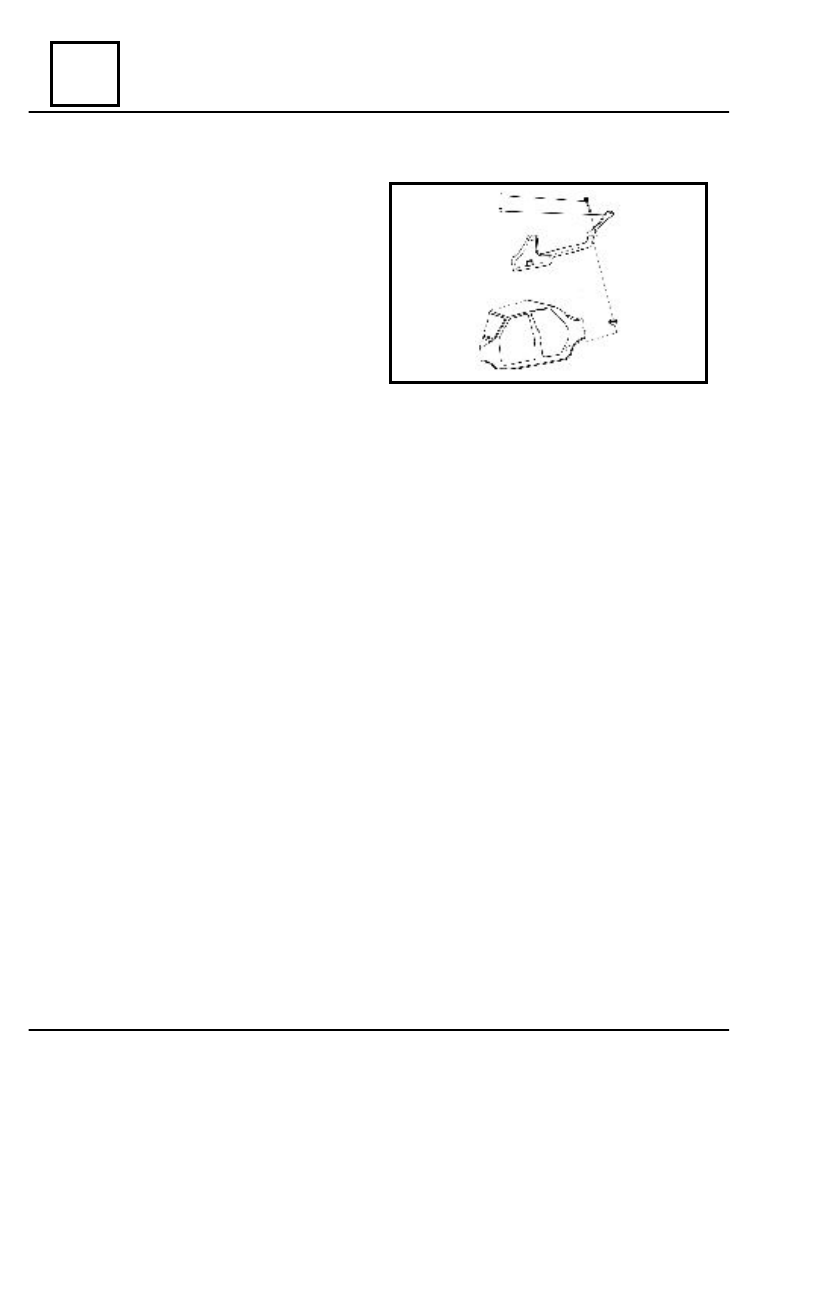

DISMOUNTING
Move the front seat in the most advanced po-

sition and dismount:

- front/rear belts attachment screws (1) of

rear door threshold covering on the middle pillar
lining, respectively the lateral frame lining;

- screws (2) and  attachment clips (3) of

the rear door threshold covering on the lateral
frame lining;

- release the rear door threshold covering (5).

REMOUNTING
Perform in the reverse order the dismounting

operations.

REAR DOOR THRESHOLD COVERING

71

INTRENAL BODY TRIM

72 - 5

DISMOUNTING

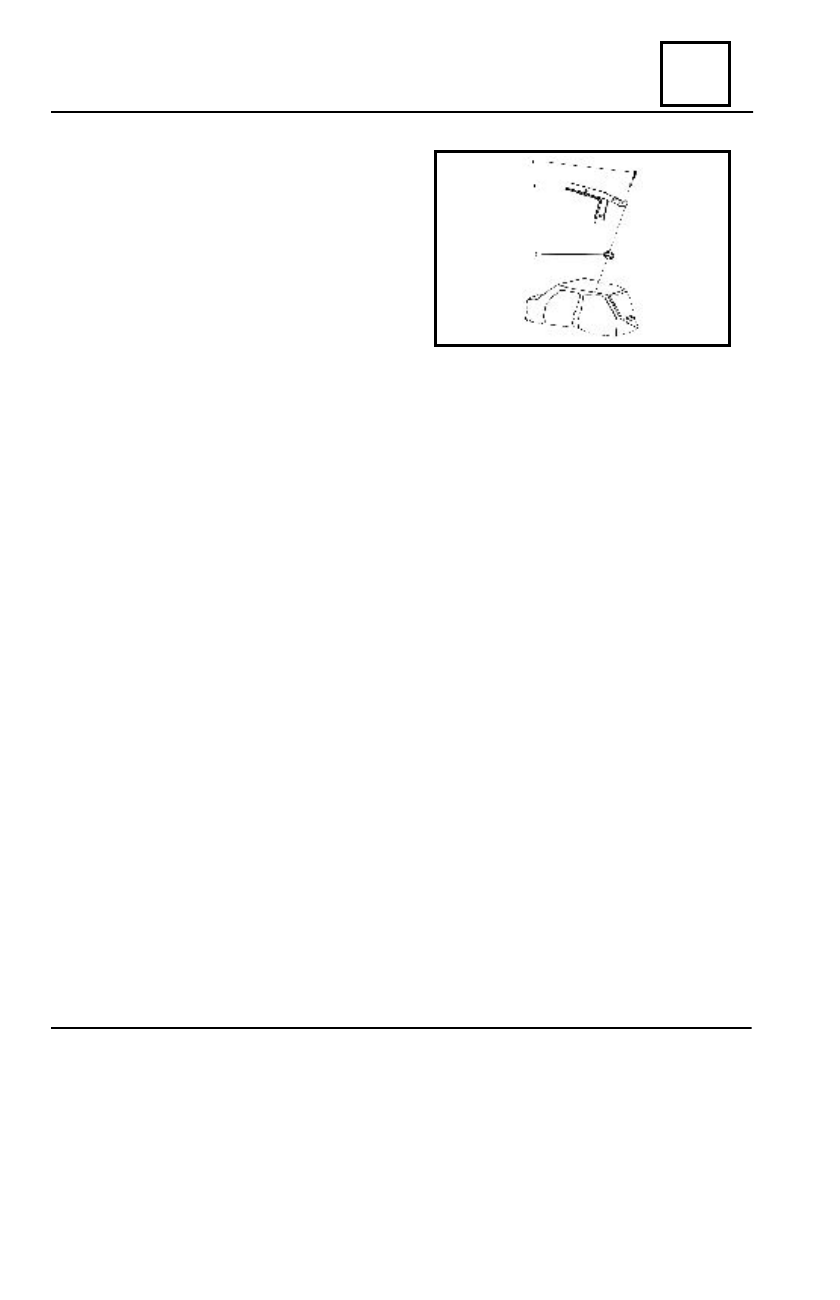

Dismount:

- screw (2) and attachment clips (3) of the

middle pillar covering on the middle pillar lining;

- release the middle pillar covering.

REMOUNTING
Perform in the reverse order the dismounting

operations.

MIDDLE PILLAR COVERING

71

INTRENAL BODY TRIM

72 - 6

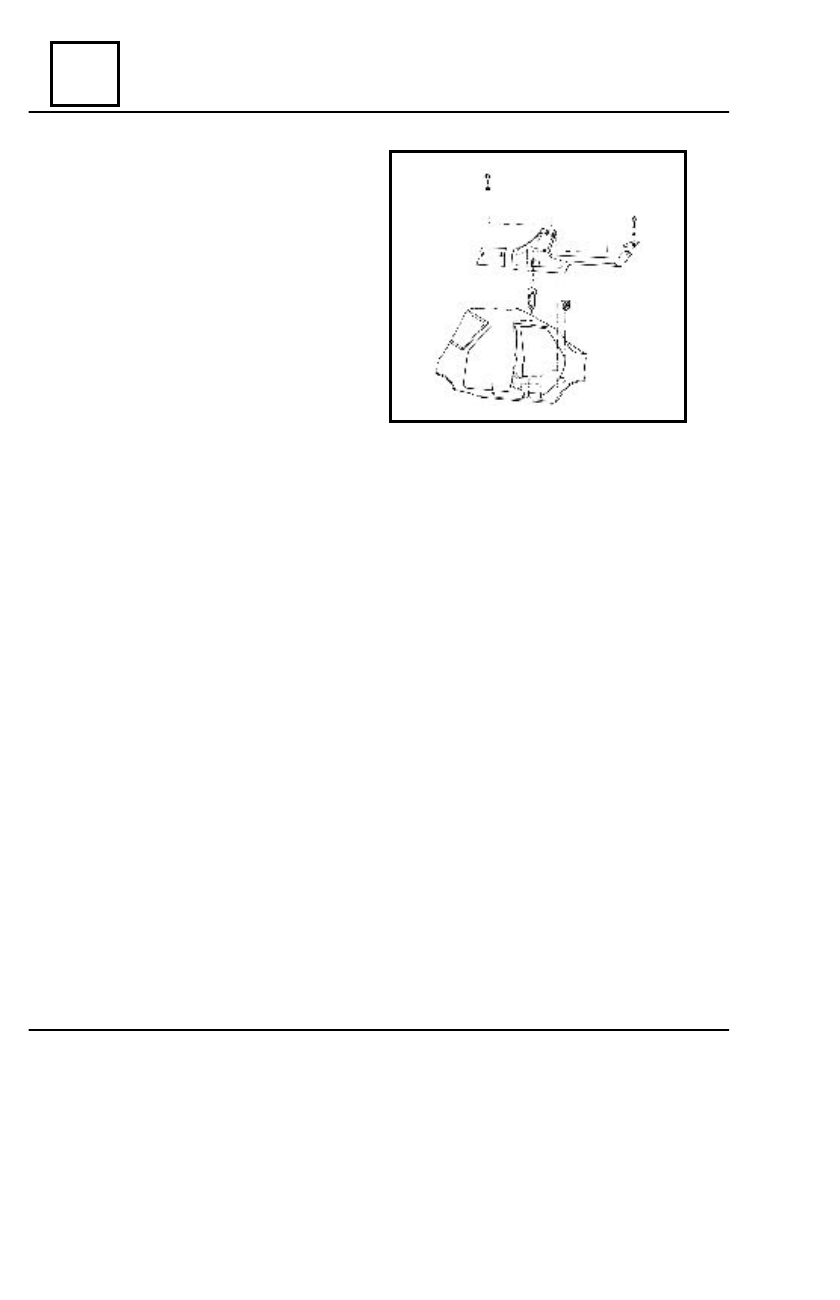

DISMOUNTING
Push the unlocking buttons and swing out

the bench  seat back.

Dismount the attachment screw (1) of the rear

passage covering  (2) on the lateral frame lining.

Remove the rear passage covering below

the rear side panel gasket.

REMOUNTING
Perform in the reverse order the

dismounting operations.
