Dacia SuperNova (engine E7J). Service manual - part 82

MECHANICAL ELEMENTS CONTROL

37

DISMOUNTING

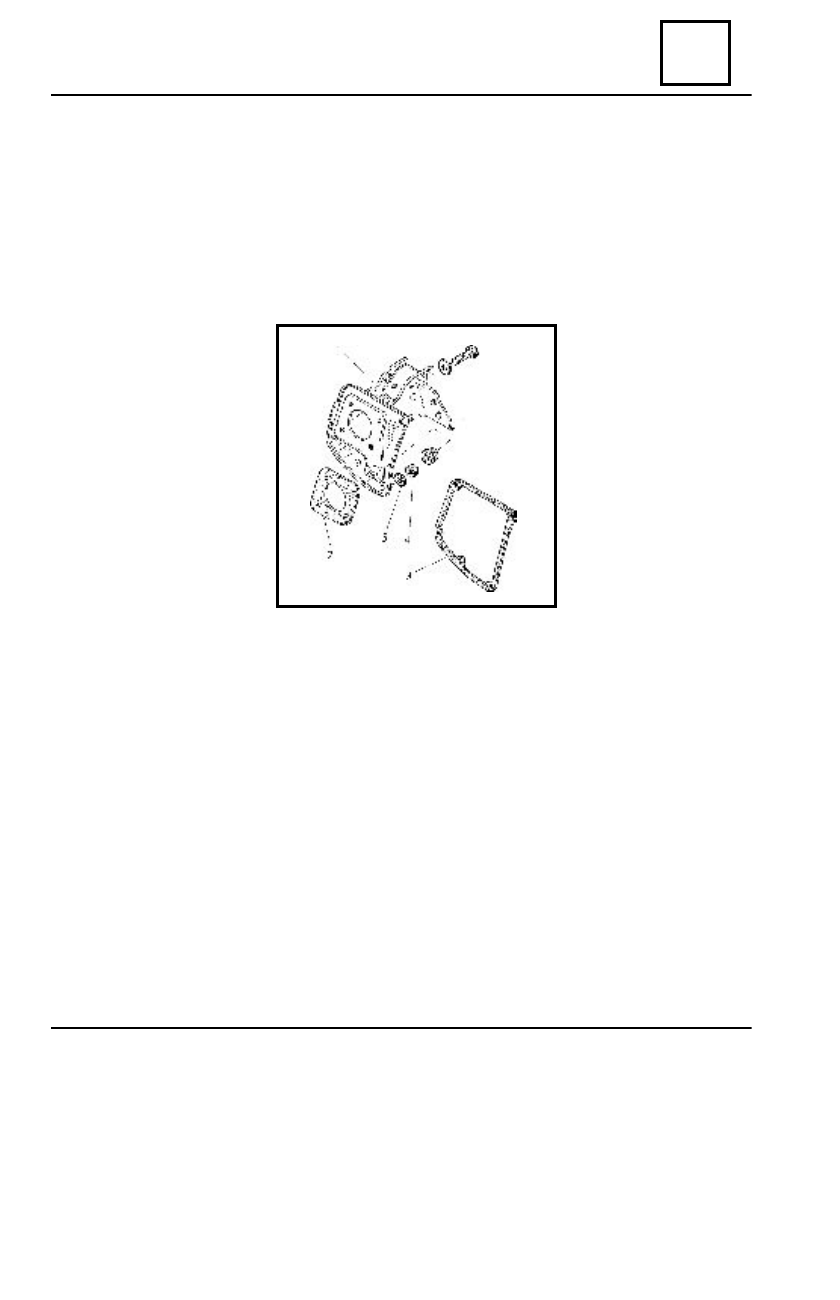

Dismount the acceleration, clutch, and brake pedals.
Dismount the attachment nuts (4) and washers (5) of the pedals support on the cowl panel.
Remove the spacer (2) and the gasket (3).

REMOUNTING

Perform the dismounting operations in the reverse order, by  screws tightening at a moment of

1,5 – 2,5 daNm.

37 - 25

PEDALS SUPPORT

MECHANICAL ELEMENTS CONTROL

37

DISMOUNTING

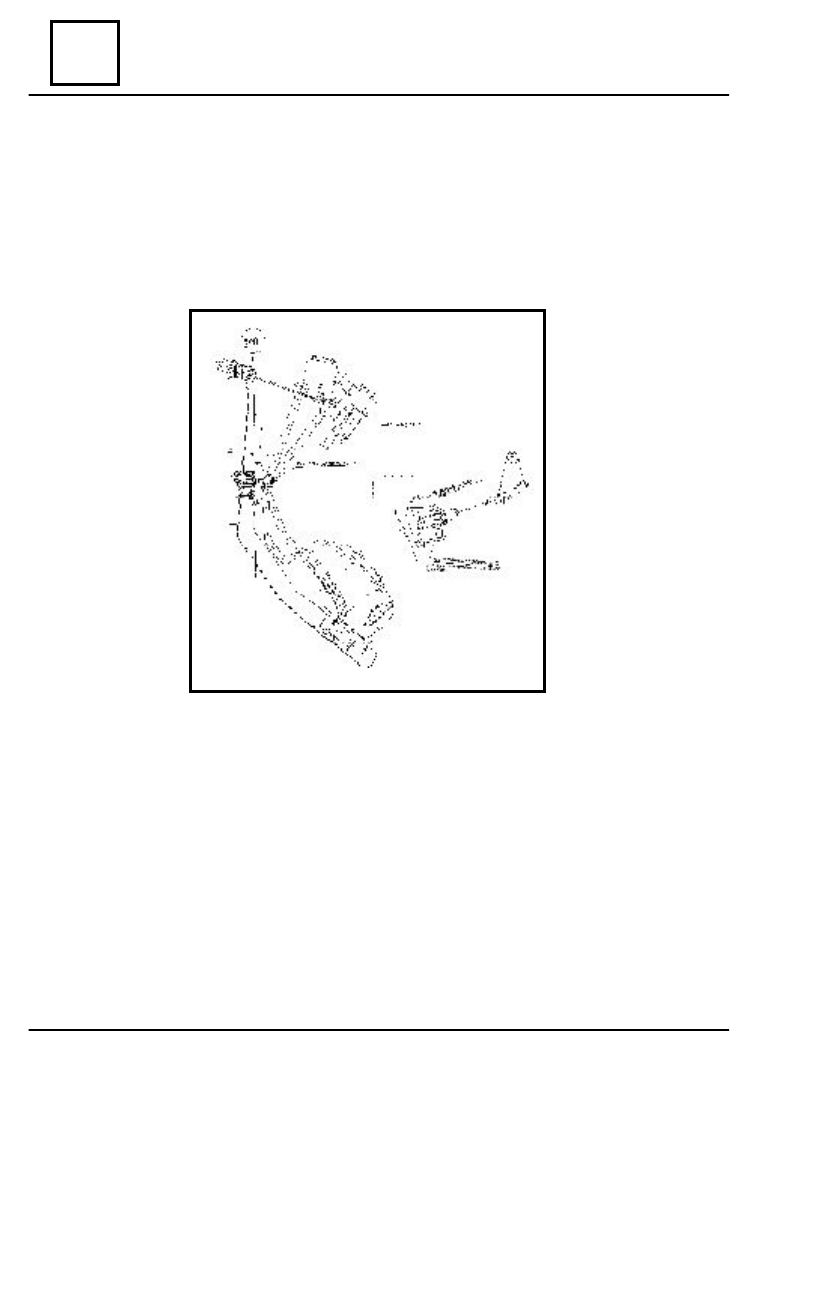

Release the acceleration pedal (3) from its attachment with the acceleration cable by

compressing the two wings of the attachment clip (1).

Dismount the bearing attachment screw (2) and release the pedal (3).

REMOUNTING

Perform the dismounting operations in the reverse order. The tightening moment of the bearing

attachment screw is of C = 0,45 daNm.

Check the  3,5 mm pedal stroke between the pedal pressure controller (5) and the pedal (3)

by means of the threaded pin adjusting (4) subject to valve maximum opening and cable tightening.

NOTE
The buffer ( 6 ) is attached to the support before cable mounting.

37 - 26

ACCELERATION PEDAL

MECHANICAL ELEMENTS CONTROL

37

DISMOUNTING

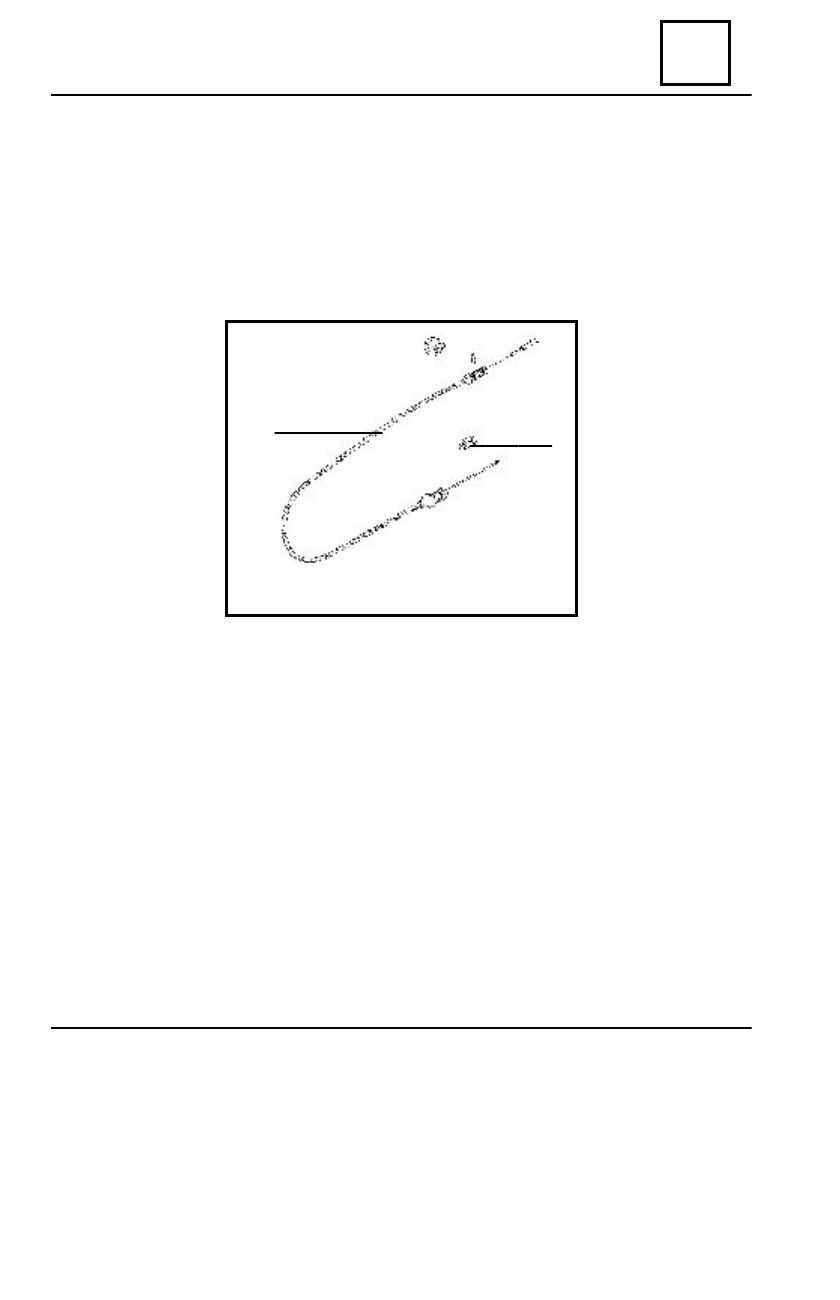

Act upon  the cable attachment clip of the acceleration control lever and for the cable release

(2) from its attachment on the acceleration pedal, act upon the clip (1).

REMOUNTING
Perform the dismounting operations in  the reverse order.

ACCELERATION CONTROL CABLE

37 - 27

1

2

REPAIR MANUAL



DACIA

RM 524-2 BODY

ENGINE: E7J

GERBOX: JH3

TAPV: B41A, B41B, B41D

Ref: 6001999443

    APRIL 2004

English version

The reparation methods prescribed by the manufacturer in the present document are established subject to

technical specifications in force at the document issuing date.

These are subject to modifications brought by the manufacturer at the fabrication of different assemblies,

subassemblies or accessories of its vehicles.

All rights reserved to SC Automobile Dacia SA.
  Reproduction or translating even partially of this present document is forbidden without the written

authorisation of AUTOMOBILE DACIA S.A.
