Dacia Solenza (engine E7J). Service manual - part 151





82

ACCOUSTIC WARNING - ANTI STARTING

82 - 61

ET167



ANTI – STARTING INDICATOR

Diagnostic – States interpretation

RECOMMENDATIONS

The state <<active anti-starting>> must pass at NO after setting
the contact  on.
The state << active anti-starting>> must become “YES”
after 10 seconds from contact setting off.

Check the connection and condition of the instrument panel connector.
Fix it if necessary.

Check the connection and condition of the connector with 40 pins EH1 of Cockpit Central Unit.
Fix it if necessary.

Check the continuity and insulation of the connection:
Pin A32 connector EH1 with 40 pins of UCH             pin 6 black connector instrument panel.
Fix, if necessary.

Perform again a system diagnostic
Fix all others failures
Erase the memorized failures.

AFTER REPAIRING

82

ACCOUSTIC WARNING - ANTI STARTING

82 - 62

Diagnostic - Damage location algorithm

RECOMMENDATIONS

Do not consult these information but after a complete checking
by means of the CLIP tester.

THERE IS NO COMMUNICATION WITH THE COMPUTER

___________ALP1

82

ACCOUSTIC WARNING - ANTI STARTING

82 - 63

Diagnostic – Damage location algorithm

ALP1

 There is no communication with the computer

RECOMMENDATIONS    Nothing to notice

Check the communication of CLIP tester with a computer from another vehicle.

Check:
-

connection between  CLIP  tester  and  the diagnostic socket (check the cable condition).

Cockpit and engine compartment fuses.

Check presence +12 volts before contact at pin 16,  + 12 volts after contact at pin 1
and mass at pins 4 and 5 of the diagnostic socket
Fix it if necessary.

Connect the multi-socket and check the insulation, continuity and absence of parasite resis-
tance at connections:
Pin A3 of UCH connector P1 with 15 pins                 fuse box
Pin 22 of UCH connector EH1 with 40 pins              + after contact
Pin A1 of UCH connector P1 with 15 pins                 mass
Pin 34 of UCH connector EH1 with 40 pins               pin 7 diagnostic socket (line K).
Fix it if necessary.

Check the system operation

AFTER REPAIRING

83

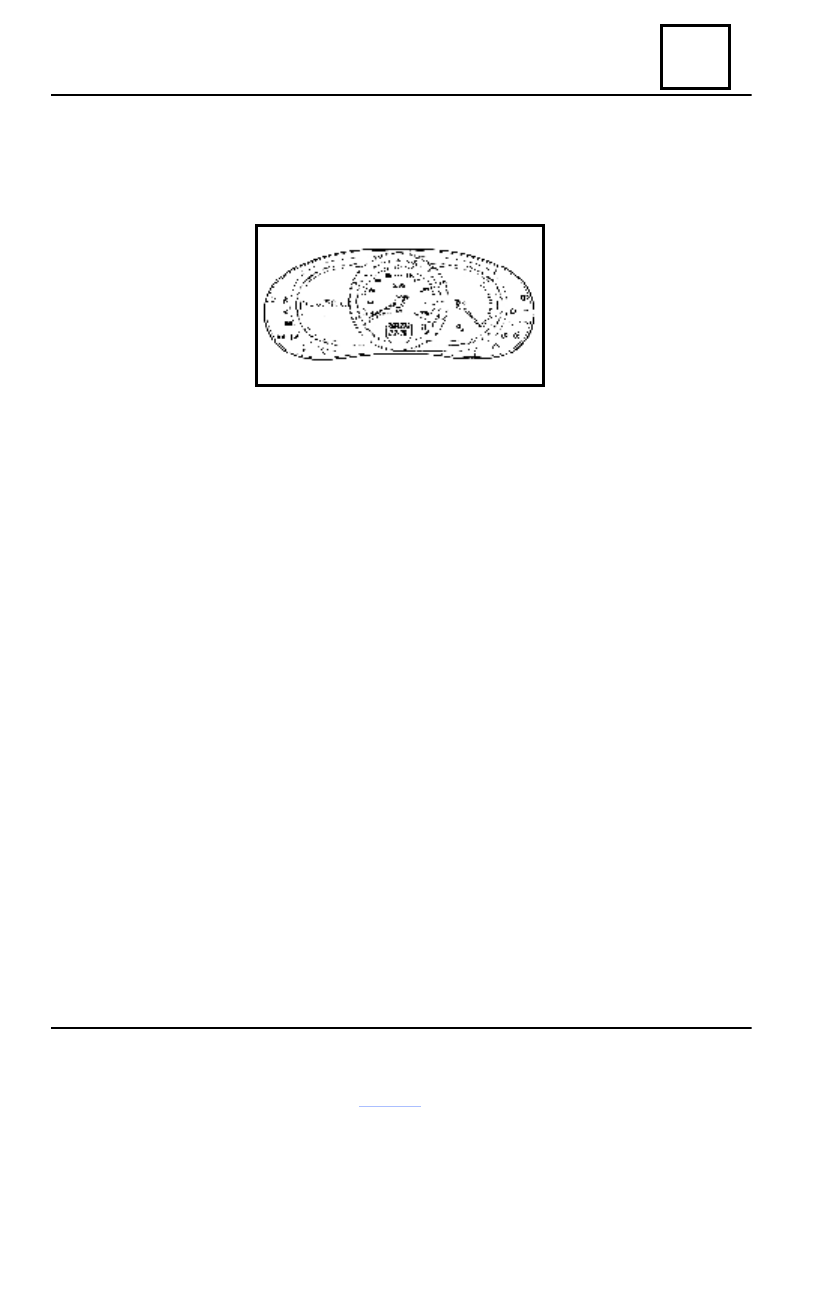

INSTRUMENT PANEL

83 - 1

Instrument panel without RPM meter
