Dacia Solenza (engine E7J). Service manual - part 126

66

66  - 4

GLASSES  SEALING

1

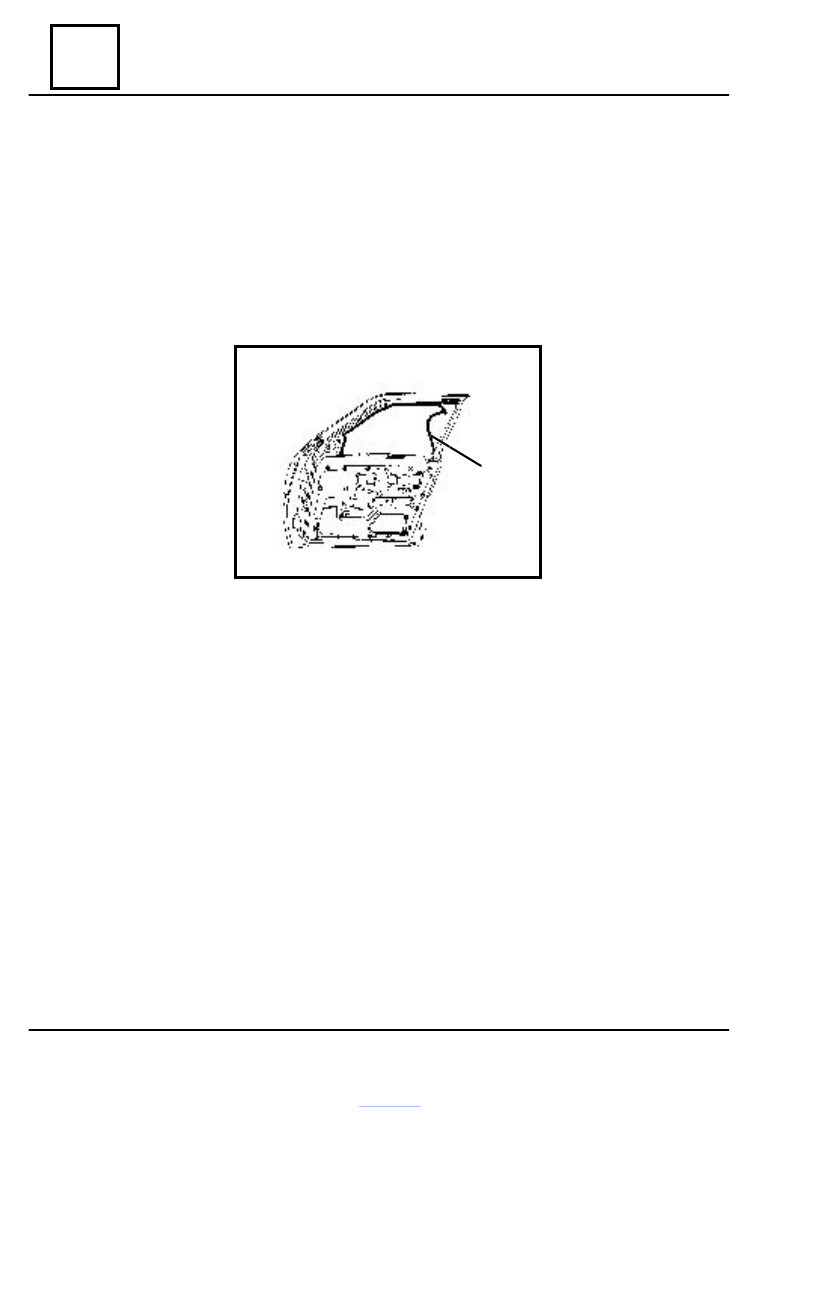

Front door glass channel

DISMOUNTING

- front door panel (see chapter 72);
- front door deflective panel;
- inner and outside wiper;
- front glass (see chapter 54);
- front door glass run channel;
- exterior mirror (see chapter 56).

REMOUNTING

Perform the dismounting operation in the reverse order.

66

66   - 5

GLASSES  SEALING

3

4

1

2

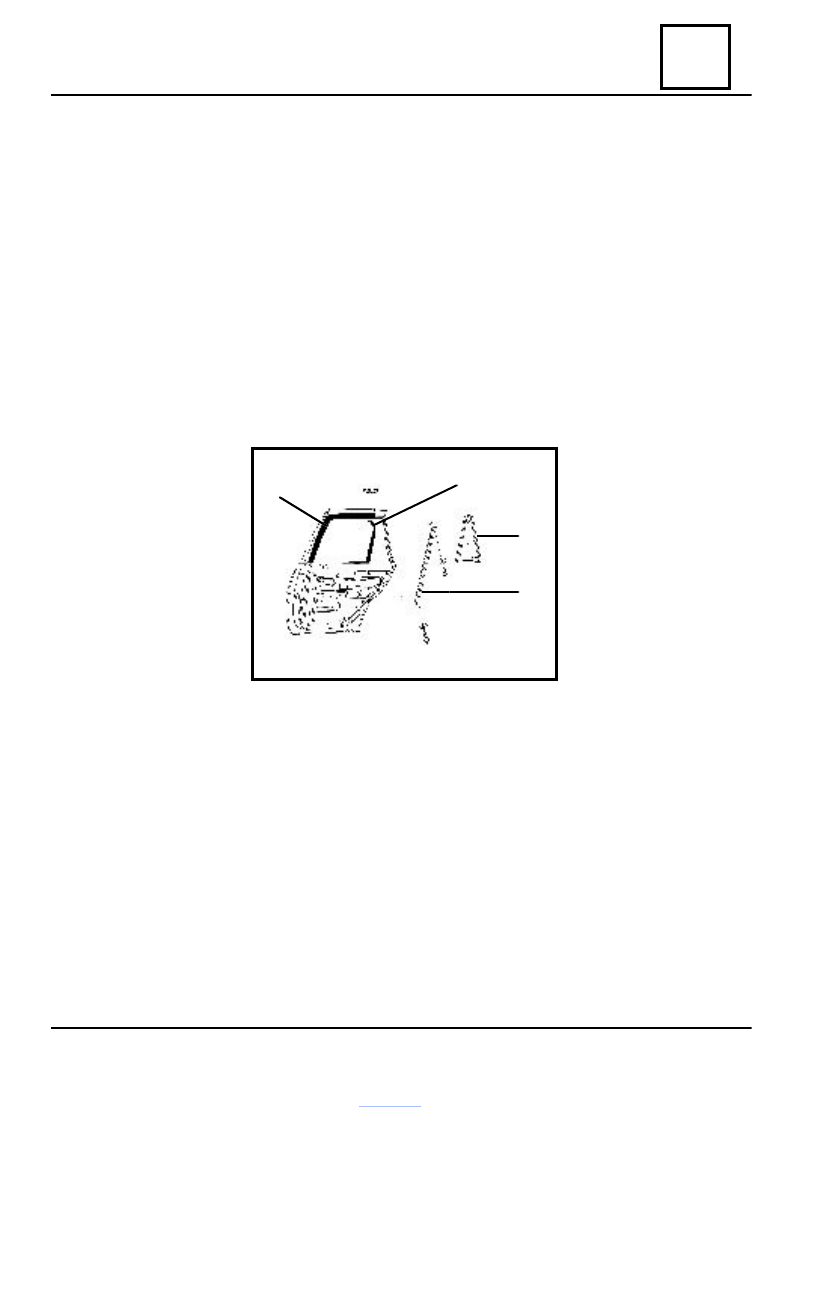

Rear door glass run channel

DISMOUNTING

Dismount :

- rear door panel (see chapter  72);
- read door deflective panel;
- rear glass( see chapter 54);
- guide run channel (1);
- rear door glass run channel (2);
- glass guide (3);
- fix glass together with gasket.

Release the fix glass gasket (4).

REMOUNTING

 Perform the dismounting operations in  the reverse order.

71

CARRIAGE BODY INSIDE TRIMS

71  - 1

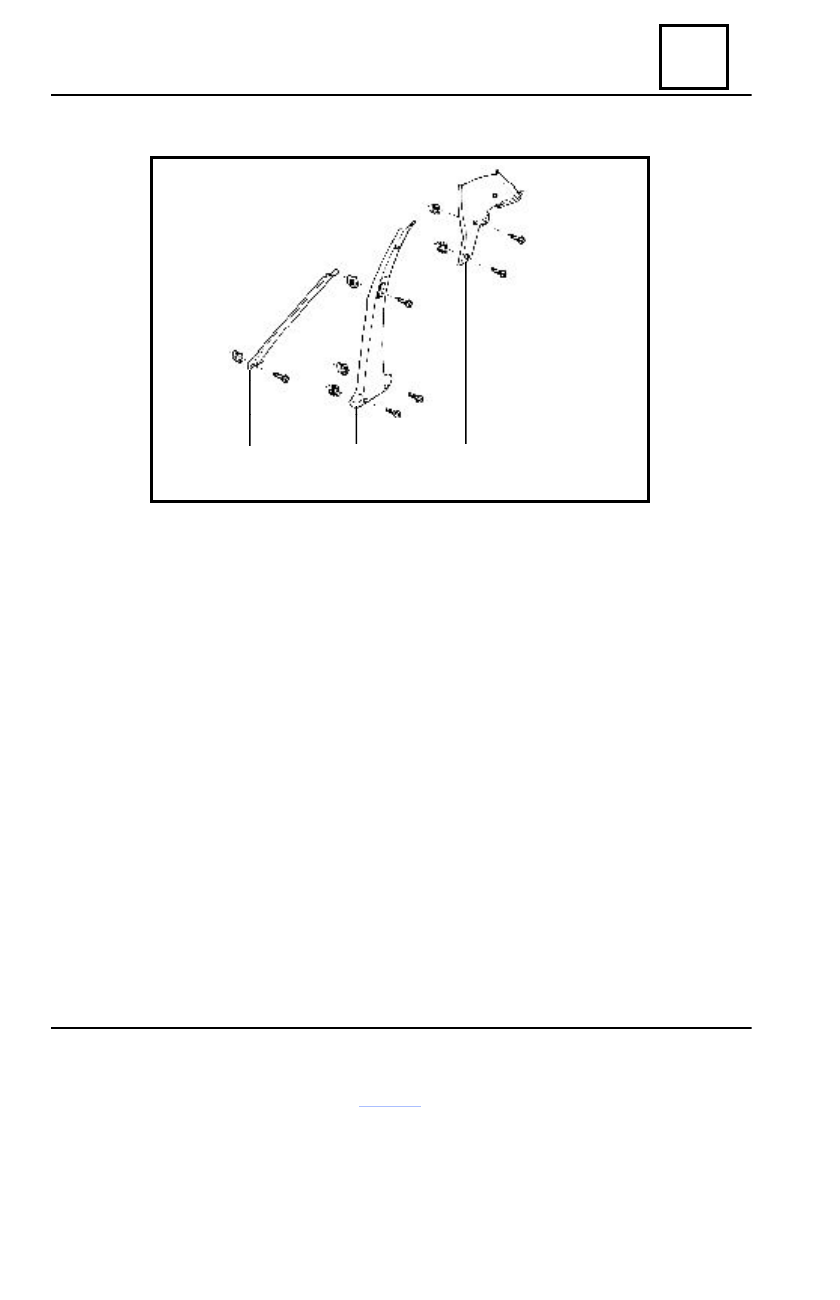

Carriage body inside trims

1 - Upper front pillar trim
2 - Middle pillar trim
3 - Rear quarter panel trim

1

2

3

CARRIAGE BODY INSIDE TRIMS

71

71  - 2

DISMOUNTING

Dismount :

- dashboard upper part (see chapter 57);
- front door sealing gasket in the contact area with the front pillar trim;
- trim attachment screw (2) on the side frame lining.

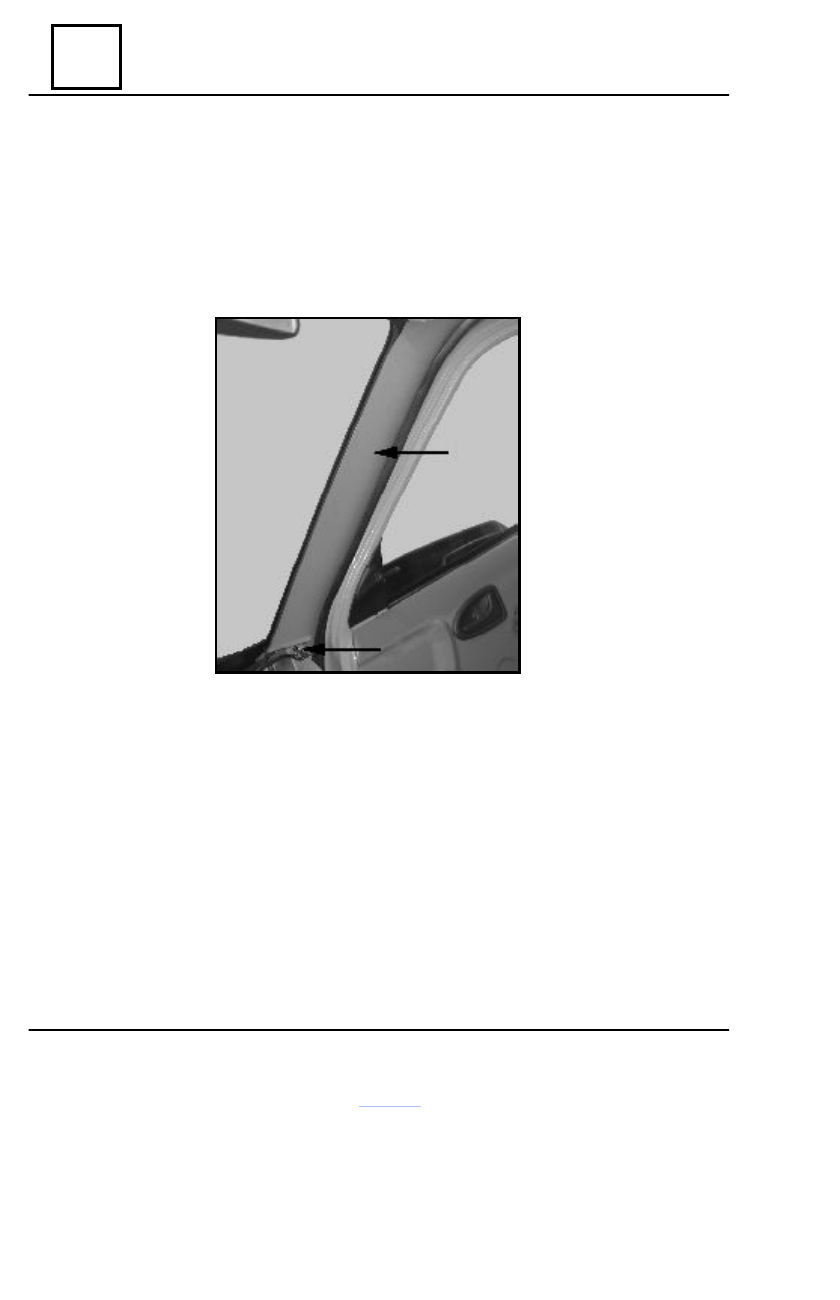

Upper front pillar trim

Detach from clips the upper front pillar trim (1) and release it.

REMOUNTING

Perform the dismounting operations in the reverse order.
The screw tightening moment is of 0,12 daNm.

1

2
