REAR BEARING ELEMENTS

33 - 23

R

EMOUNTING

Perform the dismounting operations in  the reverse order.

 NON DRIVE PIPE REAR AXLE

REAR BEARING ELEMENTS

33

33 - 24

CAST IRON REAR DRIVE AXLE

 REAR DRIVE AXLE  OF CAST IRON

DACIA 1304,  1307 ( supplier ARO CÂMPULUNG )

CHARACTERISTICS

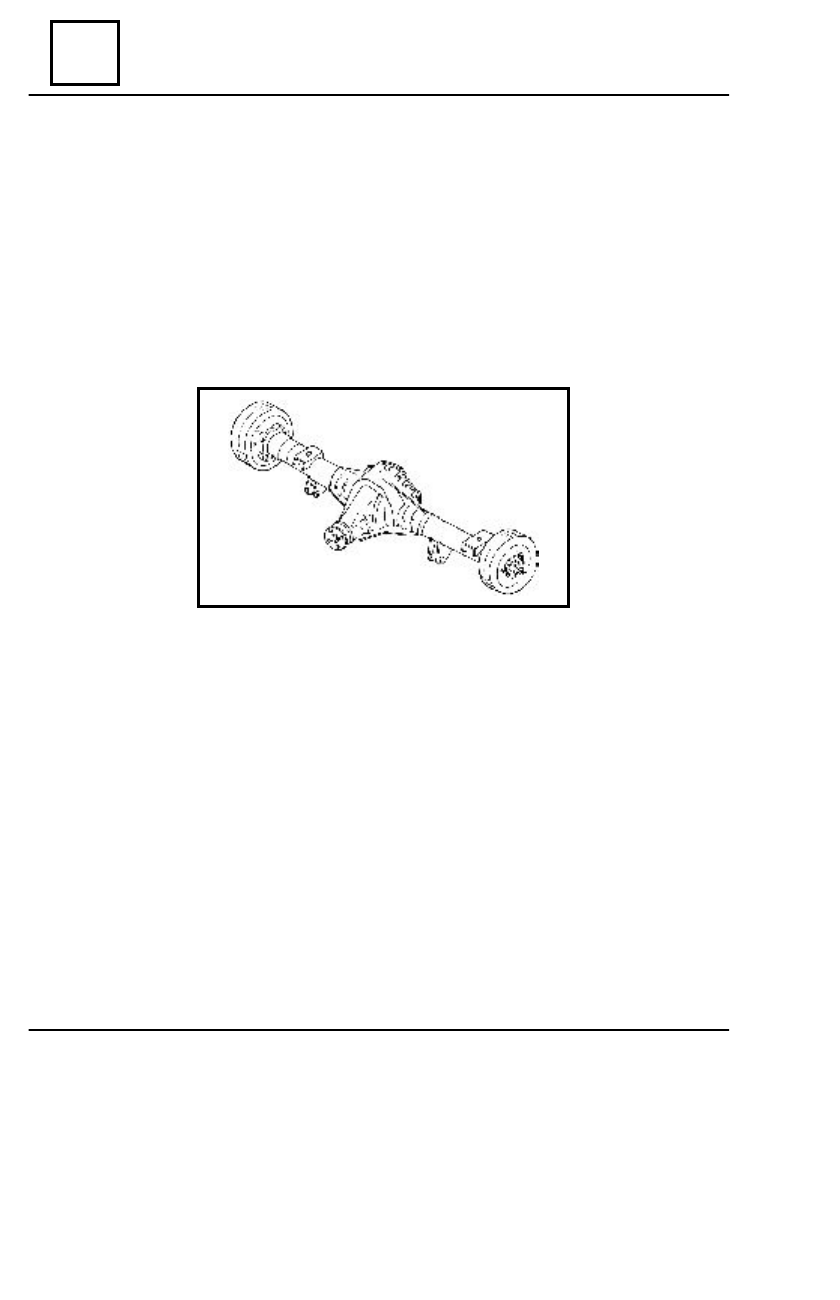

It  is a  rigid type cast iron  axle, with differential and  propeller shafts.
It is attached to the chassis by means of the half-elliptical springs and the hydraulic shock

absorbers.

The main transmission is simple type , with hypoid gearing between the pinion and the rim.
The differential is symmetrical, simple, with two differential conical pinions.

IMPORTANT !



The interchangeability of the cast drive axle with the pipe axle  ( assembled axle ) is

depenedent of the replacement of the shock absorbers, springs attachment plates,
attachment clips from the springs and shock absorbers buffers.

NOTE:

The dismounting – remounting steps of the cast drive axle ( as an assembly ) are

the same as the ones for the drive axle made of plate, previously presented.

33

REAR BEARING ELEMENTS

33 - 25

 WHEEL HUB

CAST IRON REAR DRIVE AXLE

Remove the  50 x70 x 10 sealing ring from

the wheel hub, and extract the bearings spacer
from the steering knuckle.

D

ISMO UNTING

NOTE: It is assumed that the axle is

dismounted and fixed on the support.

Dismount the wheel.

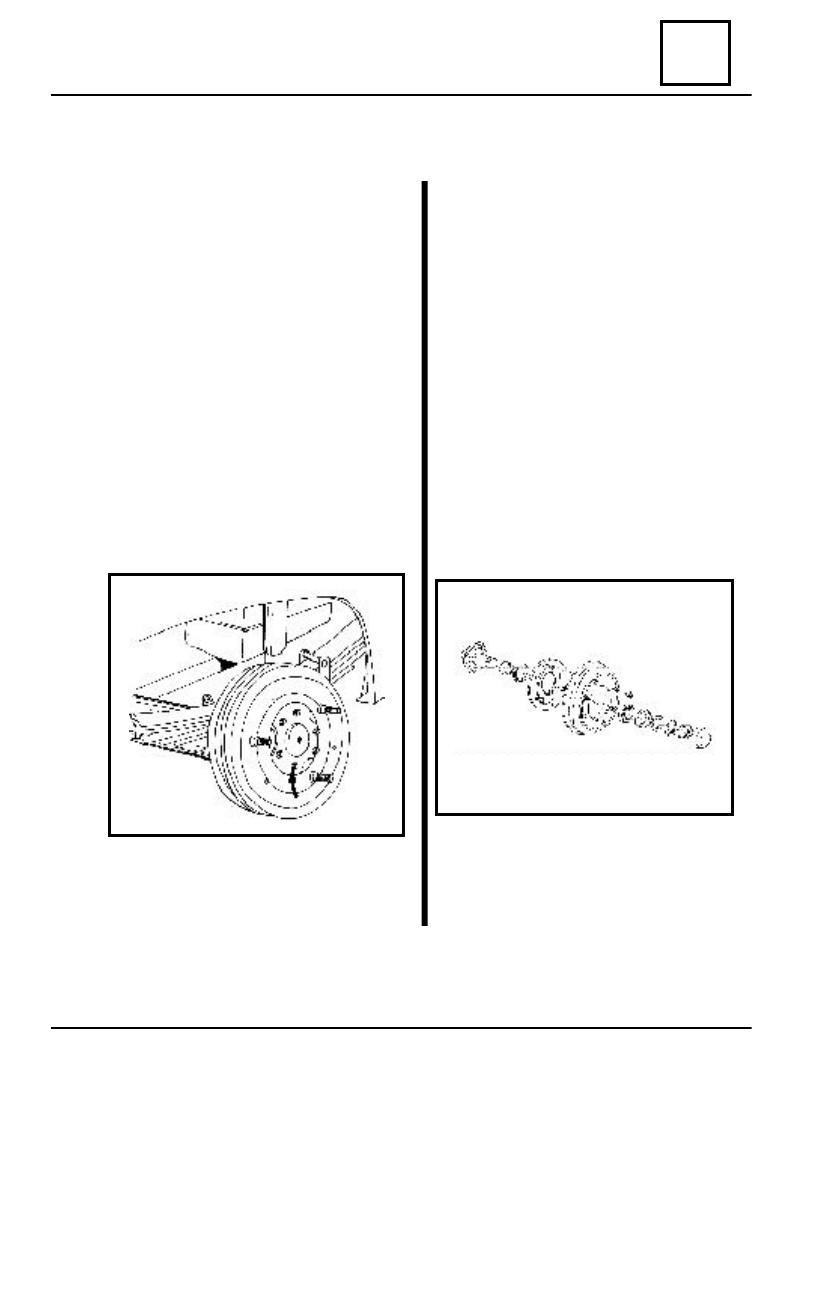

Detach the drum from the wheel hub by un-

screwing the three M8 sunk screws.

Unscrew the six attachment screws of the

propeller shaft flange on the wheel hub and re-
move the propeller shaft.

Straighten the retainer blade which is found

on the nut groove.

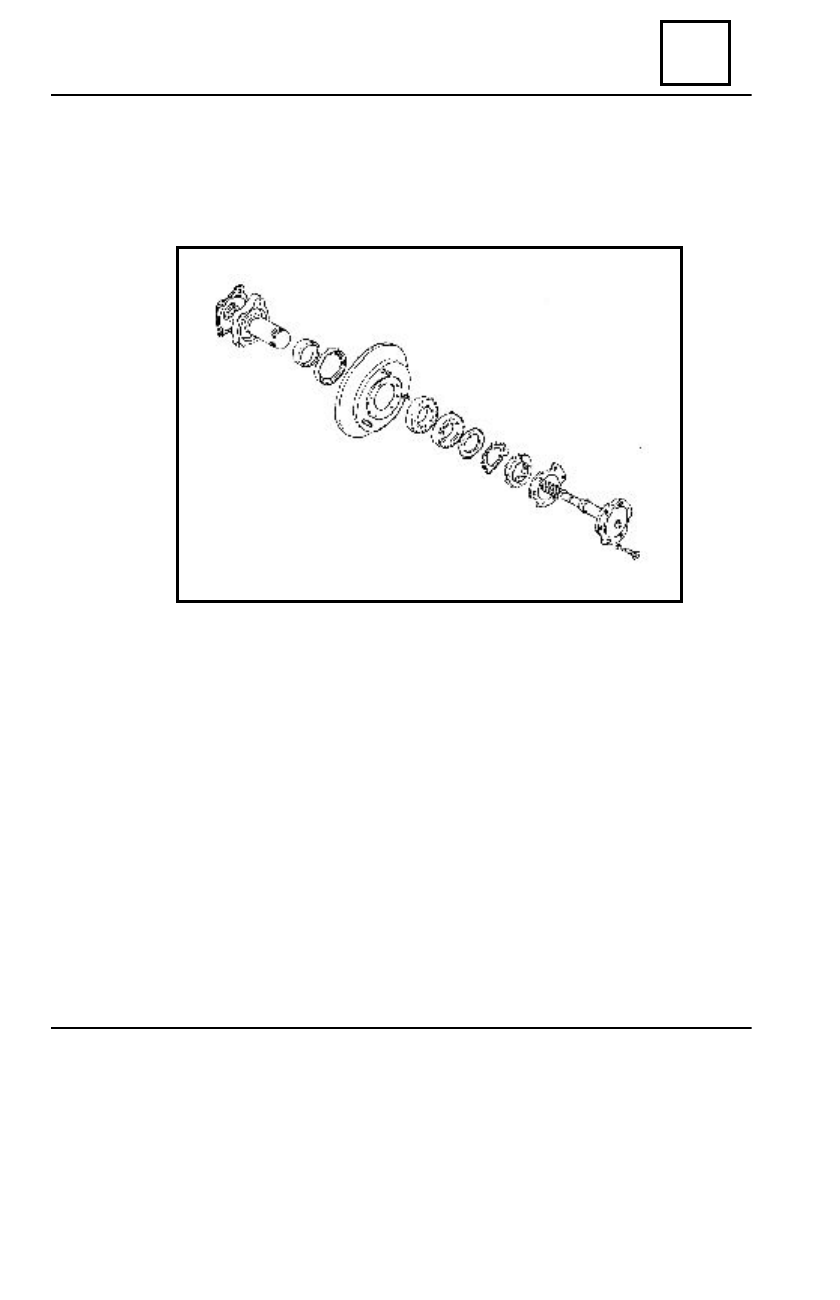

Unscrew the slotted nut and remove :

- the nut retainer;
- the bearing support washer.

Take out the first bearing of the hub.
Extract the hub and the second bearing

R

EMOUNTING

Perform the dismounting operations in the

reverse order, observing the following
technical conditions.

- put grease in the central part of the

hub;

- grease the bearings with  grease type

LiCaPb tip 180 Li 2;

- replace the sealing gasket of  the

propeller shaft flange.

The propeller shaft flange  screws shall be

tighten at the required moment only
after having checked and adjusted the axial
clearance of the hub bearings.

REAR BEARING ELEMENTS

33

33 - 26

 CAST IRON REAR DRIVE AXLE

T

IGHTENING



MOMENTS

- Screws assembling the propeller shaft flange................2,5 daN.m
- The sunk screw ..................................................0,8 +/- 0,3 daN.m
- The rear  wheel stud bolt nut.............................................7  daN.m

 THE DIFFERENTIAL

OF THE REAR DRIVE AXLE CAST IRON

The rear axle assembly is dismounted from the vehicle, placed on an universal support; having

its propeller shafts dismounted.

 DIFFERENTIAL DISMOUNTING

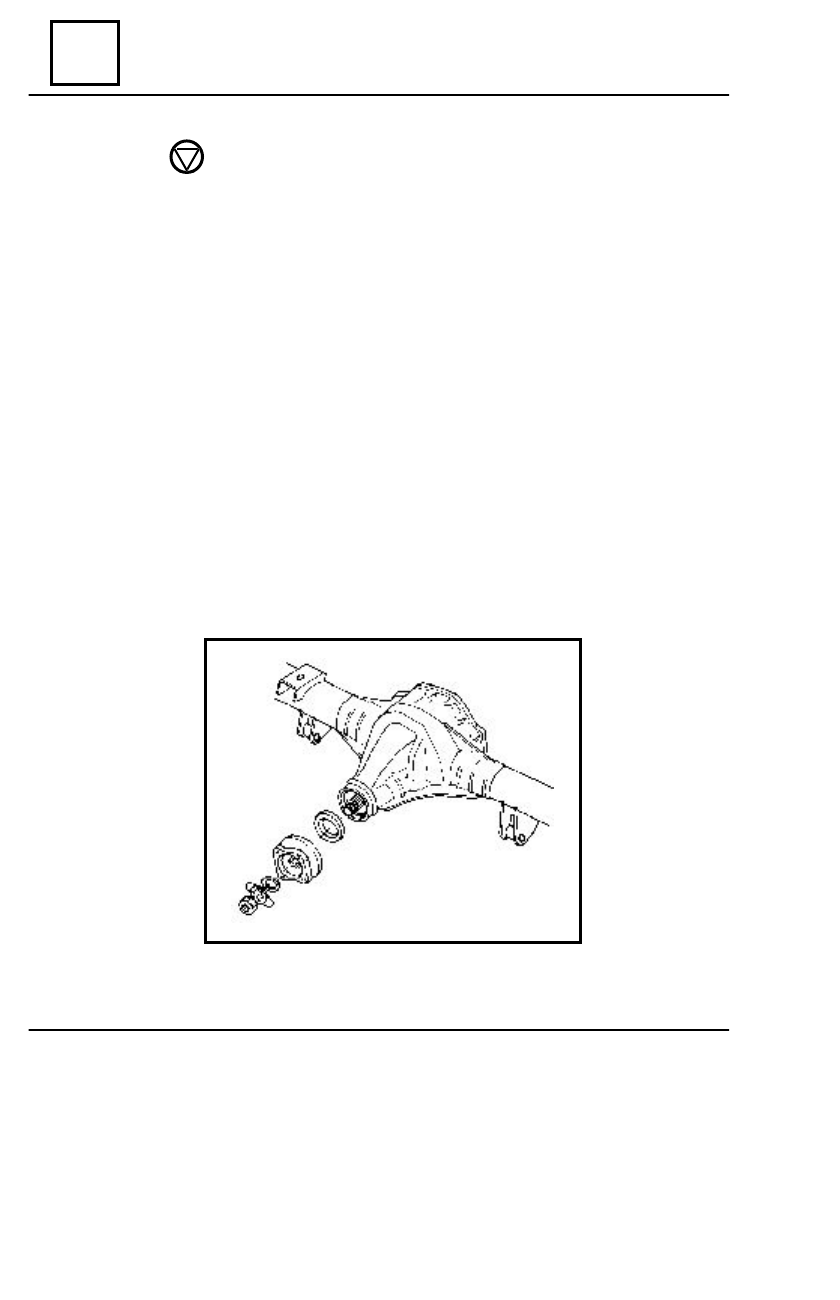

On side of cardanic flange, dismount :

- the nut retainer;
- the nut retainer;
- the cardanic flange;
- the sealing ring (annular oil sealing ring)   42 x 72 x 12;
- the oil deflector;
- the bearing (the inner ring with conical balls)  30 x 72 x 28,75;
- the adjustment washer;
- the differential drive pinion washer.
