Dipped beam headlamps
(xenon headlamps)

Type E, D8S 25W

F Press the upper clip on the cover then tip it

rearwards to remove it.

F Turn the bulb holder a quarter turn anti-

clockwise.

F Change the failed bulb.
To refit, carry out these operations in reverse
order.

Replacement of D8S xenon bulbs must
be done by a PeugeoT dealer or a
qualified workshop as there is a risk of
electrocution.
It is recommended that both D8S bulbs
be replaced at the same time, in the
event of the failure of one of them.

Main beam headlamps
(xenon headlamps)

Type C, H1-55W

When refitting the connector and bulb
in the lamp, push the assembly into its
housing until it clicks into place.

Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.

Direction indicators
(xenon headlamps)

Type B, PY21W-21W (amber)

F Press the upper clip on the cover then tip it

rearwards to remove it..

F Press the lower clip on the electrical

connector and remove the assembly of
connector and bulb.

F Pull the bulb out and change it.
To refit, carry out these operations in reverse
order.

304

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

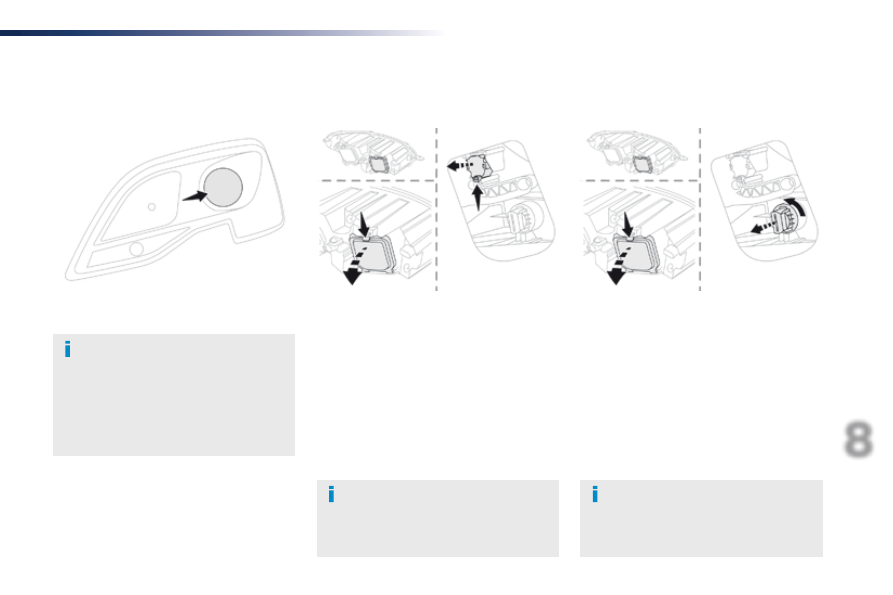

Front foglamps

Type C, H11-55W

F Press the locking clip and disconnect the

connector.

F Turn the bulb holder a quarter turn anti-

clockwise.

F Remove the bulb holder.
F Change the failed bulb.
To refit, carry out these operations in reverse
order.

You can also go to a PeugeoT
dealer or a qualified workshop for the
replacement of these bulbs.

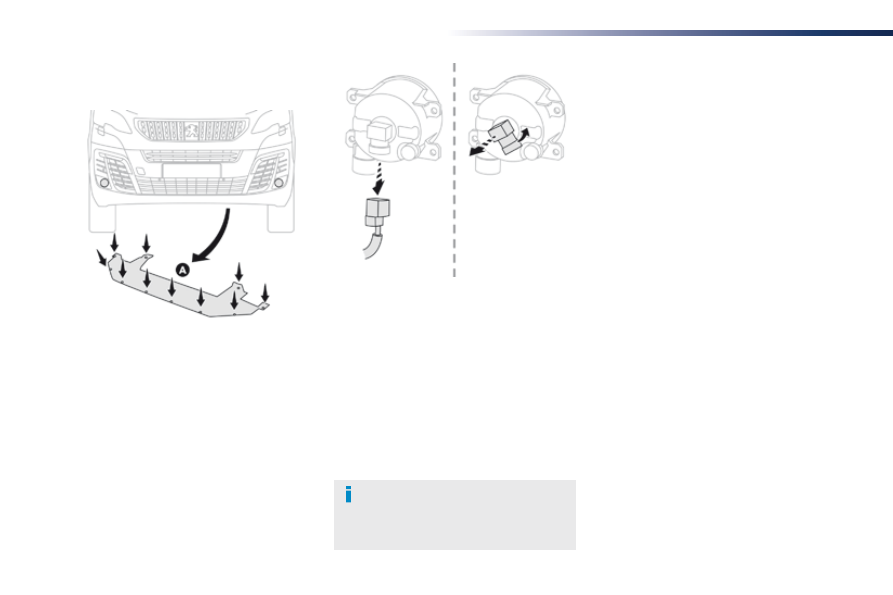

F Below the front bumper, unscrew the fixing

screws for the deflector A.

F Remove the deflector A.

305

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

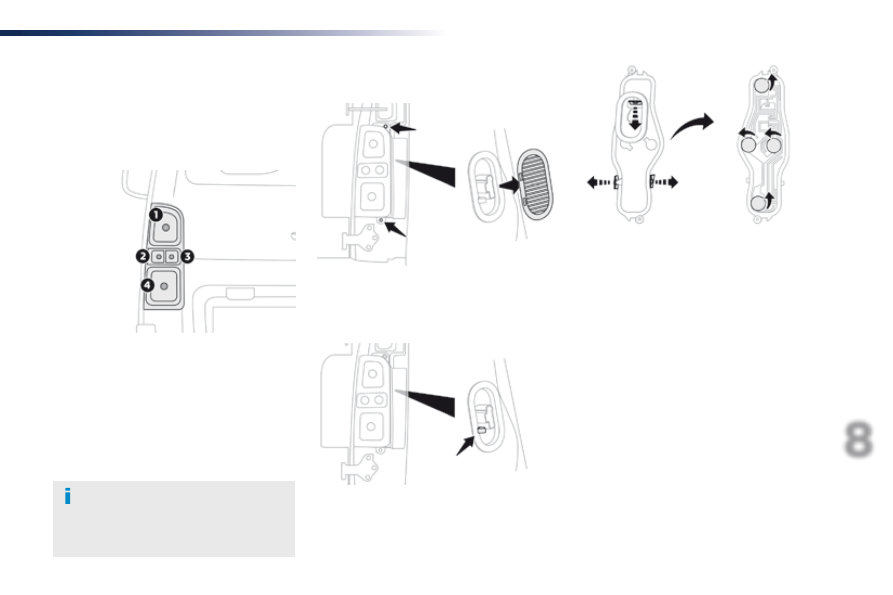

Rear lamps
(side-hinged rear doors)

For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.

F While holding the lamp in place, press the

clip on the inside then carefully remove the
lamp.

F Disconnect the electrical connector.

For vehicles with interior trim, contact
a PeugeoT dealer or a qualified
workshop to have the work done.

1. Brake lamps / sidelamps.

Type B, P21/5W-21/5W

2. Direction indicators.

Type B, PY21W-21W (amber)

3. Reversing lamps.

Type B, P21W-21W

4. Foglamps / sidelamps.

Type B, P21/4W-21/4W.

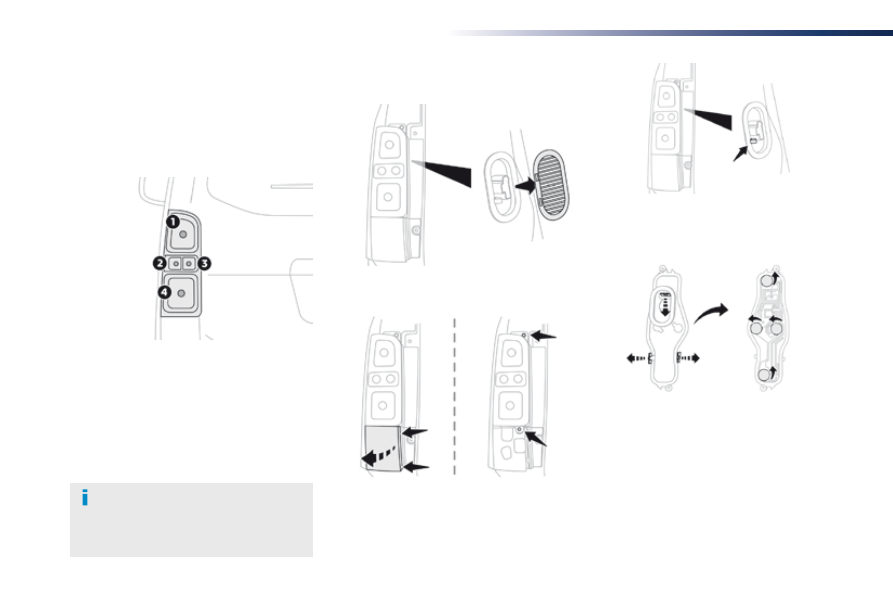

F Identify the failed bulb then open the rear

doors.

F Spread the three lugs slightly, then extract

the bulb holder.

F Remove the failed bulb by pressing

lightly on it, then turning it a quarter turn
clockwise.

F Change the bulb.
To reassemble, carry out these operations in
reverse order.

F From inside, remove the ventilation grille, if

your vehicle has one.

F From outside, unscrew the two lamp fixing

screws.

306

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Number plate lamps
(side-hinged doors)

Type A, W5W-5W

F Remove the plastic cover using a small

screwdriver.

F using a screwdriver through the aperture,

push the lamp towards the outside.

F  Disconnect the electrical connector.
F  Remove the lamp.
F  Turn the bulb holder a quarter turn anti-

clockwise.

F Change the failed bulb.
To refit, press on the lamp to clip it in place.

Third brake lamp
(side-hinged doors)

Type A, W5W-5W

To refit, press on the lens to clip it in place.

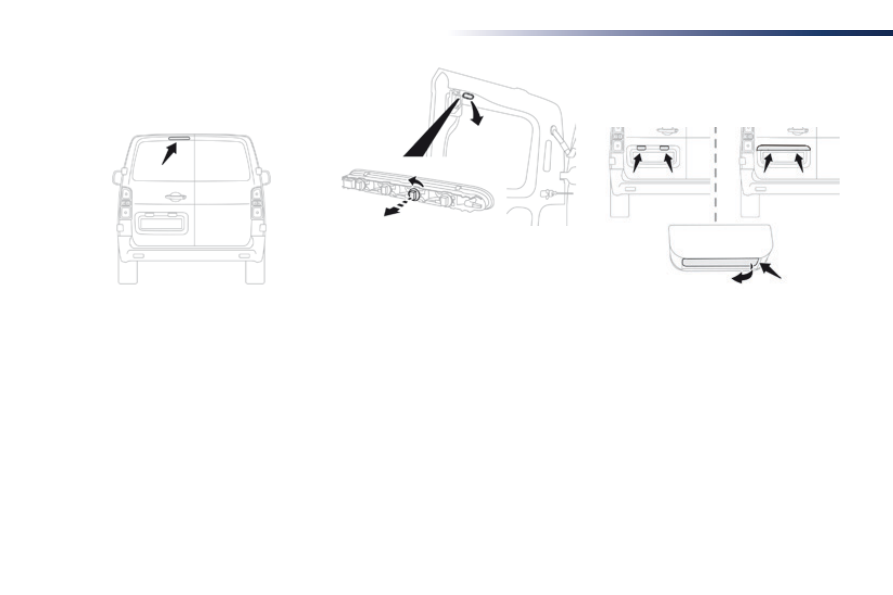

F open the left hand rear door.

F Insert a thin screwdriver into one of the cut-

outs in the lens.

F  Push it outwards to unclip it.
F  Remove the lens.
F  Change the failed bulb.

308

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Rear lamps
(tailgate)

For more information on Changing a bulb and
in particular, the types of bulbs, refer to the
corresponding section.

F While holding the lamp in place, press the

clip on the inside then carefully remove the
lamp.

F Disconnect the electrical connector.

F Identify the failed bulb then open the boot.

For vehicles with interior trim, contact
a PeugeoT dealer or a qualified
workshop to have the work done.

1. Brake lamps / sidelamps.

Type B, P21/5W-21/5W

2. Direction indicators.

Type B, PY21W-21W (amber)

3. Reversing lamps.

Type B, P21W-21W

4. Foglamps / sidelamps.

Type B, P21/4W-21/4W

F From inside, remove the cover, if your

vehicle has one.

F From the outside, press on the inner clips

on the plastic finisher then tip it towards the
outside to remove it.

F unscrew the two lamp fixing screws.

F Spread the three lugs slightly, then extract

the bulb holder.

F Remove the failed bulb by pressing

lightly on it, then turning it a quarter turn
clockwise.

F Change the bulb.

To reassemble, carry out these operations in
reverse order.

309

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

To refit, press on the lens to clip it in place.

F unclip the trim at each end by turning it

upwards.

F Pull on the trim to disengage the central

clips, then remove it.

F using a screwdriver through the aperture,

push the lamp towards the outside.

F  Disconnect the electrical connector.
F  Remove the lamp.
F  Turn the bulb holder a quarter turn anti-

clockwise.

F Change the failed bulb.

To refit, carry out these operations in reverse
order.
To refit the lamp and trim, press on them to clip
them in place.

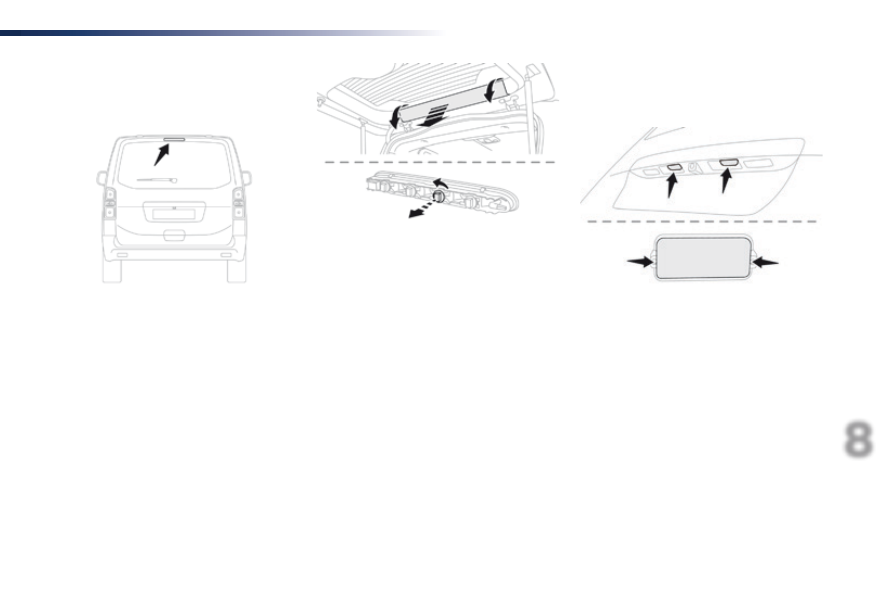

Third brake lamp
(tailgate)

Type A, W5W-5W

Number plate lamps
(tailgate)

Type A, W5W-5W

F open the tailgate.

F Insert a thin screwdriver into one of the cut-

outs in the lens.

F  Push it outwards to unclip it.
F  Remove the lens.
F  Change the failed bulb.

311

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

F unclip the cover by pulling at the top left, then

right.

F Disengage the cover completely and turn it over,

Good

Failed

Tweezer

Access to the tools

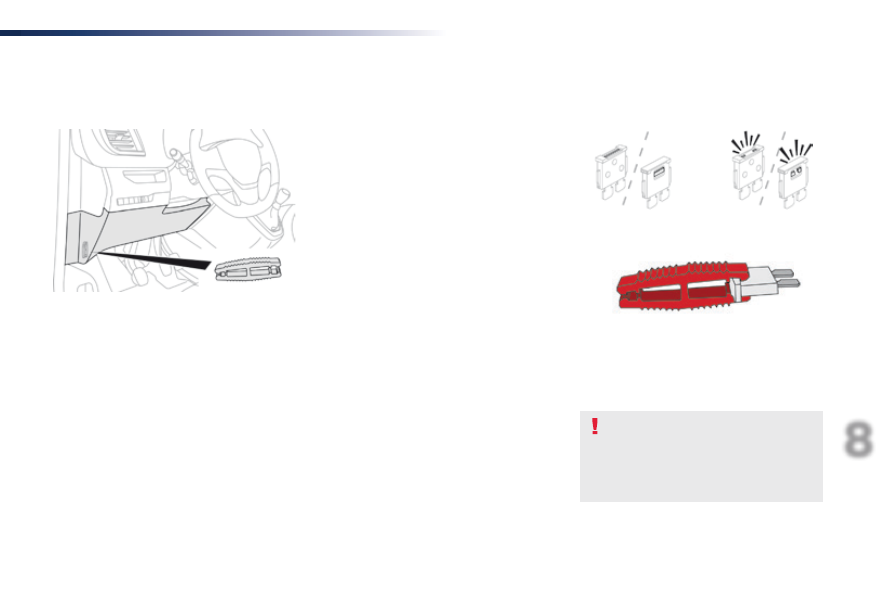

F Take the tweezer from its housing.

The extraction tweezer is located behind the
fusebox cover, on the dashboard pillar.

Before changing a fuse:
F the cause of the failure must be identified

and rectified,

F all electrical consumers must be switched

off,

F the vehicle must be immobilised with the

ignition off,

F identify the failed fuse using the tables and

layout drawings in the following pages.

Changing a fuse

To replace a fuse, you must:
F use the special tweezer to extract the fuse

from its housing and check the condition of
its filament.

F always replace the failed fuse with a fuse

of the same rating (same colour); using a
different rating could cause faults (risk of
fire).

If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PeugeoT dealer or a qualified workshop.

The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PeugeoT dealer or a qualified
workshop.

Changing a fuse

312

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

PeugeoT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PeugeoT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.

Installing electrical
accessories

Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PeugeoT dealer or
a qualified workshop.

For more information on installing a
towbar or equipment of the TAXI type,
contact a PeugeoT dealer.

Dashboard fuses

The fusebox is placed in the lower dashboard
(left-hand side).

Access to the fuses

F unclip the cover by pulling at top left, then

right.

313

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

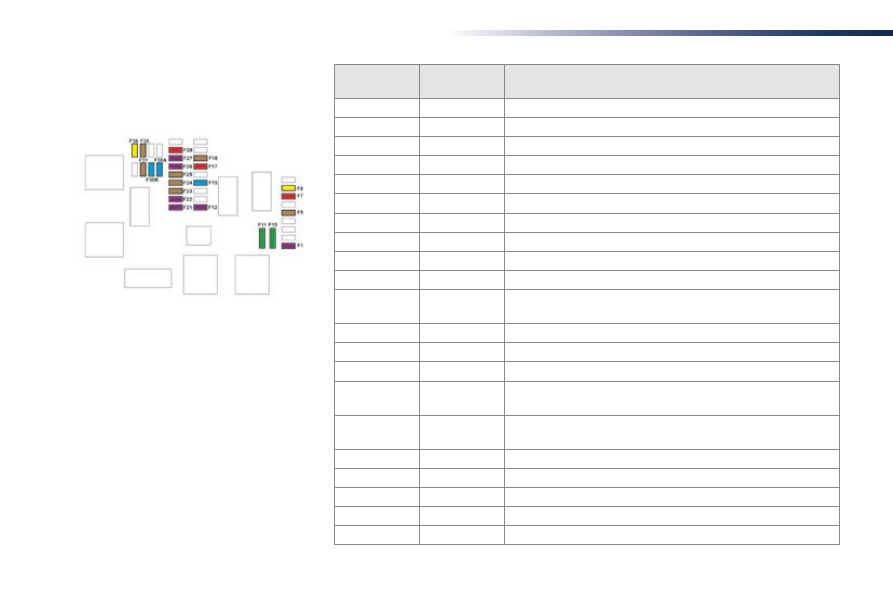

Fuse

N°

Rating

(A)

Functions

electric power steering, clutch switch

Horn.

Front/rear screenwash pump.

Rear 12 V accessory socket.

Single or double rear wipers.

F10/F11

Front and rear, exterior, interior locks.

F13

Front air conditioning controls, radio controls, gear lever, head-
up display.

F14

Alarm, emergency and assistance calls.

F17

Instrument panel.

F19

Steering mounted controls.

F21

"Keyless entry and Starting" system or ignition switch.

F22

Rain and sunshine sensor, multifunction detection camera.

F23

Seat belt unfastened or not fastened display screen.

F24

Touch screen, reversing camera and parking sensors.

F25

Airbags.

F29

Audio system, touch screen, CD player, navigation.

F31

Audio system (battery +).

F32

Front 12 V accessory socket.

F34

Blind spot monitoring system, door mirror electric controls.

F35

Heated washer jets, headlamp beam height control.

F36

Torch charger, rear courtesy lamp.

Version 1 (Eco)

The fuses described hereafter vary according
to the equipment in your vehicle.

314

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Fuse

N°

Rating

(A)

Functions

"Keyless entry and Starting" system or ignition switch.

Touch screen, reversing camera and parking sensors.

Rear air conditioning controls, Hi-Fi amplifier.

Single or double rear wiper.

F10/F11

Front and rear, exterior, interior locks.

F12

Alarm.

F17

Rear 12 V accessory socket.

F18

emergency and assistance calls.

F21

Torch charger, rear courtesy lamp.

F22

glove box lamp, rear courtesy lamps.

F23

Blind spot monitoring system, door mirror electric controls.

F24

Steering mounted controls.

F25

Headlamp beam height control.

F26

Seat belt unfastened or not fastened display screen.

F27

Rain and sunshine sensor, multifunction detection camera.

F28

Front air conditioning controls, radio controls, gear lever, head-
up display.

F30A or B

Audio system (battery +).

F31

Airbags.

F33

Front 12 V accessory socket.

F35

Instrument panel.

F36

Audio system, touch screen, CD player, navigation.

Version 2 (Full)

The fuses described hereafter vary according
to the equipment in your vehicle.

315

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Engine compartment fuses

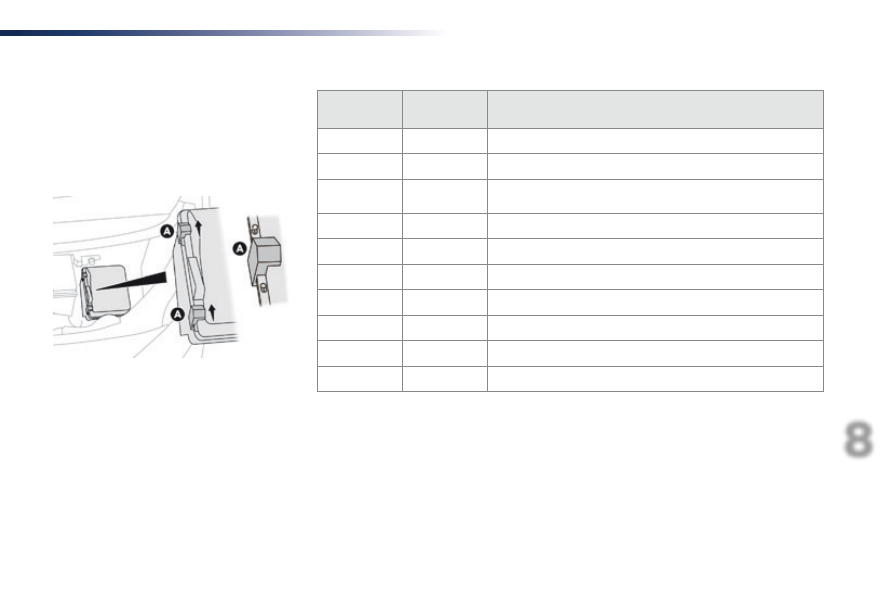

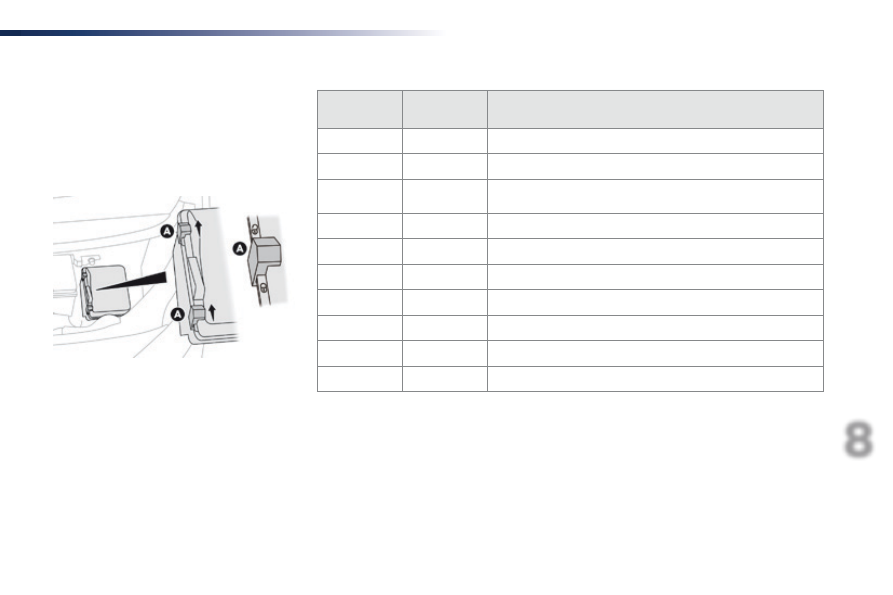

F  Release the two latches A.
F  Remove the cover.
F  Change the fuse.
F  When you have finished, close the cover

carefully then engage the two latches A, to
ensure correct sealing of the fusebox.

Fuse

N°

Rating

(A)

Functions

F12

Heated washer jets.

F14

Front and rear screenwash pump.

F15

Front radar and emergency braking, electric power steering.

F17

Built-in systems interface.

F19

Front wiper motor.

F20

Front and rear screenwash pump.

F21

Headlamp wash pump.

F22

Horn.

F23

Right hand main beam headlamp.

F24

Left hand main beam headlamp.

The fusebox is located in the engine
compartment near the battery.

The fuses described hereafter vary according to the equipment in your vehicle.

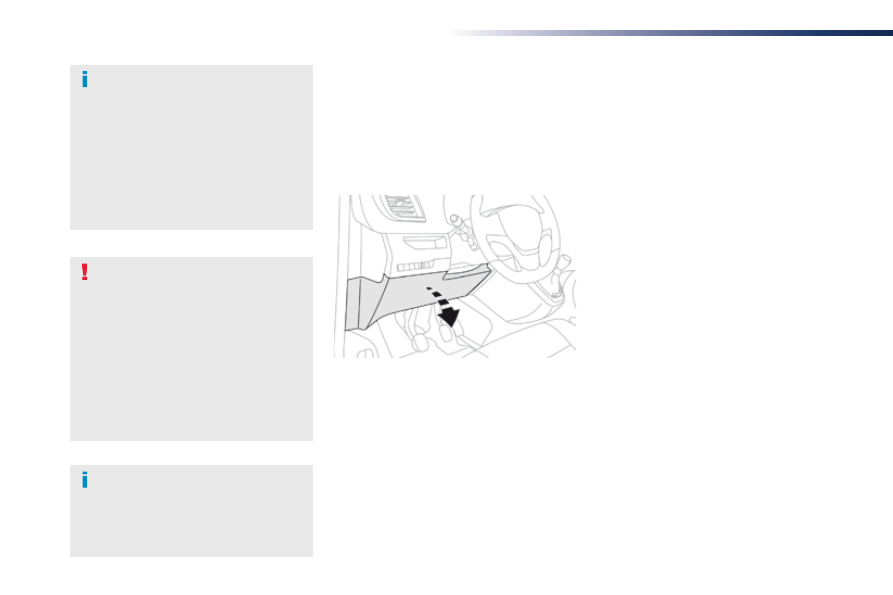

Access to the fuses

316

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

12 V battery

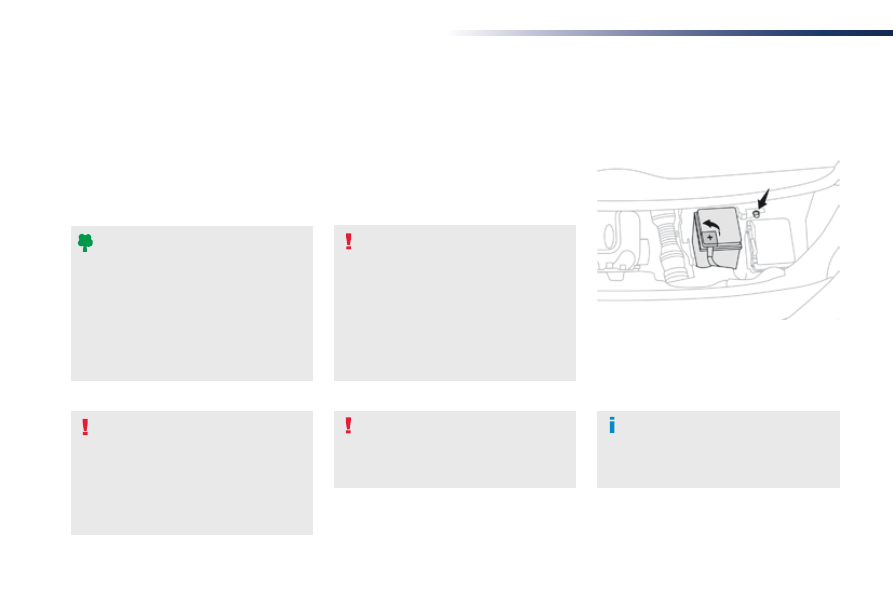

The battery is located under the bonnet.
F open the bonnet using the interior release

lever, then the exterior safety catch.

F Secure the bonnet stay.

Access to the battery

Procedure for starting the engine using another
battery or charging a discharged battery.

General points

Lead-acid starter batteries

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a PeugeoT dealer or a
qualified workshop.

If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

For more information on the
Bonnet and the Engine, refer to the
corresponding section(s).

F Remove the plastic cover on

the (+) terminal.

The battery (-) terminal is not accessible.
A remote earth point is provided at the front of
the vehicle.

317

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Starting using another
battery

Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

F Raise the plastic cover on the (+) terminal,

if your vehicle has one.

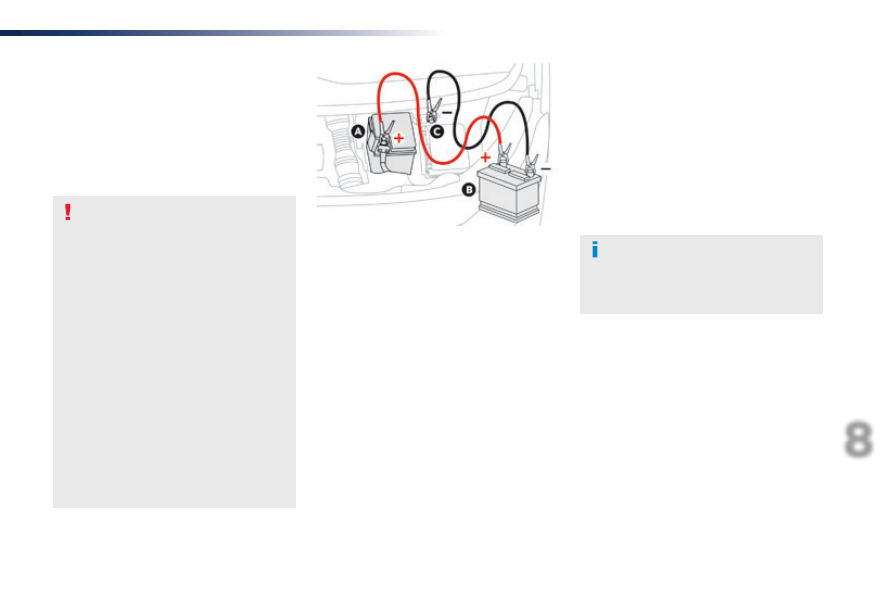

F Connect the red cable to the positive

terminal (+) of the flat battery A (at the metal
elbow) then to the positive terminal (+) of the
slave battery B or the booster.

F Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).

F Connect the other end of the green or black

cable to the earth point C on the broken
down vehicle.

F Start the engine of the vehicle with the

good battery and leave it running for a few
minutes.

F operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

F Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

F Refit the plastic cover to the (+) terminal, if

your vehicle has one.

F Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

318

In the event of a breakdown

Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
-

if you use your vehicle essentially for short
journeys,

if the vehicle is to be taken off the road for
several weeks.

Contact a PeugeoT dealer or a qualified
workshop.

Charging the battery using
a battery charger

F Switch off the ignition.
F Switch off all electrical consumers (audio

system, lighting, wipers, ...).

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.

Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.

Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PeugeoT dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.

It is not necessary to disconnect the
battery.

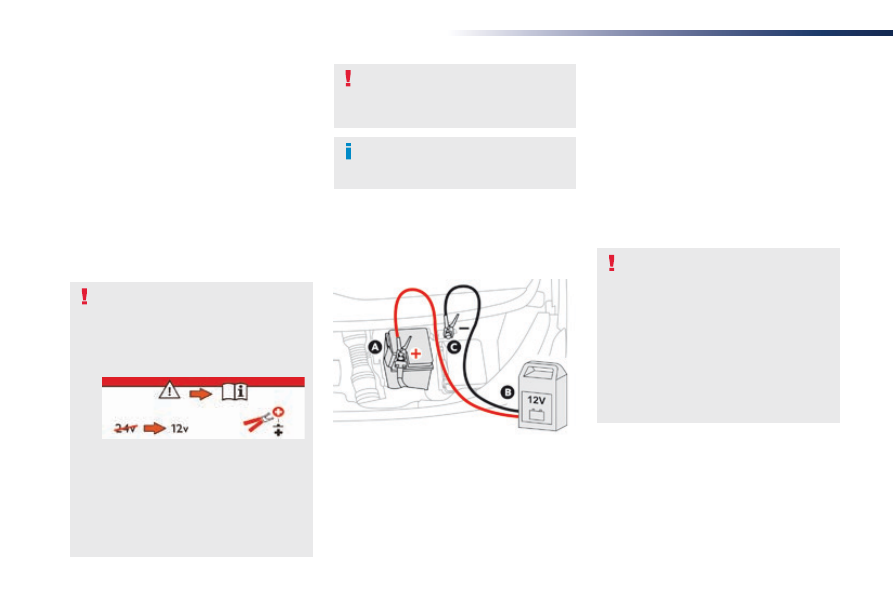

F Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

F ensure that the charger cables are in good

condition.

F Raise the plastic cover, if your vehicle has

one, on the (+) terminal.

F Connect the charger B cables as follows:

- the positive (+) red cable to the

(+) terminal of the battery A,

- the negative (-) black cable to the earth

point C on the vehicle.

F At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A.

Peugeot Traveller (2016 year). Manual - part 20
