Peugeot Partner VU (2007 year). Manual - part 4

Seats

ADVICE ON CHILD

SEATS

The incorrect installation of a child

seat in a vehicle compromises the

child’s protection in the event of an

accident.

Remember to fasten the seat belts or

the child seat harnesses

keeping the

slack in relation to the child’s body to

a minimum, even for short journeys.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle’s seat

and that the head restraint does not

cause any discomfort.

If the head restraint has to be removed,

ensure that it is stored or attached se-

curely to prevent it from being thrown

around the vehicle in the event of

sharp braking.

Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied

by other children, cannot be used or

are absent.

Disarm the passenger air bag* when

a "rear facing" child seat is installed

on the front seat.

Otherwise, the child would risk be-

ing seriously injured or killed if the air

bag were to inﬂate.

As a safety precaution, do not leave:

- one or more children alone and un-

supervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children in-

side the vehicle.

* According to model.

Installing a booster seat

The chest part of the seat belt must

be positioned on the child’s shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child’s

thighs.

PEUGEOT recommends the use of

a booster seat which has a back, ﬁt-

ted with a seat belt guide at shoulder

level.

52 - Seats

SEAT BELTS

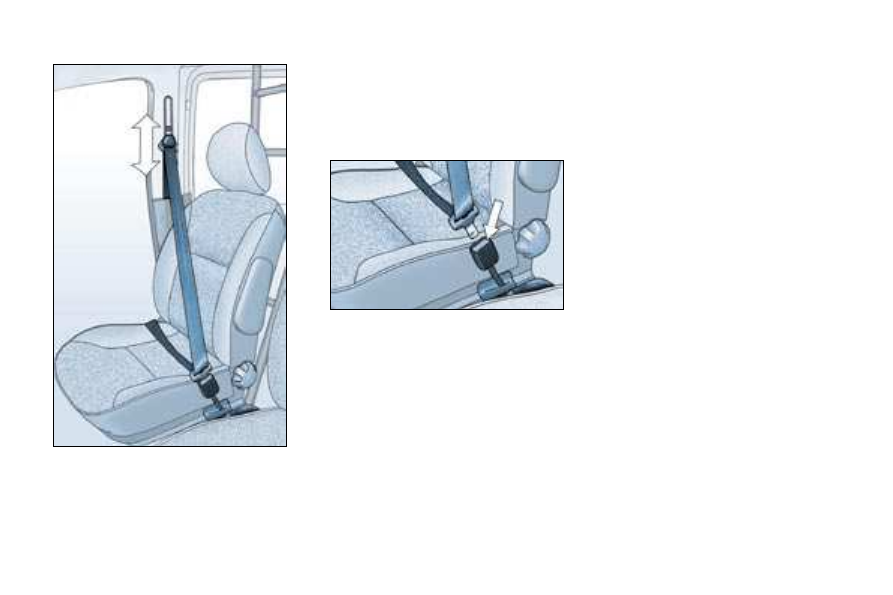

Seat belt height adjustment

To lower or raise: slide the control

downwards or upwards.

Fastening the seat belts

Pull the strap, then insert the end into

the buckle.

Check that the seat belt is fastened

correctly by pulling the strap.

Unfastening the seat belts

Press the button on the buckle.

Seat belts with pre-tensioner

Safety in the event of front impacts

has been improved by the introduc-

tion of seat belts with pre-tensioner.

Depending on the seriousness of the

impact, the pre-tensioning system

instantly tightens the seat belts and

pulls them against the bodies of the

occupants.

The pre-tensioning seat belts are ac-

tive when the ignition is on.

Seats

Wherever you are seated in

the vehicle, always fasten

your seat belt, even for short

journeys.

Do not invert the seat belt

buckles as they will not fulﬁl their role

fully.

If the seats have armrests*, the lap

part of the seat belt must always

pass under the armrest.

The seat belts are ﬁtted with an in-

ertia reel permitting automatic adjust-

ment of the length of the strap to your

size. The seat belt is stored automat-

ically when not in use.

Before and after use, ensure that the

seat belt is rolled up correctly.

The lower part of the strap must be

positioned as low as possible on the

pelvis.

The upper part must be positioned in

the hollow of the shoulder.

The inertia reels are ﬁtted with an au-

tomatic locking device which comes

into operation in the event of a colli-

sion or emergency braking. You can

release the device by pulling rapidly

on the strap and releasing it.

In order to be effective, a seat belt:

- must be tightened as close to the

body as possible,

- must restrain one adult only,

- must not bear any trace of cuts or

fraying,

- must be pulled in front of you with a

smooth movement, checking that it

does not twist,

- must not be transformed or modi-

ﬁed to avoid altering its perform-

ance.

In accordance with current safety

regulations, all repairs and checks

must be carried out by a PEUGEOT

dealer who guarantees that the work

is carried out correctly.

Have your seat belts checked regu-

larly by a PEUGEOT dealer and par-

ticularly if the straps show signs of

damage.

Clean the seat belt straps with soapy

water or a textile cleaning product,

sold by PEUGEOT dealers.

* According to model.

Recommendations for children:

- use a suitable child seat if the pas-

senger is less than 12 years old or

shorter than one metre ﬁfty,

- do not use the strap-guide* when a

child seat is installed,

- never use the same seat belt to se-

cure more than one person,

- never allow a child to travel on your

lap.

Depending on the nature and se-

riousness of the impacts, the pre-

tensioning device may be triggered

before and independently of the air

bags.

In all cases, the air bag warning light

comes on.

Following an impact, have the seat

belts system checked, and if neces-

sary replaced, by a PEUGEOT dealer.

54 - Access and starting

THE KEYS

The keys allow you to switch on the

ignition and operate the passenger

air bag disarming switch as well as to

independently operate the locks on

the doors and the fuel ﬁller cap.

Locating your vehicle

To locate your vehicle, if you have

locked it, in a car park:


press button

A, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.

Changing the battery of the

remote control

The information "battery ﬂat" is given

by an audible signal accompanied by

the message

"Remote control bat-

tery ﬂat" on the screen.

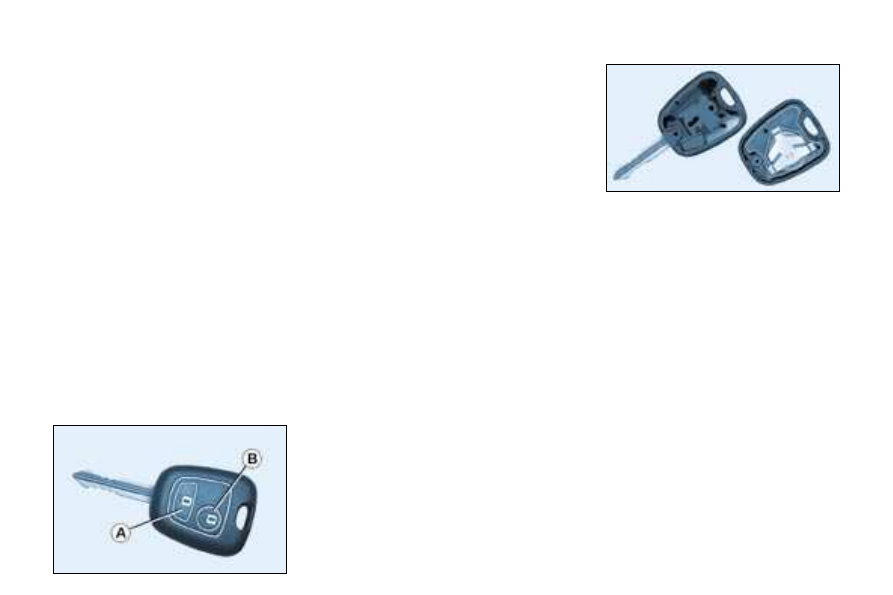

To change the battery, unclip the

casing using a coin at the ring

(CR 2016/3 volt battery).

If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Programming the remote

control



Switch off the ignition.



Switch the ignition on again.



Press button

A immediately for a

few seconds.



Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control is

now working again.

The remote control

Locking

Press button

A to lock the vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.

Central locking

From the front doors, the keys allow

you to lock and unlock the doors and

tailgate.

If one of the doors or the tailgate is

open, the central locking does not

work.

The remote control performs the

same functions at a distance.

Unlocking

Press button

B to unlock the vehicle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators.

Note: if the vehicle is locked and

unlocking is activated inadvertently,

unless the doors are opened within

30 seconds, the vehicle will lock au-

tomatically.

Access and starting

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control sys-

tem as soon as the ignition has been

switched off and therefore prevents

starting of the vehicle by anyone who

does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code

must be recognised for the vehicle to

start.

If the system does not function

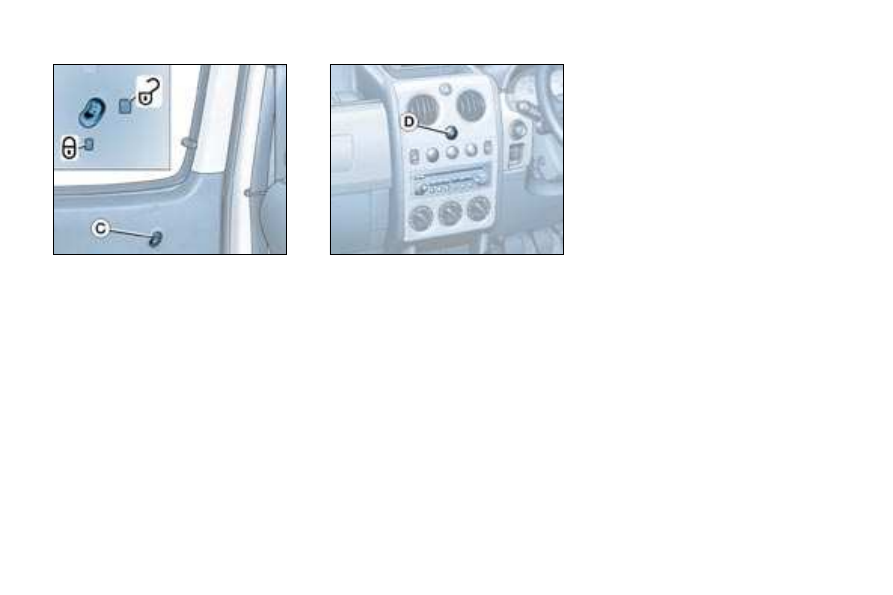

correctly, the central locking button

indicator light, situated in the centre

of the fascia, ﬂashes rapidly when the

ignition is switched on (2nd notch),

accompanied by an audible signal

and a message on the multifunction

display.

In this case your vehicle will not start.

Contact a PEUGEOT dealer as soon

as possible.

Key in ignition

A buzzer sounds on opening the driv-

er’s door, if the key has been left in

the ignition.

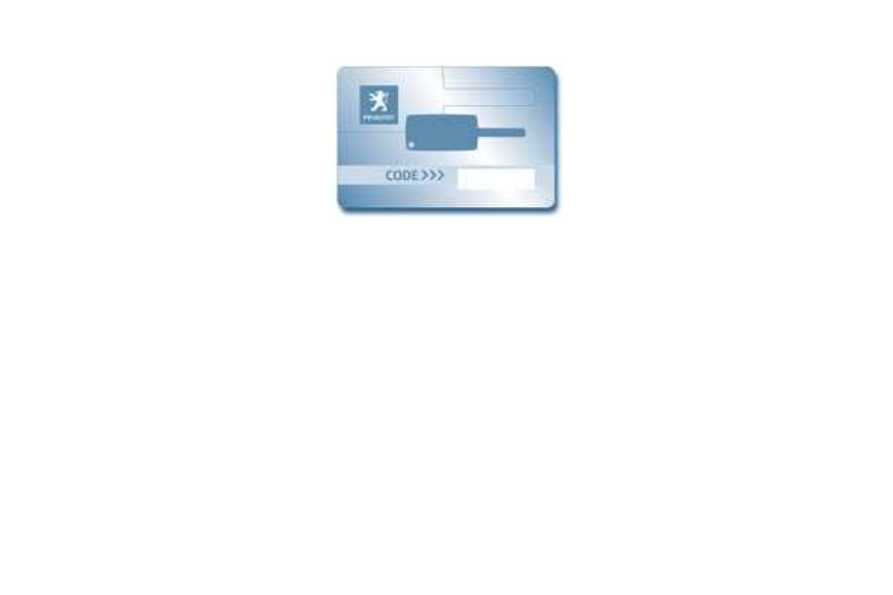

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Depending on the circumstances,

your PEUGEOT dealer will be able

to carry out the work more efﬁciently

and more quickly if you give him this

conﬁdential card:

- if the keys are lost, if you have

made a note of the number coded

on the label attached to the key.

- if the anti-theft socket is lost (alloy

wheels), if you have made a note of

the code etched on the head of the

socket.

56 - Access and starting

Make a careful note of the

number on each key. The

key number is coded on

the label attached to the

key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.
The high frequency remote control

is a sensitive system; do not operate

it while it is in your pocket as there is

a possibility that it may unlock your

vehicle, without you being aware

of it.
The remote control does not oper-

ate when the key is in the ignition,

even when the ignition is switched

off, except for reprogramming.
Do not operate the deadlocking

function if there is anyone inside

the vehicle.
Driving with the doors locked may

make access to the passenger

compartment by the emergency

services more difﬁcult in an emer-

gency.

As a safety precaution (with chil-

dren on board), remove the igni-

tion key when you leave the vehi-

cle, even for a short time.
Do not repeatedly press the but-

ton of your remote control out of

range and out of sight of your ve-

hicle. You run the risk of stopping

it from working and the remote

control would have to be repro-

grammed.

When purchasing a second-hand

vehicle;

- ensure that you are given the

conﬁdential card;

- have the key codes memorised

by a PEUGEOT dealer, to ensure

that the keys in your possession

are the only ones which can start

the vehicle.

Do not make any modiﬁcations to

the electronic engine immobiliser

system.

Access and starting

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control sys-

tem as soon as the ignition has been

switched off and therefore prevents

starting of the vehicle by anyone who

does not have the key.

The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code

must be recognised for the vehicle to

start.

If the system does not function

correctly, the central locking button

indicator light, situated in the centre

of the fascia, ﬂashes rapidly when the

ignition is switched on (2nd notch),

accompanied by an audible signal

and a message on the multifunction

display.

In this case your vehicle will not start.

Contact a PEUGEOT dealer as soon

as possible.

Key in ignition

A buzzer sounds on opening the driv-

er’s door, if the key has been left in

the ignition.

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Depending on the circumstances,

your PEUGEOT dealer will be able

to carry out the work more efﬁciently

and more quickly if you give him this

conﬁdential card:

- if the keys are lost, if you have

made a note of the number coded

on the label attached to the key.

- if the anti-theft socket is lost (alloy

wheels), if you have made a note of

the code etched on the head of the

socket.

56 - Access and starting

Make a careful note of the

number on each key. The

key number is coded on

the label attached to the

key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.
The high frequency remote control

is a sensitive system; do not operate

it while it is in your pocket as there is

a possibility that it may unlock your

vehicle, without you being aware

of it.
The remote control does not oper-

ate when the key is in the ignition,

even when the ignition is switched

off, except for reprogramming.
Do not operate the deadlocking

function if there is anyone inside

the vehicle.
Driving with the doors locked may

make access to the passenger

compartment by the emergency

services more difﬁcult in an emer-

gency.

As a safety precaution (with chil-

dren on board), remove the igni-

tion key when you leave the vehi-

cle, even for a short time.
Do not repeatedly press the but-

ton of your remote control out of

range and out of sight of your ve-

hicle. You run the risk of stopping

it from working and the remote

control would have to be repro-

grammed.

When purchasing a second-hand

vehicle;

- ensure that you are given the

conﬁdential card;

- have the key codes memorised

by a PEUGEOT dealer, to ensure

that the keys in your possession

are the only ones which can start

the vehicle.

Do not make any modiﬁcations to

the electronic engine immobiliser

system.

Special features

THE ALARM SYSTEM*

The alarm offers two types of protec-

tion:

exterior protection: the alarm

sounds if

a door, the boot or the

bonnet is opened;

interior protection: the alarm

sounds if there is

a variation in

the

volume inside the vehicle

(breaking of a window or

movement inside the vehicle).

Setting the alarm

Switch the ignition off and get out of

the vehicle.

Activate the alarm within ﬁve minutes

following your exit from the vehicle,

by locking using the remote control

key (the red indicator light on the

switch

1, which can be seen from the

outside, ﬂashes once a second).

When the alarm is triggered, the si-

ren sounds and the direction indica-

tors ﬂash for thirty seconds.

After it has been triggered, the alarm

becomes operational again.

Note: if you wish to lock your vehicle

without setting the alarm, lock it us-

ing the key in the door lock.
Warning

If, on setting the alarm, a door, the

boot or the bonnet are not closed

correctly, the siren sounds for a mo-

ment.

Close the vehicle correctly to set the

alarm.

If the interior protection alarm is trig-

gered ten times in succession, it is

disarmed automatically. It must be

set again in order for it to operate

correctly.

Note: when the alarm is set, but the

remote control no longer works:


unlock the doors using the key

and open the door; the alarm is

triggered;



switch the ignition on within ten

seconds; the alarm is disarmed.

Disarming the alarm

Unlock the vehicle using the remote

control key (the red indicator light on

the switch

1 goes out).

Note: if the warning light ﬂashes, it is

a sign that the alarm has been trig-

gered in your absence.

To stop it, switch on the ignition.

* According to country.

To set the alarm with exterior

protection only.

If, while you are away from the vehi-

cle, you wish to leave a window par-

tially open or a pet inside the vehicle,

you need to select exterior protection

only:

• Switch off the ignition.

• Press the button 2 until the light 1

comes on continuously.

• Get out of the vehicle.

• Press the locking button of the

remote control.

• The doors lock.

• The red light on the switch ﬂashes

once a second.

Malfunction

When the ignition is switched on,

ﬁxed lighting of the red indicator light,

located in the centre of the fascia, in-

dicates a siren connection fault.

Contact a PEUGEOT dealer to have

the system checked.

Do not make any modiﬁca-

tions to the alarm system, this

could cause malfunctions.

114 -

Access and starting

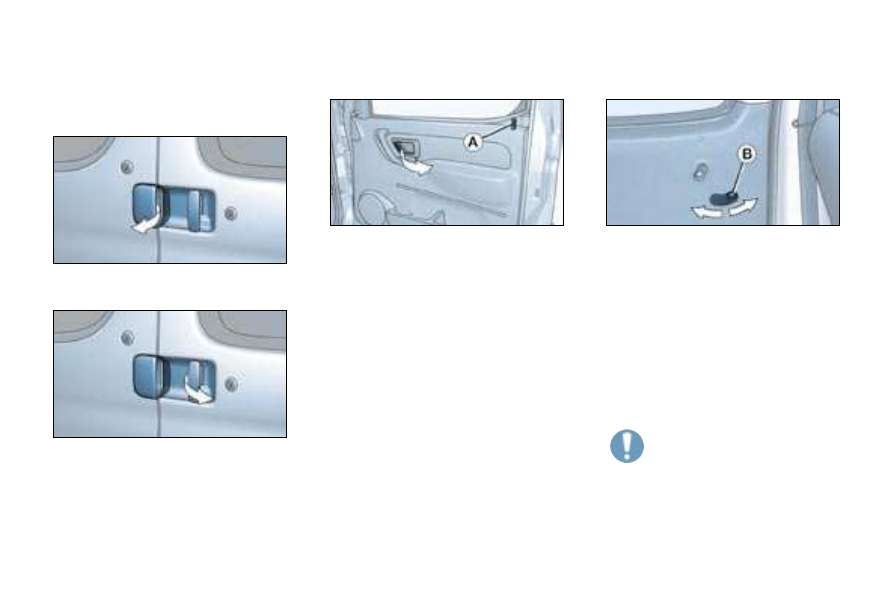

FRONT DOORS AND SLIDING

SIDE DOORS

Front doors

Side doors

Front doors

Side doors

The driver’s door opening control

permits complete unlocking of the

vehicle.
Locking/Unlocking from the

inside
Front doors

To lock, lower button

The closing control of one of the front

doors permits complete locking of

the vehicle.

To unlock and open, lift button

A and

pull the handle towards you.

The driver’s door opening control

permits complete unlocking of the

vehicle.

Opening the doors from inside

Opening the doors from outside

Sliding side doors

The side door opening/closing control

only controls the door concerned.

To close, push the control

B forwards

and slide the door.

To open, pull the control

B rearwards

and slide the door.

If the fuel tank cap is removed,

the right-hand side door can-

not be opened.

58 - Access and starting

Locking from the inside

Lower or raise control

C to lock or un-

lock from the inside.

Locking from the inside

Pressing control

D operates the

central locking, when the doors are

closed.

Automatic central locking

Your vehicle can lock automatically

while driving (speed greater than 6 mph

(10 km/h)). You can activate or deacti-

vate this function.

Unlocking from the inside

Press control

It is

still possible to open the doors

from the inside.

Activation

Press and hold control

Activation of the function is accompa-

nied by an audible signal and a mes-

sage on the multifunction display.

Deactivation

Press and hold control

Deactivation of the function is

accompanied by an audible signal.

Notes:

- doors locked and ignition off: the

indicator light ﬂashes,

- doors locked and ignition on: the

indicator light remains on.

Access and starting

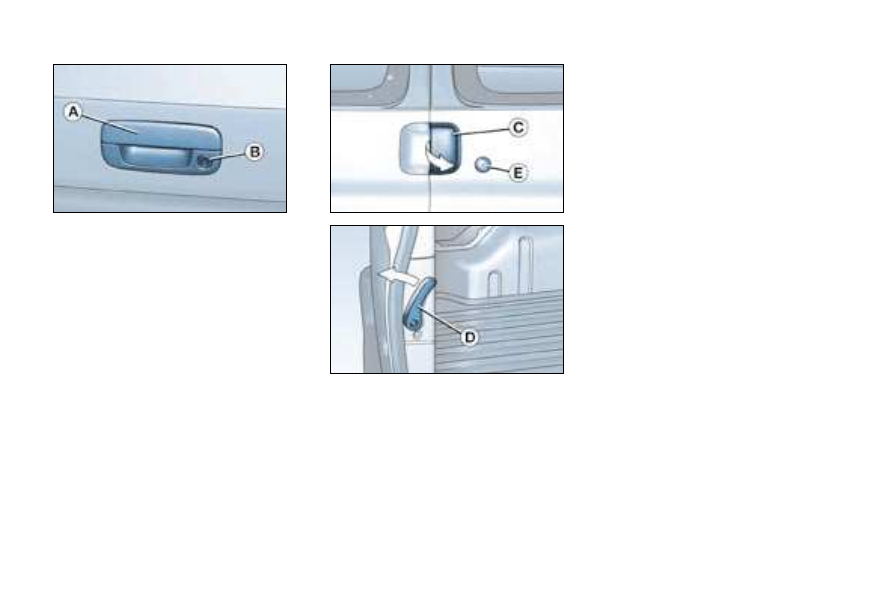

LOCKING/UNLOCKING THE

TAILGATE

To open the tailgate, operate the

handle

A and lift it.

You can unlock the tailgate by inserting

the key in the lock

REAR DOORS

Opening the doors from outside

To open, pull the rear right door han-

dle

C towards you and open the rear

left door by pulling the lever

D on the

inside.

You can unlock the rear doors by

inserting the key in the lock

Access and starting

LOCKING/UNLOCKING THE

TAILGATE

To open the tailgate, operate the

handle

A and lift it.

You can unlock the tailgate by inserting

the key in the lock

REAR DOORS

Opening the doors from outside

To open, pull the rear right door han-

dle

C towards you and open the rear

left door by pulling the lever

D on the

inside.

You can unlock the rear doors by

inserting the key in the lock

60 - Access and starting

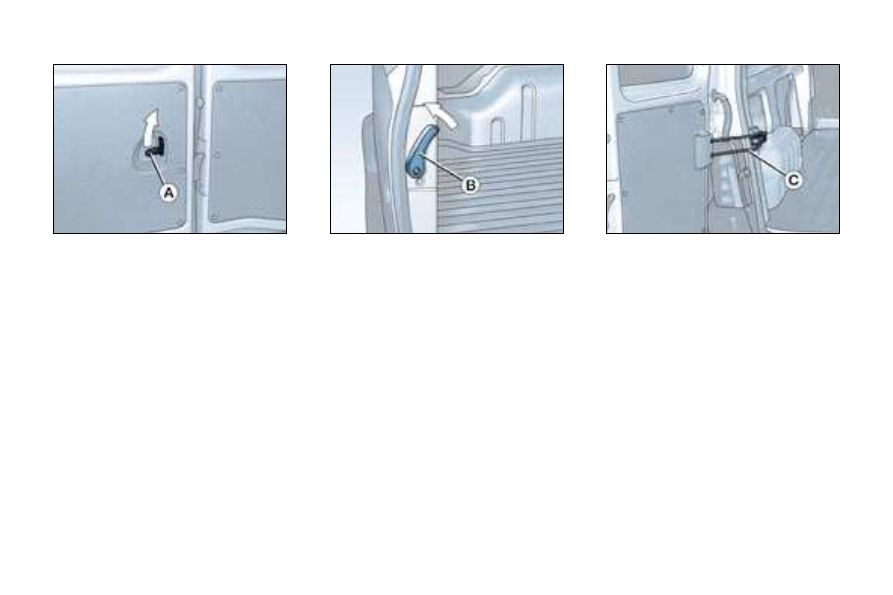

Opening the doors from inside

The rear door opening controls only

unlock these doors.

To open, lift lever

To open the other door, push lever

Note: when closing from the inside,

close the right-hand door ﬁrst ensur-

ing that lever

B is in the vertical posi-

tion then close the left-hand door.

Opening the rear doors to 180°

To open the rear doors to 180°, re-

lease the check strap

C towards you

when the door is partially open.

When closing the door, the check

strap hooks itself in place again au-

tomatically.

Access and starting

Notes:

The side openings

D can be used as

hooking points.

The rear bumper has been strength-

ened to serve as a footrest on entering

the vehicle.

LONG LOAD SUPPORT BAR

A support bar is provided for trans-

porting long loads, after opening the

rear roof ﬂap.

Fold back the support bar by lifting

the lever

Support it to the door pillar.

Support the long loads to be trans-

ported.

Reposition the support bar with one

hand.

Ensure that it is secured correctly.

REAR ROOF FLAP

To open the rear ﬂap:

- pull the lever

- lift the rear ﬂap,

- pass the point of resistance

to secure it using the support

struts

To close the rear ﬂap:

- check that the support bar is

secured correctly,

- lower the rear ﬂap to lock it.

Never drive without the sup-

port bar in place.

The rear doors only lock when

the support bar is installed.

When the rear roof ﬂap is open, take

care when driving where height is re-

stricted.

Use a regulation device when a load

protrudes from your vehicle by more

than one metre.

Never rest a load directly on the rear

doors.

62 - Access and starting

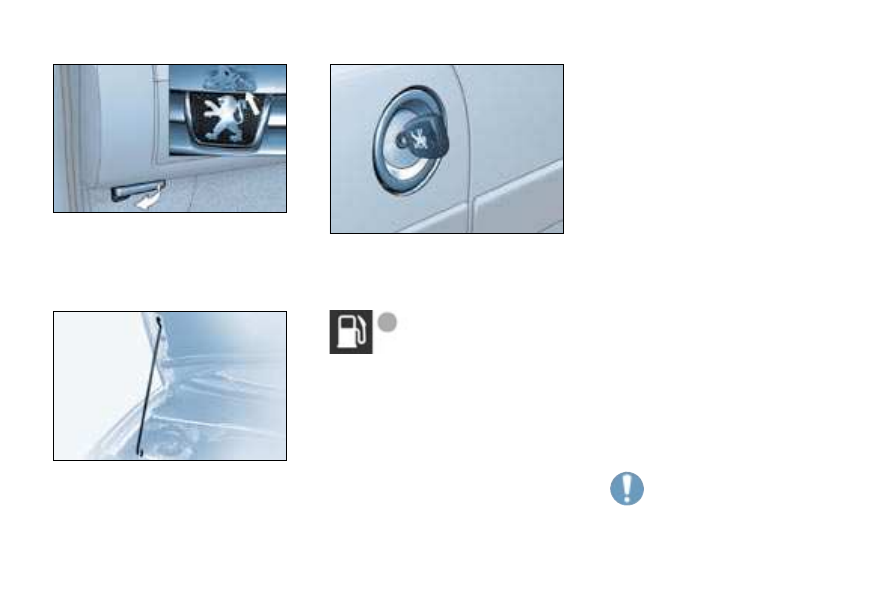

OPENING THE BONNET

Inside the vehicle: pull the handle on

the left-hand side, under the fascia.

Outside the vehicle: lift the catch

and raise the bonnet.

BONNET STRUT

Secure the strut to hold the bonnet

open. Before closing the bonnet, re-

place the strut in its housing.

FILLING WITH FUEL

Low fuel level

When the minimum

fuel level in the tank is

reached, this warning

light comes on.

You have enough fuel remaining

to drive for approximately 30 miles

(50 km).

The engine must be switched off

when ﬁlling with fuel.


Insert the key then turn it to the left.



Remove the cap.

When the cap is removed,

the right-hand sliding side

door cannot be opened.

The key cannot be removed

from the lock until the cap

has been replaced on the

fuel tank.

An indication reminds you which type

of fuel to use.

When you ﬁll your tank, do not con-

tinue after the third cut-off of the

pump. This could cause your vehicle

to malfunction.

The capacity of the tank is approxi-

mately 55 litres for petrol engines

and 60 litres for Diesel engines.


After ﬁlling the tank, lock the cap.

To close

Lower the bonnet and release it at

the end of its travel. Check that the

bonnet is locked.

Content .. 2 3 4 5 ..
