Peugeot Partner VP (2007 year). Manual - part 4

Seats and bench seats -

ADVICE ON CHILD

SEATS

The incorrect installation of a child

seat in a vehicle compromises the

child’s protection in the event of an

accident.

Remember to fasten the seat belts

or the child seat harnesses

keeping

the slack in relation to the child’s

body

to a minimum, even for short

journeys.

For optimum installation of the "for-

ward facing" child seat, ensure that

the back of the child seat is in contact

with the back of the vehicle’s seat

and that the head restraint does not

cause any discomfort.

If the head restraint has to be re-

moved, ensure that it is stored or at-

tached securely to prevent it from be-

ing thrown around the vehicle in the

event of sharp braking.

Children under the age of 10 must not

travel in the "forward facing" position

on the front passenger seat, unless

the rear seats are already occupied

by other children, cannot be used or

are absent.

Disarm the passenger air bag* when

a "rear facing" child seat is installed

on the front seat. Otherwise, the child

would risk being seriously injured or

killed if the air bag were to inﬂate.

As a safety precaution, do not leave:

- one or more children alone and un-

supervised in a vehicle,

- a child or an animal in a vehicle

which is exposed to the sun, with

the windows closed,

- the keys within reach of children in-

side the vehicle.

To prevent accidental opening of the

doors, use the "Child lock"*.

Take care not to open the rear win-

dows by more than one third*.

To protect young children from the

rays of the sun, ﬁt side blinds on the

rear windows.

* According to version.

Installing a booster seat

The chest part of the seat belt must

be positioned on the child’s shoulder

without touching the neck.

Ensure that the lap part of the seat

belt passes correctly over the child’s

thighs.

PEUGEOT recommends the use of

a booster seat which has a back, ﬁt-

ted with a seat belt guide at shoulder

level.

Seats and bench seats

52 -

"ISOFIX" MOUNTINGS

Your vehicle has been approved in ac-

cordance with the ISOFIX

regulation.

The seats*, represented below, are ﬁt-

ted with regulation ISOFIX mountings:

These are two rings located between

the seat back and the seat cushion.

This ISOFIX mounting system guar-

antees reliable, safe and fast ﬁtting of

the child seat in your vehicle.

The

ISOFIX child seats are ﬁtted

with two locks which are secured

easily on these rings.

* According to version.

Seats and bench seats -

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT

AND APPROVED FOR YOUR VEHICLE

ISOFIX KIDDY

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position,

on a rear side seat only.

Installed in the forwards facing position.

The body of the child seat must be in contact with the back

of the vehicle’s front seat.

On the front passenger seat and in the "rear facing" position,

the body of the ISOFIX KIDDY seat must be in contact with

or as close as possible to the fascia.

It is essential that the vehicle’s front seat is adjusted to the

intermediate longitudinal position.

This child seat can also be used on

seats which are not ﬁtted with ISO-

FIX mountings. In this case, it is es-

sential that it is secured to the vehi-

cle’s seat by means of the three point

seat belt.

Follow the instructions for ﬁtting

the child seat indicated in the seat

manufacturer’s installation guide.

Seats and bench seats

54 -

SEAT BELTS

Seat belt height adjustment:

To lower or raise: slide the control

downwards or upwards.

Locking the seat belts

Pull the strap, then insert the end into

the buckle.

Check that the seat belt is fastened

correctly by pulling the strap.

Unfastening the seat belts

Press the button on the buckle.

Rear seat belts

The rear seats are ﬁtted with three

three-point inertia reel seat belts

(two-part rear seat, 1/3 - 2/3).

Front seat belts with

pre-tensioner

Safety in the event of frontal impacts

has been improved by the introduc-

tion of pre-tensioning seat belts for

the front seats.

Depending on the seriousness of the

impact, the pre-tensioning system

instantly tightens the seat belts and

pulls them against the bodies of the

occupants.

The pre-tensioning seat belts are

armed when the ignition is on.

Seats and bench seats -

Wherever you are seated in

the vehicle, always fasten

your seat belt, even for short

journeys.

Do not invert the seat belt buckles as

they will not fulﬁl their role fully.

If the seats have armrests*, the lap

part of the seat belt must always

pass under the armrest.

The seat belts are ﬁtted with an in-

ertia reel permitting automatic adjust-

ment of the length of the strap to your

size. The seat belt is stored automat-

ically when not in use.

Before and after use, ensure that the

seat belt is rolled up correctly.

The lower part of the strap must be

positioned as low as possible on the

pelvis.

The upper part must be positioned in

the hollow of the shoulder.

The inertia reels are ﬁtted with an au-

tomatic locking device which comes

into operation in the event of a colli-

sion or emergency braking. You can

release the device by pulling rapidly

on the strap and releasing it.

In order to be effective, a seat belt:

- must be tightened as close to the

body as possible,

- must restrain one adult only,

- must not bear any trace of cuts or

fraying,

- must be pulled in front of you with a

smooth movement, checking that it

does not twist,

- must not be transformed or modi-

ﬁed to avoid altering its perform-

ance.

In accordance with current safety

regulations, all repairs and checks

must be carried out by a PEUGEOT

dealer who guarantees that the work

is carried out correctly.

Have your seat belts checked regu-

larly by a PEUGEOT dealer and par-

ticularly if the straps show signs of

damage.

Clean the seat belt straps with soapy

water or a textile cleaning product,

sold by PEUGEOT dealers.

After folding or moving a seat or rear

bench seat, ensure that the seat belt

is positioned and rolled up correctly.

* According to model.

Recommendations for children:

- use a suitable child seat if the pas-

senger is less than 12 years old or

shorter than one metre ﬁfty,

- do not use the strap-guide* when a

child seat is installed.

- never use the same seat belt to se-

cure more than one person,

- never allow a child to travel on your

lap.

Depending on the nature and se-

riousness of the impacts, the pre-

tensioning device may be triggered

before and independently of the air

bags.

In all cases, the air bag warning light

comes on.

Following an impact, have the seat

belts system checked, and if neces-

sary replaced, by a PEUGEOT deal-

er.

Access and starting

56 -

THE KEYS

The keys allow you to switch on the

ignition and operate the passenger

air bag disarming switch as well as to

independently operate the locks on

the doors and the fuel ﬁller cap.

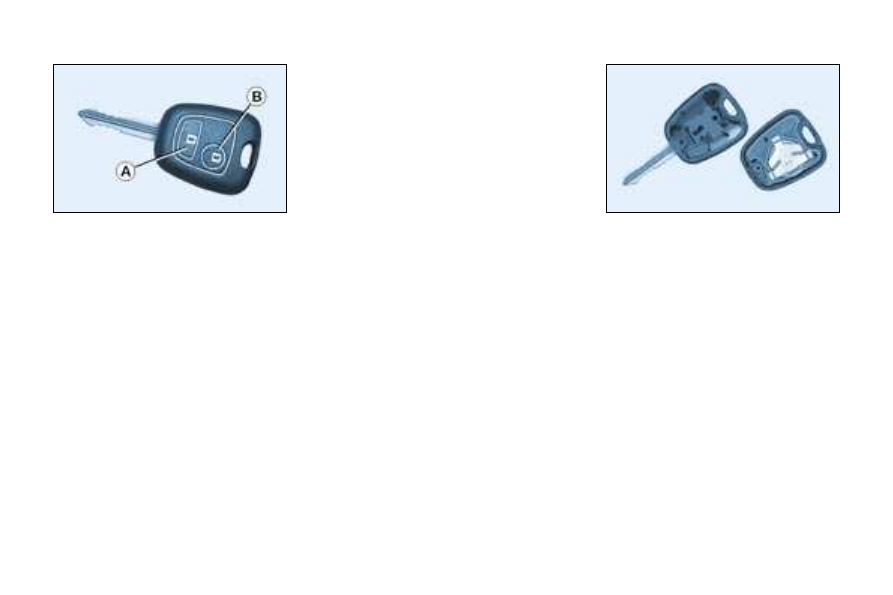

The remote control

Locking

Press button

A to lock the vehicle.

This is conﬁrmed by ﬁxed lighting of

the direction indicators for approxi-

mately two seconds.

Changing the battery of the

remote control

The information "battery ﬂat" is given

by an audible signal accompanied by

the message

"Remote control bat-

tery ﬂat" on the screen.

To change the battery, unclip the cas-

ing using a coin at the ring (CR 2016/

3 volt battery).

If the remote control does not work

after the battery has been changed,

re-programme the remote control.

Programming the remote

control



Switch off the ignition.



Switch the ignition on again.



Press button

A immediately for a

few seconds.



Switch off the ignition and remove

the remote control key from the ig-

nition lock. The remote control is

now working again.

Locating your vehicle

To locate your vehicle, if you have

locked it, in a car park:


press button

A, the courtesy lights

come on and the direction indica-

tors ﬂash for a few seconds.

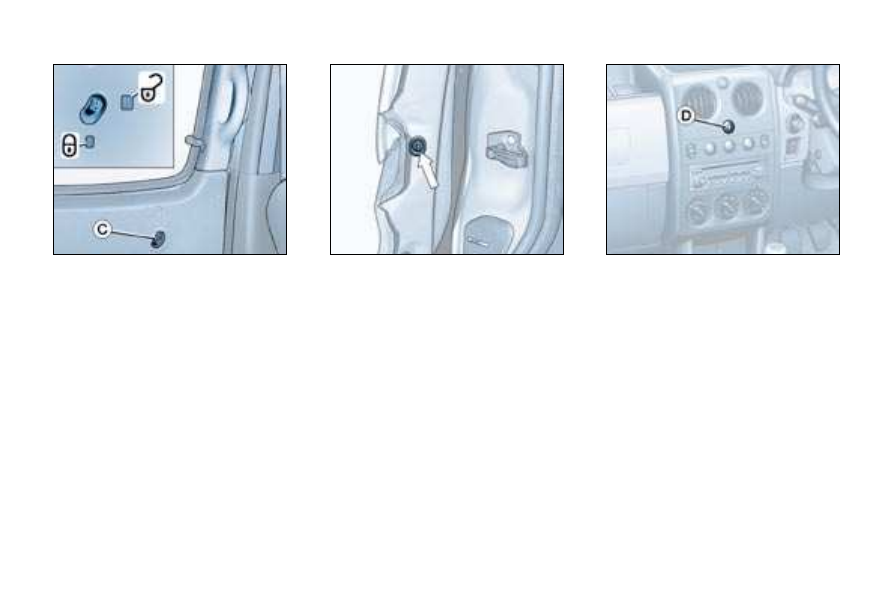

Central locking

From the front doors, the keys allow

you to lock and unlock the doors and

tailgate.

If one of the doors or the tailgate is

open, the central locking does not

work.

The remote control performs the

same functions at a distance.

Unlocking

Press button

B to unlock the vehicle.

This is conﬁrmed by rapid ﬂashing of

the direction indicators.

Note: if the vehicle is locked and

unlocking is activated inadvertently,

unless the doors are opened within

30 seconds, the vehicle will lock au-

tomatically.

Access and starting -

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control sys-

tem as soon as the ignition has been

switched off and therefore prevents

starting of the vehicle by anyone who

does not have the key.

The ignition key has an electronic chip

which has a special code. When the

ignition is switched on, the code must

be recognised for the vehicle to start.

If the system does not function

correctly, the central locking button

indicator light, situated in the centre

of the fascia, ﬂashes rapidly when the

ignition is switched on (2nd notch),

accompanied by an audible signal

and a message on the multifunction

display.

In this case your vehicle will not

start.

Contact a PEUGEOT dealer as soon

as possible.

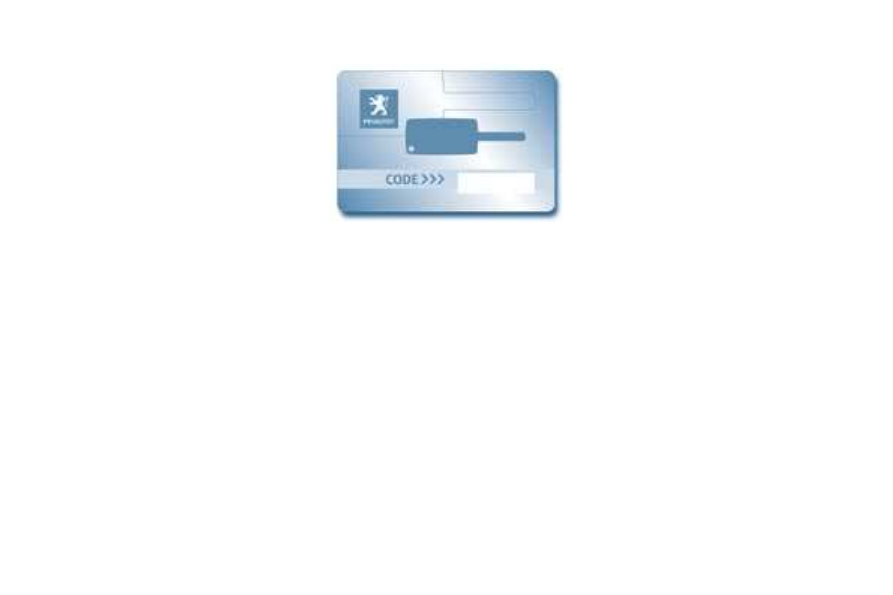

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

Key in ignition

A buzzer sounds on opening the

driver’s door, if the key has been left

in the ignition.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Depending on the circumstances,

your PEUGEOT dealer will be able

to carry out the work more efﬁciently

and more quickly if you give him this

conﬁdential card:

- if the keys are lost, if you have

made a note of the number coded

on the label attached to the key.

- if the anti-theft socket is lost (alloy

wheels), if you have made a note of

the code etched on the head of the

socket.

Access and starting

58 -

Make a careful note of the

number of each key. This

number is coded on the label

attached to the key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.

The high frequency remote control is

a sensitive system; do not operate it

while it is in your pocket as there is a

possibility that it may unlock the vehi-

cle, without you being aware of it.

The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off, ex-

cept for reprogramming.

Driving with the doors locked may

make access to the passenger com-

partment by the emergency services

more difﬁcult in an emergency.

As a safety precaution (with children

on board), remove the key from the

ignition when you leave the vehicle,

even for a short time.

Do not repeatedly press the buttons

of your remote control out of range of

your vehicle.

You run the risk of stopping it from

working and the remote control would

have to be reprogrammed.

When purchasing a second-hand ve-

hicle:

- ensure that you are given the conﬁ-

dential card;

- have the key codes memorised by a

PEUGEOT dealer, to ensure that the

keys in your possession are the only

ones which can start the vehicle.

Do not make any modiﬁcations to the

electronic engine immobiliser sys-

tem.

Access and starting -

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control sys-

tem as soon as the ignition has been

switched off and therefore prevents

starting of the vehicle by anyone who

does not have the key.

The ignition key has an electronic chip

which has a special code. When the

ignition is switched on, the code must

be recognised for the vehicle to start.

If the system does not function

correctly, the central locking button

indicator light, situated in the centre

of the fascia, ﬂashes rapidly when the

ignition is switched on (2nd notch),

accompanied by an audible signal

and a message on the multifunction

display.

In this case your vehicle will not

start.

Contact a PEUGEOT dealer as soon

as possible.

CONFIDENTIAL CARD

This is given to you on delivery of

your vehicle with the duplicate keys.

It contains the identiﬁcation code

necessary for any work carried out

by a PEUGEOT dealer on the elec-

tronic immobiliser system. This code

is hidden by a ﬁlm, which should be

removed only if necessary.

Keep your card in a safe place,

never inside the vehicle.

Key in ignition

A buzzer sounds on opening the

driver’s door, if the key has been left

in the ignition.

When undertaking a long trip or jour-

ney, however, it is advisable to take

it with you along with your personal

papers.

Depending on the circumstances,

your PEUGEOT dealer will be able

to carry out the work more efﬁciently

and more quickly if you give him this

conﬁdential card:

- if the keys are lost, if you have

made a note of the number coded

on the label attached to the key.

- if the anti-theft socket is lost (alloy

wheels), if you have made a note of

the code etched on the head of the

socket.

Access and starting

58 -

Make a careful note of the

number of each key. This

number is coded on the label

attached to the key.

If the keys are lost, your PEUGEOT

dealer can rapidly supply you with

new keys.

The high frequency remote control is

a sensitive system; do not operate it

while it is in your pocket as there is a

possibility that it may unlock the vehi-

cle, without you being aware of it.

The remote control does not operate

when the key is in the ignition, even

when the ignition is switched off, ex-

cept for reprogramming.

Driving with the doors locked may

make access to the passenger com-

partment by the emergency services

more difﬁcult in an emergency.

As a safety precaution (with children

on board), remove the key from the

ignition when you leave the vehicle,

even for a short time.

Do not repeatedly press the buttons

of your remote control out of range of

your vehicle.

You run the risk of stopping it from

working and the remote control would

have to be reprogrammed.

When purchasing a second-hand ve-

hicle:

- ensure that you are given the conﬁ-

dential card;

- have the key codes memorised by a

PEUGEOT dealer, to ensure that the

keys in your possession are the only

ones which can start the vehicle.

Do not make any modiﬁcations to the

electronic engine immobiliser sys-

tem.

Access and starting -

FRONT DOORS AND SLIDING

SIDE DOORS

Front doors

Side doors

Opening the doors from inside

Front doors

The driver’s door opening control

permits complete unlocking of the

vehicle.
Locking/Unlocking from the

inside
Front doors

To lock, lower button

Locking one of the front doors per-

mits complete locking of the vehicle.

To unlock and open, lift button

A and

pull the handle towards you.

The driver’s door opening control

permits complete unlocking of the

vehicle.

Opening the doors from outside

Sliding side doors

From the inside, the sliding side door is

opened and closed using the handle.

A point of resistance at the end of the

opening travel holds the door in the

open position.

If the fuel tank cap is removed,

the right-hand side door can-

not be opened.

Access and starting

60 -

Locking from the inside

Lower or raise control

C to lock or un-

lock from the inside.

Side door child lock

This prevents opening of the side

door from the inside.

Turn the control a quarter turn using

the ignition key.

Locking from the inside

Pressing control

D operates the

central locking, when the doors are

closed.

Unlocking from the inside

Press control

It is

always possible to open the

doors from the inside.

Notes:

- doors locked and ignition off: the in-

dicator light ﬂashes,

- doors locked and ignition on: the in-

dicator light remains on.

Access and starting -

Automatic central locking

Your vehicle can lock automatically

while driving (speed greater than

6 mph (10 km/h)). You can activate

or deactivate this function.

LOCKING/UNLOCKING THE

TAILGATE

To open the tailgate, operate the

handle

A and lift it.

You can unlock the tailgate by insert-

ing the key in the lock

REAR DOORS

Opening the doors from outside

To open, pull the rear right door handle

C towards you and open the rear left

door by pulling the lever

D on the in-

side.

You can unlock the rear doors by in-

serting the key in the lock

Activation

Press and hold control

Activation of the function is accompa-

nied by an audible signal and a mes-

sage on the multifunction display.

Deactivation

Press and hold control

Deactivation of the function is ac-

companied by an audible signal.

Access and starting

60 -

Locking from the inside

Lower or raise control

C to lock or un-

lock from the inside.

Side door child lock

This prevents opening of the side

door from the inside.

Turn the control a quarter turn using

the ignition key.

Locking from the inside

Pressing control

D operates the

central locking, when the doors are

closed.

Unlocking from the inside

Press control

It is

always possible to open the

doors from the inside.

Notes:

- doors locked and ignition off: the in-

dicator light ﬂashes,

- doors locked and ignition on: the in-

dicator light remains on.

Access and starting -

Automatic central locking

Your vehicle can lock automatically

while driving (speed greater than

6 mph (10 km/h)). You can activate

or deactivate this function.

LOCKING/UNLOCKING THE

TAILGATE

To open the tailgate, operate the

handle

A and lift it.

You can unlock the tailgate by insert-

ing the key in the lock

REAR DOORS

Opening the doors from outside

To open, pull the rear right door handle

C towards you and open the rear left

door by pulling the lever

D on the in-

side.

You can unlock the rear doors by in-

serting the key in the lock

Activation

Press and hold control

Activation of the function is accompa-

nied by an audible signal and a mes-

sage on the multifunction display.

Deactivation

Press and hold control

Deactivation of the function is ac-

companied by an audible signal.

Access and starting -

Automatic central locking

Your vehicle can lock automatically

while driving (speed greater than

6 mph (10 km/h)). You can activate

or deactivate this function.

LOCKING/UNLOCKING THE

TAILGATE

To open the tailgate, operate the

handle

A and lift it.

You can unlock the tailgate by insert-

ing the key in the lock

REAR DOORS

Opening the doors from outside

To open, pull the rear right door handle

C towards you and open the rear left

door by pulling the lever

D on the in-

side.

You can unlock the rear doors by in-

serting the key in the lock

Activation

Press and hold control

Activation of the function is accompa-

nied by an audible signal and a mes-

sage on the multifunction display.

Deactivation

Press and hold control

Deactivation of the function is ac-

companied by an audible signal.

Content .. 2 3 4 5 ..
