Peugeot M59 (2012 year). Manual - part 1

Handbook

You can fi nd your user guide on the PEUGEOT website, under

the heading "Personal space".

Referring to the user guide on-line also gives you access

to the latest information available, easily identifi ed by the

bookmarks, associated with this pictogram:

If the heading "Personal space" is not available on the public website

for your country, you can fi nd your user guide at the following address:
http://public.servicebox.peugeot.com

the link in "Private customer access",

the language,

the model,

the edition date appropriate for the date of registration of your vehicle.

Please note the following point:
The fi tting of electrical equipment or accessories which are not

recommended by PEUGEOT may result in a failure of your

vehicle's electronic system. Please note this specifi c warning.

It is advisable to contact a PEUGEOT dealer to be shown

the recommended equipment and accessories.

Select:

You will fi nd your user guide, presented in the same way as the paper version.

Consulting your "Handbook" should

enable you to adjust the equipment

and confi gurations available on your

vehicle for optimum comfort and driv-

ing conditions.

Key

This key will allow you to distinguish

the special features of your vehicle:

Key

this symbol marks warnings

which it is essential to ob-

serve for your own safety,

for the safety of others or

to avoid any risk of damaging your

vehicle.

this symbol invites you to

refer to the pages which pro-

vide details of the function.

Welcome

PEUGEOT thanks you for your trust

and wishes you many pleasant jour-

neys.

Light van

Ludospace (4/5 seat versions)

Your vehicle is fi tted with only some

of the equipment described in this

document, depending on its trim lev-

el, version and the specifi cation for

the country in which it was sold.

Warning:

Page reference:

For any work on your vehicle, use

a qualifi ed workshop that has the

technical information, competence

and equipment required, which a

PEUGEOT dealer is able to provide.

CONTENTS

2 -

54 - 57

VISIBILITY

Lights 54
Windscreen wiper stalk

Electric windows

Rear windows

Exterior mirrors

Interior mirror

34 - 45

SEATS

Front seats

Rear bench seat

(4/5 seat versions)

Child seats

Locations for child seats

attached with the seat belt

ISOFIX mountings

ISOFIX child seat

Seat belts

46 - 53

ACCESS AND STARTING

Keys 46
Alarm 48
Front and side doors

Rear doors

Opening the bonnet

Filling with fuel

4 - 18

FAMILIARISATION

19 - 27

INSTRUMENTS, CONTROLS AND DISPLAYS

Instrument panel

Warning lamps

Temperature indicator

Service indicator

Instrument panel display

Distance recorder zero reset 26
Lighting rheostat

Clock 26
Display A

28 - 33

COMFORT

Ventilation 28
Heating 30
Air conditioning

Eco-driving 17

CONTENTS -

98 - 109

TECHNICAL DATA

Dimensions 98
Engines 102
Light van weights and loads 105
Ludospace weights

and loads

107

Identifi cation features

109

118 - 122

VISUAL INDEX

58 - 63

COMFORT AND SAFETY

Front fi ttings

Courtesy lamps

Headlamp adjustment

Steering wheel adjustment

Lashing rings

Rear fi ttings

64 - 71

DRIVING

Handbrake 64
ABS and EBFD systems

Speed limiter

Cruise control

Airbags 69

72 - 97

PRACTICAL INFORMATION

Under the bonnet

Levels 77

Checks 78

Changing a wheel

Changing a bulb

Changing a fuse

Battery 92

Energy economy mode

Fitting audio equipment, speakers 93

Snow screen

Towing 95

Towing a trailer

Accessories 97

110 - 117

AUDIO EQUIPMENT

RD3 audio system

110

FAMILIARISATION

4 -

FAMILIARISATION -

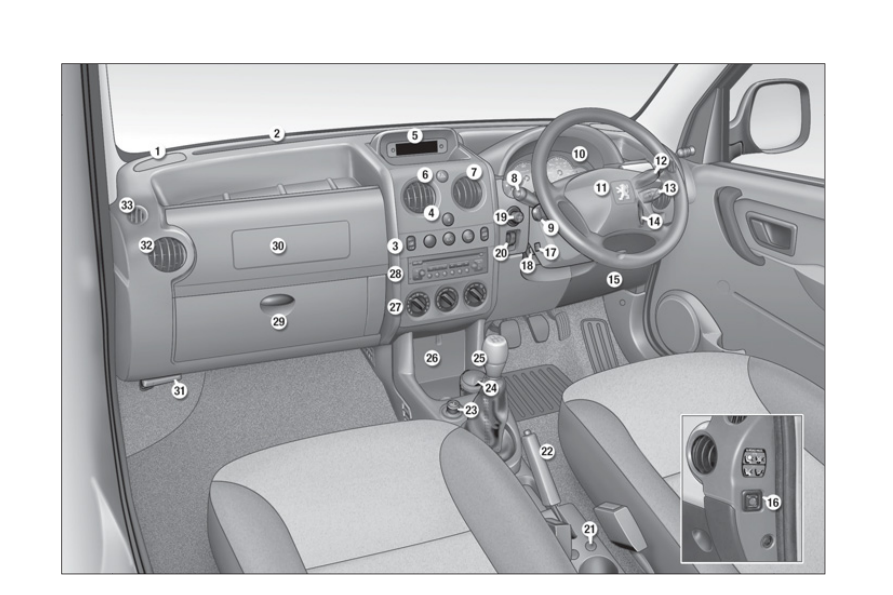

INSTRUMENTS AND CONTROLS

11. Driver’s airbag.
Horn.
12. Wiper/screenwash controls.

13. Audio system steering mounted

controls.

14. Steering lock and ignition.

15. Fusebox.

16. Passenger’s airbag deactivation

switch.

17. Alarm.

18. Steering wheel adjustment

control.

19. Passenger’s electric mirror

control.

20. Headlamp height adjustment.

21. Heated seats control.

22. Parking brake.

23. Cigarette lighter.

24. Portable ashtray.

25. Gear lever.

26. Storage compartment.

27. Heating/air conditioning controls.

28. Audio system.

29. Lower glove box.

30. Upper glove box or passenger’s

airbag.

31. Bonnet release lever.

32. Side adjustable heating/

ventilation vents.

33. Door window demisting vents.

1. Speaker (tweeter).

2. Windscreen demisting vents.

3. Controls:

   -  Electric windows.
  -   Rear door windows demisting.
  -  Air conditioning.

4. Central locking button.

5. Multifunction screen or clock.

6. Hazard warning lamps switch.

7. Central adjustable heating/

ventilation vents.

8. Lighting and direction indicator

control stalk.

9. Speed limiter/cruise control

switches.

10. Instrument panel.

FAMILIARISATION

6 -

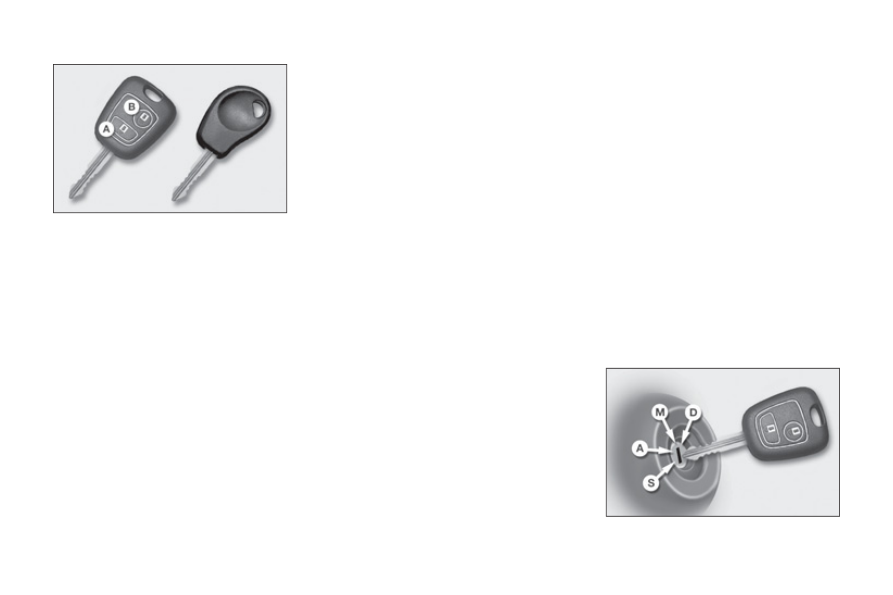

KEYS

The keys allow you to switch on the

ignition and operate the passenger’s

airbag deactivation switch, as well as

to independently operate the locks

on the doors and the fuel fi ller cap.

Remote control

Central locking
From the front doors, the keys allow

you to lock and unlock the doors and

tailgate.
If one of the doors or the tailgate is

open, the central locking does not

operate.
The remote control performs the

same functions at a distance.

Unlocking
Press button B to unlock the vehicle.
This is confi rmed by rapid fl ashing of

the direction indicators.

Locating the vehicle
To locate your vehicle, previously

locked, in a car park:
) press button

A , the courtesy

lamps come on and the direction

indicators fl ash for a few sec-

onds.

  Locking
Press button A  to lock the vehicle.
This is confi rmed  by  fi xed lighting of

the direction indicators for approxi-

mately two seconds.

STOP position (S):
The ignition is off.
To release the steering, turn the

steering wheel slightly while turning

the key, without forcing it.

Accessories position (A):
The ignition is off but various sys-

tems can be used.

On position (M):
The ignition is on.

Starting position (D):
Operates the starter.
Release the key when the engine

has started. Never operate the start-

er while the engine is running.

STARTING

FAMILIARISATION -

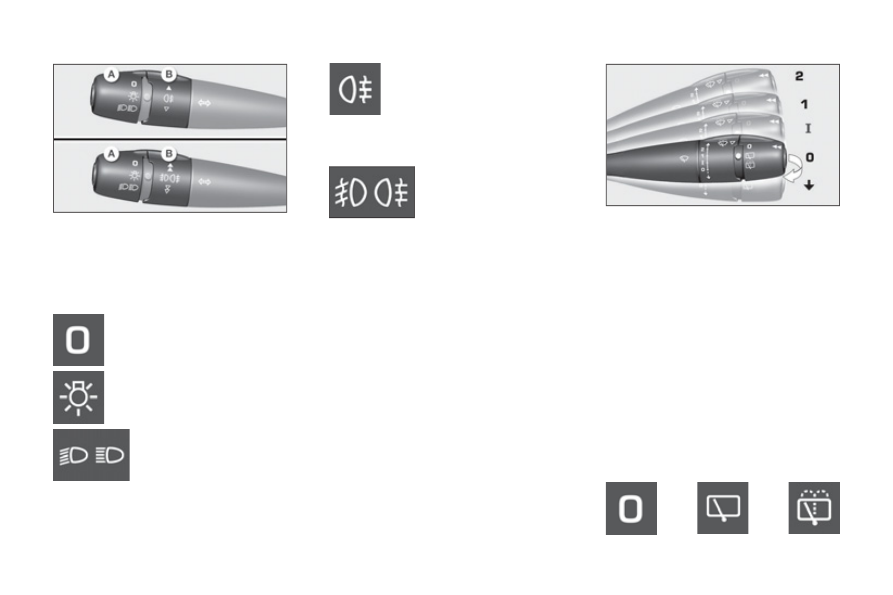

WIPERS

STEERING MOUNTED

CONTROLS

LIGHTING

Front foglamps (1st turn of the ring

forwards).
Front foglamps and rear foglamp

(2nd turn of the ring forwards).
To switch off: turn the ring rear-

wards.

Lighting off

Sidelamps

Dipped/main beam head-

lamps

Vehicles fi tted with a rear

foglamp (ring B)

Turn the ring forwards.

Vehicles fi tted with

front foglamps and

a rear foglamp

(ring B)

Off

Wash-

wipe

Intermittent

wipe

Rear

Front and rear lamps (ring A)

  Front
  2   Rapid wipe (heavy rain).
  1   Normal wipe (moderate rain).
  I  Intermittent

wipe.

0 Off.
È Single wipe.

Screenwash: pull the stalk towards you.

FAMILIARISATION

8 -

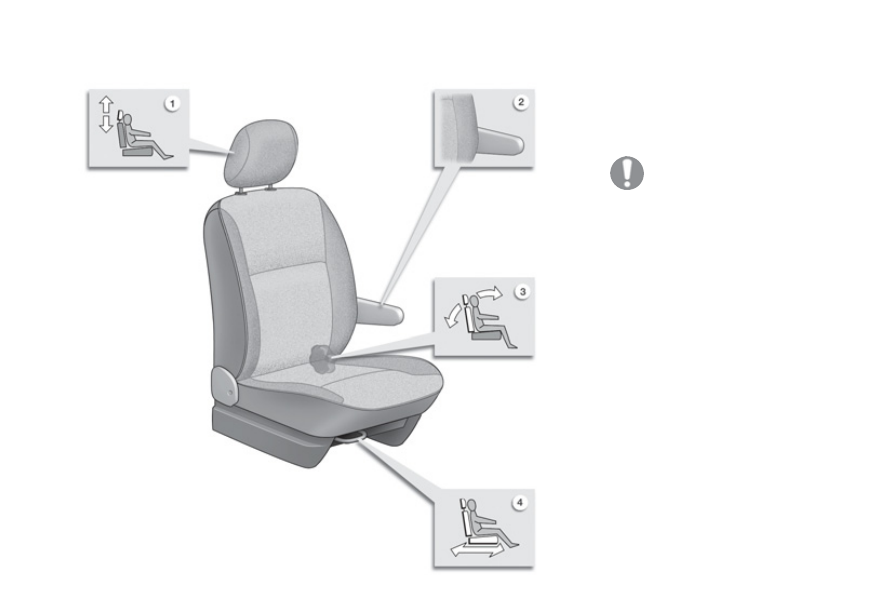

FRONT SEATS

Never travel with the head

restraints removed.

  2.  Armrest.
  3.   Seat back angle adjustment.
  4.  Forwards-backwards

adjustment.

1. Head restraint height adjust-

ment.

FAMILIARISATION -

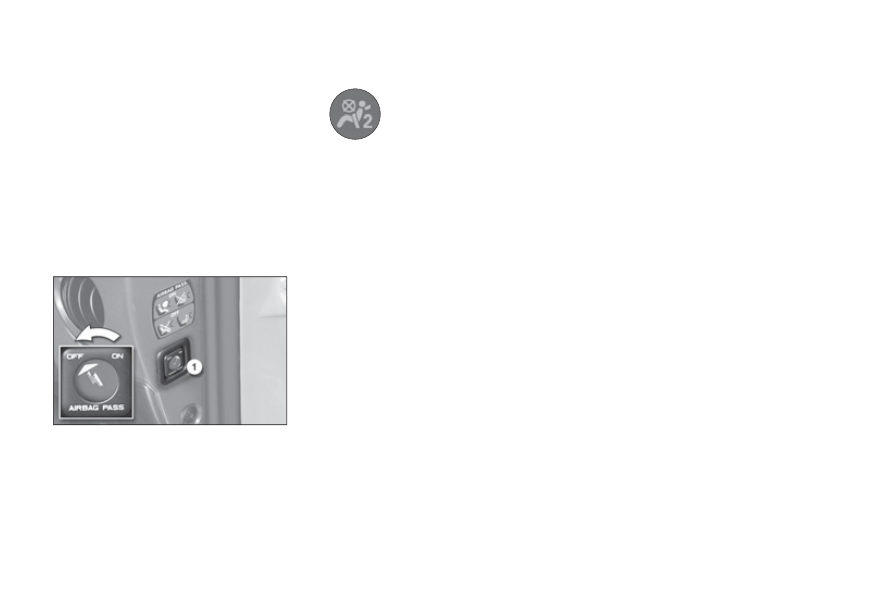

Deactivating the passenger’s

airbag
) With the ignition off , insert the

ignition key into the passenger’s

airbag switch 1 and turn it to the

"OFF" position.

) As soon as you remove the child

seat, turn the airbag switch to the

"ON" position to activate the air-

bag again.

Deactivation check

With the ignition switched on

(2 nd notch), illumination of

this warning lamp indicates

that the passenger’s airbag

is deactivated (switch in the

"OFF" position).

The warning lamp remains on until

the airbag is activated again.

Front airbags

These are fi tted in the centre of the steering

wheel for the driver and in the dashboard

for the front passenger. They are deployed

simultaneously, except in cases where the

passenger’s airbag is deactivated.

Precautions regarding the

passenger’s airbag
) Deactivate the airbag if you install

a rear-facing child seat,

) Activate the airbag for an adult

passenger.

Lateral airbags *

The lateral airbags are fi tted into the

front seat backrest frame, on the

door side.
They are deployed independently of

each other, on whichever side the

collision occurs.

AIRBAGS

* According to version.

FAMILIARISATION

10 -

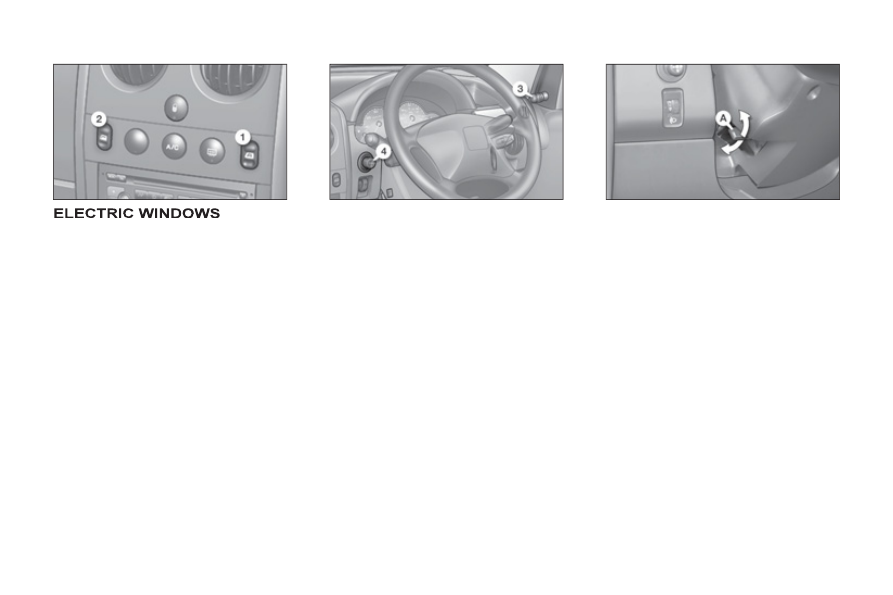

STEERING WHEEL HEIGHT

ADJUSTMENT

) When stationary, push the control

A forwards to release the steering

wheel adjustment mechanism.

) Adjust the height of the steering

wheel.

) Lock the steering wheel adjust-

ment it by pulling control

A to-

wards you fully.

1. Driver’s electric window.
2. Passenger’s electric window.

DOOR MIRRORS

) Move the manual control 3 in all

four directions to adjust.

Electric control for the

passenger’s side mirror

) From the driver’s seat, adjust in

all four directions by operating

the control 4 .

Manual mode:
) Press the switch. The window

stops as soon as the switch is re-

leased.

Automatic mode (driver):
) Press and hold the switch. One

touch completely opens or closes

the window.

FAMILIARISATION -

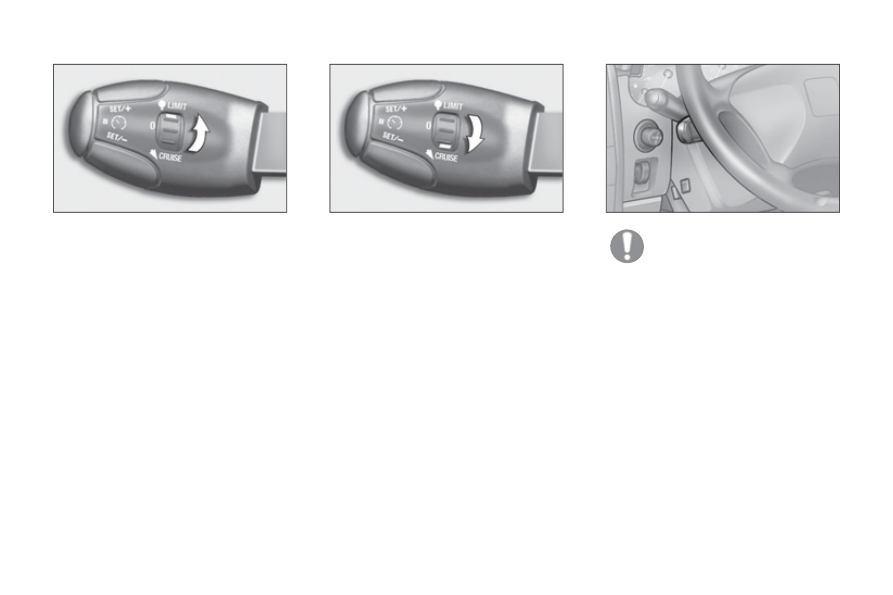

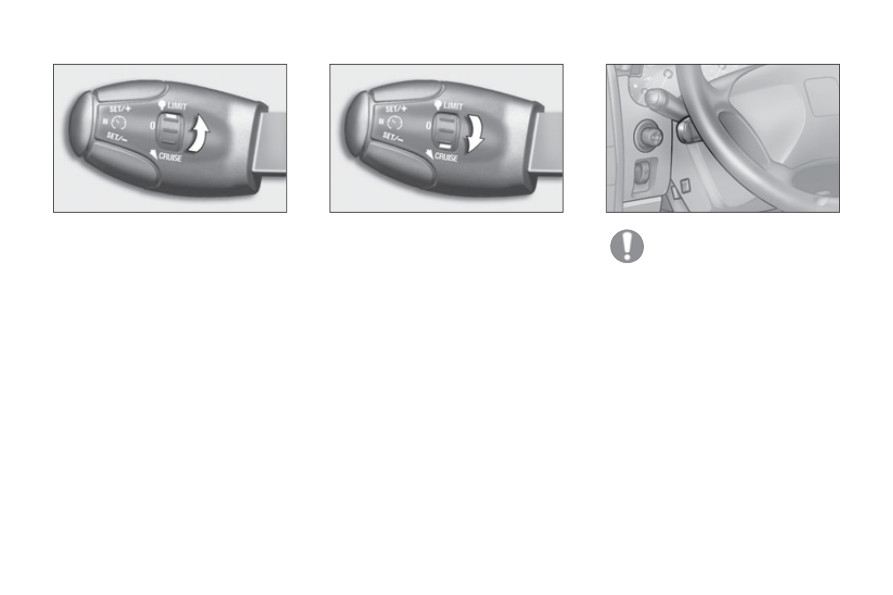

SPEED LIMITER *

CRUISE CONTROL *

If the vehicle is fi tted with

a speed limiter and cruise

control, these functions can-

not both be activated at the

same time.

This limiter indicates the status of

selection of the function on the in-

strument panel and displays the

programmed speed. The minimum

speed which can be programmed is

at least 18 mph (30 km/h).
It prevents exceeding of the speed

programmed by the driver, this func-

tion remains active regardless of any

action on the brake or clutch pedals.

On the other hand, pressing the ac-

celerator pedal to the point of resist-

ance does not have any effect.
It is possible to exceed the pro-

grammed speed temporarily by

pressing the accelerator fi rmly be-

yond this point of resistance.
The operating actions must be car-

ried out with the engine running.

The cruise control has a display on

the instrument panel to indicate the

programmed reference speed.
It enables the vehicle to maintain the

reference speed programmed by the

driver.
In order for it to be programmed or

activated, the vehicle speed must be

greater than 25 mph (40 km/h) with

at least fourth gear engaged.

* According to version.

FAMILIARISATION

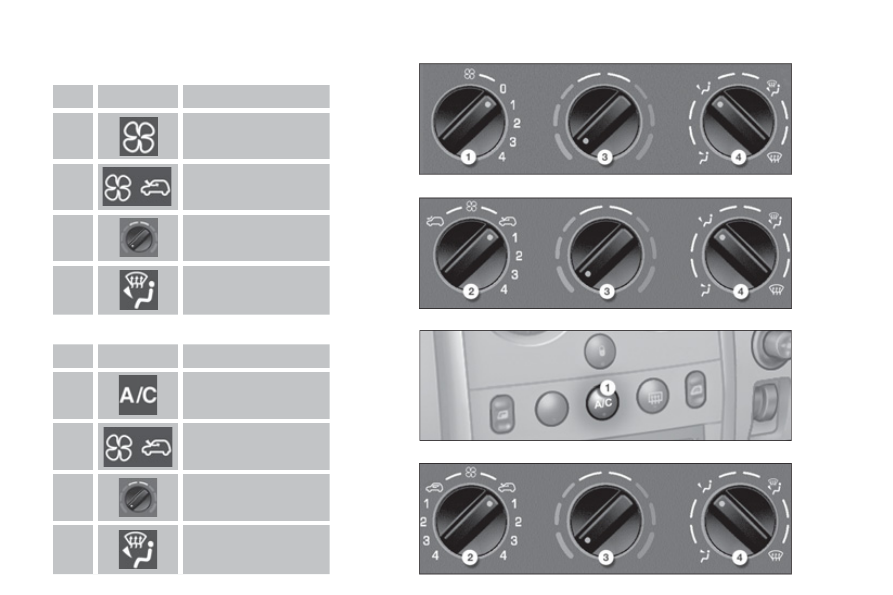

12 -

N°

Symbol

Function

Air fl ow adjustment.

Air fl ow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

N°

Symbol

Function

Air conditioning

control.

Air fl ow adjustment

and air intake

control.

Temperature

adjustment.

Air distribution

adjustment.

HEATING

AIR CONDITIONING

FAMILIARISATION -

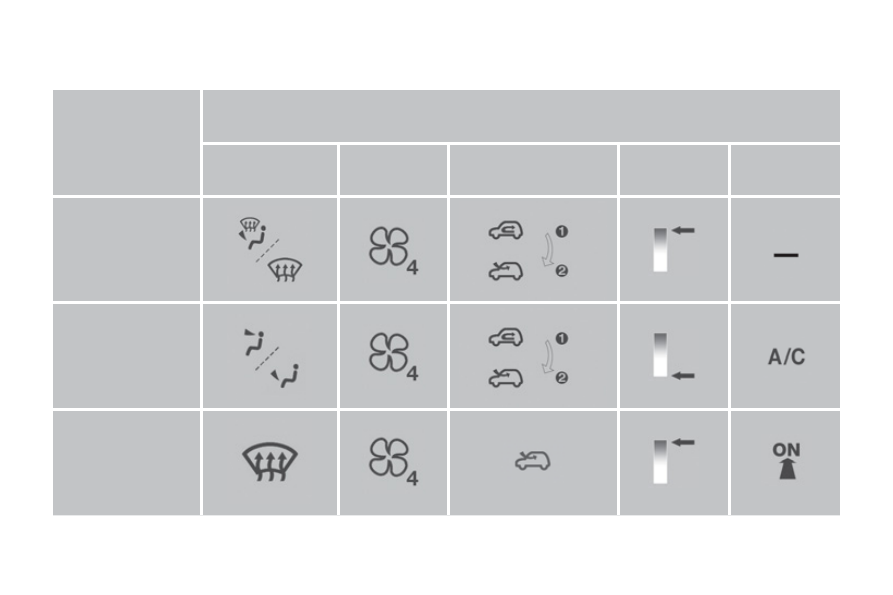

RECOMMENDED INTERIOR SETTINGS

I require...

Heating or Manual air conditioning

Air distribution

Air fl ow

Air recirculation/

Intake of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

FAMILIARISATION

14 -

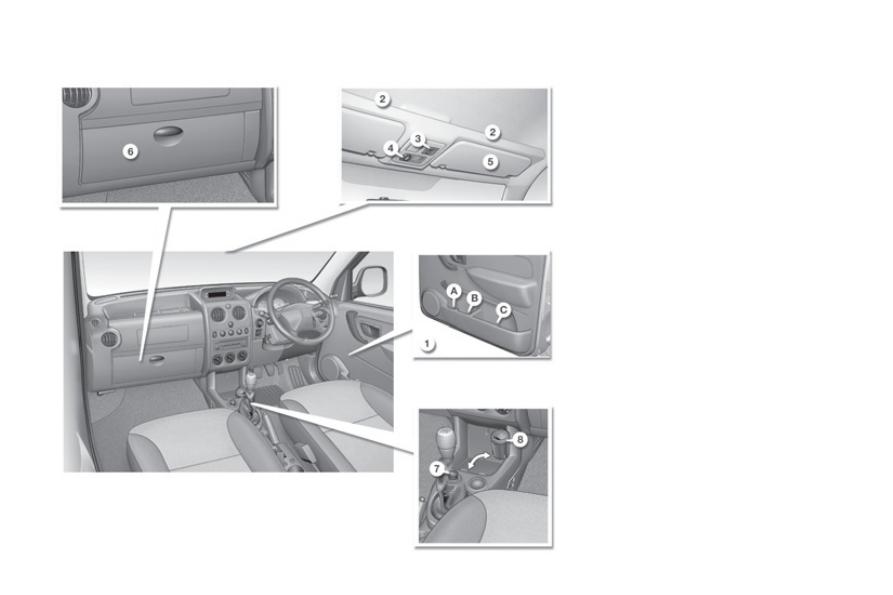

FRONT FITTINGS

1. Storage compartments in the doors.

   A.  Bottle  holder.
  B.  Cup  holder.
  C.  Storage  compartment.

2. Overhead storage.

3. Map reading lamp.

4. Courtesy lamp.

5. Sun visors.

6. Glove box.

7. Cigarette lighter.

8. Removable ashtray.

58-59

Content .. 1 2 3 ..
