Peugeot iOn (2017 year). Manual - part 1





Peugeot Ion

Handbook

On-line handbook

Select one of the following means of access to view your handbook
on-line...

Referring to the handbook on-line also gives you access to the latest
information available, easily identified by the bookmark, associated
with this symbol:

If the "MyPEUGEOT" function is not available on the PEUGEOT
public website for your country, you can find your handbook at
the following address:
http://public.servicebox.peugeot.com/ddb/

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.

Select:

Find your handbook on the PEUGEOT website, under "MyPEUGEOT".

Scan this code for direct access to your handbook.

This personal space offers advice and other useful information for the
care and maintenance of your vehicle.

Key

This handbook describes all of the equipment available in the whole
range.

Your vehicle will be fitted with some of the equipment described in this
document, depending on its trim level, version and the specification for
the country in which it is sold.

The descriptions and illustrations are given without any obligation.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the handbook.

This document is an integral part of your vehicle. It should be passed on
to the new user in the event of sale or transfer.

Welcome

Thank you for choosing an ION, a symbol of confidence, passion and
inspiration.

safety warning

contributes to the protection of the
environment

additional information

ION is the first 100% electric vehicle for PEUGEOT, with 0%
pollutant emissions when driving and particularly quiet.
This handbook has been designed to enable you to make the
most of your ION in all circumstances.

Overview

4

Ion_en_Chap00b_vue-ensemble_ed01-2016

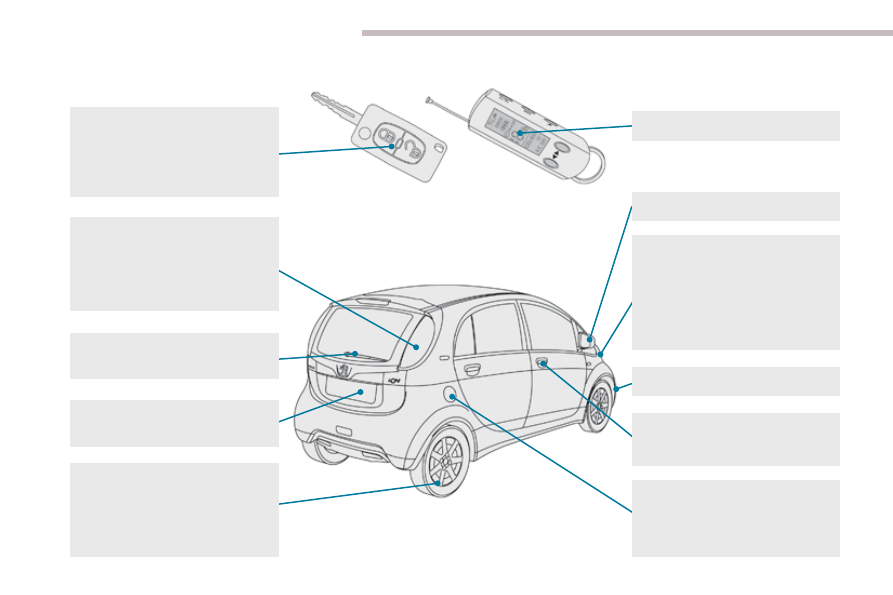

Exterior

Remote control key

25-27

-  unfolding / folding the key
-  unlocking / locking the vehicle
-  anti-theft protection
Starting - Stopping the vehicle

88

Lighting 53-55
Headlamp height adjustment

56

Changing bulbs

126-131

-  front lamps
- foglamps
-  daytime running lamps
-  direction indicator repeaters

Wipers 56-57
Changing a wiper blade

112

Door mirrors

36

Doors 28
-  opening / closing
Electric windows

30

Charging flaps

31

Charging the main battery

97-105

- normal
- fast

ABS, EBFD, EBA, ASR, ESP

63-65

Tyre pressures

143

Under-inflation detection

92-95

Changing a wheel

121-124

Snow chains

125

Boot 29
-  opening / closing

Changing bulbs

131-133

-  rear lamps
- 3

rd

 brake lamp

-  number plate lamps
- foglamp

Towing 139

Remote control

47-52

.

Overview

5

Ion_en_Chap00b_vue-ensemble_ed01-2016

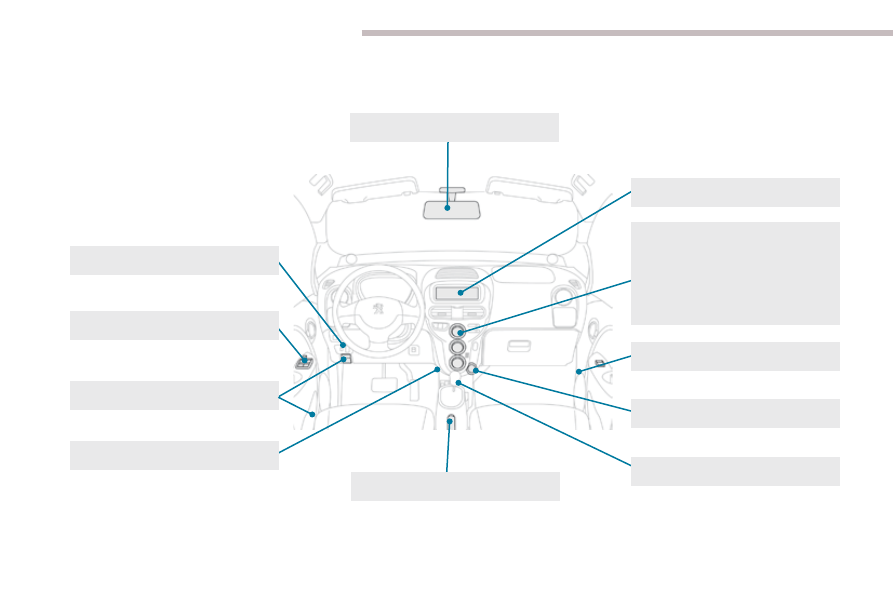

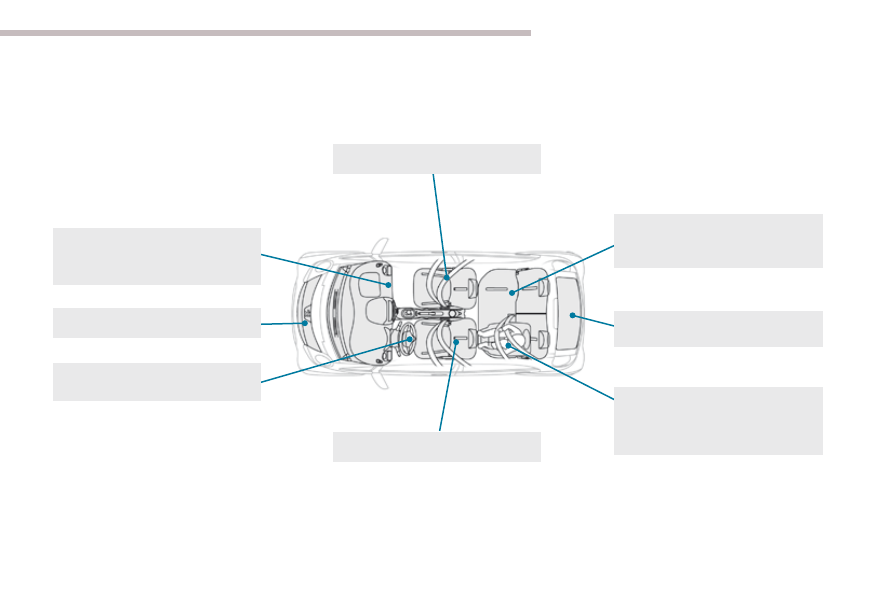

Interior

Rear compartment

108

Front compartment

107

Seat belts

67-69

Rear seats

34-35

Temporary puncture

repair kit

117-120

Mats 39
Airbags 70-73

Front seats

32-34

Child seats

74-82

ISOFIX mountings

83

ISOFIX child seats

84-85

Child lock

86

Interior fittings

38-40

Deactivating the passenger's

front airbag

71

Overview

6

Ion_en_Chap00b_vue-ensemble_ed01-2016

Electric windows

30

Dashboard fuses

134-136

Ventilation 41-42
Heating 43-45
Air conditioning

43-45

Front demist / defrost

46

Rear screen demist /

defrost 46

12 V accessory socket

39

Parking brake

89

Rear view mirror

37

PEUGEOT Connect USB

40

Opening the bonnet

106

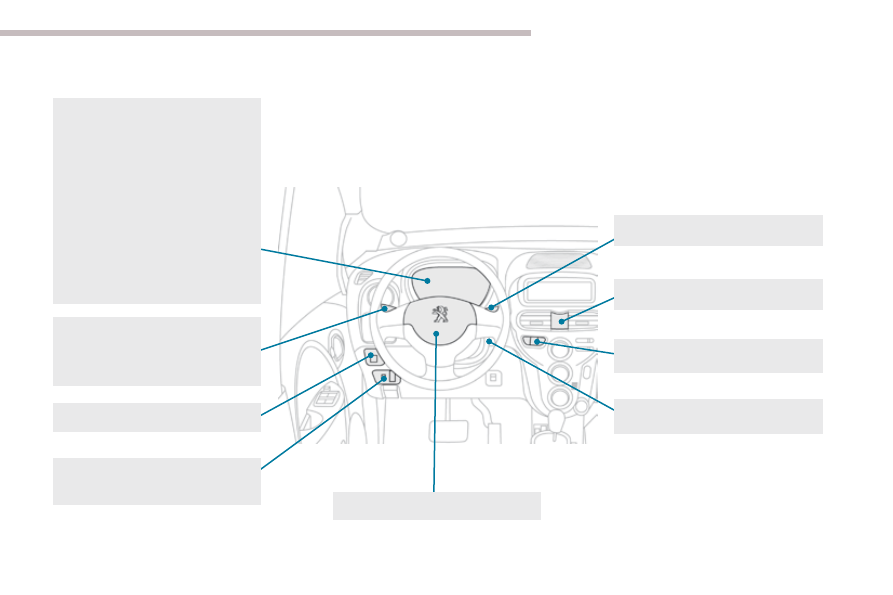

Instruments and controls

Opening the charging flaps

31

Audio system

145-162

Drive selector

90-91

.

Overview

7

Ion_en_Chap00b_vue-ensemble_ed01-2016

Instruments and controls (continued)

Lighting control

53-55

Direction indicators

55

Automatic operation of

brake lamps

59

Instrument panels

10

Warning lamps

11-18

Indicators 19-24
-  main battery state of charge

indicator

-  energy consumption /

generation indicator

- speedometer
-  total distance recorder
-  trip distance recorder
-  lighting dimmer
-  service indicator
-  range indicator

Horn 59

Hazard warning lamps

59

Wiper control

56-57

Ignition switch, starting /

stopping the vehicle

88

Door mirrors

36

Emergency or

assistance call

61-62

Headlamp height adjustment

56

Pedestrian horn

60

Overview

8

Ion_en_Chap00b_vue-ensemble_ed01-2016

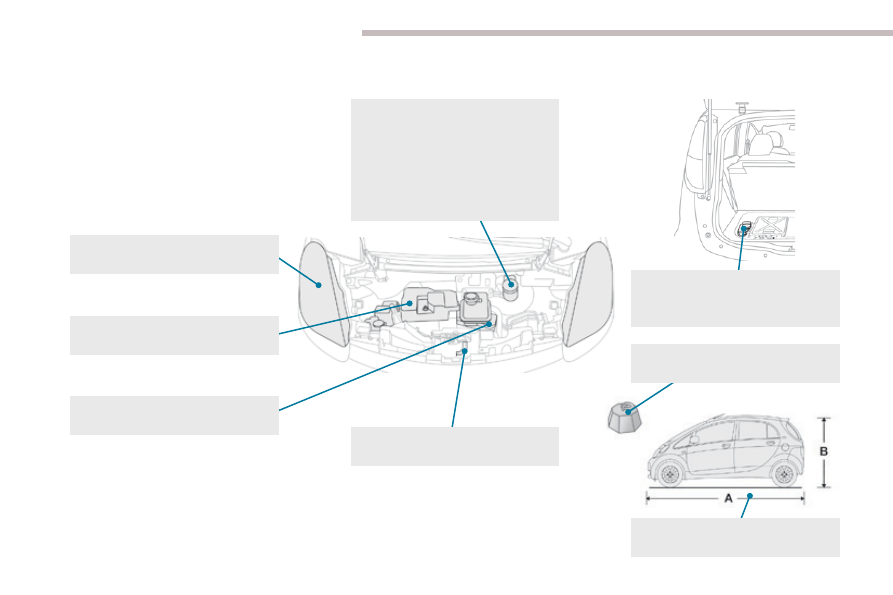

Technical data - Maintenance

Front compartment

107

Checking levels

109-110

-  12 V battery

electrolyte

-  brake fluid
-  heating system fluid
-  screenwash fluid
Checking components

111

Changing front bulbs

126-131

12 V battery

113-116

Opening the bonnet

106

Electric motor

140

Weights 141

Rear compartment

108

Checking the coolant

level 110

Front compartment

fuses

134, 137-138

Dimensions 142
Identification markings

143

.

Eco-driving

9

Ion_en_Chap00c_eco-conduite_ed01-2016

For more economical driving, and increased
range

Practical advice for everyday use to optimise the range of your vehicle by conserving battery power.

Adopt a smooth driving
style

The electrical consumption of your vehicle
depends greatly on your journey, your driving
style and your speed.
In all cases, adopt a smooth driving style.

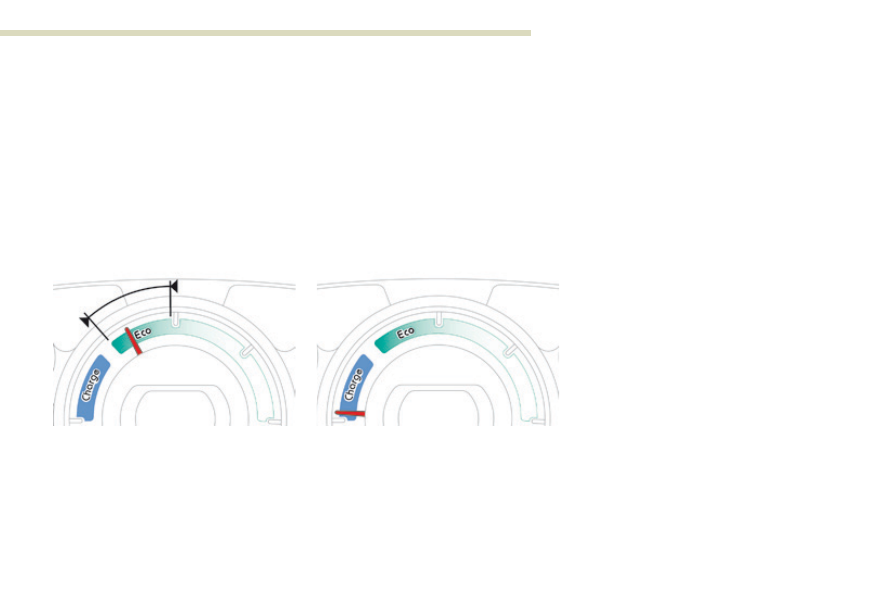

Stay in the "Eco" zone indicated in the energy
consumption / generation meter: depress
the accelerator pedal progressively, without
sudden movement, and if the conditions permit,
drive at steady and moderate speed.

Recover energy

Anticipating the driving conditions allows you to
recover energy and increase the range of your
vehicle.

Use the "Charge" zone of the energy
consumption / generation meter whenever
possible: anticipate the traffic slowing down
and if the conditions permit, use deceleration
rather than the brakes.

Control the use of your
electrical equipment

The heating and air conditioning systems
operate on energy from the main battery.
Excessive use of these systems greatly
reduces the range of your vehicle. Remember
to switch them off once the desired level of
comfort is reached and check their settings
every time you set off.
Control also the use of demisting / defrosting
and the heated seat.

Limit the causes of excess
consumption

As with any vehicle, limit the loads carried
in the vehicle and reduce wind resistance
(windows open above 30 mph (50 km/h), roof
bars, roof box, etc.).

Observe the recommendations
on maintenance

Check the tyre pressures regularly and
follow the schedule for routine servicing
recommended by PEUGEOT.

Instruments

10

Ion_en_Chap01_instruments-de-bord_ed01-2016

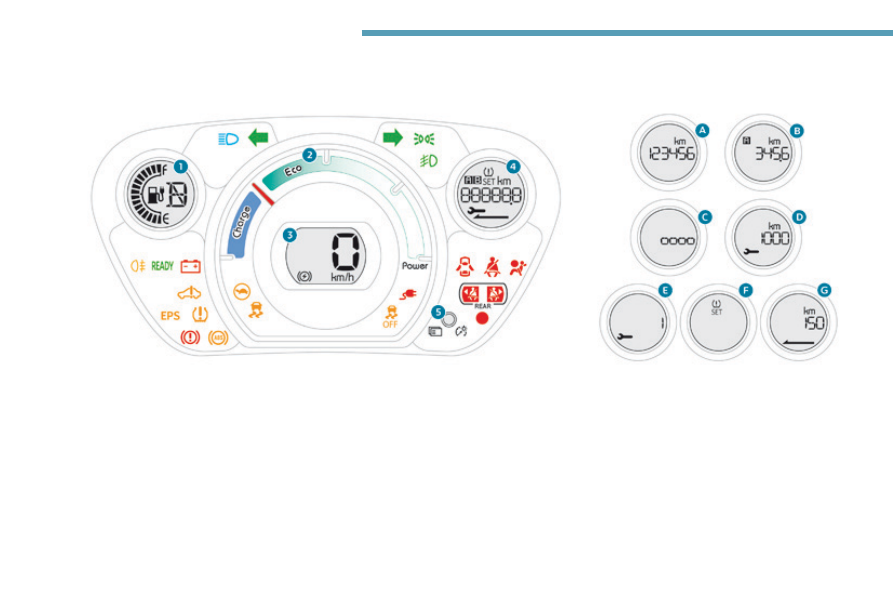

Instrument panel

Panel bringing together the various gauges and indicators for the operation of the vehicle.

1.  State of charge indicator for the main

battery.



Drive selector position indicator.

2.  Energy consumption / generation

indicator.

3.  Speedometer.


Temporary engine brake reduction
indicator.

A.  Total distance recorder.
B.  Trip distance recorder (Trip A or B).
C.  Instrument panel lighting dimmer.
D.  Distance remaining to the next service.
E.  Time remaining to the next service.
F.  Under-inflation detection.
G.  Remaining range.

4.  Screen.
5.  Screen control button.


Display the various functions in turn.



Reset the function selected (trip recorder
or service indicator).



Adjust the level of the lighting dimmer.

Gauges and indicators

Screen

1

Instruments

11

Ion_en_Chap01_instruments-de-bord_ed01-2016

Indicator and warning lamps

Visual indicators informing the driver that
a system is in operation, is deactivated or has
a fault.

Associated warnings

The illumination of certain warning lamps may
be accompanied by an audible signal.
The warning lamps may come on continuously
(fixed) or flash.

Certain warning lamps may come on in
one of two modes. Only by relating the
type of lighting to the operating status
of the vehicle can it be ascertained
whether the situation is normal or
whether a fault has occurred.

When the ignition is switched on

Certain warning lamps come on for a few
seconds when the vehicle's ignition is
switched on.
These same warning lamps go off after a
few seconds.
If you notice one of these warning lamps
remaining on, refer to the information on the
warning lamp in question.

Instruments

12

Ion_en_Chap01_instruments-de-bord_ed01-2016

Operation indicator lamps

Warning / indicator lamp

State

Cause

Action / Observations

Left-hand
direction indicator

Flashing with audible
signal.

The lighting stalk is pushed down.

Right-hand
direction indicator

Flashing with audible
signal.

The lighting stalk is pushed up.

Hazard warning
lamps

Flashing with audible
signal.

The hazard warning lamps switch,
located on the dashboard, has been
operated.

The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.

Sidelamps and/
or dipped beam
headlamps

On fixed.

The sidelamps and/or dipped beam
headlamps are on.

Front foglamps

On fixed.

The front foglamps are switched on.

Turn the ring on the stalk rearwards twice to switch off
the front foglamps.

Rear foglamp

On fixed.

The rear foglamp is switched on.

Turn the ring on the stalk rearwards to switch off the
rear foglamp.

Main beam
headlamps

On fixed.

The lighting stalk is pulled towards
you.

Pull the stalk to return to dipped beam headlamps.

If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.

1

Instruments

13

Ion_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Ready
(ready to move
off)

On fixed,
accompanied by an
audible signal when it
comes on.

The vehicle is ready to move off and
you can press the accelerator.

The illumination period corresponds to the powering-
up of the vehicle.

Parking brake

On fixed.

The parking brake is applied or not
properly released.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the Parking brake, refer to
the corresponding section.

Main battery
charge (normal
or fast)

On fixed.

The main battery is on charge.

On completion of the charge, the lamp goes off.

Flashing.

The charging cable is connected to
the vehicle but the main battery is not
yet charging.

Check the connection of the charging cable.

Instruments

14

Ion_en_Chap01_instruments-de-bord_ed01-2016

Deactivation indicator lamps

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
airbag system

On fixed, on the
centre console.

The control switch, located in the
glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.

Set the control switch to the ON position to activate
the passenger's front airbag. In this case, do not fit a
child seat in the rear-facing position.
Remember to check the state of the control switch
before starting your vehicle.

ESP/ASR

On fixed.

The ESP/ASR off switch, located at
the bottom of the dashboard (driver's
side) is activated.
The ESP/ASR is deactivated.
ESP: electronic stability programme
ASR: anti-slip regulation.

Press the button to activate the ESP/ASR.
The ESP/ASR system is automatically activated on
starting the vehicle.

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This may be accompanied by an audible signal.



















Content   ..  1  2  3   ..
