Changing a fuse

159

QUICK HELP

Fuses

A (amps)

Allocation

Not used

Heated seats

Rear passenger 12 V socket

Programmable additional heating

Lateral sidelamps

7.5

Pneumatic suspension

Not used

Programmable additional heating switch

Not used

Fan for programmable additional heating

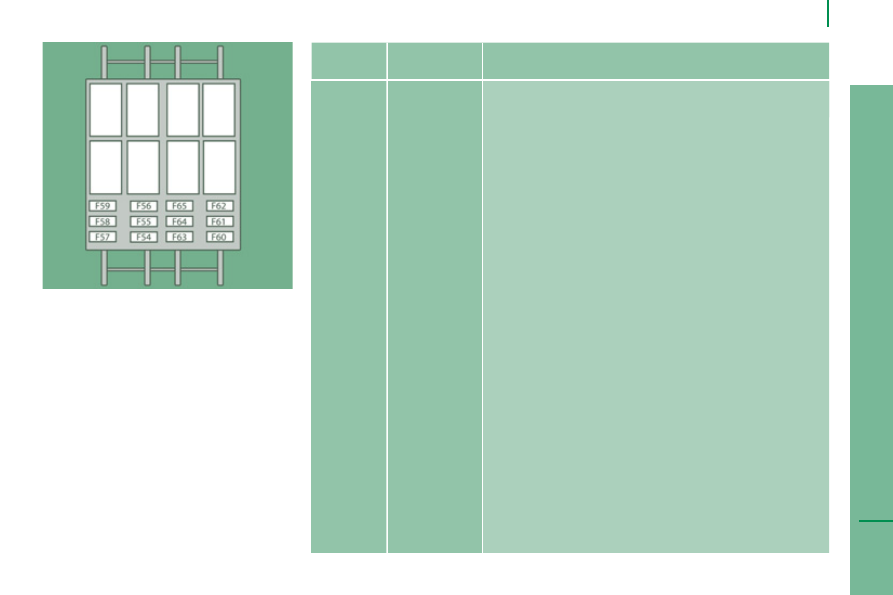

PASSENGER PILLAR FUSES

- Unclip the cover
When you have finished, close the cover
carefully.

Changing a fuse

160

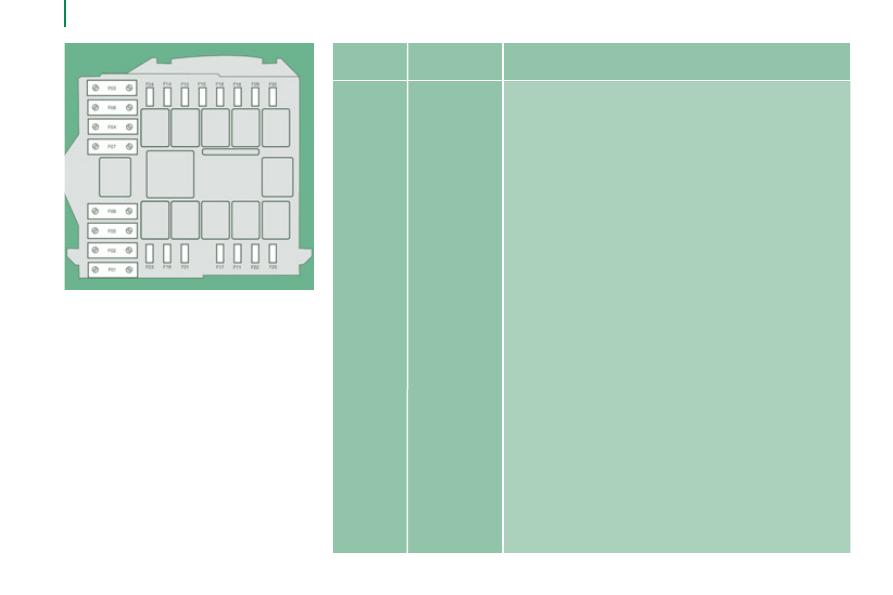

FUSES IN THE ENGINE

COMPARTMENT

- Remove the nuts and tilt the box to access

the fuses.

Fuses

A (amps)

Allocation

ABS pump supply

Diesel pre-heat unit

Ignition switch

Additional programmable heating

Cabin ventilation with additional programmable heating

40/60

Cabin fan maximum speed

40/50

Cabin fan minimum speed

Cabin fan assembly

Screenwash pump

Horn

7.5

RH main beam

7.5

LH main beam

7.5

Engine management

7.5

Air conditioning compressor

Headlamp wash pump

Fuel pump supply

ABS electrovalves

Foglamps

Changing a wiper blade

161

QUICK HELP

CHANGING A WIPER BLADE

The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles.

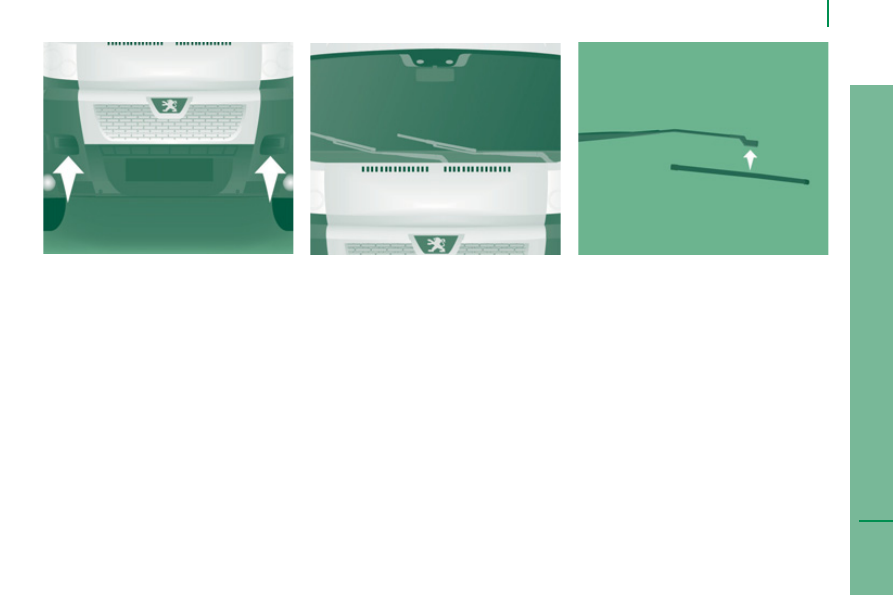

Changing a front wiper blade

Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.

Changing the rear wiper blade

Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wiper stalk.

Check that the screenwash or headlamp
wash nozzles are not blocked.

Having your vehicle towed

162

BEING TOWED

Without lifting

(four wheels on the ground)

You must always use a towing bar.

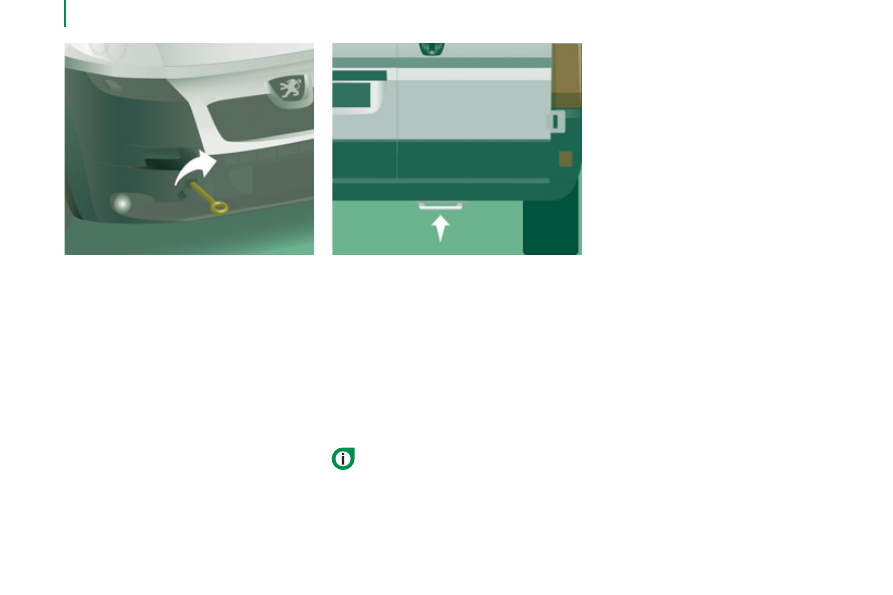

From the rear

Hook the bar onto the rigid eye located
under the bumper.

From the front

The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.

With lifting

(2 wheels only on the ground)

It is preferable to lift the vehicle using
professional lifting equipment.

When being towed with the engine
off, there is no braking or steering
assistance.

HNI

Environment

ENVIRONMENT

With you, PEUGEOT acts to protect the
environment.
We invite you to visit the www.peugeot.com
website.

As the driver, you also can contribute to
protecting the environment by following
certain rules:
-

adopt a preventive style of driving,
without frequent and harsh acceleration,

observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,

in order to preserve the reliability of the
engine and emission control systems, do
not use engine oil additives.

Refer to information in this handbook
on eco-driving (at the end of section 1).

163163

Dimensions

165

HNI

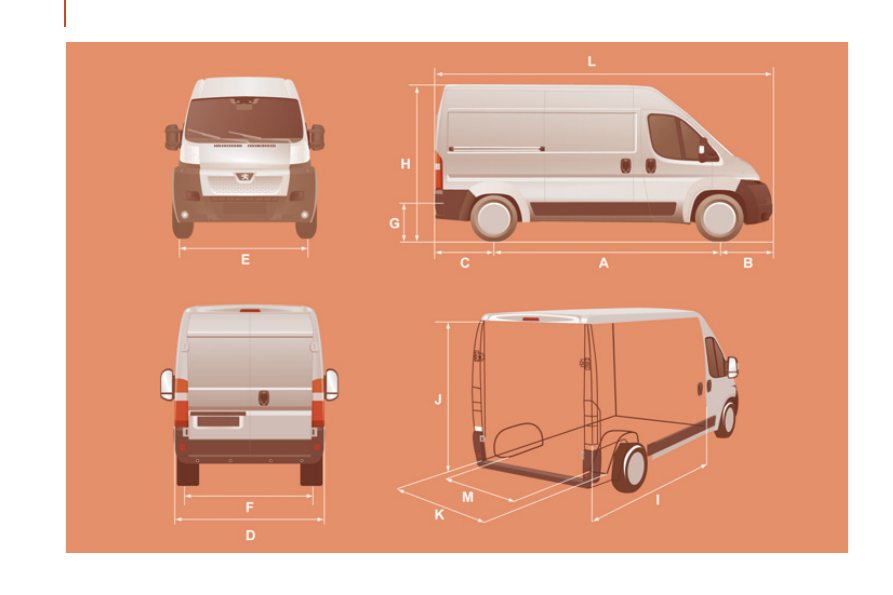

DIMENSIONS

Your vehicle is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:

Van

Overall length

4 963

5 413

5 998

6 363

Overall height

2 254

2 524

2 254

2 524

2 764

2 524

2 764

Wheelbase

3 000

3 450

4 035

Front overhang

948

Rear overhang

1 015

1 380

Overall width (excluding mirrors)

2 050

Width of front track

1 810

Width of rear track

1 790

Height of load floor

535 to 565

Length of interior floor

2 670

3 120

3 705

4 070

Maximum interior load height

1 662

1 932

1 662

1 932

2 172

1 932

2 172

Maximum interior width

1 870

Interior width between wheel arches

1 422

Volume (m

)

9.5

11.5

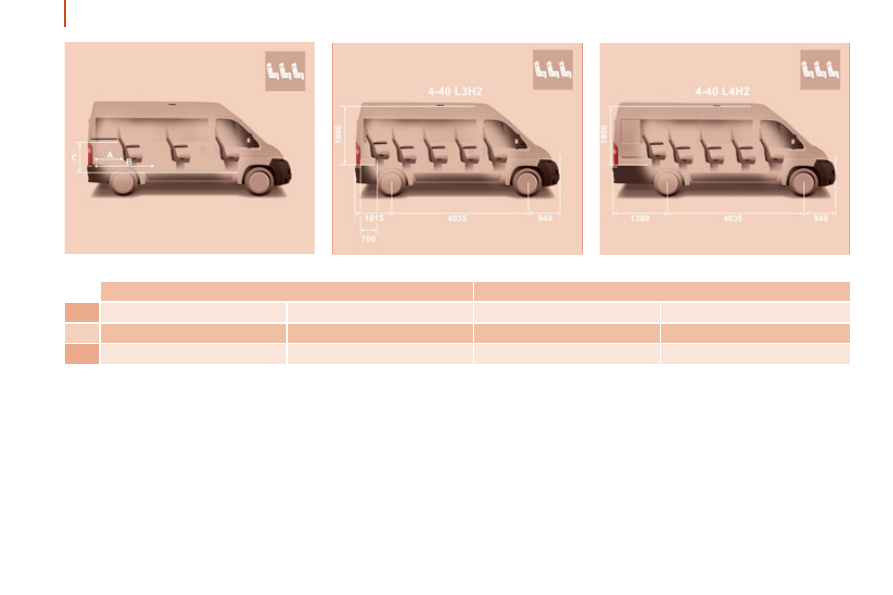

Dimensions

166

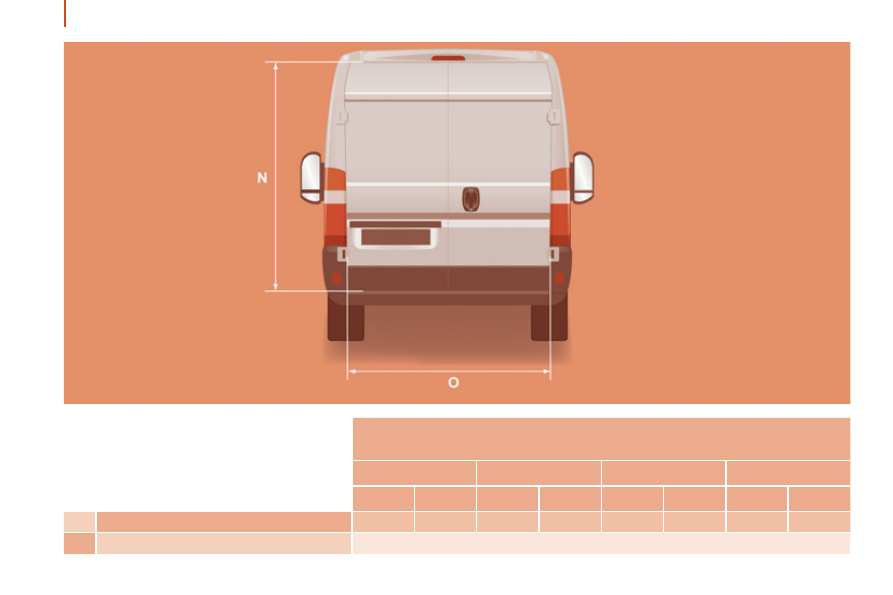

REAR DOORS

Rear door aperture height

1 520

1 790

1 520

1 790

2 030

1 790

2 030

O Rear door aperture width

1 562

Dimensions

167

HNI

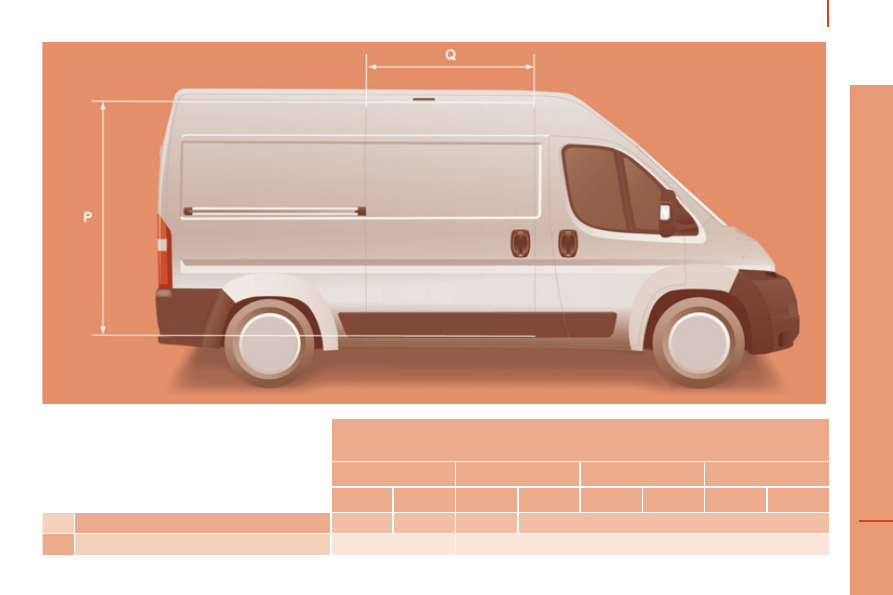

SIDE DOOR

Height of the sliding side door

1 485

1 755

1 485

1 755

Width of the sliding side door

1 075

1 250

Dimensions

168

Dimensions

169

HNI

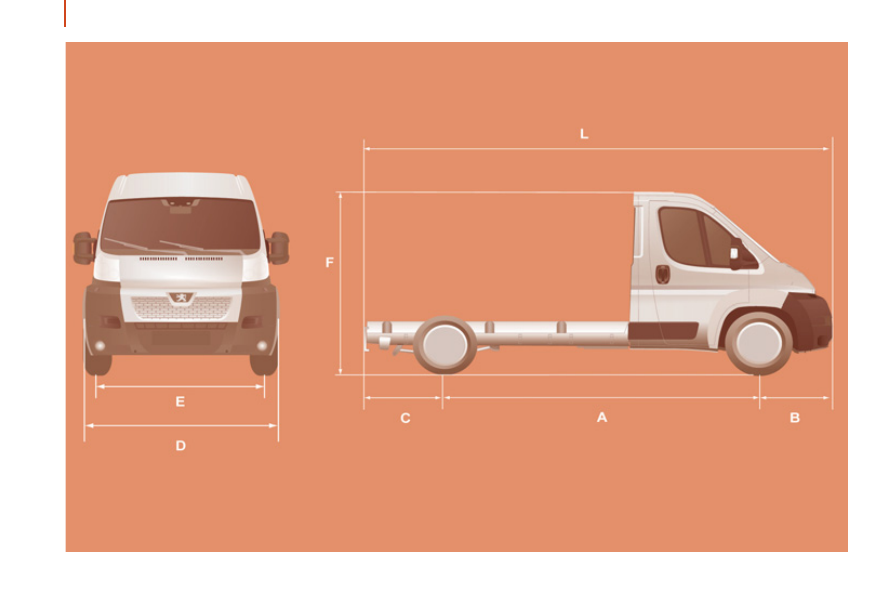

CHASSIS CAB

L2S

Overall length

4 908

5 358

5 708

5 943

6 208

Wheelbase

3 000

3 450

3 800

4 035

Front overhang

948

Rear overhang

960

1 225

Overall width (excluding mirrors)

2 050

Passable width

2 207

Max permitted body width

2 350

Width of front track

1 810

Width of rear track

1 790

Width of increased rear track

1 980

Overall height

2 153

Max permitted body height

3 500

Dimensions

L1H1

L2H2

751

872

1 201

1 322

1 201

1 743

1 651

2 193

860

Dimensions

HNI

Diesel engines

Quality of the fuel used for Diesel engines

The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).

ENGINES and gearboxes - Diesel

2.2 litre HDi 110

2.2 litre HDi 130

2.2 litre

HDi 150

3 litre

HDi 155

3 litre

HDi 180

Gearbox

Manual

Gears

Maximum power (hp)

100

110

120

130

150

156

180

EU standard maximum power (kW)

110

115

130

Cubic capacity (cc)

2 198

2198

2 999

Bore x stroke (mm)

86 x 94.6

95.8 x 104

Max power engine speed (rpm)

2 900

3 500

3 600

EU standard max torque (daNm)

250

320

400

Max torque engine speed (rpm)

1 500

2 000

1 400

Fuel

Diesel

Catalytic converter

Yes

Particle emissions filter

Yes

Engine oil capacity (in litres) after
draining and oil filter replacement

6.4

6.2

6.4

6.2

172

Weights

WEIGHTS

Dimensions

Model

GVW in kg

L1 H1

330

3 000

333

3 300

L2 H1

333

3 300

335

3 500

L2 H2

330

3 000

333

3 300

335

3 500

L3 H2

330

3 000

335

3 500

435

3 500

440

4 000

L3 H3

330

3 000

335

3 500

435

3 500

440

4 000

L4 H2

335

3 500

L4 H3

435

3 500

Refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.

Load transfer
It is possible, if the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Observe the towing limits of your vehicle.

HNI

Identification markings

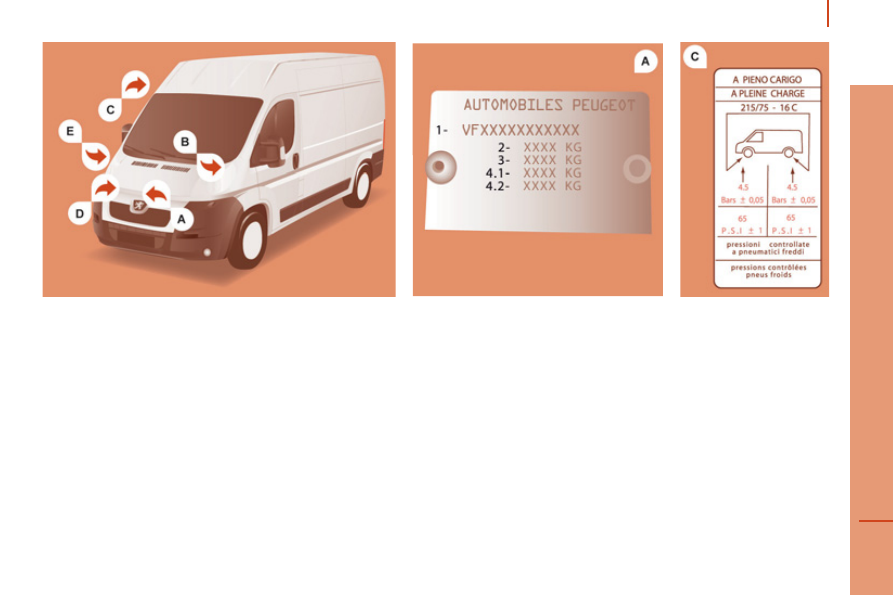

IDENTIFICATION MARKINGS

A. Manufacturer's plate

1 -

VF Type serial number.

2 -

Gross vehicle weight (GVW).

3 -

Gross train weight (GTW).

4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle.

B. Serial number on the bodywork

D. Paint code

C. Tyres

The label C (image given as an indication
only) affixed to the van pillar, on the right-
hand door side, indicates:
-

the wheel and tyre sizes,

the tyre pressures (the pressures must
be checked when cold, at least once a
month).

E. Serial number on the bodywork

The number is located under the plastic
cover, at the sill on the right-hand door side.

174

Exterior

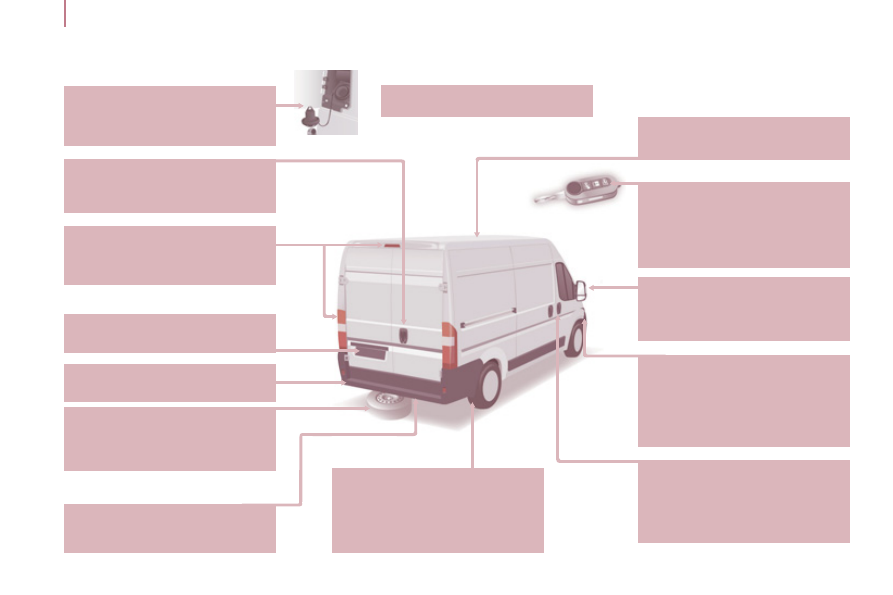

EXTERIOR

Rear lamps, direction indicators,

brake lamp,

foglamps

36, 47, 153, 156

Left-hand side:

fuel fi ller cap, fuel tank

144

Fuel cut-off

144

Load space

75-76

Rear doors

Number plate lamp

156

Parking sensors

Spare wheel, jack, changing a wheel,

tools, puncture repair kit

148-152

Infl ating, pressures

173

Towing, lifting

162

Towbar, towball

133-134

Dimensions 164-170

Accessories 135-136

Roof bars

135

Brakes, pads

139, 141

ABS, Electronic brake force distribution

115

EBA

115

ASR, ESP

116-117

Tyres, pressures

173

Pneumatic suspension

Key, remote control, battery

21-23

Starting 41-42

Central locking

Confi dential card

Alarm 26

Wiper blade

161

Door mirror

Side repeater

155

Front lamps, foglamps, direction

indicators 153-155

Headlamp beam height adjustment

Headlamp wash

Changing bulbs

153-155

Opening/closing doors

27-29

Key 23

Opening the bonnet, stay

137

Mode - autoclose
