Welcome

Thank you for choosing a Peugeot 5008.

This document presents the information and recommendations required
for you to be able to explore your vehicle in detail.

Your vehicle will be fitted with only some of the equipment described in
this document, depending on its trim level, version and the specification
for the country in which it was sold.

In this document, you will find all of the instructions and
recommendations on the use that will allow you to enjoy your vehicle
to the fullest. It is strongly recommended that you familiarise yourself
with it as well as the Warranty and Maintenance Record which will
provide you with information about warranties, servicing and roadside
assistance associated with your vehicle.

Key

Safety warning

Additional information

Contributes to the protection of the environment

Left-hand drive vehicle

Right-hand drive vehicle

The descriptions and illustrations are given as indications only.
Automobiles PEUGEOT reserves the right to modify the technical
characteristics, equipment and accessories without having to update
this edition of the guide.

If ownership of your vehicle is transferred, please ensure this Complete
Handbook is passed on to the new owner.

Contents

Head-up digital screen

Indicator and warning lamps

Indicators 28
Manual test

Keyless Entry and Starting

Back-up procedures

Anti-intrusion security

Central locking

Alarm 61
Doors 63
Boot 64
Hands-free tailgate

Electric windows

Panoramic opening sunroof

Driving position

Front seats

Steering wheel adjustment

Mirrors 83
Second row seats

Third row seats

Seat modularity

i-Cockpit Amplify function

Heating and Ventilation

Manual air conditioning

Semi-automatic mono-zone air conditioning

Automatic dual-zone air conditioning

Recirculation of interior air

103

Front demist – defrost

103

Heated windscreen

104

Rear screen demist – defrost

Interior ambient lighting

Exterior lighting control stalk

Automatic illumination of headlamps

128

Automatic headlamp dipping

Automatic rain sensitive wipers

136

General safety recommendations

138

Hazard warning lamps

139

Horn 139
Emergency or assistance call

139

Electronic stability control (ESC)

142

Advanced Grip Control

145

Hill Assist Descent Control

147

Seat belts

148

Airbags 153
Child seats

157

Deactivating the passenger front airbag

158

ISOFIX mountings and child seats

Manual child lock

Electric child lock

174

Overview

Dashboard instruments

Ease of use and comfort

Safety

Access

Lighting and visibility

Eco-driving

Contents

Driving recommendations

175

Anti-theft protection

177

Starting / Switching off the engine
with the key

177

Starting / Switching off the engine
with Keyless Entry and Starting

179

Electric parking brake

Under-inflation detection

195

Memorising speeds

197

Recognition of speed limit signs and
recommendation 198
Speed limiter

201

Cruise control

204

Dynamic cruise control with Stop function

207

Distance alert and Active Safety Brake

215

Fatigue detection system

219

Lane Departure Warning System

221

Active Lane Departure Warning System

222

Blind Spot Monitoring System

227

Parking sensors

230

Visiopark 1 - Visiopark 2

231

Park Assist

237

Fuel 245
Misfuel prevention (Diesel)

246

Compatibility of fuels

246

Towing a trailer

248

Towbar with quickly detachable towball

248

Energy economy mode

252

Very cold climate screen

Bonnet 256
Engine compartment

Running out of fuel (Diesel)

266

Tool kit

267

Temporary puncture repair kit

Changing a wiper blade

Characteristics of engines
and towed loads

Dimensions 295
Identification markings

296

PEUGEOT Connect Nav
PEUGEOT Connect Radio
Bluetooth audio system

Driving

Practical information

Technical data

Alphabetical index

Audio equipment and telematics

In the event of a breakdown

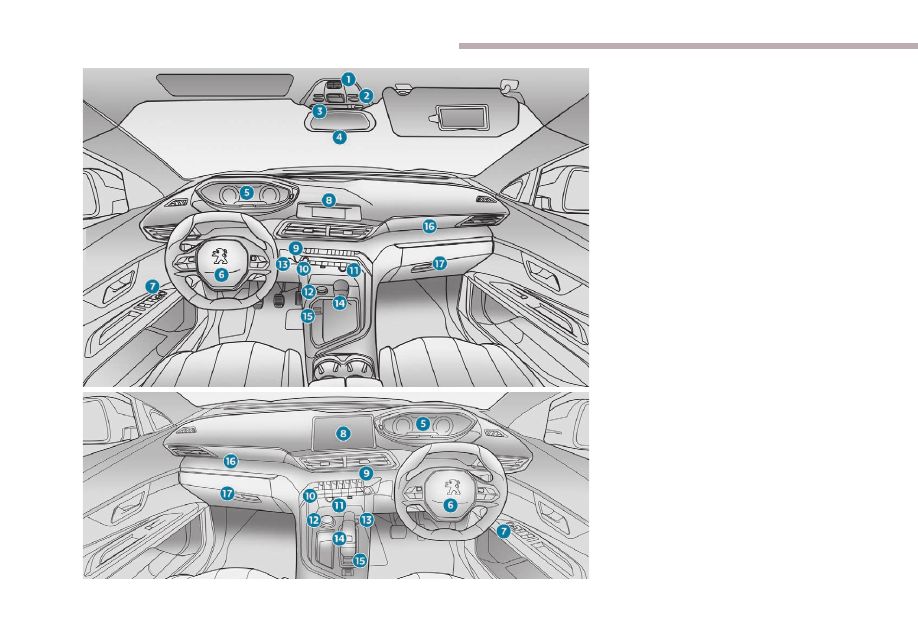

Overview

Instruments and controls

Sunroof and blind controls

Front courtesy / map reading lamps

Warning lamp display for the seat belts
and passenger front airbag
Emergency and assistance call buttons

Rear view mirror

Head-up digital screen

Horn
Driver front airbag

Door mirror and electric window control
panel

Monochrome screen with Bluetooth audio
system
or
Touch screen with PEUGEOT Connect
Radio or PEUGEOT Connect Nav

Hazard warning lamps

10. Air conditioning system controls
11.

12 V socket / USB socket
Wireless charger

12. Advanced Grip Control

Hill Assist Descent Control

13. Ignition switch

or
"START/STOP" button

14. Gearbox control

"SPORT" button

15. Electric parking brake
16. Passenger's front airbag
17.

Glove box
Deactivating the passenger front airbag

Overview

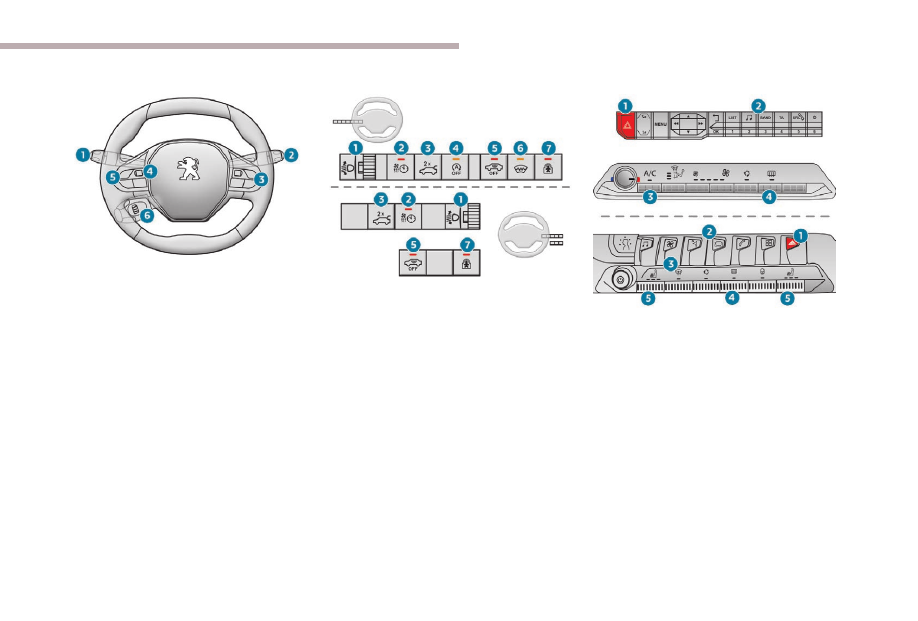

Steering mounted controls

Side switch panel

Central switch panel

External lighting / direction indicator
control stalk

Wiper / screenwash / trip computer
control stalk

Audio system adjustment controls

Instrument panel display mode selection
wheel

Voice synthesis control
Volume adjustment

Speed limiter / Cruise control / Dynamic
cruise control with Stop function controls

Headlamp beam height adjustment wheel

Programmable heating operating
indicator lamp

Hands-free tailgate opening / closing

Deactivation of Stop & Start

Deactivation of the interior volumetric and
anti-tilt monitoring

Heated windscreen

Electric child lock

Hazard warning lamps switch

Bluetooth audio system controls
or
Touch screen with PEUGEOT Connect
Radio or PEUGEOT Connect Nav
controls
i-Cockpit Amplify function

Manual air conditioning system controls
or
Semi-automatic or automatic air
conditioning system controls

Rear screen demist / defrost control

Heated seat controls

Eco-driving

As a passenger, if you avoid connecting your
multimedia devices (film, music, video game,
etc.), you will contribute towards limiting the
consumption of electrical energy, and so of
fuel.
Disconnect your portable devices before
leaving the vehicle.

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your
gearbox

With a manual gearbox, move off gently
and change up without waiting. When
accelerating, change up early.

With an automatic gearbox, favour automatic
mode and avoid pressing the accelerator
pedal heavily or suddenly.

The gear shift indicator invites you to engage
the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO

emissions and also help to reduce the

background traffic noise.

If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.

Control the use of your electrical
equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Consider using equipment that can help keep
the temperature in the passenger compartment
down (sunroof and window blinds, etc.).

Switch off the headlamps and foglamps when
the ambient light level does not require their
use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.

Unless it has automatic regulation, switch off
the air conditioning as soon as the desired
temperature has been reached.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat control as soon as
possible.

Eco-driving

Limit the causes of excess
consumption

Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer, etc.). Preferably use a
roof box.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.

Observe the recommendations
on maintenance

Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Do not forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil filter, air filter, passenger
compartment filter, etc.) and observe the
schedule of operations recommended in the
manufacturer's service schedule.

When filling the tank, do not continue after the
3

cut-off of the nozzle to avoid overflow.

At the wheel of your new vehicle, it is only
after the first 1,800 miles (3,000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.

With a BlueHDi Diesel engine, if the SCR
system is faulty, your vehicle becomes
polluting. Visit a PEUGEOT or a qualified
workshop as soon as possible to make your
vehicle’s level of nitrogen oxide emissions
compliant to the standard.

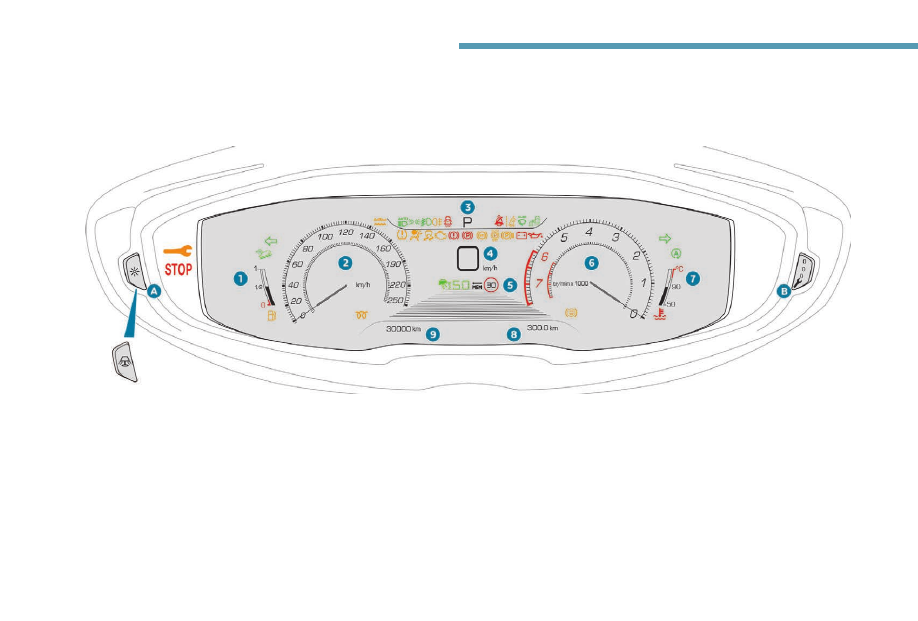

Dashboard instruments

Head-up digital screen

Customisable digital instrument panel.
Depending on the selected display mode, some information may be hidden or shown differently.

Digital screen

Fuel gauge.

Analogue speedometer (mph or km/h).

Gear shift indicator, selector mode and
the gear with an automatic gearbox.

Digital speedometer (mph or km/h).

Cruise control or speed limiter setting,
display of speed limit signs.

Rev counter (x 1,000 rpm).

Engine coolant temperature indicator
(°Celsius).

Trip distance recorder (miles or km).

Total distance recorder (miles or km).

The representation below shows the "DIALS" display mode.

Dashboard instruments

Control buttons

Displays

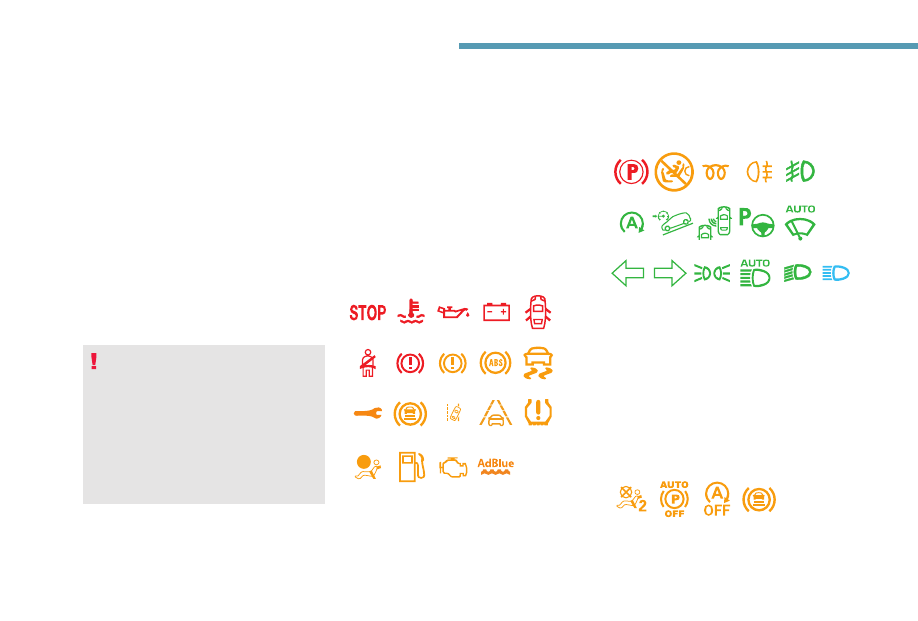

Most warning and indicator lamps do not have
a fixed position.
The warning and indicator lamps in the second
line are displayed from right to left in order of
priority.
For certain functions that have indicator lamps
for both operation and for deactivation, there is
only one dedicated location.

Permanent information

Whatever the display mode selected, the
instrument panel displays:
- in fixed locations:

• gearbox and gear shift indicator

information,

•  the fuel gauge,
•  the engine coolant temperature indicator,
•  the distance recorders.

- in variable locations:

• the digital speedometer,
• status or alert messages displayed

temporarily.

Optional information

Depending on the display mode selected and
active features, the following information may
be displayed:
-  the rev counter,
-  the trip computer,
-  driving aids,
-  the speed limiter or cruise control,
-  the media currently playing,
-  navigation instructions,
-  engine information from the Dynamic Pack.

Lighting dimmer for the instruments and
controls* (available in night mode).
or
Instrument panel ambient lighting**.

* Versions with monochrome screen.
** Versions with touch screen.

Short press: start a manual test.
Long press: reset the service indicator or
trip distance recorder (depending on the
context).

Personalisation of the
instrument panel

You can modify the appearance of the
instrument panel, by choosing:
- the instrument panel display colour**,
- a display mode.

Display language and units
They depend on the configuration of the
multifunction screen (configuration menu).
When travelling abroad, the speed must be
shown in the official units of the country you
are driving in (km/h, km or mph, miles).

As a safety measure, these adjustments
must be carried out with the vehicle
stationary.

** Versions with touch screen.

Choosing a display colour

This depends on the ambience activated by the
i-Cockpit Amplify function.
The possible choices are:
F "Relax": grey,
F "Boost": red,
F "Normal" (no colour scheme activated): blue.
For more information on the i-Cockpit Amplify
function, refer to the corresponding section.

Dashboard instruments

Choice of display mode

To modify the display mode of the instrument
panel:

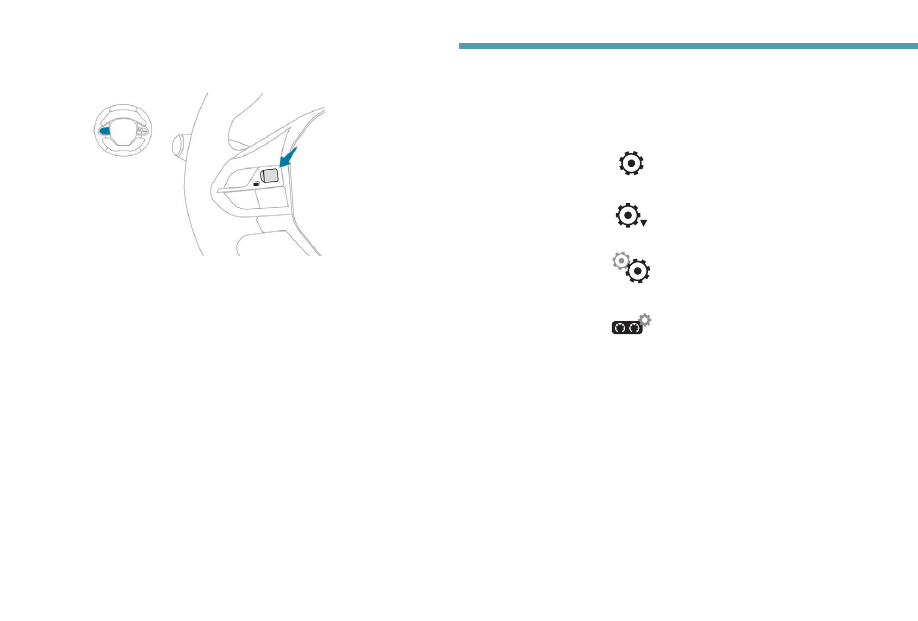

F Turn the knob located to the left of the

steering wheel to display and scroll through
the different modes on the right-hand side
of the instrument panel.

F Once the selected display mode appears,

press on the knob to validate.

The new display mode is applied instantly.

Each mode corresponds to the type of
information displayed in the instrument panel.
- "DIALS": standard display of the analogue

and digital speedometers, the rev counter,
the fuel gauge, the engine coolant
temperature indicator and the distance
recorders.

- "NAVIGATION": standard display with, in

addition, the current navigation information
(mapping database and navigation
instructions).

- "DRIVING": standard display with, in

addition, the current driving aid systems
information.

- "MINIMAL": minimal display with digital

speedometer and the distance recorders
and, in the event of a warning only, the
fuel gauge and the coolant temperature
indicator.

- "TRIP COMPUTER"*: minimal display with,

in addition, the rev counter, instantaneous
information and the trip recorder selected
(1 or 2).

or
- "PERSONAL"**: minimal display with, in

addition, the selection made in the touch
screen of the type of information displayed
in the customisable areas on the left and
right.

* Versions with monochrome screen.

** Versions with touch screen.

To enter settings for the "PERSONAL"
display mode and select the information to
be displayed in the customisable areas of the
instrument panel:

F Select the Settings menu in the

upper bar of the touch screen.

F Select "Settings".

F Press the "Driver screen

configuration" or "Dashboard
configuration" button.

Dashboard instruments

As a safety measure, these adjustments must
be carried out with the vehicle stationary.

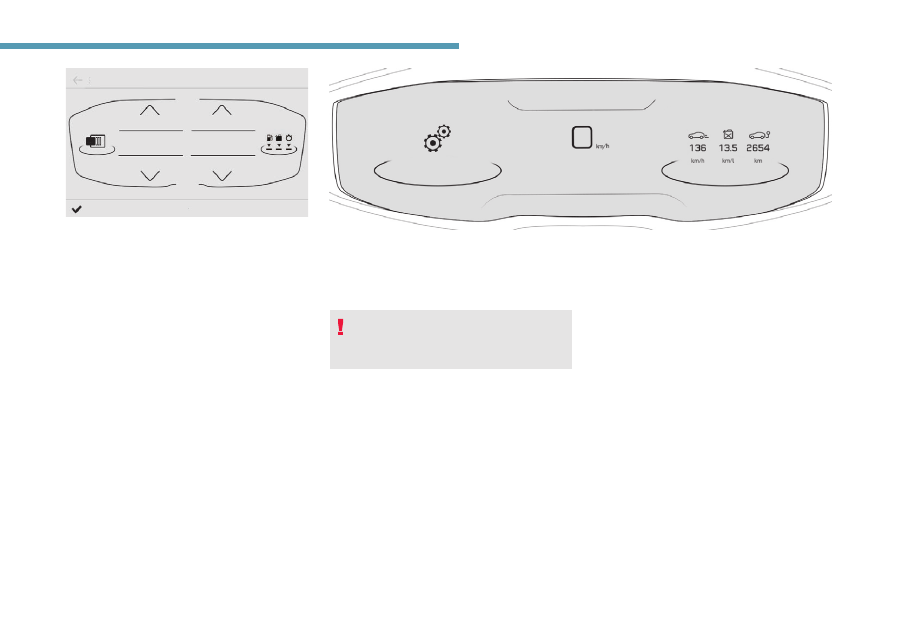

F For each personalised displayed area, left

and right, select a type of information using
the corresponding scroll arrows in the touch
screen:
• "Driving aids",
• "Default" (empty),
• "Engine info" (Dynamic pack),
• "G-metres" (Dynamic pack),
• "Temperatures" (engine oil),
• "Media",
• "Navigation",
• "Trip computer",
• "Rev counter".

F Confirm to save and quit.

If the current display mode is "PERSONAL", the
new selection is displayed immediately.

Dashboard instruments

Indicator and warning lamps

When the ignition is switched on

Certain warning lamps come on in the
instrument panel for a few seconds when the
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Associated warnings

Most warning lamps in the instrument panel are
accompanied by the display of a message and
an audible signal.

Certain warning lamps may come on in one
of two modes: fixed (continuous) or flashing.
Only by relating the type of illumination to the
operation of the vehicle can it be determined
whether the situation is normal or a fault has
occurred.
For more information, refer to the
corresponding tables of warning and indicator
lamps.

Warning lamps

When the engine is running or the vehicle is
being driven, illumination of one or more of the
following warning lamps indicates a fault which
requires action on the part of the driver.
Any fault resulting in the illumination of a
warning lamp must be investigated further
using the associated alert message.

Operation indicator lamps

If one or more of the following indicator lamps
come on, this confirms that the corresponding
system has been switched on.

Deactivation indicator
lamps

If one of the following indicator lamps comes
on, this confirms that the corresponding system
has been switched off intentionally.
This may be accompanied by the display of a
message and an audible signal.

If you encounter any problems, contact a
PEUGEOT dealer or a qualified workshop.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

STOP

Fixed, associated
with another warning
lamp, accompanied
by the display of a
message and an
audible signal.

Illumination of this warning lamp
is related to a serious fault with
the engine, braking system,
power steering, automatic
gearbox or a major electrical
fault.

You must stop the vehicle as soon as traffic and
safety conditions permit.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.

Maximum
coolant
temperature

Fixed, accompanied
by the STOP warning
lamp.

The temperature of the cooling
system is too high.

You must stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping
up to the required level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
a qualified workshop.

* Depending on the country of sale.

Battery charge*

Fixed.

The battery charging circuit has
a fault (dirty or loose terminals,
slack or cut alternator belt,etc.).

The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
The battery charging level requires the vehicle to be
stopped immediately, as soon as road and safety
conditions permit.
If the electric parking brake does not work, stop the
vehicle:
F With a manual gearbox, engage a gear.
F With an automatic gearbox, put the chocks against

one of the wheels.

Engine oil
pressure

Fixed.

There is a fault with the engine
lubrication system.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT
dealer or a qualified workshop.

Dashboard instruments

Warning / indicator lamp

State

Cause

Action / Observations

Door(s) open

Fixed and associated
with a message
identifying the door.

Speed below 6 mph (10 km/h), a
door or the boot is not properly
closed.

Close the door or boot.

Fixed, associated with
a message identifying
the door, together with
an audible signal.

Speed above 6 mph (10 km/h), a
door or the boot is not properly
closed.

Non-fastening /
unfastening of
the seat belts

Fixed
or
Flashing,
accompanied by an
audible signal.

A seat belt has not been
fastened or has been
unfastened.

Pull the strap then insert the tongue into the buckle.
This warning lamp also lights up in the seat belt
and passenger front airbag warning lamps display,
accompanied by indicator lamps corresponding to the
passenger seat belts unfastened or not fastened.

Electric parking
brake

Fixed.

The electric parking brake is
applied.

Release the parking brake to switch off the warning
lamp: with your foot on the brake pedal, briefly push
the parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake,
refer to the corresponding section.

Deactivation of
the automatic
functions of the
electric parking
brake

Fixed.

The "automatic application"
(on switching off the engine) and
"automatic release" functions are
deactivated.

Activate the functions again.
For more information on the Electric parking brake,
refer to the corresponding section.

Content .. 1 2 3 ..
