Peugeot 4008 (2017 year). Manual - part 1

Peugeot 4008

Handbook

On-line handbook

Select one of the following means of access to view your handbook
on-line...

Referring to the handbook on-line also gives you access to the latest
information available, easily identified by the bookmark, associated
with this symbol:

If the "MyPeugeOt" function is not available on the PeugeOt
public website for your country, you can find your handbook at
the following address:
http://public.servicebox.peugeot.com/ddb/

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.

Select:

Find your handbook on the PeugeOt website, under "MyPeugeOt".

Scan this code for direct access to your handbook.

this personal space offers advice and other useful information for the
care and maintenance of your vehicle.

Welcome

Key

Warning:

this symbol is for warnings that you must
observe for your own safety, the safety of
others, and to avoid the risk of damage to
your vehicle.

Information:

this symbol draws your attention to
additional information for the best use of
your vehicle.

Protection of the environment:

this symbol accompanies advice related to
the protection of the environment.

Thank you for choosing a 4008, a symbol of

confidence, passion and inspiration

this handbook covers all of the variations in equipment available
across the whole 4008 range.

Your vehicle will be fitted with only some of the equipment
described in this document, depending on its trim level, version and
the specification for the country in which it was sold.

the descriptions and illustrations are given as indications only.
Automobiles PeugeOt reserves the right to modify the technical
characteristics, equipment and accessories without having to
update this edition of the handbook.

this document forms an integral part of your vehicle. Remember
to pass it on to the new owner in the event of the sale of the vehicle.

this handbook has been designed to help to make the most of your
4008 in all circumstances and in complete safety.
take the time to read through it so as to familiarise yourself with your
vehicle.

Contents

4008_en_Chap00a_sommaire_ed01-2016

Instrument panel

Warning and indicator lamps

Instrument panel screen

trip computer

Distance recorder

trip distance recorder

Service indicator

Adjusting vehicle settings

Audio-CD system screen

Audio-CD system touch screen

Audio-telematic system

touch screen

Lighting dimmer

Remote control key

"Keyless entry and Starting"

system 56

Doors 62
Boot 63
Alarm 65
electric windows

Panoramic sunroof

Front seats

Rear seats

Mirrors 76
Steering wheel adjustment

Ventilation 79
Manual heating / air conditioning

Automatic air conditioning

Front demist - defrost

Driving recommendations

Starting - switching off the engine with the key 98
Starting - switching off the engine with

the Keyless entry and Starting system

Stop & Start (Auto Stop & go) system

111

Under-inflation detection

114

Four wheel drive system

Daytime running lamps

130

Automatic illumination of headlamps

130

Manual guide-me-home lighting

Automatic rain sensitive wipers

Panoramic roof lighting

ease of use and comfort

Driving

Lighting and visibility

Contents

4008_en_Chap00a_sommaire_ed01-2016

general safety recommendations

Horn 142
Braking assistance systems

143

trajectory control systems

145

Front seat belts

147

Airbags 151
Child seats

156

Deactivating the passenger's

Automatic power cut-off to

accessories 176

Changing a wiper blade

Bonnet 180
Petrol engines

towing the vehicle

Running out of fuel (Diesel)

Dimensions 231
Identification markings

touch screen AuDIO-teLeMAtIC system

247

tOuCH SCReeN AuDIO-CD system

Practical information

In the event of a breakdown

technical data

Audio equipment and telematics

Alphabetical index

Overview

4008_en_Chap00b_vue-ensemble_ed01-2016

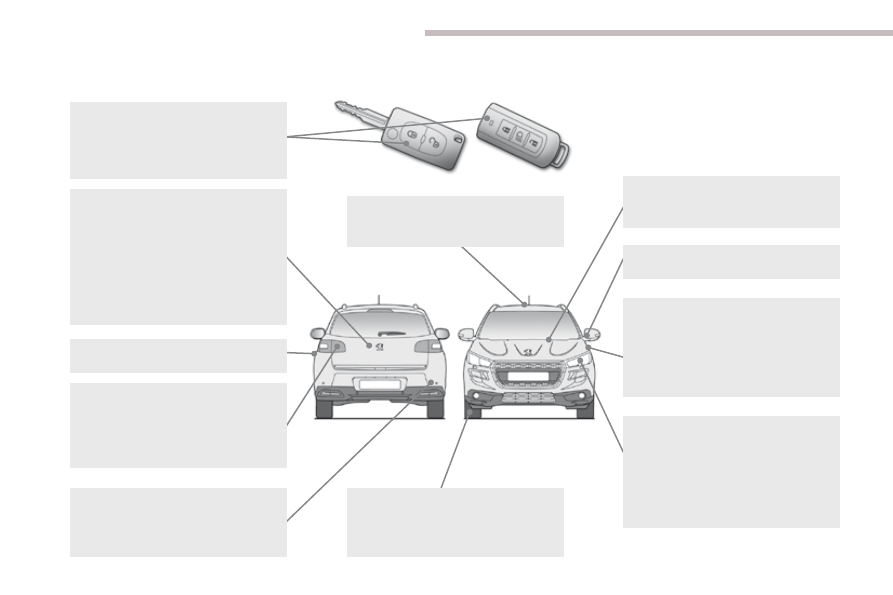

exterior

Lighting controls

127-131

Headlamp beam adjustment

133

Welcome lighting

132

Changing bulbs

199-202

front lamps

front foglamps

direction indicator repeaters

Wiper controls

134-137

Changing a wiper

blade 176

Door mirrors

76-77

Doors

62, 6 4

opening / closing

central locking

Child lock

171

electric windows

68-69

Alarm 65-67

Panoramic sunroof

Roof bars

Braking assistance

trajectory control

tyre pressures

under-inflation detection

114-117

Boot 63
-

opening / closing

emergency release

temporary puncture

repair kit

189-192

Changing a wheel

193-198

- tools
-

removing / refitting

Snow chains

175

Changing bulbs

203-204

rear lamps

- 3

brake lamp

number plate lamps

- foglamp

Parking sensors

123-125

Reversing camera

126

towbar 177-178
towing 215-217

Fuel tank

173

Remote control key /

electronic key

52-61

opening / closing

anti-theft protection

- battery

Overview

4008_en_Chap00b_vue-ensemble_ed01-2016

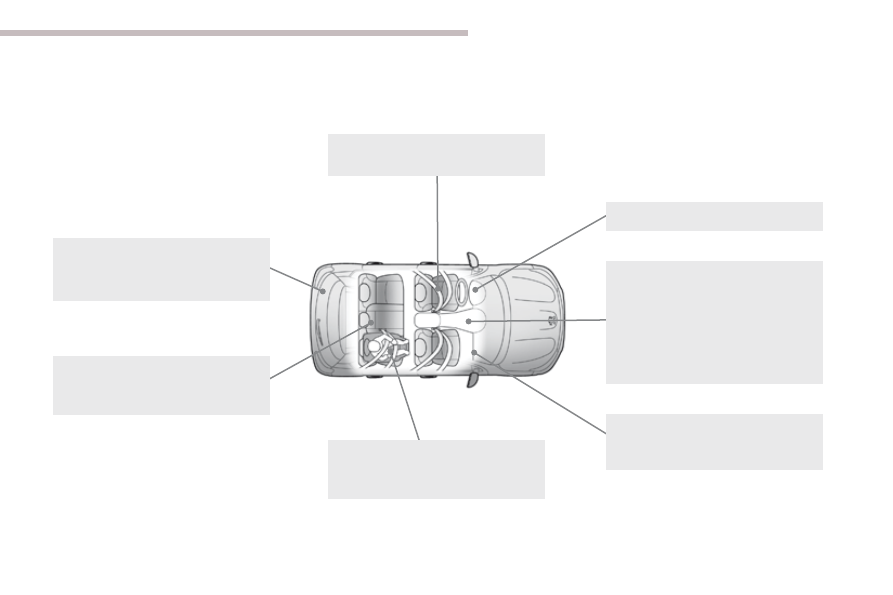

Interior

Boot fittings

95-96

rear parcel shelf

stowing rings

- storage

Child seats

ISOFIX mountings

Child lock

Front seats

Seat belts

glove box

Deactivating the passenger's

airbag

152, 158

Airbags 151-155

Front fittings

89-93

AuX socket / uSB port

cigarette lighter / 12 V socket

portable ashtray

front armrest

sun visor

- mat

Rear seats

74-75

Rear fittings

Rear armrest / Ski flap

Overview

4008_en_Chap00b_vue-ensemble_ed01-2016

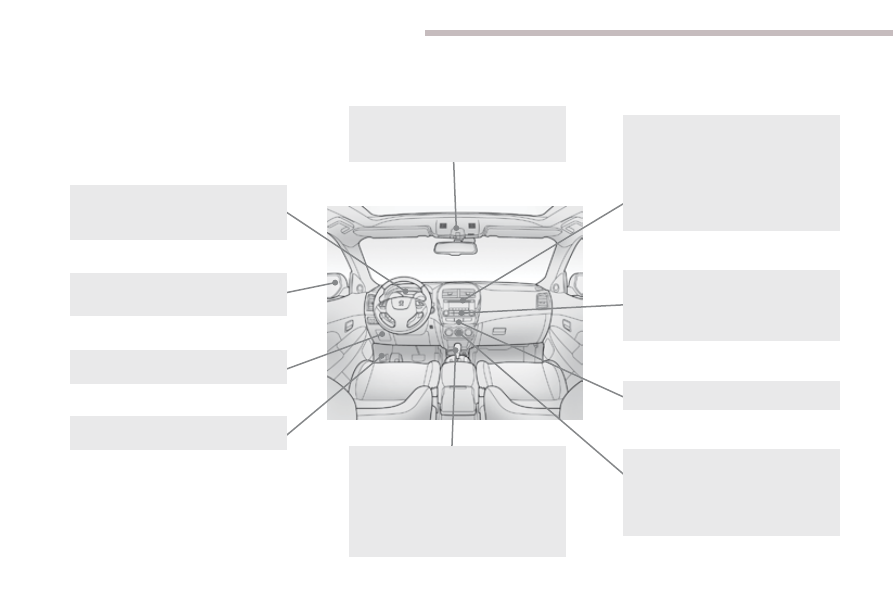

Instruments and controls

Opening the bonnet

180

Door mirrors

76-77

electric windows

68-69

Rear view mirror

Courtesy lamps

138-139

Panoramic sunroof

Dashboard

fuses

205-207, 2 10

Instrument panel

Warning and indicator lamps

13-18

Indicators 33-35

Audio-CD system screen

Setting the time

44-45

Audio-CD system touch screen

Setting the time

46-47

Audio-telematic system

touch screen

Setting the time

49-50

Parking brake

102

5/6-speed manual gearbox

103

gear shift

indicator 104

CVt gearbox

Hill start assist

4 wheel drive system

Audio-CD system

Audio-CD touch screen system

289-312

Audio-telematic touch screen

system 247-288

Ventilation 79-80
Manual air conditioning

81-82, 8 7

Automatic air conditioning

83-87

Front demist - defrost

Rear screen demist - defrost

Hazard warning lamps

142

Overview

4008_en_Chap00b_vue-ensemble_ed01-2016

Headlamp beam adjustment

133

Stop & Start

(Auto Stop & go) function

111-113

Steering wheel adjustment

Horn 142

Cruise control

120-122

Ignition switch, starting/switching off

StARt/StOP button

99-101

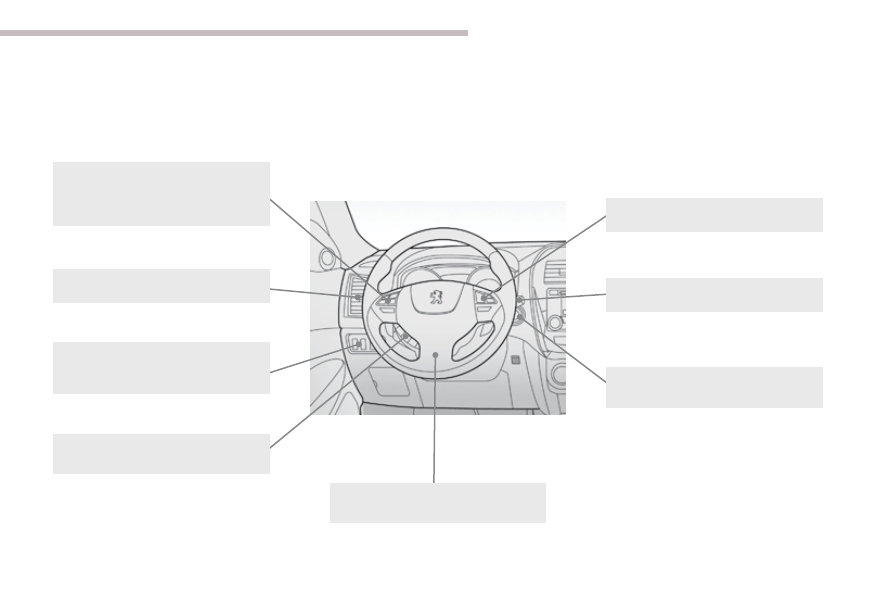

Instruments and controls (continued)

Lighting controls

127-131

Bluetooth

telephone

with voice recognition

235-246

Wiper controls

134-137

Steering mounted controls for Audio-CD,

Audio-CD touch screen, Audio-telematic
touch screen systems

249 , 29 1, 316

Overview

4008_en_Chap00b_vue-ensemble_ed01-2016

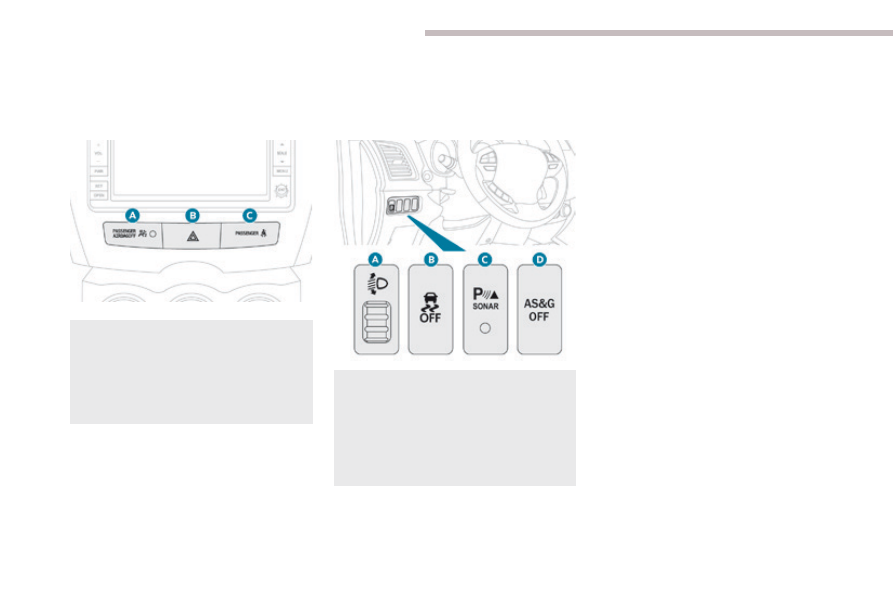

A. Passenger's airbag deactivation warning

lamp 152

B. Hazard warning lamps

142

C. Front passenger's seat belt not fastened

or unfastened warning lamp

148

Central switch panel

Instruments and controls (continued)

A. Manual headlamp adjustment

133

B. Deactivation of the ASC/tCL system 145
C. Deactivation of the parking

sensors 125

D. Deactivation of the Stop & Start

(Auto Stop & go) system

112

Side switch panel

Overview

4008_en_Chap00b_vue-ensemble_ed01-2016

Maintenance - technical data

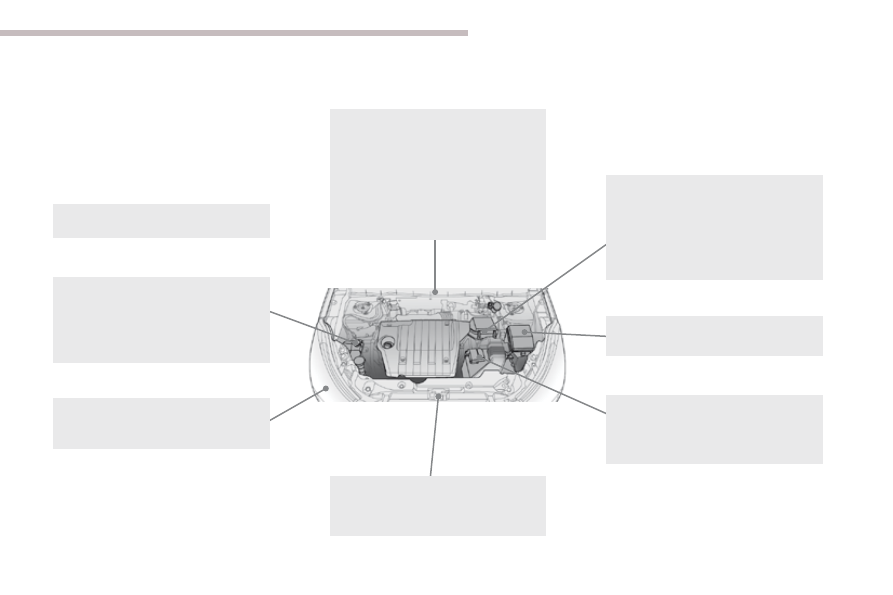

engine compartment

fuses

205, 2 08-210

Running out of fuel, Diesel

218

Checking levels

183-185

- oil
-

brake fluid

- coolant
-

screenwash/headlamp wash fluid

Changing bulbs

199-204

- front
- rear

Petrol engines

Petrol weights

Diesel engines

Diesel weights

Dimensions 231
Off-road

performance 232

Identification markings

233

Bonnet 180
Petrol engine compartment

181

Diesel engine compartment

182

Battery 211-214
Automatic power cut-off to

accessories 176

Checking components

186-188

battery electrolyte

air filter

oil filter

particle filter (Diesel)

brake pads / discs

Eco-driving

4008_en_Chap00c_eco-conduite_ed01-2016

eco-driving

eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up without waiting.
During acceleration, change up early.

With an automatic gearbox, give preference to automatic mode and
avoid pressing the accelerator pedal heavily or suddenly.

the gear shift indicator invites you to engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an automatic gearbox, this indicator appears
only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. these
practices contribute towards a reduction in fuel consumption and CO

emissions and also help to reduce the background traffic noise.

Control the use of your electrical

equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof, window
blinds, etc.).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game, etc.), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.

Eco-driving

4008_en_Chap00c_eco-conduite_ed01-2016

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, bicycle carrier, trailer, etc.). use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendations on

maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, on the driver's side.
Carry out this check in particular:
-

before a long journey,

at each change of season,

after a long period out of use.

Do not forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter, etc.) and observe the schedule of
operations recommended in the manufacturer's service schedule.

When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

Instruments

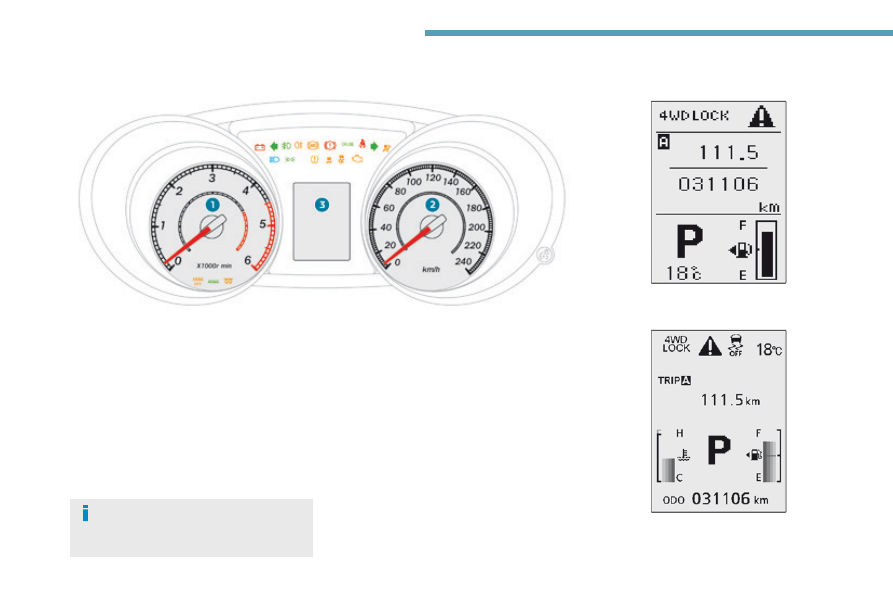

Instrument panel

1. Rev counter.

2. Speedometer.

Screen type 2

3. Instrument panel display screen:

-  Warning and status displays.
-  total and trip distance recorders.
-  Service indicator.
-  Coolant temperature.
-  trip computer information.
-  Cruise control setting.
-  gear shift indicator recommendations.
-  Settings menu (display, sound...).
-  Fuel level.
-  Ambient temperature.
-  transmission mode.

Panel grouping together the dials and warning/
indicator lamps. these inform the driver of the
activation/deactivation of a system or of the
occurrence of a fault.

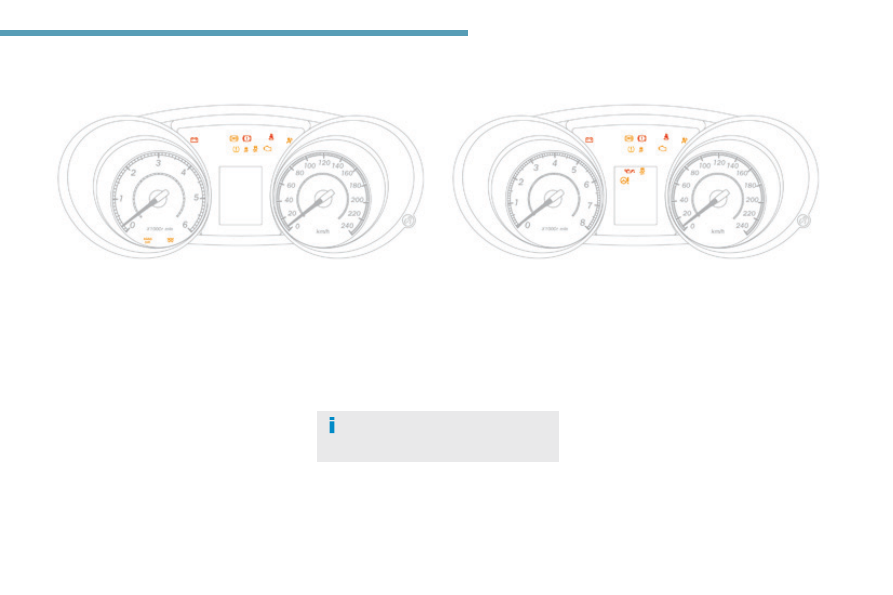

Screen type 1

Management of the display is done using
the INFO button located on the dashboard
to the left of the instrument panel.

Instruments

4008_en_Chap01_Instruments-de-bord_ed01-2016

Visual indicators which inform the driver of the
occurrence of a malfunction (warning lamp)
or of the operation of a system (operation or
deactivation indicator lamp).

When the ignition is switched on

Certain warning lamps come on for a few
seconds when the ignition is switched on.
When the engine is started, these warning
lamps should go off.

Associated warnings

the illumination, fixed or flashing, of certain
warning lamps may be accompanied by an
audible signal and a message.

Warning and indicator lamps

If they remain on, before moving off, refer to the
information on the warning lamp in question.

Instruments

Warning lamps

When the engine is running or the vehicle is being driven, the
illumination of one of the following warning lamps indicates a
malfunction which requires action on the part of the driver.
the warning comes on in the instrument panel or appears in the
instrument panel screen.

Warning

/indicator lamp

is on

Cause

Action / Observations

Parking brake /
Brake fluid
level / Electronic
brake force
distribution

fixed.

It comes on for a few seconds, then
goes off when the ignition is switched
to "ON".

the parking brake is on or not fully
released.

It is accompanied by a message. Release the parking brake
to make the warning lamp go off.

the brake fluid level is too low.

It is accompanied by a message. top up with brake fluid and
contact a PeugeOt dealer or a qualified workshop.

the electronic brake force distribution
(eBFD) is faulty.

You must stop as soon as it is safe to do so.
Have it checked by a PeugeOt dealer or a qualified
workshop.

Engine

self-

diagnosis
system

flashing.

the engine management system has
a fault.

Risk of destruction of the catalytic converter.
Have it checked by a PeugeOt dealer or a qualified
workshop.

fixed.

the emission control system has a
fault.

the warning lamp should go off when the engine is started.
If it does not go off, contact a PeugeOt dealer or qualified
workshop without delay.

Battery charge*

fixed.

the battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...).

the warning lamp should go off when the engine is started.
If it does not go off, contact a PeugeOt dealer or a
qualified workshop.

the illumination of a warning lamp may be accompanied by the display
of an additional message, to assist you in identifying the problem.
If you encounter any problems, you should contact a PeugeOt
dealer or a qualified workshop.

* Depending on the country of sale.

Content .. 1 2 3 ..
