WELCOME

Your 807 has been designed to satisfy all your

requirements in terms of practicality, comfort, safety

and aesthetics. In order to get the most out of your

vehicle, we suggest that you take a tour, from the

instruments and controls to the rear seats, with the

"Handbook" in front of you.
The handbook presents the operation of the

equipment and confi gurations available on board in

detail.
PEUGEOT thanks you for your confi dence and wishes

you very happy motoring.

Each model may only be fi tted with some of the

equipment shown, depending on the specifi cation and

the characteristics of the country in which it is sold.
Where the item of equipment or the function is preceded

by the phrase "If your vehicle is fi tted with...", this draws

your attention to possible differences in specifi cation.

Please note the following point: the fi tting of electrical

equipment or accessories which are not recommended

by PEUGEOT may result in a failure of your vehicle's

electronic system. Please note this specifi c warning. It is

advisable to contact a PEUGEOT dealer to be shown the

recommended equipment and accessories.

Contents

4. SAFETY

85-102

Driving safety

Handbrake 86
Hazard warning lights

Parking assistance

ABS and EBFD

Horn 88
Emergency braking

assistance 88

ASR and ESP

Tyre under-infl ation

detection 90

Seat belts

Airbags 93
Passenger air bag

disarming 93

Child seats

Isofi x seats

Recommended seats 100
Monitoring mirror

102

Steering wheel

controls 43

Lighting 43
Windscreen wipers

Cruise control

Speed limiter

Ventilation 54
De-icing and demisting 55
Seats 59
Front

Rear

Bench seat

Modularity 71
Comfort and safety

Layout 75
Courtesy lights

Sun visor

Mirrors and windows

3. EASE OF USE and

COMFORT 43-84

Presentation 4
Communication 4
Exterior 6
Interior 8
Identifi cation features

1. FAMILIARISATION 4-17

Accesses 18
Keys 18
Alarm 22
Doors 23
Child safety

Tailgate 25
Sunroofs 26
Instruments and controls 27
Control block

Instrument panels

Warning lights

Indicators, Display

Gearbox
Automatic

Manual

Steering

wheel adjustment

Starting and stopping

2. READY

TO SET OFF

18-42

CONTENT

Contents

5. ACCESSORIES 103-107

7. QUICK HELP 116-131

8. TECHNICAL

DATA

132-138

6. CHECKS

108-115

10. VISUAL

SEARCH 139-146

Towing a trailer

103

Roof bars

105

Very cold climate

screen 106

Other accessories

107

Fuel 109
Tank 109
Circuit disarmed

110

Diesel repriming pump 110
Opening the bonnet

111

Diesel under-bonnet

layout 112

Levels 113
Checks 115

Battery 116
Changing

a wheel

117

bulb

121

fuse

124

a wiper blade

130

Being towed

131

Model codes

132

Diesel 133
Engine 133
Weights and

towing loads

134

Dimensions 136

Exterior 139
Interior 140
Front interior

141

Instruments

and controls

142

Technical data -

Maintenance 143

Eco-driving 144

9. TECHNOLOGY on

BOARD

Peugeot Connect

Navigation (RT6)

9.1

Peugeot Connect

Sound 9.61

Peugeot Connect: Peugeot

Connect is the name given

to all of the new equipment

of the radio/navigation

range.

The "Location" section

assists you in fi nding the

controls and functions

and their associated page

numbers on the schematic

outlines of the vehicle

(visual index).

The "In-Car Technology"

section presents the new

radio/navigation equipment.

PRESENTATION

Within the chapters, symbols draw your attention to specifi c

information:

This handbook has been designed to familiarise you with

your new vehicle from the moment you get behind the

wheel and to describe the operating features.
Reading the handbook is made easy with the content

consisting of 10 identifi ed chapters, which can be located

by means of a colour code specifi c to each one. Its

sections cover, by subject, all of the functions of the

vehicle in its most complete specifi cation.

PEUGEOT COMMUNICATION PUTS AN INTERNET SITE AT YOUR DISPOSAL

http://public.servicebox.peugeot.com, select:
- your

model,

the body type: saloon, CC, SW, estate, van…,

the period corresponding to the date of fi rst registration,

the "Latest Information" section.

The technical data, equipment and accessories may

change during the year. To obtain this new data, refer to

the "Latest Information" section on the SERVICE BOX

Internet site free of charge.

Chapter 8 gives all of the technical data relating to your

vehicle. At the end of the document, diagrams of the

outside and inside of the vehicle will assist you in locating

equipment or functions and page numbers refer you to

the relevant section of the handbook.

directs you to the chapter and section which contains

detailed information concerning a function,

indicates important information relating to use of the

equipment,

alerts you to the safety of individuals and equipment on

board.

http://public.servicebox.peugeot.com

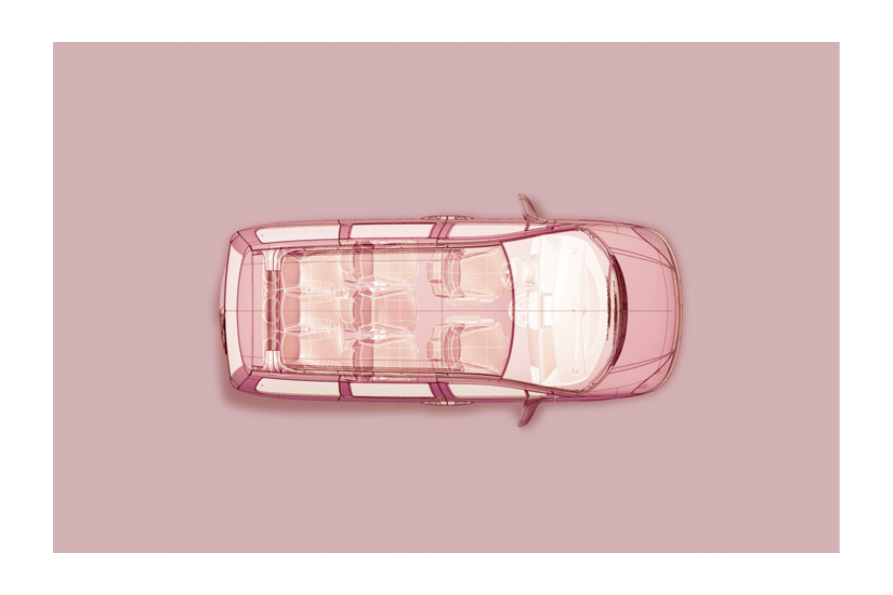

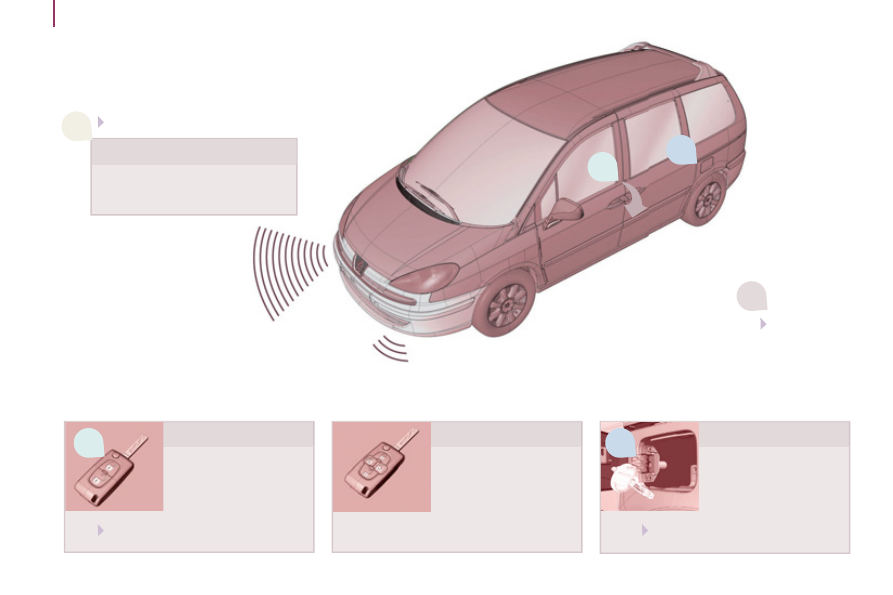

Exterior

When the fuel fi ller

fl ap is open, a safety

system limits the

opening of the sliding

side door while the

fuel tank is being

fi lled.

Flap open

4 buttons

A press selected by

one or the other.

The movement of

the door must be

guided on opening.

2 buttons

Left-hand

door

Right-hand

door

Key

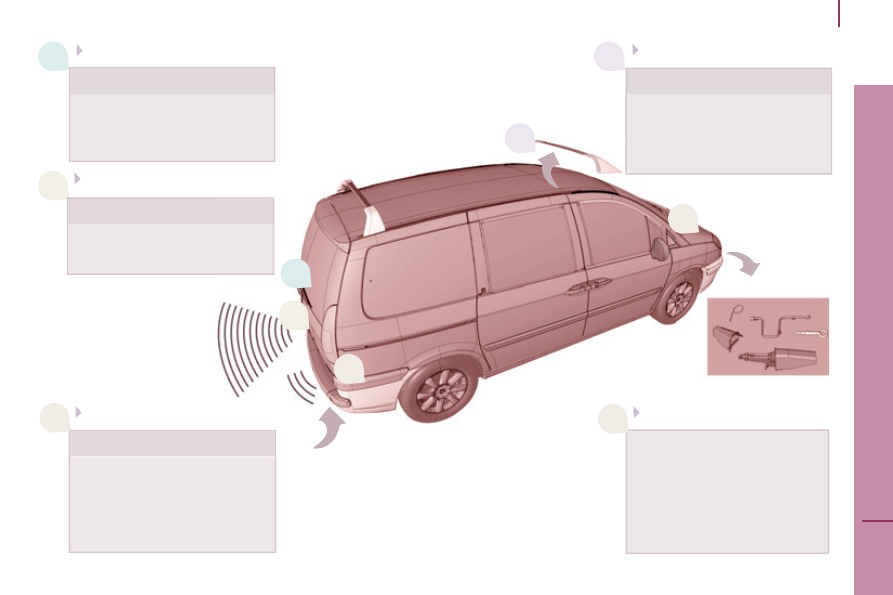

Parking assistance

Audible and/or visual front

parking assistance.

item identifi cation mark

page identifi cation mark

109

AMILIARISA

TIO

Exterior

Audible and/or visual rear

parking assistance.

Tailgate

Locking and unlocking by

remote control. Press the

handle and raise the tailgate.

Parking assistance

Transverse roof bars

Release the four levers,

move your bars then secure

the levers.

105

Spare wheel

Raise the wheel to be

repaired by means of the

cable until it is fl ush against

the fl oor. Close the cover on

the access opening securely.

117

Wheelbrace.
Jack box.
Towing eye.

117

Interior

AMILIARISA

TIO

Interior

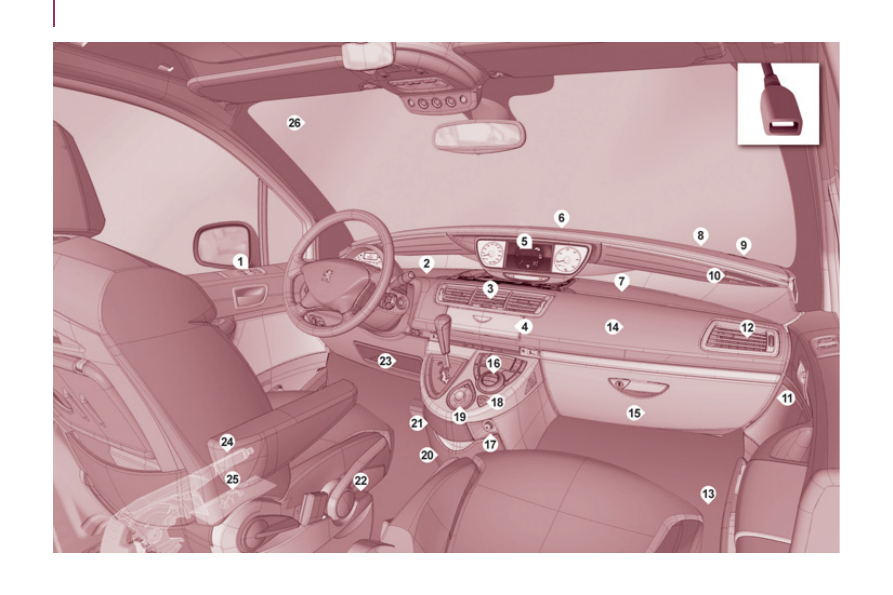

13. Battery / Fuse box.

14. Passenger airbag.

15. Passenger's lower glove box / Fuse

box / RCA sockets.

16. Air conditioning controls.

17. Lighter /

12 V accessories socket.

18. Hazard warning lights switch.

19. Storage compartment or additional

telematics control.

20. Cooled compartment.

21. Ashtray / Can holder.

22. Seat adjustment control.

23. Storage compartment.

24. Handbrake - on the left.

1. Electric mirror controls.

- Electric window controls.
- Deactivation of the rear electric

controls.

2. Driver's upper glove box.

3. Central adjustable vents.

4. Audio equipment or GPS

multimedia audio equipment with

fl ap.

5. Instrument panel / Large colour

display.

6. Sunshine and passenger

compartment temperature sensor.

7. Passenger's upper glove box.

25. Bonnet release under cover - on

the left.

26. Acoustic windscreen.

INTERIOR OVERVIEW

SETTING THE DATE AND

TIME

For more information about

this adjustment, refer to the

"Setting the date and time" section of

the "In-car technology" chapter.

ADDITIONAL HEATER

With the engine at idle

or when the vehicle is

stationary, it is normal

to notice a high-pitched

whistling and a slight emission of

smoke and odour.

Bluetooth.

8. Windscreen demisting vents.

9. Speaker (tweeter).

10. Front window demisting vents.

11. Passenger airbag disarming switch,

if fi tted on your vehicle.

12. Side adjustable vent.

Interior

5. Control block.
6. Steering wheel audio equipment

controls.

7. Wipers / wash-wipe / trip computer

controls.

8. Gear lever.
9. Ignition.

1. Interior protection alarm

deactivation button.

2. Speed limiter / cruise control

switches.

3. Lights and direction indicators

controls.

4. Driver's airbag.

Horn.

10. Headlamp height adjustment.
11. a- Dynamic stability control button

(ESP/ASR).

b- Parking assistance button.

12. Steering wheel adjustment control.

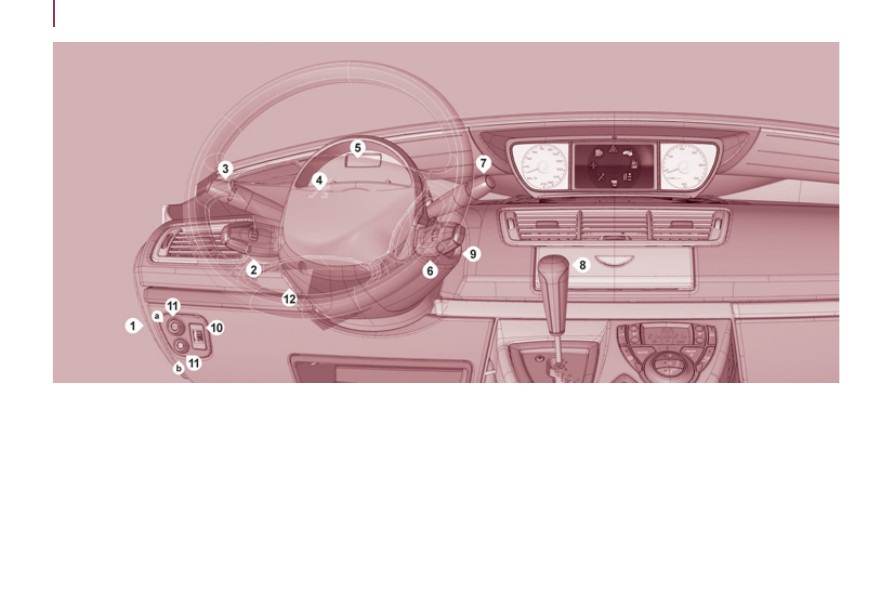

INSTRUMENTS AND CONTROLS

AMILIARISA

TIO

Interior

INSTRUMENTS AND CONTROLS

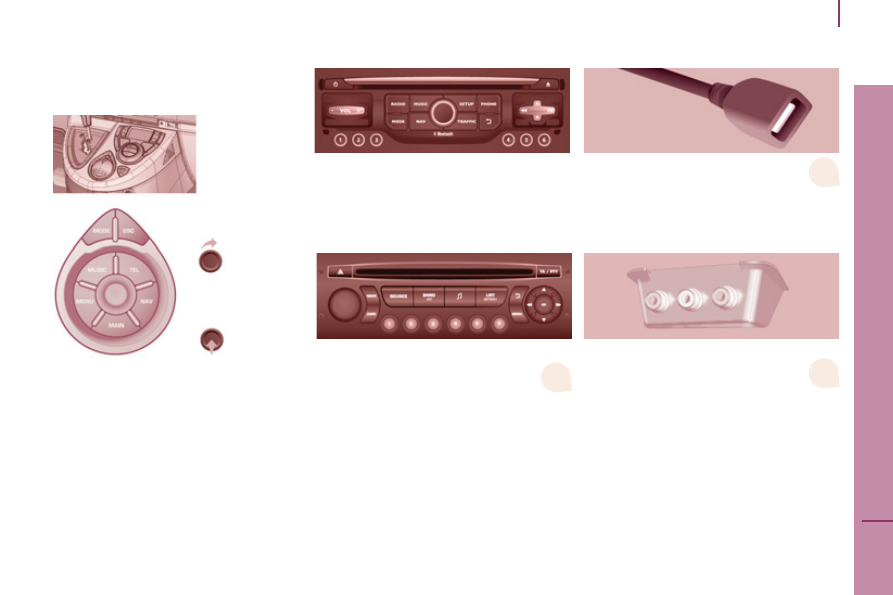

Truly ergonomic control for access

to the functions of the Peugeot

Connect Media Navigation (RT5).

Peugeot Connect Navigation (RT6)

confi rmation

selection

Peugeot Connect Sound

Bluetooth

JACK / RCA socket

Interior

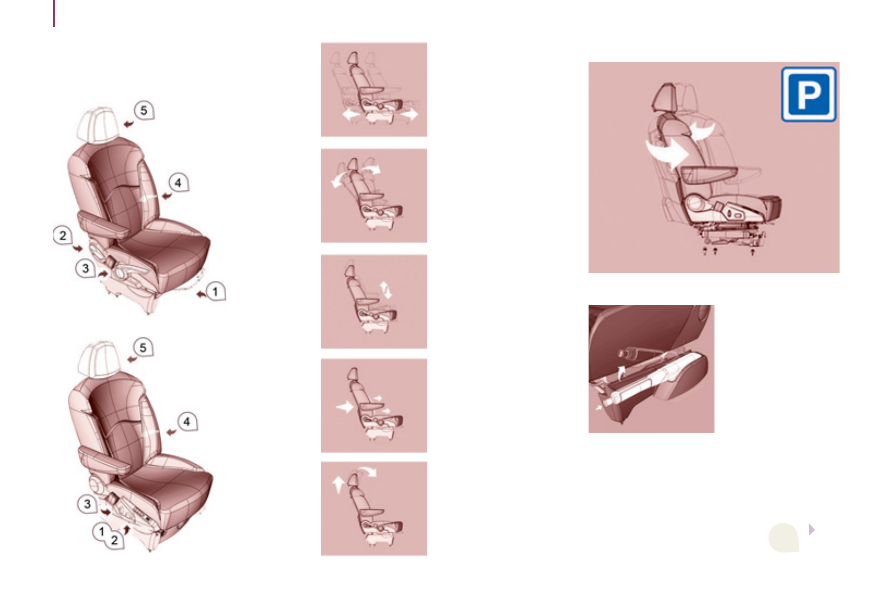

Seat with manual

adjustment

Seat with electric

adjustment

If your vehicle

is fi tted with a

version with a

rotating front

seat, pull the

button placed

at the end of

the handbrake

forwards.
The handbrake

lever lowers.

You can now rotate the seat. To return

to normal operation, pull the lever up

until it clicks.

1. Forwards-backwards

adjustment.

2. Angle.

3. Height.

4. Lumbar.

5. Head restraint

height and angle.

Rotating the seat

SIT COMFORTABLY

Driver's seat

MILIARISA

TIO

Interior

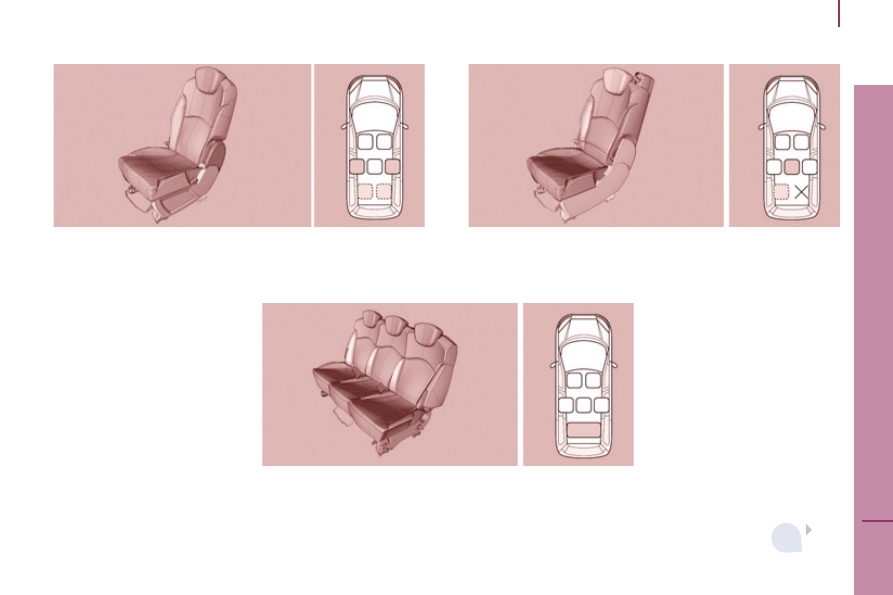

Linked side seats

Central rear seat

Rear bench seat

Other types of seat

Interior

Repositioning

SIT COMFORTABLY

SEE CLEARLY

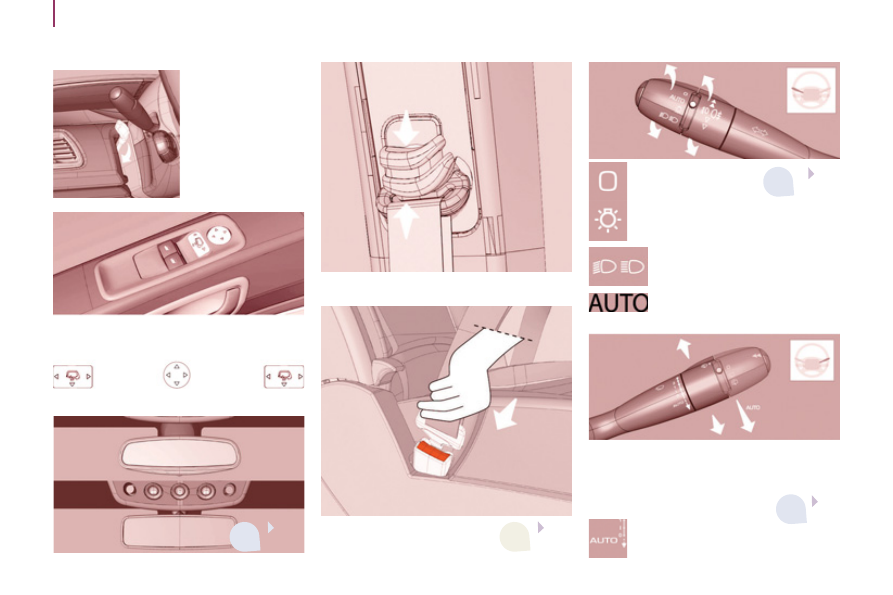

Adjust the height

and depth of the

steering wheel.

Electric exterior mirrors.

Selection

Seat belts

Height adjustment.

Fastening.

Lights off

Side lights

Main beam headlamps (blue)
Dipped headlamps (green)

Wipers stalk

2 fast.

1 normal.

I intermittent.

0 off.

È single wipe.

AUTO, press the stalk down.

AUTO, automatic switching

on of the lights

Adjustment
