Peugeot 807 Dag (2007.5). Manual - part 1

A tour of the 807 in pictures

A tour of the 807 in pictures

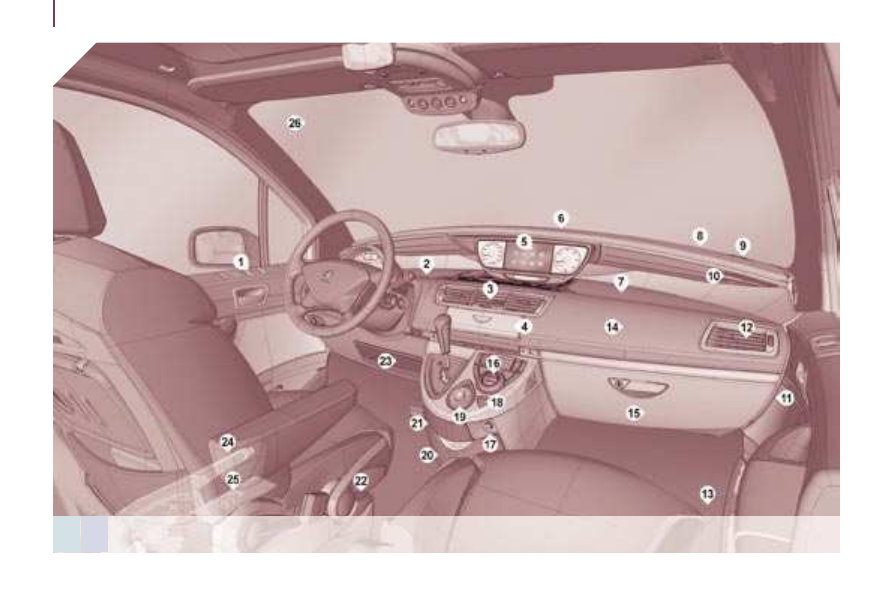

12 - Side adjustable vent.

13 - Battery/Fuse box.

14 - Passenger air bag.

15 - Passenger’s lower glove box/CD

changer/Fuse box.

16 - Air conditioning controls.

17 - Lighter/12 V accessories socket.

18 - Hazard warning lights switch.

19 - Storage compartment or additional

telematics control.

20 - Cooled compartment.

21 - Ashtray/Can holder.

22 - Seat adjustment control.

23 - Storage compartment.

24 - Handbrake - on the left.

1 - Electric mirror controls.

- Electric window controls.

- Deactivation of the rear electric

controls.

2 - Driver’s upper glove box.

3 - Central adjustable vents.

4 - RD4 audio equipment or RT4 GPS

audio/telephone with flap.

5 - Instrument panel/Large colour display.

6 - Sunshine and passenger compartment

temperature sensor.

7 - Passenger’s upper glove box.

8 - Windscreen demisting vents.

9 - Speaker (tweeter).

10 - Front window demisting vents.

11 - Passenger air bag disarming switch,

if fitted on your vehicle.

25 - Bonnet release under cover

- on the left.

26 - Acoustic windscreen.

INTERIOR OVERVIEW

Setting the date and time
For more information about this

adjustment, refer to the "Setting

the date and time" section of

chapter 4.

Additional heater
With the engine at idle or when

the vehicle is stationary, it is

normal to notice a high-pitched

whistling and a slight emission of

smoke and odour.

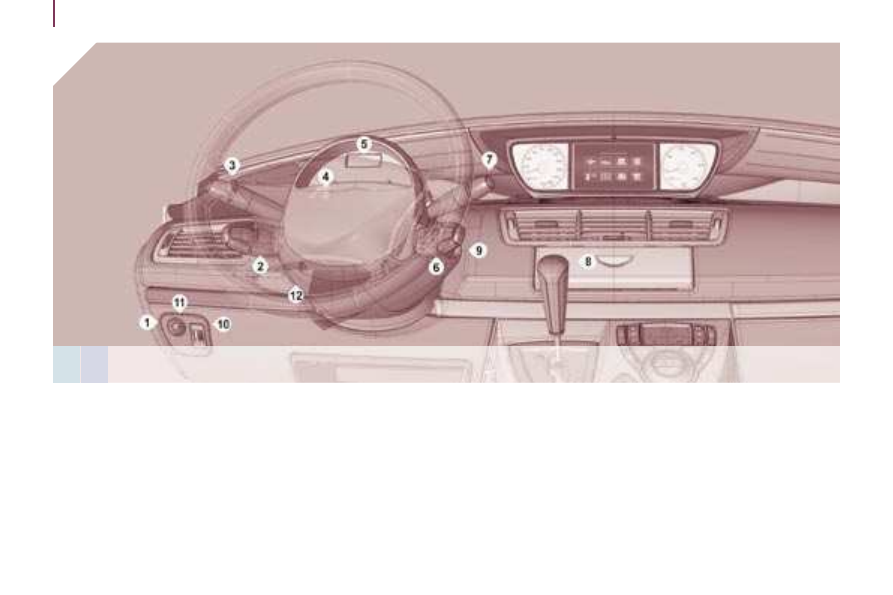

A tour of the 807 in pictures

4 - Driver’s air bag.

Horn.

5 - Control block.

6 - Audio equipment steering wheel controls.

7 - Wipers/wash-wipe/trip computer controls.

1 - Interior protection alarm deactivation

button.

2 - Speed limiter/cruise control switches.

3 - Lights, direction indicators controls.

INSTRUMENTS AND CONTROLS

8 - Gear lever.

9 - Ignition.

10 - Headlamp height adjuster.

11 - Dynamic stability control button

(ESP/ASR).

12 - Steering wheel adjustment control.

A tour of the 807 in pictures

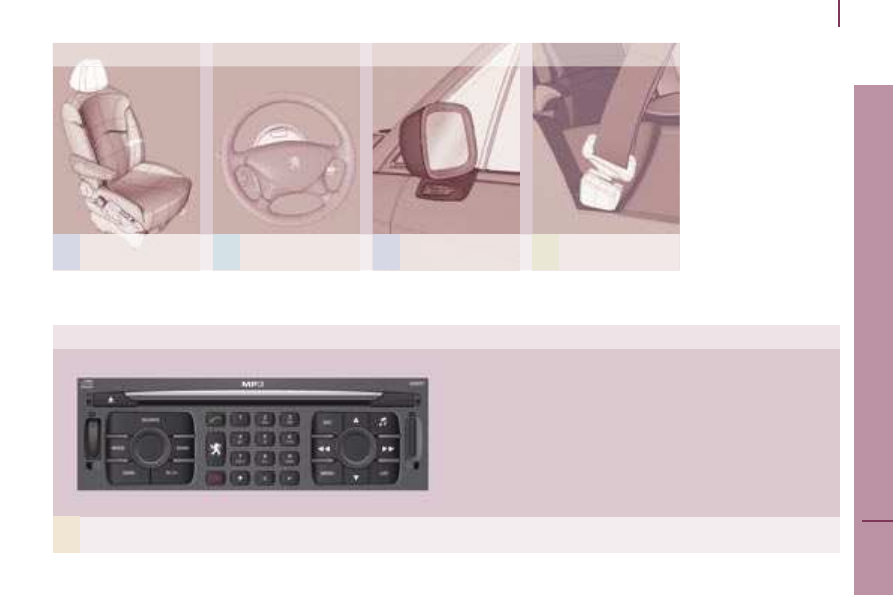

DRIVER’S SEAT

STEERING WHEEL

MIRRORS

SEAT BELTS

SIT COMFORTABLY

The RT4 system has a hard disc with a capacity of 10 Gb,

reserved for your music.

The Jukebox function permits the selective playing of up to

180 hours of music.

The detailed maps of Europe are stored on this hard disc, without

the addition of a CD. They are displayed on the 16/9ths 7 inch

colour display and offer a 3D view.

By means of your SIM card, the hands-free GSM telephone also

provides access to the PEUGEOT EMERGENCY service (subject

to conditions).

AUDIO RT4

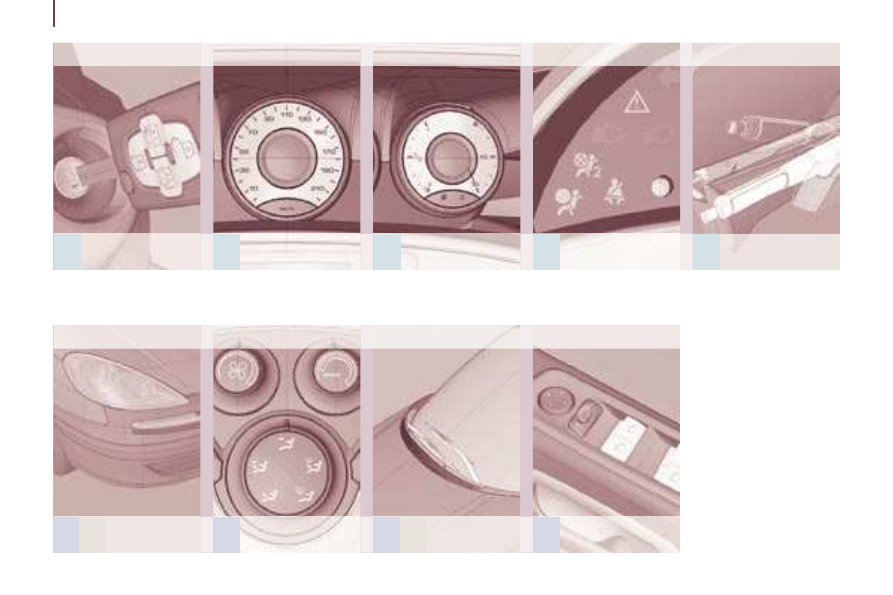

A tour of the 807 in pictures

STARTING AND

STOPPING

INSTRUMENT PANEL

GAUGE

START

WARNING LIGHTS

LIGHTING

VENTILATION

WIPERS

ELECTRIC WINDOW

HANDBRAKE

OPERATE

A tour of the 807 in pictures

FRONT SEATS

REAR SEATS/BENCH

SEAT

TRANSPORT

TRIP COMPUTER

CRUISE CONTROL/

SPEED LIMITER

AUDIO RD4/RT4

CONFIGURE

PARKING ASSISTANCE

MODULARITY

DATE AND TIME ON

THE DISPLAY

TYRE UNDER-

INFLATION DETECTION

ACCESSORIES

A tour of the 807 in pictures

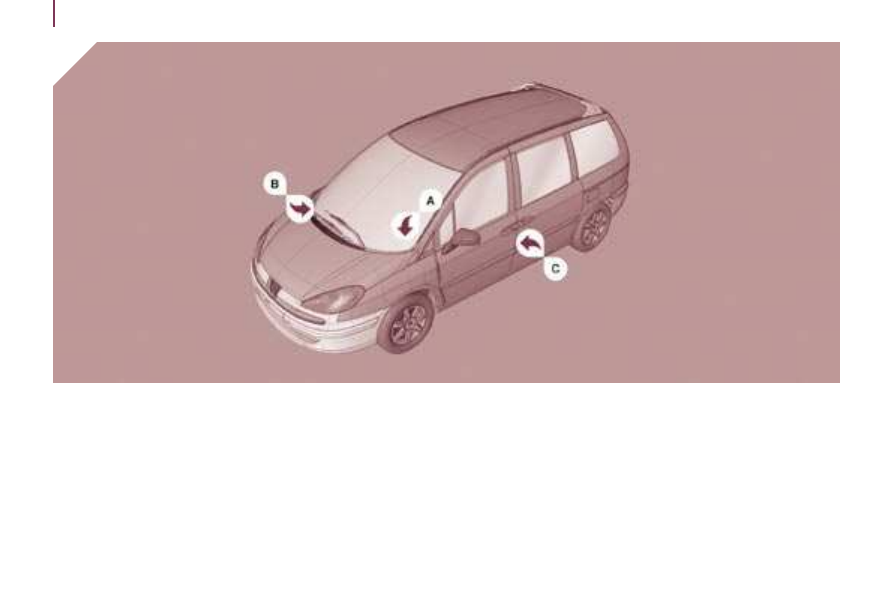

IDENTIFICATION FEATURES



the wheel and tyre sizes,



the brands of tyres approved by the

manufacturer,



the tyre pressures

(the tyre pressure

must be checked when the tyre is cold,

at least once a month),



the paint colour reference.

A. Manufacturer’s plate.

B. Model serial number.

C. Tyres and paint colour reference.

The label

C on the driver’s door gives:

Accesses

SET

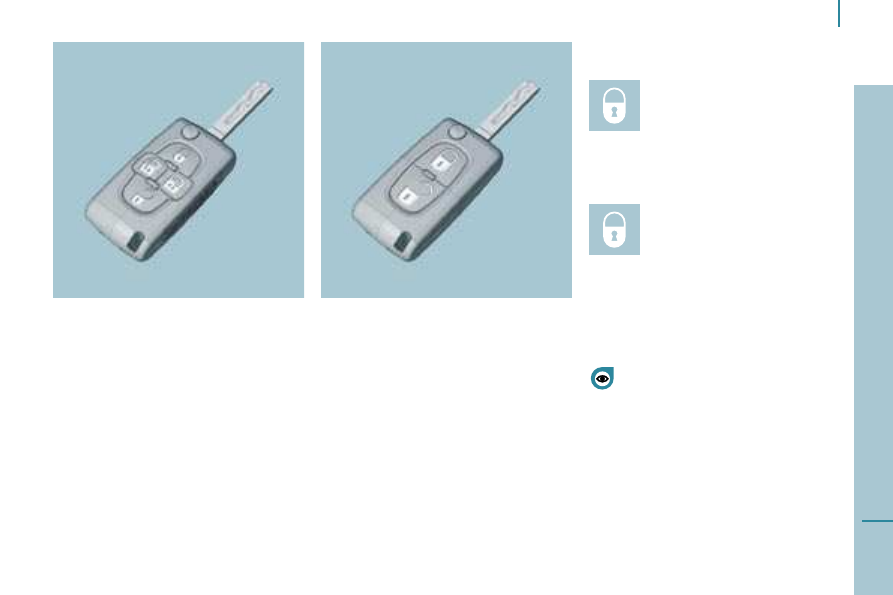

REMOTE CONTROL

Normal locking

Deadlocking

If your vehicle is fitted with

deadlocking,

a second press

on the closed padlock

within five

seconds of locking changes this

to deadlocking.

This is confirmed by fixed lighting of the

direction indicators for approximately two

seconds.

The key allows you to switch on the ignition

and to mechanically operate the lock on the

fuel filler cap, the glove box, the passenger

air bag disarming switch and the mechanical

child lock.

KEYS

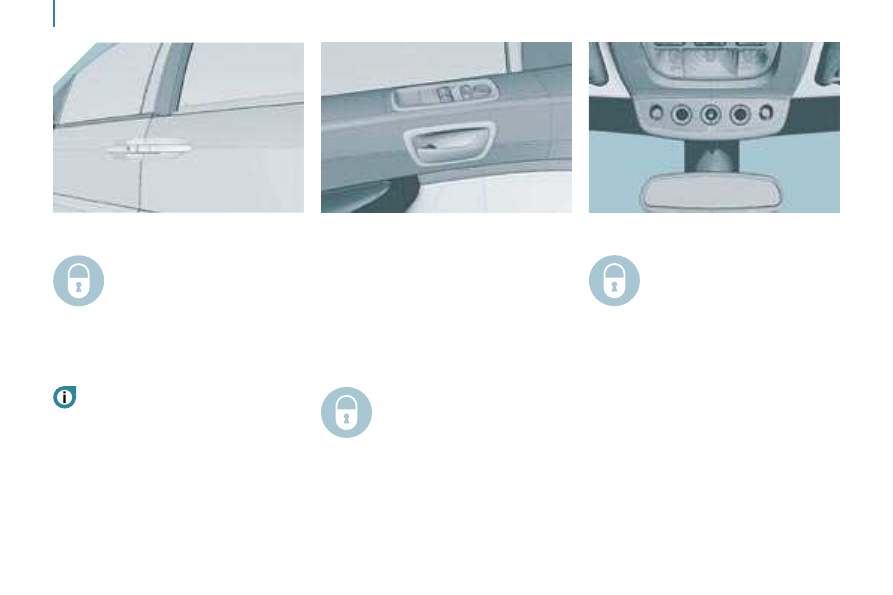

Central locking

From the driver’s door or passenger door,

the keys allow you to lock, deadlock or

unlock the doors and tailgate, as well as fold

back the exterior mirrors.

If one of the doors or the tailgate is open,

the central locking does not work.

The remote control performs the same

functions at a distance.

Deadlocking renders the internal

and external door locking controls

inoperative.

Never leave anyone inside the vehicle when

it is deadlocked.

If the deadlocking is operated from inside

the vehicle, it will change to normal locking

when the vehicle is started.

ACCESSES

Press the closed padlock to lock

the vehicle.

This is confirmed by fixed lighting

of the direction indicators for

approximately two seconds.

Accesses

Pressing the closed padlock for

more than 2 seconds, in addition

to locking or deadlocking, permits

automatic closing of the windows

and places the sunroofs in the partially open

position, if they were open. To close them

completely, you must press their switch

before leaving the vehicle.

Pressing one of the buttons opens

or closes the corresponding rear

door (right or left).

Locating your vehicle

Key in ignition

A buzzer sounds on opening the driver’s

door, if the key has been left in the ignition.

Folding/opening out the key

Unlocking

Press the open padlock

to unlock

the vehicle.

This is confirmed by rapid flashing

of the direction indicators.

If the vehicle is locked and unlocking is

activated inadvertently, unless the doors are

opened within 30 seconds, the vehicle will

lock automatically.

This press unlocks the entire vehicle

before opening the sliding door.

Opening/Closing the electric

sliding side doors

To tuck away the key blade, press

the button, then fold it down into

the remote control module.

To open out the key, press the

button.

To locate your vehicle, if you have

locked it, in a car park.

Press the closed padlock, the

courtesy lights come on and the

direction indicators flash for a few seconds.

Accesses

SET

REMOTE CONTROL

Normal locking

Deadlocking

If your vehicle is fitted with

deadlocking,

a second press

on the closed padlock

within five

seconds of locking changes this

to deadlocking.

This is confirmed by fixed lighting of the

direction indicators for approximately two

seconds.

The key allows you to switch on the ignition

and to mechanically operate the lock on the

fuel filler cap, the glove box, the passenger

air bag disarming switch and the mechanical

child lock.

KEYS

Central locking

From the driver’s door or passenger door,

the keys allow you to lock, deadlock or

unlock the doors and tailgate, as well as fold

back the exterior mirrors.

If one of the doors or the tailgate is open,

the central locking does not work.

The remote control performs the same

functions at a distance.

Deadlocking renders the internal

and external door locking controls

inoperative.

Never leave anyone inside the vehicle when

it is deadlocked.

If the deadlocking is operated from inside

the vehicle, it will change to normal locking

when the vehicle is started.

ACCESSES

Press the closed padlock to lock

the vehicle.

This is confirmed by fixed lighting

of the direction indicators for

approximately two seconds.

Accesses

Pressing the closed padlock for

more than 2 seconds, in addition

to locking or deadlocking, permits

automatic closing of the windows

and places the sunroofs in the partially open

position, if they were open. To close them

completely, you must press their switch

before leaving the vehicle.

Pressing one of the buttons opens

or closes the corresponding rear

door (right or left).

Locating your vehicle

Key in ignition

A buzzer sounds on opening the driver’s

door, if the key has been left in the ignition.

Folding/opening out the key

Unlocking

Press the open padlock

to unlock

the vehicle.

This is confirmed by rapid flashing

of the direction indicators.

If the vehicle is locked and unlocking is

activated inadvertently, unless the doors are

opened within 30 seconds, the vehicle will

lock automatically.

This press unlocks the entire vehicle

before opening the sliding door.

Opening/Closing the electric

sliding side doors

To tuck away the key blade, press

the button, then fold it down into

the remote control module.

To open out the key, press the

button.

To locate your vehicle, if you have

locked it, in a car park.

Press the closed padlock, the

courtesy lights come on and the

direction indicators flash for a few seconds.

Accesses

SET

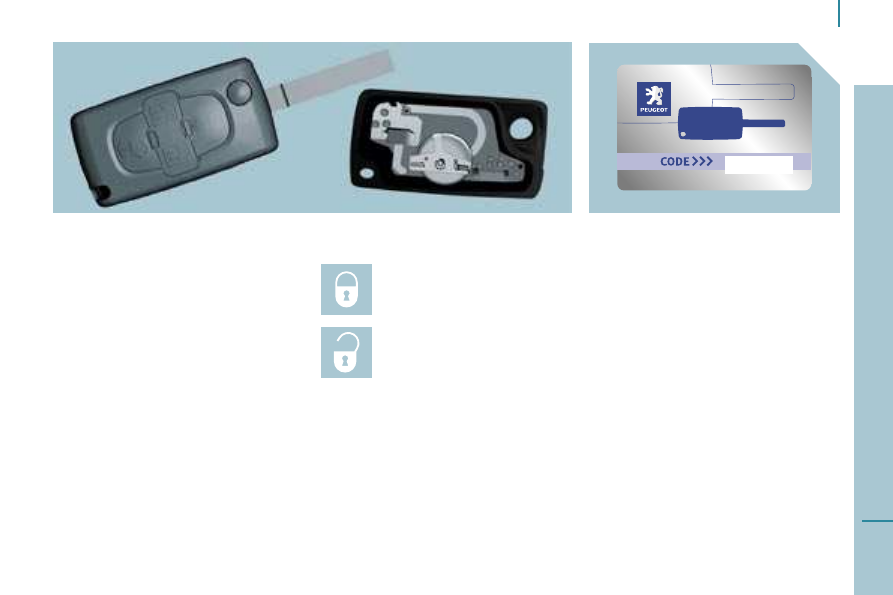

Changing the battery of the remote

control

Battery ref.: CR1620/3 volts.

The information "battery flat" is given by an

audible signal, accompanied by a message

on the multifunction display.

To replace the battery, unclip the casing

using a coin at the ring.

If the remote control does not work after the

battery has been changed, re-programme

the remote control.

Programming the remote control

Following changing of the remote

control battery or disconnection

of the vehicle battery, the remote

control must be reprogrammed.

Wait at least one minute before

using the remote control.

Switch on the ignition.

Press one of the two padlocks

for at least five seconds within the next ten

seconds.

Switch off the ignition.

Wait at least one minute before using the

remote control.

The remote control is now working again.

Do not discard the remote control batteries,

they contain metals which are harmful to the

environment.

Take them to a PEUGEOT dealership, or to

any other approved collection point.

CONFIDENTIAL CARD

This is given to you on delivery of your

vehicle with the duplicate keys.

It contains the identification code necessary

for any work carried out by a PEUGEOT

dealer on the electronic immobiliser system.

This code is hidden by a film, which should

be removed only if necessary.

Keep your card in a safe place, never inside

the vehicle.

When undertaking a long trip or journey,

however, it is advisable to take it with you

along with your personal papers.

Accesses

SET

Changing the battery of the remote

control

Battery ref.: CR1620/3 volts.

The information "battery flat" is given by an

audible signal, accompanied by a message

on the multifunction display.

To replace the battery, unclip the casing

using a coin at the ring.

If the remote control does not work after the

battery has been changed, re-programme

the remote control.

Programming the remote control

Following changing of the remote

control battery or disconnection

of the vehicle battery, the remote

control must be reprogrammed.

Wait at least one minute before

using the remote control.

Switch on the ignition.

Press one of the two padlocks

for at least five seconds within the next ten

seconds.

Switch off the ignition.

Wait at least one minute before using the

remote control.

The remote control is now working again.

Do not discard the remote control batteries,

they contain metals which are harmful to the

environment.

Take them to a PEUGEOT dealership, or to

any other approved collection point.

CONFIDENTIAL CARD

This is given to you on delivery of your

vehicle with the duplicate keys.

It contains the identification code necessary

for any work carried out by a PEUGEOT

dealer on the electronic immobiliser system.

This code is hidden by a film, which should

be removed only if necessary.

Keep your card in a safe place, never inside

the vehicle.

When undertaking a long trip or journey,

however, it is advisable to take it with you

along with your personal papers.

Accesses

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control system as

soon as the ignition has been switched off

and therefore prevents starting of the vehicle

by anyone who does not have the key.

The ignition key has an electronic chip which

has a special code. When the ignition is

switched on, the code must be recognised

for starting to be possible.

If the system does not function correctly,

the

central locking button indicator light, situated

on the courtesy light console, ﬂashes rapidly

when the ignition is switched on (2nd notch).

In this case your vehicle will not start.

Contact a PEUGEOT dealer as soon as

possible.

Good practice

Key, remote control

Take care not to allow the key to come into

contact with grease, dust, rain or a damp

environment.

A heavy object attached to the key

(keyring, ...) weighing on the shaft of the key

in the switch may cause a malfunction.

The high frequency remote control is a

sensitive system; do not operate it while it is

in your pocket as there is a possibility that it

may unlock your vehicle, without you being

aware of it.

Do not repeatedly press the buttons of your

remote control out of range and out of sight

of your vehicle. You run the risk of stopping

it from working and the remote control would

have to be reprogrammed.

The remote control does not operate

when the key is in the ignition, even when

the ignition is switched off, except for

reprogramming.

Do not make any modifications to the

electronic engine immobiliser system.

In the event of loss
A PEUGEOT dealer will carry out his work

more efficiently and quickly if, depending on

the circumstances:

- you give him your confidential card,

- you have made a note of the number

coded on the label when given the keys.

- you have made a note of the code etched

on the head of the alloy wheels anti-theft

socket.

Safety
Driving with the doors locked may make

access to the passenger compartment by

the emergency services more difficult in an

emergency.

Remove the ignition key when you leave the

vehicle, even for a short time, if there are

children on board.

Purchasing a second-hand vehicle
Ensure that you are given the confidential

card and the anti-theft socket for alloy

wheels.

Have the key codes memorised by a

PEUGEOT dealer, to ensure that the keys

in your possession are the only ones which

can start the vehicle.

Accesses

SET

ALARM

If fitted on your vehicle, this provides two

types of protection:

- exterior protection: it sounds if a door, the

tailgate or the bonnet is opened.

- interior protection: it sounds if the volume

inside the passenger compartment

changes (breaking of a window or a

movement inside the vehicle).

A red indicator light, located in the centre of

the fascia, indicates the information detailed

below.

Setting the alarm



Switch off the ignition and get out of the

vehicle.



Set the alarm within ﬁve minutes of getting

out of the vehicle, by locking or deadlocking

using the remote control (the red indicator

light flashes once per second).

To lock your vehicle without setting the

alarm, insert the key in the lock then

lock the vehicle (eg. for washing).

When the alarm is triggered, the siren

sounds and the direction indicator lights

flash for thirty seconds.

Warning - alarm triggered: the red indicator

light flashes rapidly, insert the key and

switch on the ignition to switch it off.

When the alarm has been triggered ten

times in succession (on the eleventh time)

the alarm is deactivated. Repeat the rules

for setting the alarm.

Disarming

Unlock the vehicle with the remote control

(the red indicator light goes out).

To set the alarm with exterior

protection only

If, while you are away from the vehicle, you

wish to leave a window partially open or a

pet inside the vehicle, you should choose

exterior protection only.


Close the sunroofs,



Switch off the ignition,



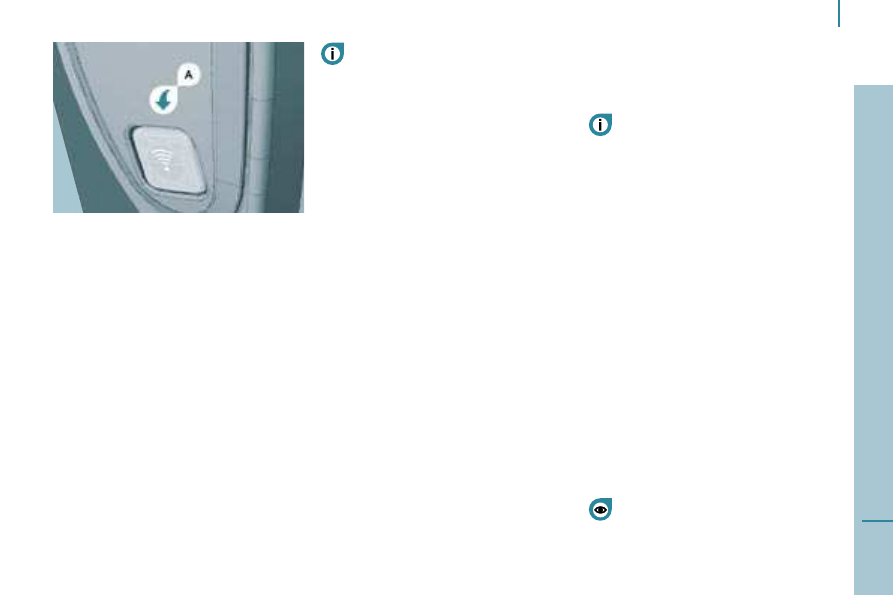

In the next ten seconds, press button

A, located on the left-hand side of the

fascia, until the red indicator light is on

continuously,



Get out of the vehicle,



Within the next five minutes, set the

alarm by locking or deadlocking using

the remote control (the red indicator light

flashes once a second).

When the alarm is set but the remote

control does not operate:



Unlock the doors with the key and open

the door. The alarm is triggered.



Switch on the ignition in the next ten

seconds. The alarm is disarmed.

Incorrect operation

When the ignition is switched on, if the red

indicator light remains on for ten seconds,

there is a fault in the siren connection.

Contact a PEUGEOT dealer to have the

system checked.

Automatic setting of the alarm

If fitted on your vehicle, the alarm is set

automatically 2 minutes after the last door or

the tailgate is closed.

To prevent triggering of the alarm when

a door or the tailgate is opened, it is

imperative to press the remote control

unlocking button again.

Do not make any modifications to

the alarm system as this could cause

faults.

Accesses

DOORS

Automatic central locking

The doors can lock automatically when you

are driving (at a speed of more than 6 mph

(10 km/h)).

You can activate or deactivate this function.

To deactivate

With the ignition on, press and

hold the padlock.

Deactivation of the function is

accompanied by an audible signal.

"Door open" alert

If a door or the tailgate is not closed

properly:

when the engine is running, you are

warned by a diagram and a message on

the display for a few seconds,

when the vehicle is moving (speed above

6 mph (10 km/h)), the service warning light

comes on. It is accompanied by an audible

signal, a message and a diagram on the

display for a few seconds.

Opening the doors from outside

Opening the doors from inside

If the vehicle is locked or deadlocked

from the outside, the red warning light

flashes and the padlock does not function. In

this case, use the key or the remote control

to unlock from the outside.

The door opening switches do not function

when the vehicle is deadlocked.

Locking/Unlocking

from the inside

Press the padlock,

the red warning

light comes on when the vehicle is

locked and switches off when it is unlocked.

This locks/unlocks the doors and the

tailgate.

To activate

With the ignition on, press and

hold the padlock

Activation of the function is

accompanied by an audible signal and a

message on the display.

Content .. 1 2 3 ..
