239

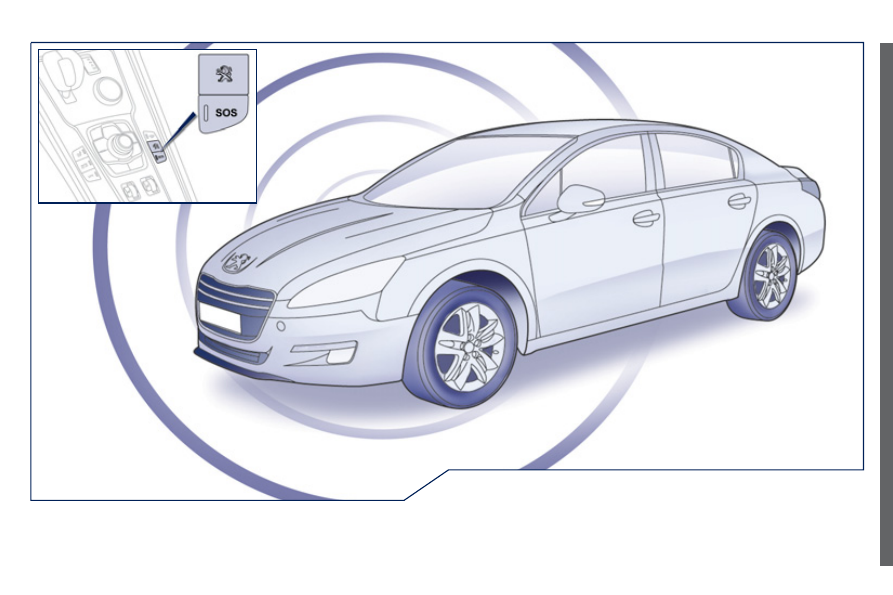

EMERGENCY OR ASSISTANCE CALL

240

EMERGENCY OR ASSISTANCE CALL

In an emergency, press this button for more than

2 seconds. Flashing of the green LED and a voice

message confi rm that the call has been made to the

PEUGEOT CONNECT SOS call centre * .

The green LED remains on (without fl ashing) when communication is

established. It goes off at the end of communication.

When the ignition is switched on, the green

LED comes on for 3 seconds indicating that

the system is operating correctly.

Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.

Press this button for more than 2 seconds to request

assistance if the vehicle breaks down.
A voice message confi rms that the call has been made ** .

OPERATION OF THE SYSTEM

Pressing this button again immediately cancels the request. The green

LED goes off. Cancellation is confi rmed by a voice message .
To cancel a call, tell the PEUGEOT CONNECT SOS call centre that the

call was a mistake.

PEUGEOT CONNECT SOS immediately locates you vehicle, starts

communication with you in your language ** , and where necessary sends

the appropriate public emergency services ** . In countries where the

service is not available, or when the locating service has been expressly

declined, the call sent directly to the emergency services (112) without the

vehicle location.

If an impact is detected by the airbag control unit, and

independently of the deployment of any airbags, an emergency call

is made automatically.

* Subject to the general conditions for the service available from dealers

and to technological and technical limitations.

** Depending on the geographical cover of PEUGEOT CONNECT SOS,

PEUGEOT CONNECT ASSISTANCE and the offi cial national language

selected by the owner of the vehicle.

The list of countries covered and PEUGEOT CONNECT services are

available from dealers or at www.peugeot.co.uk.

If the orange LED fl ashes: there is a system

fault.
If the orange LED is on continuously: the

backup battery must be replaced.
In either case, contact a PEUGEOT dealer.

If you purchased your vehicle outside the PEUGEOT dealer network,

we invite you to have a dealer check the confi guration of these services

and, if desired, modifi ed to suit your wishes. In a multi-lingual country,

confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the quality of

PEUGEOT CONNECT services to customers, the manufacturer reserves

the right to carry out updates to the vehicle's on-board telematic system.

241

JBL EQUIPMENT

The Hi-Fi system is a 5.1 system developed by PEUGEOT in conjunction with JBL.

4 two-way speaker kits, separated by an active fi lter, are fi tted at front and

rear.
These are based on a fabric dome tweeter delivering stable and balanced

treble reproduction and a 50W RMS neodymium magnet inverted motor

medium-woofer possessing a very high output of bass frequencies.
The central line in the dashboard improves reproduction of the musical

scene, putting the listener in a situation that realistically reproduces the

original musical recording.
The bass unit located in the boot carries a 150W triple-coil true subwoofer

in an optimised space, giving depth and impact to the bass ranges.
This set of speakers is controlled by a 10-way 500W RMS 2 ohm

amplifi er, using advanced surround sound and sound distribution

handling, so as to deliver optimum performance both for the driver and for

the passengers in the vehicle.

242

243

The system is protected in such a way that it will only

operate in your vehicle.

PEUGEOT CONNECT NAVIGATION (RT6)

01 First steps - Control panel

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.
When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

CONTENTS

  02  Steering mounted controls
  03  General operation
  04  Navigation - Guidance
  05  Traffic information
  06  Using the telephone
  07  Contacts - ADDR BOOK
  08 Radio
  09  Music media players
  10  Audio settings
  11 Configuration

12 Screen menu map

p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

244
246

247

249
263
266
274
277
280
286
287
288

Frequently asked questions p.

291

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO

SYSTEM

244

01 FIRST STEPS

TA (Traffi c

Announcement)

function On / Off.

Display the list of radio stations received, CD/MP3/Apple

player tracks or folders.
Long press: management of the classifi cation of MP3/

WMA fi les/update the list of stations received.

Select the source: CD,

USB, AUX, Apple

player, Bluetooth

Streaming, Radio.

Access to " Audio

settings": musical

ambiences, bass, treble,

loudness, distribution, left/

right balance, front/rear

fader, automatic volume

adjustment.

Abandon the current

operation, go up one

level.
Long press: return to

permanent display.

Selection of AM / FM

wavebands.

Display black screen.

MODE button: select the

type of permanent display.

Short press: mute / restore

sound.

Press and hold: reinitialise the

system.

Short press: select a

preset radio station.
Long press: store

the current radio

station.

Select:
- the

previous/next line in a list or menu.

the previous next media folder.

- step

by step previous/next radio frequency.

- previous/next MP3 folder.
Move up/down, in "Move the map" mode.

Rotation: adjust volume

(each source is independent,

including TA messages and

navigation instructions).

  Select:
   -  automatically the previous/next radio frequency.
  -

the previous/next CD, MP3 or media track.

Move left/right, in " Move the map " mode.

On / Off.

245

Access to the "Telephone " menu

and display the list of recent calls

or accept an incoming call.

Access to the "Navigation -

guidance" menu and display the

recent destinations.

Radio source, access to the

"RADIO " menu and display the list

of stations received.

Access to the "Confi guration"

menu.
Long press: access to the

GPS coverage and navigation

demonstration mode.

Reject an incoming call or end a

call in progress.

Access to the "Traffi c

information " menu and display of

current traffi c alerts.

Media source, access to "MEDIA"

menu and display the list of

tracks.

Abandon the current operation, go up

one level.
Long press: return to permanent display.

Selection and OK confi rmation dial:
Select an item on the screen or in a list or

a menu, then confi rm with a short press.
Other than for menus and lists, a short

press calls up a contextual memory,

according to the display in the screen.
Rotation with the map displayed: zoom

in/out in the map.

Display the list of contacts /

Access to the "Directory of

contacts " menu.

FIRST STEPS

246

02 STEERING MOUNTED CONTROLS

- Press: access to the instrument

panel screen menu.

Rotation: navigation in the

instrument panel screen menu.

- Increase volume.

- Mute

/ restore sound.

Decrease volume.

Rotation

Radio -automatic selection of

next / previous frequency.

Media: previous / next track.

- Press then rotation: access to

6 preset stations.

Change the audio source.

- TEL/SRC button (short press):

Accept an incoming call .

Call in progress: access to

telephone menu: hang up, secret

p g

mode, hands-free mode.

g p

- TEL/SRC button (long press):

Reject an incoming call or end a

call in progress.

When not making a call, access

to the telephone menu (Dial,

Contacts, Calls log, Voice

(

mailbox).

Select the type of permanent

display on the screen.

- Radio:

display the list of stations.

Media:

display the list of tracks.

247

For a detailed global view of the menus available, refer to the

"Screen menu map" section.

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

"RADIO"

"TELEPHONE"
(If conversation in progress)

SETUP: PARAMETERS
date and time, display confi guration, sound.

Changing the audio source:
RADIO:   RADIO broadcasts.
MUSIC: playing MUSIC.

Press the MODE button several times in succession for access to the following displays:

GENERAL OPERATION

"FULL SCREEN MAP"

"MAP IN WINDOW"
(If navigation guidance in

progress)

248

A press on the dial gives access to short-

cut menus according to the display in the

screen.

GENERAL OPERATION

DISPLAY ACCORDING TO CONTEXT

Select destination

Enter an address

Directory

GPS coordinates

Divert route

Move the map

Info. on location

Select as destination

Select as stage

Save this place (contacts)

Quit map mode

Guidance criteria

RADIO:

Activate / Deactivate TA

Activate / Deactivate RDS

MUSIC MEDIA PLAYERS,

CD or USB

(according to media):

Play modes:

Normal

Random

Random on all media

Repetition

TELEPHONE

(call in progress):

Private mode

FULL SCREEN MAP OR

IN A NEW WINDOW:

Stop / Restore guidance

Put call on hold

DTMF ring tones

Hang up

Guidance options

Change waveband

Activate / Deactivate TA information

249

""""""""""""

Navigation guidance

Navigation - guidance

Navigation guidance

N i

""""""""""""

To delete the list of recent destinations, select "Guidance

options" in the navigation menu then select "Delete last

destinations" and confi rm. Select "Yes" then confi rm.
Deleting just one destination is not possible.

Go from the list to the menu (left/right).

NAVIGATION - GUIDANCE

Access to the "NAVIGATION" menu

Press NAV.

Contact a PEUGEOT

dealer for mapping

updates.

A long press on the end of the

lighting control stalk repeats

the last navigation message.

250

Press NAV to display the "Navigation -

guidance " menu.

TOWARDS A NEW DESTINATION

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

Select "Select destination " and

confi rm, then select " Enter an address"

and confi rm.

Select the " Country " function then

confi rm.

Select "Town" function then confi rm to

enter the destination town.

Select the letters in the name of the

town one at a time, confi rming each one

with the dial.

Selection the town from the list offered, then confi rm
A pre-set list (by entering the fi rst few letters) of the towns in the country selected

can be accessed directly by selecting and confi rming" List" on the screen.

Turn the dial and select "OK" then

confi rm.

If possible, enter the " Road " and "N°/X"

information in the same way.

Select "Archive " to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.

Confi rm " OK " to start guidance.

Select the guidance criteria: "Fastest

route", " Shortest route" or optimised

"Distance/Time ", then select the

desired restriction criteria: "With tolls",

"With Ferry", or "Traffi c info" then

confi rm "OK".

251

SELECTING A DESTINATION

TO ONE OF THE RECENT DESTINATIONS

Press NAV to display the "Navigation -

guidance" menu.

Select the desired destination and

confi rm to start guidance.

TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select "Select destination " and

confi rm, then select " Directory" and

confi rm.

Selection the desired destination from

your contacts and confi rm "OK" to start

the guidance.

Press NAV to display the " Navigation -

guidance " menu.

Navigation towards a contact imported from your telephone is only

possible if the address is compatible with the system.

252

Select " Select destination " and

confi rm, then select "GPS coordinates"

and confi rm.

Enter the GPS coordinates and confi rm

"OK" to start the guidance.

Press NAV to display the

"Navigation - guidance " menu.

NAVIGATION - GUIDANCE

TOWARDS GPS COORDINATES

TOWARDS A POINT ON THE MAP

With the map displayed, press OK to

display the contextual menu. Select

"Move the map " and confi rm.

Press OK to display the contextual

menu for " Move the map " mode.

Select " Select as destination " or

"Select as stage" and confi rm.

Move the cursor using the control to

identify the desired destination.

253

TOWARDS POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity

(hotels, various businesses, airports...).

Select the " Enter an address " function

and confi rm, then select Select

destination and confi rm.

To select a POI close to your current

location, select "POI" and confi rm, then

select " Around the current place " and

confi rm.
To select a POI as a stage on the route,

select " POI" and confi rm, then select " On

the route" and confi rm.
To select a POI as a destination, fi rst

enter the country and town (see "Towards

a new destination"), select "POI" and

confi rm, fi nally select "Near" and confi rm.

Search for POIs in the categories

suggested in the following pages.

Select " Search by Name " to search for POIs by name and not by

proximity.

Press NAV to display the "Navigation -

guidance" menu.

Select the POI and confi rm " OK" to start

the guidance.

254

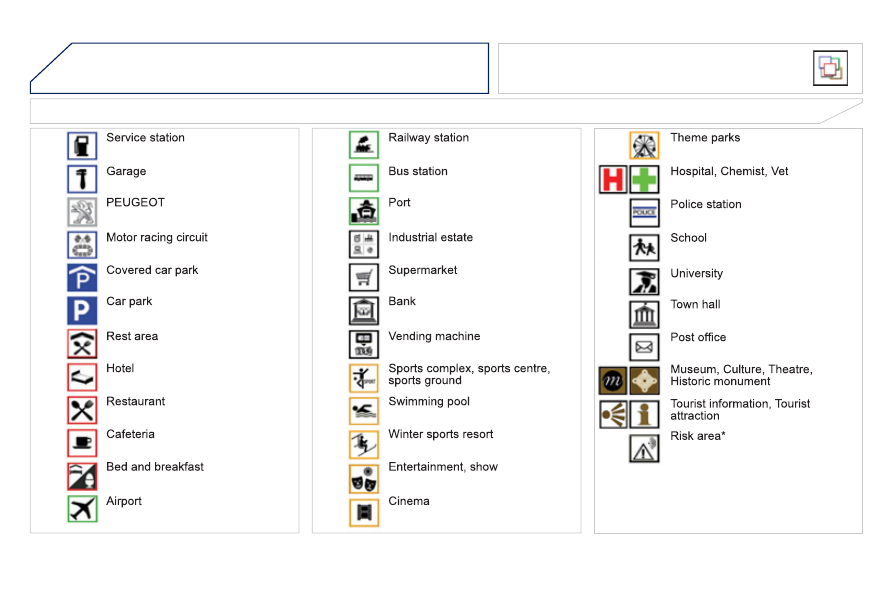

LIST OF PRINCIPAL POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped

together in the same area. Zooming in on this icon

shows details of the POIs.

* According to availability in the country.

Content .. 14 15 16 17 ..
