Familiarisation

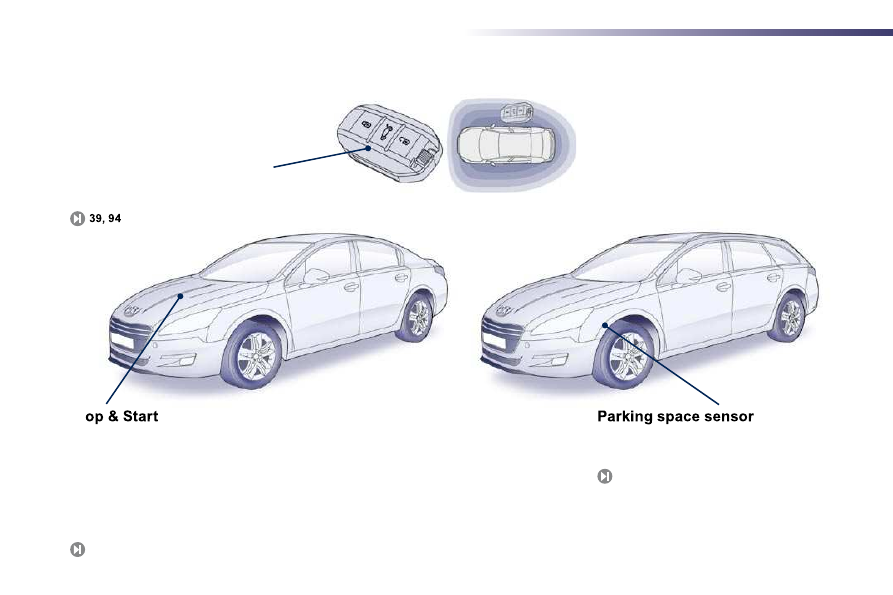

Keyless Entry and Starting

This system allows you to unlock, lock
and start your vehicle while keeping
the key on your person and in the
defined zone.

This system measures the size of a space and
advises whether parking is possible.

127

Exterior

Sto

This system puts the engine temporarily into
standby during stops in the traffic (red lights, traffic
jams, etc...). The engine restarts automatically as
soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust
emissions, and offers the comfort of complete
silence when stationary.

114

Familiarisation

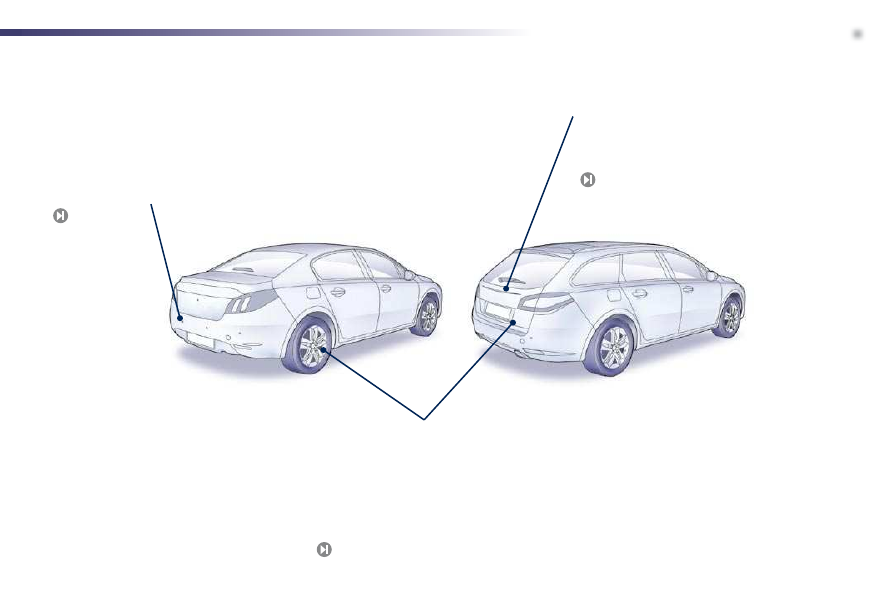

Front and rear parking sensors

This system provides a warning when
manoeuvering forwards and backwards by
detecting obstacles located in front of or behind
the vehicle.

125

Motorised tailgate (SW)

This system provides motorised opening and
closing of the tailgate, by pressing a button.

Temporary puncture repair kit

This kit is a complete system consisting of a
compressor and a sealant cartridge, to allow
the temporary repair of a tyre.

170

Exterior

Familiarisation

Open

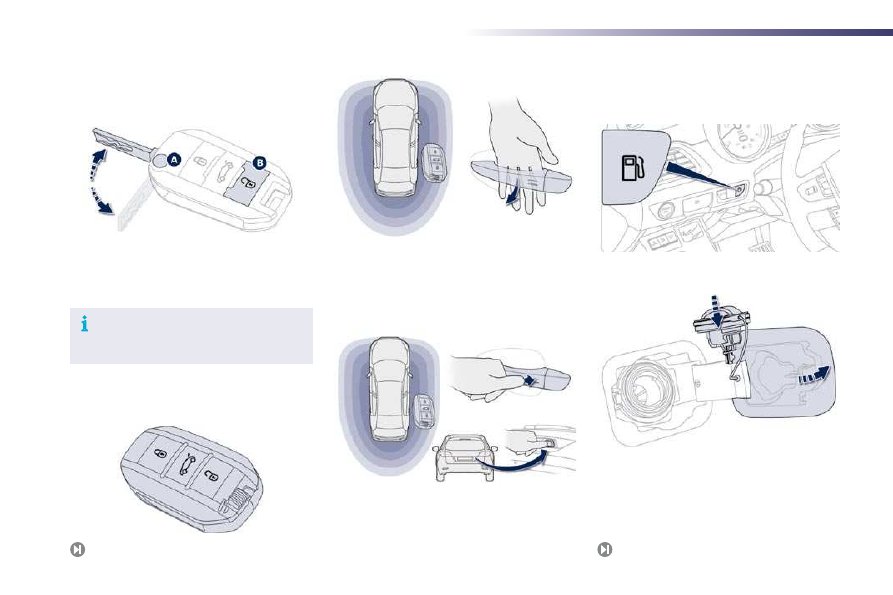

A. Unfolding/Folding the key.
B. Unlocking the vehicle.

Remote control key

1. Opening the fuel filler flap.

Fuel tank

Unlocking

With the electronic key on your person and in
the defined zone, pass your hand behind the
door handle to unlock the vehicle, then pull on
the handle to open the door.

Locking

With the electronic key in the defined zone,
press with a finger on the door handle (at the
markings) to lock the vehicle.

Keyless Entry and Starting
system

2. Opening and hooking the fuel filler cap.
Tank capacity: approximately 72 litres (or 55 litres
according to version).

Other functions...
C. Normal locking of the vehicle.

Vehicle location.

Familiarisation

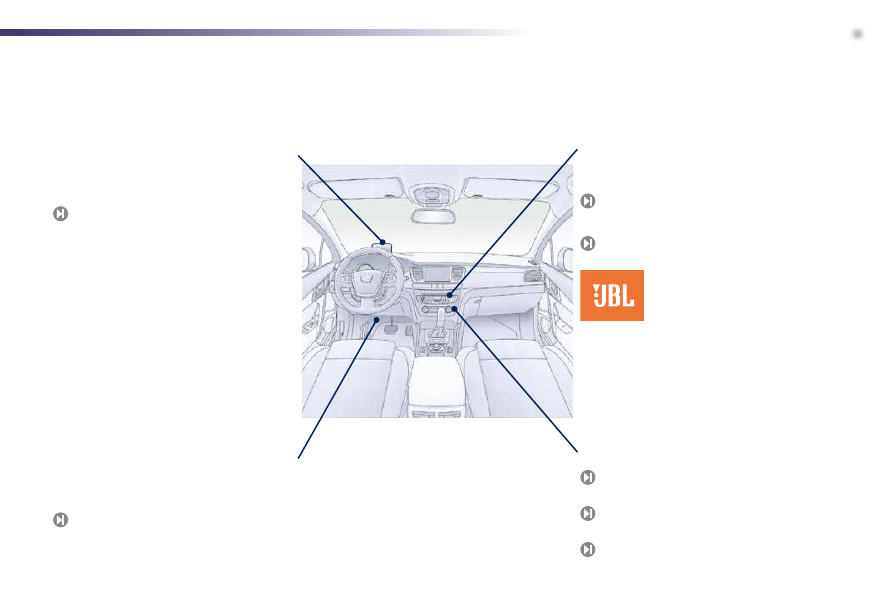

Interior

Interior mood lighting

This subdued passenger compartment lighting
improves visibility inside the vehicle in low
lighting conditions.

Head-up display

This system projects speed and cruise control/
speed limiter information onto a lightly smoked
strip in the driver's field of vision, so that they
do not need to take their eyes off the road.

Digital air conditioning

After setting the desired level of comfort, the
system then automatically controls this level
according to the exterior climatic conditions.

Manual

Audio and communication
systems

These systems benefit from the latest
technology: MP3 compatible audio systems,
USB player, Bluetooth hands-free system,
satellite navigation system with colour screen,
auxiliary inputs, Hi-Fi audio system, ...
Satellite navigation system

145

118

285

231

Audio system

85, 87

Dual-zone

Quad-zone

If your 508 is fitted with a JBL
Hi-Fi audio system, this is
designed specifically for the
passenger compartment of your
vehicle.

Familiarisation

Lighting of the indicator lamp indicates the state
of the corresponding function.

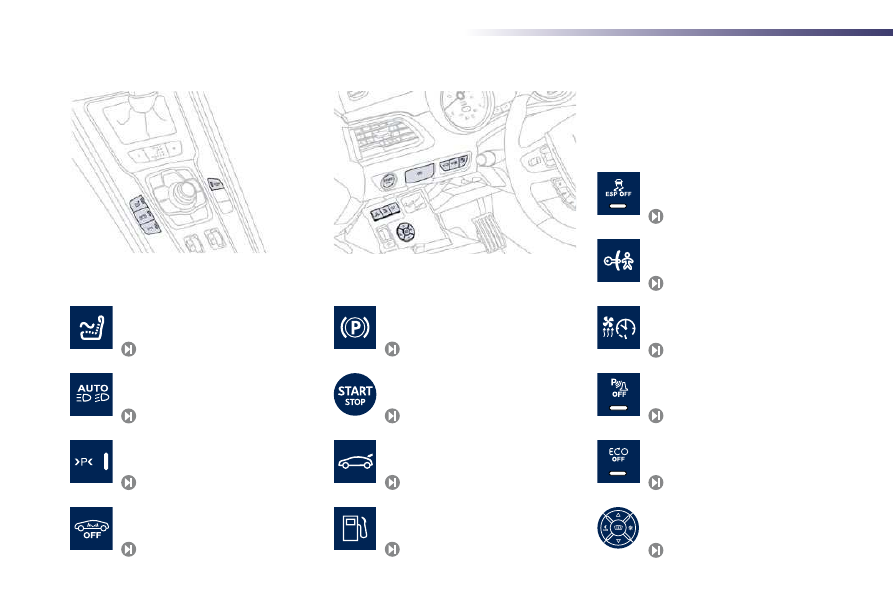

Switch panels

Opening the boot.

Opening the fuel filler flap.

52, 53

Massage.

Alarm.

Programmable heating warning lamp.

Electric parking brake.

Starting/stopping using the
electronic key.

Deactivation of Stop & Start.

115

Head-up display (on/off, settings).

118

Deactivation of parking sensors.

126

Parking space sensor.

127

Electric child lock.

156

Deactivation of the ESP/ASR system.

160

Smartbeam.

135

Familiarisation

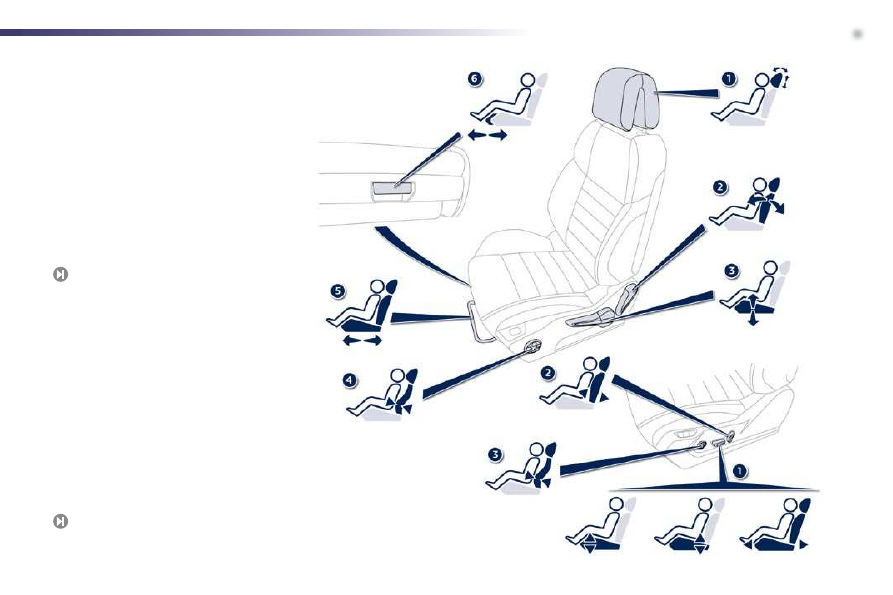

Sitting comfortably

Front seats

Manual adjustments

1. Head restraint height and angle

adjustment.

2.   Backrest angle adjustment.
3.   Seat cushion height adjustment.
4.   Lumbar support adjustment.
5.   Seat forwards-backwards adjustment.
6.   Cushion adjustment.

Electrical adjustment

1. Angle, seat height and seat forwards-

backwards adjustment.

2. Backrest angle adjustment.
3. Lumbar support adjustment.

Familiarisation

9. Fusebox.
10. Front door window demisting/defrosting

vent.

11.   Windscreen demisting/defrosting vent.
12.   Steering lock and starting with the key.
13.   Starting using the electronic key.
14.   Audio equipment steering wheel controls.
15.   Wiper/screenwash/trip computer stalk.
16.   Central locking and hazard warning

buttons.

17. Multifunction screen.

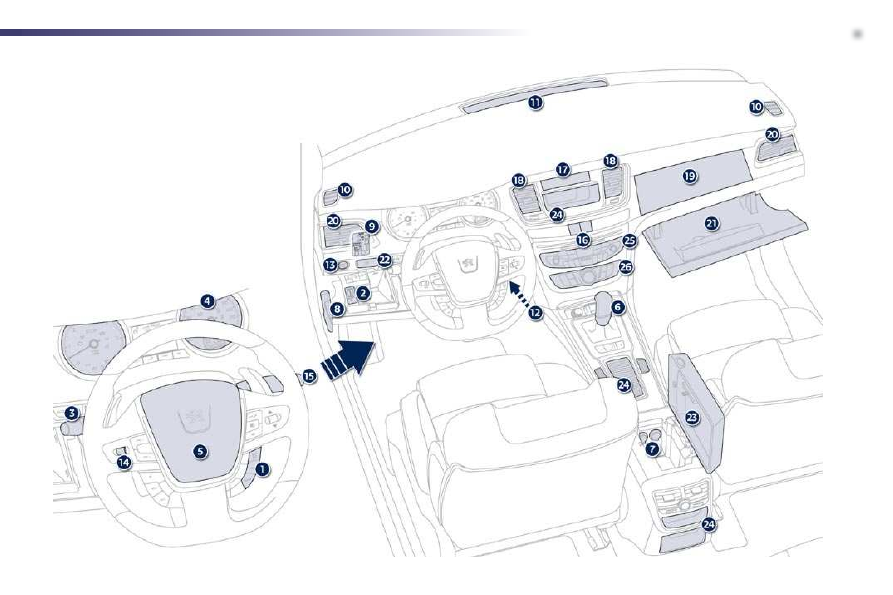

Instruments and controls

1.   Cruise control/speed limiter controls.
2.   Headlamp height adjustment.
3.   Lighting and direction indicator stalk.
4.   Instrument panel.
5.   Driver's airbag.

Horn.

6. Gear lever.
7. 12 V accessory socket

USB port/auxiliary socket.

8. Bonnet release lever.

18.   Central adjustable air vents.
19.   Passenger's airbag.
20.   Side adjustable air vents.
21.   Glove box/Passenger's airbag deactivation.
22.   Electric parking brake.
23.   Central armrest with storage.
24.   Upper and lower storage.
25.   Audio system.
26.   Heating/air conditioning controls.

Familiarisation

Familiarisation

Sitting comfortably

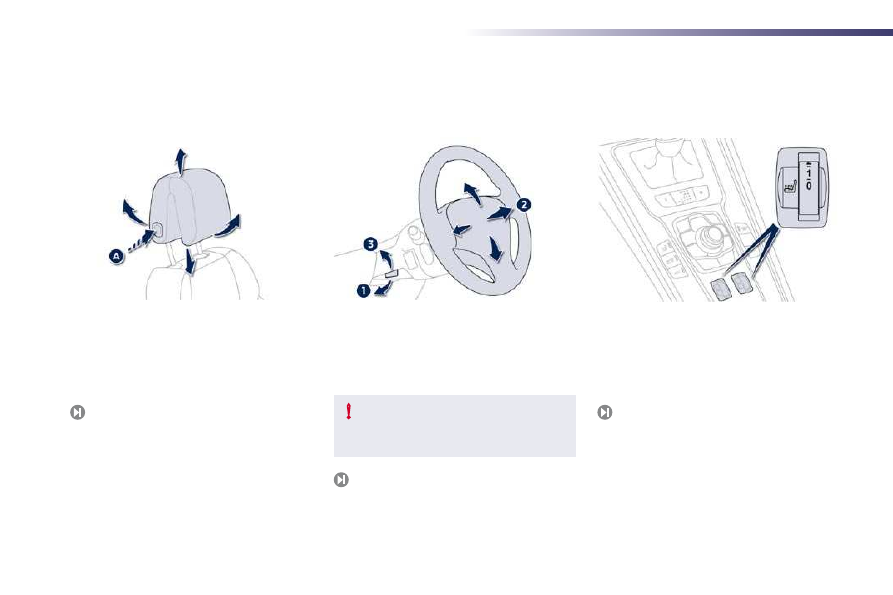

Head restraint adjustment

1.   Release the adjustment mechanism.
2.   Adjust for height and reach.
3.   Lock the adjustment mechanism.

Steering wheel adjustment

For reasons of safety, these operations
must only be carried out with the
vehicle stationary.

Heated seats control

0 : off.
1 : low.
2 : medium.
3 : high.

To lower it, press button A .
To raise it, guide the head restraint upwards to
the desired position.
To incline it, swivel the lower part backwards or
forwards.

Familiarisation

Sitting comfortably

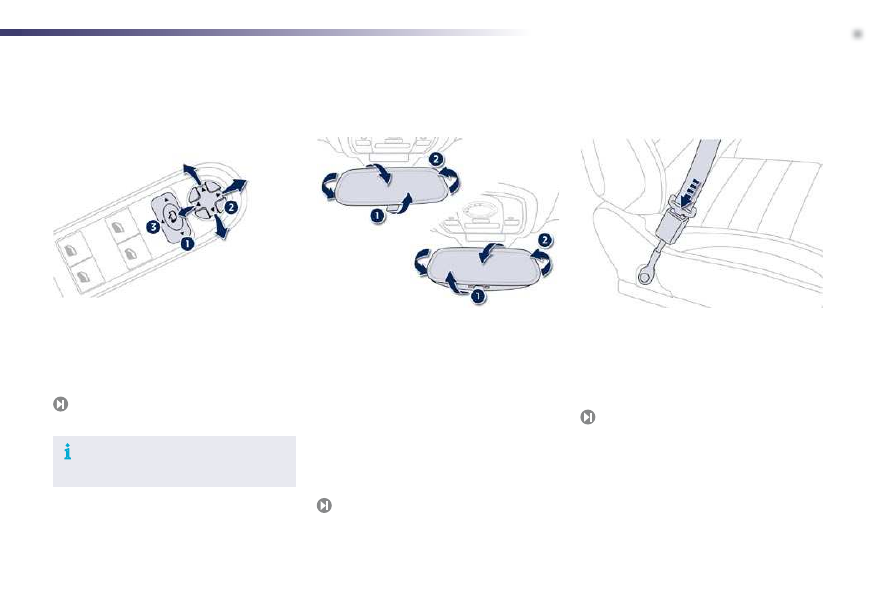

Door mirrors

Adjustment

1.   Selection of the mirror.
2.   Adjusting the position of the mirror glass.
3.   Deselection of the mirror.

Other functions...
Folding/Unfolding.

Rear view mirror

Manual day/night type

1. Selecting the "day" position of the rear

view mirror.

2. Rear view mirror adjustment.

Automatic day/night type

1. Automatic detection of day/night mode.
2. Rear view mirror adjustment.

1.   Fitting the belt.
2.   Fastening.
3.   Check that the belt is correctly fastened by

pulling on the belt webbing.

Front seat belts

163

Familiarisation

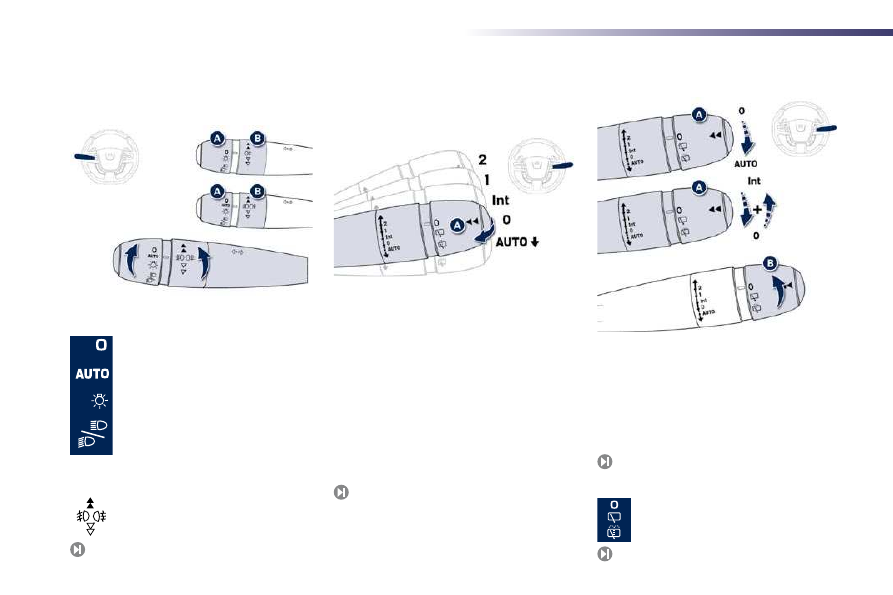

Seeing clearly

Lighting

Ring A

Ring B

Wipers

130

Control stalk A: windscreen wipers

2.   Fast wipe.
1.   Normal wipe.
Int.  Intermittent wipe.
0.   Park.
AUTO   Automatic wiping.
   Single wipe: Brief pull on the stalk towards.
Screenwash: Long pull on stalk towards you.

140

Switching on "AUTO" mode

 Briefly push the stalk downwards.

Switching off "AUTO" mode

 Briefly push the stalk downwards or place

the stalk in another position: Int, 1 or 2.

Ring B: rear wiper

142

141

Lighting off.

Automatic illumination of headlamps.

Sidelamps.

Dipped/main beam headlamps.

Front and rear foglamps.

Park.
Intermittent wipe.
Screenwash.

Familiarisation

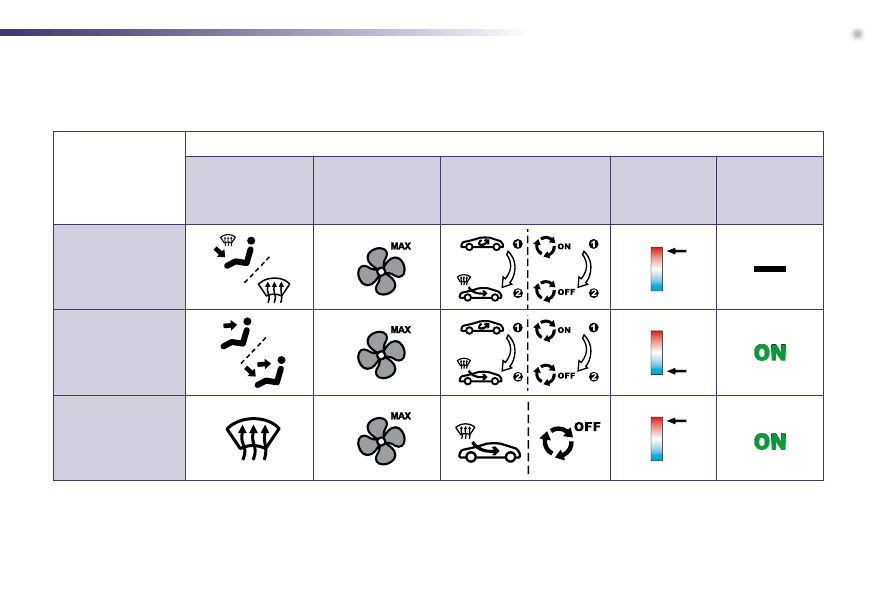

I would like...

Heating or manual air conditioning

Air distribution

Air flow

Air recirculation/

Exterior air intake

Temperature

Manual A/C

HOT

COLD

DEMISTING

DEFROSTING

Ventilation

Digital air conditioning: use of the fully automatic mode by pressing the "AUTO" button is recommended.

Advice on interior settings

Familiarisation

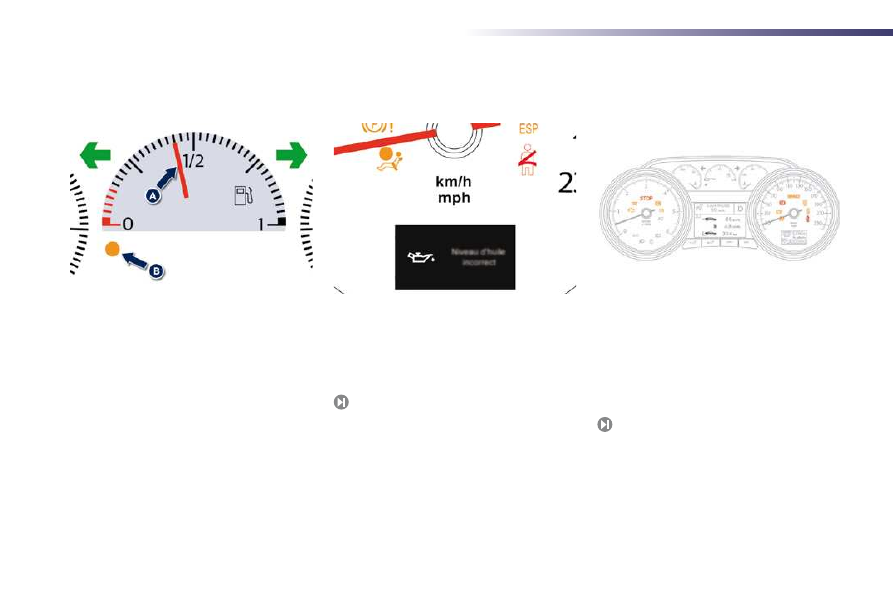

Monitoring

On switching on, the dial needles go to the
extent of their travel then return to 0.
A. With the ignition on, the needle should

indicate the fuel remaining.

B. With the engine running, the associated

low level warning lamp should go off.

Instrument panel

1. With the ignition on, the orange and red

warning lamps come on.

2. With the engine running, these warning

lamps should go off.

If a warning lamp remains on, refer to the page
concerned.

Warning lamps

C. With the ignition on, the instrument panel

screen should indicate the level of oil.

If the levels are not correct, top up the level
which is low.

Familiarisation

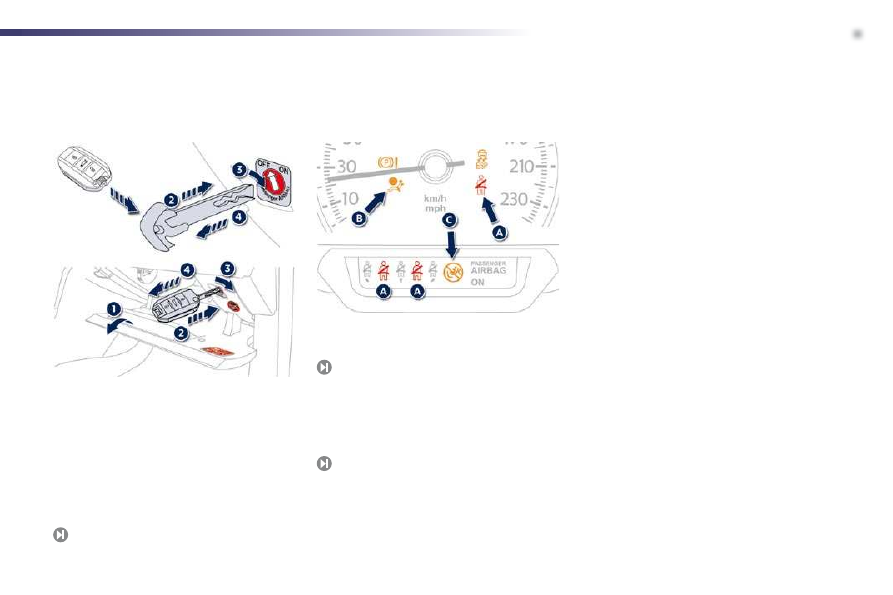

Passenger safety

1.   Open the glove box.
2.   Insert the key.
3.   Select position:

"ON" (activation), with front passenger or
"forwards facing" child seat,

"OFF" (deactivation), with "rear facing"
child seat.

4. Remove the key keeping the switch in the

new position.

Front passenger's airbag

167

A. Front seat belts not fastened or unfastened

warning lamp.

Front seat belts and
passenger's front airbag

167

B. Front passenger's airbag deactivation

indicator lamp.

C. Front passenger's airbag activation

indicator lamp.

164

Familiarisation

Driving safely

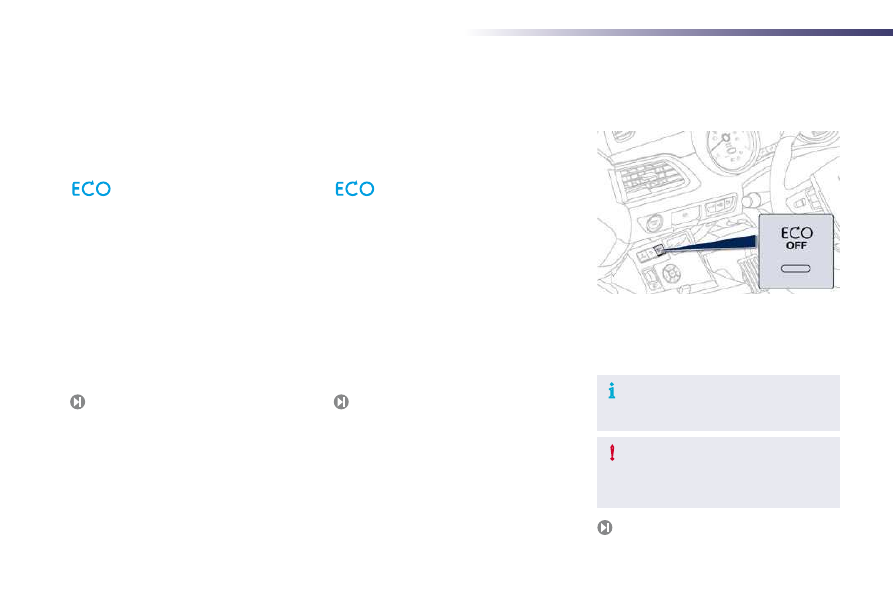

Stop & Start

Going into engine STOP mode

114

The "ECO" warning lamp comes
on in the instrument panel and the
engine goes into standby; with an

electronic gear control gearbox and speeds
below 4 mph (6 km/h), press the brake pedal or
put the gear lever in position N .

Going into engine START mode

Deactivation/Reactivation

You can deactivate the system at any time by
pressing the "ECO OFF" button; the button's
warning lamp comes on.

115

The system is automatically reactivated
every time the engine is started with
the key.

Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key.

The "ECO" warning lamp goes off
and the engine restarts with an
electronic gear control gearbox :

with the gear lever in position A or M

release the brake pedal,

or with the gear lever in position N and
brake pedal released, move the gear lever
to position A or M ,

or engage reverse.

In certain circumstances, the STOP mode
may not be available; the "ECO" warning lamp
flashes for a few seconds, then goes off.

In certain circumstances, START mode may be
invoked automatically; the "ECO" warning lamp
flashes for a few seconds, then goes off.

Familiarisation

Driving safely

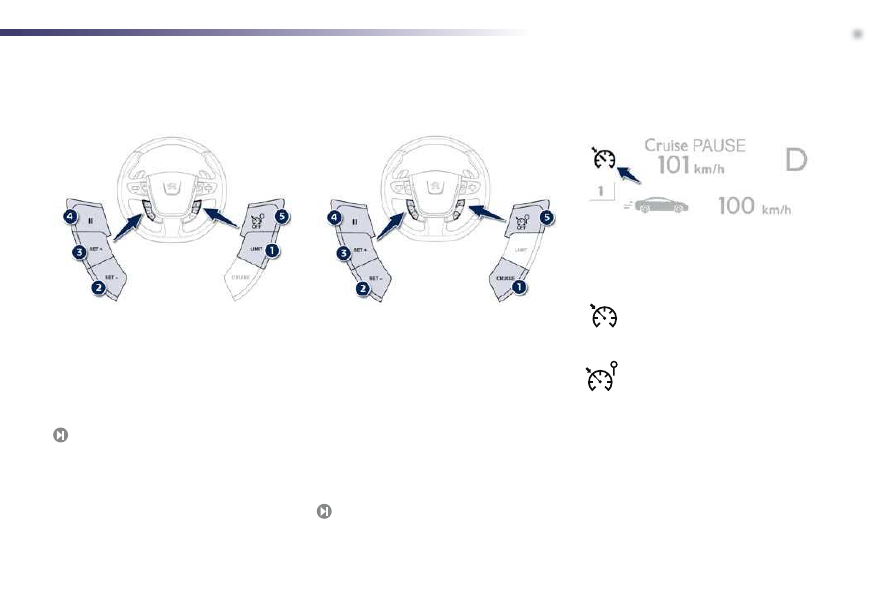

1.   Selecting speed limiter mode.
2.   Decrease the programmed value.
3.   Increase the programmed value.
4.   Pause/resume speed limiter.
5.   Speed limiter off.

Speed limiter "LIMIT"

121

1.   Selecting cruise control mode.
2.   Decrease the programmed value.
3.   Increase the programmed value.
4.   Pause/resume cruise control.
5.   Cruise control Off.

Cruise control "CRUISE"

123

The cruise control or speed limiter mode
appears in the instrument panel when it is
selected.

Display in the instrument panel

Cruise control

Speed limiter

The values must be set with the engine running.

In order to be programmed or activated, the
vehicle speed must be higher than 25 mph
(40 km/h), with at least 4th gear engaged on
a manual gearbox (2nd gear on an electronic
gear control or automatic gearbox).
