Peugeot 308 (2017 year). Manual - part 19

287

Technical data

308_en_Chap09_caracteristiques-techniques_ed01-2016

* the kerb weight is equal to the unladen weight + driver (75 kg).

Engine

2.0 litre BlueHDi 150

Gearbox

Manual (6-speed)

eAt6 automatic (6-speed)

Model code

LHAHX - LJAHX - LJAHR

LHAHX - LJAHX

Body style

Hatchback

unladen weight

1 290

1 315

1 310

1 420

Kerb weight*

1 365

1 390

1 385

1 495

gross vehicle weight (gVW)

1 870

1 970

1 900

2 000

gross train weight (gtW)
on a 12% gradient

3 465

3 470

3 398

3 400

unbraked trailer (within gtW limit)
on a 10% or 12% gradient

1 600

1 500

1 400

unbraked trailer

680

690

740

Recommended nose weight

the gtW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
Do not exceed 60 mph (100 km/h) when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

288

Technical data

308_en_Chap09_caracteristiques-techniques_ed01-2016

Diesel gt weights and towed loads (in kg)

* the kerb weight is equal to the unladen weight + driver (75 kg).

Engine

2.0 litre BlueHDi 180

Gearbox

eAt6 automatic (6-speed)

Model code

LHAHt - LHAHW - LJAHt - LJAHW

Body style

Hatchback

unladen weight

1 320

1 425

Kerb weight*

1 395

1 500

gross vehicle weight (gVW)

1 920

2 020

gross train weight (gtW)
on a 12% gradient

3 420

unbraked trailer (within gtW limit)
on a 10% or 12% gradient

1 500

1 400

unbraked trailer

695

750

Recommended nose weight

289

Technical data

308_en_Chap09_caracteristiques-techniques_ed01-2016

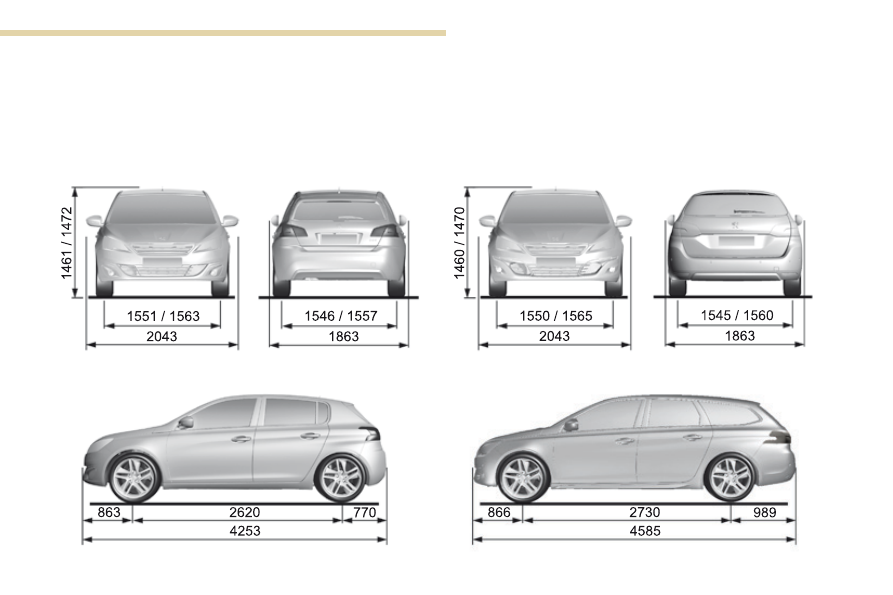

Dimensions (in mm)

these dimensions have been measured on an unladen vehicle.

Hatchback

290

Technical data

308_en_Chap09_caracteristiques-techniques_ed01-2016

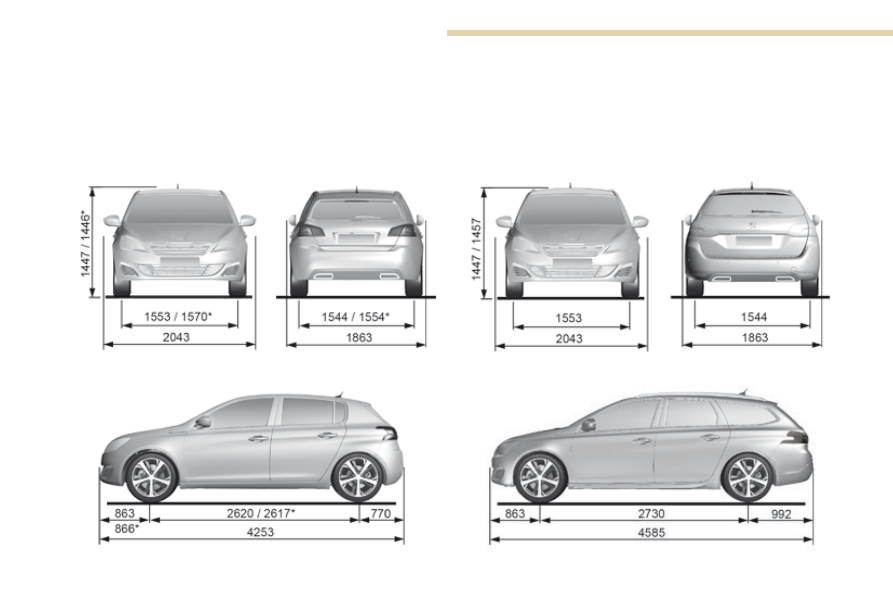

GT / GTi hatchback*

SW GT

291

Technical data

308_en_Chap09_caracteristiques-techniques_ed01-2016

Affaire version

Number of seats: 2 persons.
useable boot volume: 1.31 m

In metres (m)

Load floor length

1.458

Load width at the wheel arches

1.036

Load width at the centre

1.077

Load height

at the centre

0.916

at the load aperture

0.831

below the luggage cover

0.5

292

Technical data

308_en_Chap09_caracteristiques-techniques_ed01-2016

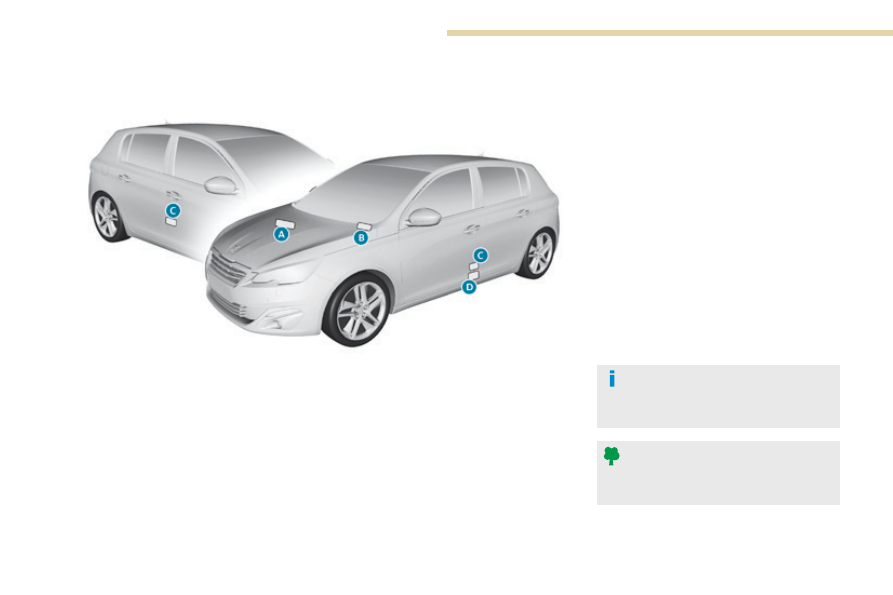

Identification markings

Various visible markings for the identification of your vehicle.

A. Vehicle Identification Number (VIN)

under the bonnet.

this number is engraved on the chassis
near the right-hand front wheel arch.

the tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.

B. Vehicle Identification Number (VIN) on

the windscreen lower cross member.

this number is indicated on a self-
adhesive label which is visible through the
windscreen.

C. Manufacturer's label.

this self-destroying label on the middle
door pillar, right or left-hand side, contains
the following information:
- the manufacturer's name,
- the european whole vehicle type

approval number,

- the vehicle identification number (VIN),
- the maximum authorised weight (gross

vehicle weight),

- the maximum authorised weight with

trailer (gross train weight),

- the maximum front axle weight,
- the maximum rear axle weight.

D. Tyre/paint label.

this label on the middle door pillar, driver's
side, contains the following information:
- the tyre inflation pressures, laden and

unladen,

- the tyre sizes (including the tyre load

index and speed rating),

- the inflation pressure for the spare

wheel,

- the paint colour code.

293

Audio and Telematics

308_en_Chap10a_DeNON_ed01-2016

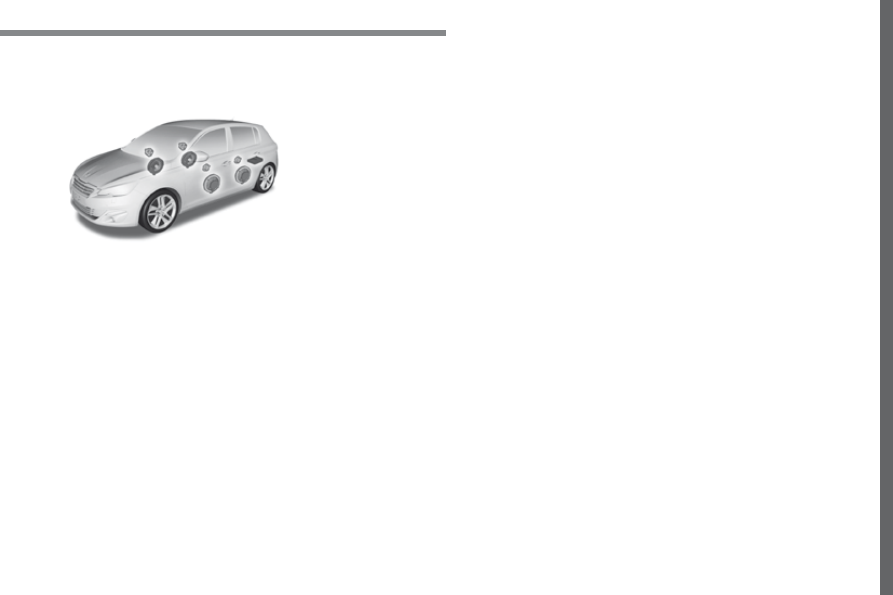

DeNON equipment

the new DeNON Hi-Fi system in the
PeugeOt 308 is a tailored technological
solution comprising 9 speakers and a digital
amplifier.

the DeNON technology offers efficient
components providing high performance:
-

4 flexible membrane tweeters with
resonance chamber to minimise audio
distortion. 100% active at the front of the
vehicle.

4 CosCone

woofers: a technology

allowing a high level of sensitivity and
speaker cone travel, generating high bass
performance despite a very flat form.

1 sub-woofer with a 100W speaker
installed under the boot floor, without
affecting the load volume of the boot.

1 Class-D 8-way digital amplifier. Improved
control of running noises.

2 audio distribution settings available to
suit the number of occupants in the vehicle
(driver or passengers).

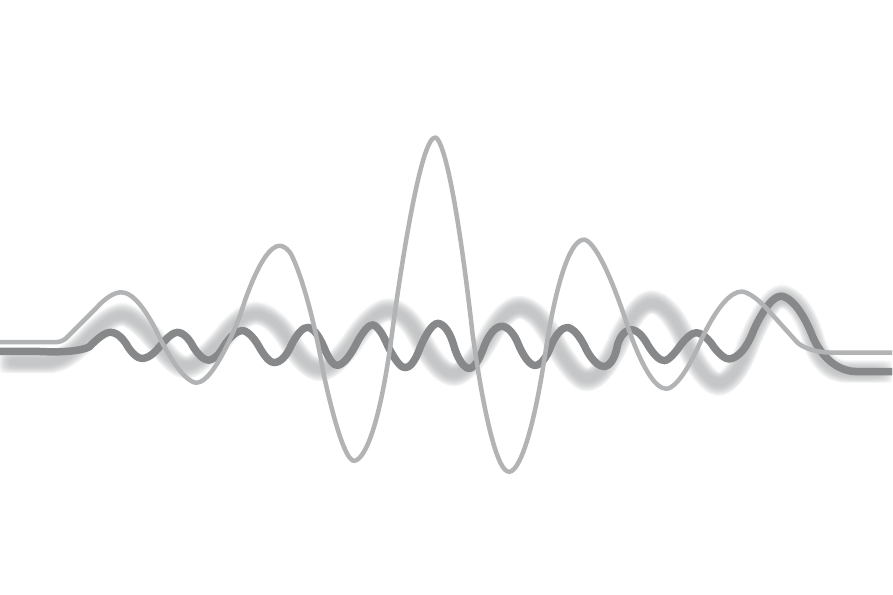

"Digital Coloration" technology giving the
engine a more sporty and refined sound.

295

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

7-inch touch screen

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

296

Steering mounted controls

299

Menus 300
Media 302
Radio 308
DAB (Digital Audio Broadcasting) radio

310

Music 312
Navigation 316
Navigation - guidance

telephone 342
Frequently asked questions

350

the system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
the display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

296

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

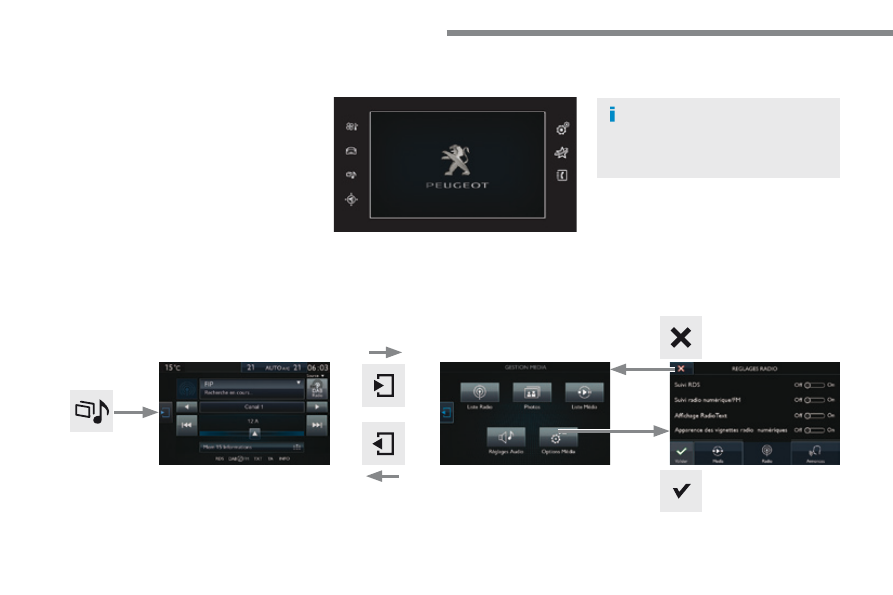

First steps

use the buttons on either side of the touch
screen for access to the menus, then press the
virtual buttons in the touch screen.
each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period
of 5 minutes.

297

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

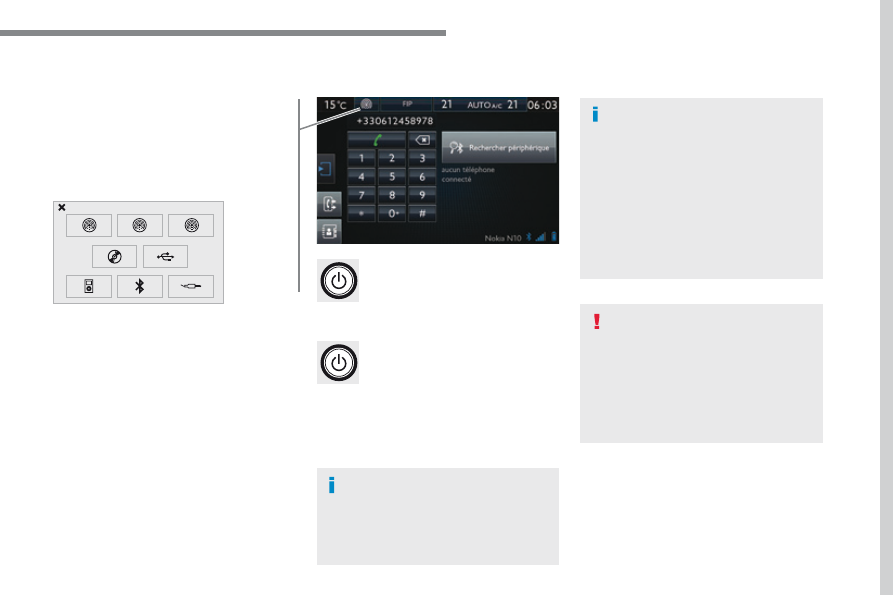

With the engine running, press to
mute the sound.
With the ignition off, press to switch
the system on.

Volume adjustment (each source
is independent, including traffic
announcements (tA) and navigation
instructions).

Selecting the audio source (depending on
version):
-

"FM" / "AM" / "DAB"* radio wavebands.

"uSB" memory stick.

CD player (located in the glove box)*.

telephone connected by Bluetooth* and by
Bluetooth* audio streaming.

Media player connected to the auxiliary
socket (jack, cable not supplied).

* Depending on equipment.

Shortcuts: using virtual buttons in the top band
of the touch screen, it is possible to go directly
to the choice of audio source, the list of stations
(or titles depending on the source) or to the
temperature adjustment.

the screen is of the "resistive" type, it
is necessary to press firmly, particularly
for "flick" gestures (scrolling through a
list, moving the map...). A simple swipe
will not be enough. Pressing with more
than one finger is not recognised.
the screen can be used when wearing
gloves. this technology allows use at
all temperatures.

In very hot conditions, the volume may
be limited to protect the system. the
return to normal takes place when
the temperature in the passenger
compartment drops.

to clean the screen, use a soft
non-abrasive cloth (spectacles cloth)
without any additional product.
Do not use pointed objects on the
screen.
Do not touch the screen with wet
hands.

299

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

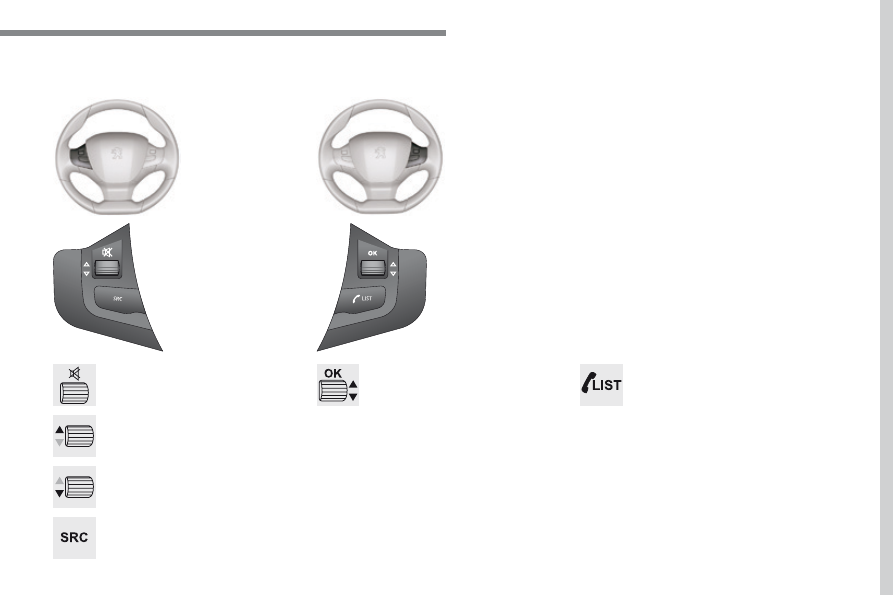

Steering mounted controls

Press: mute on / off.

Increase volume.

Change audio source: radio, media.

Radio, rotate: automatic search for
the previous / next station.
Radio, press: preset stations.
Media, rotate: previous / next track.
Press: confirm a selection.

Decrease volume.

telephone: start or answer a call.
Call in progress: telephone menu
(end call, secret mode, hands-free
mode).
telephone, press and hold: reject an
incoming call, end a call in progress;
other than call in progress, telephone
menu.
Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.

300

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

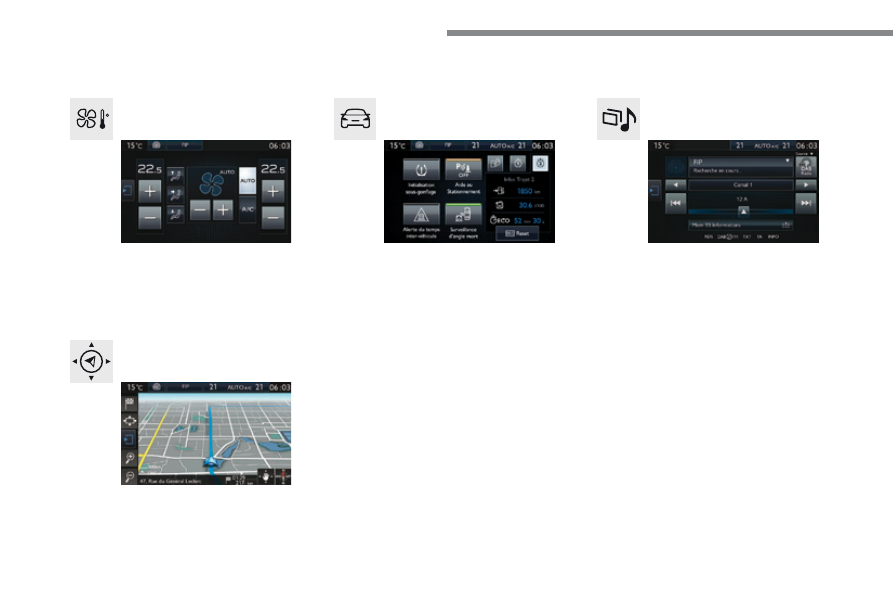

Menus

Media

Air conditioning

Driving assistance

Navigation

Select an audio source, a radio station, display
photographs.

Control of the settings for temperature and air
flow.

Access to the trip computer.
Activate, deactivate, adjust settings for certain
vehicle functions.

enter navigation settings and choose a
destination.

(Depending on equipment)

301

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

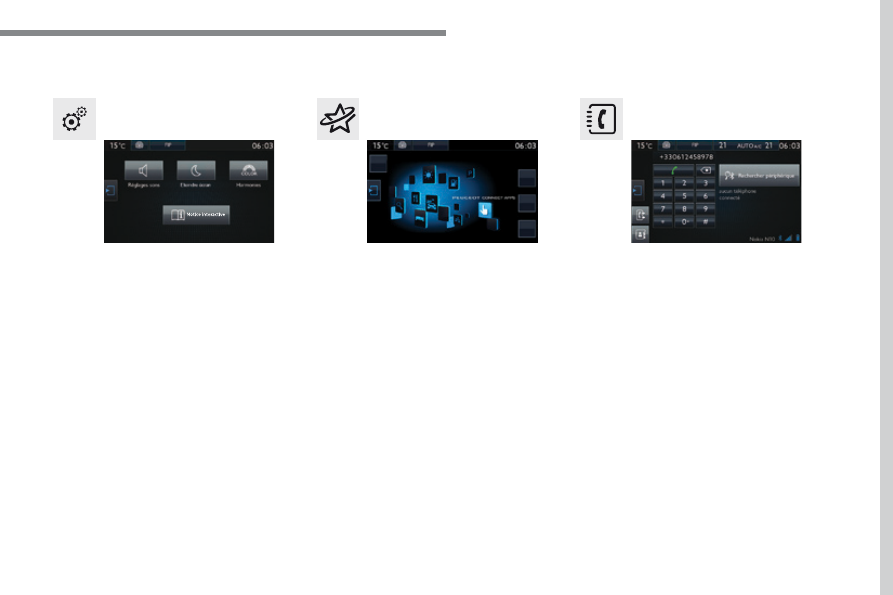

Telephone

Configuration

Connected services

Connect a telephone by Bluetooth

Adjust settings for audio (balance,
ambience, ...), colour scheme, brightness of the
instruments and controls, display (language,
units, date, time, ...) and access the interactive
help for the vehicle's main systems and
warning lamps.

PeugeOt CONNeCt APPS
Connect to an applications portal to facilitate,
make safe and personalise journeys by means
of a connection key available on subscription
from a PeugeOt dealer.

(Depending on equipment)

302

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

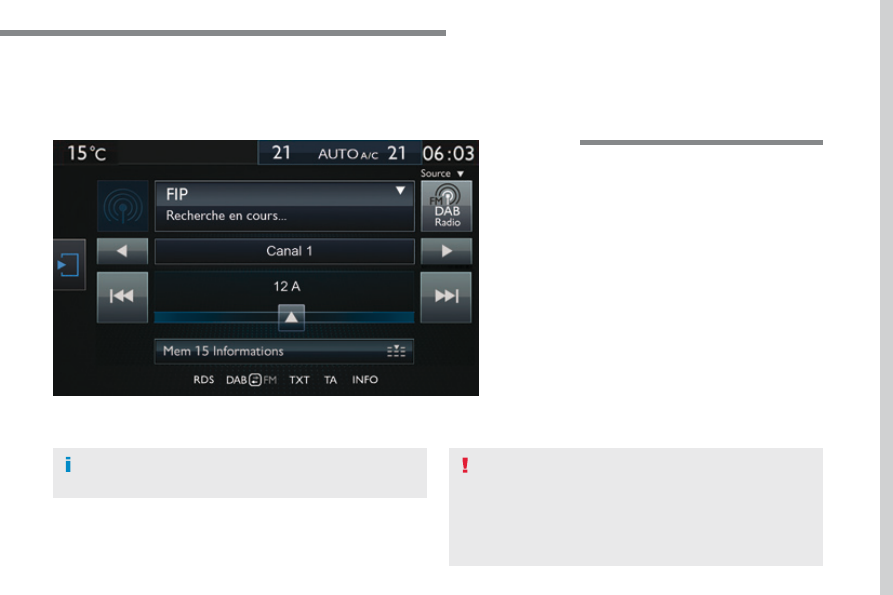

Media

Level 1

Level 2

List of FM stations

Save

"Media"

Primary page
