Peugeot 308 SW BL (2013 year). Manual - part 19

287

QUESTION

ANSWER

SOLUTION

"TA" is selected.

However, certain traffi c

jams along the route are

not indicated in real time.

On starting, it is several minutes before the system begins to receive the

traffi c information.

Wait until the traffi c information is being received

correctly (displaying of the traffi c information

symbols on the map).

In certain countries, only major routes (motorways...) are listed for the

traffi c information.

This phenomenon is normal. The system is

dependent on the traffi c information available.

The time taken to calculate

a route sometimes seems

longer than usual.

The performance of the system may slow down temporarily if a CD/DVD

is being copied onto the Jukebox at the same time as a route is being

calculated.

Wait until the CD/DVD has been copied or stop

the copying before starting the guidance function.

I receive a speed camera

alert for a speed camera

which is not on my route.

The system announces all speed cameras positioned in a cone located

in front of the vehicle. It may detect speed cameras located on nearby or

parallel roads.

Zoom in on the map to view the exact position of

the speed camera.

The speed camera

audible warning does not

work.

The audible warning is not active.

Activate the audible warning on Navigation Menu,

Settings, Set parameters for risk areas.

The alert volume is set to minimum.

Increase the volume of the alert when passing a

speed camera.

Does the emergency call

function work without a

SIM card?

No, as certain national regulations impose the presence of a SIM card in

order to make an emergency call.

Insert a valid SIM card in the slot.

The altitude is not

displayed.

On starting, the initialisation of the GPS may take up to 3 minutes to

receive more than 4 satellites correctly.

Wait until the system has started up completely.

Check that there is a GPS coverage of at least

4 satellites (long press on the SETUP button, then

select "GPS coverage").

Depending on the geographical environment (tunnel...) or the weather,

the conditions of reception of the GPS signal may vary.

This phenomenon is normal. The system is

dependent on the conditions of reception of the

GPS signal.

288

QUESTION

ANSWER

SOLUTION

The route calculation is

not successful.

The exclusion criteria may confl ict with the current location (exclusion of

toll roads on a toll motorway).

Check the exclusion criteria on the Navigation

Menu ("Route options" - "Avoidance criteria").

There is a long waiting

period following the

insertion of a CD.

When a new medium is inserted, the system reads a certain amount of

data (directory, title, artist, etc.). This may take a few seconds.

This phenomenon is normal.

I cannot connect my

Bluetooth telephone.

The telephone's Bluetooth function may be switched off or the equipment

may not be visible.

Check that your telephone's Bluetooth

function is switched on.

- Check

that

your telephone is visible.

The Bluetooth telephone is not compatible with the system.

A list of compatible Bluetooth mobile telephones is

available from the dealer network.

The volume of the

telephone connected

in Bluetooth mode is

inaudible.

The volume depends both on the system and on the telephone.

Increase the volume of the Peugeot Connect

Media Navigation (NG4 3D), to maximum

if required, and increase the volume of the

telephone if necessary.

The system does not play

the DVD.

The region protection may not be compatible.

Insert DVDs which have compatible region

protection.

I cannot copy the CD to

the Jukebox.

The wrong source is selected.

Change the active source to CD.

The CD is copy-protected.

It is normal that a protected CD cannot be copied.

289

QUESTION

ANSWER

SOLUTION

The system does not

receive SMS.

The Bluetooth mode does not permit sending of the SMS to the system.

Use your SIM card and the internal telephone.

The SIM card used is a twin card.

Use the original SIM card to receive the SMS.

I cannot update the risk

area POIs.

The Navigation Menu - "Update personal POI" is not displayed.

Check that the medium used for the update (SD

card or USB memory stick) is inserted correctly.

An error message is displayed at the end of the procedure.

Start the procedure again in full.

Consult a PEUGEOT dealer if the problem

persists.

Check that the data on the MEDIUM is

supplied by an offi cial partner of PEUGEOT.

The voice frequencies

(DTMF) are not

active when I am

communicating and I

press numbers on the

keypad.

The numeric buttons on the keypad are only active for calls if the display

is in telephone mode.

To activate them, press the MODE button until the

telephone is displayed on the screen.

An accident area which

does not concern me is

displayed on the screen.

The accident areas are displayed near a point defi ned on the map and in

relation to a direction of travel.

The alert may be triggered when travelling under a

road or near a road which has a speed camera.

290

291

The system is protected in such a way that it will only

operate in your vehicle.

PEUGEOT CONNECT NAVIGATION (RT6)

01 First steps - Control panel

For safety reasons, the driver must carry out operations

which require prolonged attention while the vehicle is

stationary.
When the engine is switched off and to prevent

discharging of the battery, the system switches off

following the activation of the energy economy mode.

CONTENTS

  02 Steering mounted controls
  03 General operation
  04 Navigation - Guidance
  05 Traffic information
  06 Using the telephone
  07 Radio
  08  Music media players
  09 Audio settings
  10 Configuration
  11  Screen menu map
  Frequently asked questions

p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

292
294
295
297
310
313
323
326
332
333
334
338

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH

TELEPHONE AUDIO SYSTEM

292

01 FIRST STEPS

Access to the " Navigation -

guidance" menu and display

the recent destinations.

Short press without the

engine running: on / off.
Short press with the engine

running: audio source off /

restore.

Short press: select pre-set

radio station.
Long press: pre-set the

current station.

MODE button: Selection of the

type of permanent display.
Long press: black screen

(DARK.

Access to the " MUSIC " menu, and display of the

CD/MP3/Apple

tracks and folders.

Long press: management of the sorting of MP3/

WMA fi les/update of the list of stations received.

Long press: open the " Audio settings" menu: music ambience, bass, treble,

loudness, left/right balance, front/rear fader, automatic volume adjustment.

Access to the " RADIO"

menu and display the list of

stations received.

Selection and confi rmation OK dial:
Selection of an item on the screen or in a list or a

menu, then confi rmation with a short press.
Other than for menus and lists, a short press

displays a contextual menu depending on the

current screen.
Rotation with map displayed: zoom the map scale

in and out.

Volume adjustment (each

source is independent,

including TA messages and

navigation instructions).

293

Select:
-

the next lower / higher radio

frequency automatically.

- the

/ next CD track, MP3

track or media.

- the

left / right of the screen when a

menu is displayed.

Move left / right in "Move the map " mode.

ESC: abandon the current

operation, up one level in

the menu.
Long press: return to the

permanent display.

Continuous press:

reinitialisation of the system.

Open the" Telephone"

menu and display the

list of recent calls or

accept an incoming

call.

Open the

"Confi guration " menu.
Long press: access

to the GPS coverage

and the navigation

demonstration mode.

Open the "Traffi c

information " menu

and display the

current traffi c alerts.

Select:
- the

previous/next line in a list or menu.

- the

/ next media folder.

- step

by step selection of the previous/

next radio frequency.

the previous / next MP3 folder.

Move up/down, in "Move the map " mode.

FIRST STEPS

294

02 STEERING MOUNTED CONTROLS

RADIO: select the previous/next preset

station.
Select the next entry in the address book.

RADIO: change to the next radio station

in the list.
Long press: automatic search for a

higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.

Volume increase.

Change the audio source.
Start a call from the address book.
Call/End call on the telephone.
Press for more than 2 seconds: access to

the address book.

Volume decrease.

RADIO: change to the previous radio

station in the list.
Long press: automatic search for a

lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.

Mute: press the volume

increase and decrease

buttons simultaneously.
Restore the sound by

pressing one of the two

volume buttons.

295

For a detailed global view of the menus available, refer to the

"Screen menu map" section.

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

"RADIO "

"TELEPHONE"
(If conversation in progress)

SETUP: PARAMETERS
date and time, display confi guration, sound.

Changing the audio source:
RADIO:   RADIO broadcasts.
MUSIC: playing MUSIC.

Press the MODE button several times in succession for access to the following displays:

GENERAL OPERATION

"FULL SCREEN MAP"

"MAP IN WINDOW"
(If navigation guidance in

progress)

296

A press on the dial gives access to

short-cut menus according to the

display in the screen.

GENERAL OPERATION

DISPLAY ACCORDING TO CONTEXT

RADIO:

Activate / Deactivate TA

Activate / Deactivate RDS

MUSIC MEDIA PLAYERS,

CD or USB (according to

media):

Play modes:

Normal

Random

Random on all media

Repetition

TELEPHONE

(call in progress):

Private mode

FULL SCREEN MAP OR IN A

NEW WINDOW:

Stop / Restore guidance

Select destination

Enter an address

Directory

GPS coordinates

Divert route

Move the map

Info. on location

Select as destination

Select as stage

Save this place (contacts)

Quit map mode

Guidance criteria

Put call on hold

DTMF ring tones

Hang up

Guidance options

Change waveband

Activate / Deactivate TA information

297

""""""""""""

Navigation guidance

Navigation - guidance

Navigation guidance

N i

""""""""""""

To delete the list of recent destinations, select "Guidance

options" in the navigation menu then select "Delete last

destinations" and confi rm. Select "Yes" then confi rm.
Deleting just one destination is not possible.

Go from the list to the menu (left/right).

NAVIGATION - GUIDANCE

Access to the "NAVIGATION" menu

Press NAV.

Contact a PEUGEOT

dealer for mapping

updates.

A long press on the end of the

lighting control stalk repeats

the last navigation message.

298

Press NAV to display the

"Navigation - guidance " menu.

TOWARDS A NEW DESTINATION

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

Select "Select destination " and

confi rm, then select " Enter an address"

and confi rm.

Select the " Country " function then

confi rm.

Select "Town" function then confi rm to

enter the destination town.

Select the letters in the name of the

town one at a time, confi rming each one

with the dial.

Selection the town from the list offered, then confi rm.
A pre-set list (by entering the fi rst few letters) of the towns in the country selected

can be accessed directly by selecting and confi rming"List" on the screen.

Turn the dial and select "OK" then

confi rm.

If possible, enter the " Road " and "N°/X"

information in the same way.

Select "Archive " to save the address entered in a contact fi le.
The system allows up to 400 contact fi les to be recorded.

Confi rm " OK " to start guidance.

Select the guidance criteria: "Fastest

route", " Shortest route" or optimised

"Distance/Time ", then select the

desired restriction criteria: "With tolls",

"With Ferry", or "Traffi c info" then

confi rm "OK".

299

SELECTING A DESTINATION

NAVIGATION - GUIDANCE

TO ONE OF THE RECENT DESTINATIONS

Press NAV to display the

"Navigation - guidance" menu.

Select the desired destination and

confi rm to start guidance.

TOWARDS A CONTACT IN THE CONTACTS DIRECTORY

Select " Select destination" and

confi rm, then select " Directory " and

confi rm.

Selection the desired destination from

your contacts and confi rm "OK " to start

the guidance.

Press NAV to display the

"Navigation - guidance " menu.

Navigation towards a contact imported from your telephone is only

possible if the address is compatible with the system.

300

Select "Select destination" and

confi rm, then select " GPS coordinates "

and confi rm.

Enter the GPS coordinates and confi rm

"OK " to start the guidance.

Press NAV to display the

"Navigation - guidance" menu.

NAVIGATION - GUIDANCE

TOWARDS GPS COORDINATES

TOWARDS A POINT ON THE MAP

With the map displayed, press OK to

display the contextual menu. Select

"Move the map " and confi rm.

Press OK to display the contextual

menu for " Move the map " mode.

Select " Select as destination " or

"Select as stage" and confi rm.

Move the cursor using the control to

identify the desired destination.

301

TOWARDS POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

The points of interest (POI) indicate all of the service locations in the vicinity

(hotels, various businesses, airports...).

Select the " Enter an address " function

and confi rm, then select Select

destination and confi rm.

To select a POI close to your current

location, select "POI" and confi rm, then

select " Around the current place " and

confi rm.
To select a POI as a stage on the route,

select " POI" and confi rm, then select " On

the route" and confi rm.
To select a POI as a destination, fi rst

enter the country and town (see "Towards

a new destination"), select "POI" and

confi rm, fi nally select "Near" and confi rm.

Search for POIs in the categories

suggested in the following pages.

Select " Search by Name " to search for POIs by name and not by

proximity.

Select the POI and confi rm " OK" to start

the guidance.

Press NAV to display the

"Navigation - guidance" menu.

302

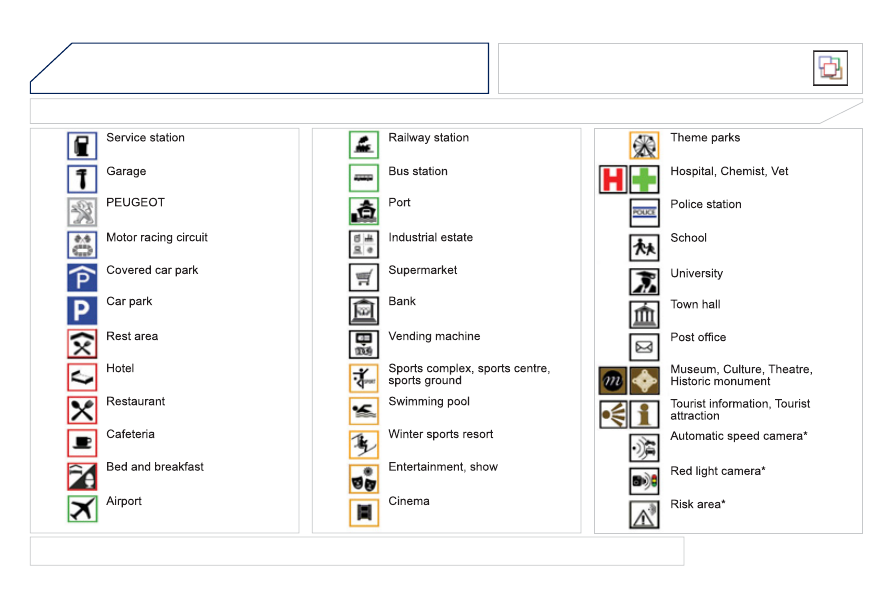

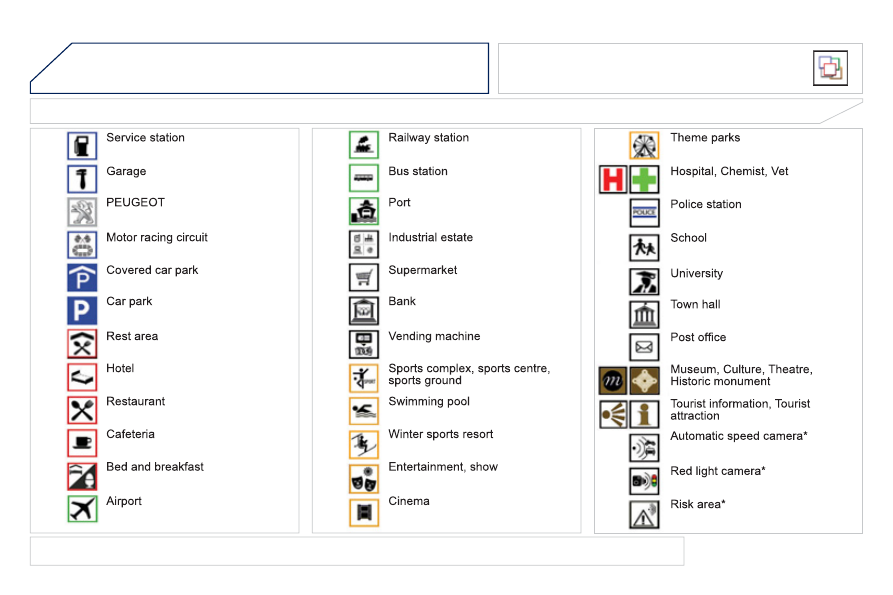

LIST OF PRINCIPAL POINTS OF INTEREST (POI)

NAVIGATION - GUIDANCE

This icon appears when several POIs are grouped

together in the same area. Zooming in on this icon

shows details of the POIs.

* According to availability in the

country.

The detailed procedure for updating POIs can be found at wipinforadars.co.uk.

Content .. 17 18 19 20 ..
