Peugeot 308 CC (2014 year). Manual - part 1

!

i

 Thank you for choosing a 308 CC, a

symbol  of  confi dence,  passion  and  in-

spiration.

  Page  reference:

 this symbol invites you to refer to

the pages which provide details

of the function.

  Key

  Protection  of

the environment:



this symbol accompanies advice

relating to protection of the envi-

ronment.

  Information:

 this symbol draws your attention

to additional information for better

use of your vehicle.

  Warning:

 this symbol marks warnings which

it is essential to observe for your

own safety, for the safety of others

or to avoid any risk of damaging

your  vehicle.

 Your vehicle is fi tted with only some of the

equipment described in this document,

depending on its trim level, version and

the specifi cation for the country in which

it was sold.

 WELCOME

   This handbook has been designed to

enable you to make the most of your

vehicle in all situations.

 Therefore,  on  the  fi rst  few  pages,  you

will fi nd a list of contents followed by a

quick reference guide intended to make

it easier for you to become familiar with

your vehicle.

 All  of  the  details  specifi c  to  your  ve-

hicle, comfort, safety, driving, are then

presented in this handbook, to increase

your appreciation of the vehicle and to

help you make the most of it.

2

CONTENTS



Instrument panels

21



Warning and indicator lamps

23



Indicators 31



Instrument panel buttons

35



Trip computer

37



Ventilation 45



Rear screen demist - defrost

47



Dual-zone digital

air conditioning

48



Windstop 50



Front seats

53



"AIRWAVE" system

56



Rear seats

57



Mirrors 58



Steering wheel adjustment

60

COMFORT 45



 60



Remote control key

61



Alarm 66



Electric windows

68



Doors 70



Boot 73



Fuel tank

74



Misfuel prevention (Diesel)

75

ACCESS 61



 75



Lighting controls

76



LED lamps

78



Daytime running lamps

78



Automatic illumination of

headlamps 79



Welcome lighting

80



Headlamp adjustment

80



Directional lighting

81



Wiper controls

82



Automatic rain sensitive wipers  83



Courtesy lamps

84



Interior mood lighting

85

VISIBILITY 76



 85

FAMILIARISATION 4



 18

MONITORING

 21



 38



Monochrome screen C

(PEUGEOT Connect Sound

(RD5)) 39



Setting the date / time

41



Retractable colour screen

(PEUGEOT Connect Navigation

(RT6)) 42



Setting the date / time

43

MULTIFUNCTION

SCREENS 39



 44



Interior fi ttings

86



Lockable glove box

87



Lockable front armrest

88



Boot fi ttings

91

FITTINGS

 86



 92

1

5

4

3

2

6

ECO-DRIVING 19



 20

3

CONTENTS



Direction indicators

93



Hazard warning lamps

93



Horn 93



Emergency or assistance call  94



Braking assistance systems

94



Trajectory control systems

95



Front seat belts

97



Airbags 100



Child seats

104



Deactivating the passenger's

front airbag

105



ISOFIX child seats

110

SAFETY 93



 113



Parking brake

114



Manual gearbox

114



Gear shift indicator

115



Automatic gearbox

116



Stop & Start

119



Tyre under-infl ation detection  122



Speed limiter

124



Cruise control

126



Parking sensors

128

DRIVING 114



 129



Bonnet 131



Running out of fuel (Diesel)

132



Petrol engines

133



Diesel engines

134



Checking levels

135



Checks 138

CHECKS

 130



 139



Temporary puncture repair kit  140



Changing a wheel

145



Snow chains

149



Changing a bulb

150



Changing a fuse

155



12 V battery

161



Energy economy mode

164



Changing a wiper blade

165



Towing the vehicle

165



Towing a trailer

167



Very cold climate screen

168



Accessories 168

PRACTICAL

INFORMATION 140  169



Petrol engines

170



Weights (petrol)

171



Diesel engines

172



Weights (Diesel)

173



Dimensions 174



Identifi cation markings

175

TECHNICAL

DATA 170

DATA

DATA



 176

AUDIO EQUIPMENT and

TELEMATICS 177



 251

VISUAL

SEARCH 252



 255

ALPHABETICAL

INDEX 256



 260



Emergency or assistance

177



PEUGEOT Connect Navigation (RT6)

PEUGEOT

PEUGEOT

 179



PEUGEOT Connect Sound (RD5)

PEUGEOT

PEUGEOT

 233

7

8

9

10

11



 81



 140



 50



 119



 6

4

FAMILIARISATION

  Directional  lighting


This lighting automatically provides

additional visibility when cornering.

  Retractable  roof
 This system changes from the "coupé"

confi guration to the "cabriolet" confi gura-

tion and vice versa with a single action.

  Windstop
 In the "cabriolet" confi guration,

this comfort system reduces

air swirl at the front seats.

EXTERIOR

  Temporary  puncture  repair

kit

 This kit is a complete system,

consisting of a compressor

and a sealant cartridge, for the

temporary repair of a tyre.

  Stop  &  Start
 This system puts the engine temporar-

ily into standby during stops in the traf-

fi c  (red  lights,  traffi c  jams,  etc....). The

engine restarts automatically as soon

as you want to move off. The Stop &

Start system reduces fuel consumption,

exhaust emissions and the noise level

when  stationary.



 61



 85



 74



 80

5

FAMILIARISATION

  Remote  control  key



A.   Unfolding / Folding the key



(fi rst press this button).

 Normal  locking

(press  once;  fi xed  lighting  of

the direction indicators).

  Fuel  tank



1.   Opening the fuel fi ller fl ap.



2.   Opening  and  hooking  the  fuel  fi ller

cap.



Capacity of the tank: approximately

60  litres.

 Unlocking and partial opening

of the boot

(press for more than two sec-

onds).

 When the light is poor, detected by a

sensor, the remote switching on of the

dipped beam headlamps, sidelamps

and side spotlamps makes your ap-

proach to the vehicle easier.

 In the same way, the passenger com-

partment lighting, such as the courtesy

lamps, the door sill lamps and the foot-

well lamps, comes on.

 or

 Deadlocking of the vehicle

(press twice in succession;

fi xed  lighting  of  the  direction

indicators).

 ACCESS

 Complete or selective unlock-

ing of the vehicle

(rapid fl ashing of the direction

indicators).

 Locking the vehicle using the remote

control or the key also locks the glove

box and the front armrest.

!

!

i

!

6

FAMILIARISATION

 ACCESS

  Retractable  roof

 The operation of the roof is the ex-

clusive responsibility of the driver.

 To avoid any risk of injury when

operating the roof, ensure that no

one is standing near the moving

parts.

 You are strongly advised not to op-

erate the roof in strong winds.

 When washing your vehicle:

   -   lock the vehicle using the re-

mote control or the key,

  -   avoid spraying the upper part

of the windows,

  -   keep the end of the high pres-

sure nozzle at least 1 metre

from the windows and door

seals.

 When the vehicle has been washed

or after rain, wait until the roof has

dried before opening it.

 It is preferable to operate the roof

with the engine running and the ve-

hicle stationary. Wait until the end of

operation message appears in the

multifunction screen before moving

off.

 The operation can only be carried

out when moving if the speed is be-

low 6 mph (10 km/h), and you are

driving smoothly on level ground.

  Preliminary  conditions
      Start the engine

     You must ensure that:

   -   the  electric  windows  are  initialised

(see the corresponding section),

  -   the ambient temperature is higher

than  -15  °C.

  Precautions to be taken before

operating the roof
      Park the vehicle on level ground.

     Check that no objects could hinder

the operation of the roof:

   -   nothing should be placed on the

moving rear shelf

1 , on the boot

screen

2  or on the side trims  3 ,





-

  if luggage is transported in the

boot, it must not lift the boot

screen,

  -   any objects, such as a jacket or

umbrella, placed in the boot, must

be secured using the luggage re-

taining net

4 .

     Check that the boot screen

2  is se-

cured fi rmly.

     Close the boot correctly.

 After the roof has been operated

fully four times in succession, the

system switches to protection

mode temporarily to avoid dam-

age to the roof motors. Let the

system rest for approximately ten

minutes; if you are unable to oper-

ate the roof after this time, contact

a PEUGEOT dealer or a qualifi ed

workshop.

!

i

!

i

!

7

FAMILIARISATION

 ACCESS

  Retractable  roof  operations

  Opening  the  roof

      Pull this control until the roof

opening operation is com-

plete.

  Closing  the  roof

      Press this control until the

roof closing operation is

complete.



Change to "cabriolet" confi guration:

   -

the  four  windows  lower  partially,

  -

the  boot  opens,

  -   the roof folds into the boot,

  -

the  boot  closes.



Change to "coupé" confi guration:

   -

the  four  windows  lower  partially,

  -

the  boot  opens,

  -   the roof unfolds and locks automati-

cally,

  -

the  boot  closes.

 To ensure that the roof operates cor-

rectly, do not release the control while

the roof is moving.

 However, in the event of any danger,

release the control, the roof stops; then,

once the danger had been eliminated,

complete the movement required.

  Operating  fault
 If a malfunction of the roof occurs,

apply the parking brake, switch off

the ignition, start the engine again,

then start the operation required

again.

 If the problem persists, contact a

PEUGEOT  dealer  or  a  qualifi ed

workshop.

 The electric window controls and

the control for all four windows are

deactivated while the roof is in op-

eration.

 The  end  of  the  operation  is  confi rmed

by an audible signal and a message in

the multifunction screen.

 The  end  of  the  operation  is  confi rmed

by an audible signal and a message in

the multifunction screen.

 If you continue to pull or press this

control after the end of the opera-

tion, the four windows rise.

 The roof's electronic control unit

may interrupt the operation in

progress as a precaution (ex-

ample: door movement and roof

operation in quick succession). In

this case, release the control, then

activate it again to complete the

operation  required.



 87, 88



 85



 56



 233



 179

8

FAMILIARISATION

  Interior  mood  lighting
 This subdued lighting of the passenger

compartment improves visibility inside

the vehicle when the light is poor.

  "AIRWAVE"  system


Incorporated in each front head re-

straint, this heating system improves

your comfort around the neck in cold

weather, particularly in the "cabriolet"

confi guration.  It  operates  most  effec-

tively with the Windstop installed in the

raised  position.

  Audio and telematics systems
 These  systems  benefi t  from  the  latest  technol-

ogy: MP3 compatible PEUGEOT Connect Sound,

PEUGEOT Connect Bluetooth, PEUGEOT

Connect Navigation (RT6) with retractable colour

screen, JBL audio system, auxiliary sockets.

  Secure  storage  compartments
 The glove box and the front armrest are

designed to remain locked, even in the

"cabriolet" confi guration. They can only

be locked using the remote control or

the key at the same time as the rest of

the  vehicle.

 INTERIOR



PEUGEOT Connect Sound

 PEUGEOT Connect Navigation (RT6)

9

FAMILIARISATION

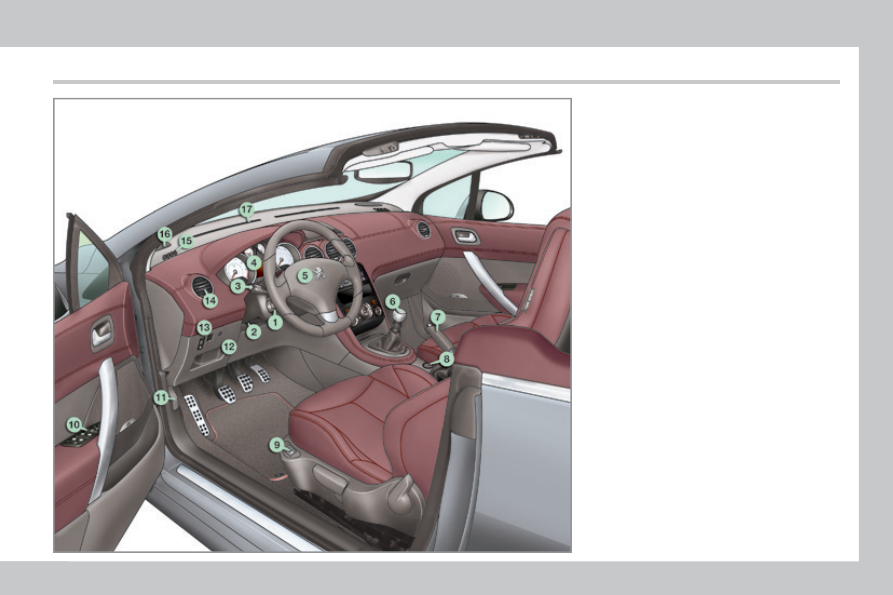

1.   Cruise control / speed limiter

switches.



2.   Steering wheel adjustment control.



3.   Lighting and direction indicator

control stalk.



4.   Instrument  panel.



5.   Driver's  front  airbag.

 Horn.



6.   Gear  lever.



7.   Parking  brake.



8.   12 V accessory socket.



9.   Heated seat control.



10.   Door  mirror  controls.



Electric window controls.



11.   Bonnet  release.



12.   Fusebox.



13.  Manual headlamp height

adjustment.



Stop & Start button.



14.  Side adjustable air vent.



15.  Front side window demisting vent.



16.   Speaker  (tweeter).



17.   Windscreen  demisting  vent.

 INSTRUMENTS  AND  CONTROLS

10

FAMILIARISATION

 INSTRUMENTS  AND  CONTROLS

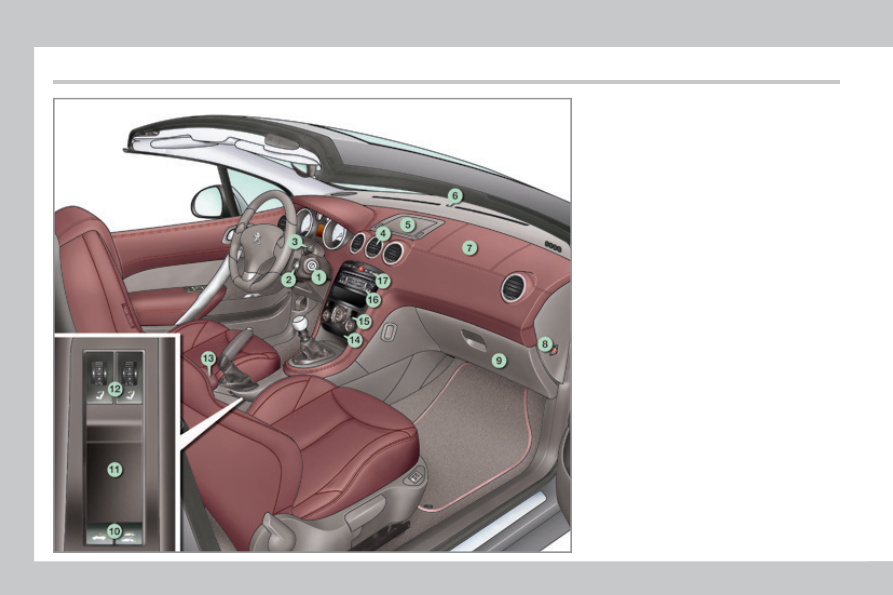

1.   Steering lock and ignition.



2.   Audio and telematics system

steering mounted control stalk.



3.   Wipers / screenwash / trip

computer control stalk.



4.   Central adjustable air vents.



5.   Multifunction  screen.



6.   Sunshine  sensor.



7.   Passenger's front airbag.



8.   Passenger's front airbag

deactivation switch.



9.   Glove box / Audio/video sockets.



10.   Retractable  roof  control.



Control for all four windows.



11.   Storage  compartment.



12.  "AIRWAVE" system controls.



13.   Front  armrest.



14.   Front  ashtray.



15.  Heating / air conditioning controls.



16.  Audio and telematics system.



17.   Emergency  call  button.



Alarm  button.



Central locking button.



Hazard warning lamps button.



DSC/ASR systems button.



Parking sensors button.



PEUGEOT services button.



 53



 54

11

FAMILIARISATION

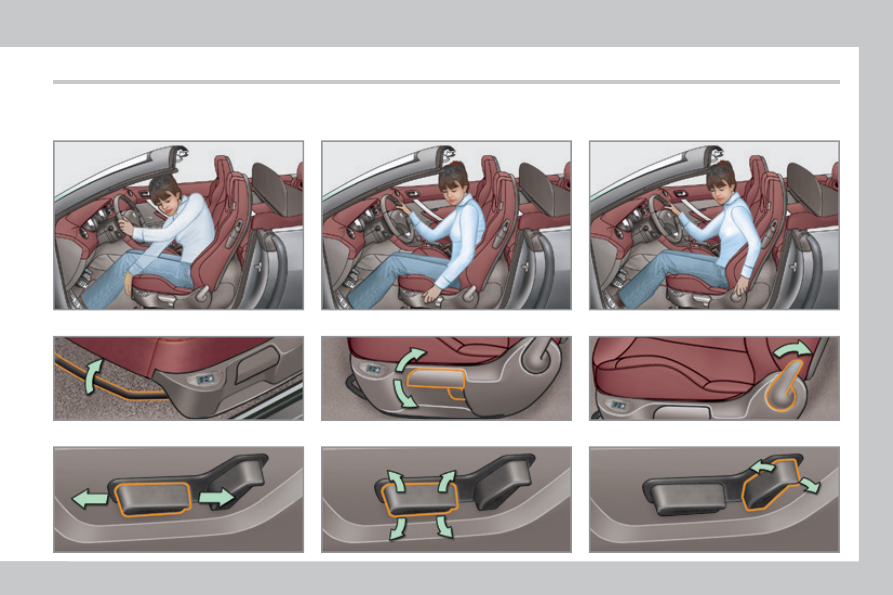

  Front  seats

  Manual  adjustments

  Forwards-backwards

  Seat  back  angle

  Height

 SITTING  COMFORTABLY

  Electric  adjustments

!

i



 88



 60



 55



 57



 56

12

FAMILIARISATION

 SITTING  COMFORTABLY

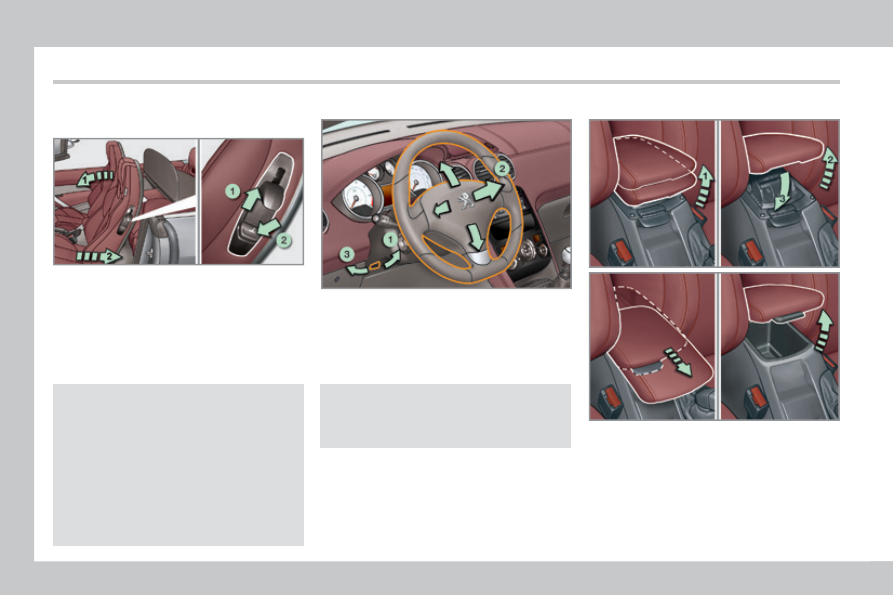

  Steering  wheel  adjustment



1.   Release the adjustment mechanism.



2.   Adjust for height and reach.



3.   Lock the adjustment mechanism.

  Front  seats

  Other  functions  available...
 Storing driving positions (driver's

electric seat).

  Electric access to the rear seats

  Lockable  front  armrest

 For your comfort, the height and the

longitudinal position of the front armrest

can be adjusted.

It also offers a storage compartment. As

a security measure when in the "cabrio-

let"  confi guration,  this  is  locked  at  the

same time as the rest of the vehicle,

only when using the remote control or

the  key.

 As a safety precaution, these op-

erations must only be carried out

when  stationary.



1.   Control for release of the seat back

and automatic forward movement of

the seat.



2.   Control for returning the seat to the

initial  position.

 "AIRWAVE"  system.

 Heated  seats.

i



 97



 58



 60



 59

13

FAMILIARISATION

 SITTING  COMFORTABLY

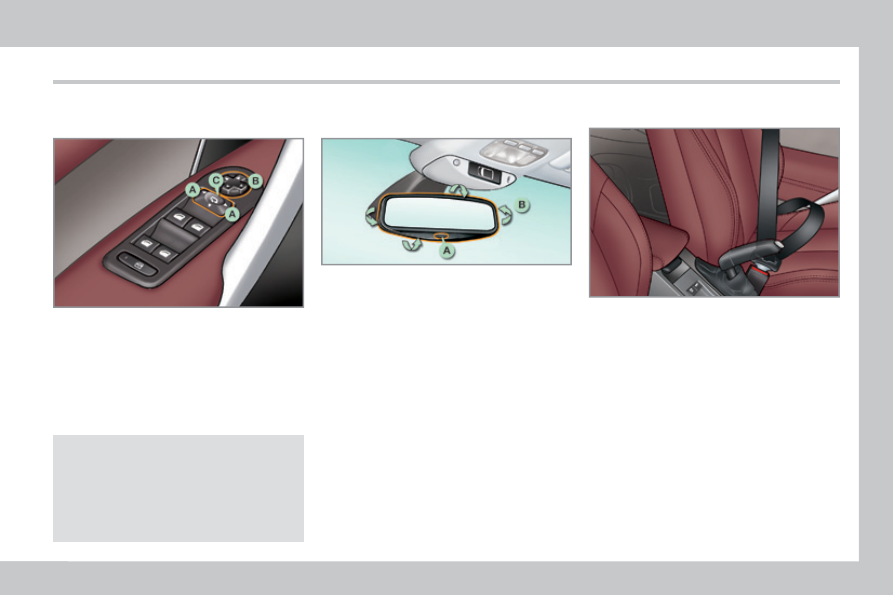

  Door  mirrors

  Adjustment

  Other  functions  available...
 Folding / Unfolding.

 Automatic tilting of the mirror in re-

verse gear for parking.

  Rear  view  mirror

  Front  seat  belts



1.   Position the strap.



2.   Fasten the buckle.



3.   Check the fastening by pulling the

strap.



A.   Selection of the mirror to be adjusted.



B.

 Adjustment of the position of the

mirror glass in four directions.



C.   De-selection  of  the  mirror.

  Automatic  day/night  model



A.   Light level detection of the automatic

day/night mode.



B.   Mirror  adjustment.



 76



 93



 83



 82

FAMILIARISATION

 SEEING  CLEARLY

  Lighting

  Ring  A

  Ring  B

 Raise or lower the lighting stalk passing

the point of resistance; the correspond-

ing  direction  indicators  will  fl ash  until

the stalk is moved from this position.

  Direction  indicators

 Lighting  off.
 Automatic illumination of headlamps.

 Sidelamps.
 Dipped / main beam headlamps.

 Front  and  rear  foglamps.

  Stalk  A:  windscreen  wipers

  Wipers

  Three fl ashes
 Press the lighting stalk up or down once,

without passing the point of resistance;

the corresponding direction indicators

will fl ash three times.

The use of this function is available re-

gardless of the speed, but you will fi nd it

particularly useful when changing lane

on  fast  roads.

  Switching  on  "AUTO"
      Press the stalk down and release it.

  Switching  off  "AUTO"
      Push the stalk up and return it to

p osition

"0" .
