ACCESS

This  enables  the  tailgate  to  be
unlocked  in  the  event  of  a  central
locking fault.
   -   Fold  back  the  rear  seats  to  gain

access to the lock from inside the
boot,

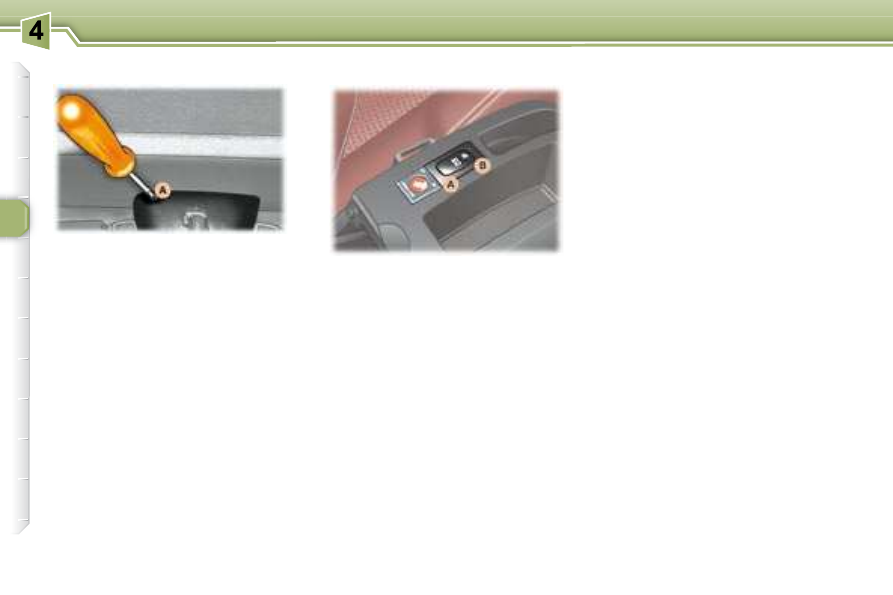

- Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it

stops and moves back slightly.

Your vehicle is i tted with a tinted glass

panoramic roof which increases the

light and visibility in the passenger

compartment. Its electric concealing

shutter improves temperature conditions.

To open:

press part A of the switch.

To close:

press part B of the switch.

Manually:

press the switch without

going past the point of resistance; the

shutter stops as soon as the switch is

released.

Automatically:

press the switch

beyond the point of resistance;

one press fully opens or closes the

shutter. Press the switch again to

stop the shutter.

Notes
If the shutter’s power supply is cut off,

while it is moving or immediately after

it has stopped, you must reinitialise

the safety auto-reverse:

- press section B of the switch

until the shutter is completely

closed (closing in stages of a few

centimetres).

In the event of unwanted opening

of the shutter on closing, and
immediately after the shutter has

stopped:

- press section A of the switch until

the shutter is fully open,

- release section A and immediately

afterwards press section B of the

switch until the shutter is fully

closed (closing in stages of a few

centimetres).

The safety auto-reverse function is
not active during these operations.

PANORAMIC ROOF

Tailgate release

ACCESS

This  enables  the  tailgate  to  be
unlocked  in  the  event  of  a  central
locking fault.
   -   Fold  back  the  rear  seats  to  gain

access to the lock from inside the
boot,

- Insert a small screwdriver into

hole A of the lock to unlock the
tailgate.

Safety auto-reverse
At the end of its travel, if the shutter
encounters an obstacle to closing, it

stops and moves back slightly.

Your vehicle is i tted with a tinted glass

panoramic roof which increases the

light and visibility in the passenger

compartment. Its electric concealing

shutter improves temperature conditions.

To open:

press part A of the switch.

To close:

press part B of the switch.

Manually:

press the switch without

going past the point of resistance; the

shutter stops as soon as the switch is

released.

Automatically:

press the switch

beyond the point of resistance;

one press fully opens or closes the

shutter. Press the switch again to

stop the shutter.

Notes
If the shutter’s power supply is cut off,

while it is moving or immediately after

it has stopped, you must reinitialise

the safety auto-reverse:

- press section B of the switch

until the shutter is completely

closed (closing in stages of a few

centimetres).

In the event of unwanted opening

of the shutter on closing, and
immediately after the shutter has

stopped:

- press section A of the switch until

the shutter is fully open,

- release section A and immediately

afterwards press section B of the

switch until the shutter is fully

closed (closing in stages of a few

centimetres).

The safety auto-reverse function is
not active during these operations.

PANORAMIC ROOF

Tailgate release

ACCESS

The engine must be switched off

when

i lling with fuel.



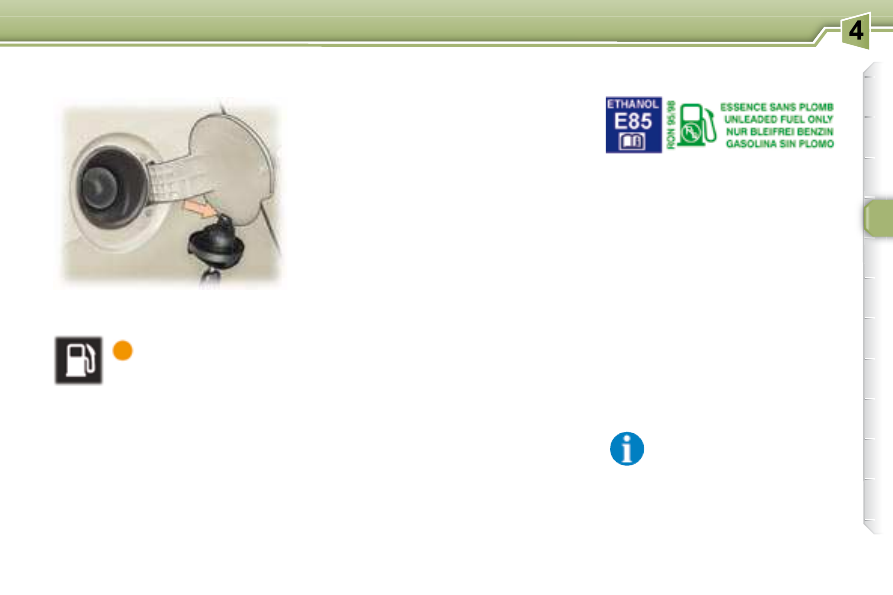

Open the fuel i ller l ap.

 Insert the key then turn it to the

left.



Remove the cap and hang it on

the hook located on the inside of

the l ap.

A label afi xed to the inside of the fuel

i ller l ap indicates which type of fuel

to use.
When you i ll your tank, do not

continue after the third cut-off of the

pump. This could cause your vehicle

to malfunction.
  The  capacity  of  the  tank  is
approximately 60 litres.
   

After i lling the tank, lock the cap

and close the fuel i ller l ap.

Low fuel level

When the minimum
fuel level in the tank is

reached, this warning

light comes on on the

instrument panel.

You can still drive approximately
30 miles (50 km).

Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to

the rest position (below zero), this

indicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.

FILLING WITH FUEL

1.6 litre 16V BioFlex engine

Your BioFlex vehicle is an adaptable

vehicle. It has been designed to

run equally well on unleaded petrol

(RON 95 or RON 98) or ethanol (in

Europe, this is a mixture containing

85 % ethanol and 15 % unleaded

petrol, referred to as E85).

So, irrespective of the quantity of fuel

remaining in your tank and regardless

of the type of fuel (unleaded petrol,

E85 or a mixture of the two), you

can i ll your tank at any time with

unleaded petrol (RON 95 or RON 85)

or ethanol E85.
This vehicle will run on unleaded

petrol only without experiencing any

problems.

In wintry conditions, starting

the engine from cold may

sometimes prove difi cult.

During these very cold periods,

it is advisable to favour unleaded

petrol to guarantee optimum starting

conditions.

VISIBILITY

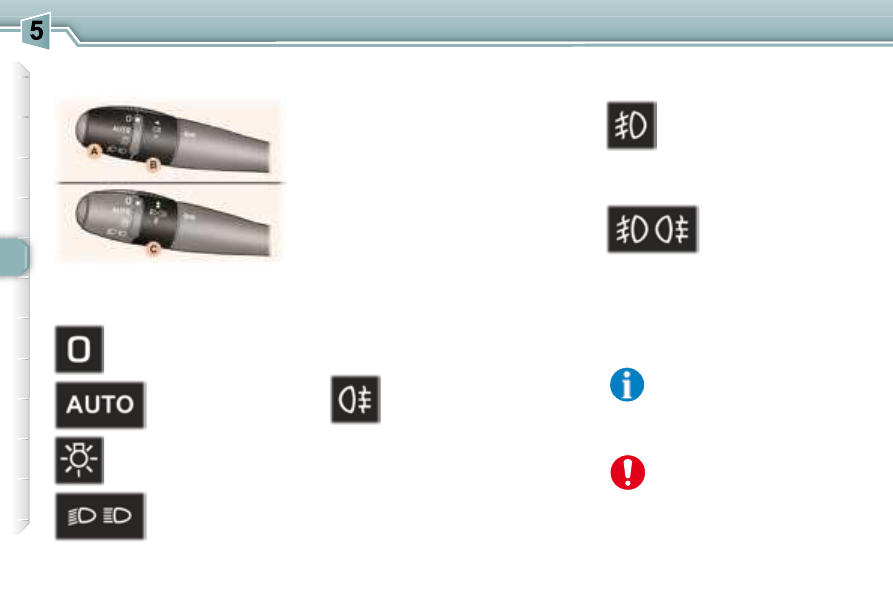

Front and rear lights (ring A)

 Place ring A

in the required position.

Dipped/Main beam change


Pull the stalk towards you.

Vehicles i tted with front fog

lamps and a rear fog lamp (ring C)

Lights off

Side lights

Dipped/main beam

headlamps

Rear fog lamp

Front fog lamps ( i rst rotation

of the ring forwards)

Front and rear fog

lamps (2nd rotation

of the ring forwards).

Note:

to switch off

the rear fog lamp

and the front fog lamps, turn the ring

backwards twice in succession.

Vehicles i tted with a rear fog

lamp (ring B)

This operates with the dipped/main

beam headlamps.
Note:

when the lights are switched off

automatically, the rear fog lamp and

the dipped headlamps will remain on.

Turn the ring backwards to switch

off the rear fog lamp. The dipped

headlamps will then be switched off.

The front fog lamps operate with

the side lights and the dipped

headlamps.

Front fog lamps and rear fog
lamp

 Turn ring B or C

forwards to switch

on and backwards to switch off.

The status is coni rmed by the

indicator light on the instrument

panel .

Lights on buzzer
With the ignition off and the automatic

switching on of the lights deactivated,

when the driver’s door is opened, a

buzzer sounds to warn you that you

have left your lights on.

In good or rainy weather,

both day and night, the front

fog lamps and the rear fog

lamp are dazzling and are

prohibited.

Do not forget to switch them off when

they are no longer needed.

LIGHTS STALK

The rear fog lamp will be

deactivated

automatically

when towing or when a

bicycle carrier i tted with a

fog lamp is i tted.

Automatic switching

on of the lights

VISIBILITY

Automatic switching on of the
lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of the

windscreen wipers. They switch off

as soon as the light becomes bright

enough or the windscreen wipers

stop.
Note:

in foggy weather or in snow,

the brightness sensor can detect

sufi cient light. As a consequence, the

lights will not come on automatically.

Deactivation
 Turn ring A

to a position other

than "AUTO"

. Switching off is

accompanied by a message on

the multifunction display.

If the brightness sensor does not
function correctly, the lights come

on accompanied by the service

warning light, an audible signal and

a message on the multifunction dis-

play.
Contact a PEUGEOT dealer.

Manual "Follow-me-home" lighting
When the automatic switching on of
the lights function is deactivated , the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights
function

, when you leave your vehicle,

the side lights and dipped headlamps

remain on for thirty seconds.

Direction indicators (l ashers)

Left:

downwards.

Right:

upwards.

Note:

if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow me home"
lighting
With the ignition off, when you leave

your vehicle with the automatic

switching on of the lights function
activated

, the side lights and dipped

headlamps remain on for the selected

duration.

Activation:


switch off the engine,



"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display coni guration menu, except

in the case of the monochrome
screen A

for which it is pre-set.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

position. The automatic lighting

is accompanied by a message on

the multifunction display.

Do not cover the brightness

sensor, coupled with the rain

sensor, located in the centre

of the windscreen, behind

the interior mirror. It is used for the

automatic switching on of the lights.

VISIBILITY

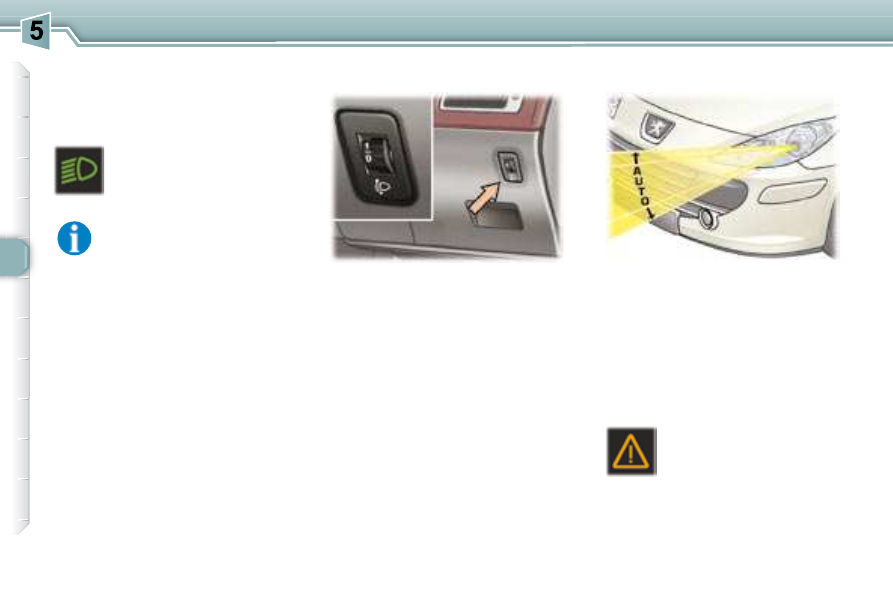

For vehicles i tted with halogen

bulbs, depending on the load in your

vehicle, adjusting the beam of your

headlamps is recommended.
0.

1 or 2 people in the front seats.

3 people.

5 or 7 people.

-. Intermediate setting.
2.

5 or 7 people + maximum

authorised load.

-. Intermediate setting.
3.

Driver + maximum

authorised load.

Initial setting is position 0.

On vehicles with xenon bulbs:
when stationary

, the system auto-

matically corrects the height of the

beam, whatever the load of the vehi-

cle. The driver is then assured of hav-

ing optimum lighting and not causing a

nuisance to other road users.

In cases of malfunction ,

the service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction display.

The system places your headlamps

to the low position.

Do not touch the xenon bulbs.

Contact a PEUGEOT dealer.

Daytime lights *

On vehicles which are equipped with

daytime lights, the dipped headlamps

come on when the vehicle is started.

* According to country.

The instruments and controls

(instrument panel, multifunc-

tion display, air conditioning

control panel, ...) are only lit

on switching to the automatic switch-

ing on of the lights mode or when the

lights are switched on manually.

This warning light comes

on on the instrument panel.

MANUAL ADJUSTMENT OF
THE HEADLAMPS

AUTOMATIC HEADLAMP
ADJUSTMENT

VISIBILITY

Automatic switching on of the
lights

Side lights and dipped beam head-

lamps switch on automatically if the

light is poor, or during operation of the

windscreen wipers. They switch off

as soon as the light becomes bright

enough or the windscreen wipers

stop.
Note:

in foggy weather or in snow,

the brightness sensor can detect

sufi cient light. As a consequence, the

lights will not come on automatically.

Deactivation
 Turn ring A

to a position other

than "AUTO"

. Switching off is

accompanied by a message on

the multifunction display.

If the brightness sensor does not
function correctly, the lights come

on accompanied by the service

warning light, an audible signal and

a message on the multifunction dis-

play.
Contact a PEUGEOT dealer.

Manual "Follow-me-home" lighting
When the automatic switching on of
the lights function is deactivated , the

side lights and dipped headlamps re-

main on for the duration selected for the

automatic "follow-me-home" lighting.

If the vehicle is not i tted with the

automatic switching on of the lights
function

, when you leave your vehicle,

the side lights and dipped headlamps

remain on for thirty seconds.

Direction indicators (l ashers)

Left:

downwards.

Right:

upwards.

Note:

if you forget to cancel the di-

rection indicator, the volume of the

audible signal will increase, if you

are driving at a speed greater than

50 mph (80 km/h).

Automatic "Follow me home"
lighting
With the ignition off, when you leave

your vehicle with the automatic

switching on of the lights function
activated

, the side lights and dipped

headlamps remain on for the selected

duration.

Activation:


switch off the engine,



"l ash" the headlamps,

 get out of the vehicle and lock it.

Deactivation:


"l ash" the headlamps again,

 get out of the vehicle and lock it.

To deactivate or activate

this function, go to the mul-

tifunction display coni gura-

tion menu.
The duration of the timed

period must also be set (15, 30,

60 seconds), via the multifunction

display coni guration menu, except

in the case of the monochrome
screen A

for which it is pre-set.

Cancelling:


"l ash" the headlamps,

 get out of the vehicle and lock it.

Activation
 Turn ring A to the "AUTO"

position. The automatic lighting

is accompanied by a message on

the multifunction display.

Do not cover the brightness

sensor, coupled with the rain

sensor, located in the centre

of the windscreen, behind

the interior mirror. It is used for the

automatic switching on of the lights.

VISIBILITY

For vehicles i tted with halogen

bulbs, depending on the load in your

vehicle, adjusting the beam of your

headlamps is recommended.
0.

1 or 2 people in the front seats.

3 people.

5 or 7 people.

-. Intermediate setting.
2.

5 or 7 people + maximum

authorised load.

-. Intermediate setting.
3.

Driver + maximum

authorised load.

Initial setting is position 0.

On vehicles with xenon bulbs:
when stationary

, the system auto-

matically corrects the height of the

beam, whatever the load of the vehi-

cle. The driver is then assured of hav-

ing optimum lighting and not causing a

nuisance to other road users.

In cases of malfunction ,

the service warning light

comes on on the instrument

panel, accompanied by an

audible signal and a mes-

sage on the multifunction display.

The system places your headlamps

to the low position.

Do not touch the xenon bulbs.

Contact a PEUGEOT dealer.

Daytime lights *

On vehicles which are equipped with

daytime lights, the dipped headlamps

come on when the vehicle is started.

* According to country.

The instruments and controls

(instrument panel, multifunc-

tion display, air conditioning

control panel, ...) are only lit

on switching to the automatic switch-

ing on of the lights mode or when the

lights are switched on manually.

This warning light comes

on on the instrument panel.

MANUAL ADJUSTMENT OF
THE HEADLAMPS

AUTOMATIC HEADLAMP
ADJUSTMENT

VISIBILITY

Special position of the front
windscreen wiper
In the minute following switching off

of the ignition, any action on the stalk

positions the wipers in the centre of

the windscreen.

This action enables you to position

the wiper blades for winter parking,

cleaning or replacement (See section

"Practical information - Changing a

wiper blade").

To park the wipers after this has

been done, switch on the ignition and

operate the stalk.

Windscreen and headlamp wash
Pull the windscreen wiper stalk

towards you. The windscreen wash

then the windscreen wipers operate

for a i xed period.

The headlamp wash is also activated,

if the headlamps are on.

Automatic windscreen wipers

In AUTO

mode, the windscreen

wipers operate automatically and

adapt their speed to the intensity
of the rainfall .

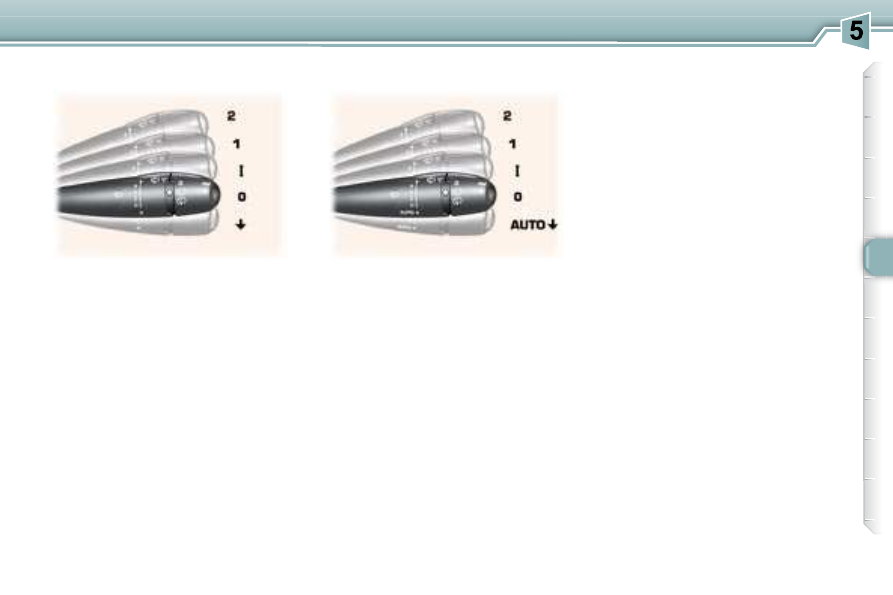

Front windscreen wiper with
automatic wipe

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

Off.

AUTO 

Automatic or single wipe

(press downwards).

In the I

ntermittent position, the wiping

speed is in proportion to the speed of

the vehicle.
In AUTO

mode, the wiping speed is in

proportion to the intensity of the rainfall.

The i rst press of the stalk downwards

activates the automatic wipe.

Subsequent presses trigger a single

wipe.

WINDSCREEN WIPER STALK

Front windscreen wiper with
intermittent wipe

Fast wipe (heavy rain).

Normal wipe (moderate rain).

Intermittent wipe.

0 Off.


Single wipe (press downwards).

In the I

ntermittent position, the wiping

speed is in proportion to the vehicle

speed.

VISIBILITY

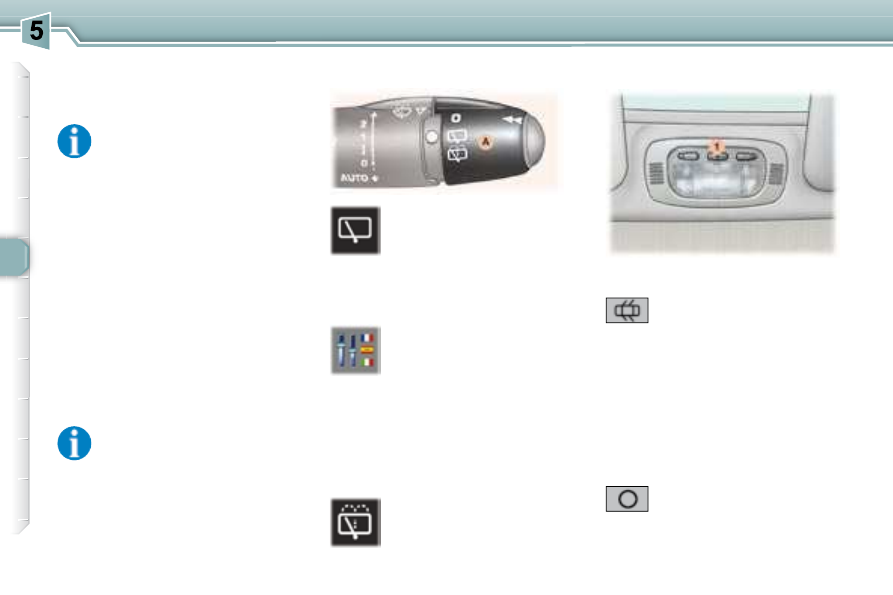

Do not cover the rain sensor

located on the windscreen

behind the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait for the

windscreen to completely clear of ice

before operating the automatic wipe.

Activation
Activation

the

function

accompanied by a message on the

multifunction display.

Turn ring A

to the i rst notch

for intermittent wiping.
When

reverse

gear

engaged, if the windscreen

wipers are in operation, the

rear wiper will start wiping.

To activate or deactivate this

function, go to the multi-func-

tion display coni guration

menu.
If there is a signii cant ac-

cumulation of snow or ice and when

using a bicycle carrier on the tailgate,

deactivate the automatic rear wiping

by going to the multifunction display

coni guration menu.

Turn ring A

past the i rst

notch; the windscreen wash

then the windscreen wiper

operate for a i xed period.

Deactivation
Deactivation

the

function

accompanied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in

intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.

Rear windscreen wash

1. Front courtesy light

In this position, the courtesy

light comes on automatically:

- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the vehicle location function is used.

Permanently off.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

Rear windscreen wiper

  The automatic windscreen
wipers  function  must  be
reactivated  if  the  ignition
has  been  switched  off  for

more than one minute, by pressing
the stalk downwards.

VISIBILITY

Do not cover the rain sensor

located on the windscreen

behind the interior mirror.
When using an automatic car

wash, switch off the ignition.

In winter, it is advisable to wait for the

windscreen to completely clear of ice

before operating the automatic wipe.

Activation
Activation

the

function

accompanied by a message on the

multifunction display.

Turn ring A

to the i rst notch

for intermittent wiping.
When

reverse

gear

engaged, if the windscreen

wipers are in operation, the

rear wiper will start wiping.

To activate or deactivate this

function, go to the multi-func-

tion display coni guration

menu.
If there is a signii cant ac-

cumulation of snow or ice and when

using a bicycle carrier on the tailgate,

deactivate the automatic rear wiping

by going to the multifunction display

coni guration menu.

Turn ring A

past the i rst

notch; the windscreen wash

then the windscreen wiper

operate for a i xed period.

Deactivation
Deactivation

the

function

accompanied by a message on the

multifunction display.

The function is deactivated when the

windscreen wipers stalk is moved to

position I , 1 or 2 .
In the event of malfunction of the

automatic windscreen wipers, the

windscreen wipers will operate in

intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.

Rear windscreen wash

1. Front courtesy light

In this position, the courtesy

light comes on automatically:

- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the vehicle location function is used.

Permanently off.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

COURTESY LIGHTS

Rear windscreen wiper

  The automatic windscreen
wipers  function  must  be
reactivated  if  the  ignition
has  been  switched  off  for

more than one minute, by pressing
the stalk downwards.

VISIBILITY

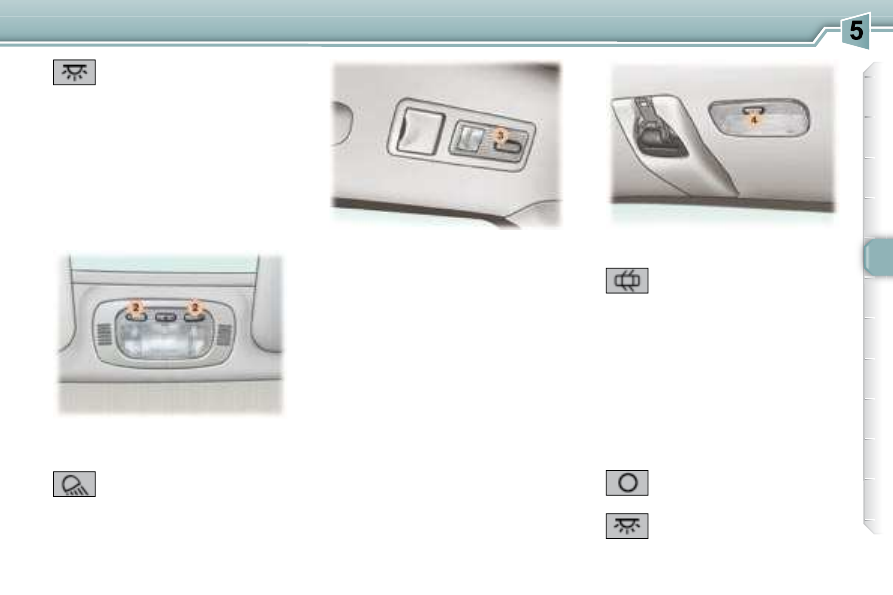

3. 2 nd row rear reading lights

Permanently off.

The reading light comes on:

- when the vehicle is unlocked,

- when the key is removed from the

ignition,

- when a door is opened,

- when the vehicle location function

is used.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

With the ignition on (function not

available in economy mode), press

the switch to obtain permanent

lighting.
Press the switch again to switch the

reading light off.

In this position, the courtesy

light comes on automatically:

4. 3 rd row rear courtesy light

Permanently on when the

ignition is on (function not
available in economy mode).

- when the vehicle is unlocked,

- when the key is removed from the ignition,

- when a door is opened,

- when the vehicle location function is used.

Permanently on.

2. Front map reading lights

Different lighting times are available:

- with the ignition off or on,

approximately 10 minutes,

- in economy mode, approximately

30 seconds,

- when the engine is running, no limit.

With the ignition on, press

the corresponding switch.

It switches off gradually:

- when the vehicle is locked,

- when the ignition is switched on,

- with the ignition off, 30 seconds

after the last door is closed.

LAYOUT

With the ignition on, the mirror is

automatically lit up when the l ap is

opened.

The athermic windscreen has two

non-rel ective zones located either

side of the base of the interior mirror.
They are intended for afi xing toll

cards and/or car park tickets.

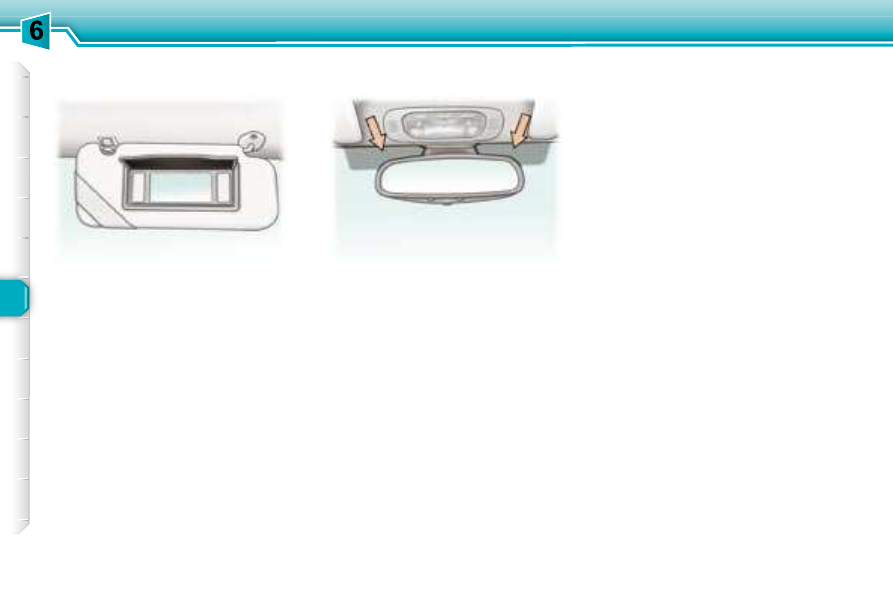

SUN VISOR WITH ILLUMINATED
COURTESY MIRROR

AREAS FOR TOLL CARDS/
CAR PARK TICKETS

LAYOUT

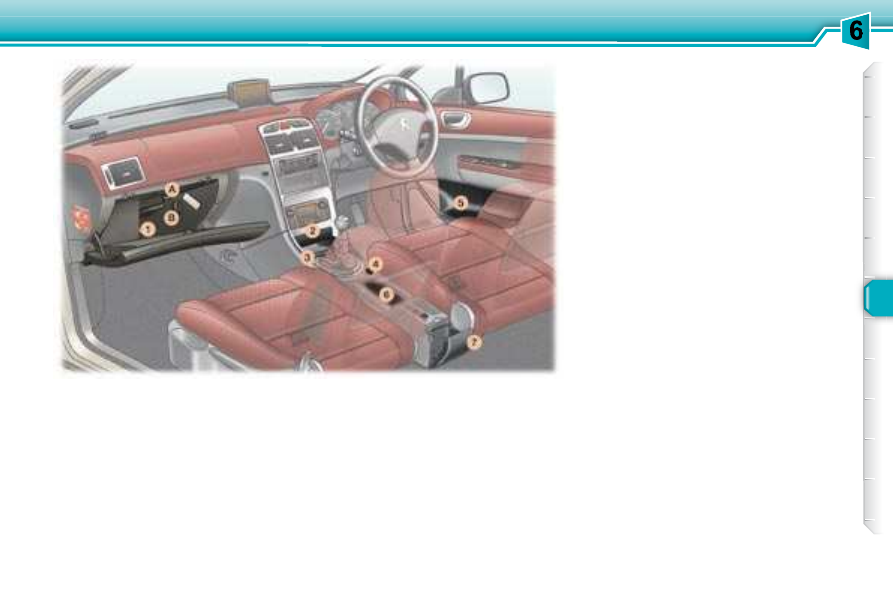

INTERIOR LAYOUT

2. Front ashtray
Pull the lid to open the ashtray.

To empty it after opening, press the

tab and remove the ashtray.

3. Storage

4. 12 volt socket (100 W max)
This is a lighter type socket, i tted

with a cap. It is supplied with current

from the running position.

5. Door tray

6. Storage/Can holder

7. Waste container
To empty, open it fully (past the

point of resistance) then pull on the

receptacle to remove it.

To rei t, lock it in place on the cover.

It contains three sockets * B for

connecting video equipment.

The layout allows storage of a water

bottle, a pen, the vehicle handbook,

a pair of spectacles, tokens, etc.

* Colour screen only.

1. Glove box with cooling facility
This is i tted with a lock.

To open the glove box, lift the

handle.
The glove box lights when the lid is

opened.
It  has  a  ventilation  nozzle  that
can  be  closed   A ,  distributing  the
same  cooled  air  as  the  vents  of  the

passenger compartment.

LAYOUT

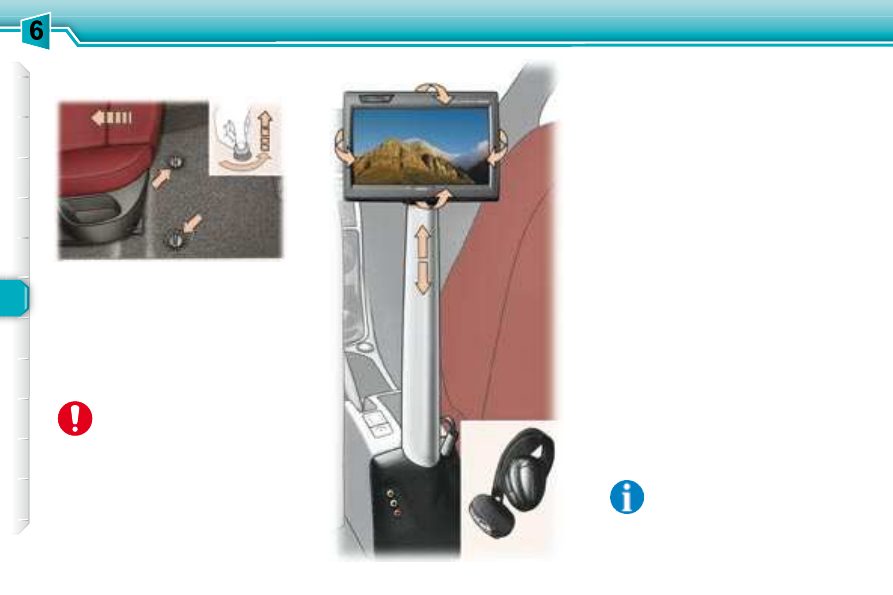

When i tting the mat for the i rst time,

use only the i xings supplied in the

wallet attached.
When removing the mat on the

driver’s side:

- push the seat as far back as

possible,

- unscrew the i xings fully,

- remove the i xings, then the mat.

FITTING/REMOVING THE MAT

When rei tting, position the

mat correctly and replace the

i xings by pressing them in.
Ensure that the mat is

secured correctly.
To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

correctly.

- never i t one mat on top of

another.

For further details, refer to the

operating manuals "Video kit

operation" and "VMA8582

7 inch LCD colour monitor".

ENTERTAINMENT SCREEN
KIT

This video assembly will enable

the rear passengers to pass the

time pleasantly while watching their

favourite i lm or playing their favourite

game, by means, in particular, of the

connection of a DVD player or games

console to the central support, i tted

between the front seats.

The entertainment screen kit consists of:

- a 16/9 ths , 7 inch, LCD colour

monitor with direction adjustment

in the three axes,

- two high frequency, wireless,

stereo headphones,

- a removable support,

- three audio/video sockets on

the i xed base and in the glove

compartment.

The monitor and the support can be

removed and stored, each in their

own protective cover.

The entertainment screen kit accepts

all types of audio/video source, PAL/

NTSC compatible, such as: DVD

player, camcorder, games console, ...
These sources are connected to the
three audio/video sockets, AV1 in the

glove compartment or AV2 on the

i xed base.

LAYOUT

Content .. 4 5 6 7 ..
