Peugeot 307 SW (2007.5). Manual - part 2

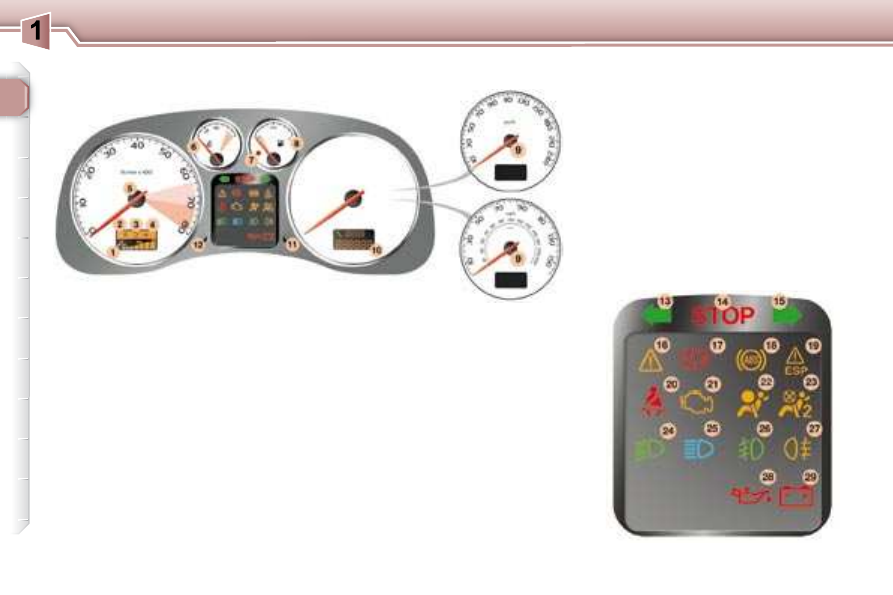

INSTRUMENTS, CONTROLS and DISPLAYS

Engine oil temperature indicator.

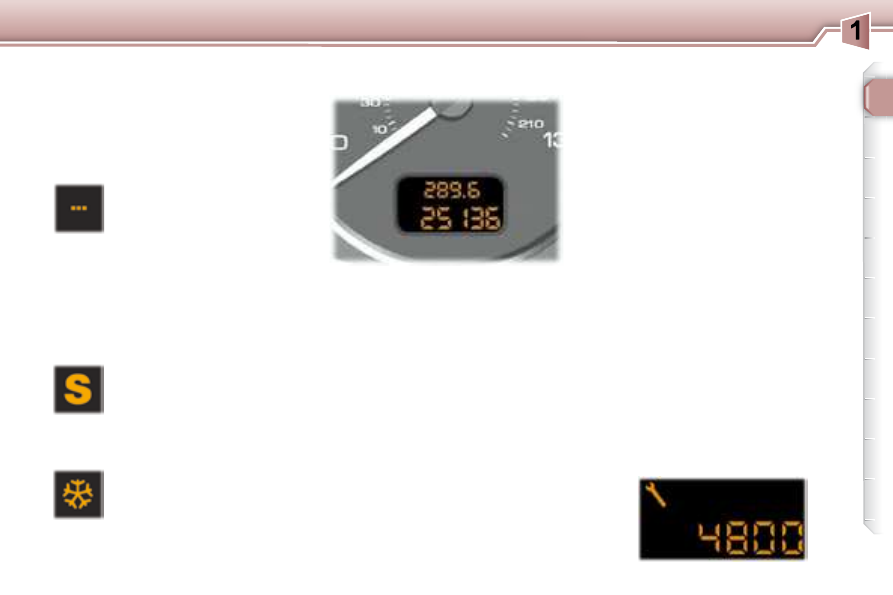

Sport programme indicator light.

Gear lever position indicator.

Snow programme indicator light.

5. Rev counter.
6.

Coolant temperature indicator.

Low fuel level warning light.

8. Fuel gauge.
9.

Speedometer.

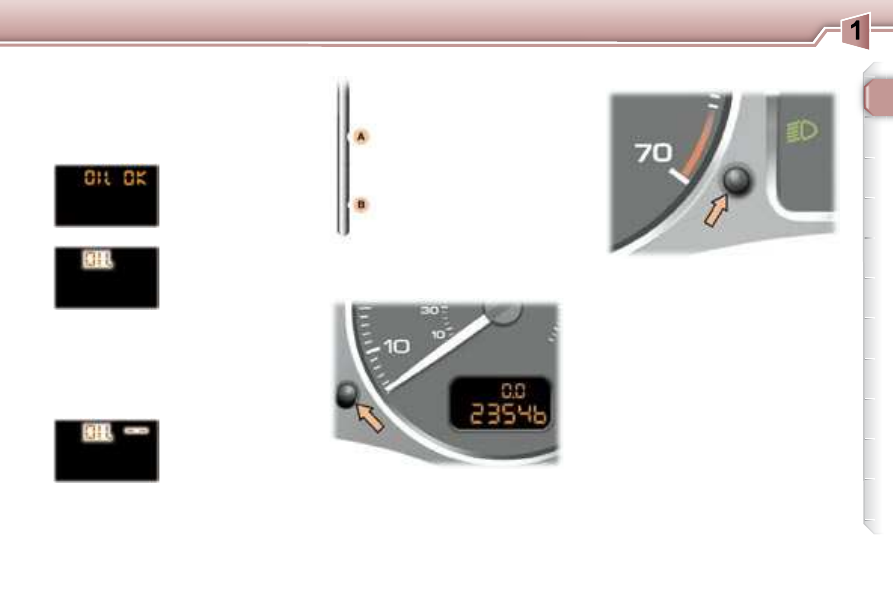

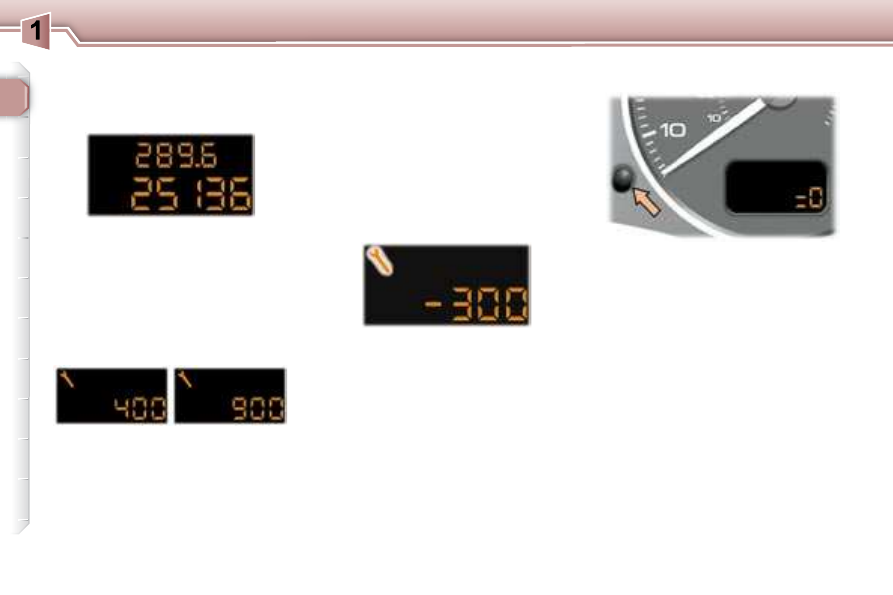

10. Service indicator, oil level

indicator, distance recorder and

cruise control/speed limiter.

11.

Trip recorder zero reset button.

12. Lighting rheostat button.
13.

Left-hand direction indicator.

14.

Central STOP warning light.

15.

Right-hand direction indicator.

16.

Service warning light.

17.

Handbrake, brake l uid level and

electronic brake force distribution

warning light.

18.

Anti-lock braking system (ABS)

warning light.

19. Electronic stability control (ESP/

ASR) warning light.

20. Driver’s seat belt not fastened

warning light.

21.

Emission control system warning

light.

22.

Air bags warning light.

23. Passenger air bag disarmed

indicator light * .

24.

Dipped beam headlamps indicator

light.

25.

Main beam headlamps indicator

light.

26.

Front fog lamps indicator light.

27.

Rear fog lamp indicator light.

28.

Engine oil pressure warning light * .

29.

Battery charge warning light * .

PETROL SPORT INSTRUMENT PANEL DIALS: AUTOMATIC
GEARBOX

* According to country.

INSTRUMENTS, CONTROLS and DISPLAYS

OPERATION WARNING LIGHTS

A permanently lit warning light or

one that l ashes with the engine

running,  indicates  an  operating
fault  in  the  relevant  unit.  Some
warning  lights  may  be  linked  to
buzzers  and  a  message  on  the
multifunction

display.

not

ignore  this  warning:  contact  a
PEUGEOT  dealer  as  soon  as
possible.

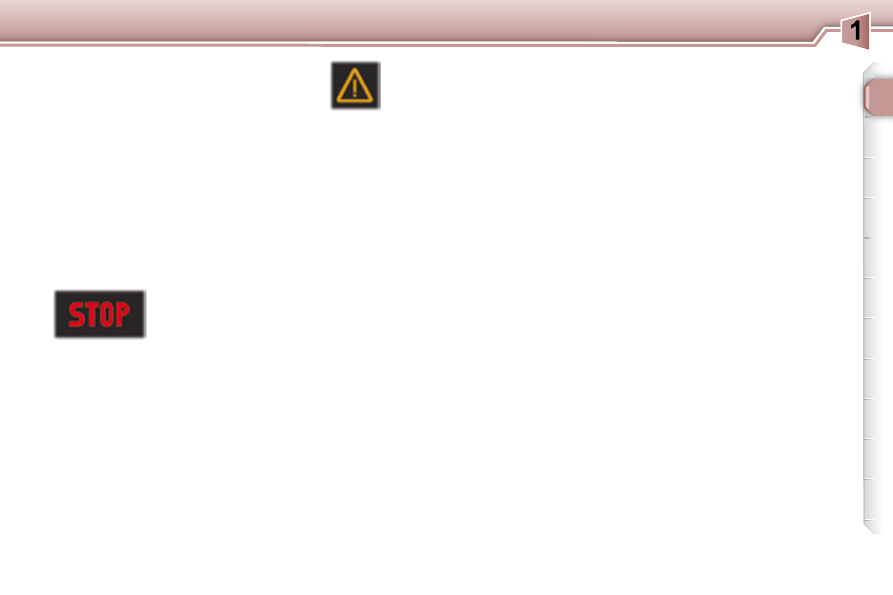

  If  the  Central  STOP  warning  light
comes  on  when  you  are  driving,
stop  immediately  where  it  is  safe
to do so.

  Central STOP
warning light
This  light  comes  on

for a few seconds

each time the ignition is switched on.

It is linked to the "engine oil pressure" * ,

"low brake l uid level" and "electronic

brake force distribution fault" warning

lights and the coolant temperature

gauge.

Stop immediately if it l ashes with

the engine running .
Contact a PEUGEOT dealer.
It also comes on in the event of

a puncture, accompanied by an

audible signal and a message on

the multifunction display locating the

wheel concerned.

Service warning light
This light comes on for a few

seconds each time the ignition

is switched on. If it remains

on or comes on when the

engine is running, accompanied by an

audible signal and a message on the

multifunction display, it indicates one of

the following:

- a battery charge fault * ,

- an automatic gearbox operation fault,

- an engine immobiliser system

fault,

- an engine management system

fault,

- a speed control system fault

(cruise control/speed limiter),

- a rear parking assistance system

fault,

- an automatic switching on of the

lights system fault,

- an automatic headlamp adjustment

system fault,

- a tyre under-inl ation detection

system fault,

- a del ated tyre,

- a l at remote control battery,

- one or more door(s) open at

a vehicle speed above 6 mph

(10 km/h),

- a low diesel additive reservoir

level (Diesel),

- a lack of engine oil,

- the start of saturation of the particle

emission i lter (Diesel) due to excep-

tionally prolonged urban driving condi-

tions: low speed, long trafi c jams, ...

In order to regenerate the i lter,

you are advised to drive at a

speed of 40 mph (60 km/h) or

above for at least i ve minutes

(until the warning light is switched

off) as soon as possible, when

trafi c conditions permit. If the

warning light remains on, contact

a PEUGEOT dealer.

During regeneration of the particle

emission i lter, relay noise may

be heard from underneath the
fascia.

- the presence of water in the

diesel i lter (Diesel) * .

Risk of damage to the injection
system.

Contact a PEUGEOT dealer as

soon as possible.

- a low coolant level ** .

Stop immediately.

Warning:

wait for the engine

to cool before topping up the

level. The cooling system is

pressurised.

In order to avoid any risk of

scalding, unscrew the cap by

two turns to allow the pressure

to drop. When the pressure has

dropped, remove the cap and top

up the level.

Contact a PEUGEOT dealer.

* According to country.

** According to engine.

INSTRUMENTS, CONTROLS and DISPLAYS

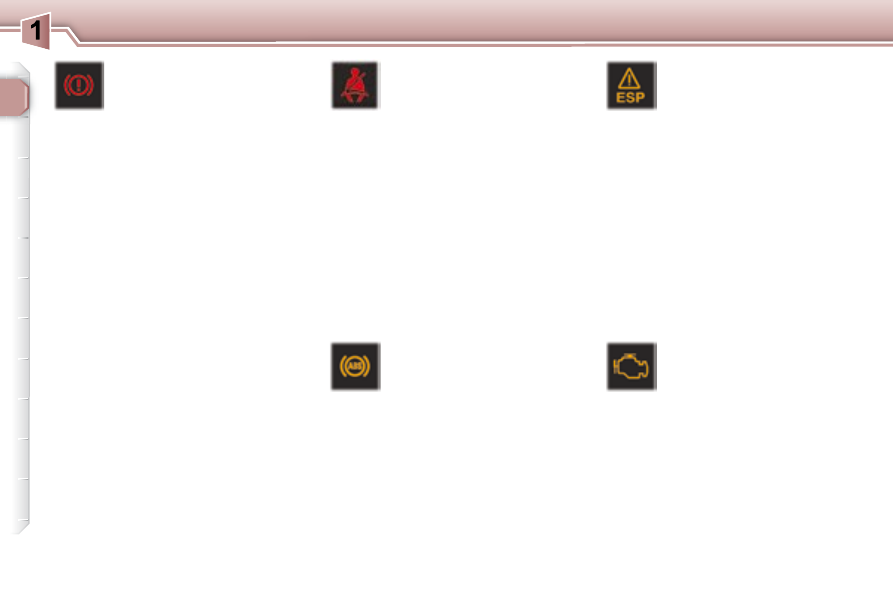

Electronic stability
programme (ESP/ASR)
warning light
This comes on for a few

seconds each time the igni-

tion is switched on.

If the light remains on or comes on

when the engine is running and the

vehicle is moving, it is accompanied

by an audible signal and a message

on the multifunction display; contact

a PEUGEOT dealer.
When the engine is running and the

vehicle is moving, it l ashes if the

system is activated.
It is lit continuously when the system

is disarmed.

Emission control system
warning light
This comes on each time

the ignition is switched on.

It should switch off a few seconds

after the engine is started.
If the light comes on when the en-

gine is running, accompanied by an

audible signal and a message on the

multifunction display, this indicates a

malfunction of the emission control
system.
Contact a PEUGEOT dealer as soon

as possible.

Handbrake, low brake

l uid level and electronic

brake force distribution
fault warning light
Linked to the central STOP

warning light.

This comes on for a few seconds each

time the ignition is switched on.

Illumination of this light is accompa-

nied by an audible signal and a mes-

sage on the multifunction display in-

dicating:

- that the handbrake is applied or

has not been released correctly,

- an excessive drop in the brake

l uid level (if the light remains

on even with the handbrake

released),

- a malfunction of the electronic

brake force distribution, if linked

to the ABS warning light.

Stop immediately

in the last two

cases.
Contact a PEUGEOT dealer.

Anti-lock braking system
(ABS) warning light
This light comes on for a

few seconds each time the

ignition is switched on.

If it remains on or comes on above

8 mph (12 km/h), this indicates a

malfunction of the ABS.
However, the vehicle retains conven-

tional servo-assisted braking.

Illumination of this light is accompa-

nied by an audible signal and a mes-

sage on the multifunction display.
Contact a PEUGEOT dealer.

Seat belt unfastened/not
fastened warning light
When

the

ignition

switched on, the light

comes on if the driver has

not fastened his seat belt.
With the engine running and the

doors closed, the light switches off

automatically after 30 seconds.
If the seat belt is unfastened:

- below 12 mph (20 km/h), the light

comes on constantly,

- above 12 mph (20 km/h) and for

two minutes, the light l ashes

accompanied by an audible signal

of increasing volume. Once these

two minutes have elapsed, the

light remains on until the driver
fastens his seat belt.

INSTRUMENTS, CONTROLS and DISPLAYS

  Battery charge warning
light *
This  comes  on  for  a  few

seconds each time the

ignition is switched on.

If it comes on with the engine running,

it is accompanied by an audible signal

and a message on the multifunction

display.

According to country, this warning

light may be replaced by the service

warning light.

It can indicate:

- faulty operation of the charging

circuit,

- loose battery or starter terminals,

- a cut or slack alternator belt,

- an alternator fault.
Contact a PEUGEOT dealer.

Low fuel level
warning light
This comes on for a

few seconds each

time the ignition is

switched on.

When this light comes on with the

engine running, it is accompanied by

an audible signal and a message on

the multifunction display.

When the warning light comes on,

you have enough fuel left to drive

approximately 30 miles (50 km) .

The tank capacity is approximately

60 litres.

Diesel pre-heat light
This comes on for a few

seconds each time the

ignition is switched on.

Wait until it goes out before trying the
starter.

  Engine oil pressure
warning light  *
Linked to the central  STOP

warning light.

If it comes on with the engine running,

it is accompanied by an audible signal

and a message on the multifunction

display.
Stop immediately.
If there is a lack of oil in the lubrication

circuit, top up the level.

Contact a PEUGEOT dealer without

delay.

Engine oil pressure warning *
Linked to the central STOP

warning

light.
When the engine is running, the

engine oil pressure warning message

is accompanied by an audible

signal.
Stop immediately .
If there is a lack of oil in the lubrication

circuit, top up the level.
Contact a PEUGEOT dealer as soon

as possible.

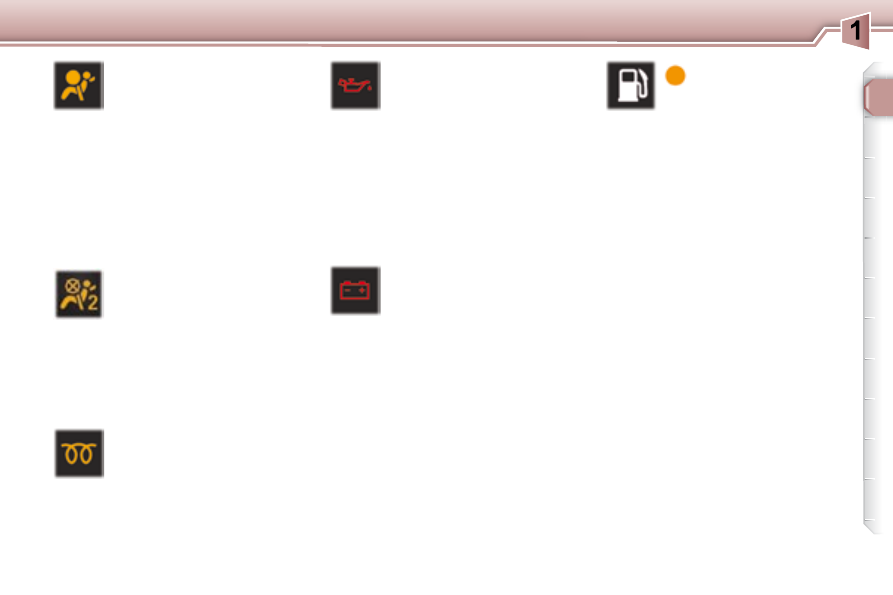

Air bag warning light
This comes on for a few

seconds each time the igni-

tion is switched on.

Illumination of this warning light, with

the engine running, is accompanied

by an audible signal and a message

on the multifunction display indicat-

ing:

- a fault in the front air bags,
or
- a fault in the side air bags or

curtain air bags.

Contact a PEUGEOT dealer.

  Passenger air bag
disarmed indicator light *
This  comes  on  for  a  few

seconds each time the igni-

tion is switched on.

If the passenger air bag is disarmed,

the indicator light remains on.
In all cases, if the indicator light l ash-

es, contact a PEUGEOT dealer.

* According to country.

INSTRUMENTS, CONTROLS and DISPLAYS

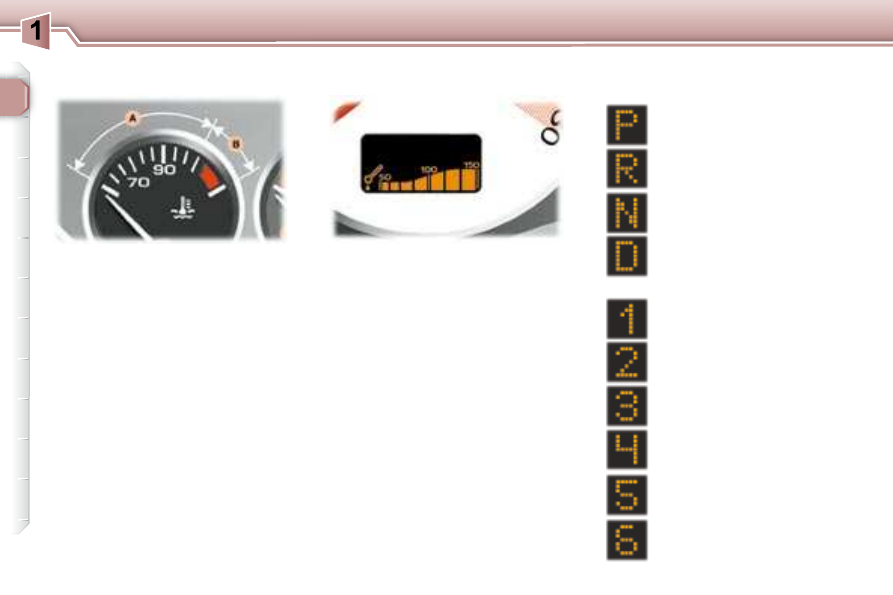

When the needle is in zone A , the

temperature is correct.
When the needle is in zone B ,

the temperature is too high. The

central STOP

warning light l ashes,

accompanied by an audible signal

and a message on the multifunction

display.
You must stop immediately.
Warning:

wait for the engine to cool

before topping up the level.

The cooling system is pressurised.
In order to avoid any risk of scalding,

unscrew the cap two turns to allow

the pressure to drop.

When the pressure has dropped,

remove the cap and top up the level.
Contact a PEUGEOT dealer.

Coolant temperature indicator

When the engine is running, this

indicates the temperature of the oil.

The temperature is too high if the

maximum graduation is reached.
You must stop immediately.
Contact a PEUGEOT dealer.

Park

Automatic gearbox lever
positions indicator

Reverse

Neutral

Drive

Manual mode:

1st gear engaged

2nd gear engaged

3rd gear engaged

4th gear engaged

Engine oil temperature
indicator

5th gear *** engaged

6th gear *** engaged

*** According to model.

INSTRUMENTS, CONTROLS and DISPLAYS

In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear

engaged is displayed.

This comes on when the

"SPORT"

programme on

the automatic gearbox is

selected.

This comes on when the

"SNOW"

programme

the automatic gearbox is

selected.

Automatic gearbox indicator
lights

"SNOW" indicator light

This is displayed if a gear

is not engaged correctly

(selector between two posi-

tions).

"SPORT" indicator light

Invalid value during manual
operation

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder (total and

trip distances).

Note

: the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on locking

and unlocking the vehicle.
It also displays the information relat-

ing to the cruise control or speed lim-

iter, when either of these is activated

(see corresponding section).

Service indicator

This indicates when the next service

is due in accordance with the manu-

facturer’s servicing schedule.
The point at which the next service

is due is calculated from the last indi-

cator zero reset (see corresponding

section). It is determined by two pa-

rameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user’s driving habits.

Operation
For 5 seconds after the ignition is

switched on, the spanner symbolis-

ing the servicing operations comes

on; the distance recorder display in-

dicates the number of miles [kilome-

tres] (rounded off) remaining until the

next service.
Example: 4,800 miles/km remain

before the next service. For i ve sec-

onds after the ignition is switched on,

the display indicates:

INSTRUMENT PANEL
DISPLAY

INSTRUMENTS, CONTROLS and DISPLAYS

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the display indicates the total and trip

distance.

Your PEUGEOT dealer carries out

this operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:


Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.

When the display shows "=0" ,

release the button; the spanner

disappears.
Important:

after this operation, if you

wish to disconnect the battery, lock

the vehicle and wait for at least i ve

minutes, otherwise the zero re-set

will not be registered.

The service is overdue.
The spanner l ashes for 5 seconds

after the ignition is switched on.
Example: the service is overdue by
300 miles/km, your vehicle must be

serviced as soon as possible.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit. The display

indicates the total and trip distance.
Note:

the spanner may also come on

if more than two years have elapsed

since the last service.

The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example: 400 miles (900 km) remain

before the next service.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit .
It indicates that a service must

be carried out soon. The display

indicates the total and trip distance.

Service indicator zero re-set

INSTRUMENTS, CONTROLS and DISPLAYS

With the lights on, press the button

to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or

maximum) setting, release the button

then press it again to increase (or re-

duce) the brightness.
As soon as the lighting is of the re-

quired brightness, release the but-

ton.

With the ignition on, press the button

until the zeros appear.
Pressing the button enables you to

alternate between the distance re-

corder and cruise control or speed

limiter displays, when either of these

is activated.

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated for a few

seconds, after the service informa-

tion.

Oil level correct

Oil level gauge fault

Flashing of "OIL --"

indicates a malfunc-

tion of the engine oil
level gauge.
Contact

PEUGEOT dealer.

  The level read will only be correct
if  the  vehicle  is  on  level  ground
and  the  engine  has  been  off  for
more than 15 minutes.

Flashing of "OIL" ,

linked with the ser-

vice warning light,

accompanied by

an audible signal
and a message on

the multifunction display, indicates a

lack of oil which could damage the

engine.
If the lack of oil is coni rmed by a

check using the dipstick, it is essential

that the level is topped up.

Lack of oil

Dipstick

There are 2 marks on the

dipstick:

- never exceed level A,

- in position B, top up

the level via the oil i ller

cap, using the type of oil

suited to your engine.

= max.

B = min.

Trip recorder zero reset
button

Lighting rheostat

INSTRUMENTS, CONTROLS and DISPLAYS

In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear

engaged is displayed.

This comes on when the

"SPORT"

programme on

the automatic gearbox is

selected.

This comes on when the

"SNOW"

programme

the automatic gearbox is

selected.

Automatic gearbox indicator
lights

"SNOW" indicator light

This is displayed if a gear

is not engaged correctly

(selector between two posi-

tions).

"SPORT" indicator light

Invalid value during manual
operation

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder (total and

trip distances).

Note

: the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on locking

and unlocking the vehicle.
It also displays the information relat-

ing to the cruise control or speed lim-

iter, when either of these is activated

(see corresponding section).

Service indicator

This indicates when the next service

is due in accordance with the manu-

facturer’s servicing schedule.
The point at which the next service

is due is calculated from the last indi-

cator zero reset (see corresponding

section). It is determined by two pa-

rameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user’s driving habits.

Operation
For 5 seconds after the ignition is

switched on, the spanner symbolis-

ing the servicing operations comes

on; the distance recorder display in-

dicates the number of miles [kilome-

tres] (rounded off) remaining until the

next service.
Example: 4,800 miles/km remain

before the next service. For i ve sec-

onds after the ignition is switched on,

the display indicates:

INSTRUMENT PANEL
DISPLAY

INSTRUMENTS, CONTROLS and DISPLAYS

In the event of under-revving or over-

revving, the gear selected l ashes for

a few seconds, then the actual gear

engaged is displayed.

This comes on when the

"SPORT"

programme on

the automatic gearbox is

selected.

This comes on when the

"SNOW"

programme

the automatic gearbox is

selected.

Automatic gearbox indicator
lights

"SNOW" indicator light

This is displayed if a gear

is not engaged correctly

(selector between two posi-

tions).

"SPORT" indicator light

Invalid value during manual
operation

After switching on the ignition, three

functions are shown in succession:

- service indicator,

- engine oil level indicator,

- total distance recorder (total and

trip distances).

Note

: the total and trip distances are

displayed for 30 seconds when the

ignition is switched off, on opening

the driver’s door, as well as on locking

and unlocking the vehicle.
It also displays the information relat-

ing to the cruise control or speed lim-

iter, when either of these is activated

(see corresponding section).

Service indicator

This indicates when the next service

is due in accordance with the manu-

facturer’s servicing schedule.
The point at which the next service

is due is calculated from the last indi-

cator zero reset (see corresponding

section). It is determined by two pa-

rameters:

- the distance travelled,

- the time which has elapsed since

the last service.

Note: the distance remaining before

the next service may be weighted

by the time factor, depending on the

user’s driving habits.

Operation
For 5 seconds after the ignition is

switched on, the spanner symbolis-

ing the servicing operations comes

on; the distance recorder display in-

dicates the number of miles [kilome-

tres] (rounded off) remaining until the

next service.
Example: 4,800 miles/km remain

before the next service. For i ve sec-

onds after the ignition is switched on,

the display indicates:

INSTRUMENT PANEL
DISPLAY

INSTRUMENTS, CONTROLS and DISPLAYS

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the display indicates the total and trip

distance.

Your PEUGEOT dealer carries out

this operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:


Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.

When the display shows "=0" ,

release the button; the spanner

disappears.
Important:

after this operation, if you

wish to disconnect the battery, lock

the vehicle and wait for at least i ve

minutes, otherwise the zero re-set

will not be registered.

The service is overdue.
The spanner l ashes for 5 seconds

after the ignition is switched on.
Example: the service is overdue by
300 miles/km, your vehicle must be

serviced as soon as possible.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit. The display

indicates the total and trip distance.
Note:

the spanner may also come on

if more than two years have elapsed

since the last service.

The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example: 400 miles (900 km) remain

before the next service.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit .
It indicates that a service must

be carried out soon. The display

indicates the total and trip distance.

Service indicator zero re-set

INSTRUMENTS, CONTROLS and DISPLAYS

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the display indicates the total and trip

distance.

Your PEUGEOT dealer carries out

this operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as

follows:


Switch off the ignition,



Press and hold the trip recorder

re-set button,



Switch on the ignition.

The display begins a countdown.

When the display shows "=0" ,

release the button; the spanner

disappears.
Important:

after this operation, if you

wish to disconnect the battery, lock

the vehicle and wait for at least i ve

minutes, otherwise the zero re-set

will not be registered.

The service is overdue.
The spanner l ashes for 5 seconds

after the ignition is switched on.
Example: the service is overdue by
300 miles/km, your vehicle must be

serviced as soon as possible.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit. The display

indicates the total and trip distance.
Note:

the spanner may also come on

if more than two years have elapsed

since the last service.

The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example: 400 miles (900 km) remain

before the next service.
For 5 seconds after the ignition is

switched on, the display indicates:

5 seconds after the ignition was

switched on, the distance recorder

resumes its normal operation and

the spanner remains lit .
It indicates that a service must

be carried out soon. The display

indicates the total and trip distance.

Service indicator zero re-set

INSTRUMENTS, CONTROLS and DISPLAYS

With the lights on, press the button

to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or

maximum) setting, release the button

then press it again to increase (or re-

duce) the brightness.
As soon as the lighting is of the re-

quired brightness, release the but-

ton.

With the ignition on, press the button

until the zeros appear.
Pressing the button enables you to

alternate between the distance re-

corder and cruise control or speed

limiter displays, when either of these

is activated.

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated for a few

seconds, after the service informa-

tion.

Oil level correct

Oil level gauge fault

Flashing of "OIL --"

indicates a malfunc-

tion of the engine oil
level gauge.
Contact

PEUGEOT dealer.

  The level read will only be correct
if  the  vehicle  is  on  level  ground
and  the  engine  has  been  off  for
more than 15 minutes.

Flashing of "OIL" ,

linked with the ser-

vice warning light,

accompanied by

an audible signal
and a message on

the multifunction display, indicates a

lack of oil which could damage the

engine.
If the lack of oil is coni rmed by a

check using the dipstick, it is essential

that the level is topped up.

Lack of oil

Dipstick

There are 2 marks on the

dipstick:

- never exceed level A,

- in position B, top up

the level via the oil i ller

cap, using the type of oil

suited to your engine.

= max.

B = min.

Trip recorder zero reset
button

Lighting rheostat

INSTRUMENTS, CONTROLS and DISPLAYS

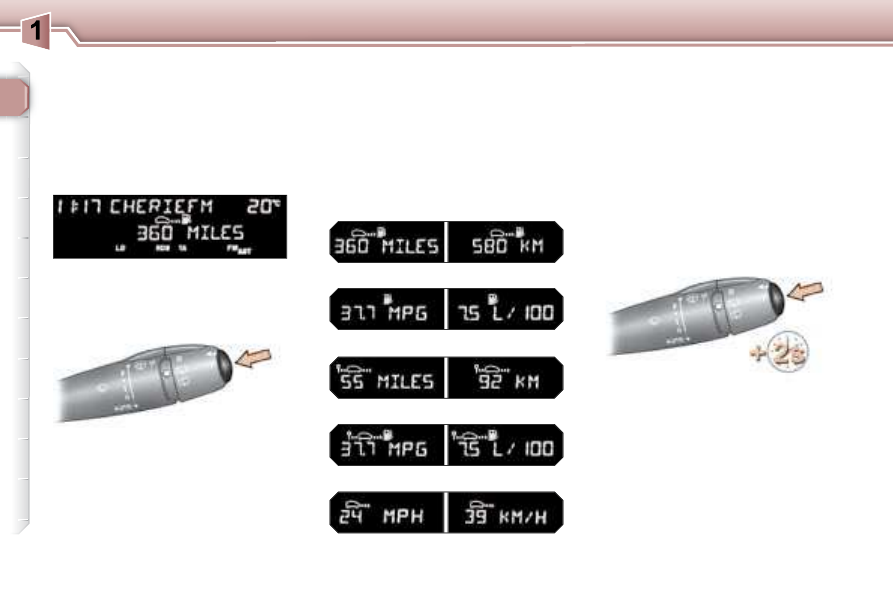

TRIP COMPUTER

 Press the button, located at the

end of the wipers stalk

, to dis-

play the various items of trip com-

puter data in succession.

The trip computer data is the

following:

System which provides current infor-

mation concerning the route travelled

(range, consumption, ...).

 Press the control for more than

two seconds to reset the distance

travelled, the average consump-

tion and the average speed to

zero.

Monochrome display A

Zero reset

Data displays

- the range,

- the current consumption,

- the distance travelled,

- the average consumption,

- the average speed.



The next press then returns you

to the normal display.

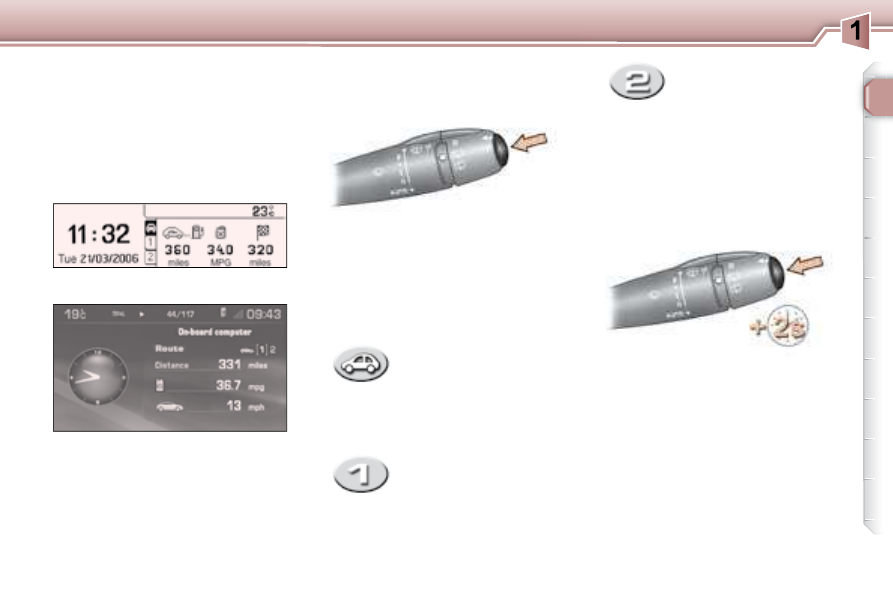

INSTRUMENTS, CONTROLS and DISPLAYS

the current information

tab with:
• the range,
• the current

consumption,

• the distance

remaining to be
travelled,

Colour display

Route zero reset

Monochrome display C

 Press the button, located at the

end of the wipers stalk

, to display

the various trip computer tabs in

succession:

Data displays

the route "1" tab

with:
• the distance

travelled,

• the average

consumption,

•

the average speed,

for the i rst route.

- the route "2" tab with:

• the distance

travelled,

• the average

consumption,

•

the average speed,

for the second
route.

TRIP COMPUTER

System which provides current infor-

mation concerning the route travelled

(range, consumption, …).



When the route required is dis-

played, press the control for more

than two seconds.

Routes "1" and "2"

are independent

but their use is identical.
Route "1"

permits, for example, daily

calculations, and route "2" monthly
calculations.

INSTRUMENTS, CONTROLS and DISPLAYS

Distance remaining to be
travelled
(km or miles)
This is the distance remaining

to be travelled to the i nal destination.

It is either calculated instantly by the
navigation system if guidance is
activated, or entered by the user.
If the distance is not entered, dashes

are displayed in place of the digits.

Average speed
(km/h or mph)

This is the average speed

calculated since the last

trip computer zero reset

(ignition on).

Range
(km or miles)
This indicates the number
of miles (or kilometres)

which can still be travelled with the

fuel remaining in the tank in relation

to the average consumption over the

last few miles (kilometres) travelled.

Current consumption
(l/100 km or km/l or mpg)

This is the average quantity

of fuel consumed over the

last few seconds.

Average consumption
(l/100 km or km/l or mpg)

This is the average quantity

of fuel consumed since the

last trip computer zero reset.

Distance travelled
(km or miles)
This indicates the distance

travelled since the last trip

computer zero reset.

A few definitions…

When the range falls below 20 miles

(30 km), dashes are displayed. After

i lling with at least 5 litres of fuel, the

range is recalculated and is displayed

when it exceeds 60 miles (100 km).

If dashes are displayed

continuously while driving in

place of the digits, contact a

PEUGEOT dealer.

This function is only displayed

from 20 mph (30 km/h).

This i gure may increase

following a change of driving

style or relief, resulting in

a signii cant change in the

current consumption.

Content .. 1 2 3 ..
